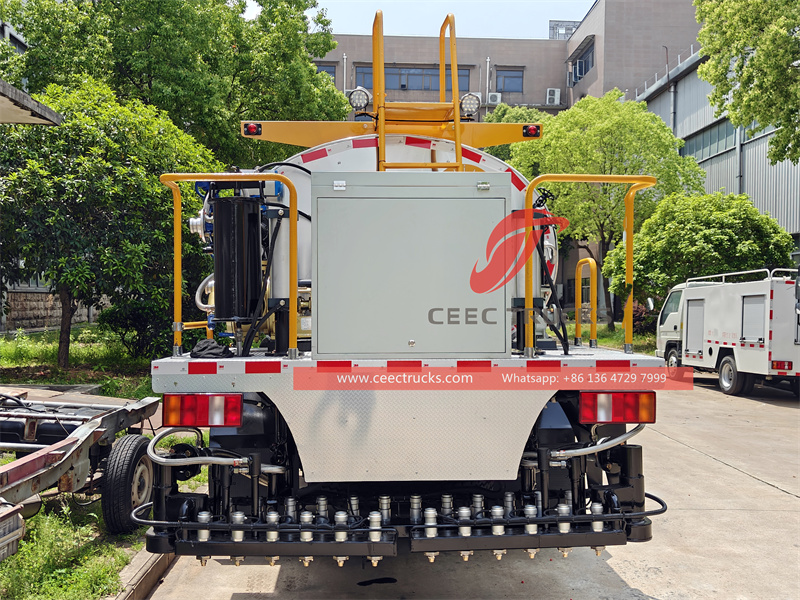

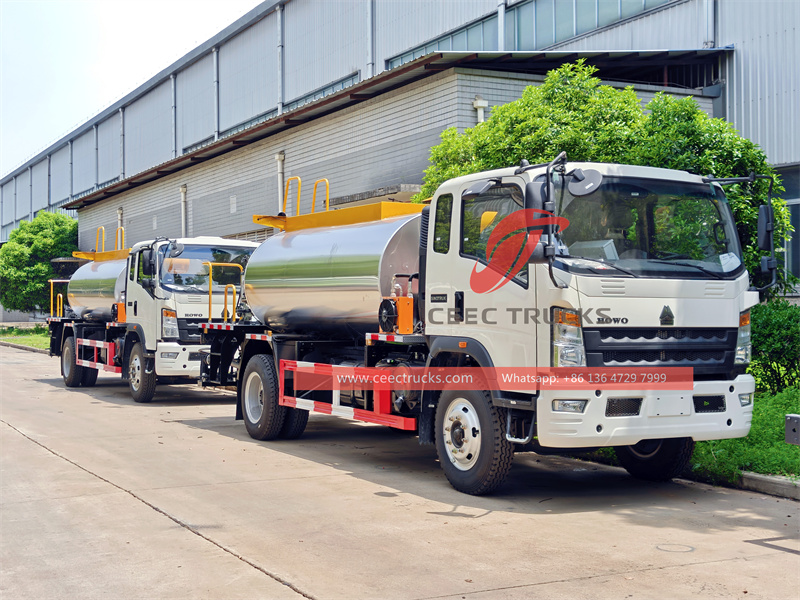

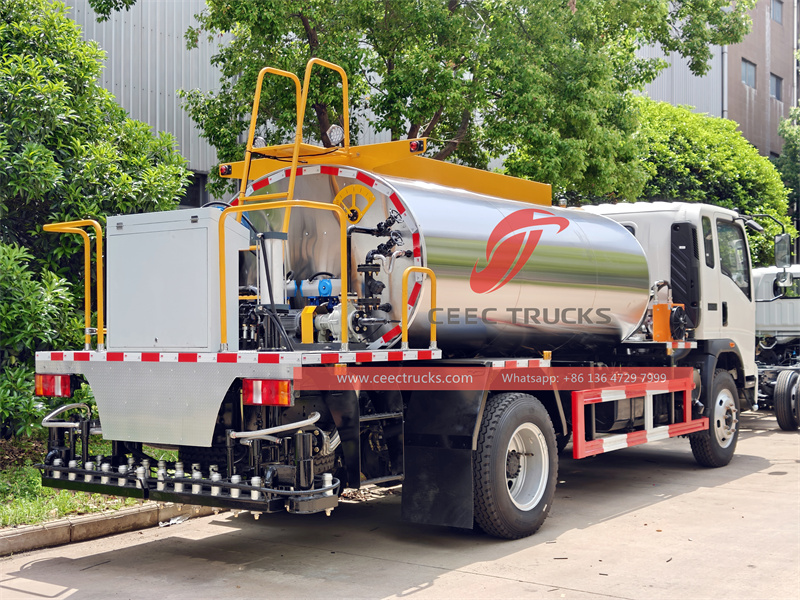

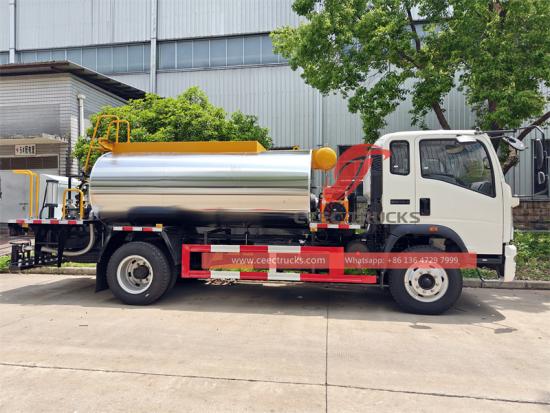

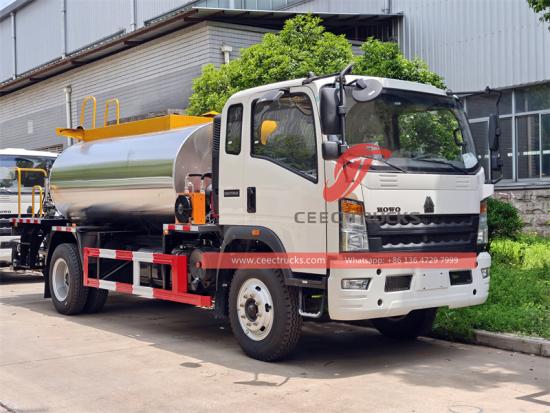

The 3000L asphalt distributor truck, built on the Howo light-duty chassis, is specially designed for large-scale pavement projects such as highway construction, municipal road maintenance, airport runways and parking lots. It is equipped with 116 horsepower and a six-speed gearbox, which is easy to operate and has strong trafficability. The independent auxiliary engine system combines efficient operating performance, intelligent spraying technology and high reliability design, making it the preferred equipment for modern asphalt construction.
Lead Time:
80 DaysWork capacity:
3000LEngine power:
116HP/85kwEngine type:
YN4102QBZLAxle drive:
4×2,LHDGear box:
WLY 6 speed,manualRemarks:
3000L tank capacityThe 3000L asphalt distributor truck, built on the Howo light-duty chassis, is specially designed for large-scale pavement projects such as highway construction, municipal road maintenance, airport runways and parking lots. It is equipped with 116 horsepower and a six-speed gearbox, which is easy to operate and has strong trafficability. The independent auxiliary engine system combines efficient operating performance, intelligent spraying technology and high reliability design, making it the preferred equipment for modern asphalt construction.
● China best Asphalt Distributor Truck factory
● Professional sales team which will help you to choose suitable truck.
● Build strict QC team to guarantee the quality
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Specification:
|

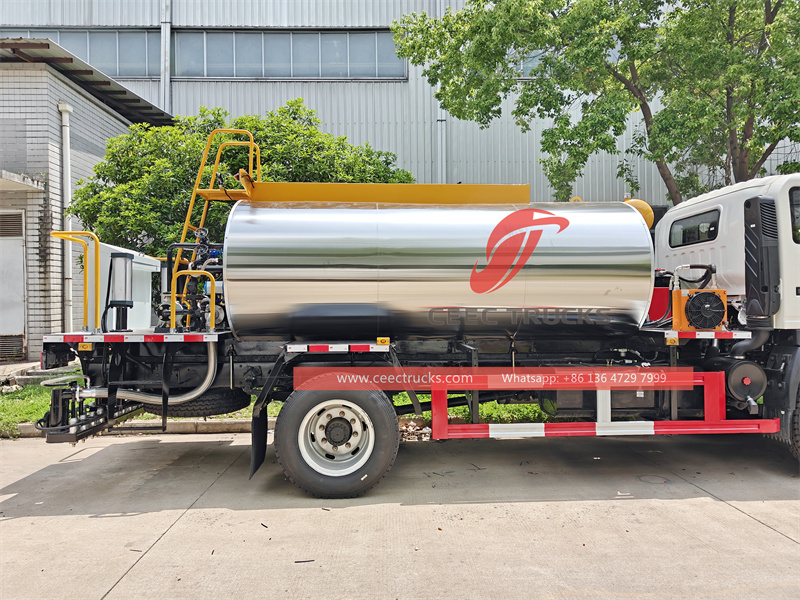

HOWO 4X2 asphalt spreading trucks specifications |
||
|
Truck Model |
CEEC51103LQS |
|
|
Truck Brand |
SINOTRUK HOWO |
|
|
|
Carriage Internal Dimensions(mm) |
4300x2350x800 |
|
Steel thickness of Carriage(mm) |
Floor:3mm;Side:1.5mm |
|
|
Weight in kg |
Kerb weight (Kg) |
4790 |
|
Gross vehicle weight (Kg) |
11000 |
|
|
Dimension(mm) |
Length(mm) |
6300 |
|
Width(mm) |
2450 |
|
|
Height(mm) |
2850 |
|
|
Wheel base (mm) |
3800 |
|
|
Performance |
Maximum driving speed (km/h) |
95 |
|
Fuel consumption (1/100 km) |
30 |
|
|
Cab |
Model |
Howo 1760 single cab,with A/C |
|
single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner |
||
|
Engine |
Model |
YN4102QBZL |
|
Type |
4-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
|
|
Horsepower |
116 |
|
|
Maximum output Kw/r/min |
88/2500 |
|
|
Maximum torque N.m/r/min |
1260/1100-1300 |
|
|
Bore x Stroke |
126x130mm |
|
|
Valve |
4 |
|
|
Displacement |
3.76L |
|
|
Make SINOTRUCK (CNHTC), Euro 3 emission standard, Thermostat with 71ºC opening begin, Rigid fan |
||
|
Transmission |
SINOTRUK WLY6TS55C transmission ,6 forward and 1 reverse |
|
|
Clutch |
SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
|
|
Steering |
ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving) |
|
|
Front Axle |
SINOTRUK STR steering drive Front Axle with drum brakes. |
|
|
Rear Axles |
ST16*2 Double Reduction Drive Axle, Pressed axle housing, central single reduction with planetary wheel reduction and with differential locks between wheels and axles,ratio:5.73; |
|
|
Brake System |
Service brake:dual circuit compressed air brake |
|
|
Wheels & Tyres |
7.50R16 radial tyre with 1 Spare tire. |
|
|
Electrics |
Operating voltage:24V,negative grounded |
|
|
Oil Tank |
Square type-100L fuel tank |
|
|

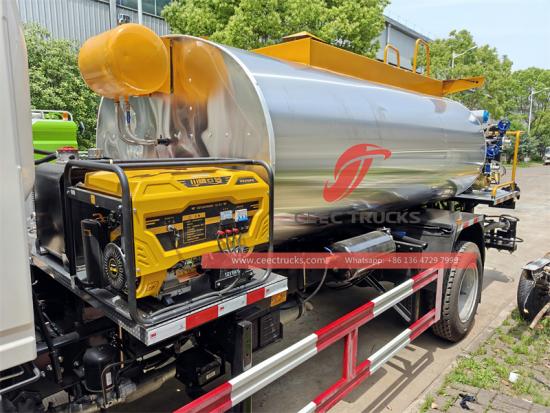

Auxiliary Engine |
4TE35A-39A |
|
|
Auxiliary Engine Power |
26 ( 35) kW(hp) |
|
|

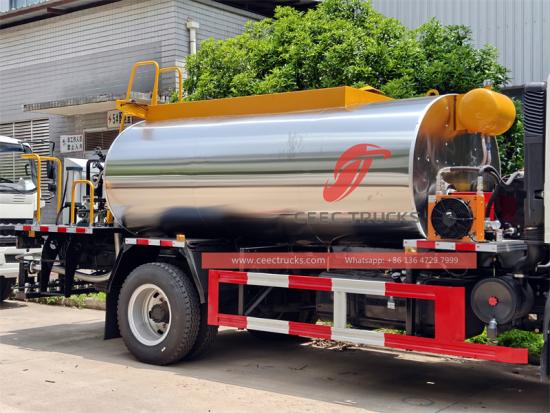

Asphalt tank |
Asphalt tank capacity :3000L, safe and stable, fast heating speed |
|
|
It has washboard in the tank ,which can protect from hidden danger. |
||
|
Asbestos insulation layer with thickness of 80mm preserves heat of heated asphalt. Good anticorrosion and durable insulation layer maintain temperature drop by no more than 12ºC /8h |
||
|
Stainless steel frosted board out of the insulation layer is elegant and easy to clean. |
||
|

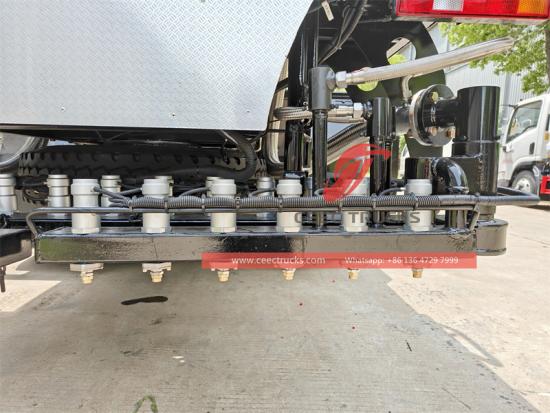

Spray width |
4500 mm |
|
|
Spray precision |
1.5% |
|
|
Spray media |
modified asphalt ,hot asphalt, emulsified asphalt &etc |
|
|
Asphalt heating |
Imported diesel oil |
|
|
Asphalt heating |
12ºC/h |
|
Advantage:
1. Efficient power and strong load Low-speed high-torque engine
The Howo Road Paving Machine is equipped with a YN4102QBZL turbocharged intercooled diesel engine (116 horsepower/88kW), with a maximum torque of 1260N·m@1100-1300r/min. It can burst out strong power at low speed, adapting to complex working conditions such as heavy-load climbing and frequent start-stop on construction sites, and has better fuel economy.
WLY6TS55C six-speed gearbox + Φ430 hydraulic clutch, smooth shifting, wear resistance, and reduced power loss. The ST16 two-stage reduction rear axle (speed ratio 5.73) is combined with a differential lock design to enhance traction and escape ability on complex roads such as muddy and ramps.
2. Precision Spraying and Operation Efficiency

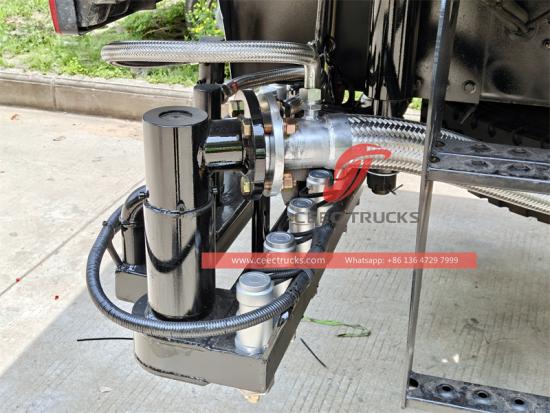

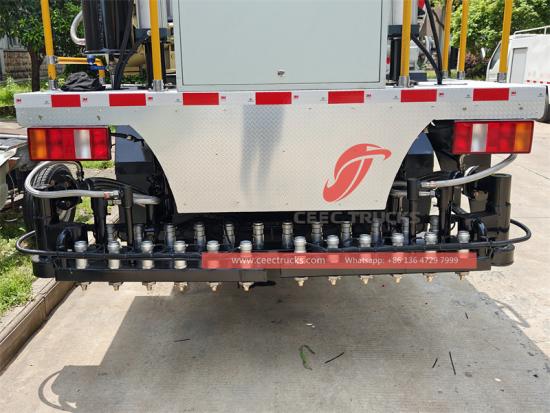

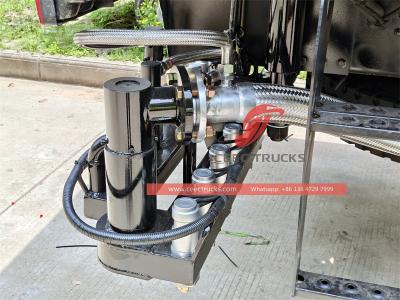

Intelligent Spraying System: The Howo asphalt spreading truck has a spraying width of 4500mm and an error accuracy of ≤1.5%. It can accurately control the asphalt flow and coverage uniformity to ensure that the construction quality meets the standards of high-grade roads (such as highways and airport runways). It is suitable for a variety of materials such as hot asphalt, modified asphalt, and emulsified asphalt to meet the needs of different construction scenarios.

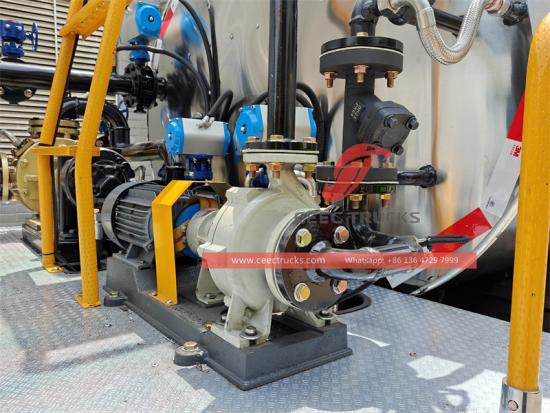

Independent Power Drive: The Howo asphalt paver spraying machine truck is equipped with a 4TE35A-39A auxiliary engine (26kW), which is specially designed to provide power for the hydraulic system and spraying device, realize the separation of the main vehicle driving and spraying operation, avoid overloading of the main engine, and improve continuous operation efficiency.
3. Long-term insulation and energy-saving design

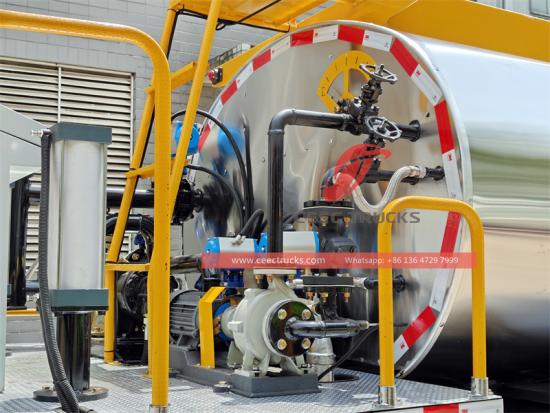

Double-layer insulation tank technology: The 3000L asphalt tank adopts 80mm thick asbestos insulation layer + stainless steel frosted outer plate, and the temperature drop within 8 hours is ≤12℃, which greatly reduces the number of repeated heating of asphalt and reduces fuel consumption. The built-in wave-breaking plate design prevents asphalt from shaking and splashing during transportation, improving safety.
Rapid heating system: The Howo bitumen sprayer truck imported diesel burner has a heating efficiency of 12℃/hour, which shortens the construction preparation time and is especially suitable for low-temperature environment operations.
★ Howo brand WLY 6-shift manual gearbox, 6 forward & 1 reverse
★ Expert for producing Howo asphalt distributor trucks over 10 years with good reputation
★ Carbon steel material
★ 12 months free fast moving spare parts
★ All English version and owner's manual, for easy understanding
★ Training service for Isuzu asphalt distributor trucks
CEEC TRUCKS is the best supplier of Isuzu Asphalt Distributor trucks in China. Our Isuzu 6*4 tip-trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
