The HOWO 6CBM skip loader refuse truck is a specialized vehicle widely used in urban sanitation and waste transfer. Its most notable feature is its hydraulic swing arm mechanism, enabling convenient and efficient loading, unloading, and dumping of waste bins.

The HOWO skip loader refuse truck utilizes a detachable waste bin design, enabling the recycling of multiple bins per truck, significantly improving transportation efficiency. Its simple structure and flexible operation make it suitable for collecting and transferring domestic waste in urban and rural areas, communities, and residential areas, offering advantages such as efficiency, cost-effectiveness, and practicality.

● China best skip loader refuse truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

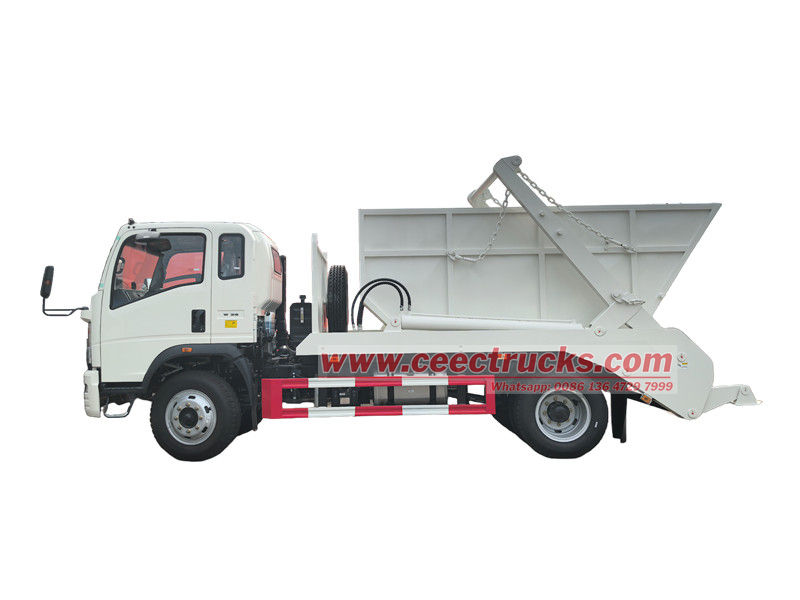

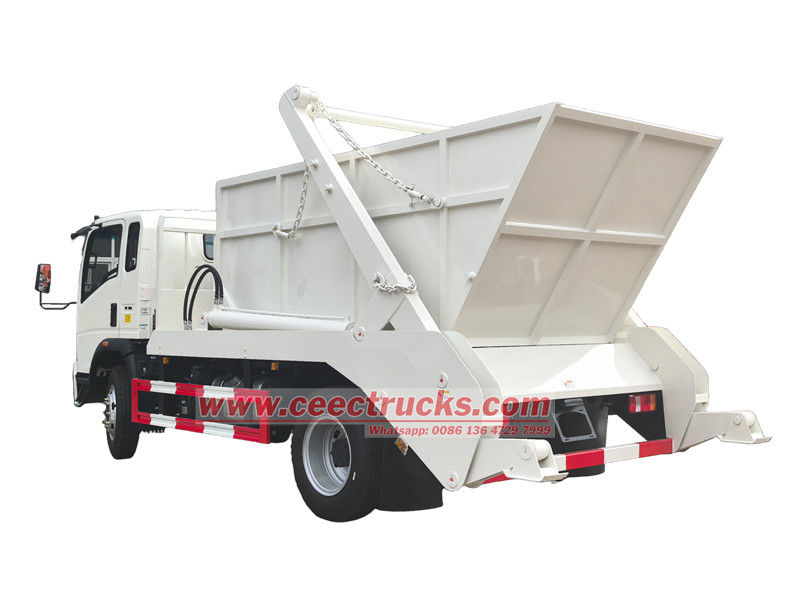

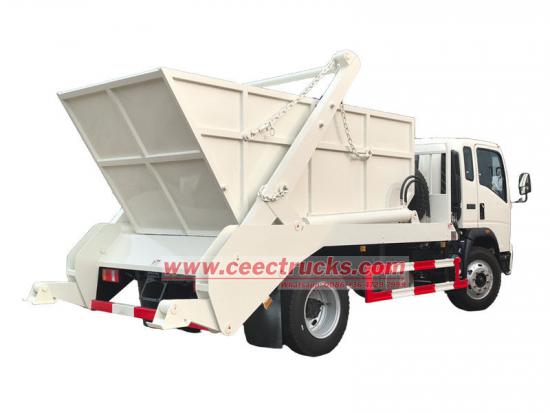

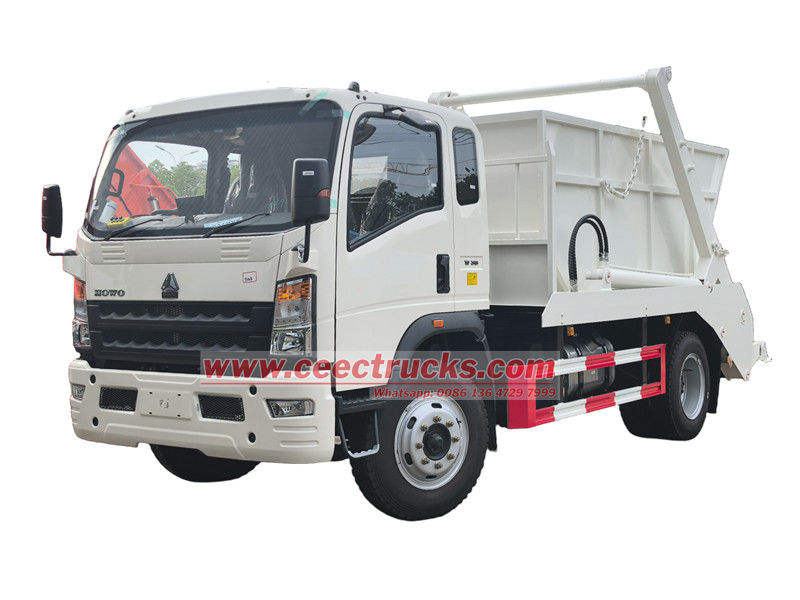

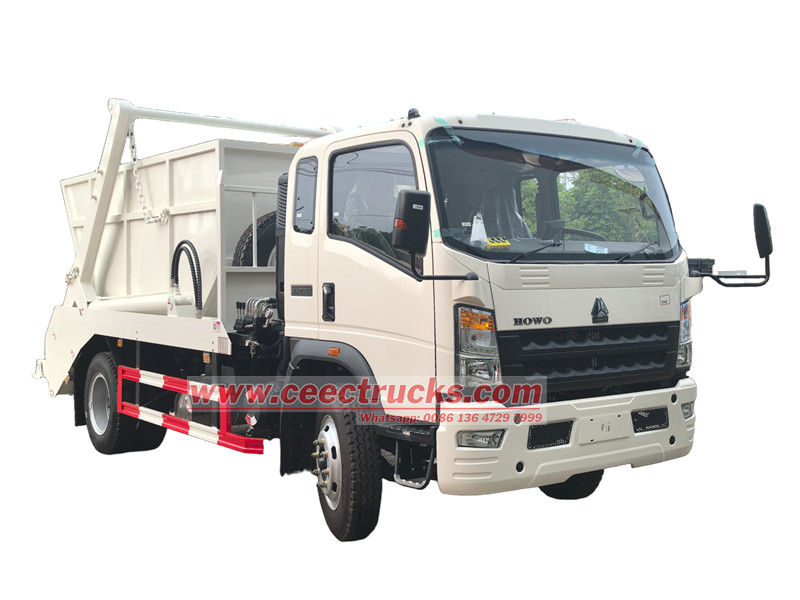

*HOWO 6cbm skip loader refuse truck

   HOWO swing arm garbage truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Low fuel consumption and economy: Cummins 154HP engine + WLY6TS55 6-speed gearbox, excellent fuel economy.

2. Safe and reliable: the hydraulic system is equipped with a safety valve to prevent overload and ensure operation safety.

The HOWO 6cbm skip loader refuse truck is also called a HOWO swing arm garbage truck, Howo 6-wheel waste collection truck, Howo skip bin loader, or Howo swing arm garbage collection truck.

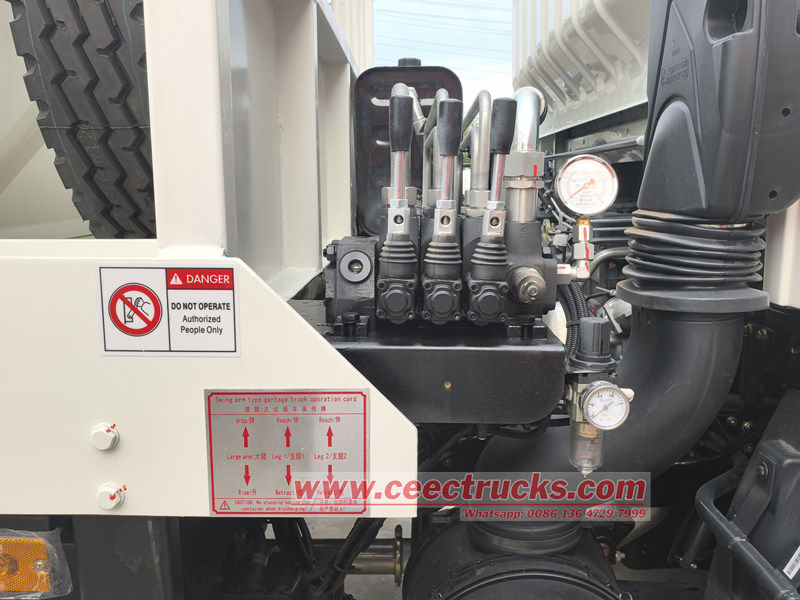

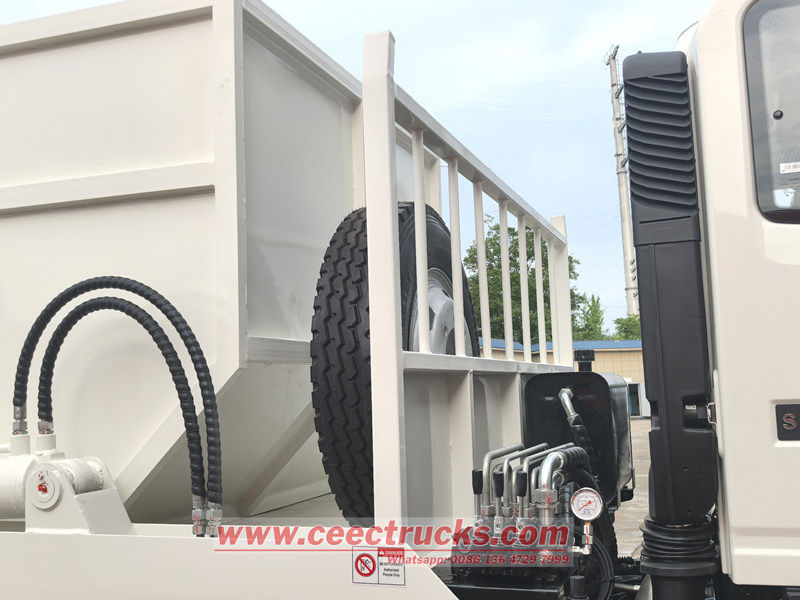

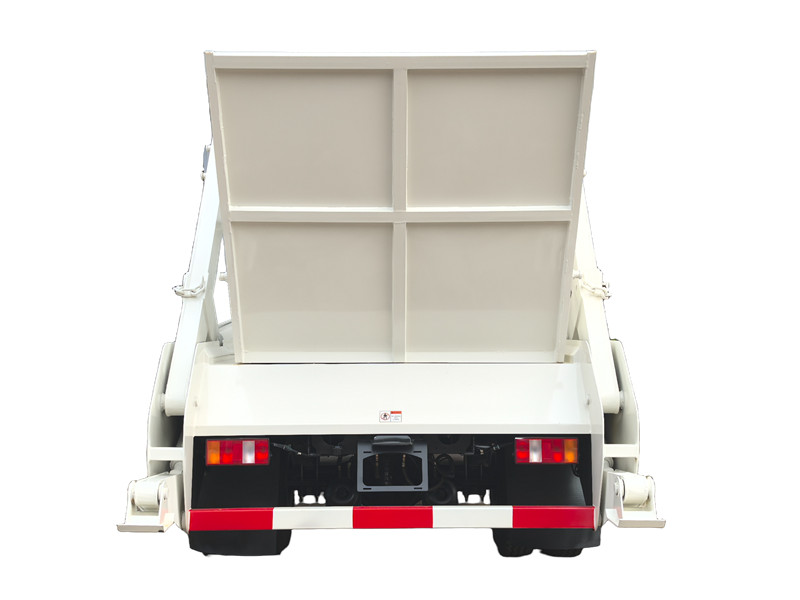

This truck consists of a HOWO chassis, boom, boom cylinder, lifting chain, support legs, outrigger cylinders, baseplate, and a multi-way reversing valve.

The boom is connected to the baseplate, and the boom cylinder's movable end is attached to the boom, while the fixed end is connected to the baseplate. Extending and retracting the boom cylinder rotates the boom about its hinge point, enabling the loading and unloading of garbage bins.

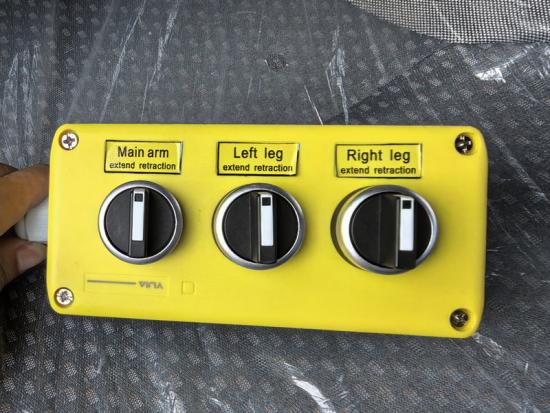

Extending and retracting the outrigger cylinders extends and retracts the support legs, stabilizing the truck.

The HOWO 6CBM skip loader refuse truck features easy operation and high efficiency. Equipped with a hydraulic swing arm, it quickly lifts and unloads trash containers, enabling the reuse of multiple containers per truck and significantly improving transportation efficiency.

The vehicle maneuverability makes it suitable for diverse applications, including urban roads, communities, and factories. Its excellent sealing prevents waste spillage and odors during transportation, minimizing secondary pollution. The vehicle's sturdy and durable structure ensures low maintenance costs and is economical and practical.

» Ⅱ.Product Parameter for HOWO 6cbm skip loader refuse truck：





HOWO 6cbm skip loader refuse truck
General	Chassis Brand	HOWO
	Wheelbase	4500mm
	Overall Dimension	7600x2400x3050 (mm)
	GVW	9000 (kg)
	Curb weight	4200 (kg)
	Garbage Bucket Capacity	6CBM
	Drive Type	4x2, RHD with power assisted steering

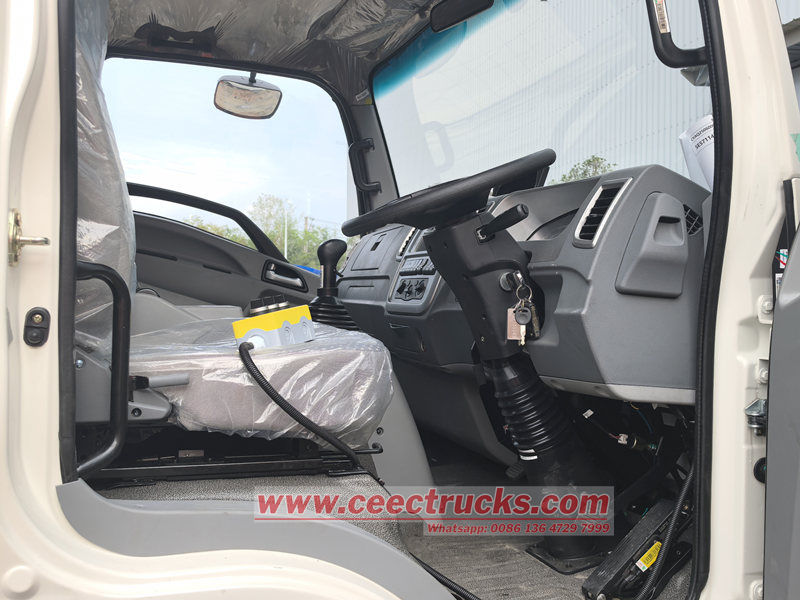

Cab	Type	One row cab, forward control type, all welded steel cab of tilt type, rear mechanical cab suspension, adjustable driver seat
	No of Seats	2 persons and a sleeper bed, with safety belts
	Air Conditional	With air conditional
	Audio System	FM/AM radio, CD/USB player
Engine	Brand	Cummins
	Model	ISF3.8S3154
	Fuel Type	Diesel Fuel
	Emission Standard	Euro 3
	Type	Water-cooled four-stroke, direct injection, turbocharged & intercooled, High pressure common rail fuel system, cold start.
	Max Output Power	154 hp
	Exhaust	3.76L
Garbage Bucket	Box volume	6CBM
	Material	High-quality carbon steel
	Body Floor	4mm
	Side Plate	3mm
Optional	** Container material could be stainless steel. ** A sealed cover for the container. ** A truck with several containers.

» Ⅲ.Product Details & Advantages:

1. Structure and Operation Principle

●The HOWO 6CBM skip loader refuse truck consists of a chassis, hydraulic system, swing arm mechanism, and trash bin. The hydraulic swing arm system enables lifting, loading, unloading, and dumping of the trash bin, offering simple operation and rapid response.

●The design of a separate trash bin enables "one truck, multiple bins" operation. This allows a single truck to be equipped with multiple bins, enabling flexible and efficient collection and transportation. This truck is particularly suitable for areas with high waste volumes and dispersed collection points.

2. Performance and Application Advantages

The HOWO 6CBM swing-arm garbage truck offers flexible operation and high maneuverability, enabling smooth operation in narrow streets, residential corridors, and complex factory environments. Its significant efficiency advantage significantly reduces manual handling effort and labor costs, shortens garbage collection and transportation time, and improves overall sanitation efficiency.



3. Durability and Economy

The HOWO 6CBM skip loader refuse truck is constructed of high-quality materials, resulting in a sturdy and durable body that can withstand long-term, high-frequency operation and boasts a long service life. Its hydraulic system offers stable performance and easy maintenance, effectively reducing ongoing maintenance costs. This vehicle not only meets the needs of frequent garbage collection and transportation but also offers economical and practical features, making it a widely adopted garbage transport tool by sanitation departments, enterprises, and institutions.



•

•

•
