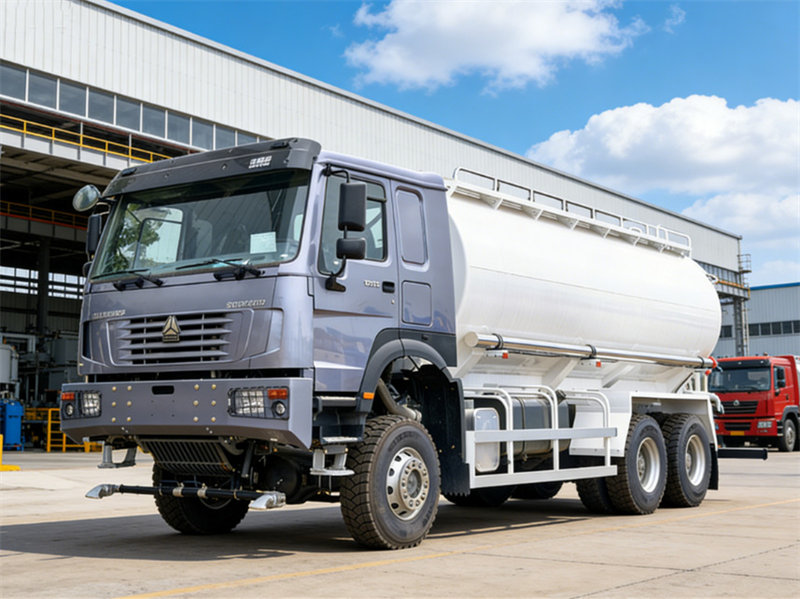

The Howo 6x6 drive mining water delivery tanker is a multi functional dust suppression and water spraying device adapted to the complex operating environment of mines. Its core function is to solve dust pollution problems during mining and transportation, while also addressing auxiliary needs such as site washing and equipment cooling.

The vehicle adopts a 6×6 all wheel drive configuration, distinguishing it from ordinary sanitation sprinkler trucks by significantly enhancing its ability to navigate complex road conditions and its stability under heavy loads. Equipped with a large 20000L tank and integrated with a complete set of water spraying devices, it can achieve multi-scenario, all-around operation, making it an indispensable heavy-duty specialized piece of equipment for mine environmental management.

Front Jetting Nozzles: Service for front water spraying to dust suppression, also two sides water jetting for road cleaning.

Side Spraying Nozzles: Sevice for watering plant and flower on two sides of road.

Rear Spraying Nozzles: Sevice for dust suppression and road cleaning.

Water Canon: Sevice for high altitude water water jetting, also available for emergency water spraying for fire extinguishing.

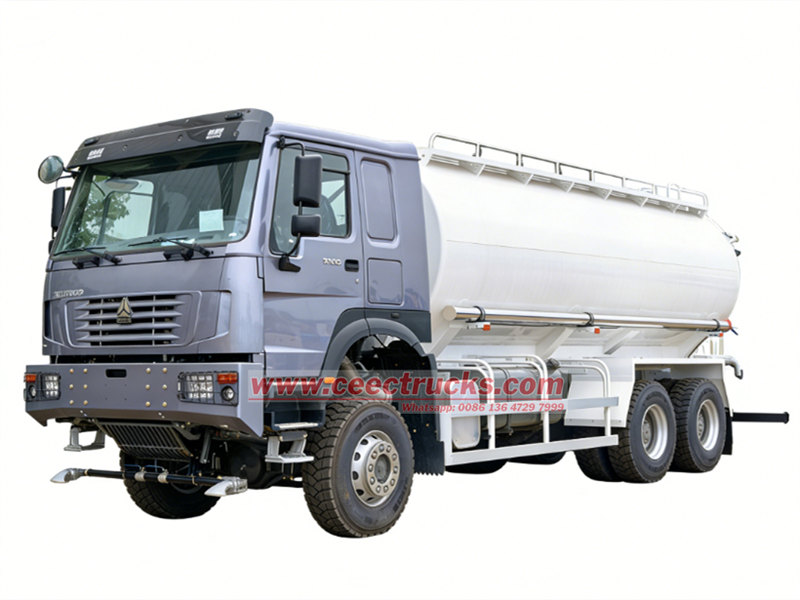

*Sinotruk HOWO 20000L Water Hauling Truck

    HOWO 6WD 400HP Mining Water Tank Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Introduction of HOWO Water Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Sinotruk HOWO 6x6 all drive mining chassis

                              WEICHAI WP12S400E201 diesel engine 400HP and emission 12L.

2. Tanker Body Kit: Full welding oval shape, Q235 carbon steel, thickness 5mm
                                 Efficiently Water Tanker Volume 20000Liters.

3. Water Pump:Top Chinese brand WEILONG 80QZB-60/90 model, efficiently flowrate 60m3/h.

4. Specialized Equipment: Multiple mounted water spraying nozzles for efficiently working, also rear platform with water canon for jetting.

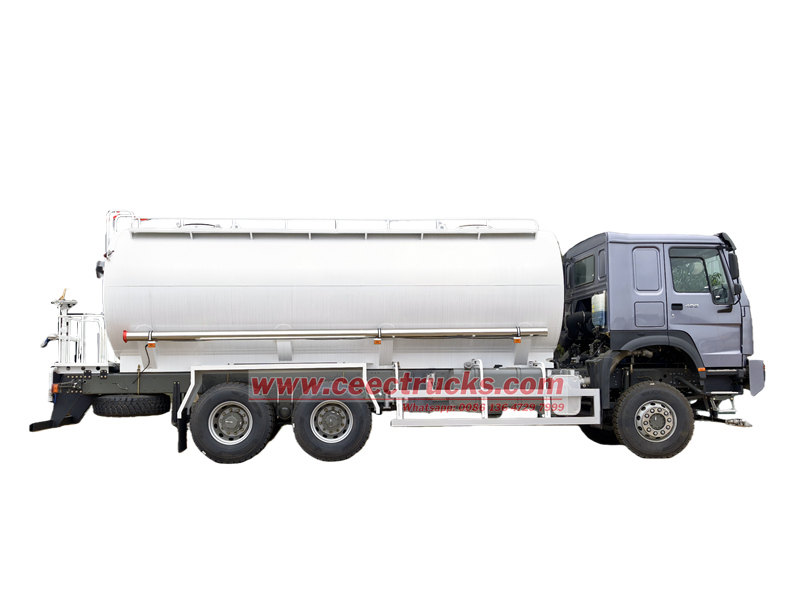

✦ Product Parameter of Howo 6WD Mining Water Truck « « «





Howo 6WD Mining 20000L Water Tank Truck
Main parameter	Overall dimension(LxWxH)		11300*2580*3250mm
	Wheel base(mm)		4600+1350mm
	Driving Type		6×6,left hand drive
	Color		White,blue,green,color can choose
	Front/rear overhang		1535/2215
	Max speed		100 km/h
Weight in KGS	GVW		28000 kg
	Curb weight		11500 kg
	Loading capacity		16000L
	Front axles loading capacity		7.5T
	Rear axles loading capacity		13 T*2
Engine	Engine model		WP12S400E201
	Engine type		Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled
	Horsepower		400HP
	Max. output (kw)		293Kw
	Rated speed		1600rpm
	Maximum Torque		1460N.m
	Displacement(L)		11.6 L
	Emission standard		Euro 2
Transmission	HW19710,10 forward ,2 reserve
Tire	12.00R20 standard tire,10 tires+1 spare tire
Brake	Air brake
Steering	Power steering
Body	Capacity		20000L
	Structure	TANK MATERAIL	6mm,Q235 stee
		Pipe	Galvanized pipe
		Discharge nozzle	SS,at side bottom of tank,quick coupling
		Discharge nozzle option	Stainless steel faucet
Water pump	Model		WEILONG 80QZF-60/90S pump
	Flow rate(L/m):		60m3/h
	Head of delivery(m)		90m
	Self-priming function(min/4m)		1.5
	Efficiency(%)		95%
	Related rotate speed(r/min)		1180
	Matched power(kw)		22
Water sprinkler system	Front sprinkler jet		14m
	Rear sprinkler jet		13m
	Rear sprinkler nozzle range		12m
	Water cannon range		45m
	Water time		＞5 minutes
	Working condition		Flow≥60L/m, 1.55Mpa
	Max working pressure		≥0.9Mpa

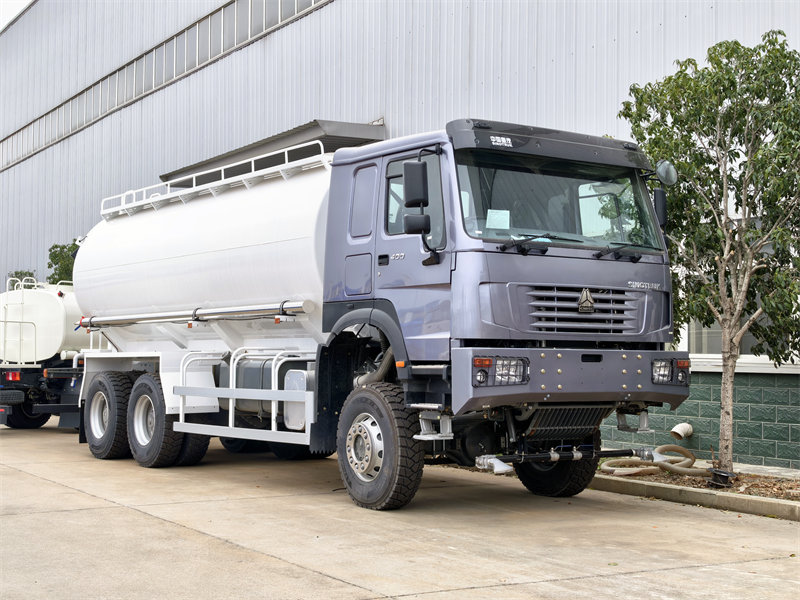

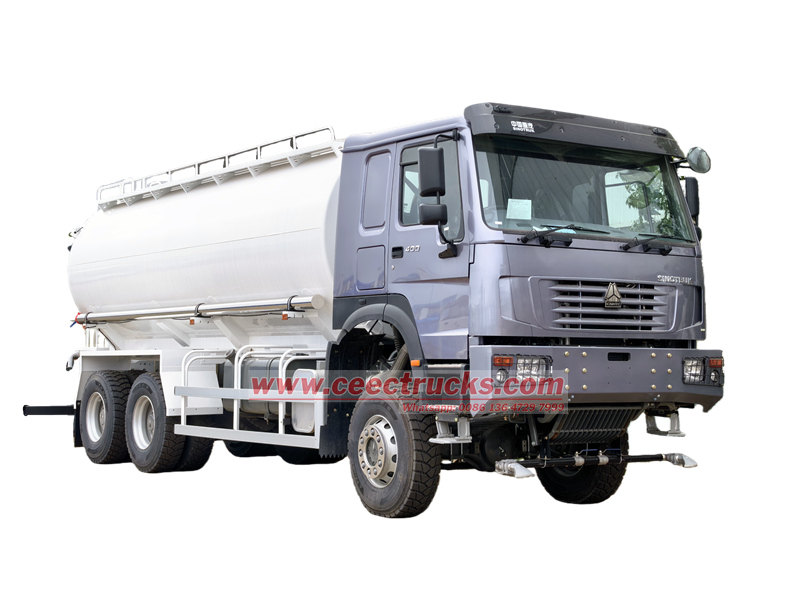

HOWO Mining 20000L water sprinkler truck	HOWO 400HP water bowser truck

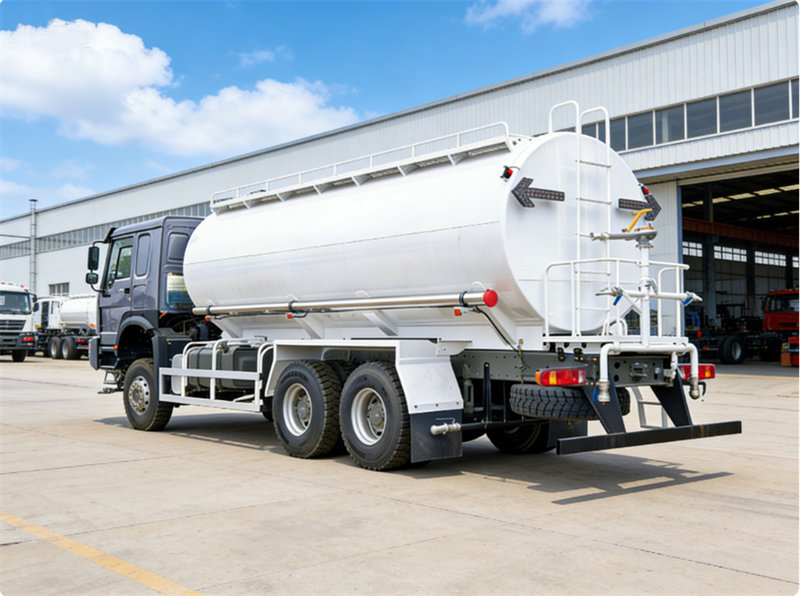

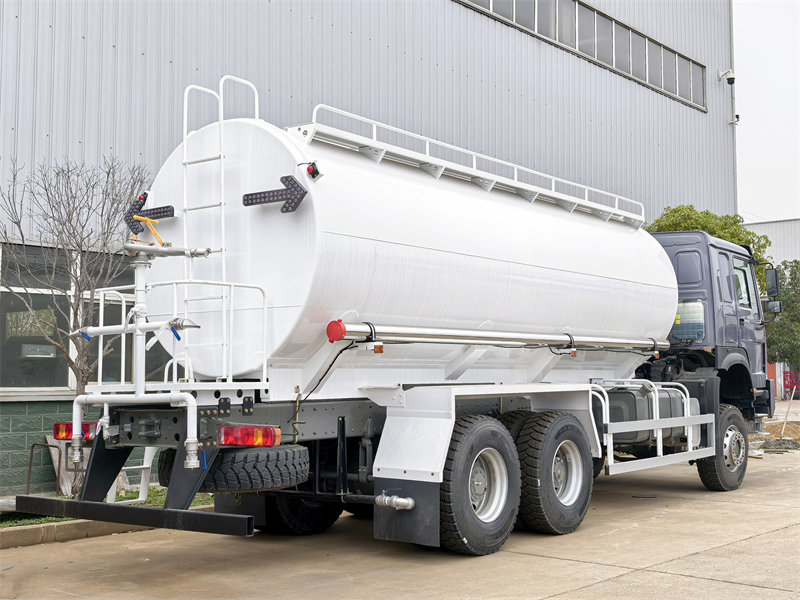

Sinotruk HOWO 20000L water delivery truck	20000L water tanker mounted on HOWO NX truck



✦ Advanced Features for Howo 6x6 Mining Delivery Water Truck« « «





1. Powerful and Reliable Powertrain System

♦ The vehicle is equipped with a dedicated WP12S400E201 engine, a turbocharged, intercooled, and water-cooled inline 6-cylinder 4-stroke engine.

♦ Maximum power reaches 293kW (400HP), and maximum torque is 1460N.m, providing ample power output.

♦ It can easily handle the driving and operational needs of complex road conditions such as mine slopes and muddy surfaces, adapting to the power consumption characteristics of heavy-duty mining operations.

♦ Matched with an HW19710 gearbox, it has 10 forward gears and 2 reverse gears, ensuring smooth shifting and high transmission efficiency.

♦ The vehicle speed can be flexibly adjusted according to different mining operation scenarios (such as long-distance transportation and short-distance spraying), balancing operational efficiency and fuel economy.



2. Drive and Driving Performance Adapted to Mining Conditions

♦ The vehicle adopts a 6×6 all-wheel drive configuration, equipped with 12.00R20 standard tires (10 working tires + 1 spare tire), providing a large contact patch and strong grip.

♦ This effectively improves the vehicle's passability on soft mine surfaces, inclines, and uneven terrain, preventing slippage and getting stuck.

♦ The vehicle's proportions are well-balanced, ensuring stability under heavy loads while also allowing for maneuverability during operations, enabling it to navigate narrow working areas and between equipment.

♦ Equipped with power steering and air braking systems, the steering is light and precise, and the braking response is rapid, enhancing operational safety in complex conditions and adapting to the steep slopes and winding curves of the mining environment.



✦ How to design HOWO Water Wagon Truck« « «



CEEC TRUCKS professional Engineer Department and skilled engineers will thoroughly checking customer requirement, then prepare official technical drawing, also the 3D drawing to realize all clients request function, after clients confirmed the designed drawing, we will start production as request. Which can make the whole communication and discussion more efficiently. Below are 3D drawing for HOWO 400HP 20cbm water sprinkler vehicle tanker body kit for checking:

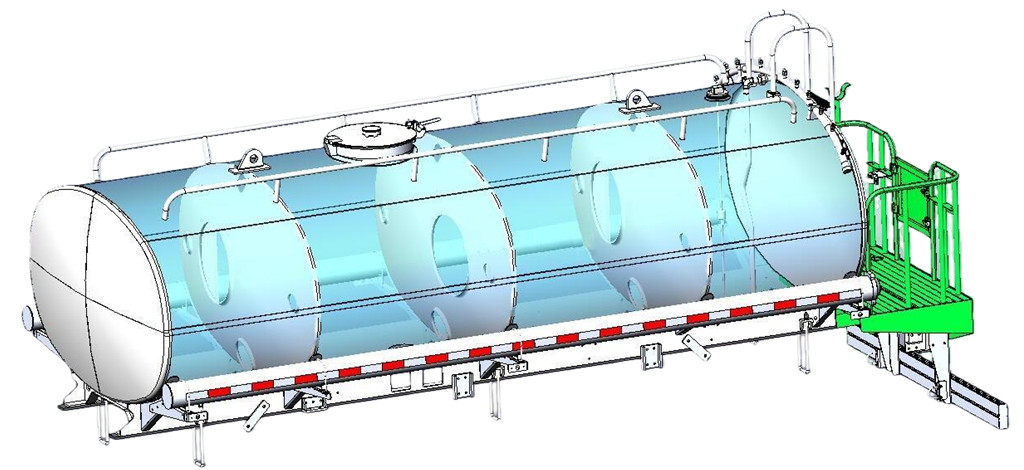

CEEC TRUCKS water tanker upper body kit drawing with baffles inside, also rear platform

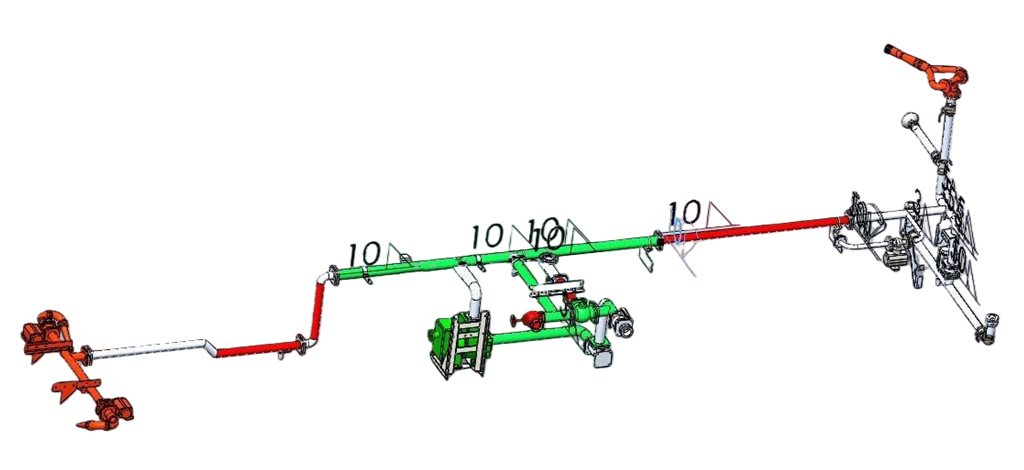

CEEC TRUCKS water tanker truck tanker pipeline system and spraying nozzles assembly



✦ Operation Steps for HOWO Water Delivery Truck« « «



CEEC TRUCKS professional Engineers will also prepare official User Manual to guarantee the operation more efficiently. Regarding Entrance Valve as C, Control Valve as B and Exit Valve as A, then can follow below chart for easily usage:

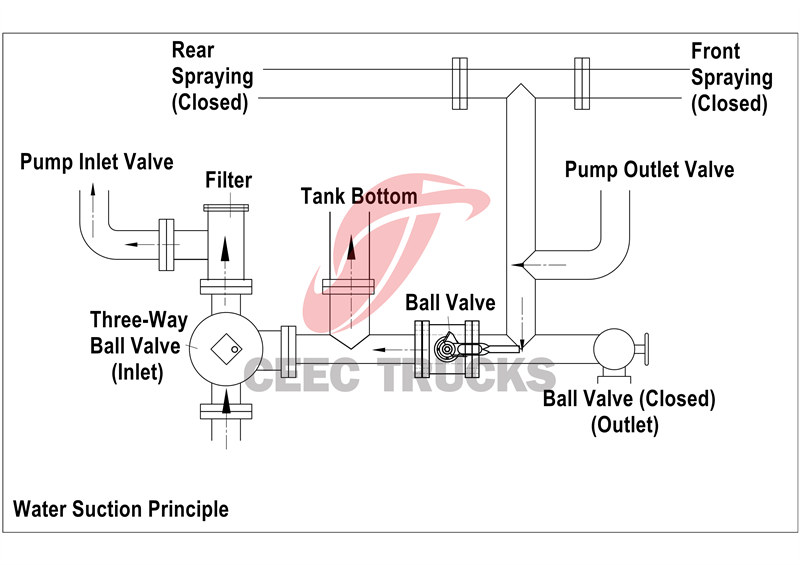

Water pump in process (Suction)



Close Pump Out Valve A, open Valve B & Pump In Valve C, make sure Valve B is RIGHT OPEN, connect the pipeline with Valve C, the other side of pipeline be in pond, river, etc, then the pump start working and water go into the tank through Inlet Valve C, details showing as below chart.

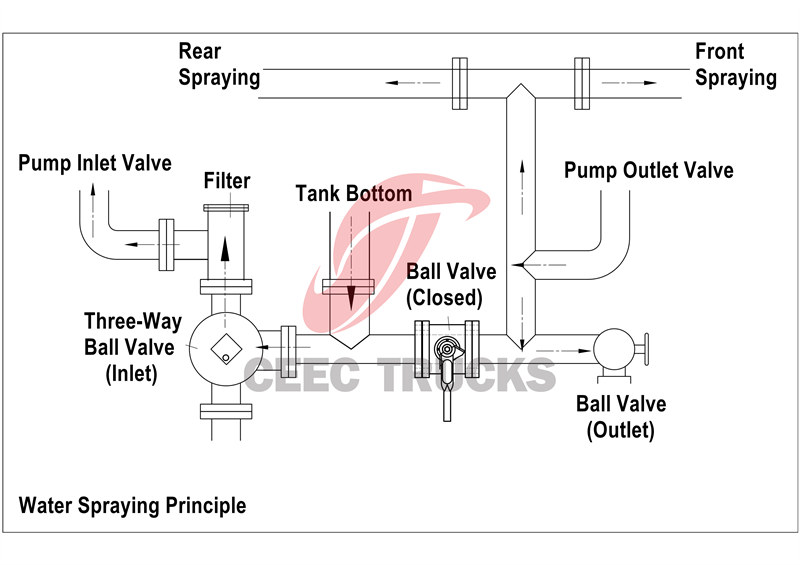

Water pump out process (Spraying)



Open Pump Out Valve A, close Valve B & Pump In Valve C, then the pump start working and water go out of the tank through Outlet Valve A, details showing as below chart.

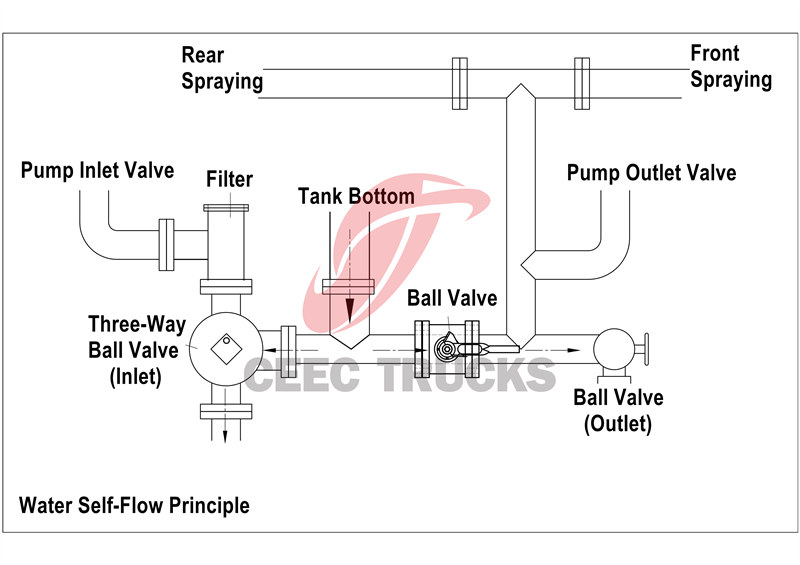

Automatically self discharge by gravity



Close Pump In Valve C, open Pump Out Valve A & Valve B, then the water flow out of the tank automatically by self-gravity, details showing as below chart.



✦ HOWO Mining Water Bowser Truck Configuration« « «

•

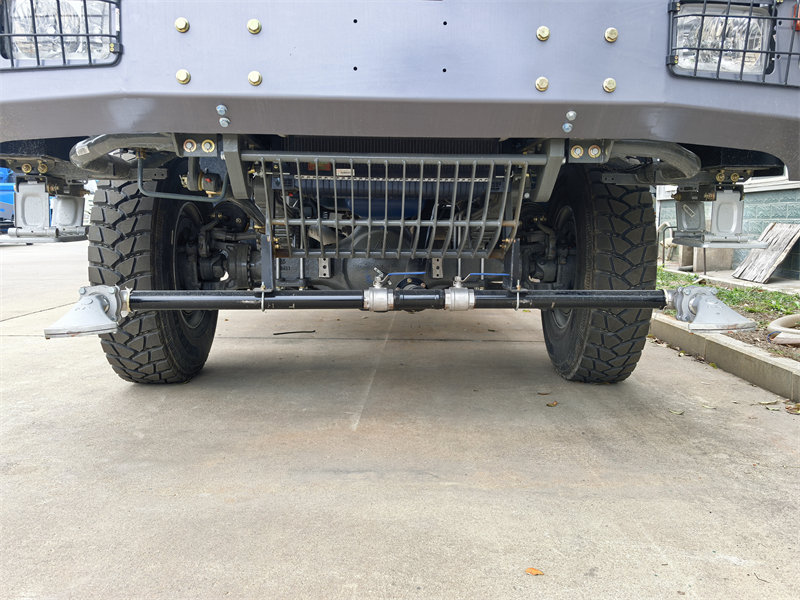

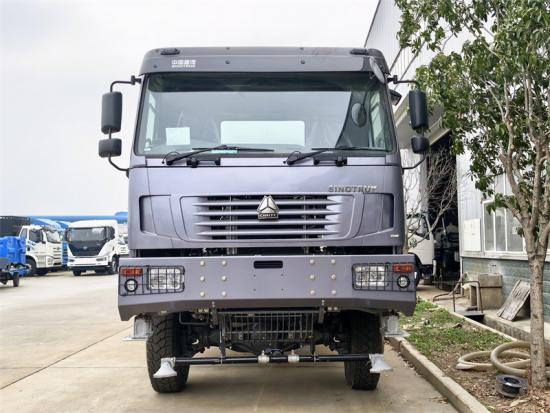

  HOWO water tank truck front jetting nozzles
•

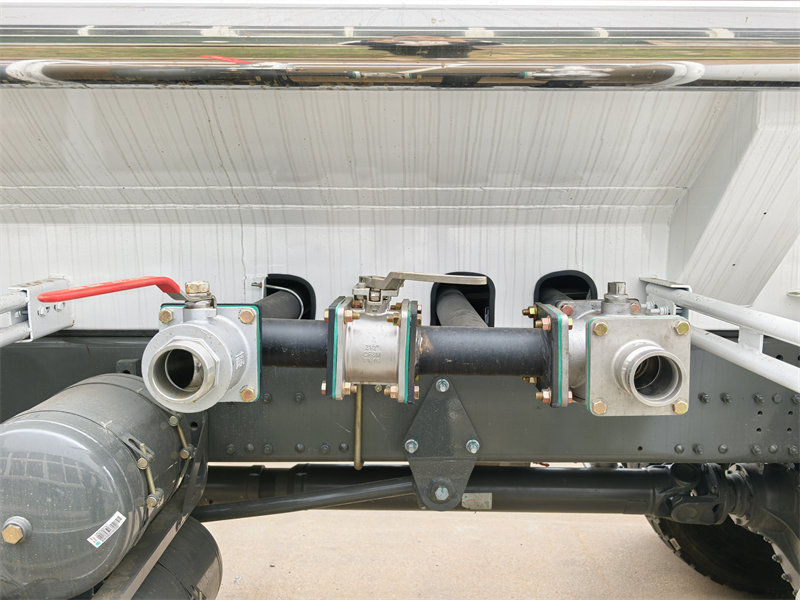

  Efficiently pump in and pump out valves
•

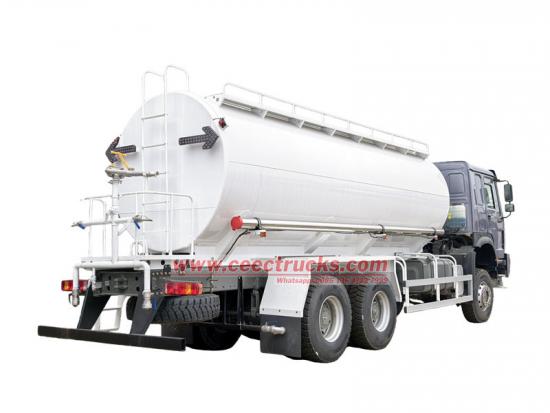

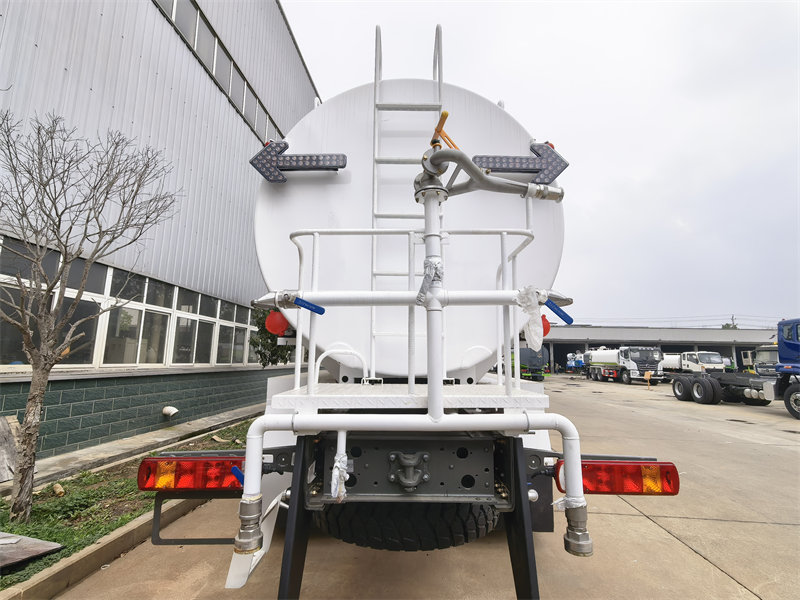

  Water truck rear view

•

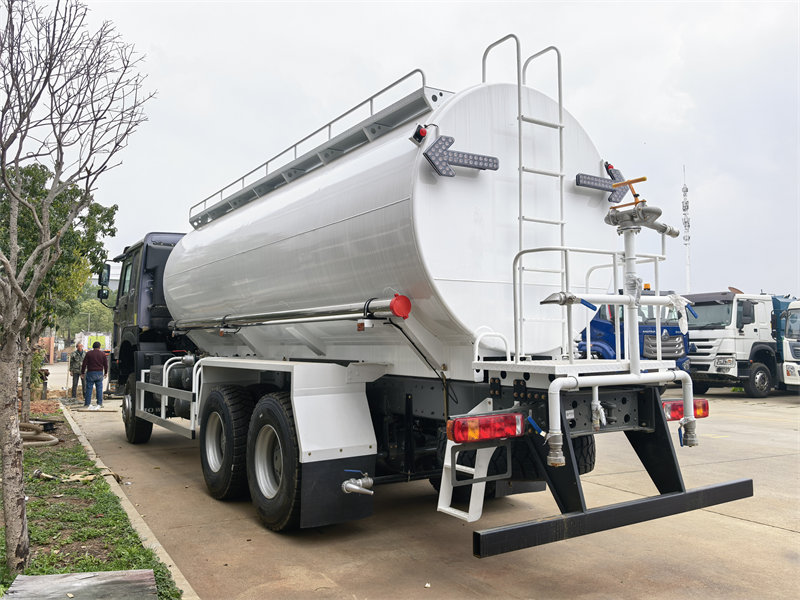

  Howo water sprinkler truck rear spraying nozzle
•

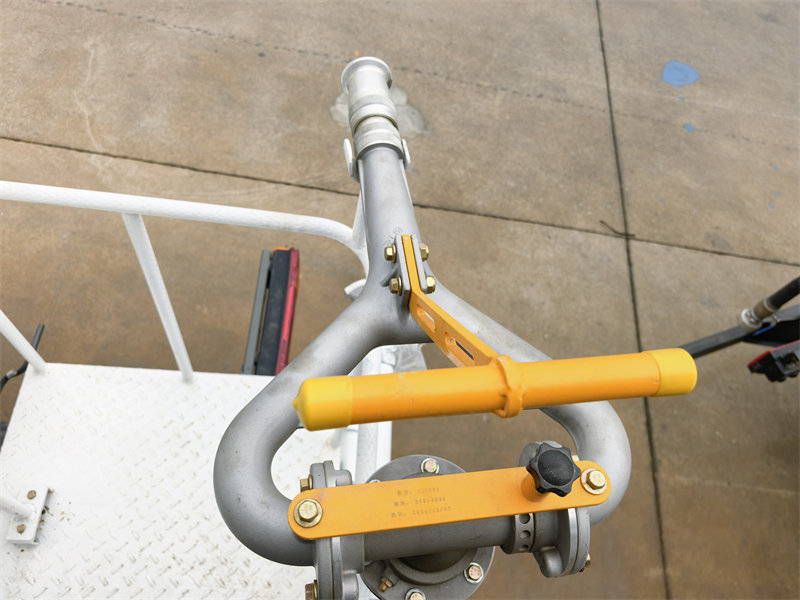

  Water bowser truck rear jetting canon
•

  ISUZU GIGA sewer jetter truck hydraulic control valve



✦ Highly Efficient and Comprehensive Operating System « « «





♦ Equipped with a 20,000L large-capacity elliptical tank, constructed from 6mm thick Q235 steel.

♦ The tank boasts high strength, impact resistance, and corrosion resistance, capable of withstanding the impact of crushed rocks and dust erosion encountered in mining operations.

♦ The internal baffle structure of the tank reduces liquid sloshing during movement, improving driving stability.

♦ The tank is equipped with a WEILONG 80QZF-60/90S water pump, with a flow rate of up to 60m³/h, a head of 90m, and a self-priming time of only 1.5 minutes/4m³, enabling rapid completion of large-area dust suppression operations.



♦ The equipment is fully equipped, integrating a front spray nozzle, a rear working platform, a water cannon, and a rear spray nozzle.

♦ The front spray distance is up to 14m, the rear spray 13m, the rear spray nozzle range is 12m, and the water cannon range is up to 45m.

♦ It can achieve all-around, no-dead-angle watering, dust suppression, and washing operations—capable of large-area dust suppression on mine transport roads and precise washing of mining equipment and work areas.

♦ Furthermore, it is equipped with galvanized pipes and stainless steel nozzles, which are wear-resistant and corrosion-resistant, reducing wear and tear from mine dust and extending the equipment's service life.
