Middle American clients from Honduras, who purchased 3 units Sinotruk HOWO NX 290HP 10000Liters water sprinkler truck from CEEC TRUCKS. All our water tanker trucks with superior manufacturing and design innovation, also world class components that guarantee impeccable performance in all kinds of road condition. Howo 10cbm water bowser based on Sinotruk NX 4x2 truck chassis, NX new cabinet with AC and air suspension seat. WEICHAI WD615.50 diesel engine with 290HP and 9276cc emission standard, matched working with HW15710 manual transmission gearbox, 10 forward and 2 reverse back and have very lower fuel consumption. Both front and rear equipped 12.00R20 tires, customized to be equipped with AT tire for all terrain road.

Howo water wagon truck with 10000Liters tanker body kit, carbon steel Q235 material with oval shape design, and suitable for non-potable water storage and transportation. Matched with top Chinese brand WEILONG brand water pump 80QZB-60/90 model, efficiently flow rate 60m3/h, equal to 1000L/min, also equipped with multiple water spraying nozzles for water spraying and jetting, all with independ control valve:

Front Jetting Nozzles: Service for front water spraying to dust suppression, also two sides water jetting for road cleaning.

Side Spraying Nozzles: Sevice for watering plant and flower on two sides of road.

Rear Spraying Nozzles: Sevice for dust suppression and road cleaning.

Water Canon: Sevice for high altitude water water jetting, also available for emergency water spraying for fire extinguishing.

*Sinotruk HOWO 10CBM Water Hauling Truck

    HOWO NX 290HP Water Tank Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Introduction of HOWO Water Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Sinotruk HOWO chassis, LHD, 4x2, NX new cabin

                              WEICHAI WD615.50 diesel engine 290HP and emission 10L.

2. Tanker Body Kit: Full welding oval shape, Q235 carbon steel, thickness 4mm
                                 Efficiently Water Tanker Volume 10000Liters.

3. Water Pump:Top Chinese brand WEILONG 80QZB-60/90 model, efficiently flowrate 60m3/h.

4. Specialized Equipment: Multiple mounted water spraying nozzles for efficiently working, also rear platform with water canon for jetting.



✦ Product Parameter of ISUZU 520HP sewer Jetter « « «

HOWO 10000Liters Water Bowser Vehicle Description
Overall dimensions	8000*2500*3150
GVW	16000kg
Curb weight	7820kg
Chassis brand	SINOTRUK HOWO NX
Traction type	4x2



Tanker Description
Tank capacity	8000 L, 9000 L, 10000 L, 12000 L,  14000 L
Tanker material	Carbon steel Q235
Thickness	Tanker body	4mm
	End cover	4mm
Tanker shape	Ellipse
Tanker compartment	1 compartment (optional: several compartment)
Standard configuration	Equipped with front (rear , side) sprinkler (sprinkling width>14 m) Equipped with (rear, front) working platform with water cannon (range>28 m) Equipped with water pump (suction lift>6 m) Equipped with fire valve, water valve, and filter gauze.
Optional	Tanker material: aluminum alloy; stainless steel, carbon steel with anti-corrosion and rust prevention treat. Pesticide spray device could be available.



Chassis Description
Chassis model	ZZ1167
Cab	NX, with A/C
Wheelbase	4600
Tire specification	12.00R20
Tire quantity	6+1 units
Engine	Engine model	WD615.50
	Emission level	Euro 2
	Displacement/output	9726 ml / 213 kw
	Horse power	290hp
Gear box	Model	HW15710 model 10-speed
	Number of gears	10 forward gears & 2 reverse
Brake system	Full air brake system
Axle	Front	HR7
	Rear	ST16
Suspension	Front	Leaf springs
	Rear	Leaf springs
Fuel tanker	Type	Steel tanker, with lockable cap
	Capacity	400L

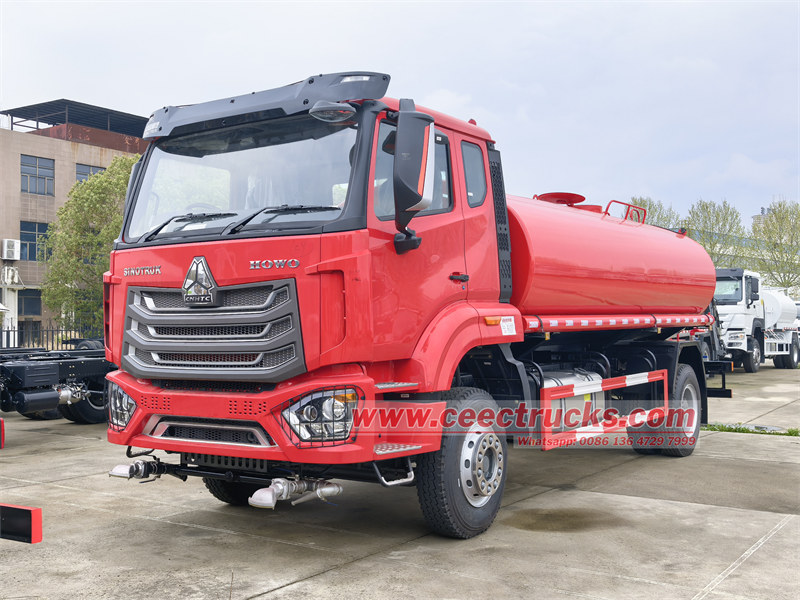

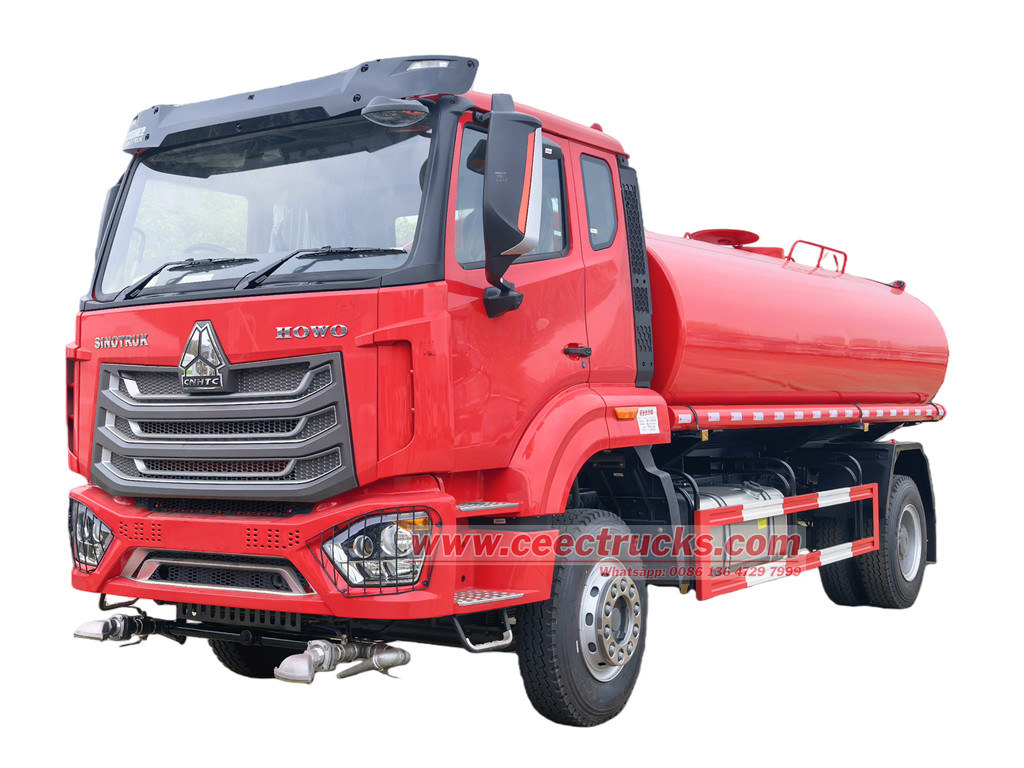

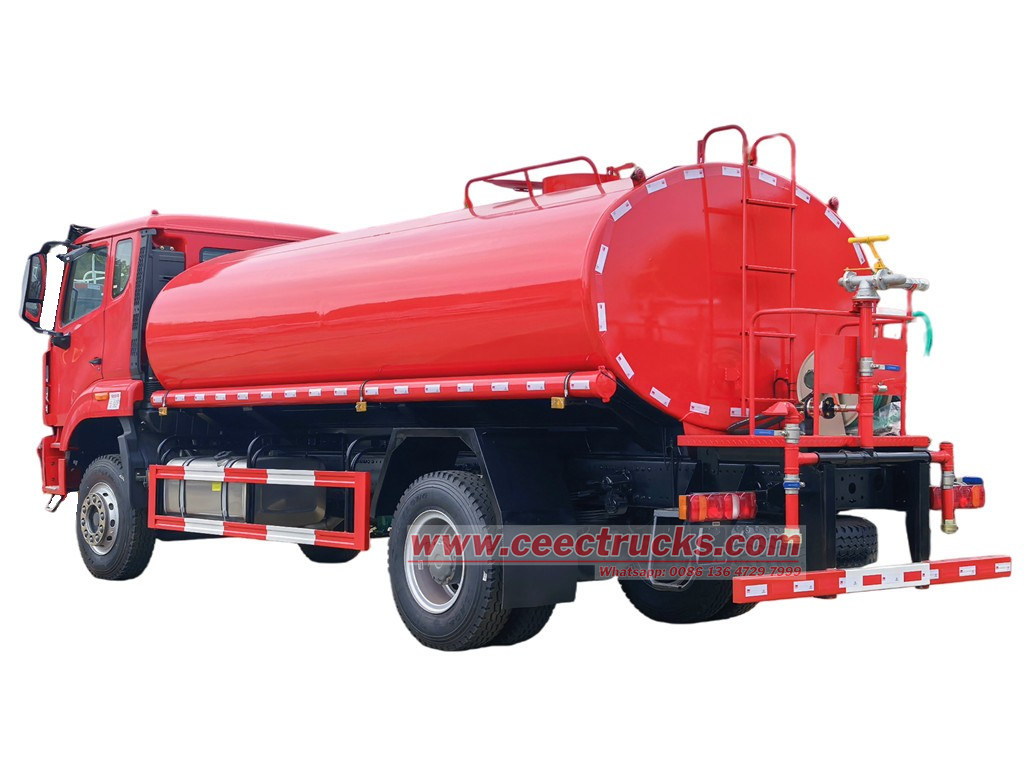

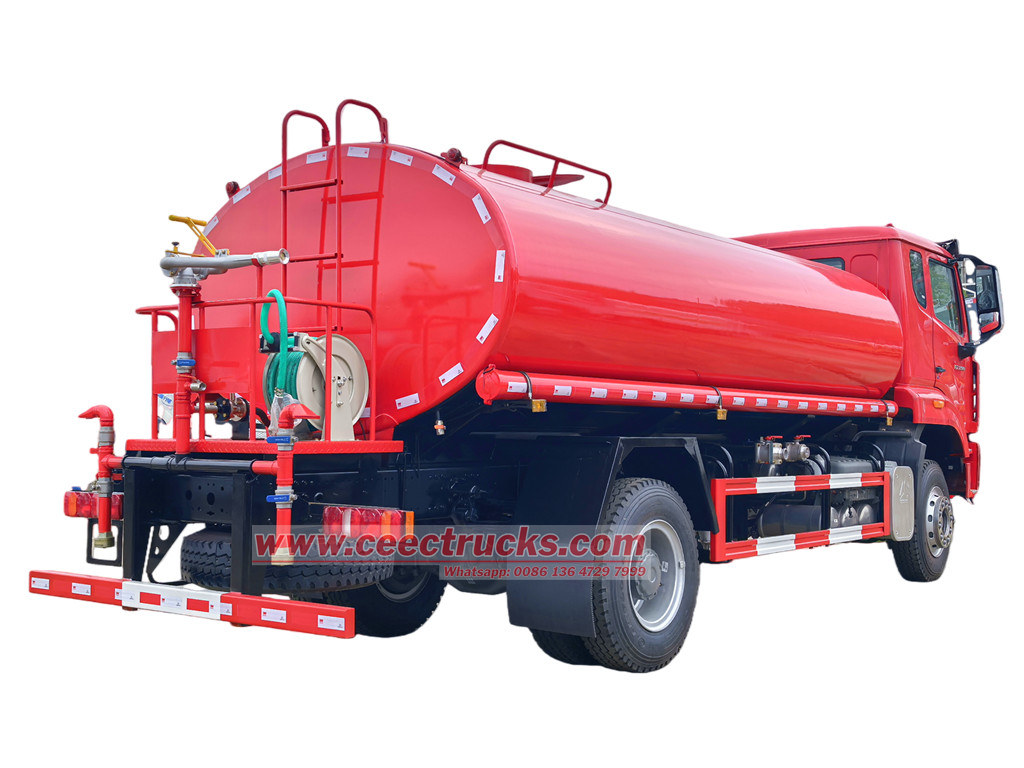

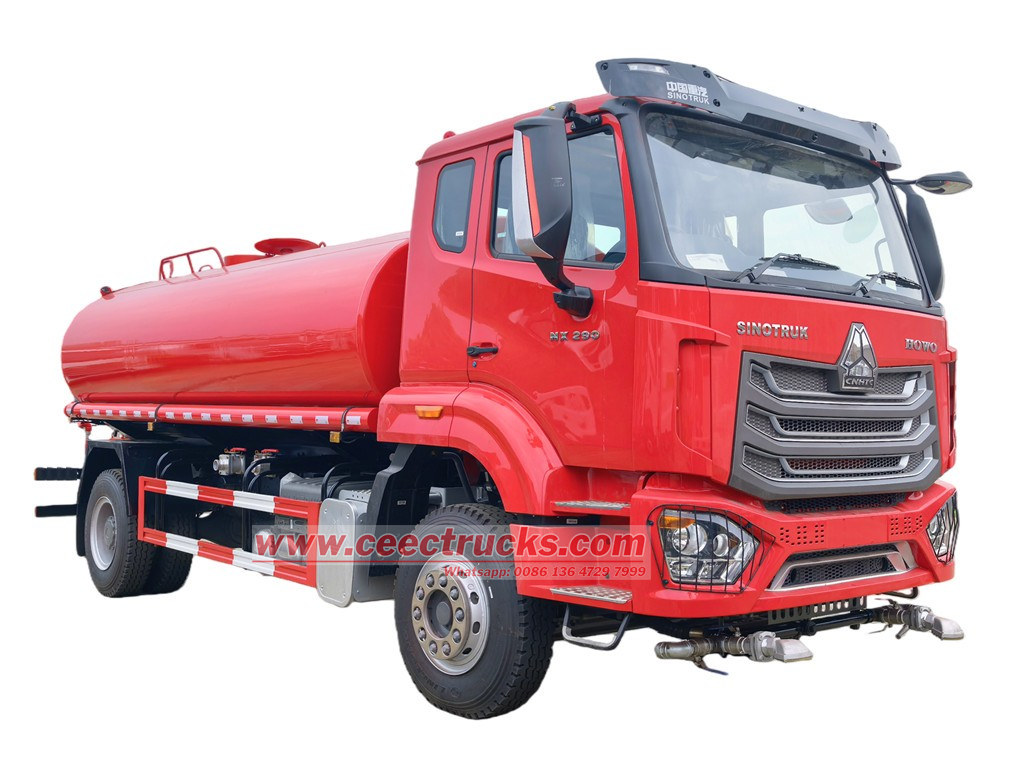

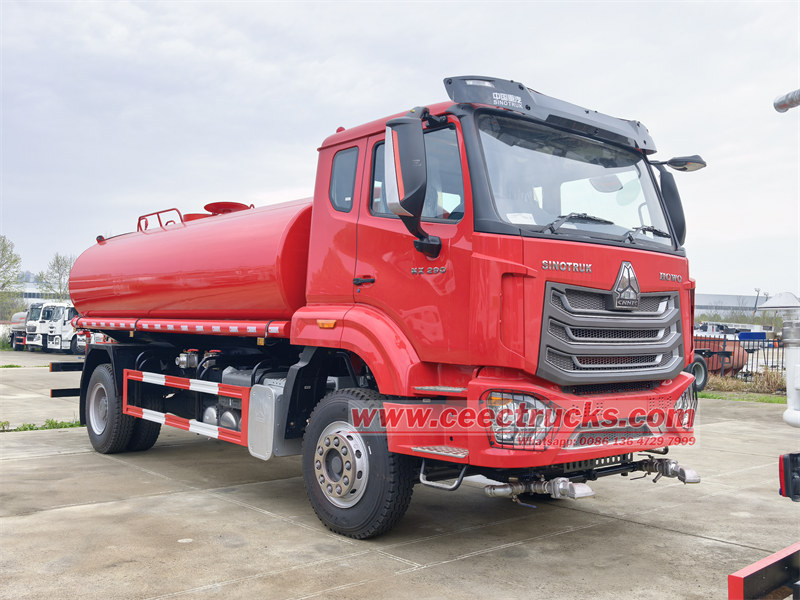

HOWO NX 10000Liters water sprinkler truck	HOWO 290HP water bowser truck

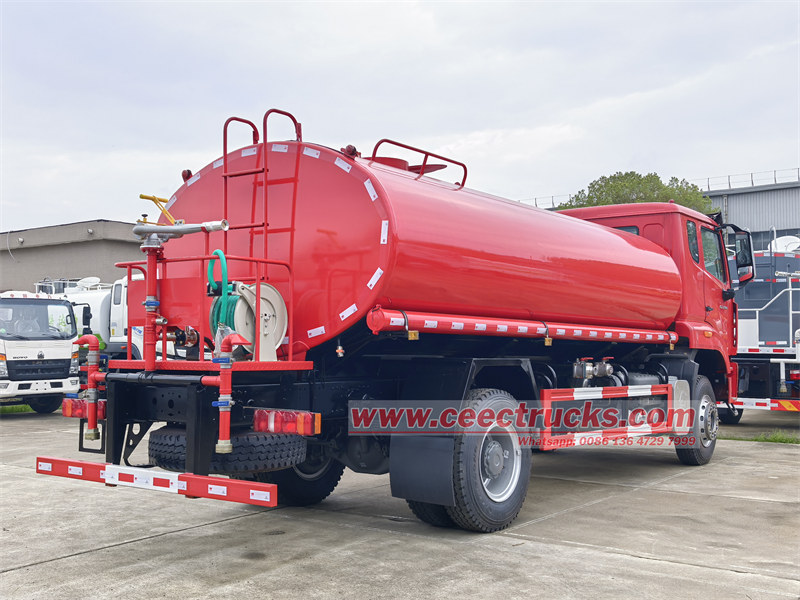

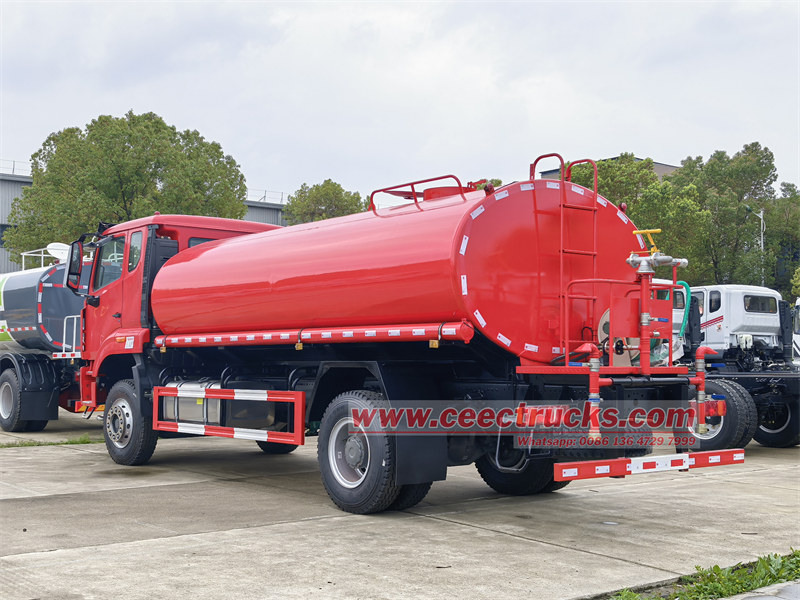

Sinotruk HOWO 10000L water delivery truck	10cbm water tanker mounted on HOWO NX truck



✦ Advanced Features for ISUZU 6x4 Sewage Jetting Truck« « «

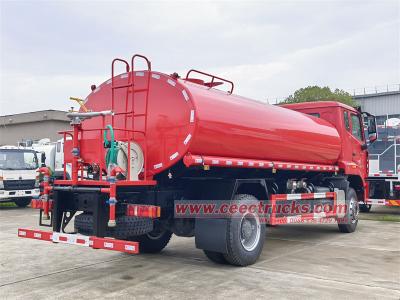

Sinotruk HOWO NX model 4x2 water truck is also called Howo water tanker truck, Howo water bowser, Howo water wagon truck, etc, which consist of Sinotruk HOWO NX new model cabin truck chassis, 4x2 model LHD, PTO assembly, WEILONG 80QZB-60/90 water pump, with efficiently flow rate 1000L/min, matched with front spraying nozzle, middle spraying nozzle and rear spraying nozzles, also rear platform matched with water canon for jetting, etc. HOWO NX Water Hauling Truck is designed and used for water suction, storage and transportation. With efficiently self suction and self discharge function. Widely used in Caribbean, Middle American and South American countries, including Honduras, Belize, Salvador, Nicaragua, Guyana, Surinam, Peru, Haiti, Dominica, St Martin, Trinidad and Tobago, etc.



Name	Sinotruk HOWO NX Water Truck
Cabin	HOWO NX cabin, optional color and painting
Driving	LHD / RHD
Engine	WD615.50 diesel engine, 290HP and emission can be 9726cc
Tranmission	HW15710 10 shift manual type, 10F & 2R
Wheelbase	4600 mm
Tire	Front: 12.00R20, 2 units Rear: 12.00R20, 4 units



Capacity	10000Liters / 10CBM
Tanker Material	Q235 material, thickness 4mm
Vacuum Pump	WEILONG brand 80QZB-60/90 model Flow rate: 60m3/h Suction Dept: 6m
Front	2 sets water spraying nozzle with control valve
Middle	Water spraying nozzles with valve
Rear	Water spraying nozzle and water canon, also customized hose reel for jetting
Painting	100% customized painting and logos



✦ How to design HOWO Water Wagon Truck« « «

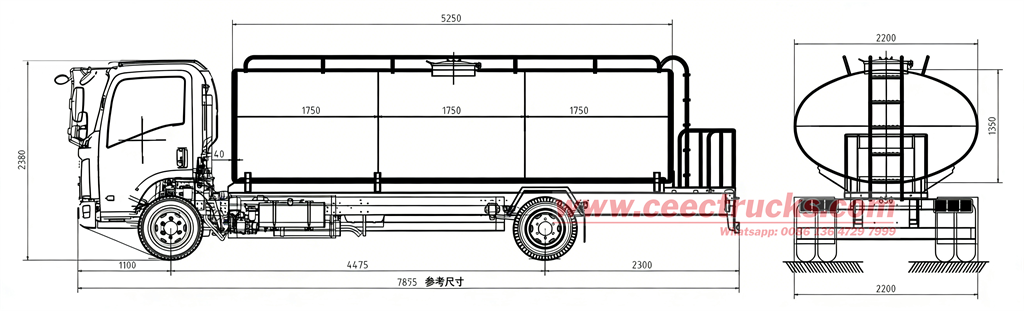

CEEC TRUCKS professional Engineer Department and skilled engineers will thoroughly checking customer requirement, then prepare official technical drawing, also the 3D drawing to realize all clients request function, after clients confirmed the designed drawing, we will start production as request. Which can make the whole communication and discussion more efficiently. Below are 3D drawing for HOWO NX 290HP 10cbm water sprinkler vehicle tanker body kit for checking:

CEEC TRUCKS water tanker upper body kit drawing with baffles inside, also rear platform



CEEC TRUCKS water tanker truck tanker pipeline system and spraying nozzles assembly



✦ Operation Steps for HOWO Water Delivery Truck« « «



CEEC TRUCKS professional Engineers will also prepare official User Manual to guarantee the operation more efficiently. Regarding Entrance Valve as C, Control Valve as B and Exit Valve as A, then can follow below chart for easily usage:



Water pump in process (Suction)



Close Pump Out Valve A, open Valve B & Pump In Valve C, make sure Valve B is RIGHT OPEN, connect the pipeline with Valve C, the other side of pipeline be in pond, river, etc, then the pump start working and water go into the tank through Inlet Valve C, details showing as below chart.

Water pump out process (Spraying)



Open Pump Out Valve A, close Valve B & Pump In Valve C, then the pump start working and water go out of the tank through Outlet Valve A, details showing as below chart.

Automatically self discharge by gravity



Close Pump In Valve C, open Pump Out Valve A & Valve B, then the water flow out of the tank automatically by self-gravity, details showing as below chart.



✦ HOWO NX Water Bowser Truck Configuration« « «

•

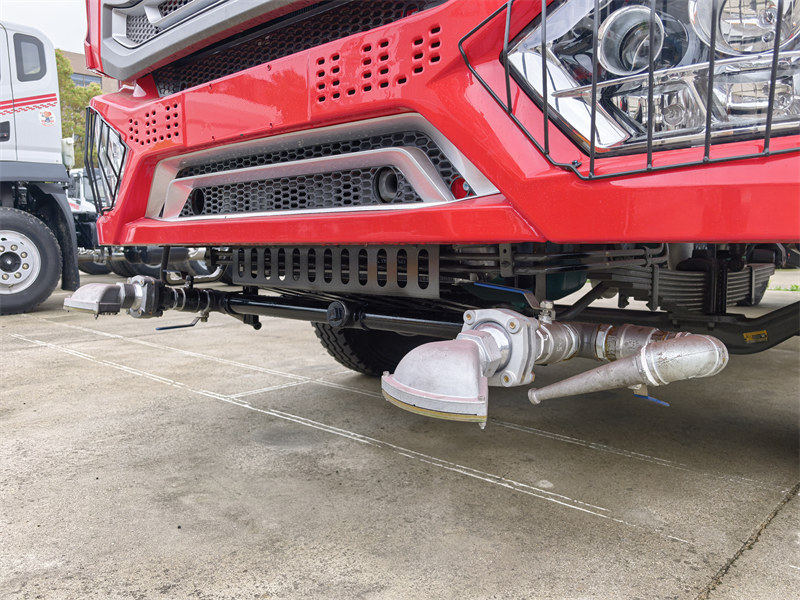

  HOWO water tank truck front jetting nozzles
•

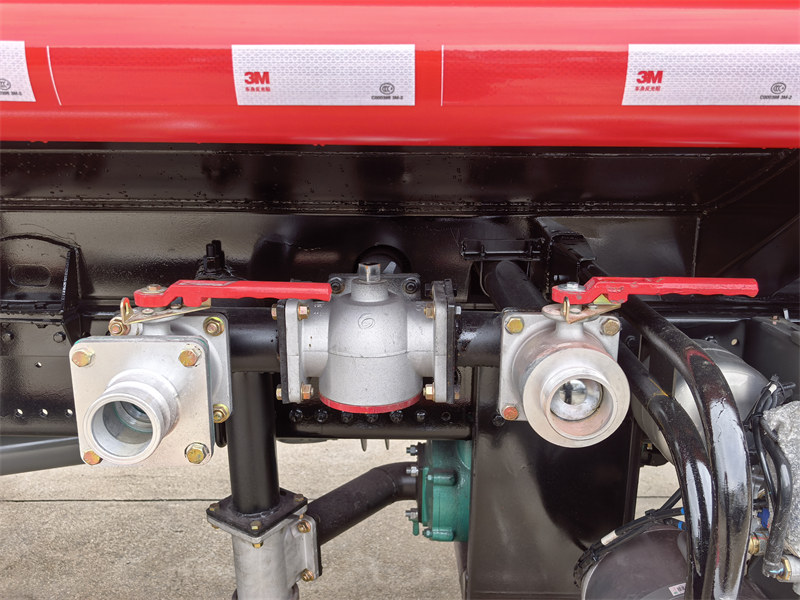

  Efficiently pump in and pump out valves
•

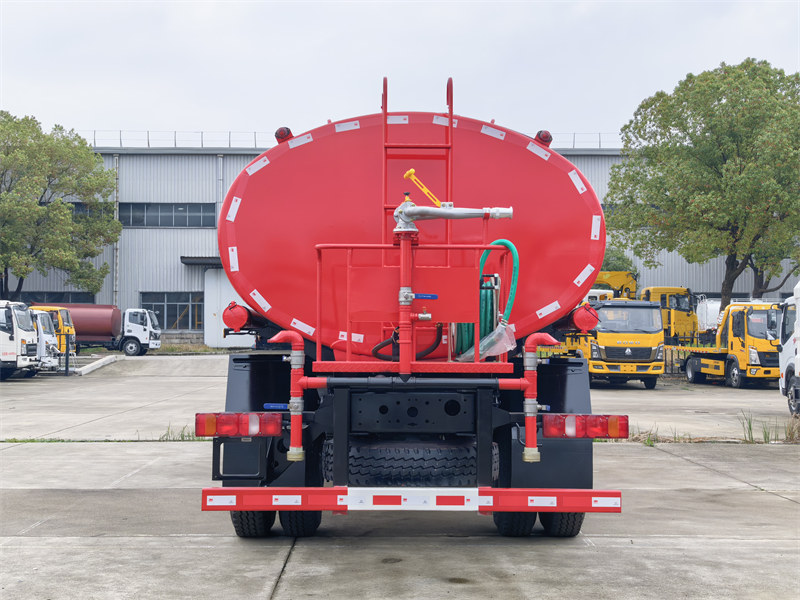

  Water truck rear view

•

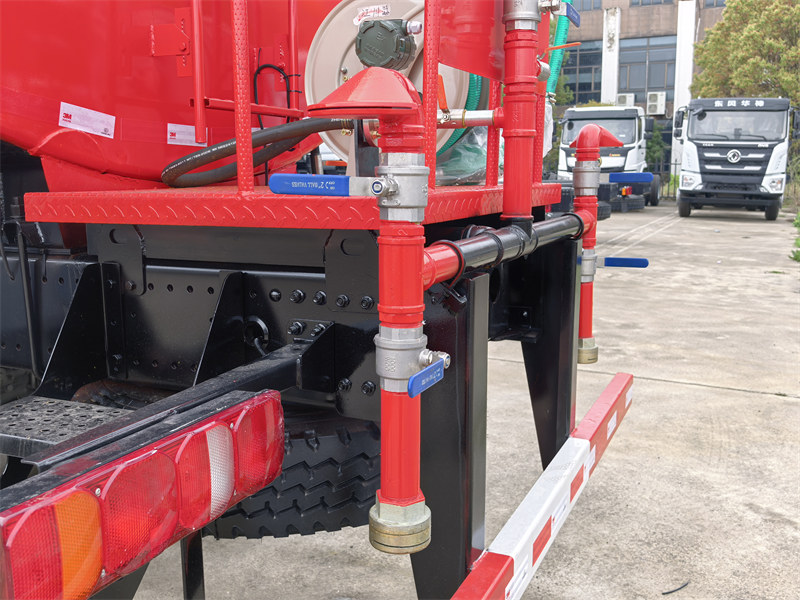

  Howo water sprinkler truck rear spraying nozzle
•

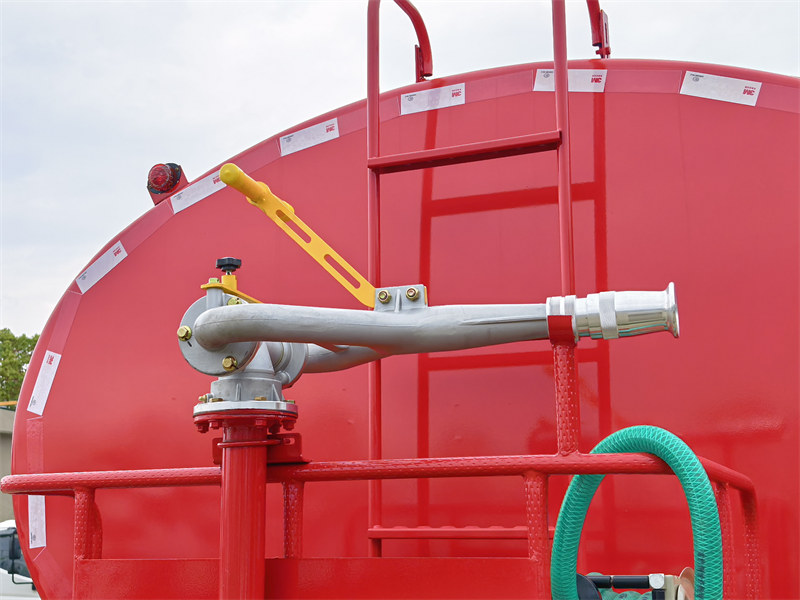

  Water bowser truck rear jetting canon
•

  ISUZU GIGA sewer jetter truck hydraulic control valve



✦ Sinotruk HOWO Water Bowser Trucks APPLICATION « « «



HOWO NX 290HP 10000Liters water bowser truck designed based on durable HOWO 4x2 truck chassis, equipped with top Chinese brand water pump for pump in and pump out function, and widely used for multiple function, including watering process and road cleanng.

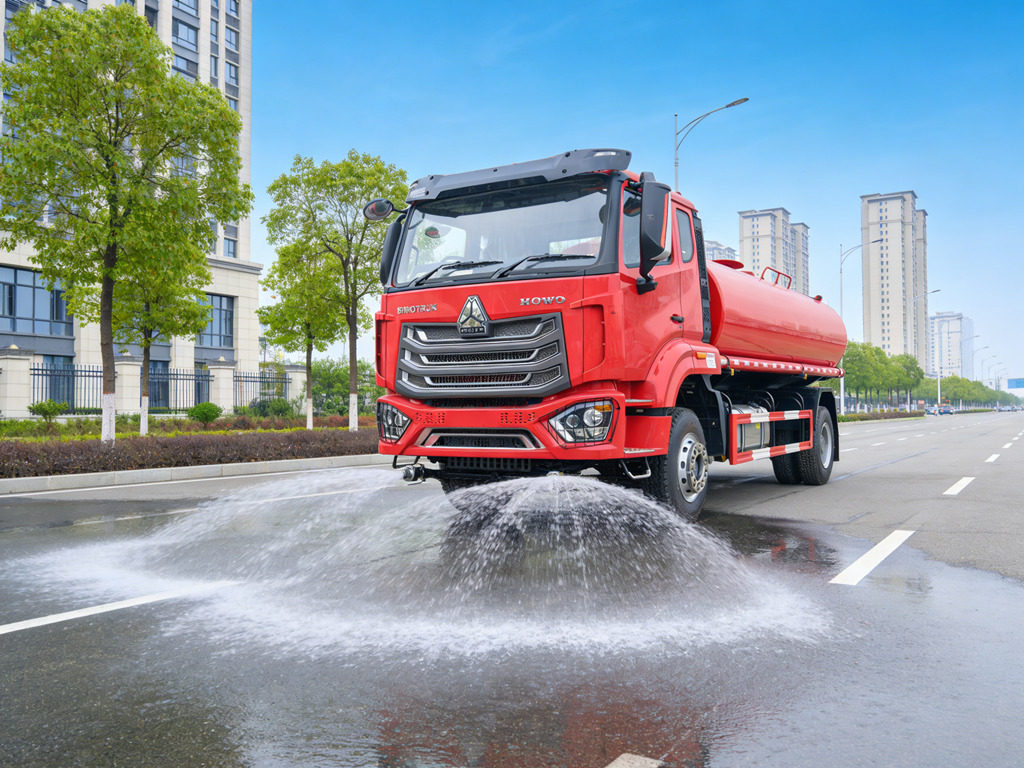

HOWO water sprinkler truck for road cleaning



Howo water truck equipped with from spraying nozzle and jetting nozzle, which can be controlled separately to control multiple function. And efficiently for road cleaning. Also customized to be equipped with air way control valve to make operaiton more safety and easy.

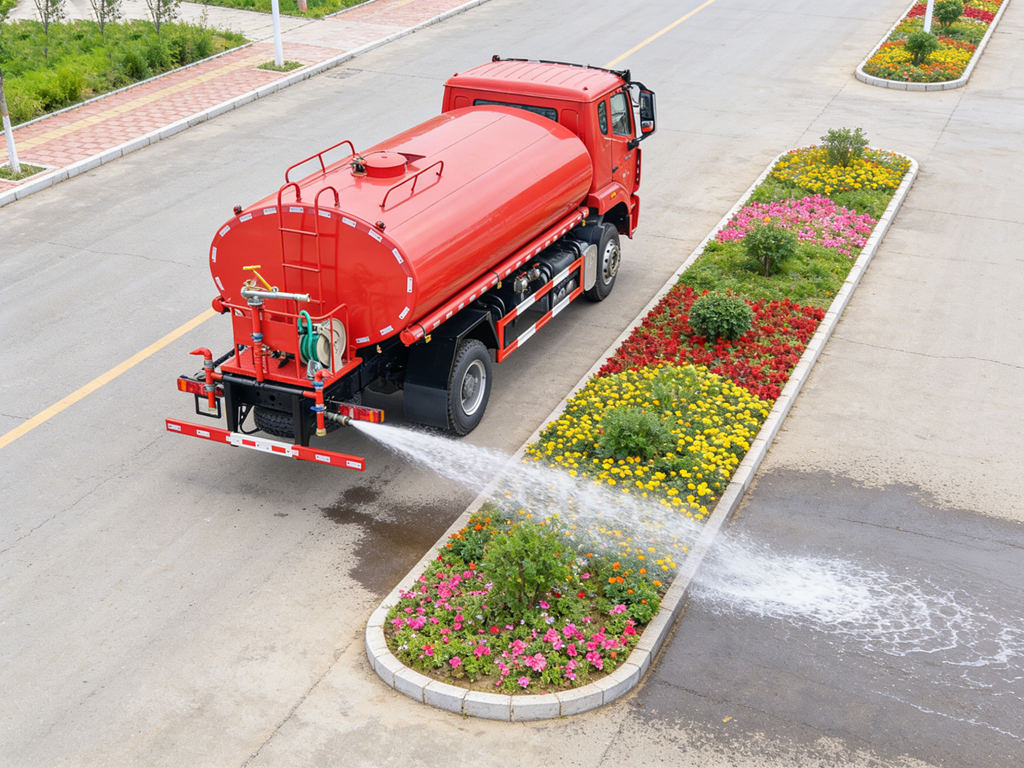

HOWO tanker truck for watering plant



Side nozzles of Howo water wagon truck can be used for watering plant and flower.
