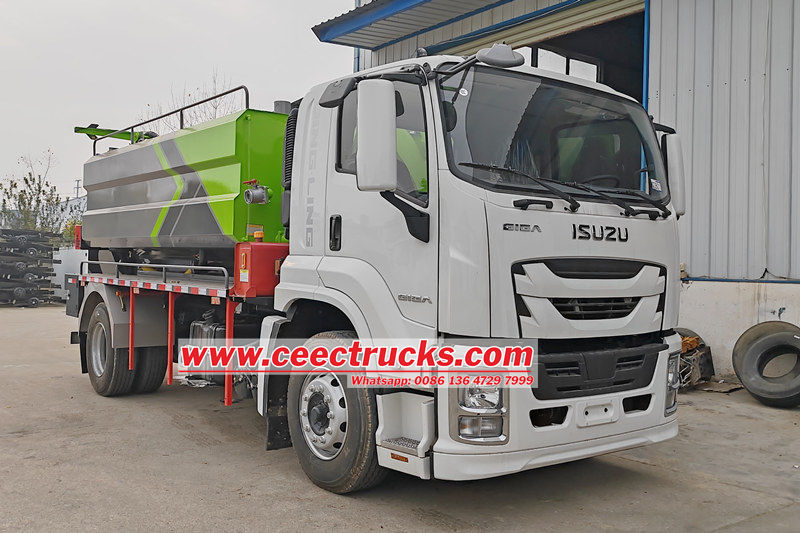

The Isuzu 10 cbm combined sewer cleaning truck is a powerful and efficient vehicle designed for the maintenance and cleaning of sewers in urban areas. With a unique combination of suction and jetting capabilities, this truck is capable of tackling even the toughest clogs and blockages in sewer systems.
The Isuzu combined sewer cleaning truck is also called cleaning and sewage suction truck . It is a combined operation truck integrating multiple functions such as dredging, flushing, sewage suction, mud water separation, sewage reverse discharge, sewage recycling and reuse. The vehicle has rich power reserves. Combined with the optional multi-level sewage water circulation system, the functions of high-pressure flushing, vacuum sewage suction and sewage circulation system work at the same time to realize uninterrupted continuous operation. All tanks, pipes, valves and connectors of the vehicle are made of stainless steel with good anti-corrosion performance, so that the equipment will not be rusted in use and prolong the service life.
The functions of Isuzu combined sewer cleaning truck mainly include suction and cleaning.

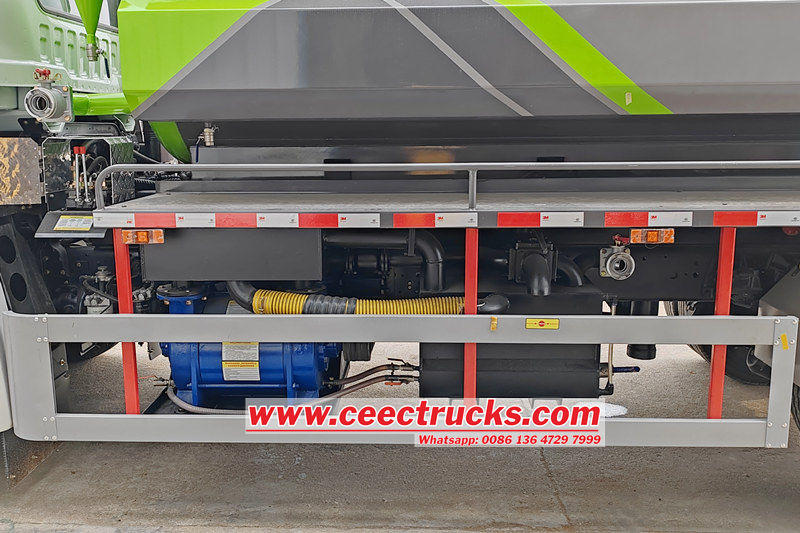

The suction function means that the vehicle is equipped with an efficient vacuum pump and suction pipe, which can quickly suck all kinds of sewage and dirt, including sewage and garbage from rainwater pipes, sewers, septic tanks and other places.
The cleaning function means that the vehicle is also equipped with a high-pressure cleaning device, which can provide strong water pressure and high-temperature water flow to clean the dirt and debris on the inner wall of the pipe to ensure that the pipe is unobstructed.
|
Isuzu 10 cbm combined sewer cleaning truck |
||
|
Drive model |
4x2,Left-hand drive |
|
|
Cabin |
Passengers Allowed in front row |
3 persons |
|
Vehicle |
Curb Weight(kg) |
7500 |
|
Overall Dimensions(L x W x H)(mm) |
7150*2500*3100 |
|
|
Approach/Departure angle(°) |
15/26 |
|
|
Wheel Base(mm) |
4500 |
|
|
Overhang (front/rear) (mm) |
1335/1585 |
|
|
Axle charge(front/rear)(ton) |
6.3 / 13 |
|
|
Tire |
295/80R22.5 6+1 spare tire |
|
|
Engine |
Model |
4HK1 |
|
MAX Power(HP) |
205 |
|
|
Displacement |
5.193L |
|
|
Maximum output power |
151kw |
|
|
Fuel |
Diesel |
|
|
Cylinder Number |
4 |
|
|
Cylinder arrangement |
Inline |
|
|
Engine size |
456kg |
|
|
Rated Speed(RPM) |
2600 |
|
|
MAX Torque(N.M) |
647N.m |
|
|
MAX Torque Speed(RPM) |
1600 |
|
|
Emission standard |
Euro 6 |
|
|
Sewage Suction System |
||
|
Sewage Tanker |
Capacity |
10 cubic meters |
|
Material |
Q235 high tension steel |
|
|
5mm Tank body and 6mm End Plate |
||
|
Dumping System |
Middle Tipper |
Hydraulic Controlled Middle lifting. |
|
Rear Door |
Hydraulic Controlled Rear Door |
|
|
Pump |
High Efficiency Vacuum Suction Pump 10ton,SK-15 |
|
|
Pump System |
80mmΦ suction pipe, suction time ≤5min, effective suction range≥8,max vacuum degree ≤15 Kpa, dump angle ≥45 |
|
|
Vacuum Pressure |
-0.09Mpa |
|
|
Sewage Pipe |
7 meters Rubber Pipe(one unit pipe) |
|
|
Other Parts |
Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device |
|
The Isuzu cleaning and sewage suction truck is equipped with a high-powered vacuum system that can effectively remove debris, sludge, and other waste from sewer lines. This system has a capacity of 10 cubic meters, allowing for large volumes of waste to be suctioned out of the sewer system quickly and efficiently. This ensures that sewers are cleaned thoroughly and prevent future blockages from occurring.

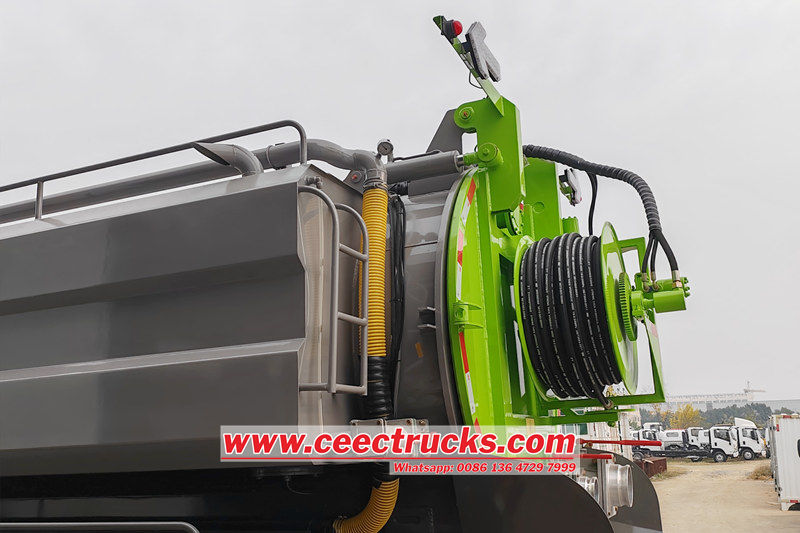

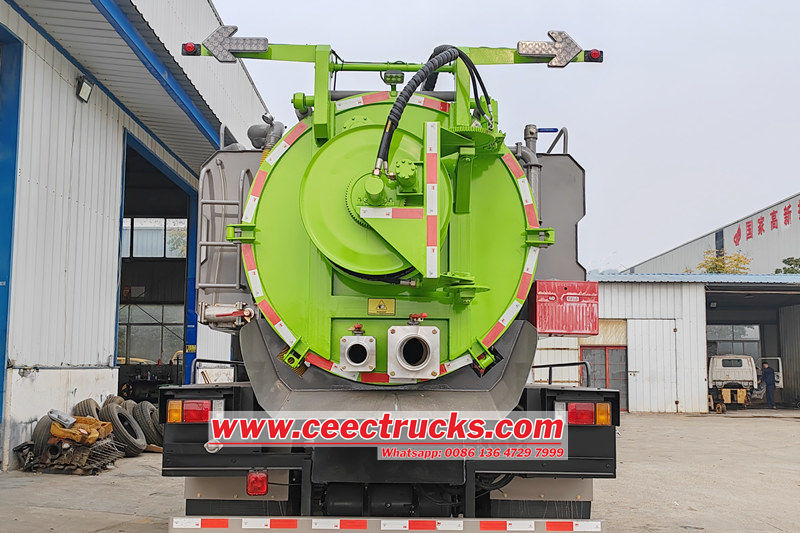

The Isuzu truck mounted sewage jetter is also equipped with a powerful jetting system that can deliver high-pressure water streams to break up tough clogs and blockages in sewer lines. This system is essential for clearing out obstructions that cannot be removed by suction alone, such as hardened grease, roots, or other stubborn materials. The combination of the vacuum and jetting systems ensures that the Isuzu 10 cbm combined sewer cleaning truck is capable of handling a wide range of cleaning tasks with ease.

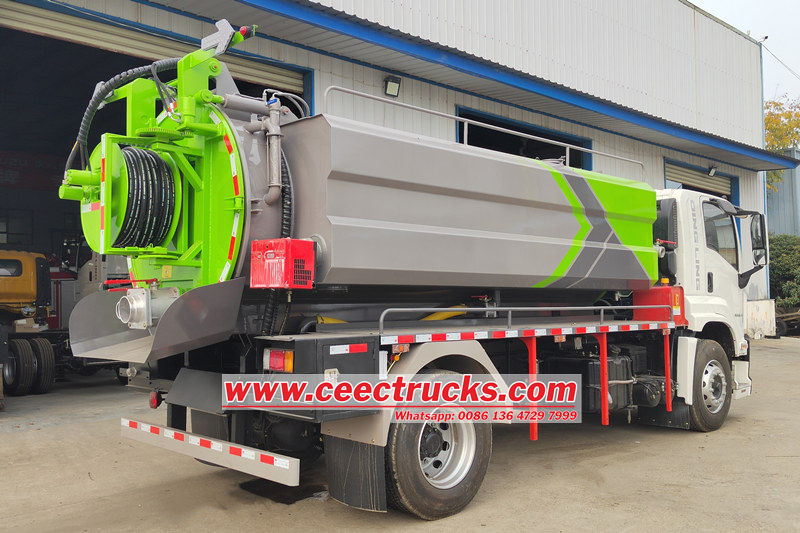

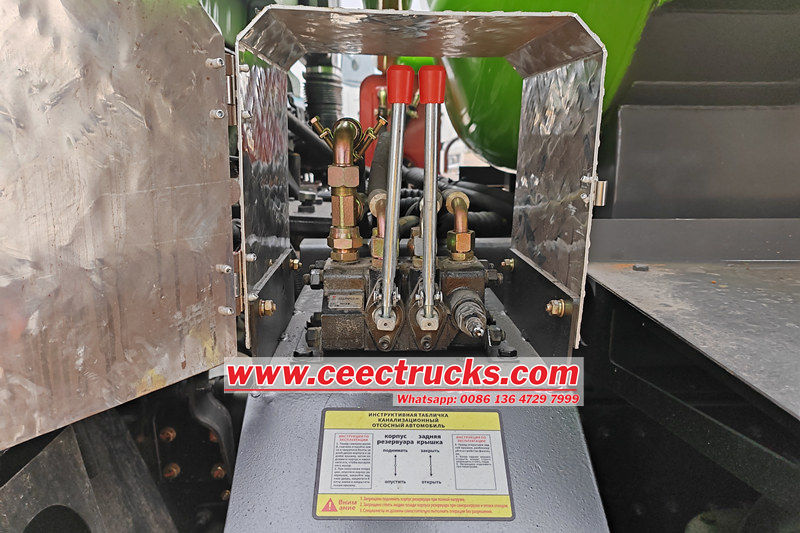

The Isuzu FTR combination vacuum truck is designed for easy and efficient operation. Its compact size and maneuverability make it suitable for navigating through narrow streets and alleys in urban areas, allowing for easy access to sewer lines in crowded cities. The truck is also equipped with a user-friendly control panel that provides operators with easy access to essential functions and settings, making it simple to operate and maintain.
In conclusion, the Isuzu 10 cbm combined sewer cleaning truck is a versatile and reliable vehicle that is capable of handling a wide range of cleaning tasks in urban sewer systems. With its powerful vacuum and jetting systems, as well as its user-friendly design, this truck is a valuable asset for any municipality or utility company looking to maintain and clean sewer lines effectively.
