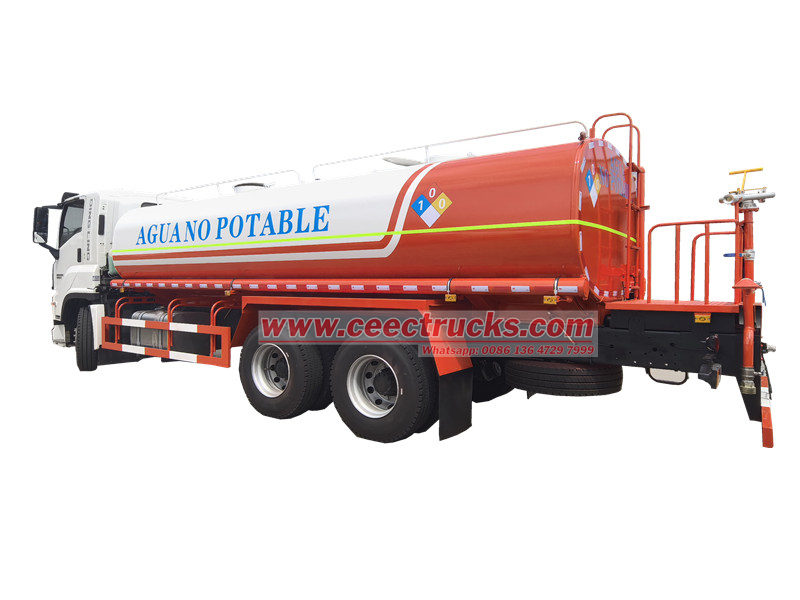

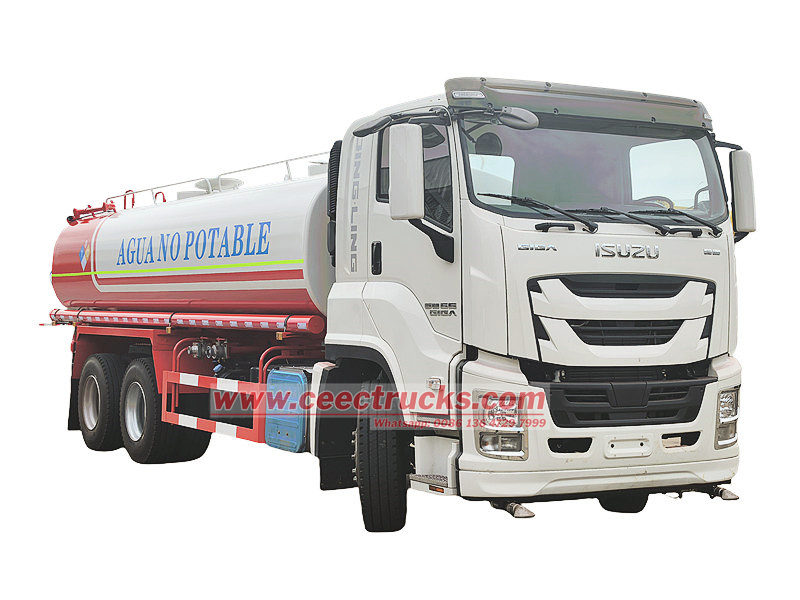

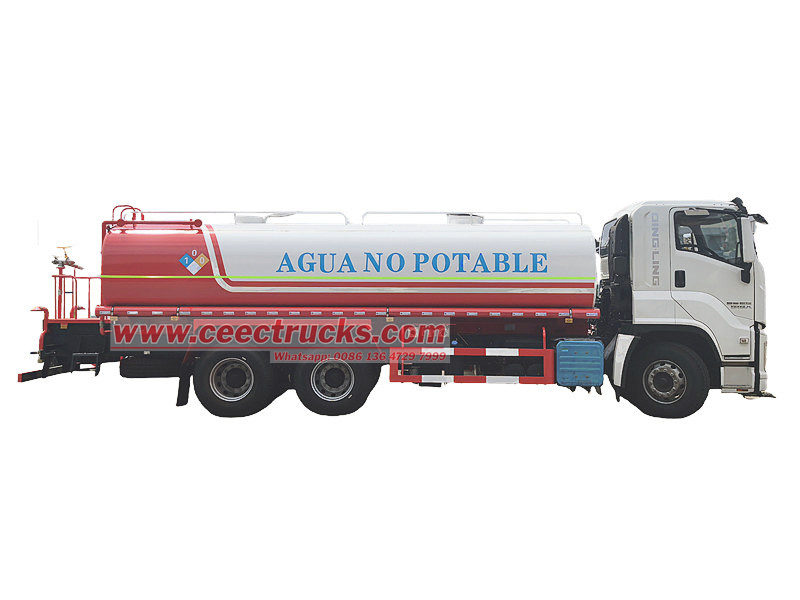

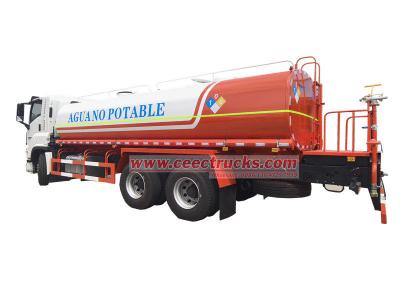

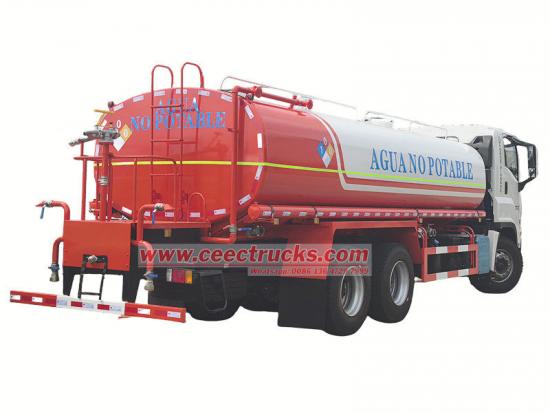

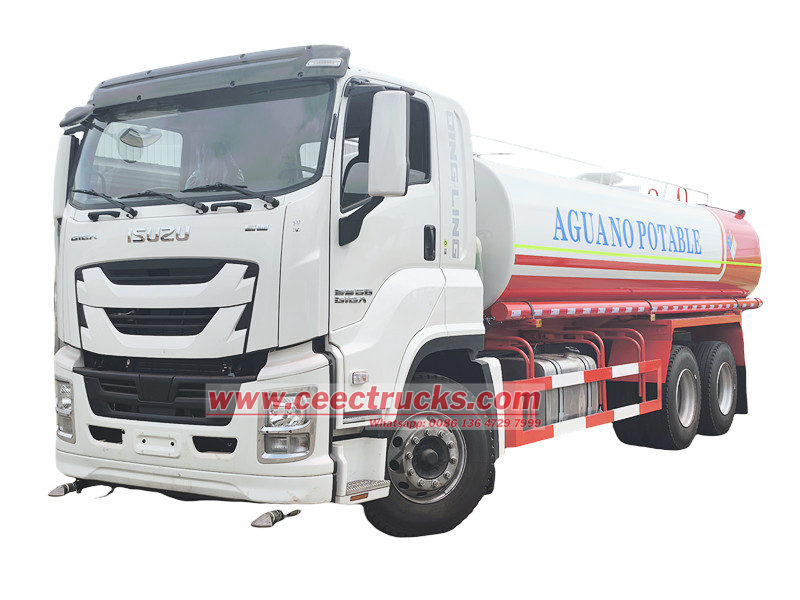

The Isuzu 20 cbm potable water hauling tanker is a specialized vehicle designed for the safe and hygienic transportation of drinking water. Constructed of a food-grade stainless steel tank, its smooth, seamless interior is rust- and corrosion-resistant, ensuring water quality remains uncontaminated.

Equipped with a highly efficient 80QZF60/90S water pump and piping system, the Isuzu potable water hauling tanker enables rapid filling and unloading, meeting the needs of urban and rural water supply, emergency water delivery, and temporary water supply in water-scarce areas.

● China best potable water hauling tanker factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements.

● Professional sales team which will help you to choose suitable truck.

● We can offer your a good after-sale service.

*Isuzu 20 cbm potable water hauling tanker

   drinking water transport truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Product Features：

● Equipped a centrifugal water pump from a leading Chinese brand, ensuring reliable performance, long service life.

● Equipped with a water-level sensor alarm system that triggers an automatic alert when water levels are insufficient.

● The water tank is treated with electrophoretic anti-corrosion coating, providing excellent corrosion resistance.

● A high-pressure water cannon is installed on the rear platform, delivering stable jet flow with minimal pressure loss.

Isuzu 20 cbm potable water hauling tanker(also called Isuzu 6x4 water sprinkler bowser truck, Isuzu 20cbm water bowser truck, Isuzu GIGA 20cbm potable water truck, Isuzu 10 wheels mobile water bowser, Isuzu 20cbm drinking water transport truck) is used to transport and supply water, whatever industrial or agriculture water. Suitable for use in urban areas with insufficient water supply, emergency rescue, construction sites, and other scenarios. Drinking water transport trucks are easy to operate, safe, and reliable, and are essential equipment for ensuring drinking water safety.

The Isuzu potable water hauling tanker primarily operates by transferring engine power to a water pump through a power take-off (PTO). The pump generates pressure, pumping water from the tank and delivering it through a pipe network to spray devices such as forward, rear, side, or high-position sprinklers, enabling spraying operations.

The water flow rate and spray angle can be adjusted to meet diverse needs, such as road dust reduction, landscaping irrigation, or cooling. The vehicle is also equipped with a high-pressure water cannon for long-range spraying, enhancing operational flexibility and adaptability.

» Ⅱ.Product Parameter for Isuzu 20 cbm potable water hauling tanker：









Isuzu 20 cbm potable water hauling tanker
Vehicle Dimensions, Weights & Capacities		Chassis brand	Isuzu GIGA
		Overall dimension (LxWxH)	10250×2550×3150 mm
		Wheelbase	4600+1370 mm
		Curb weight	11550 kg
		Gross weight	25000 Kg
Chassis		Drive mode	6x4, LHD
		Gearbox	Fast 12-speed gearbox
		Tires	10+1 spare tire
		Tyre specification	295/80R22.5
		A/C	Air conditioning
Engine		Engine model	6UZ1-TCG61
		Horse power	380 HP
		Displacement	9.839L
		Emission level	Euro 6
Water truck
Tank volume	20000L
Water tanker material	Stainless steel, Ellipse tank
Introduction	1. Suction≥7m  Sprinkler width≥14m   Range≥28m
	2. With front water spraying nozzles, rear water spraying nozzles, water spraying monitor

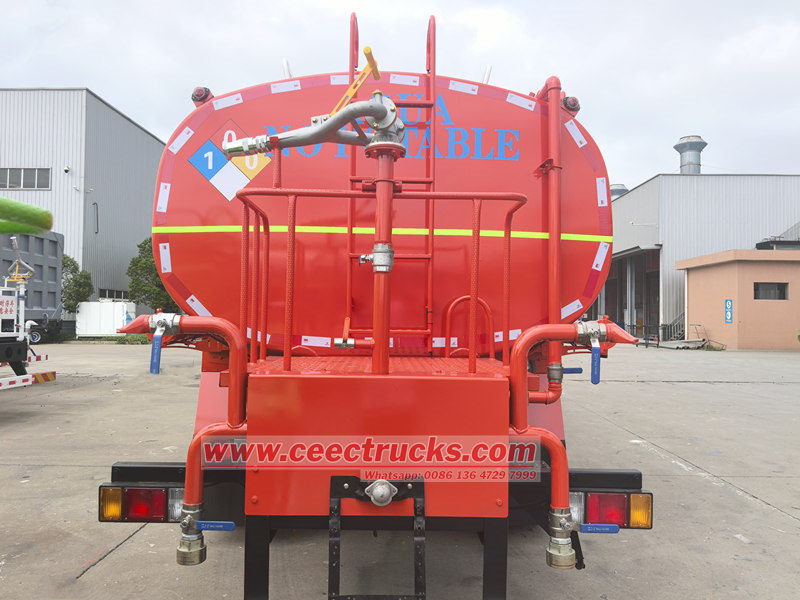

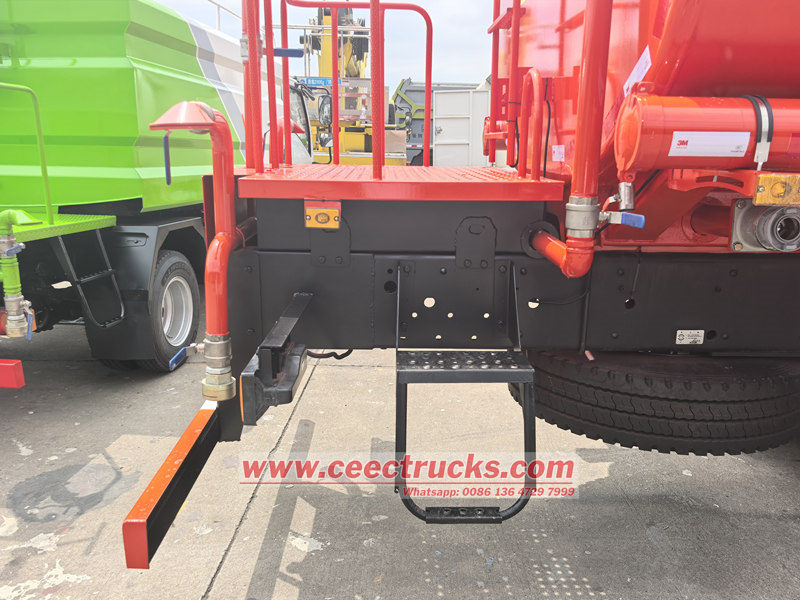

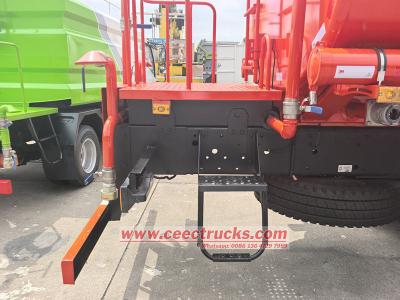

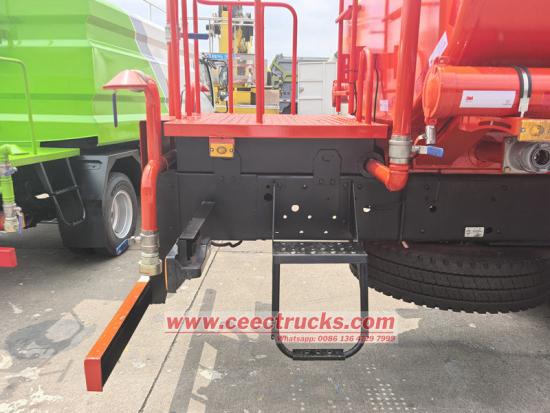

	3. with the working platform at the back, installed high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)

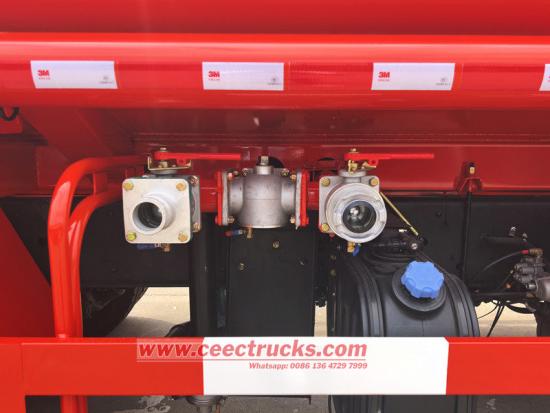

	4.Water Inlet & Outlet control valves
	5. Equipped with pipeline storage box at the side of tank
Horse reels	Two hose pipes on each side of the tank



» Ⅲ.Product Details & Advantages:

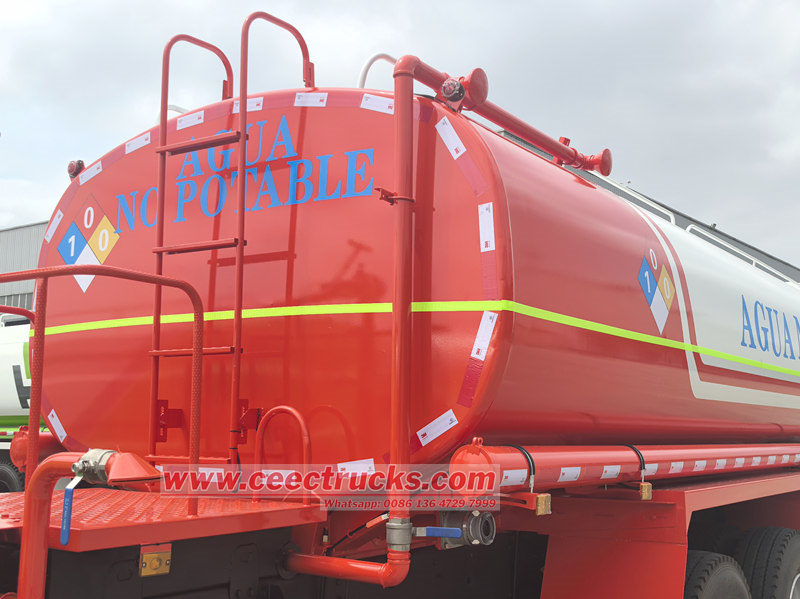

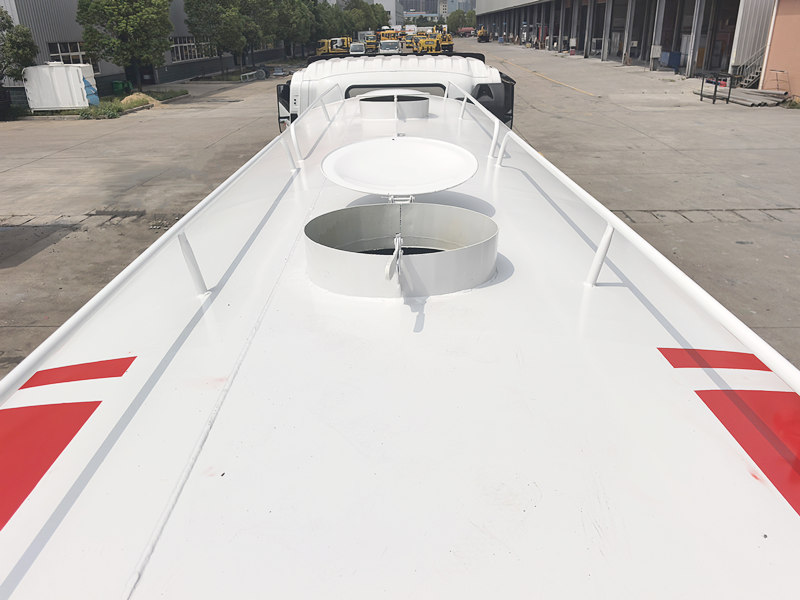

1. 20cbm stainless steel tank

♦ The Isuzu potable water hauling tanker features a large 20 cubic meter tank body made of food-grade stainless steel, offering excellent corrosion resistance and durability, effectively preventing secondary water contamination.

♦ The tank body is roll-formed in a single operation, with a thickness of 5mm. Multiple internal wave-breaking panels and longitudinal reinforcement ribs effectively reduce liquid sloshing during operation, ensuring driving safety.

♦ The large-capacity design not only improves single-pass efficiency but also meets the needs of long-term, wide-area spraying, making it ideal for use on urban roads and large construction sites.



2. 80QZF60/90S Water Pump

● The Isuzu GIGA potable water truck is equipped with the high-performance 80QZF60/90S sprinkler pump. This pump features both self-priming and high-pressure functions, offering rapid water intake and high head, enabling quick completion of water collection and spraying operations.

● Its compact design and stable and reliable operation ensure sufficient spraying pressure for even water coverage of the road surface. Furthermore, this pump is highly adaptable and can be used with a variety of water sources, including tap water and river water, providing convenient operation.

3. Application Scenarios

✦ In municipal sanitation, the Isuzu 20 CBM potable water hauling tanker effectively reduces dust and keeps urban roads clean.

✦ In landscaping, it can be used for green space irrigation, tree watering, and flower and grass maintenance.

✦ In hot weather, it can also lower air temperatures through misting or watering, improving the local environment.

✦ In industrial and mining areas, construction sites, and other areas, it can suppress dust and reduce temperatures, improving the working environment.

✦ With its large-capacity tank and efficient water pump, this water truck can play an important role in a variety of scenarios.

•

•



•
