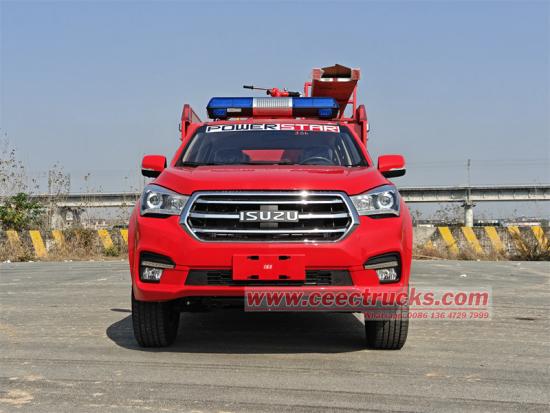

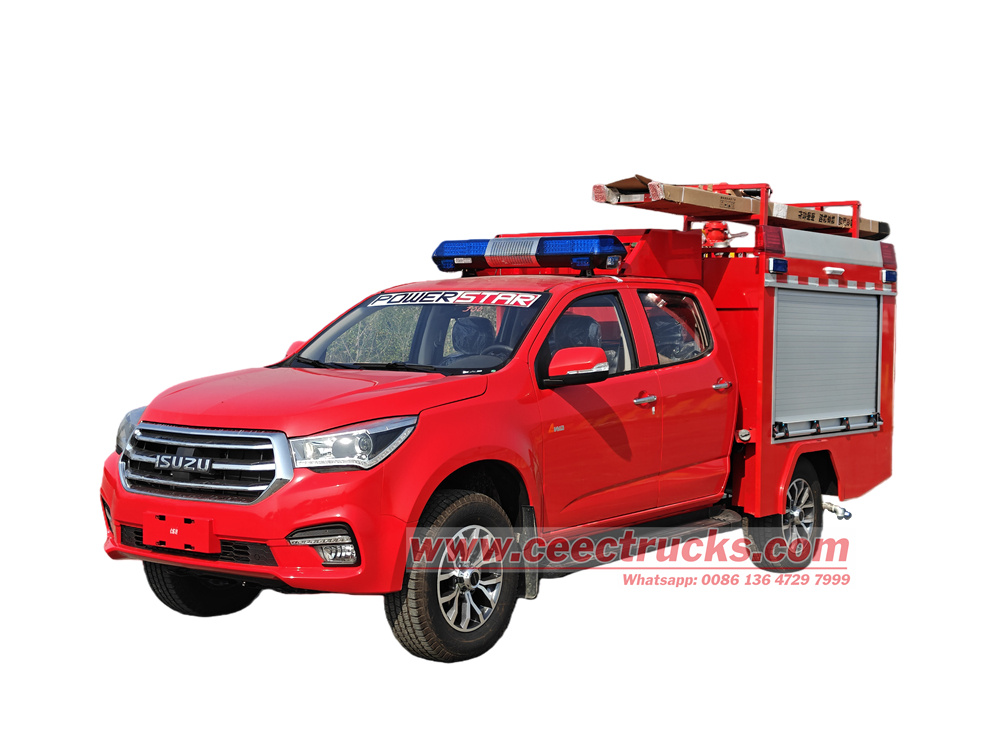

Isuzu 4x4 rapid intervention vehicle for police

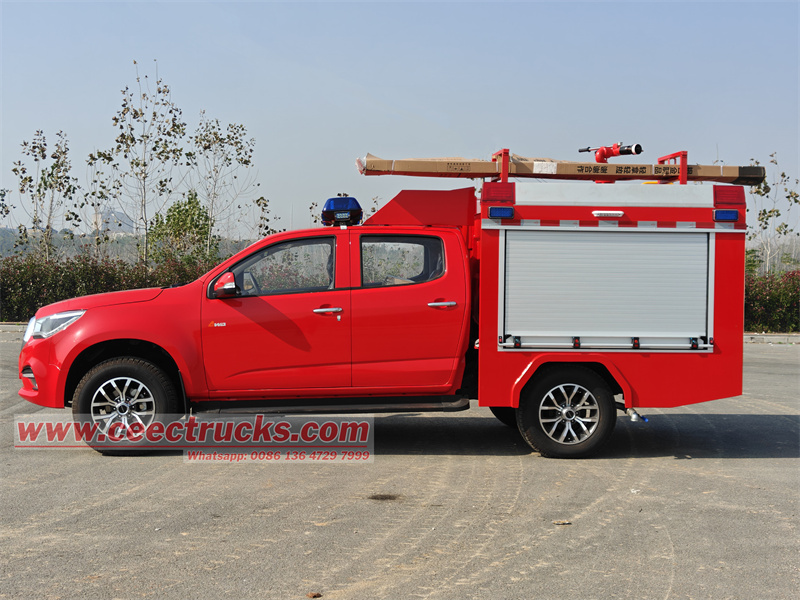

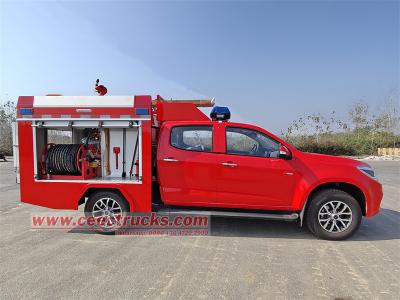

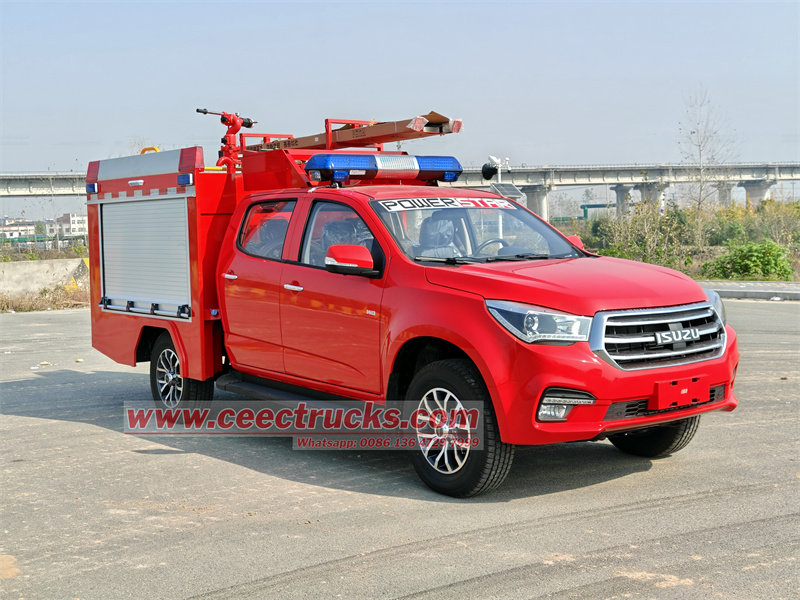

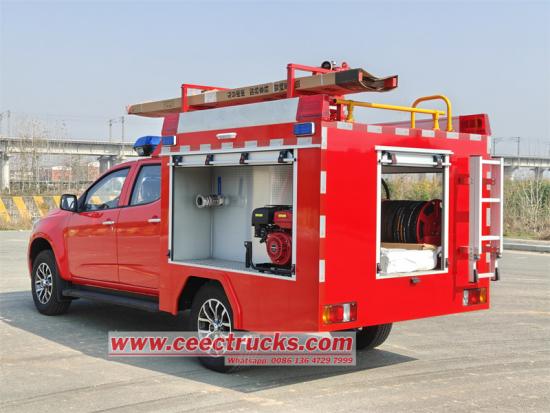

This Isuzu pickup truck fire truck is based on the Isuzu TAGA 3.0T 4 wheel drive double-cab pickup chassis, with a 3406mm wheelbase. With Isuzu 4HK1CT6H1 engine and MSB 5-speed gearbox. The front features a 500L water tank and a 100L foam tank,stainless steel material. Firefighting equipment can be stored on both sides. The rear pump room equipped with a JBQ4.5/9 fire pump, a 50m electric hose reel. The roof features a PL8/24 fire monitor, a ladder, a manhole, and fire warning lights.

Work capacity:
500L water+100L foam
Dimension ( mm ):
5850 x 2000 x 2650 mm
Wheelbase ( mm ):
3406 mm
Engine power:
143HP/105kW
Engine type:
Isuzu 143HP/105kW
Axle drive:
4x4
Gear box:
Isuzu MSB 5-speed,manual

Inquiry now

Isuzu 4x4 rapid intervention vehicle for police

This Isuzu 4x4 rapid intervention vehicle for police is a highly mobile fire truck designed specifically for narrow roads, rural areas, and forests. It features a full-drive double-cab pickup chassis, a 500L water tank, a 100L foam tank, a JBQ4.5/9 portable pump, a 50m electric hose reel, and a roof-mounted PL8/24 fire monitor, supporting all-terrain spraying. The vehicle's high mobility allows for the rapid transport of multiple firefighters and equipment, providing a quick response time. It is suitable for fighting initial fires in narrow urban streets, underground garages, and in the wild.

Isuzu 4x4 rapid intervention vehicle for police

Working Capacity

Engine Model

Wheelbase

Superstructure

500L water+100L foam

4HK1CT6H1/ 143HP

3406mm

★Stainless steel

★China famous JBQ4.5/9 fire pump

★ China famous PL8/24 Fire monitor

★ 2026 year brand new

Product Parameters:

Isuzu 4x4 rapid intervention vehicle for police
General	Overall Dimension	*5850 2000 * 2650 mm**
	GVW / Kerb Weight	3295kg / 2650kg
	Payload capacity	600kg
	Wheelbase	3406mm
Cab	Cab Capacity	2+3 persons allowed,with A/C
Engine	Fuel Type	Diesel
	Engine Type	Inline 4-cylinder
	Engine Model	ISUZU 4HK1CT6H1
	Power	143HP/105kW
	Displacement	2999 ml
	Emission Standard	Euro 6
Chassis	Drive Type	4X4 (left hand drive)
	Transmission	Isuzu MSB 5-shift speed levers with 1 reverse,manual
	Tire Specification	245/70R17LT 10PR,4 tires
Fire performance	Tank Capacity	Water tank	500L
		Foam tank	100L
	Tanker Material	Stainless steel
	Fire pump	Pump Model:	JBQ4.5/9
		Flow Rate	600L/min
		Exhaust Rate	390ml
		Engine Model	188F/GX390
		Engine Max.Power	9.6Kw/13HP
		Engine speed	3600r/min
		Max pressure	≥0.65MPa
		Priming Time	≤10s
		head	60m
	Foam Water Proportioning Mixer	Model	PH64-RS
		Mixing ratio	6%
		Work pressure range	0.6～1.4MPa
		Flow range	16～64L/s
		Suitable foaming liquid categories	Category B
	Fire monitor	Model	PL8/24
		Rated work pressure	0.8MPa
		Rated flow	24L/s
		Water: ≥55m,Foam: ≥42m
		Pitch Rotation		-45～+70°
		Horizontal rotation		0～360°
	Hose reel	Electric, 50 meters

-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)

Chassis Configuration:

This vehicle is modified from an Isuzu TAGA double-cab pickup truck chassis.

• Drive Type: Four-wheel drive, with low-speed four-wheel drive torque amplification function, suitable for mountain roads, mud, and snow rescue.

• Wheelbase: 3406 mm

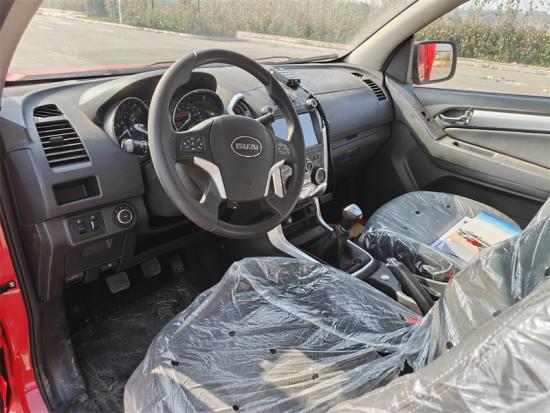

• Cab: Double-cab, can carry 5-6 firefighters, enabling simultaneous personnel and vehicle response.

• Engine: Isuzu original 4HK1CT6H1 3.0T diesel engine.

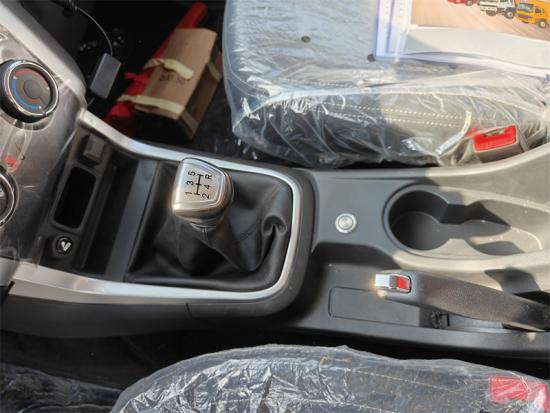

• Transmission: MSB 5-speed manual transmission.

Upper Structure Configuration:

Liquid-Carrying Tank Area (Front):

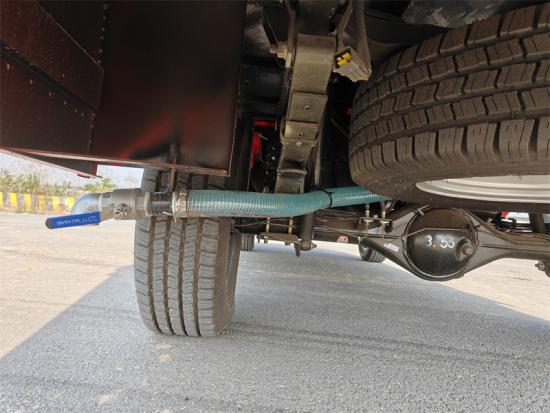

• Tank: 500L water tank + 100L foam tank, made of stainless steel, equipped with a drain valve, water inlet, and overflow pipe.

• Side Equipment: Features aluminum alloy roller shutter doors, providing convenient storage for various firefighting equipment (fire hoses, fire extinguishers, fire axes, wrenches, hammers, picks, etc.).

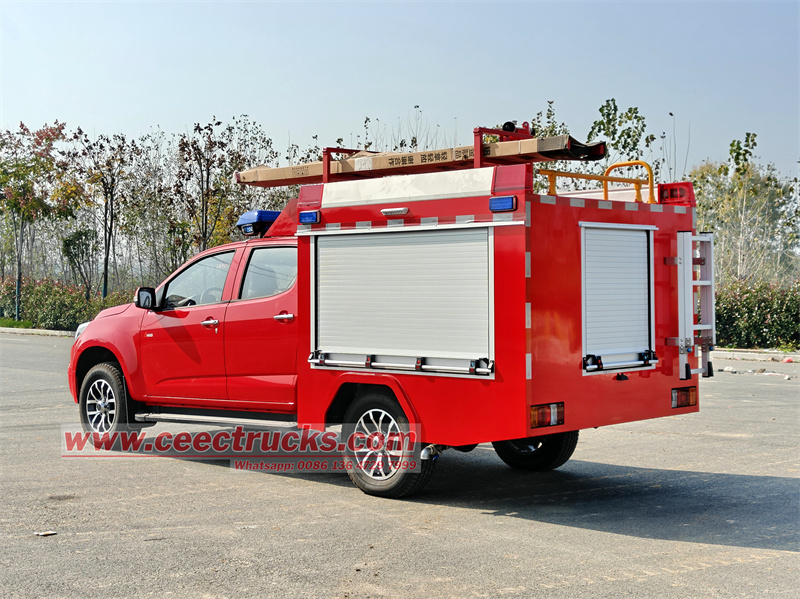

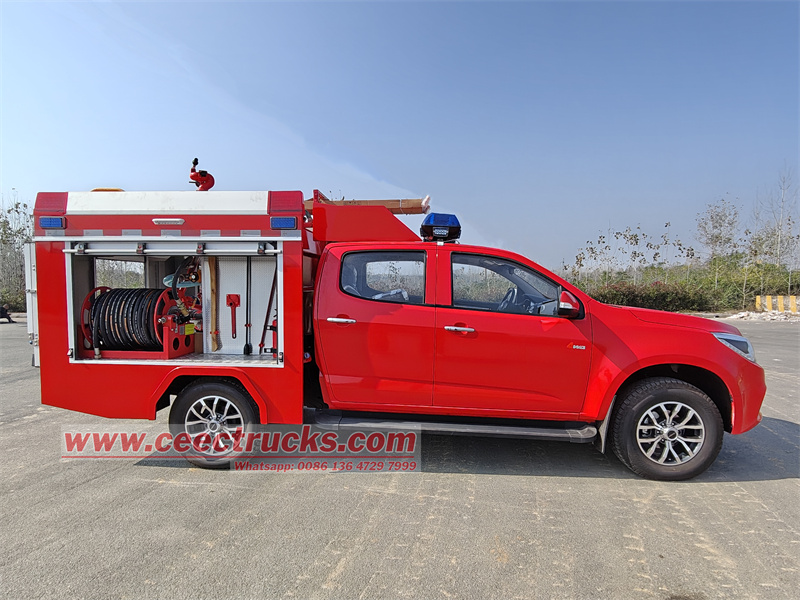

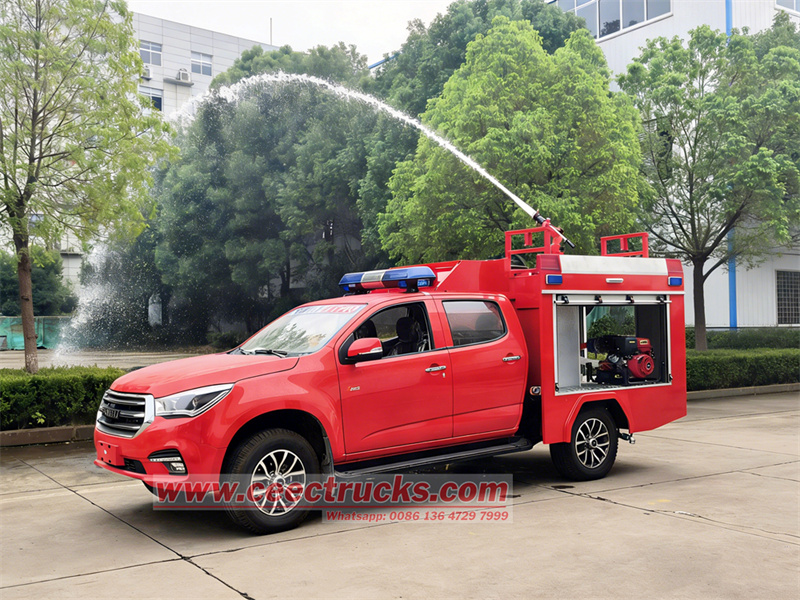

Isuzu 4x4 drive firefighting pick up

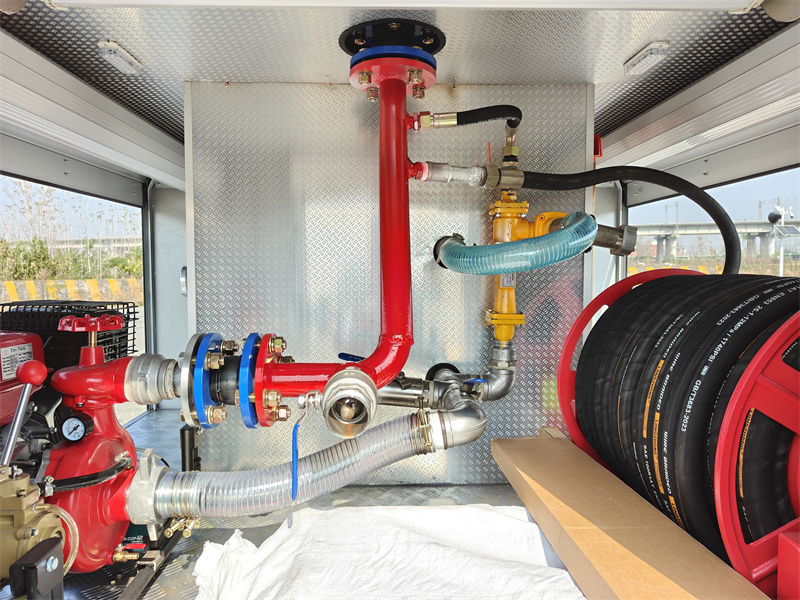

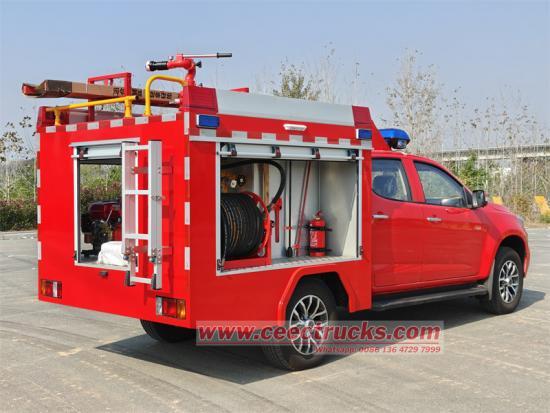

Pump Room Area (Rear):

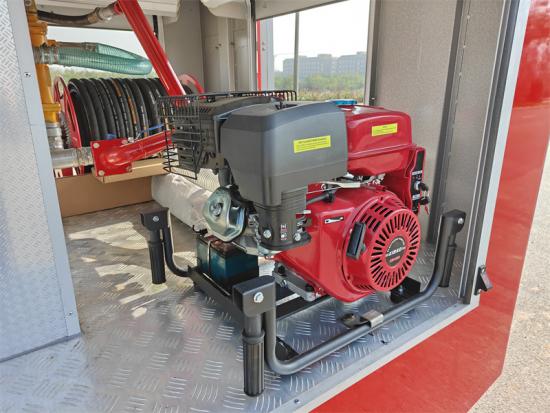

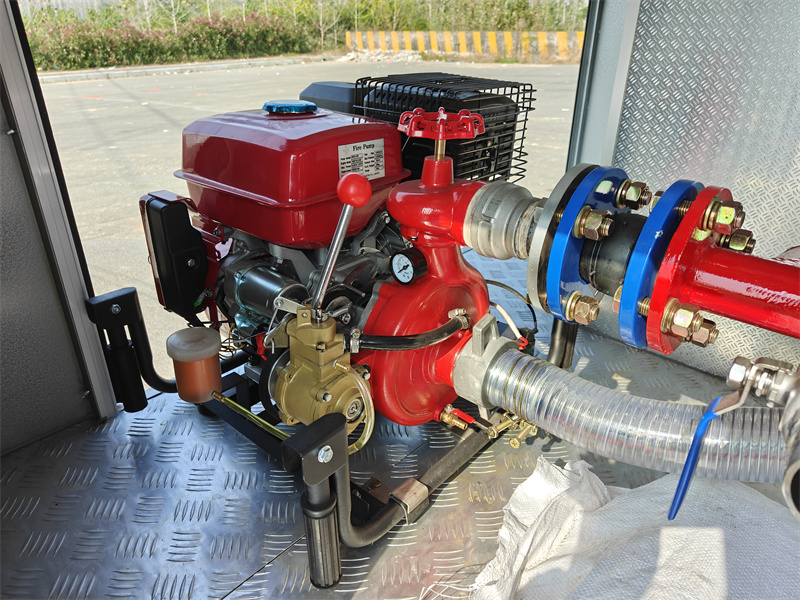

• Core Equipment: JBQ4.5/9 Fire Pump.

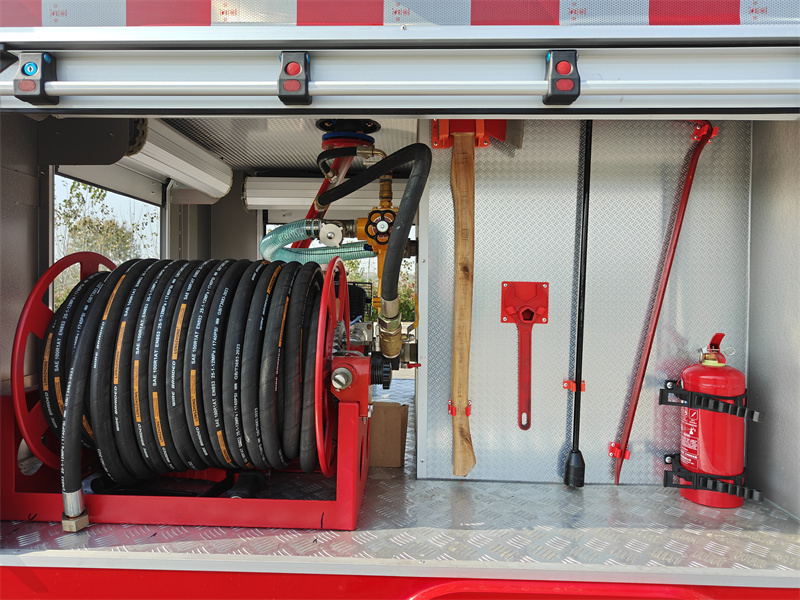

• Hose Reel: Equipped with high-pressure hose and mist/direct current dual-purpose spray gun, used for extinguishing initial small fires or clearing residual fires.

• PH64 Foam Proportioning Mixer: Negative pressure type, can mix foam concentrate with water in proportion (6%), outputting foam mixture. Flow rate 16-64L/s, ensuring firefighting efficiency.

Fire Pump Model	Flow	Exhaust Rate	Engine Model	Engine Max.Power	Engine speed	Max pressure
JBQ4.5/9	600L/min	390ml	188F/GX390	9.6Kw/13HP	3600r/min	≥0.65MPa

Roof

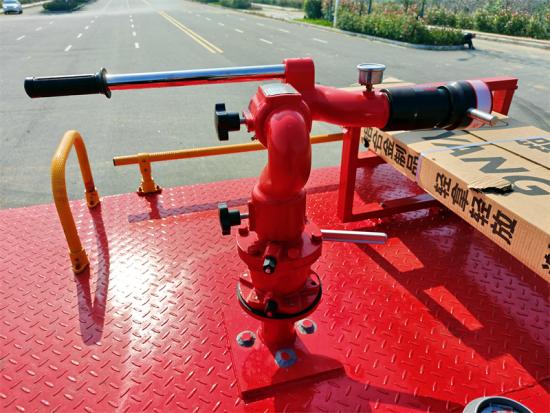

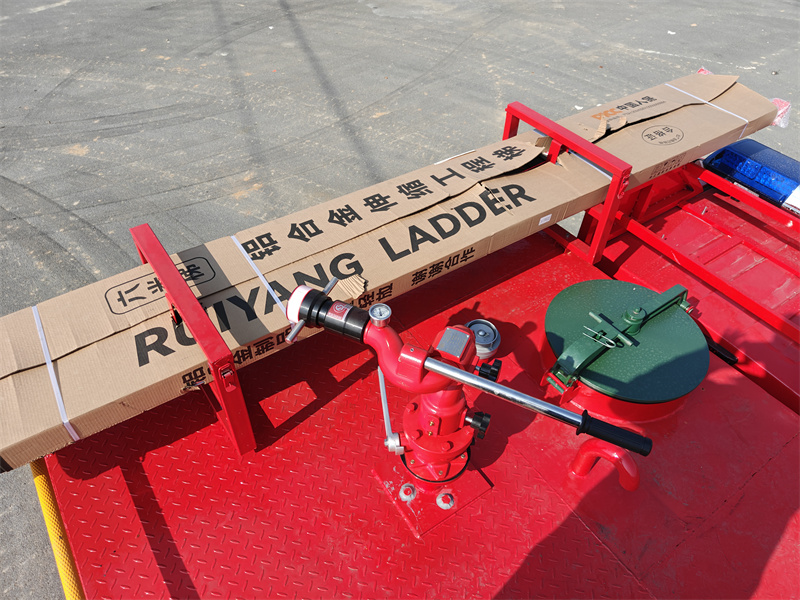

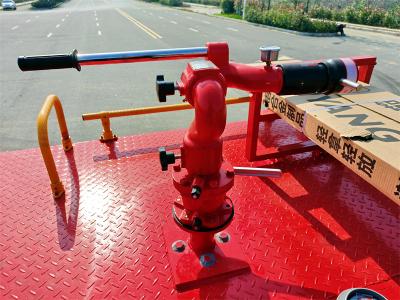

• Fire Monitor: A PL8/24 manual fire monitor is installed on the roof.

Operation: Manually adjustable horizontal rotation and pitch, with split/direct current switching capability.

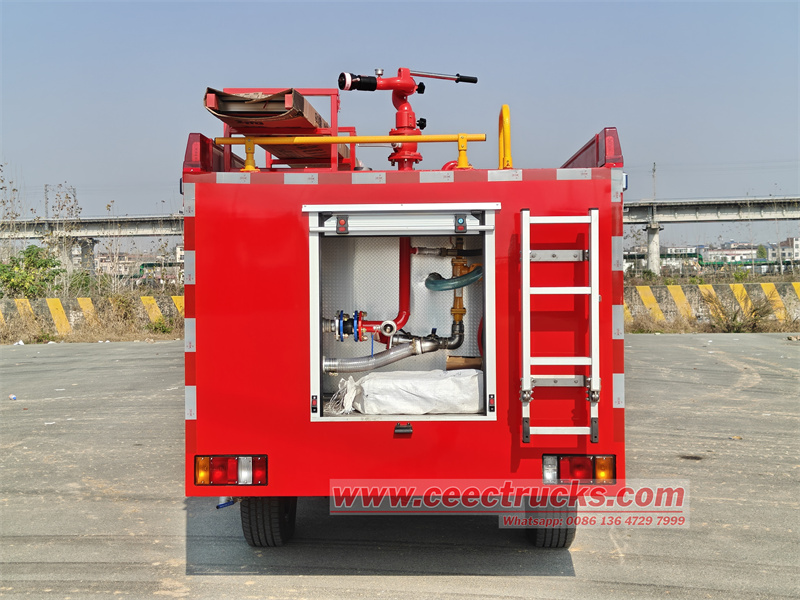

• Ladder: A stainless steel folding ladder is installed at the rear of the vehicle for easy access to operate or maintain the fire monitor from the roof.

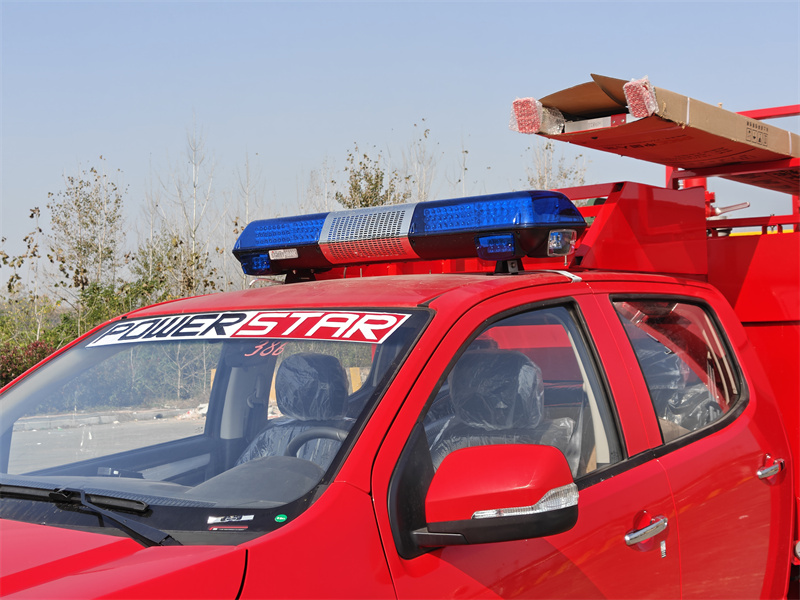

• Warning System: A long row of LED fire warning lights (with strobe and siren) is installed on the roof of the cab;

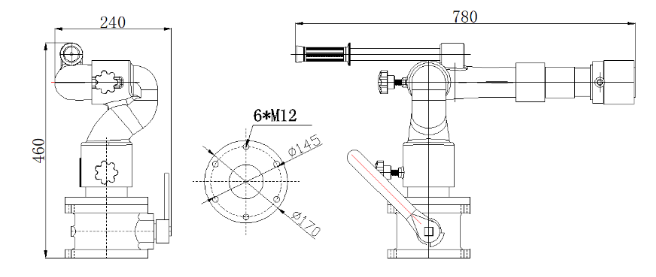

PL 8/24 fire monitor

Fire Monitor Model

Flow

Range

Rated Pressure

Pitch Rotation

Horizontal rotation

Weight

PL8/24

24L/s

Water ≥55m

Foam ≥42m

0.80MPa

-45°～+70°

0～360°

23kg

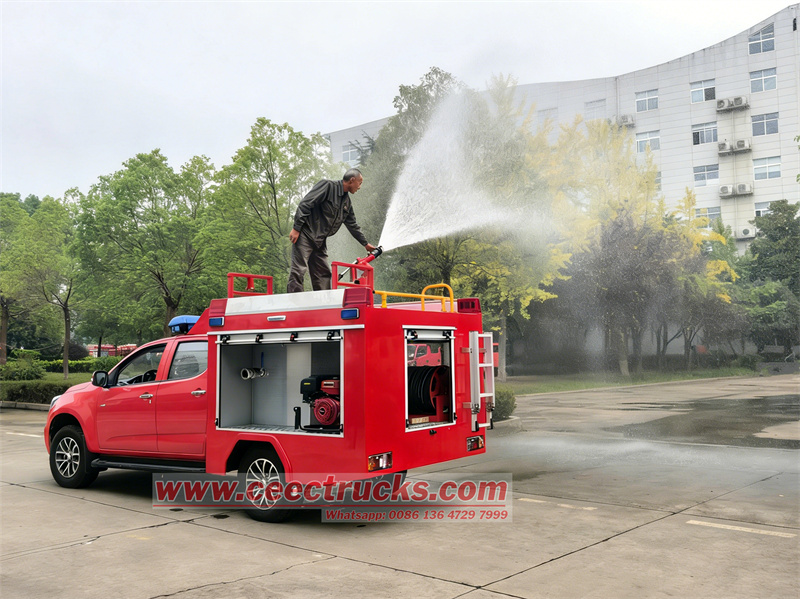

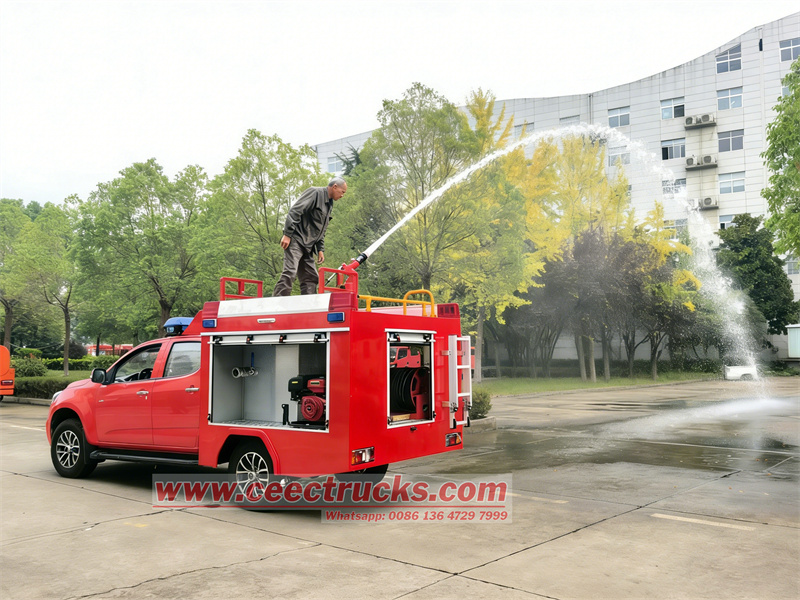

Factory Test:

technical drawing of isuzu pickup fire truck

★ isuzu 4HK1CT6H1 Euro 6 engine, super powerful

★ isuzu MSB Manual 5-shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU pickup fire truck

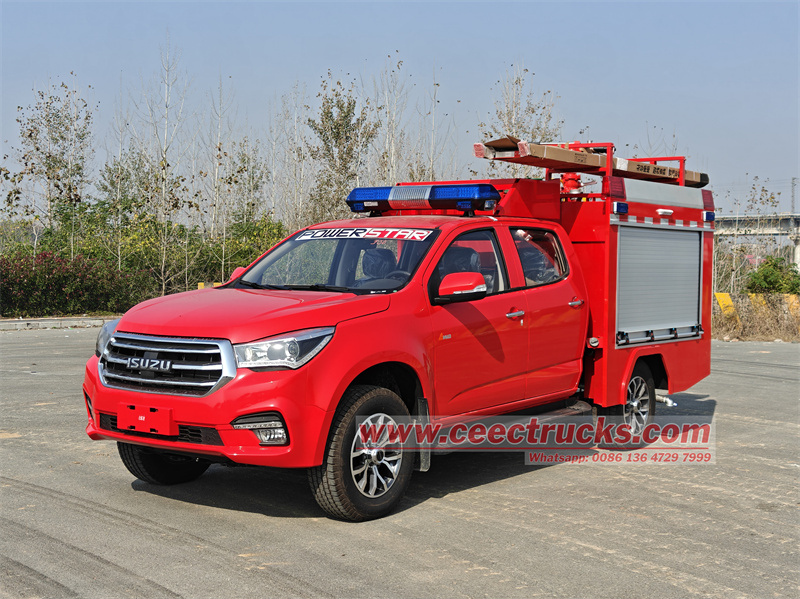

Isuzu 4x4 all wheel drive foam fire truck
