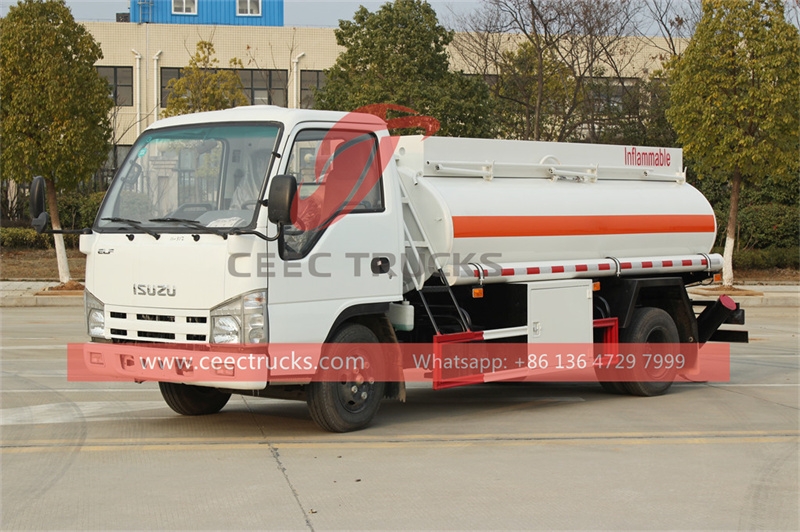

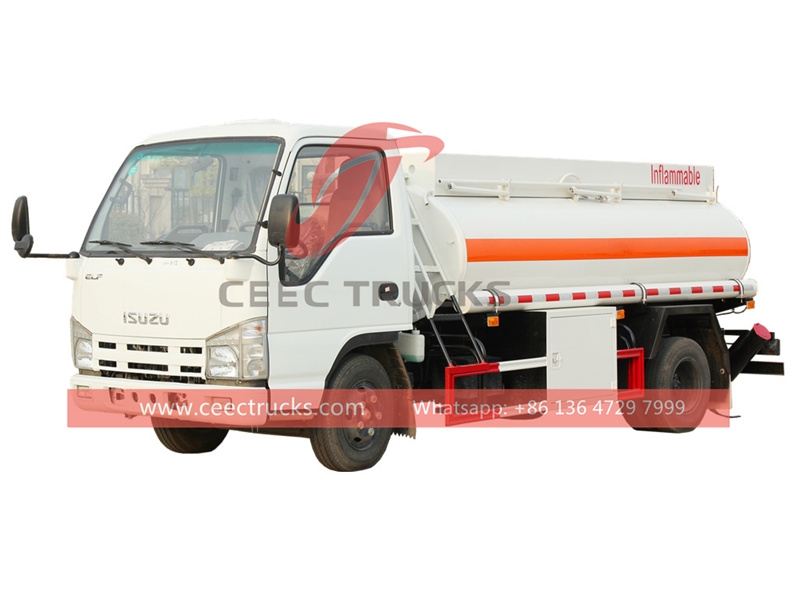

Isuzu 5000L mini diesel bowser made in China

Isuzu 5000L mini diesel bowser

Isuzu 5000L mini diesel bowser is an economical, practical, reliable, safe and environmentally friendly small truck, suitable for various short-distance refueling needs. Whether it is a gas station in the city or a construction site, farmland and other places, Isuzu mini diesel bowser can provide users with efficient and convenient refueling services.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

Isuzu 5000L mini diesel bowser



 Applications:

ISUZU 5000L mini diesel truck (also called ISUZU oil tanker truck, ISUZU fuel tanker truck, ISUZU fuel bowser, ISUZU fuel delivery truck, factory price diesel transportation truck, ISUZU fuel bowser with double dispenser, oil/diesel/petrol tank manufacturer) is designed to transport and deliver fuel or other petroleum products from one location to another. Our tank is specially designed to securely hold and transport large quantities of flammable liquids, such as gasoline, diesel, or aviation fuel. It's used in the logistics and transportation industry to deliver fuel to gas stations, airports, construction sites, and other facilities that require a constant supply of fuel.



CEEC TRUCKS fuel bowser can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol...



The fuel truck can be equipped with oil pump and refueling machine, all for easy operation.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU engine option, super powerful, no overhaul within 100,000 km.

---- Fuel Tanker body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.


Isuzu mini 5000L oil tank truck is an economical and practical small truck suitable for various short-distance refueling needs. The Isuzu mini oil tank truck has a total length of 5.8 meters, a width of 2.15 meters, a height of 2.35 meters, a wheelbase of 3.36 meters, and a GVW of 4495kg. It has good passability and flexibility.

The Isuzu mini 5000L oil tank truck uses a 4KH1CN6LB model engine with a maximum horsepower of 120HP. Its top speed is 95 km/h. It is equipped with a 70L fuel tank and has a long cruising range.

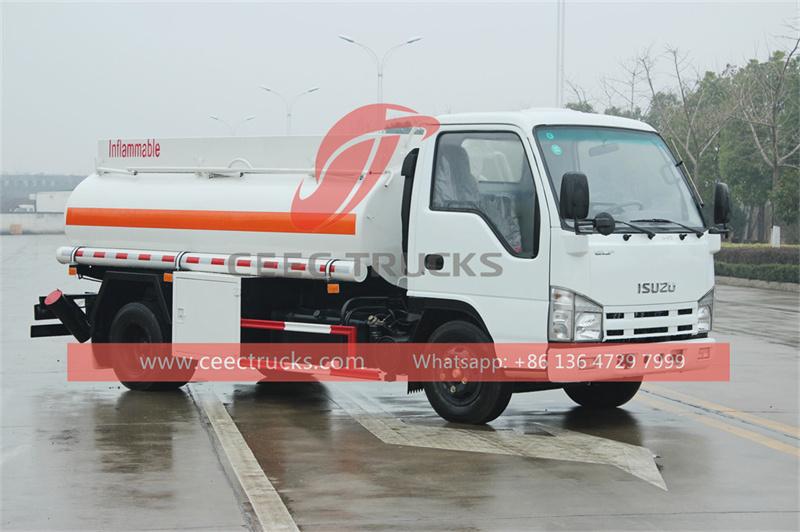

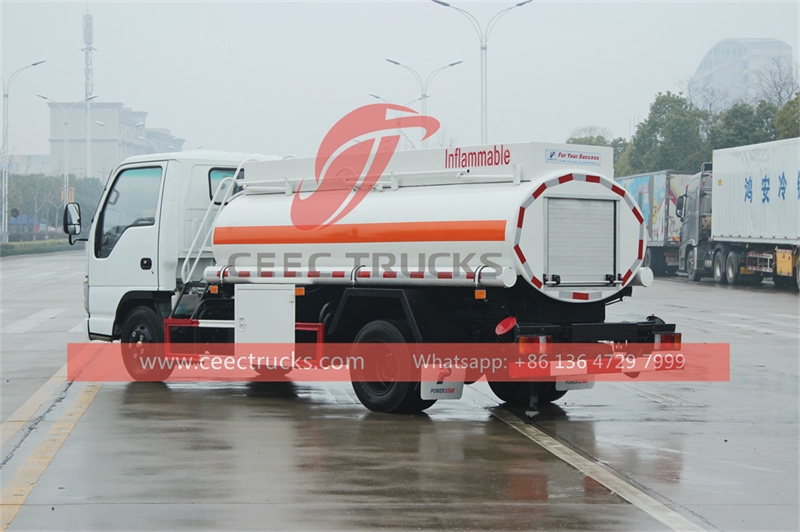

 Isuzu mini 5000L oil tank truck

In terms of safety, the Isuzu mini oil transfer truck is equipped with a variety of braking systems such as air brakes, spring energy storage emergency braking and engine exhaust valve braking. The Isuzu 5,000 liters diesel bowser ensures the braking of the vehicle under different working conditions. dynamic security. At the same time, Isuzu mini diesel bowser is also equipped with safety devices such as ABS, automatic brake gap adjustment arm, driving data recorder and engine protection plate, which improves the driving safety and reliability of Isuzu NKR diesel bowser.

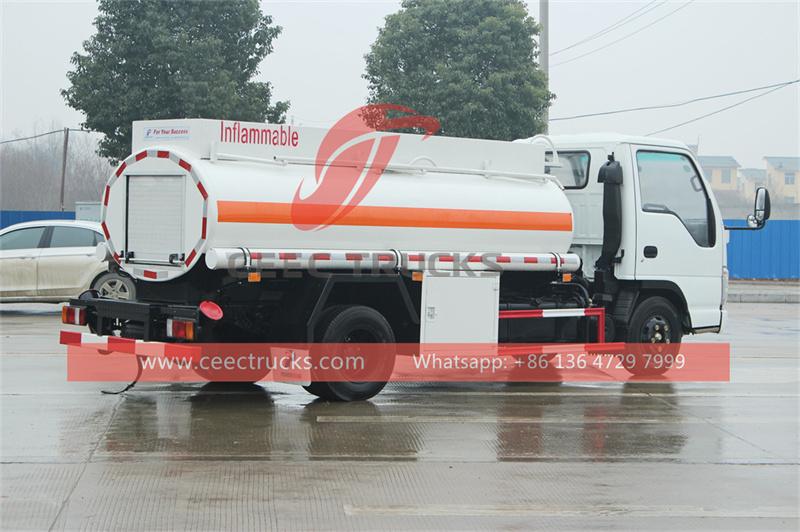

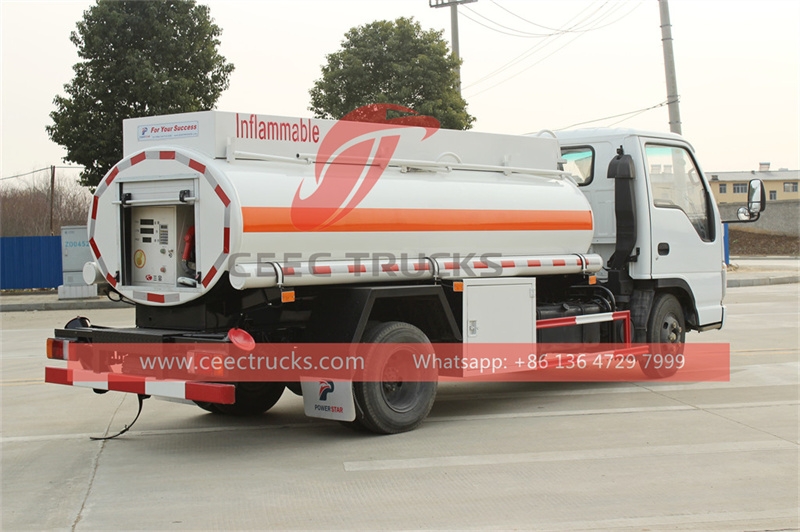

Isuzu mini 5000L oil tank truck

Isuzu mini diesel bowser can also be equipped with optional refueling equipment according to user needs, such as fuel distributors, refueling guns, to meet different refueling needs. The Isuzu mini diesel bowser can also be equipped with optional equipment such as a vertical muffler, ABS, automatic brake gap adjustment arm, driving data recorder, metal pipes and engine protection panels to improve the performance and reliability of the vehicle.

 Specifications:



Isuzu NKR 5000L oil tank truck

Overall Dimensions

5800x2150x2350 mm

Wheel Base

3360 mm

GVW

4495kg

Front axle loading capacity

2500KG

Rear axles loading capacity

4800KG

Engine

Brand

ISUZU

Model

4KH1CN6LB

Type

4-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Displacement

2.99L

Horse Power (HP)

120HP

Emission standard

Euro 6

Max Speed

95 km/h

Tire

700R16

Transmission

5 forward & 1 reverse,with PTO

Steering

MSB

Oil Tank

70L

Tank Volume

5000L

Brake System

Service brake:air brake

Parking brake (emergency brake):spring energy,
compressed air operating on rear wheels

Auxiliary brake:engine exhaust valve brake

Electrics

Operating voltage:12V,negative grounded

Batteries:12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light

Refuel equipment optional

Fuel Dispenser

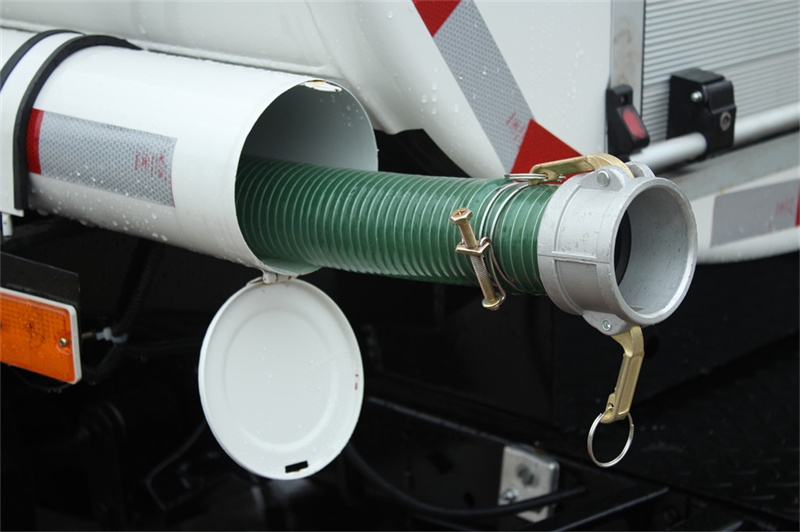

Refilling pipe with gun

Option

Vertical Muffler,ABS,Automatic Break Clearance Adjusting Arm,
Traveling Data Recorder,Metal Pipeline,Engine Protective Board

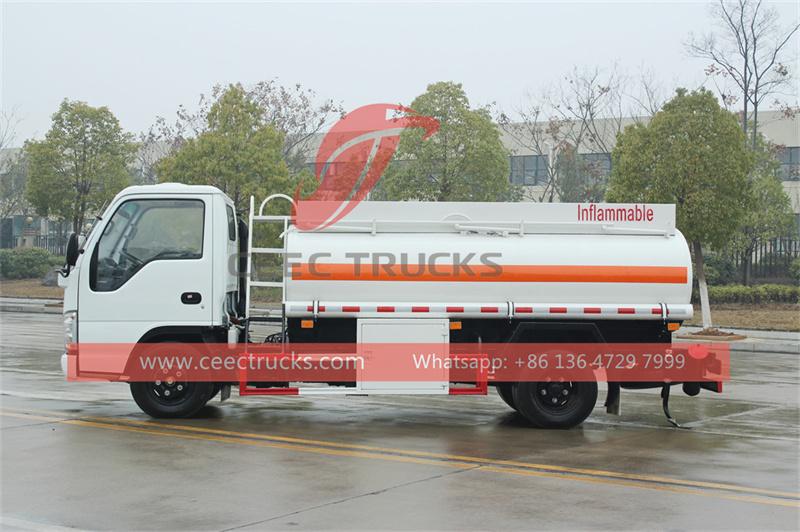

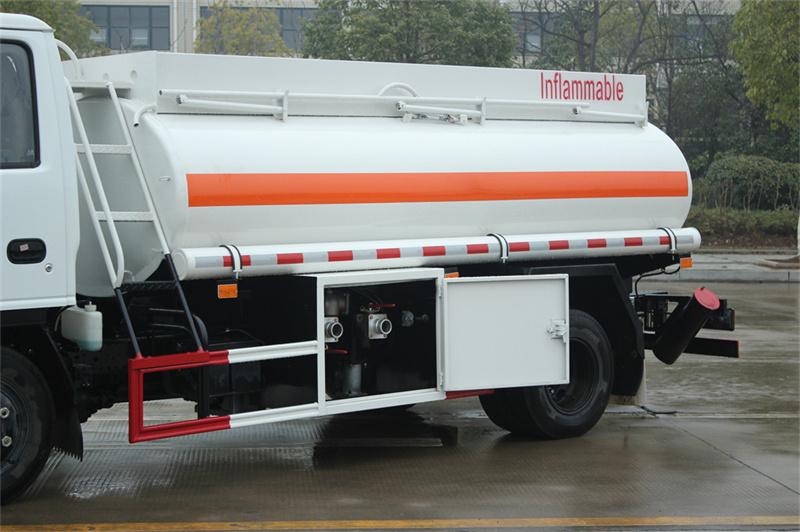

Isuzu mini 5000L oil tank truck

(Professional Fuel/Oil/LPG tanker truck manufacturer in China)

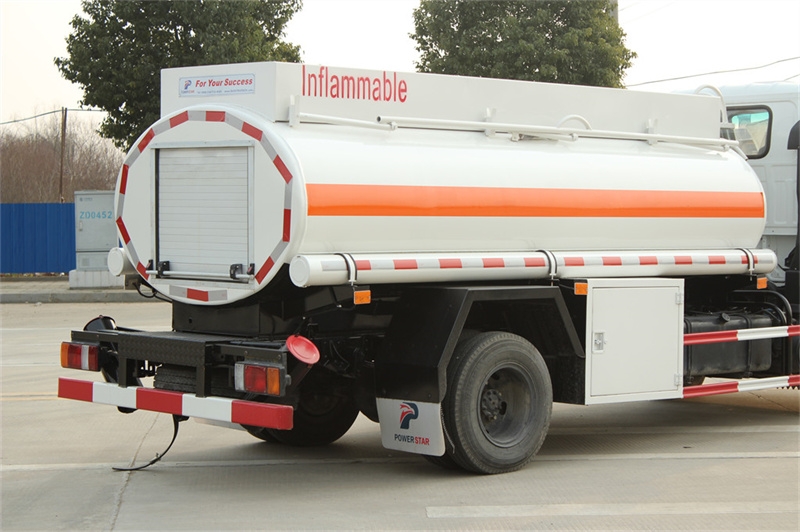

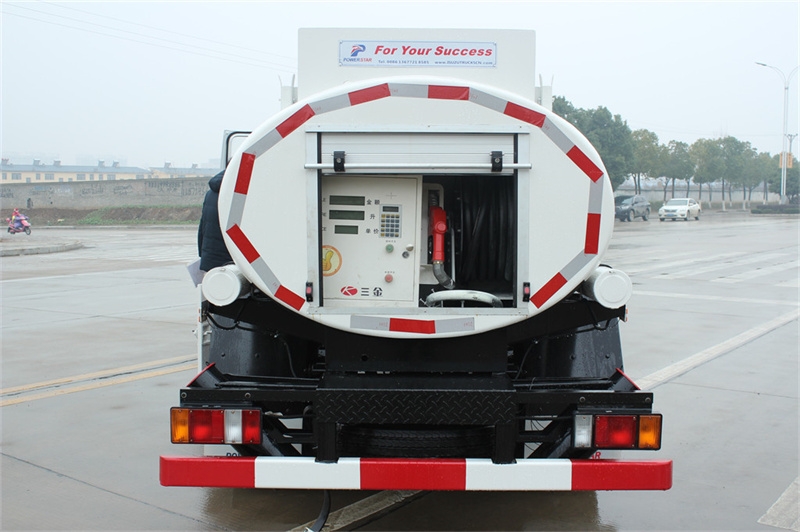

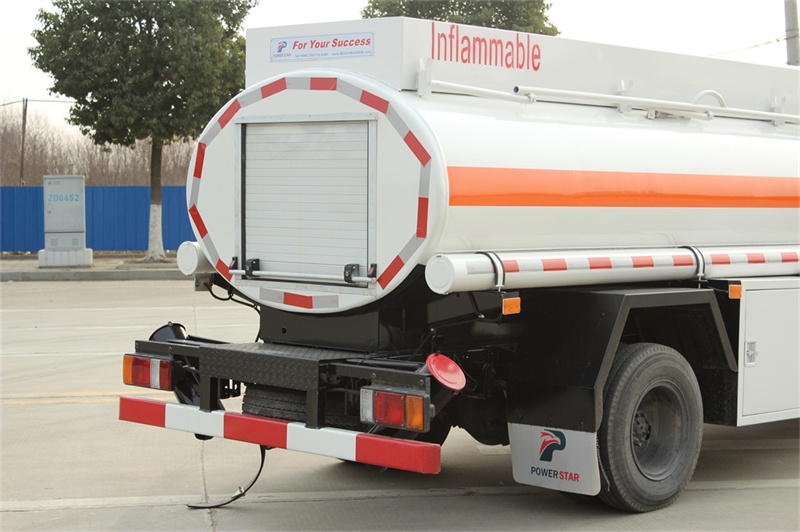

The rear refueling box is mainly due to the following considerations:



1. Balance the vehicle's center of gravity: Placing the fuel tank at the rear helps balance the vehicle's center of gravity, especially when it is fully loaded with fuel. Placing the fuel tank at the rear of the Isuzu fuel tanker truck can make the front and rear weight distribution of the vehicle more even, improving the driving stability and safety of the Isuzu oil tanker truck.

2. Convenient operation and maintenance: Placing the refueling box at the rear allows the refueling port and outlet of the fuel tank to be located on the side or rear of the vehicle, making refueling operations easier. At the same time, the design of the rear fuel tank also makes the inspection and maintenance of the fuel tank more convenient without flipping or moving the entire vehicle.

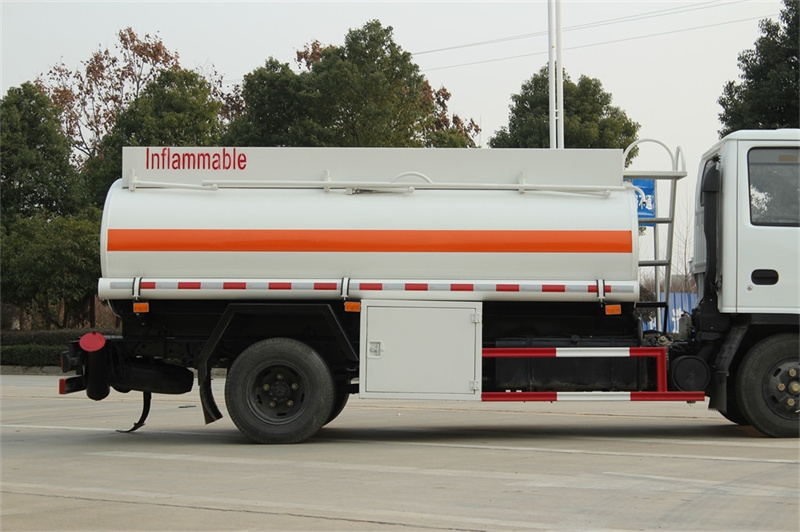

Isuzu mini 5000L oil tank truck

3. Improve fuel economy: Placing the fuel tank at the rear can reduce the wind resistance and fuel consumption of the Isuzu NPR fuel tanker truck during driving. The rear-mounted design of the fuel tank can make the Isuzu NPR oil tanker truck more streamlined and reduce air resistance, thus improving fuel economy.

4. Adapt to the needs of different sites: Isuzu NPR oil transfer truck needs to perform refueling operations in different sites, including gas stations, logistics parks, mining areas, etc. Placing the refueling box at the rear can adapt to the refueling needs of different sites, making it easier for the Isuzu NPR oil transfer truck to operate flexibly in different sites.


CEEC TRUCKS is a professional Fuel/Diesel/Petrol/LPG refueling trucks manufacturer. We can provide ISUZU fuel tanker truck, HOWO refueling truck, FOTON diesel transportation truck, Dongfeng fuel bowser truck, etc. The capacity of fuel tanker can be 3,000-40,000 liters. Our fuel trucks are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price.

Euro 5 type, ISUZU engine, super powerful

China famous fuel pump super powerful, efficient pump in and out

12 months fast moving spare parts for FREE

Authorized ISUZU fuel tank trucks exporter

Training service for oil tanker trucks

Isuzu 5000L mini diesel bowser


Isuzu 5000L mini diesel bowser

CEEC TRUCKS is a leading exporter of fuel tanker trucks in China. We possess over 10-year export experience of fuel bowser trucks. We can ensure the fast delivery time and 12 months guarantee for our refueling trucks. Our oil tanker trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
