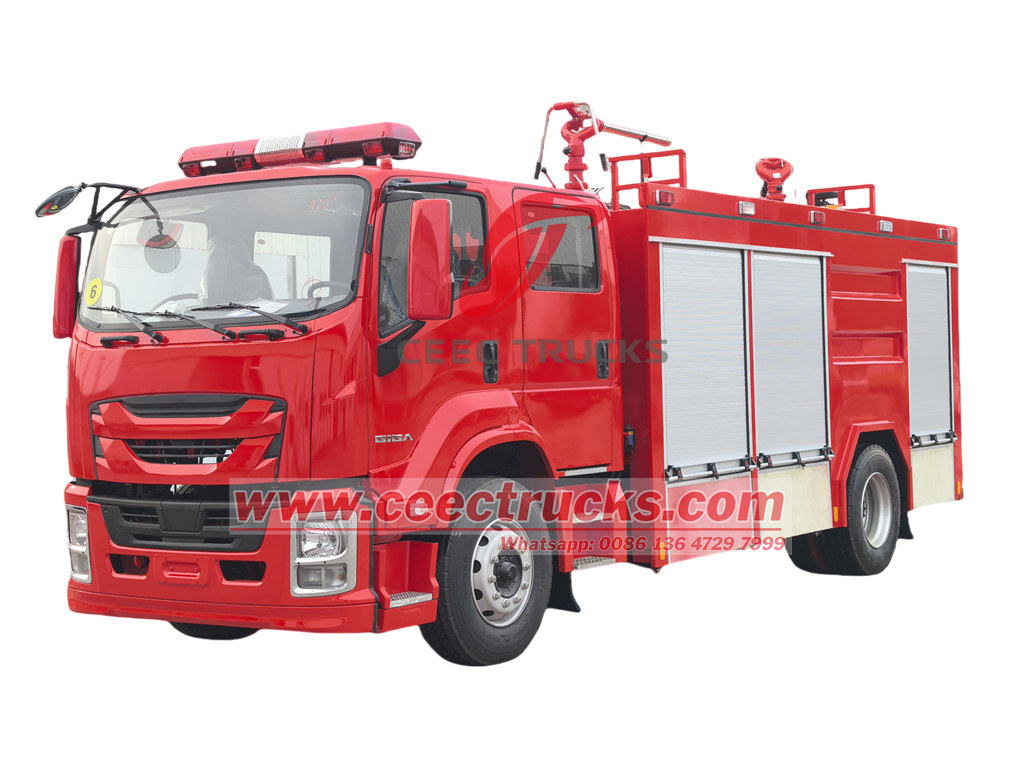

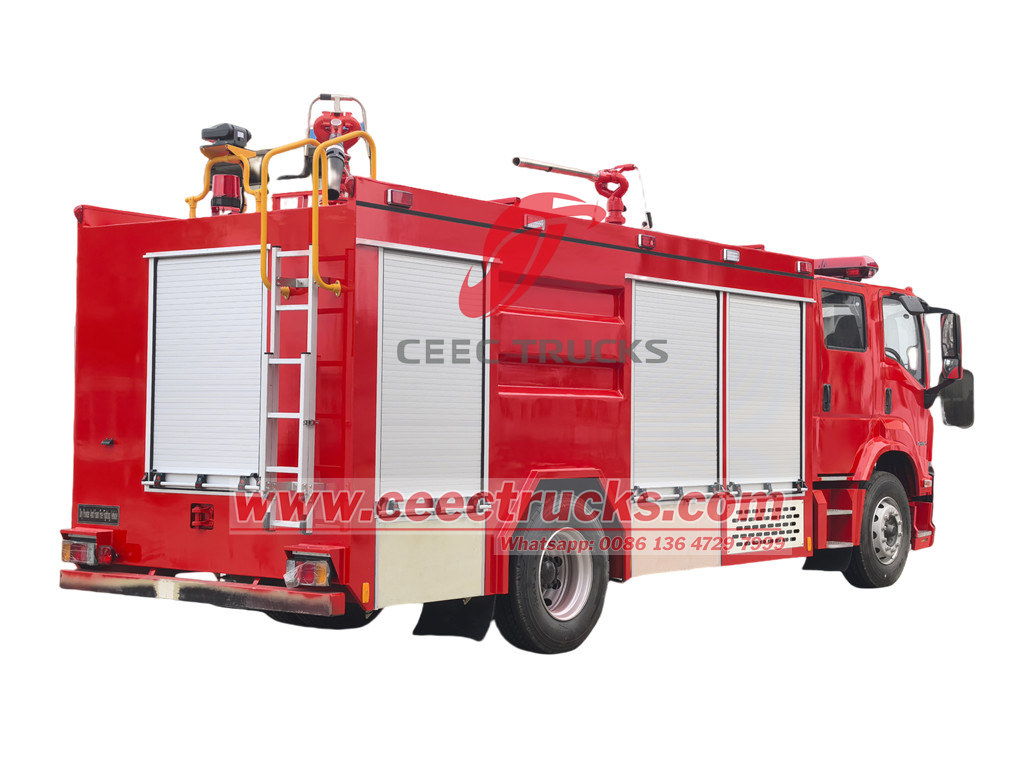

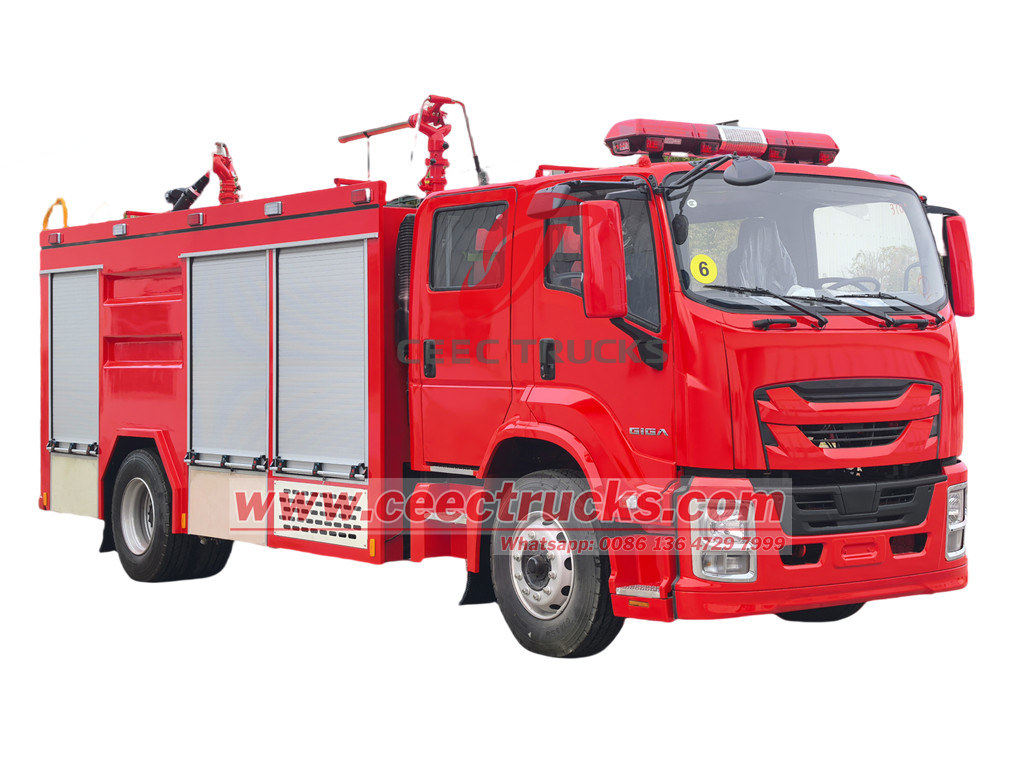

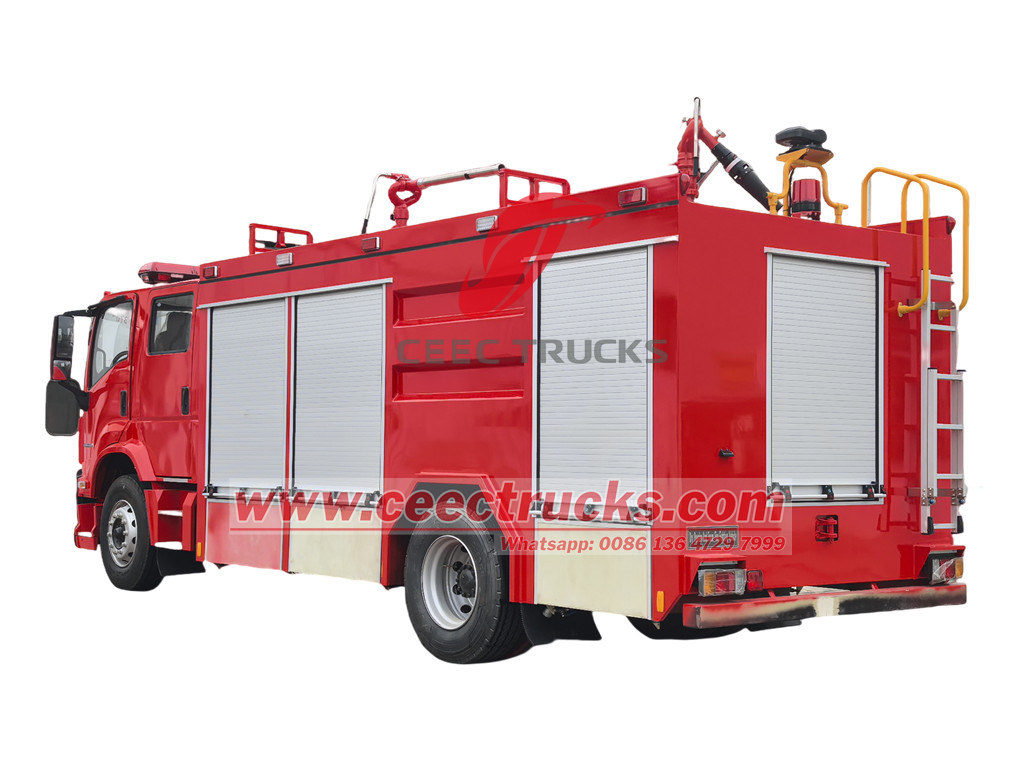

ISUZU dry powder chemical fire truck

Dry powder fire truck ISUZU come equipped with a dry powder fire extinguishing tanks, dry powder injection devices, fire pumps, and other firefighting equipment. They are the ideal solution for situations where water could be harmful or ineffective, such as near electrical fires or chemical substances. The ISUZU GIGA 5000kg dry powder fire truck is specifically designed to extinguish fires with powder instead of water or foam, making it highly effective in combating large-scale chemical pipeline fires. This type of fire truck is commonly used by petrochemical enterprises as a regular fire engine due to its impressive firefighting capabilities. ISUZU dry chemical fire engine mounted on new GIGA 4X 4x2 Left Hand Drive chassis, tanker body capacity could up to 5,000Liters, including 3000L water tank, 1000L foam tank and 1000L dry powder tanker with stainless steel material, truck equipped with TOP 1 Chinese brand CB10/40 fire pump and PL8/32 fire monitor, also with PF5~15/40, very convenient for fire extinguishing in daily use. Mainly used for firefighting project in any areas of need.

● China leading Isuzu fire rescue truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We have strong professional design team
● OEM customized service, print your company logo
● Build strict QC team to guarantee the quality

Dry powder fire trucks refer to a fire fighting truck that both equipped with water foam tanker and CAFS system, also can be mounted with dry powder chemical tanker, nitrogen bottle and hose reel system. The ISUZU GIGA 4X Firefighting Truck makes use of the sandwich power take off (PTO) to get power from the engine, and then transfer the power to the XIONGZHEN CB10/40 Fire Pump via drive axle so to rotate the rear-installed fire pump. The pump start working: Optional one, transfer water and foam inside of the tank to fire monitor, and jetting out for firefighting process; Optional two, suction water through pool, river, fire hydrant etc. and jetting out through fire monitor.





The ISUZU GIGA 4X dry powder fire truck is refitted based on the ISUZU 4x2 LHD chassis. The refit part includes tanker system, actuator device, operation system and firefighting equipment.

Tanker: water tanker, foam tanker and dry powder tanker, standard steel pipelines for firefighting process.

Actuator device: includes sandwich power take off, drive line, etc., which can pass the power from the ISUZU GIGA 4X chassis to the fire pump.

Operation system: the Electric control system located at rear of pump house, which can view pump vacuum rate, water tanker and foam tanker level, light system, etc. this helps come to all special functions’ convert.

Firefighting equipment: whole standard firefighting equipment, also the hose reel for dry chemical system.



Item		Unit		Description
Model				EURO 6 FTR GIGA 4X Fire Fighting Truck
Dimension		mm		8500*2500*3550
Tank Dimension		m3		Water Tank			Foam Tank
				3			1
		Material		Carbon steel with anti corrosion painting			Stainless steel
Curb Weight		kg		9605
Wheel Base		mm		5000
F/R track base		mm		1960 / 1855
F/R Axled-Load		Kg		6300 / 13000
Approach/Departure angle		.		21/13
Traction system		Type		4*2
Max speed		Km/h		90
Tire Specification/Number		Type		295/80R22.5, 6+1 Spare Unit
Engine		Model		4HK1-TCG60
		Emission/Kw		5193 cc, 141 Kw / 2500 r

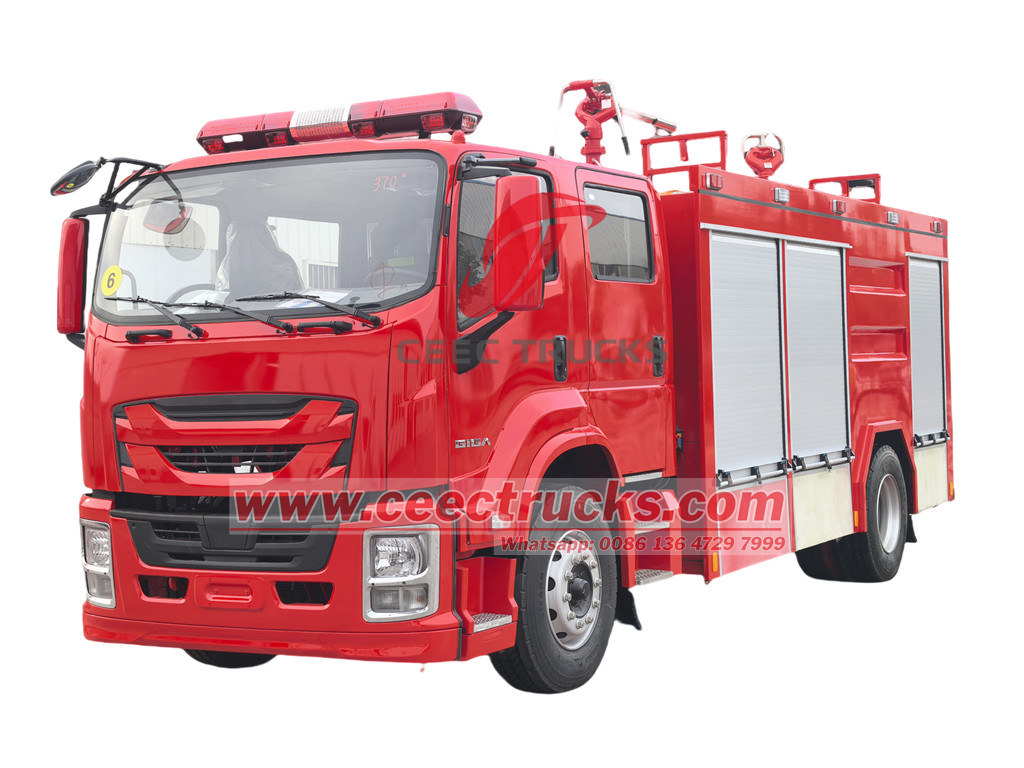

		Horse Power		205 Hp
		Power		647 N.m -  1600 r/min
		Type		Diesel, 4 cylinder, turbocharge, water cooling
		Brand		brand Engine
Gear box		model		ISUZU MLD 6F & 1R,  Manual
Electronic		V		24
Cab		Person		6
		Type		Reversable, Manual
		Installing		Mp3 , Radio, Speaker
		Air Conditioner		Hot wind / Cooling wind
Fire Cannon Specification on the top fo fire truck
Fire Cannon model		PL8/32, water		Working Range			Water >60 m
		Foam type, Optional Item
		PF5~15/40, mulity		Working Range			Foam >40 m
Working angle		- 30 ~ 80		Operation			Mannual
working pressure		1~4 Mpa
Flowing Speed		<50 L / s
Fire Pump Specification
Fire Pump model		CB10/40
Flowing Speed		40L/s		Pressure			1.0 Mpa
Water input Port		DN 135mm x 1		Water suction pipe			8 m, one Unit
Liquid Output Port		DN 80mm x 2 , with ball valve control
Liquid Output Port		DN 65mm x 2, with ball valve control
Outside water input port
Liqid input Port		DN 65 x 2 Unit, at two side of fire truck
Foam Tank Specifiation For Option
2000 liter, pipe and valve are all stainless steel material
Installing
Long beem alarm light, light detector x2~12V60W, 5 Unit Window type warehous, Rear climp ladder
Spare List
Fire Pipe		DN 65 x 8 Unit		Fire Pipe			DN 80 x 4 Unit
Fire Pipe Length		20 m
Fire pipe protector		4		Fire Pipe storage			1
Fire Pipe Hocker		4		Fire extinguisher			1
Fire bucket		1		Fir axe			1
Fire Crowbars		1		Iron collars			1
Liquid port Connector		5 Unit, Y type, U type, X Type
Fire spanner		2 Unit,  Above ground fire hydrant, undergound hydrant.
Spanner		2 Unit, for sunction pipe
Fire cannon		3 Unit, two for water, one for foam ( Optional)
Option Item		Fire cloth, addtion foldable stainless steel ladder, safety cabline.

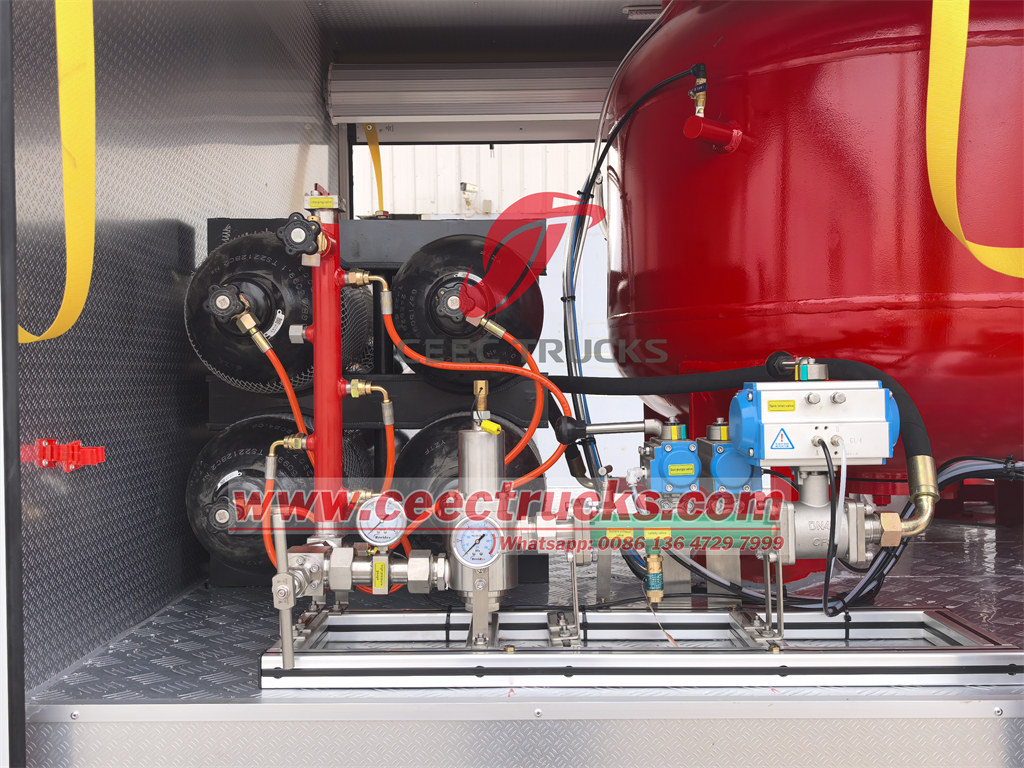

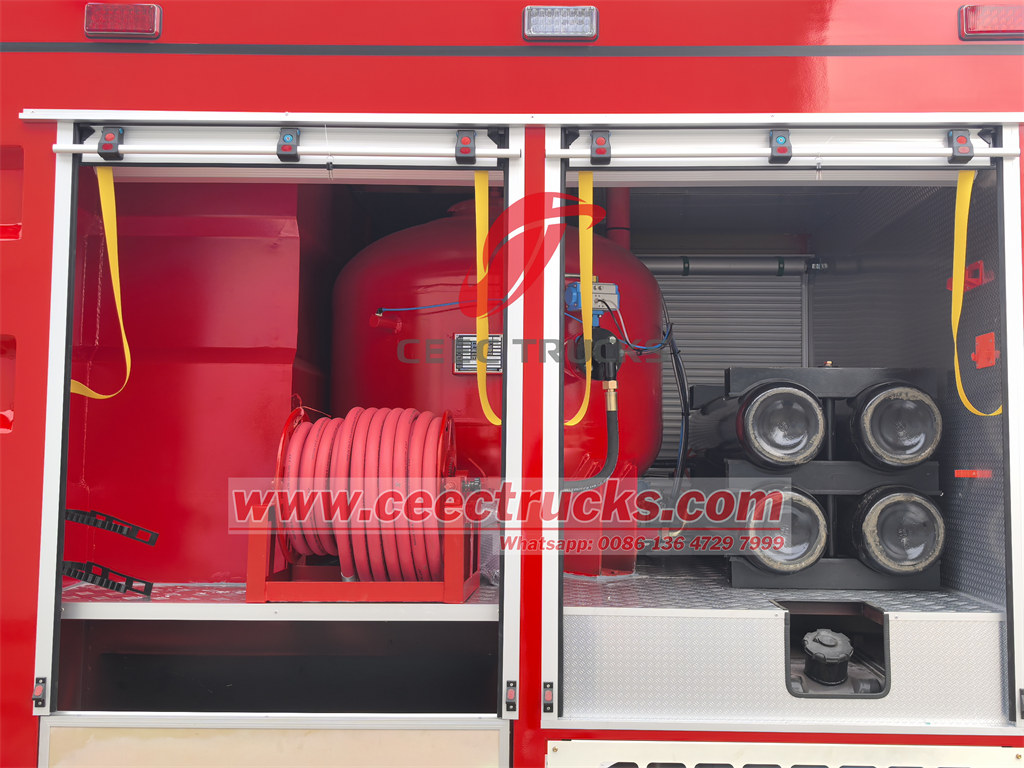

CEEC TRUCKS designed Isuzu Fire Truck mounted Dry Chemical Powder System is a highly effective medium to extinguish flammable gas fires. When powder is released directly to a fire, the extinguishing effect is caused by suffocation and an anti-catalytic effect, a chemical intervention into the combustion process. Dry chemical extinguishers are tanks of foam or dry powder with compressed nitrogen as the propellant.
Isuzu fire engine dry chemical system work by smothering the fire: when you put a layer of powder or foam on the fire, you cut the fuel off from the oxygen around it and the fire goes out. The designed Dry Powder System is designed specifically for truck mounted application so that can be met with different capacity and mounted on different trucks.



Advantages for ISUZU GIGA 4X dry powder chemical fire truck:

The ISUZU brand chassis of this vehicle boasts exceptional professionalism, a sturdy frame, and a remarkable loading capacity.

The double-row cab is customized with SCBA seats and comes with a convenient cab turnover feature, making engine maintenance a breeze.

With its superior power, high speed, and user-friendly design, this vehicle is easy to operate.

Advanced experience manufacturing fire trucks for countries worldwide.

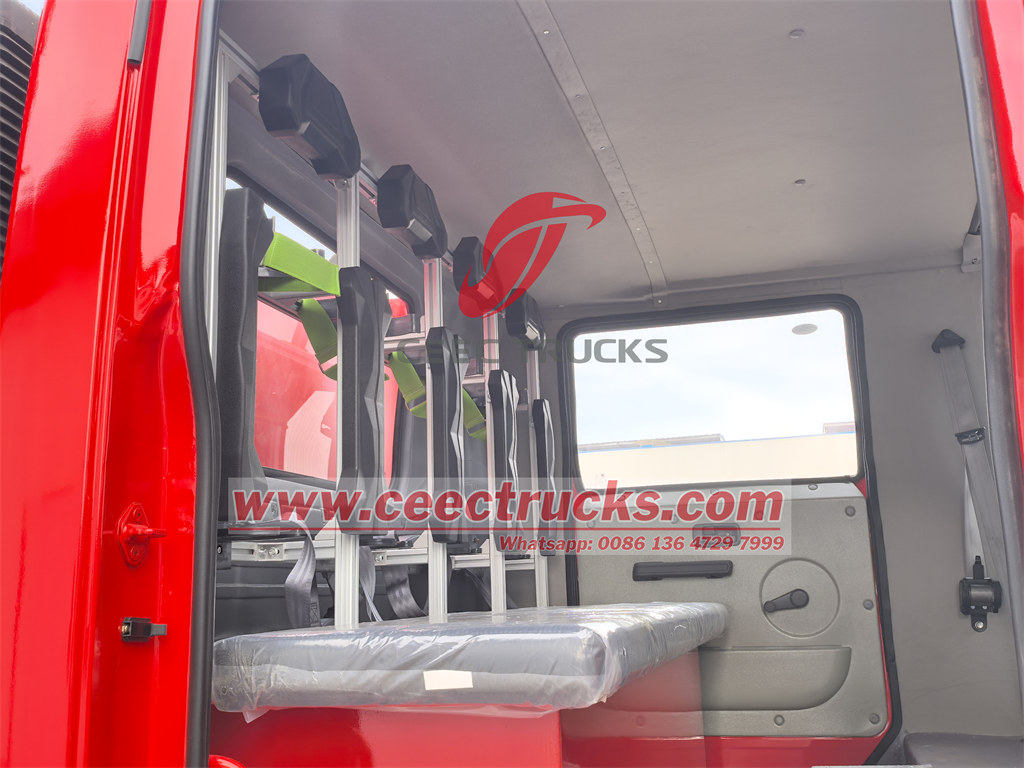

Isuzu fire engine with SCBA seats:

CEEC TRUCKS produced ISUZU GIGA 4X fire truck mounted with crew compartment, which is customized double row cab and can accommodate 2+4 people, all equipped with SCBA seats for air apparatus, very suitable for rapid response. The rear seats with comfortable design and lower enough to make sure all firefighter suitable for seats, specially with heavy fire fighting uniform.

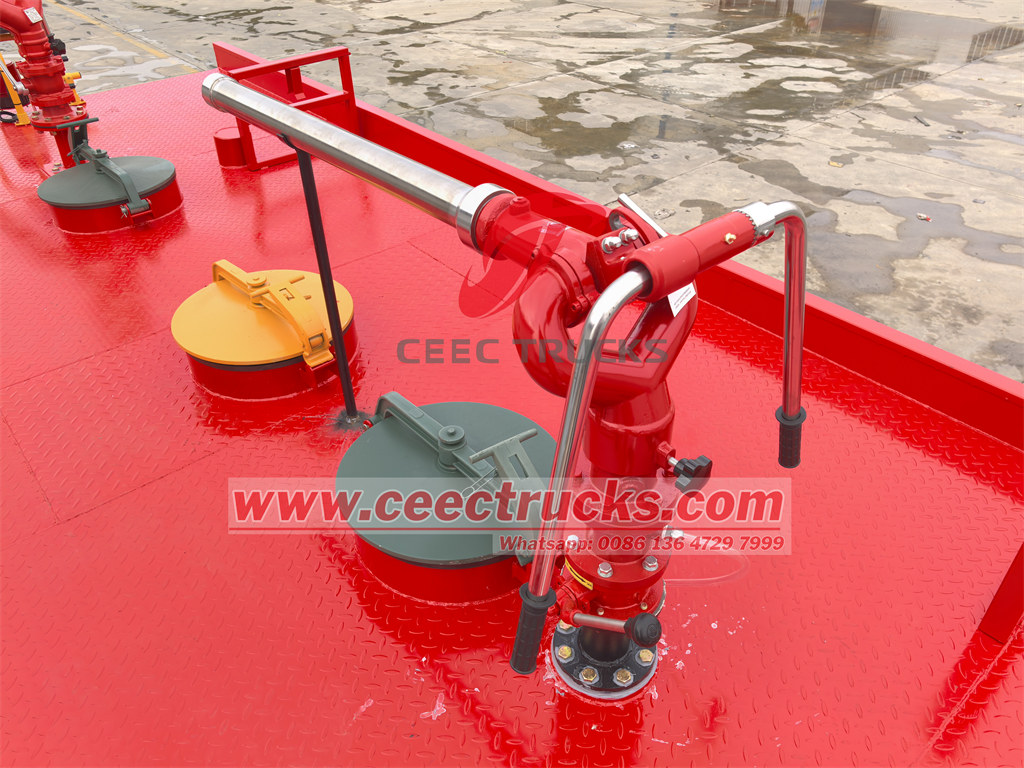

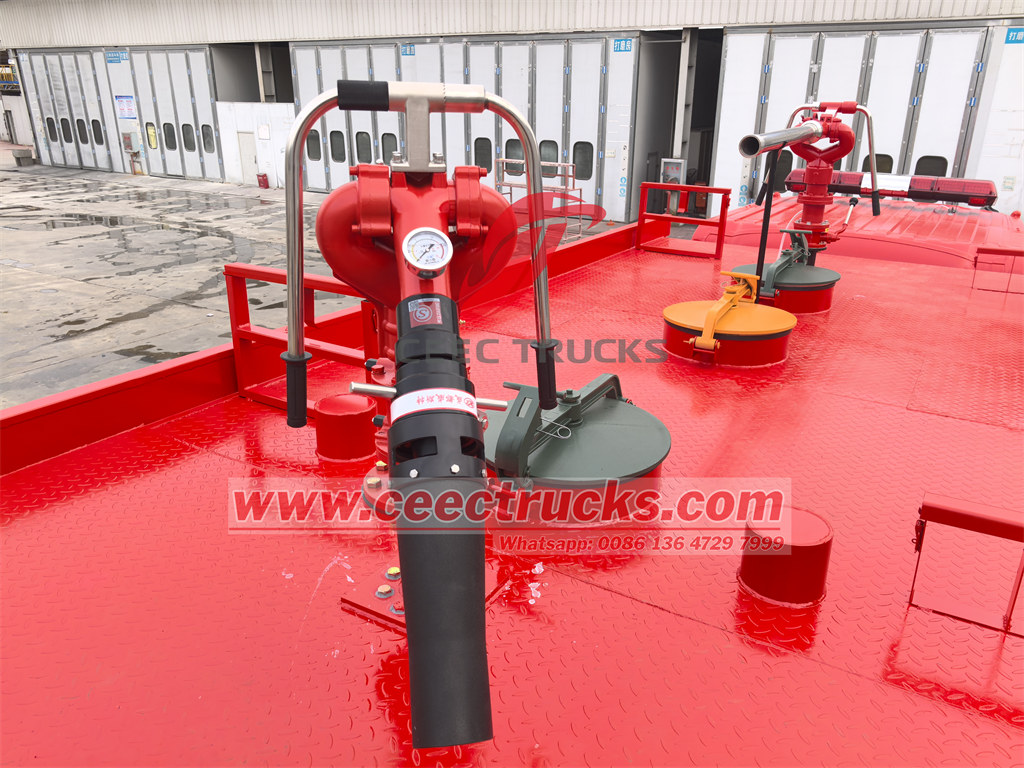

Isuzu fire tanker truck with PL32 fire monitor:

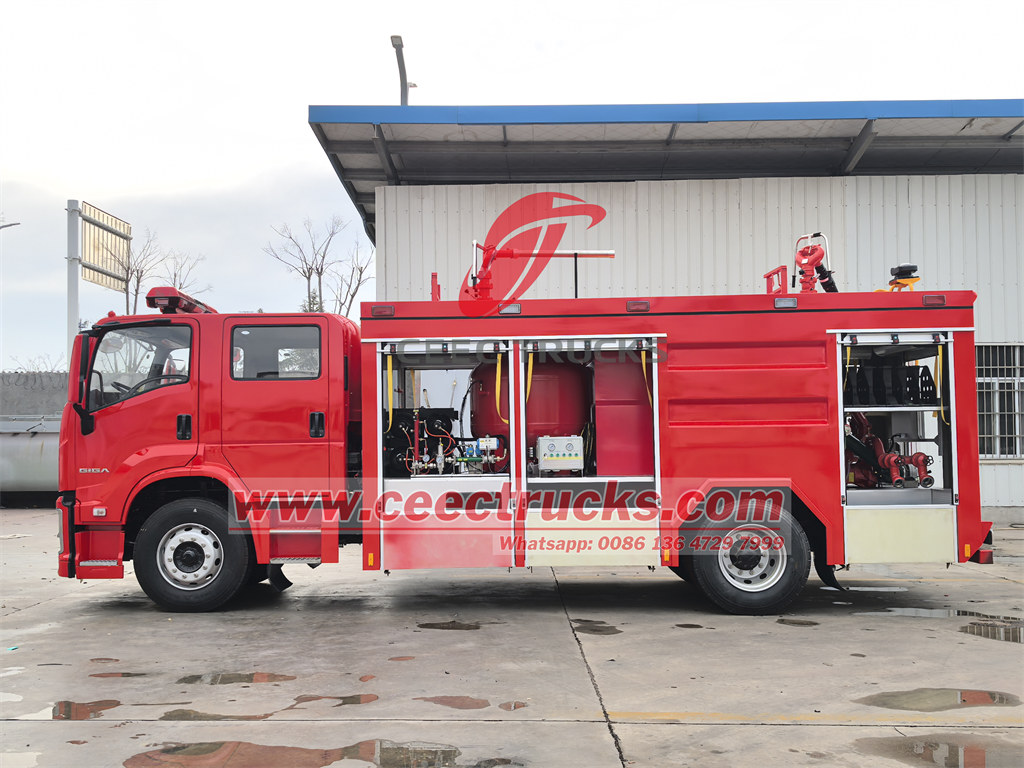

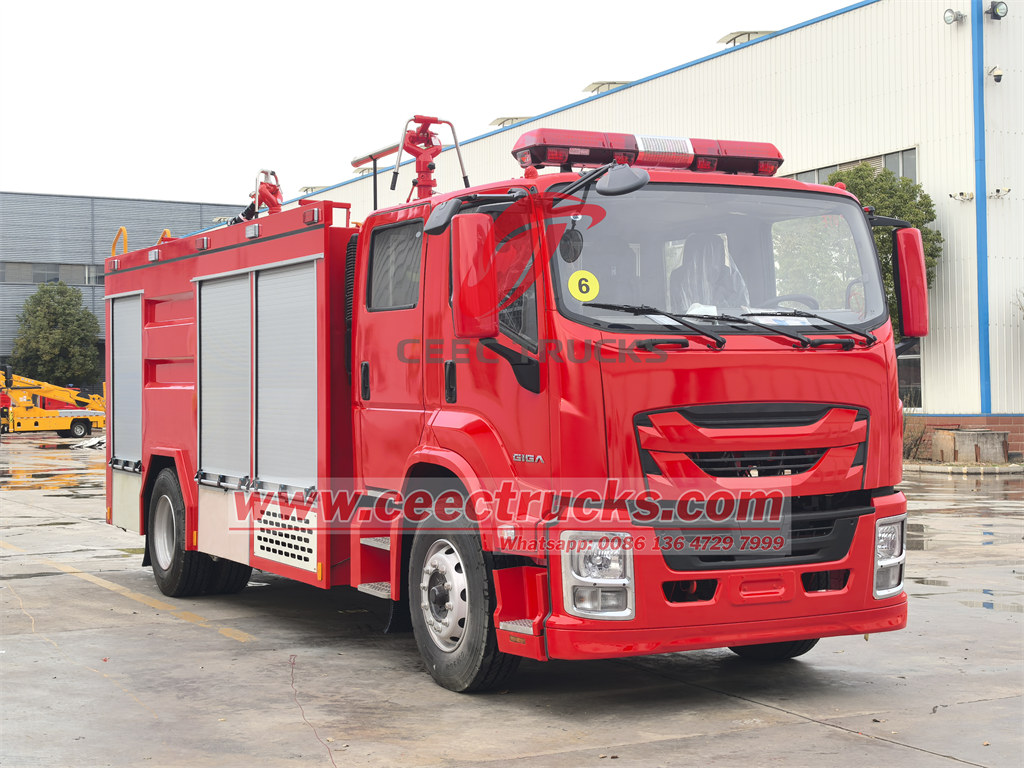

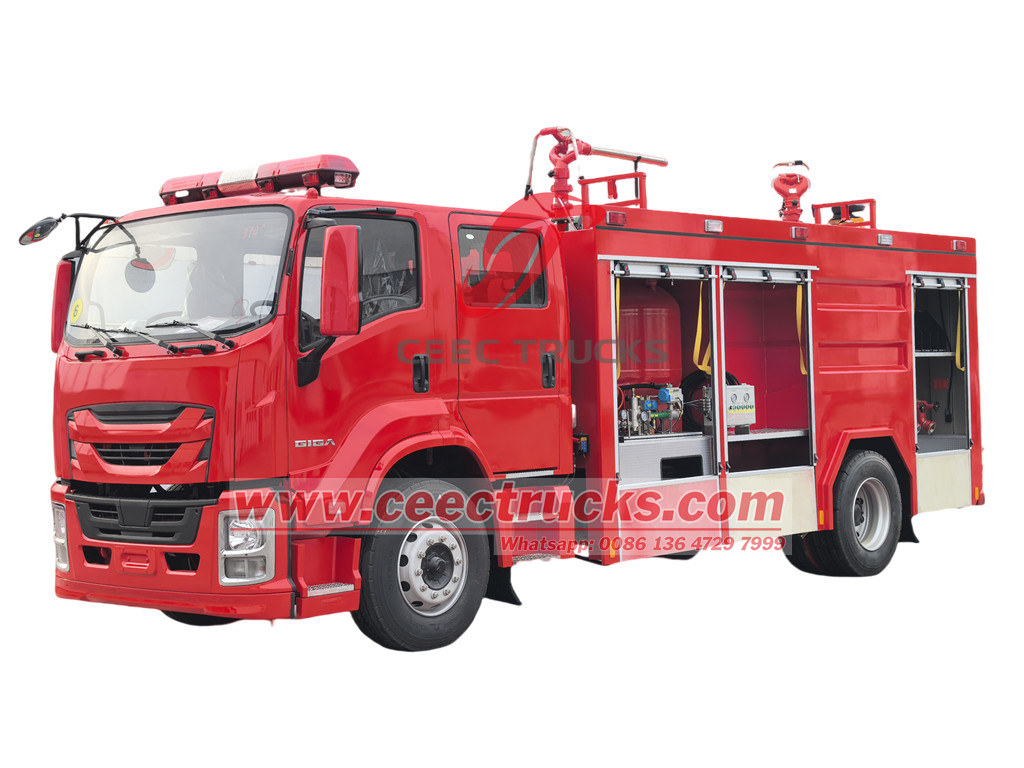

Newly designed and produced multiple ISUZU fire truck trucks mounted with 5000L fire fighting system, including 3000Liters water tank, 1000Liters foam tank and 1000Liters dry powder tank. Equipped with CB10/40 fire pump with flow rate 40L/s at pressure 1.0MPa. Fire cannon model is PL32, which can jetting out water and foam, with jetting range ≥55 meters (water) or ≥50 meters (foam). Isuzu GIGA 4X fire department truck can be used in different area, including petrochemical enterprises area, the foam system is designed for oil fires and can spray foam mixture to suppress combustion.
