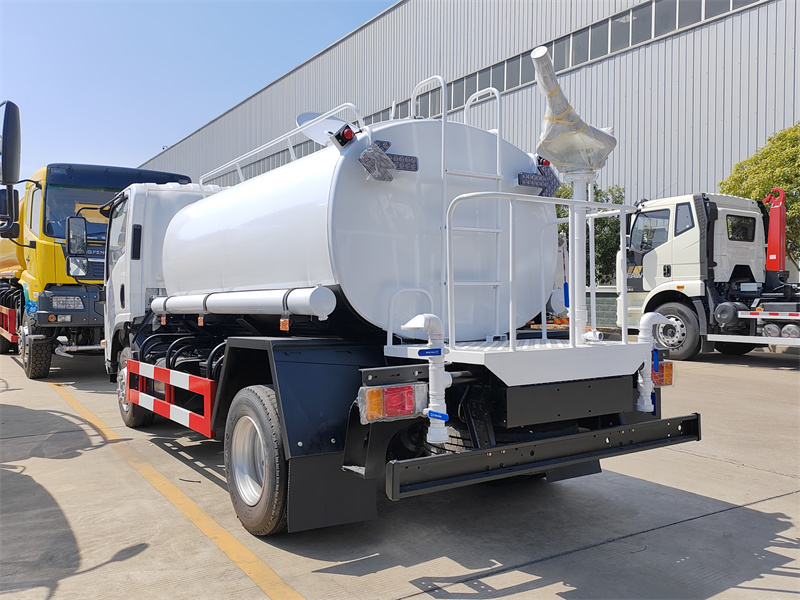

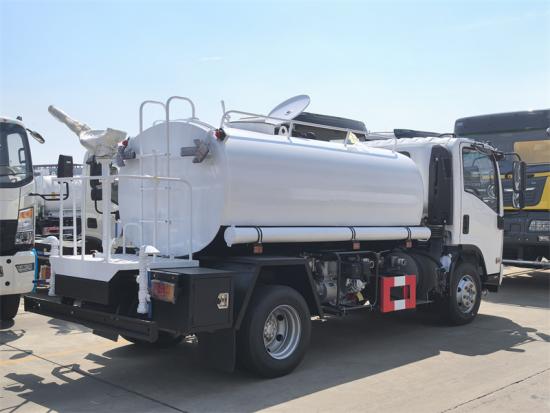

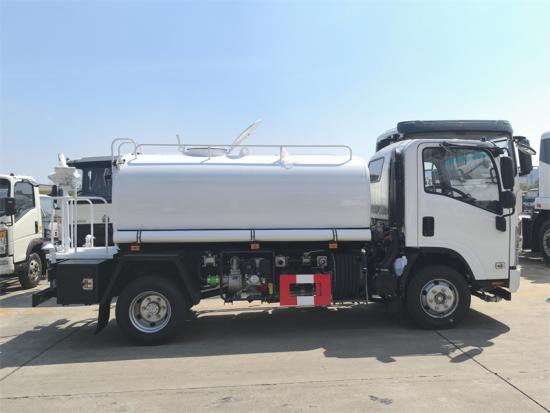

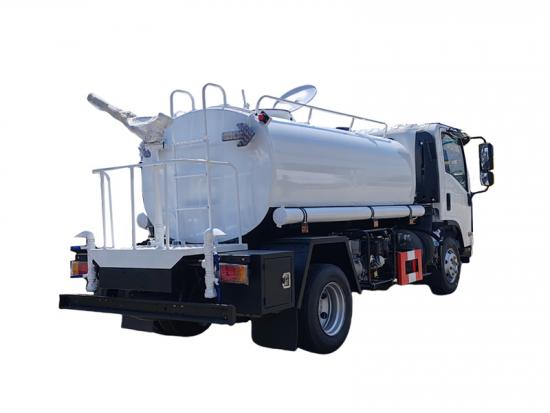

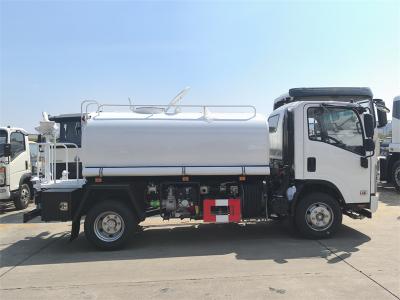

Isuzu Elf 120HP water tanker

The Isuzu Elf Street Washer Water Truck also called Isuzu Elf street washing sprinkler,Isuzu 120HP road sprinkling truck,Isuzu 100P 4cbm water spray truck,Isuzu ELF street cleaning water tank truck, is a versatile and efficient machine designed specifically for the demanding tasks of street cleaning and maintenance. This Isuzu Elf Street Washer Water Truck combines the ruggedness and durability of an Isuzu truck with the specialized capabilities of a street washer, making it an invaluable asset for municipalities, construction sites, and any other organization that requires high-quality street cleaning services.

Lead Time:
50 Days
Work capacity:
4cbm
Dimension ( mm ):
5750 * 1980 * 2300
Wheelbase ( mm ):
3360
Engine power:
120HP
Engine type:
4KH1CN6LB
Axle drive:
4x2，LHD
Gear box:
MSB 5 speeds ,5 forwards,1 reverse gear,manual operation
Remarks:
Water tank capacity can be customized

Inquiry now

Isuzu Elf street washer water trucks embody a synergy of innovation, functionality, and sustainability in the realm of urban sanitation management. These vehicles represent a transformative solution for municipalities seeking to elevate their cleaning standards and enhance the well-being of their communities. With their advanced features, environmentally conscious design, and operational excellence, Isuzu Elf Street Washer Water Trucks stand at the forefront of urban cleaning technology, driving progress and promoting healthier, more vibrant cities.

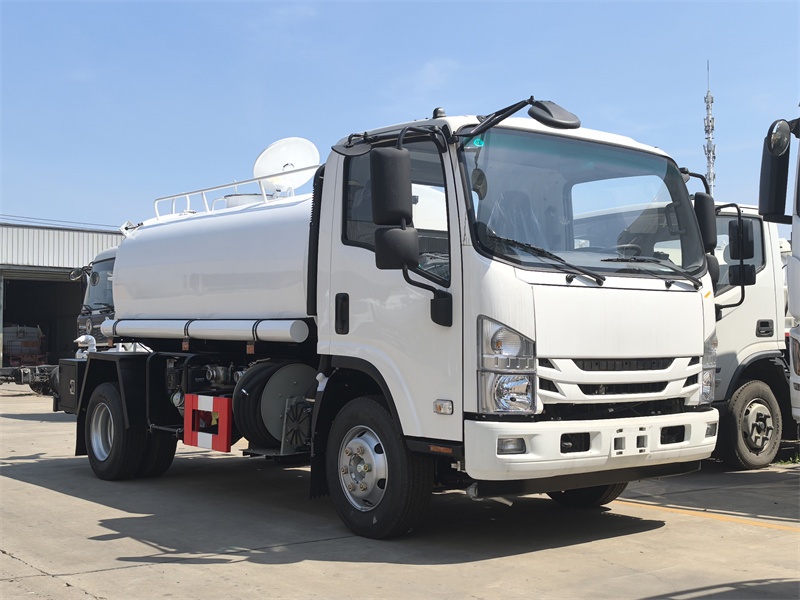

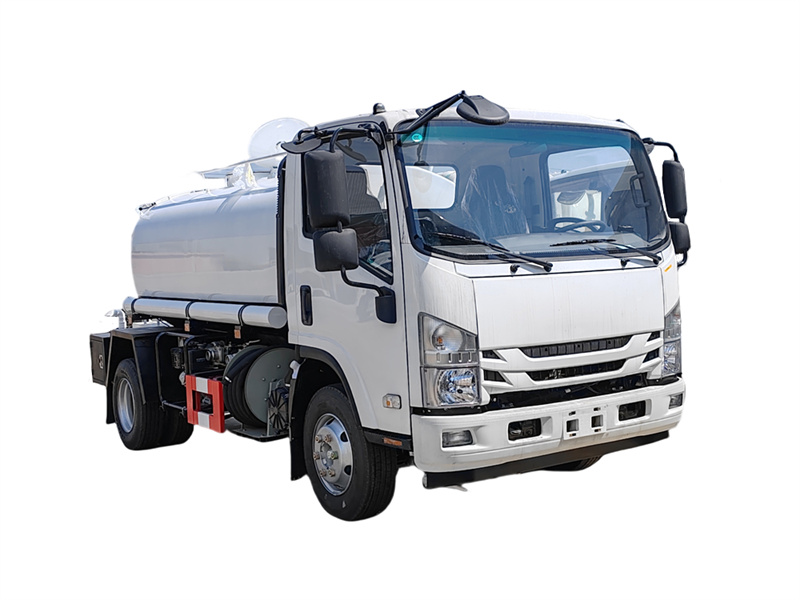

Isuzu ELF water tank truck

● China best water tank truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service

Specification:

Isuzu Elf street washer water trucks
Main Technology Parameter
Truck Model	CEEC5070GXY
Driving Type	4×2,left hand drive
Color	White,yellow,box can choose
Weights
Gvw(kg)	7300
Curb weight(kg)	3150
Dimensions
Wheelbase(mm)	3360
Overall Dimension(mm)	575019802300
Tank capacity	5cbm
Max speed(km/h)	115
Engine
Engine model	4KH1CN6LB
Engine power	120HP/88Kw
Engine type	4 stroke water-cooled,inter-cooling
No. of cylinders	straight-4 cylinders
Displacement(L)	2.999
Emission standard	Euro 6
Drive Line
Transmission	MSB 5 speeds ,5 forwards,1 reverse gear,manual operation
Steering	Power steering
Brake	Oil brake
Cab
Cabin	Isuzu ELF
Standard configuration	with A/C,oil brake with vacuum booster pump,power steering
Axle
Front axle	2580kg
Rear axle	4720kg
Tire specification
Tire specification	7.00R16, standard tire,6 tires+1 spare tire
Water truck
Water tanker material	Of high quality carbon steel (Q235).
Introduction	1. Suction≥7m Sprinkler width≥20m Range≥50m
	2. with front spout, back spill and side spout function

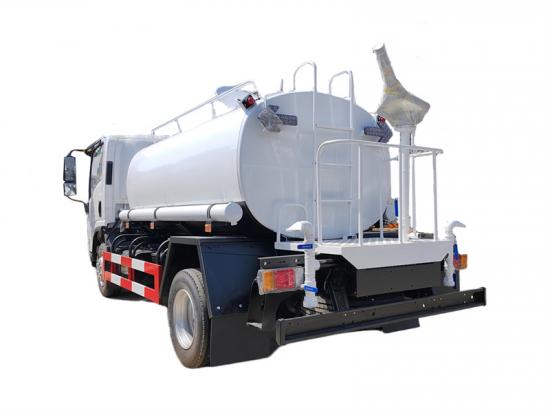

	3. with the working platform at the back, which can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)
	4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.
Manhole	Man way access hole on top of tank;1 units DN500mm manhole

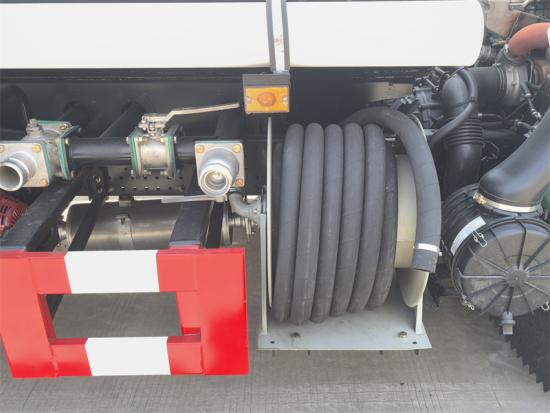

Horse reels	Two hose reels at each side of the truck

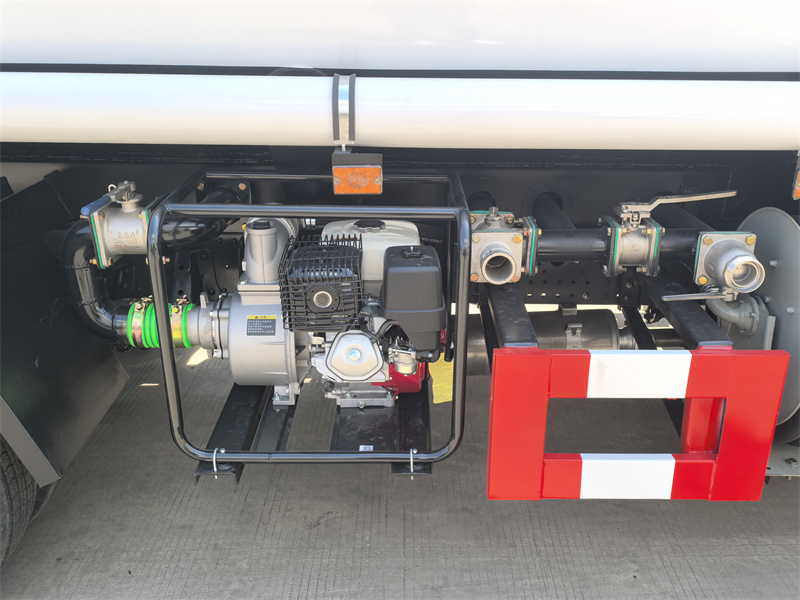

Water pump	Water pump model:65QZF-40/50
	Water pump flow rate(L/m): 40m3/h
	Head of delivery(m): 50m
	Self-priming function(min/4m):1.5
	Related rotate speed(r/min)1450
	matched power(kw):9.25

Feature:

At the heart of the Isuzu Elf street cleaning water truck is powered by the reliable and powerful Isuzu engine, which is renowned for its durability and fuel efficiency. The engine delivers 360 torque and 120 horsepower to power the truck in even the toughest conditions, while also ensuring the water pump and other cleaning systems run smoothly and efficiently.

One of the key features of the Isuzu Elf street washing sprinkler is its 4-square water tank, designed to hold large volumes of water to ensure continuous cleaning operations. Water tanks are typically made from durable materials such as stainless steel or polyethylene, which resist corrosion and abrasion, ensuring the water remains clean and free of contaminants. The water tank is also equipped with a water replenishment system for easy and fast refilling, minimizing downtime and maximizing productivity.

The cleaning system of the Isuzu 100P road sprinkling truck is designed to be efficient. It usually consists of a high-pressure water pump that delivers a powerful stream of water to the street surface, and a series of nozzles and spray bars that distribute water evenly across the width of the truck. The system removes dirt, grime and other debris from street surfaces, leaving them clean and pollution-free.

★ MSB 5-shift manual mechanical transmission gearbox

★ Water pump super powerful, efficient pump in and out

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU water tanker trucks exporter

★ Training service for ISUZU water tanker trucks

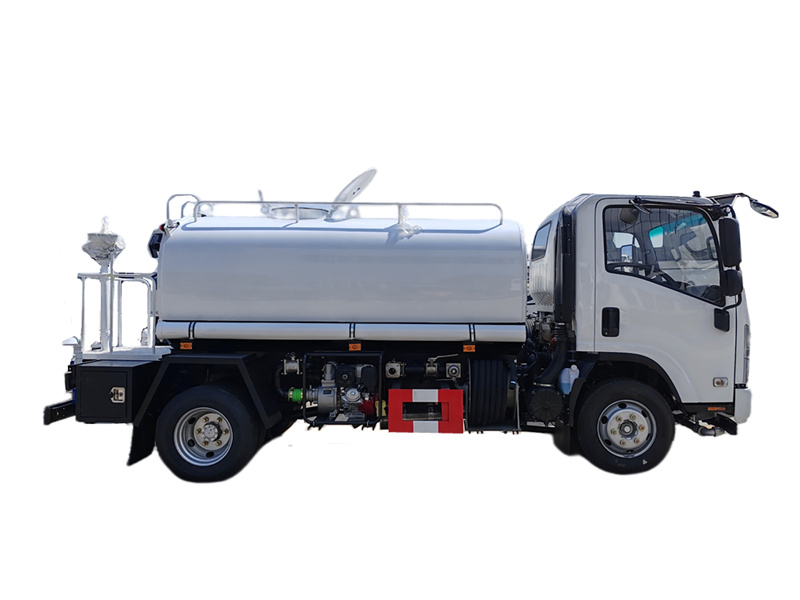

Isuzu ELF water tank truck

CEEC TRUCKS is a reliable manufacturer of ISUZU water tank trucks in China. All our water tank trucks are manufactured to high-quality standards, ensuring durability, safety, and efficiency. We offer competitive pricing on all our products and services, making them accessible to a wide range of customers.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
