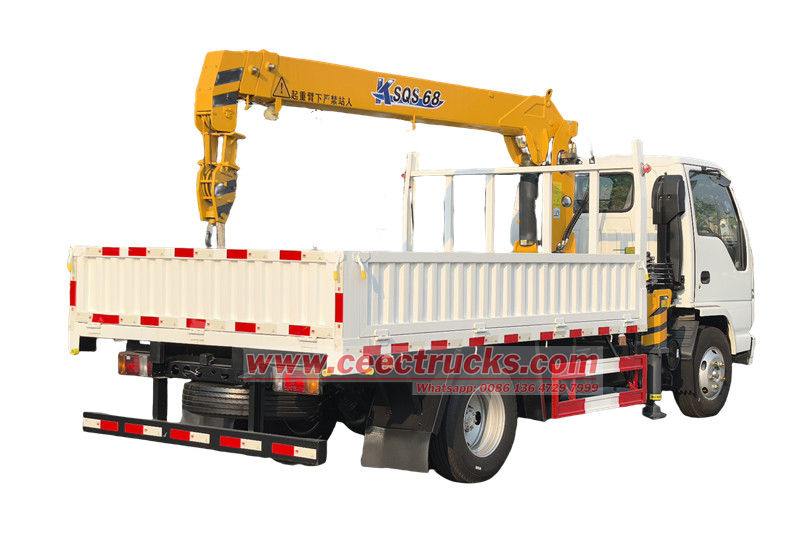

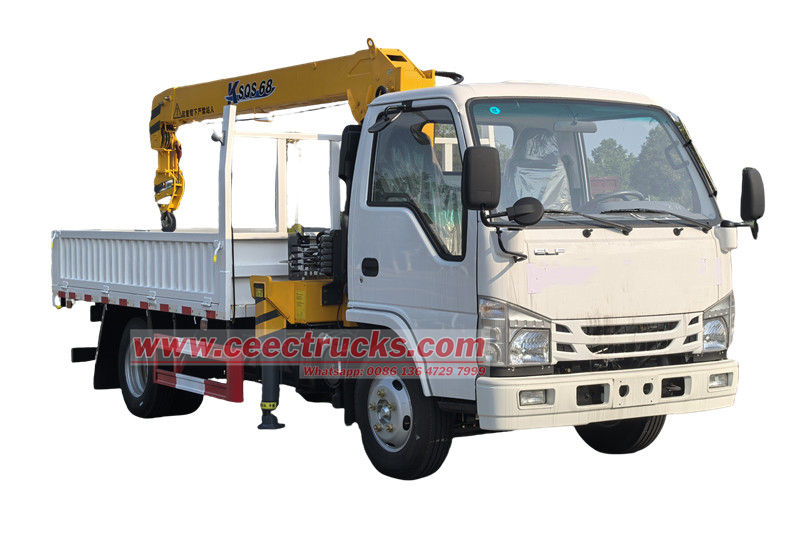

Isuzu ELF 3.2ton truck loader crane

Working principle of Isuzu ELF 3.2ton truck loader crane

●Isuzu ELF 3.2ton truck loader crane uses the vehicle engine as the power source and transmits power to the hydraulic pump through the power take-off.

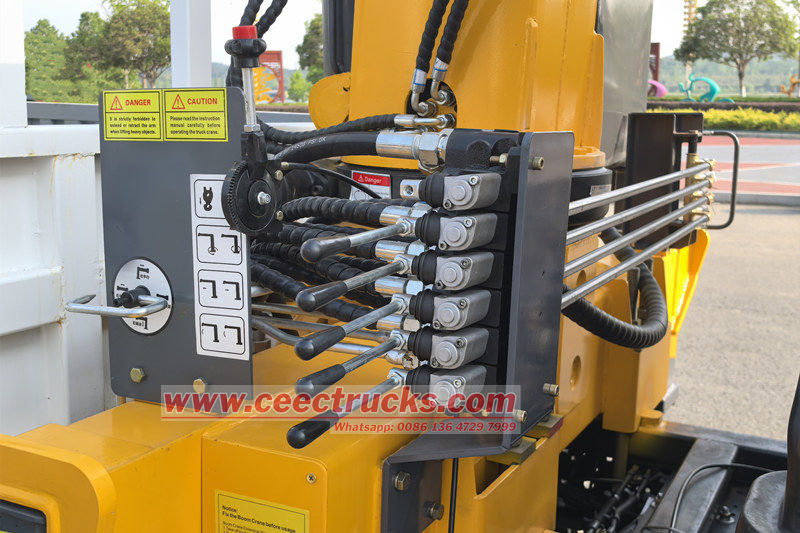

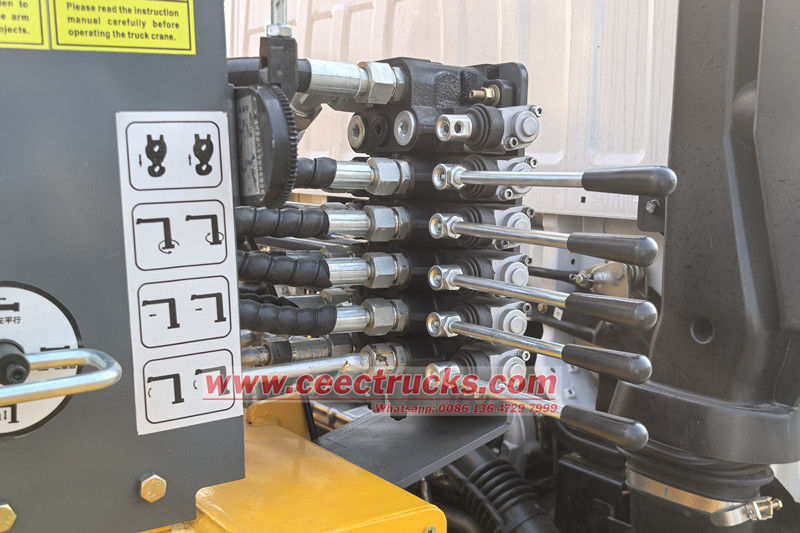

●The hydraulic pump converts mechanical energy into hydraulic energy and generates high-pressure oil. The high-pressure oil is transported to the multi-way reversing valve through the hydraulic pipeline. The operator controls the reversing valve handle to change the oil flow direction, thereby controlling the action of each actuator.

●When the boom needs to be extended, the oil enters the telescopic cylinder to push each section of the boom to extend in sequence; to achieve boom luffing, the oil enters the luffing cylinder to change the angle between the boom and the horizontal plane; the slewing action is driven by the slewing motor to rotate the crane as a whole in the horizontal plane.

●The lifting mechanism drives the wire rope to be retracted and released through the winch to achieve the lifting and lowering of heavy objects. The entire process is precisely controlled by the hydraulic system to complete the lifting of heavy objects.

Features of Isuzu truck mounted crane

●Wide operating range: telescopic crane truck can be extended in multiple sections and can operate within a large radius and height range to meet the needs of different working conditions.

●Flexible operation: Equipped with advanced hydraulic system and operating handle, the operator can easily control the extension, amplitude change, rotation and lifting of the crane arm, and the positioning is accurate.

●Good stability: Made of high-strength steel, the structure is stable, equipped with a large span of outriggers, which can effectively disperse the load and ensure stability during operation.

The wide application of Isuzu ELF truck loader crane

●Construction engineering: used for hoisting construction materials (such as steel bars, prefabricated concrete parts), installing steel structures and equipment handling.

●Municipal engineering: used for installing street lights, billboards, traffic facilities, etc., and can also be used for tree transplantation in landscaping.

●Power maintenance: used for hoisting transformers, poles and other equipment during the installation and maintenance of power lines.

●Logistics and transportation: loading and unloading goods in warehouses, docks and other places, suitable for the handling of large-volume items.
