The Isuzu FVZ 14000L mine water truck equipped with a fire monitor embodies a harmonious blend of functionality and versatility tailored for the rigorous demands of mining environments. This stalwart vehicle stands as a beacon of reliability, capable of delivering critical water supplies for dust suppression, equipment cleaning, and other essential tasks within mining operations.
Product Origin:
China CEECShipping Port:
China main portLead Time:
35 DaysPayment:
T/T, West UnionIsuzu FVZ 6X4 mine spec water truck with fire monitor also called Isuzu water bowser with fire monitor,Isuzu FVZ 14000L mining water tanker with fire monitor,Isuzu 6x4 mining water delivery truck,Isuzu FVZ support water tanker.The Isuzu FVZ 6X4 mine spec water truck with fire monitor is a rugged and versatile vehicle designed for mining and industrial applications where water supply and firefighting capabilities are critical. This powerful truck combines durability, reliability and functionality, making it an indispensable asset in remote or harsh environments.
The Isuzu FVZ 6x4 14000L mining water tanker with fire monitor is a beacon of reliability, efficiency and innovation in the field of specialized mining vehicles. Whether it is fighting wildfires or meeting the water needs of mining operations, this vehicle is a steadfast ally and embodies the pinnacle of Isuzu's engineering prowess and commitment to excellence.
A major feature of the Isuzu FVZ water truck is the integrated fire monitor, which increases its practicality and allows for rapid response to emergency situations. The fire monitor is located on top of the water tank, allowing the operator to release a targeted stream of water to effectively extinguish fires, protecting people and assets at the mining site. This dual-purpose capability highlights the vehicle's readiness to respond to unforeseen challenges with precision and speed.
Product Name |
ISUZU FVZ 14000L mine spec water truck with fire monitor |
||
Chassis |
Overall dimensions |
mm |
8650*2500*3350 |
Gross weight |
kg |
25,000 |
|
Kerb weight |
11,000 |
||
Wheelbase |
mm |
4650+1370 |
|
Driving type |
6*4 |
||
Chassis model |
ISUZU FVZ |
||
Tire size |
295/80R22.5 |
||
Number of Tires |
10+1 |
||
Passengers in cab |
3 |
||
Gear box |
FAST 9-speed,manual |
||
Engine |
Engine model |
6HK1-TCG60 |
|
Type |
6 cylinder inline,water cooling,direct injection type,turbocharged |
||
Type of fuel |
Diesel |
||
Power |
300HP |
||
Displacement |
7790ml |
||
Emission standard |
EURO 6 |
||
Max speed |
Km/h |
95 |
|
Water Tanker performance |
Tanker Body |
14,000Liters |
|
Body Material |
Carbon Steel |
||
Tanker Shape |
Ellipse as standard |
||
Water Pump |
China Famous Brand,optional Italy, Euro brand |
||
Water pump drive mode |
Hydraulic drive |
||
Washing Width |
≥14 M |
||
Washing Speed |
5~20 km/h |
||
Rear Cannon Range |
360 degree rotation,shooting range≥28M |
||
Spray Bar |
Optional |
||
Hose & Hose-carrier |
Factory standard |
||
Control Panel |
English |
||
Walkway and Hand rail |
Yes |
||
Painting |
Two primers, and one final paint coating |
||
Color & LOGO |
According to wish |
||
Factory standard |
"U" shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
Optional equipment |
1. Stainless steel tank, Aluminum alloy tank |
A staunch guardian in rugged terrain, the Isuzu FVZ 6x4 14000L Mining Water Tanker with Fire Monitor is a vital lifeline against raging fires, satisfying the endless thirst of arid lands. This powerful vehicle is characterized by reliability, versatility and efficiency, reflecting Isuzu's commitment to excellence in providing specialized equipment in challenging environments.

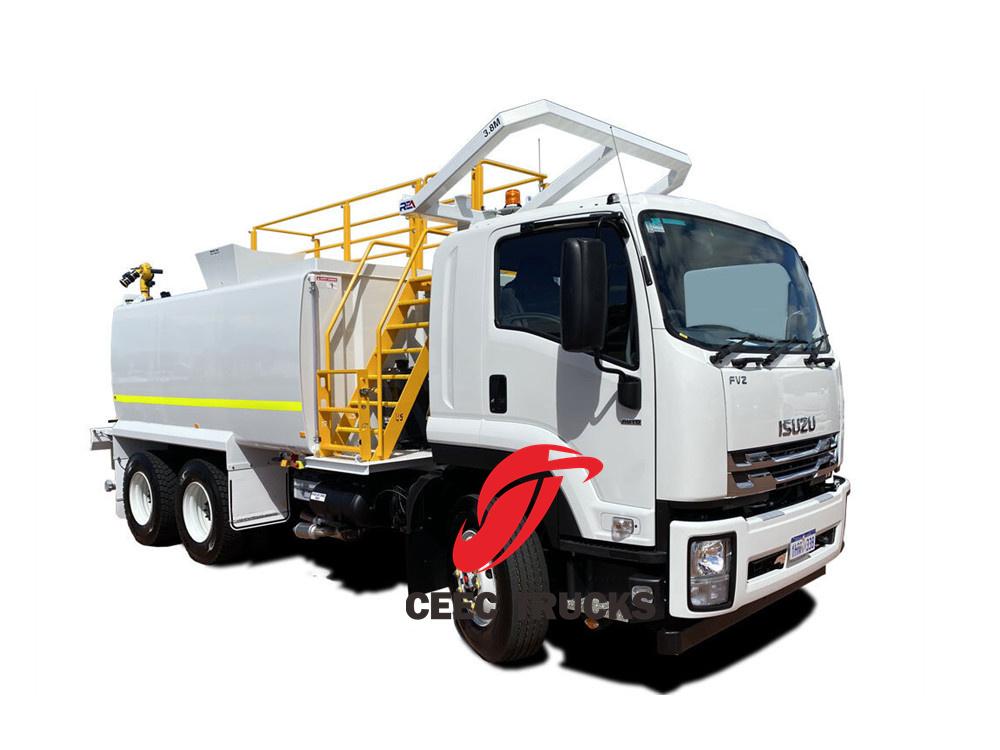

Isuzu FVZ 6x4 14000L Mining Water Tanker with Fire Monitor
The Isuzu Water Tanker with Fire Monitor is essentially a multi-faceted wonder, a perfect blend of functionality and innovation. With its rugged 6x4 configuration, this truck exudes pure power and stability, a prerequisite for navigating the treacherous roads of mining sites. Its 14000L capacity tank holds a large amount of water, a precious resource that is vital to countless operations within mining facilities.
The integration of the fire monitor further enhances the truck's practicality, transforming it into a powerful firefighting device. The fire gun sits atop the water tank like a vigilant sentry, ready to release a precise stream of water to extinguish sudden flames. This feature not only protects personnel and equipment within the mining site, but also highlights the truck's adaptability in mitigating unforeseen dangers.

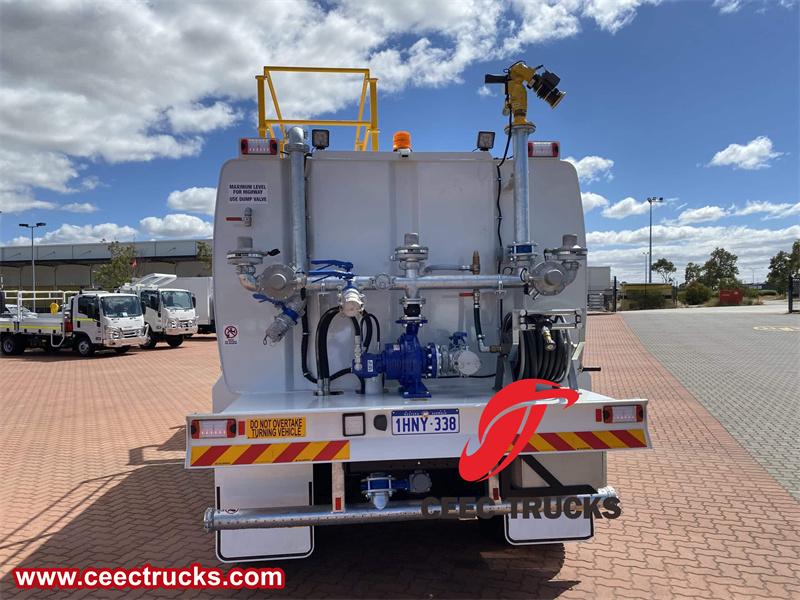

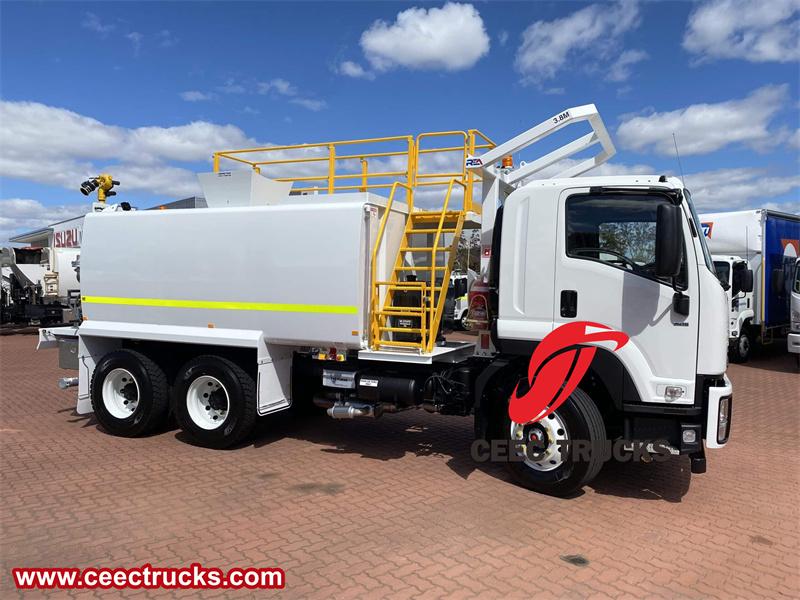

Isuzu FVZ 6X4 mine spec water truck
The exterior design of the Isuzu water tanker is a blend of functionality and beauty. Its rugged structure is filled with reinforcements, reflecting durability and resilience, essential attributes to withstand the rigors of the mining environment. The sleek contours and aerodynamic shape hint at Isuzu's commitment to optimizing fuel efficiency without compromising performance, proving the brand's engineering prowess.
The cab of the Isuzu FVZ 6x4 embodies comfort, functionality and ergonomics, placing the driver in a paradise of control and connectivity. The cab is equipped with a state-of-the-art instrument panel, ergonomic controls and an intuitive interface, ensuring that the operator can maneuver the vehicle with precision and ease. Strategically placed windows and mirrors give the driver a clear and panoramic view of the surroundings, enhancing safety and maneuverability in challenging terrains.

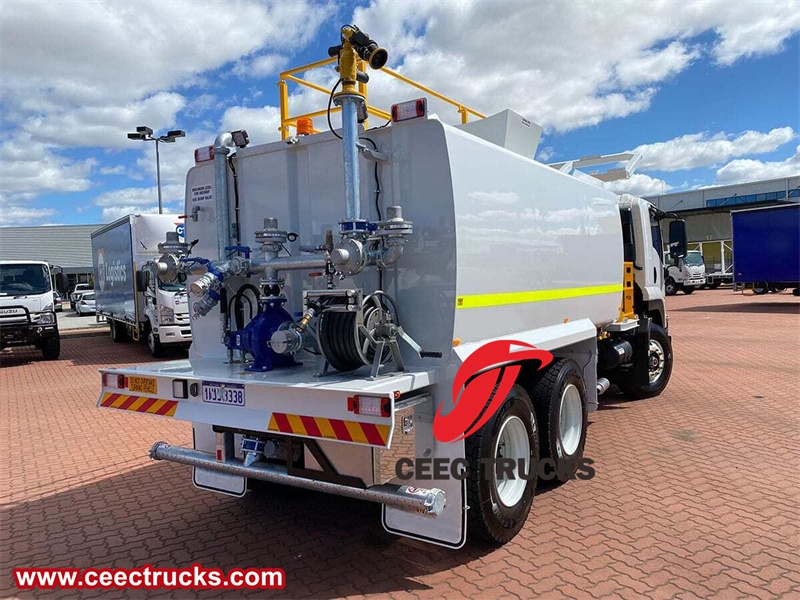

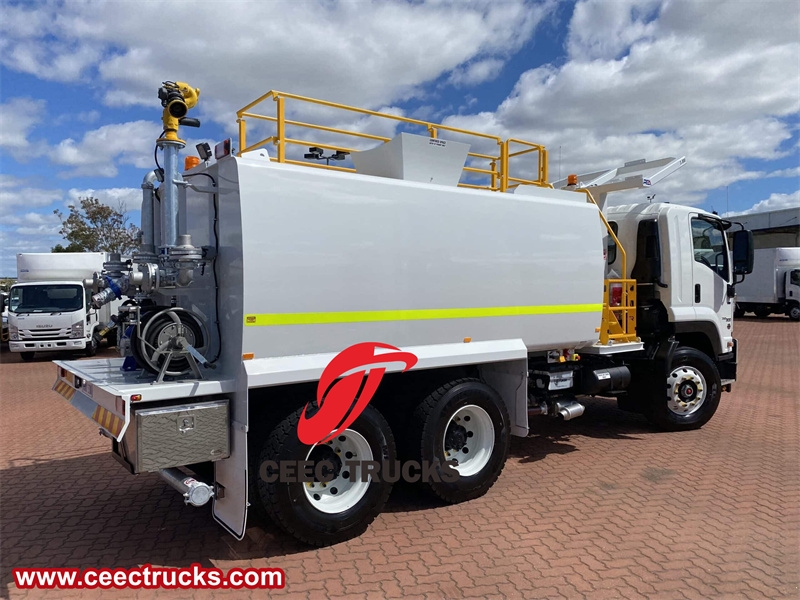

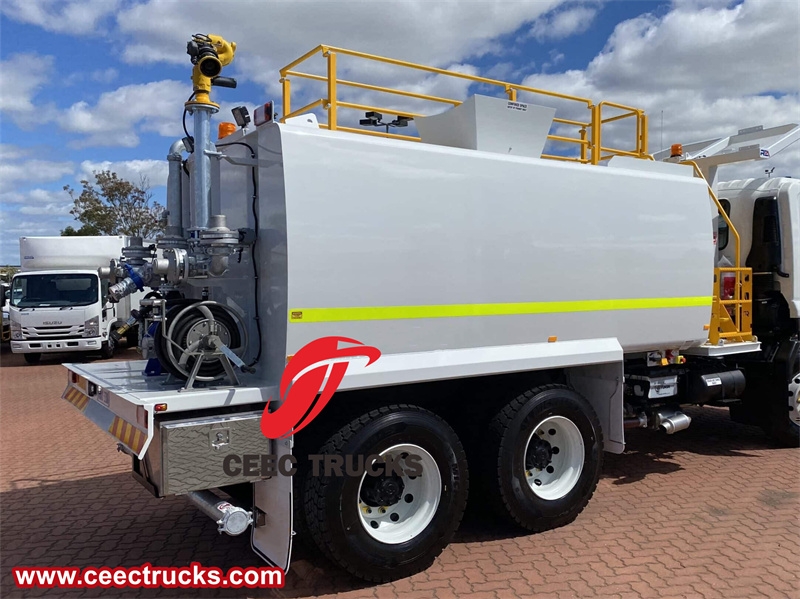

Isuzu water bowser with fire monitor
The heart of the Isuzu water truck beats to the pulsating rhythm of a high-performance engine that is engineered to deliver strong power and torque. The 6x4 drivetrain configuration takes full advantage of the engine’s powerful performance, translating it into seamless mobility over the various terrains encountered in mining operations. Thanks to the vehicle’s powerful propulsion system, tackling steep slopes, rough roads and adverse weather conditions becomes a breeze.
Navigating the mine’s maze of roads requires precise handling and deft maneuvering abilities, qualities that the Isuzu FVZ 6x4 embodies with flair. Driving this behemoth through narrow passages, sharp turns and uneven terrain is a breeze, thanks to the vehicle’s responsive steering system and flexible suspension setup. The truck’s proficiency in negotiating obstacles and maintaining stability gives the driver confidence, ensuring smooth operation in a mining environment.
Isuzu 6x4 mining water delivery truck
The 14000L water tank is a life-sustaining reservoir of liquid, ready to irrigate dry land and meet the various water needs of mining operations. From dust suppression and equipment cleaning to personnel hydration and industrial processes, the ample water supply in the water tanker ensures seamless continuity of operations within the mine. The truck’s ability to precisely transport, store and distribute water highlights its critical role in sustaining mining activities.
The top-mounted fire monitor on the water truck takes the vehicle's practicality to new heights, making it a powerful firefighting device. Whether it's extinguishing wildfires caused by industrial activities or responding to emergencies on mining sites, the fire monitor allows operators to accurately and powerfully release water to quickly extinguish flames and minimize potential damage. This dual-purpose functionality enhances the truck's adaptability and preparedness for unforeseen challenges.

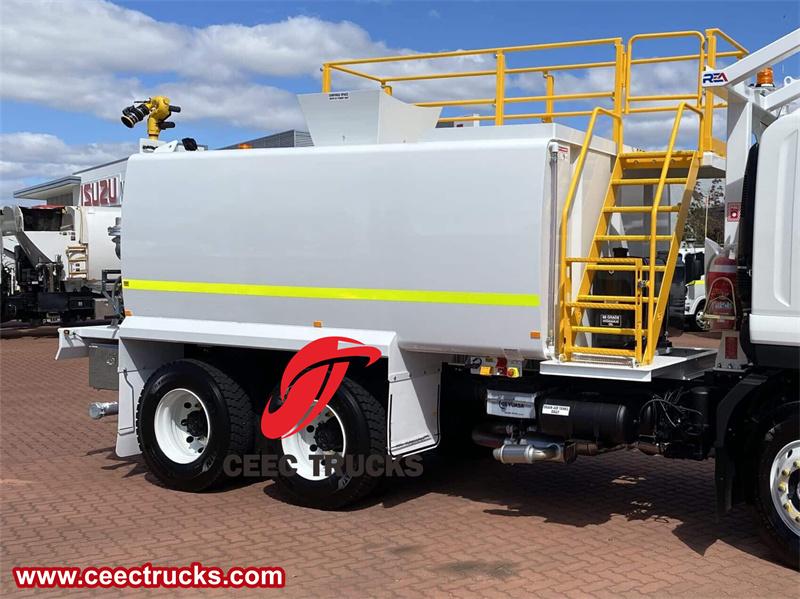

Water tank
The Isuzu water truck's built-in sprinkler system, coupled with the fire monitor, embodies a combination of innovation and efficiency, designed to effectively respond to fire emergencies. Configured with strategically positioned nozzles and hoses, the system is able to quickly deploy water to quickly suppress flames and protect critical areas within the mine site. The adaptability of the fire monitor in terms of range and accuracy allows operators to effectively and quickly extinguish fires, reduce potential risks and protect assets.
The Isuzu water truck's sprinkler system, combined with the fire monitor, demonstrates a fusion of innovation and efficiency, designed to effectively extinguish fires. Strategically positioned nozzles and hoses facilitate the rapid deployment of water, ensuring that fires in critical areas are quickly controlled. The fire monitors have a flexible range and powerful discharge capabilities, allowing operators to extinguish fires precisely and effectively, minimizing potential losses and protecting lives and assets.
fire monitor
Maintenance and care of the Isuzu FVZ 6x4 is a streamlined process designed to ensure optimal performance and longevity. Isuzu's commitment to reliability is reflected in the vehicle's user-friendly maintenance protocol, which facilitates routine inspections and repairs. Convenient service points, diagnostic interfaces and comprehensive service manuals enable operators to keep the truck in optimal condition, ready for daily operations in mining environments.
Safety is the most important consideration in any industrial environment, and the Isuzu water truck puts the health of its occupants first with a range of advanced safety features. From an integrated rollover protection system to an anti-lock braking system (ABS) and traction control mechanisms, the vehicle provides safety for its occupants. In addition, the cab is equipped with airbags, ergonomic seating arrangements and a sturdy chassis, reinforcing Isuzu's commitment to protecting lives in the mining industry.

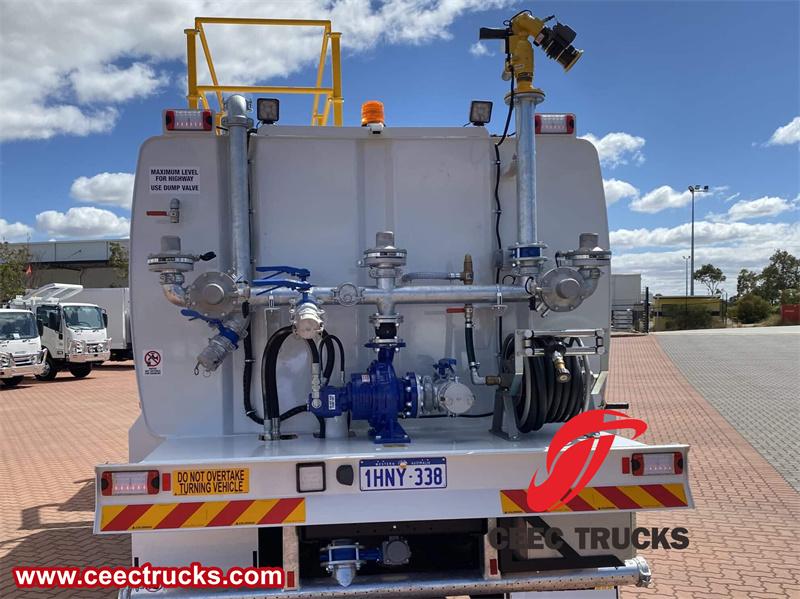

water pump and pipeline
★ Euro 6 type, ISUZU engine, super powerful
★ FAST 9-shift manual mechanical transmission gearbox
★ Water pump super powerful, efficient pump in and out
★ 12 months fast moving spare parts for FREE
★ Authorized ISUZU water bowser trucks exporter
★ Training service for ISUZU water tanker trucks
CEEC TRUCKS is a leading exporter of ISUZU water tanker trucks in China. We possess over 10-year export experience of ISUZU water bowser trucks. We can ensure the fast delivery time and 12 months guarantee for our water spraying trucks. Our ISUZU water sprinkler trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
