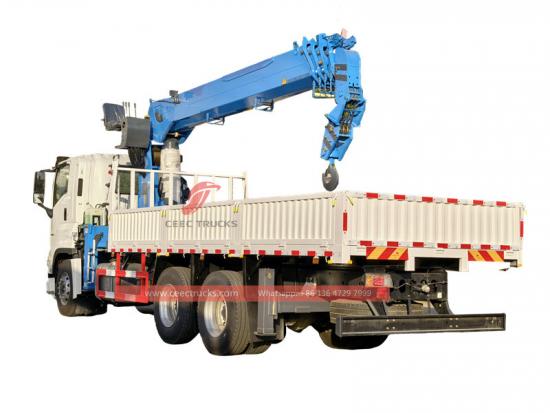

Isuzu GIGA 6x4 truck 14T crane with direct sale

Isuzu GIGA 14T crane lorry truck for Nigeria

The Isuzu GIGA boom truck is equipped with Isuzu 6UZ1 engine,strong power of 380HP, which can meet various work needs. The Isuzu GIGA 5X cabin have air suspension seat and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body is a telescopic boom crane with a maximum lifting capacity of 14000kg and a full 360° rotation.

Work capacity:
14 tons
Dimension ( mm ):
11300×2580×3350 mm
Wheelbase ( mm ):
4600+1370 mm
Engine power:
380HP
Engine type:
6UZ1-TCG60
Axle drive:
6x4, LHD
Gear box:
Fast 12 shift
Remarks:
6X6, RHD drive type avaiable

Inquiry now

The Isuzu GIGA boom truck is equipped with Isuzu 6UZ1 engine,strong power of 380HP, which can meet various work needs. The Isuzu GIGA 5X cabin have air suspension seat and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body is a telescopic boom crane with a maximum lifting capacity of 14000kg and a full 360° rotation.

The crane weight is 3570kg and the installation space is 2150mm. The control panel can be selected in English or other languages to facilitate users with different needs. Isuzu GIGA cargo truck mounted 14tons crane also provides a variety of optional configurations, such as knuckle boom cranes, hydraulic dump boxes, box thickness and height customized according to needs, and optional remote control boxes.

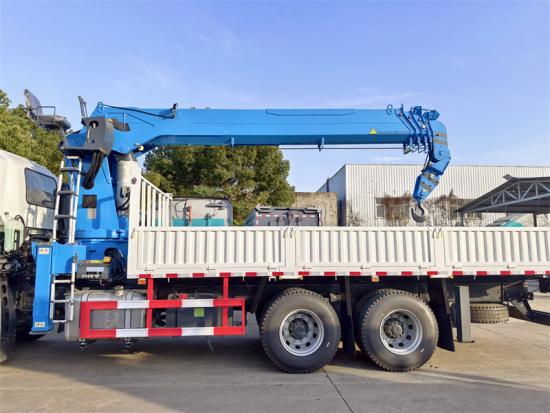

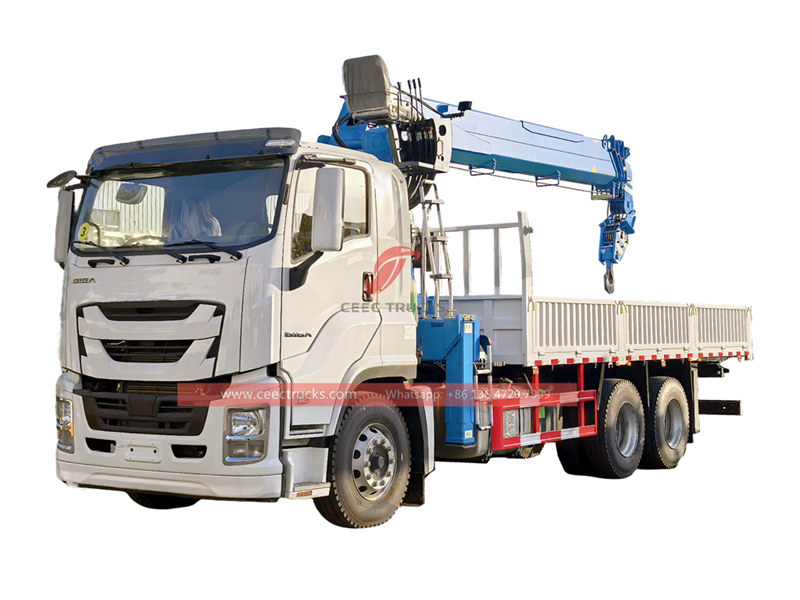

Isuzu GIGA cargo truck mounted 14 tons crane

*Isuzu GIGA 6x4 service truck 14ton crane

Isuzu GIGA 10wheeler boom crane truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Product Introduction of Isuzu Boom Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Isuzu truck chassis, 6x4,6X6 model

Isuzu 6UZ1 model with 380HP and emission 9.8L.

2. Cargo material: 6mm thick high-quality steel for prolonged service lier
carbon steel, aluminum alloy or stainless steel can be choose.

3. Crane Brand: XCMG, Palfinger, HIAB, CEEC, etc.

4. Optional design: such as kunckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.

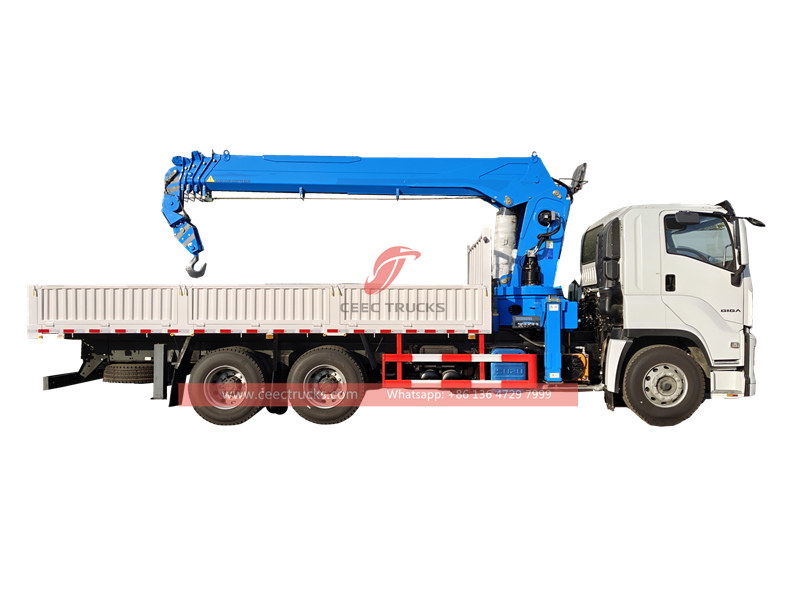

Isuzu GIGA cargo truck mounted 14 tons crane

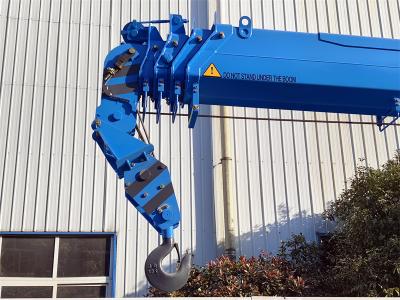

The Isuzu GIGA 14ton truck mounted crane is composed of a boom, turntable, frame, legs and other parts. The mechanical movements of the telescopic crane truck are realized through the movements of luffing, telescopic, rotating, winching and other mechanisms, and the lifting operation is realized through the combination of different movements.Equipped with an intelligent safety system, including overload protection, torque limiter to ensure operational safety. Optional grab buckets, hanging baskets and other accessories are available to meet the needs of different working conditions.

✦ Product Parameter of Isuzu Crane Lorry Truck « « «

Isuzu GIGA cargo truck mounted 14 tons crane

Isuzu 6×4 Telescopic Boom Crane Truck
Vehicle model		CEEC52503GDC		Overall dimensions (mm)	11300×2580×3350
GVW (kg)		25000		Operational height (m)	18.5m
Curb weight(kg)		11300		Max. Speed (km/h)	95
Chassis Description
Chassis Brand			Isuzu GIGA chassis
Cab			Single cab with A/C
Allowable person in cab			3
Wheel base (mm)			4600+1370
Number of axles			3
Axle	Front axle (kg)		7500
	Rear axle (kg)		13000*2
Traction system			6*4
Braking system			Air brake
Transmission			Fast 12-speed
Tire specification			295/80R22.5
Tire quantity			10+1
Engine Description
Engine manufacture			Isuzu
Engine model			Isuzu 6UZ1
Emission standard			Euro 6
Exhaust			9.8L
Horse power			380 HP
Upper Body Description
Max. working height (m)			18.5
Max. working radius (m)			20.5
Crane Type			Telescopic boom crane
Max Lifting Capacity			14000 kg
Slewing Angle			360° All rotation
Rotation Angle			360° Hydraulic
Control panel			English or Your language
Cargo Box Dimension			63002500500 mm
Cargo Box Material			Q235 High-level Steel
Optional
Knuckle boom crane
Hydraulic tipper box
Box thickness according to requirement
Box height could be nominated
Remote Control Box optional

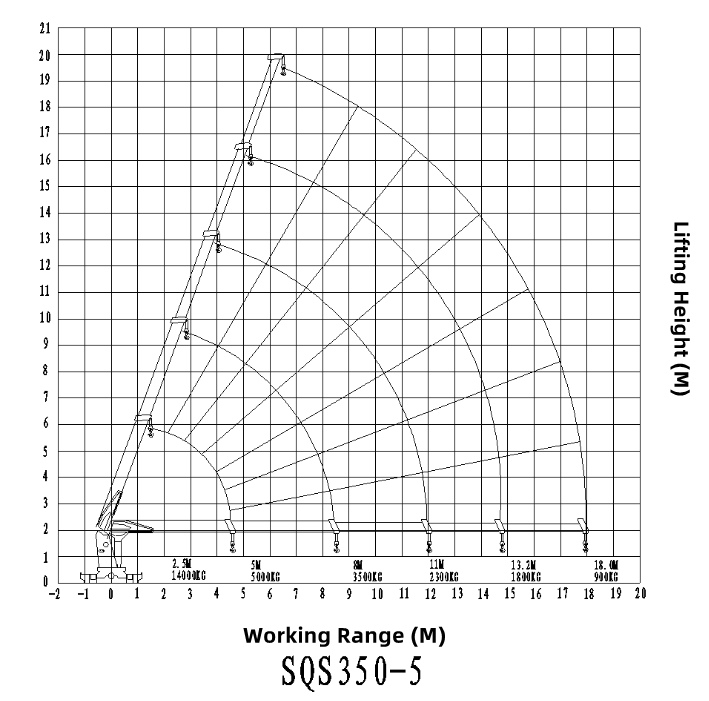

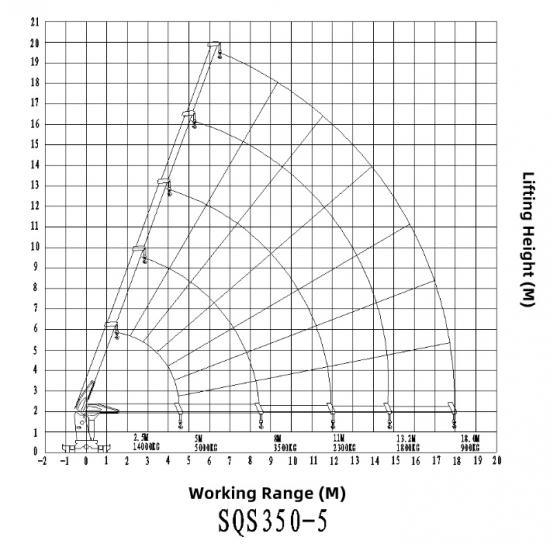

✦ Analysis diagram of Isuzu Boom Truck« « «

Crane Rated Lifting Capacity (Kg)	14000
Rated Lifting Capacity (T.m)	35
Max Lifting Height (mm)	18.2
Number of Crane Boom Sections	5
Basic Arm Cross-Section	Hexagon
Rotation Angle	360°
Leg Span (fully retracted/fully extended) (m)	2.5/5.8
Recommendation System Traffic (L/min)	63/40
System Rated Pressure (MPa)	22
Operation Method	Upper Seat Operation
Hydraulic Oil Tank	200L

✦ High load capacity and passability of Howo Boom Truck« « «

♦ The Isuzu 14tons crane truck has a 6x4 drive system, high quality rear axle drive + front axle steering.

♦ Reasonable axle load distribution, strong load capacity, usually 33 tons, suitable for heavy load transportation.

♦ Excellent ability to escape from complex road conditions such as mud and ramps.

♦ It adopts high-strength steel beams with strong torsion resistance, and is equipped with multi-leaf spring suspension, with high load-bearing stability.

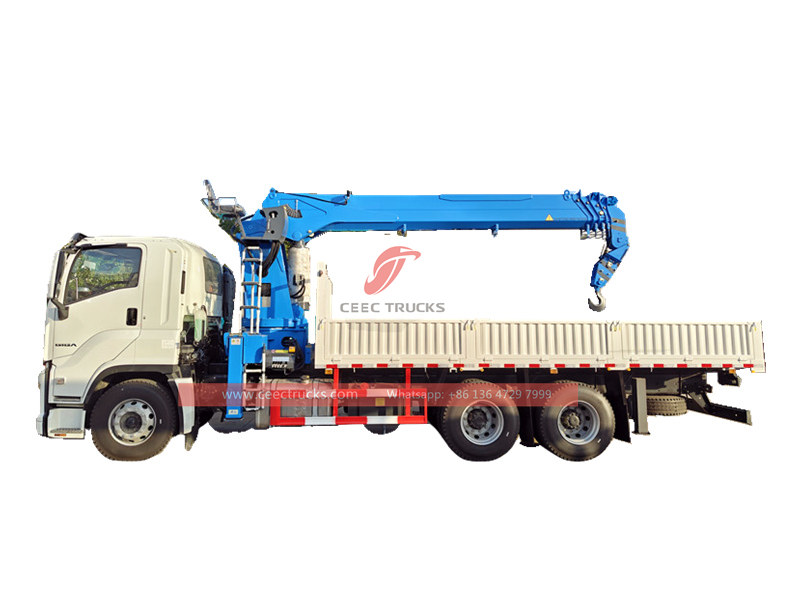

Isuzu GIGA cabin 6x4 crane truck

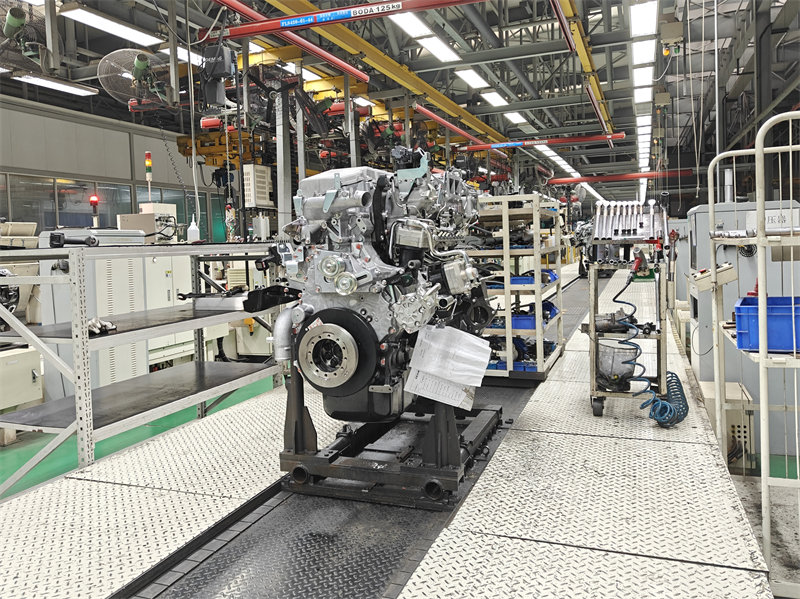

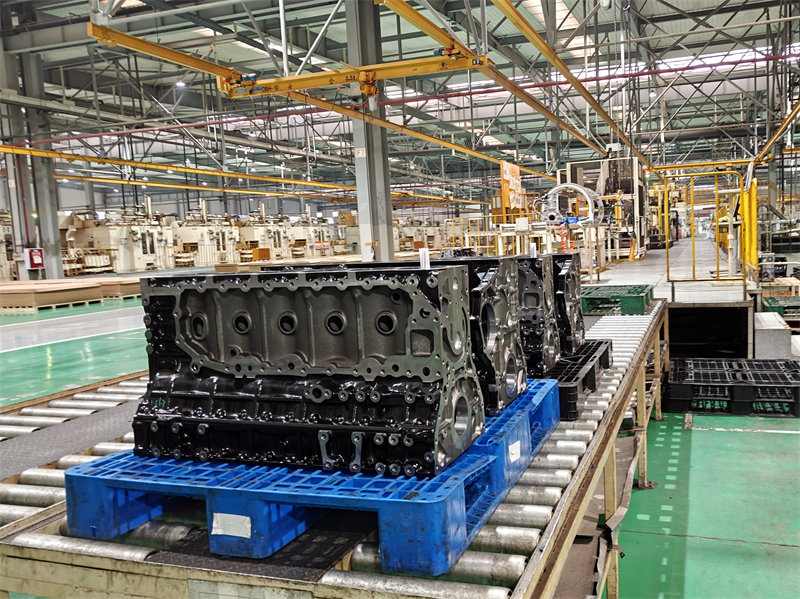

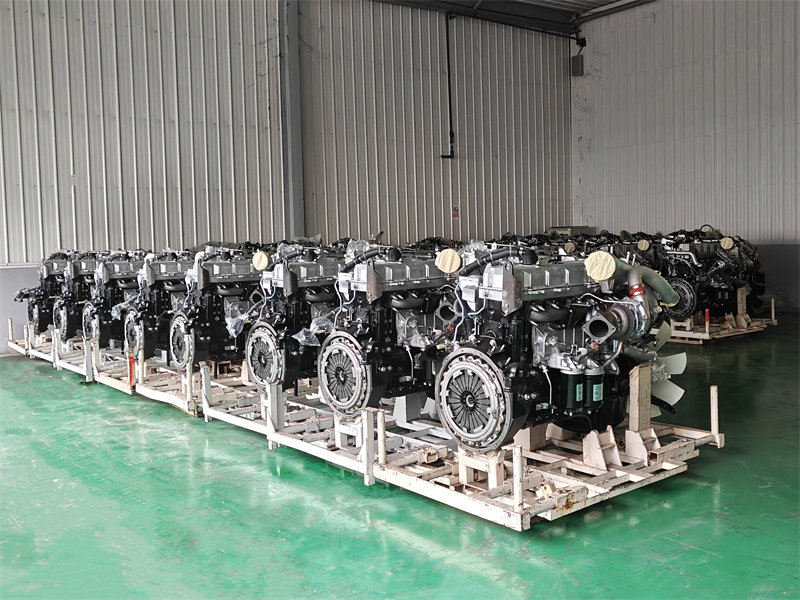

♦ Equipped with Isuzu technology engine (6UZ1 Series) + Fast series gearbox + wheel reduction bridge.

♦ Low speed and high torque characteristics are outstanding, suitable for heavy load climbing and continuous operation.

♦ The Isuzu engine has a life of more than 800,000 kilometers.

♦ Key parts (such as hydraulic pumps and crane slewing mechanisms) are top brands, with a low failure rate.

✦ Structural Strength and Stability of Isuzu crane truck « « «

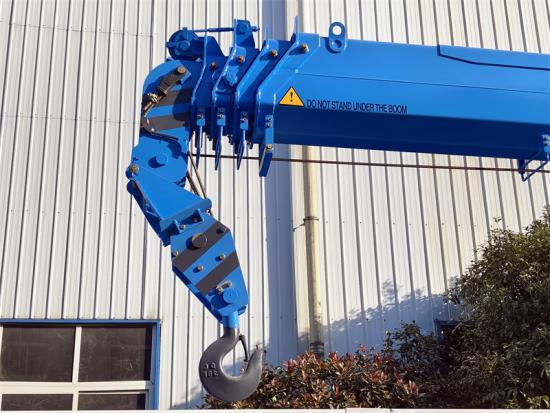

♦ The boom is made of high-strength steel with excellent bending and torsion resistance.

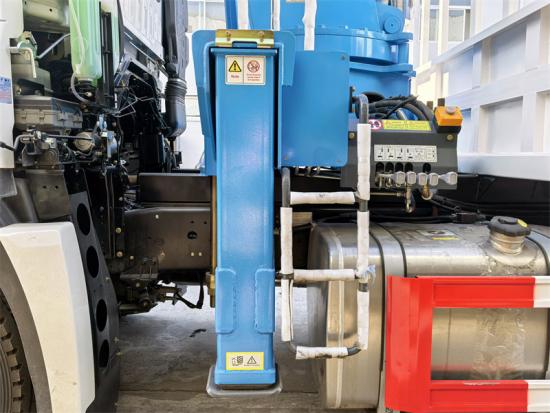

♦ The H-shaped outriggers are horizontally unfolded and the width is adjustable.

♦ The larger the support area, the stronger the anti-overturning ability.

Isuzu 10tons crane truck

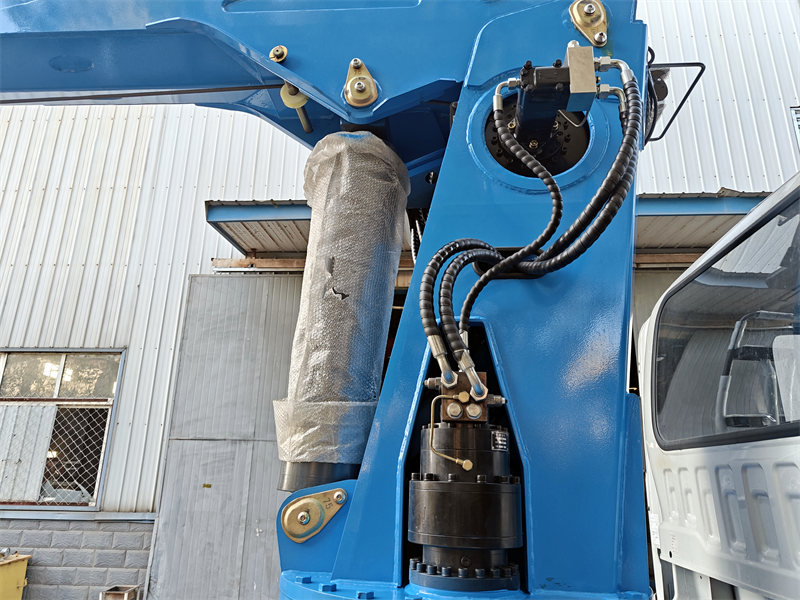

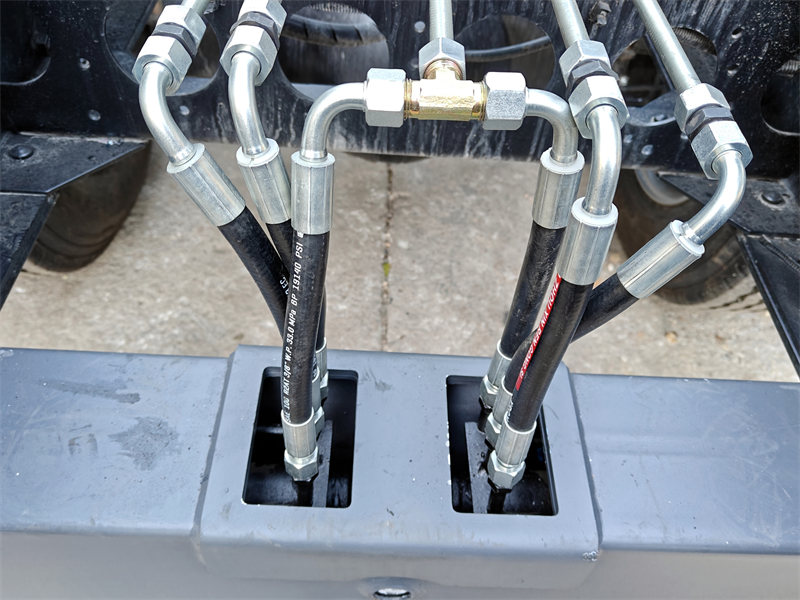

♦ The multi-pump confluence technology enables the boom to move synchronously and smoothly, without jamming or shaking, in telescopic, slewing and amplitude adjustment.

♦ Key valve (such as balancing valves and overflow valves) use high-quality domestic and foreign brands to reduce the risk of internal leakage.

♦ The surface of the boom is sandblasted + epoxy zinc-rich primer + polyurethane topcoat to adapt to salt spray and humid environments.

✦ Optional Equipment of Isuzu crane truck « « «

Due to the Isuzu 14 ton crane truck has a lifting height of up to 18.5 meters and a certain load-bearing capacity.The boom truck can combine it with various functional equipment to achieve multi-functionality and maximize the value of the crane truck.

Garbage Grabber
Wood Grabber
Lifting Electromagnetic Chuck

Planting Drill Bit
Secondary Hook
Manlift Bucket

✦ Application of Isuzu Boom Truck « « «

1. At construction sites for highways, bridges, and railways, the Isuzu 15 ton boom truck, with its heavy lifting capacity and long boom, can efficiently complete the on-site loading, unloading, and installation of precast concrete beams, large steel formwork, bored pile components, and heavy construction machinery.

2. In wind power, electric power,and mining industries, the Isuzu GIGA 15 ton boom truck serves as a mobile "heavy-duty maintenance station," capable of lifting large transformers, wind turbine components, and replacement parts for mining machinery.

3. In municipal engineering projects,the Isuzu GIGA 15 ton crane lorry truck can be used for lifting heavy drainage pipes, large sculptures, and ancient trees in gardens.

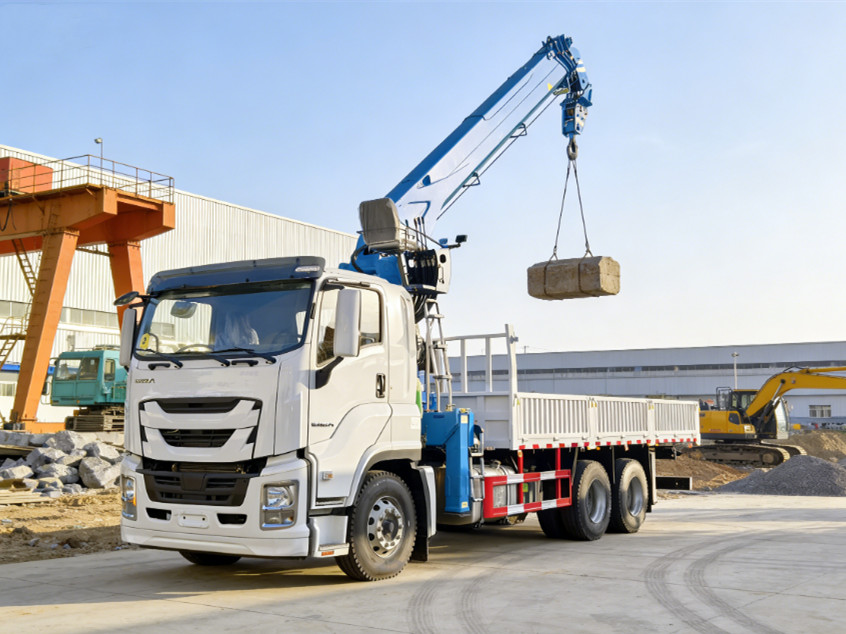

Isuzu GIGA 14 tons crane truck

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.

CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ Euro 6 type, Isuzu engine, fuel consumption save 20%

★ Fast Manual 12 shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized Isuzu service truck 14ton crane exporter

★ Training service for Isuzu truck mounted crane.

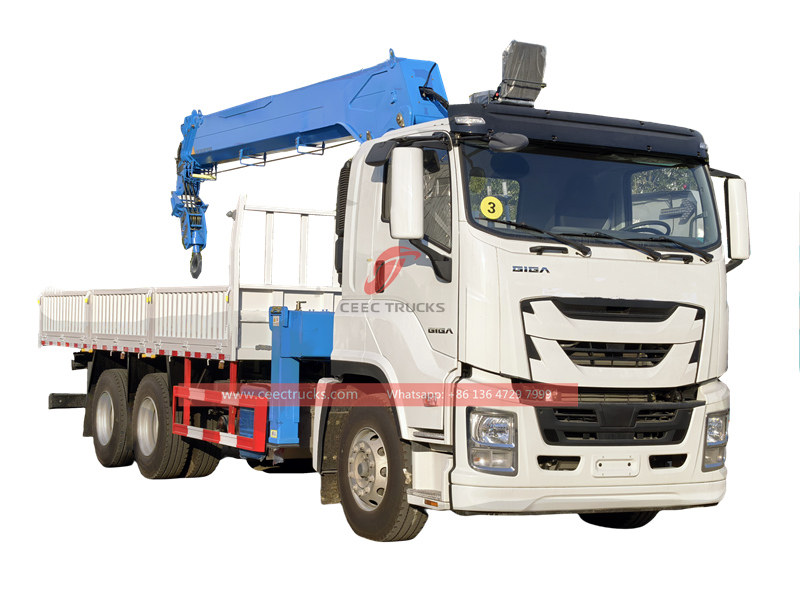

Isuzu 6x4 cargo truck mounted 14 tons crane

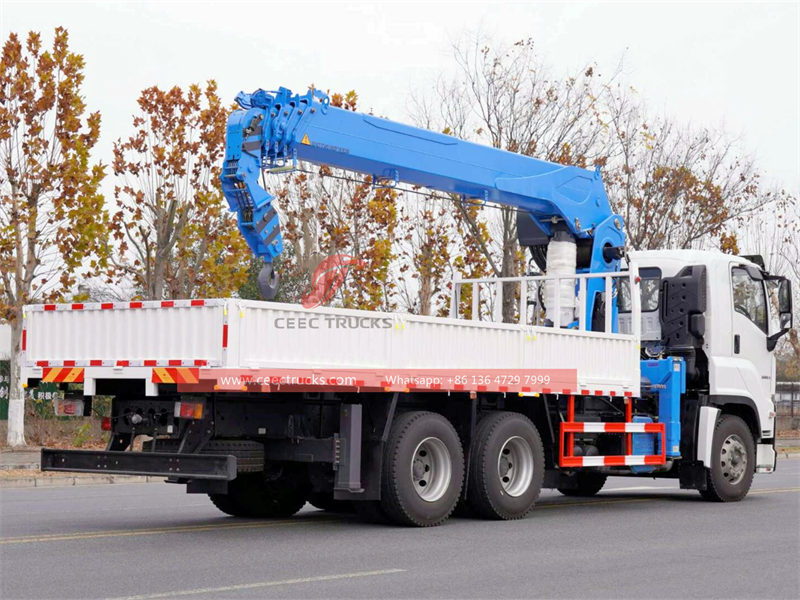

Isuzu 4x2 cargo truck mounted 10 tons crane
