ISUZU GIGA 4×2 truck mounted crane

ISUZU GIGA 4×2 Knuckle boom crane XCMG 6.3 tons

ISUZU GIGA 6.3 tons boom crane truck, ISUZU GIGA 4×2 left hand drive chassis, FAST 12-shift manual gearbox, ISUZU 380HP diesel engine, China famous brand XCMG 6.3 tons knuckle boom crane, cargo body dimension as required, painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

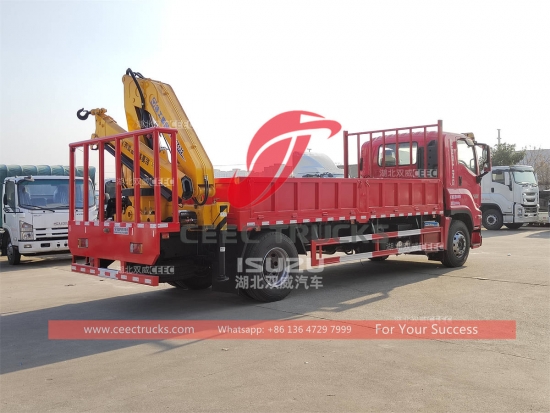

ISUZU GIGA 6 wheeler truck mounted crane XCMG



 Applications:



ISUZU GIGA 4×2 knuckle boom truck (also called ISUZU crane truck, ISUZU GIGA truck with crane, ISUZU GIGA truck mounted crane, ISUZU GIGA knuckle boom crane truck, crane truck manufacturer) is used to lift the cargo, load, transport and unload heavy stuff.



There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



CEEC TRUCKS Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:



---- ISUZU chassis ensures perfect performance on driving

---- ISUZU engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



Crane Features:

---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.

---- Advanced development means make sure that the design is very reliable.

---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space

---- The work is more safety after fitted over-winds alarm equipment.

---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.

---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- Anti-slewing impulse equipment that make vehicle running safely



 Specifications:



ISUZU GIGA 4×2 knuckle boom crane truck (6.3 Tons crane)

General

Vehicle Brand

CEEC

Chassis Brand

ISUZU

Overall Dimension

9200 * 2500 * 3250 mm

GVW / Kerb Weight

18,000kg / 8,500kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

380 HP

Displacement

9839 ml

Emission Standard

Euro 5

Chassis

Drive Type

4×2 Left hand drive

Transmission

FAST 12 speed levers with 2 reverse

Wheelbase/No. of axle

5600 mm / 2

Tire Specification

315/80R22.5

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

5000*2200*500 mm

Crane Type

Knuckle boom crane

Max Lifting Capacity

6300 kg

Slewing Angle

360° All rotation

Crane Weight

950 kg

Installation Space

850 mm

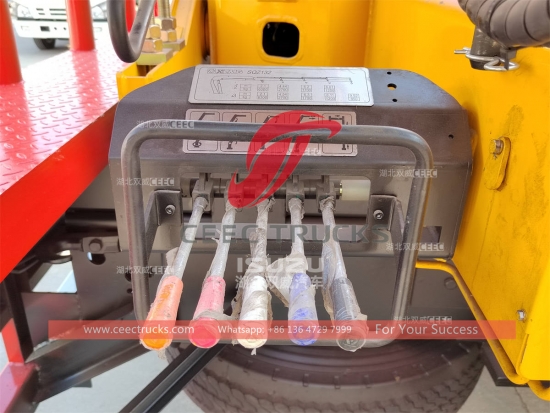

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional



Key words: Truck-mounted crane, ISUZU GIGA Crane truck, ISUZU 4×2 knuckle boom truck

Euro 5 type, ISUZU engine, fuel consumption save 20%

Manual 12-shift mechanical transmission gearbox

12 months fast moving spare parts for FREE

Authorized ISUZU boom trucks exporter

Training service for ISUZU crane truck.


ISUZU GIGA 4×2 boom truck for sale


ISUZU GIGA 380HP truck with crane


China professional boom crane truck supplier and exporter, we supply high quality truck-mounted crane. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our crane trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
