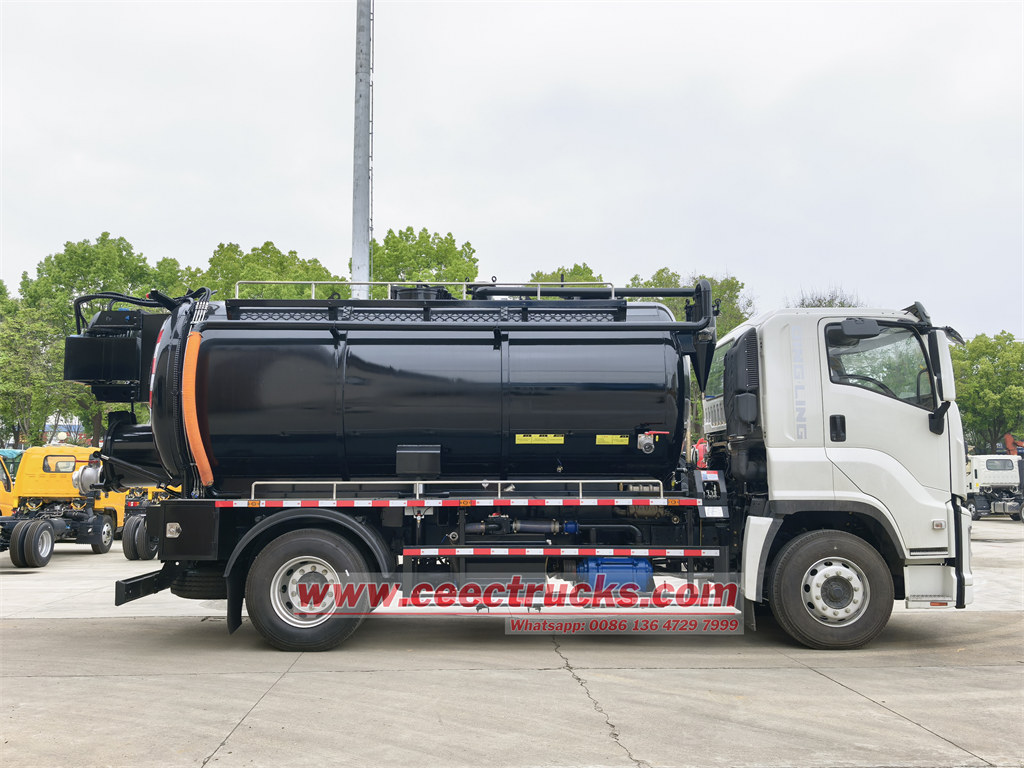

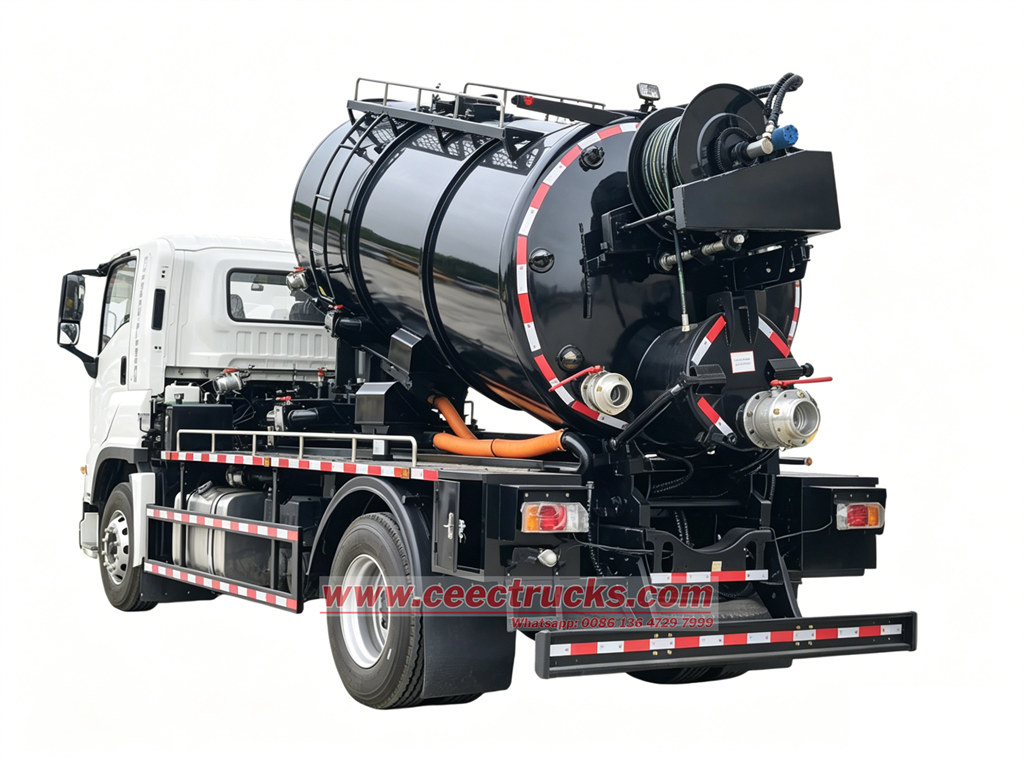

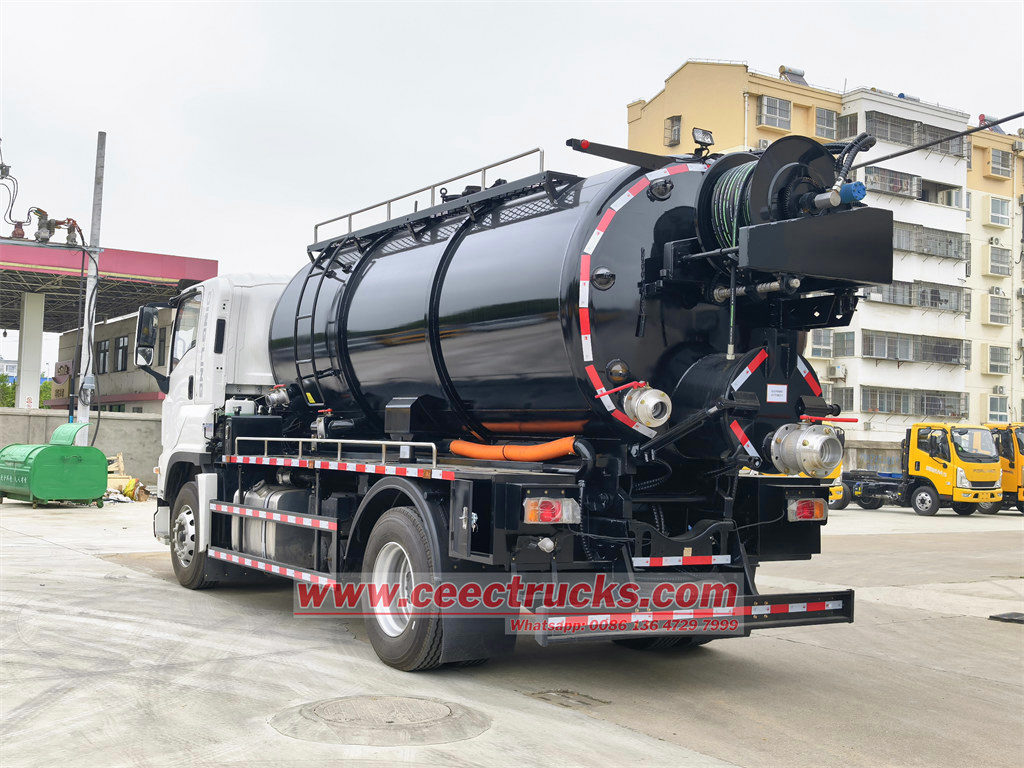

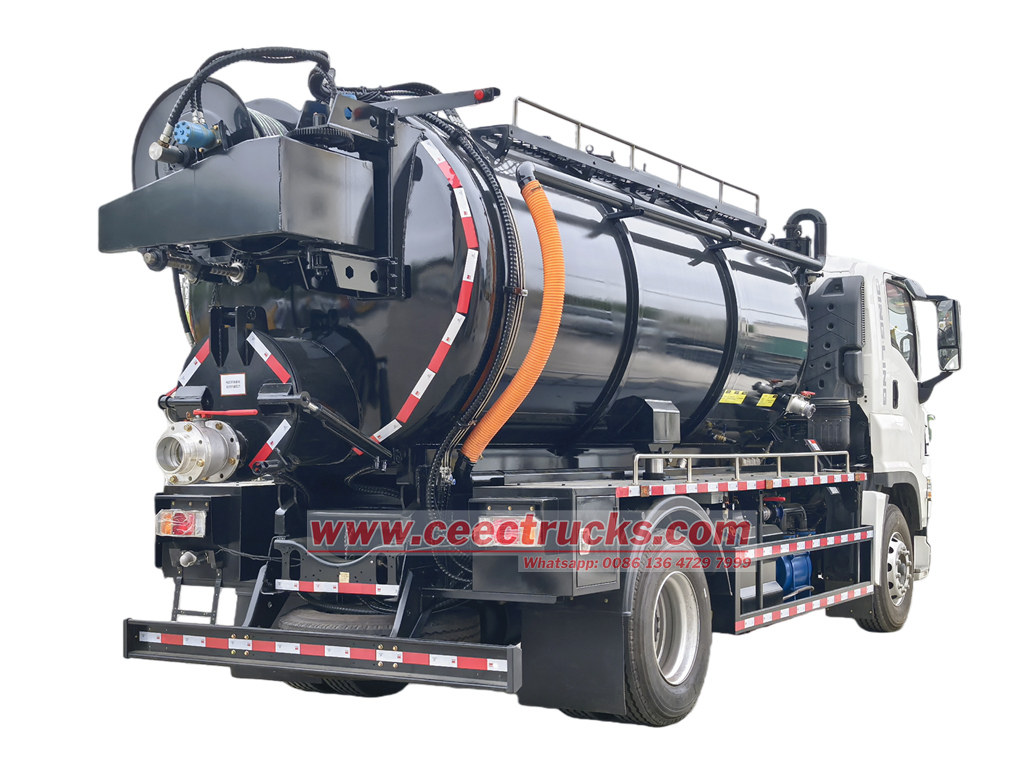

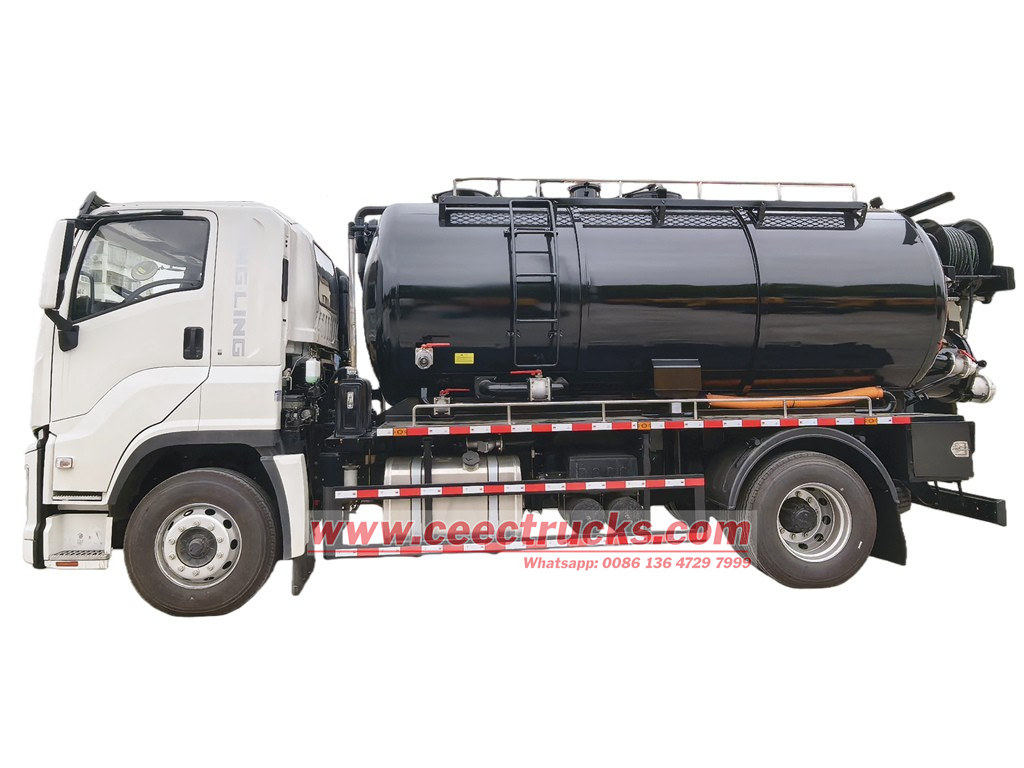

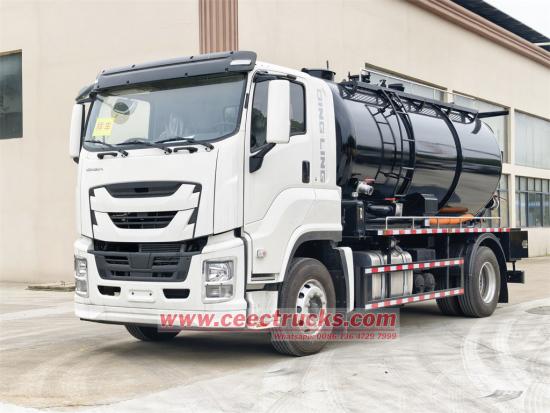

South American Haiti client purchased ISUZU GIGA 5X super sucker vacuum jetting truck from us CEEC TRUCKS. ISUZU sewer jetters are used for city vacuum sewage suction and drainage high pressure jetting cleaning. Originally GIGA 5X cabinet truck with Air Conditional for warm and cooling. Mounted with Japanese ISUZU technology 6HK1 model 6 cylinder diesel engine, 240HP or 300HP optional and emission 7790cc, equipped with 3000Liters clean water tank and 10000Liters vacuum sewage tanker, water cycle SK-12 super vacuum pump and efficiently flow rate 21m3/min, matched working with rear 60m φ19 hose reel and multiple jetting nozzles.
Work capacity:
10CBM Sewage + 3CBM waterDimension ( mm ):
8800×2500×3530 mmWheelbase ( mm ):
4500 mmEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4x2, LHDGear box:
FAST 8-shift manual transmissionRemarks:
Original Italy brand MORO, BP, JUROP vacuum pump is availableSouth American Haiti clients purchased ISUZU GIGA 5X 13000Liters combined sewer jetting truck full relay on the advanced features of ISUZU LHD GIGA 5X medium truck chassis, equipped with Japanese technology 6 cylinder 6HK1-TCG61 diesel engine, with efficiently horse power can be 240HP, matched working with FAST 12 shift manual gearbox, convenient and safety for driving, and very lower fuel consumption.

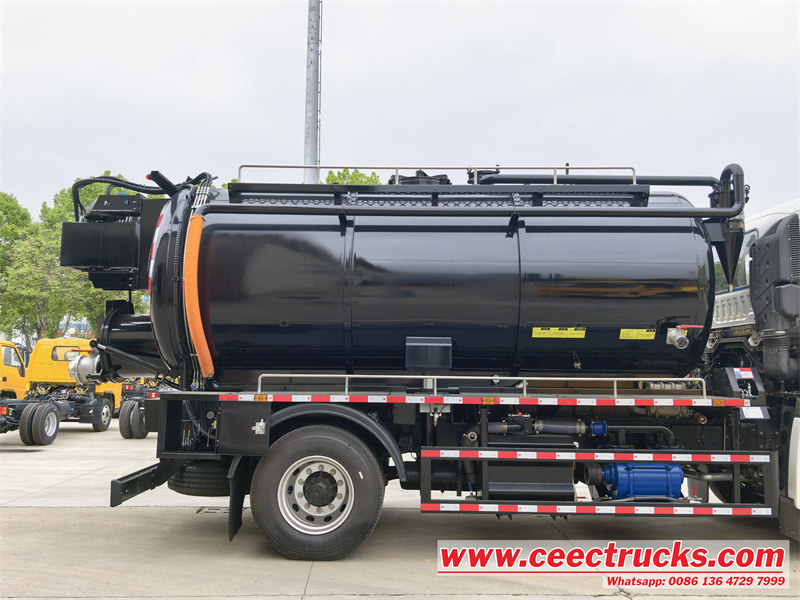

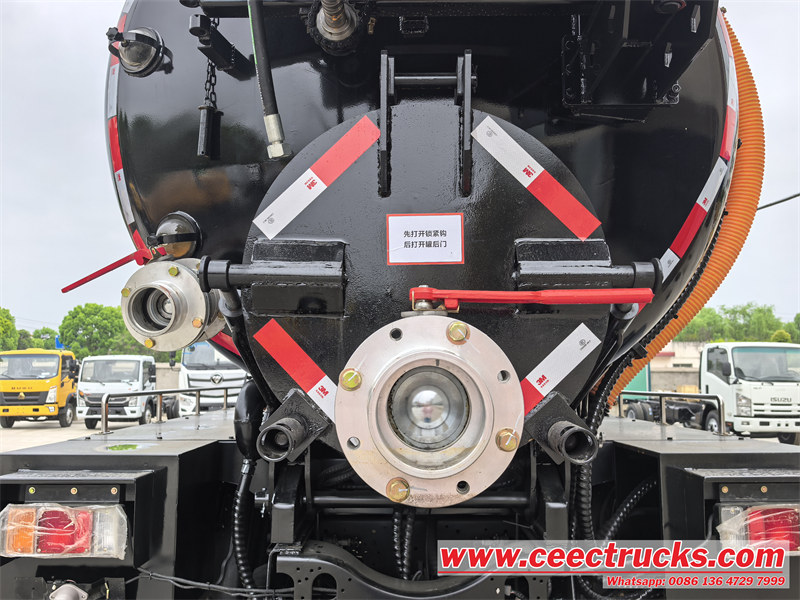

ISUZU sewer jetters vehicles equipped with 13000Liters round shape combined tanker body kit, which is designed based on Q355 material, thickness for tanker body and two sides cover 6mm, inner baffle thickness 4mm, full tanker body kits are didived into two compartment with 3000L water tanker in the front and 10000L vacuum tanker at rear. Equipped with Top Chinese brand water cycle SK-12 vacuum pump and efficiently suction flow rate can be up to 12m3 per minute, equal to 720m3/min and 200L/s. And matched working with PINFL brand XV36 model high pressure jetting pump, with efficiently flow rate 215L/min and working pressure 220bar. Rear mouned DN100 nozzle with suction hose and efficiently length 10m. Therefor, the Isuzu combined jetting vacuum truck mainly used for dredge sewer and liqiud sewage suction.
CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CEEC Trucks Group

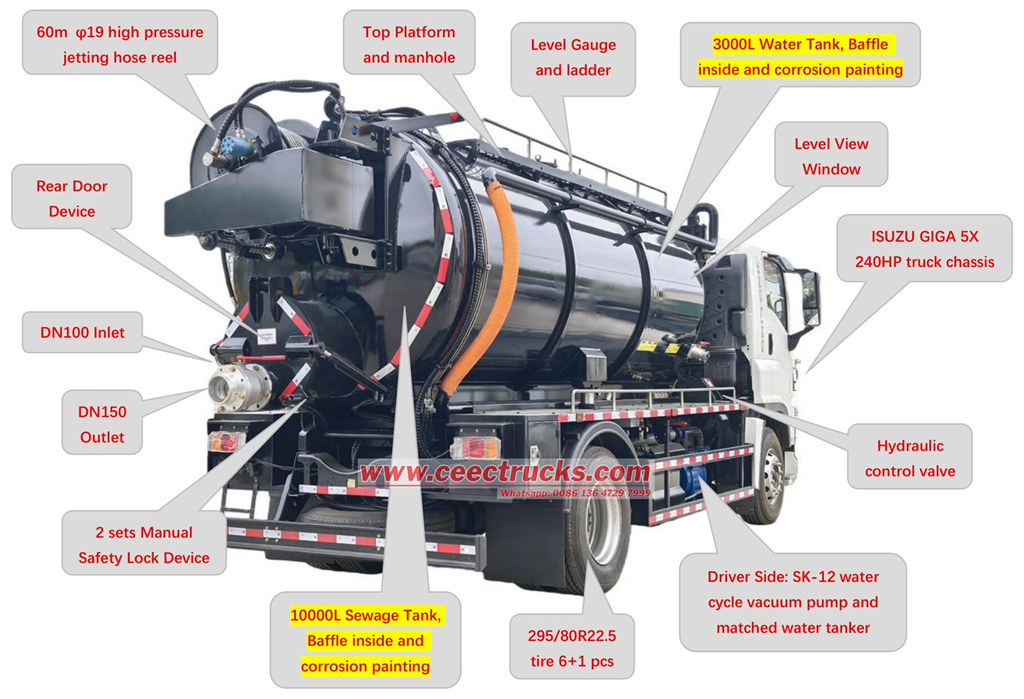

Features:
1. Truck Chassis: ISUZU GIGA 5X truck chassis, LHD, 4x2, 4X4 model optional
6HK1-TCG61 diesel engine 240HP, optional can be 300HP.
2. Tanker Body Kit: Full welding round shape, Q355 steel, thickness for body 6mm and cover 8mm

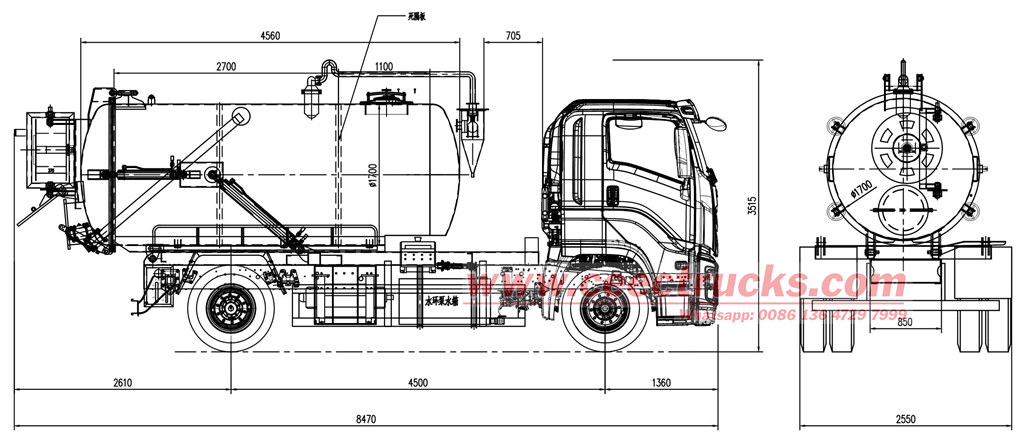

Water Tanker 4000Liters, Sewage Tanker 16000Liters. Technical drawing as below
3. Vacuum Pump: Famous Chinese brand SK-12 model, efficiently flowrate 12m3/min, equal to 200L/s

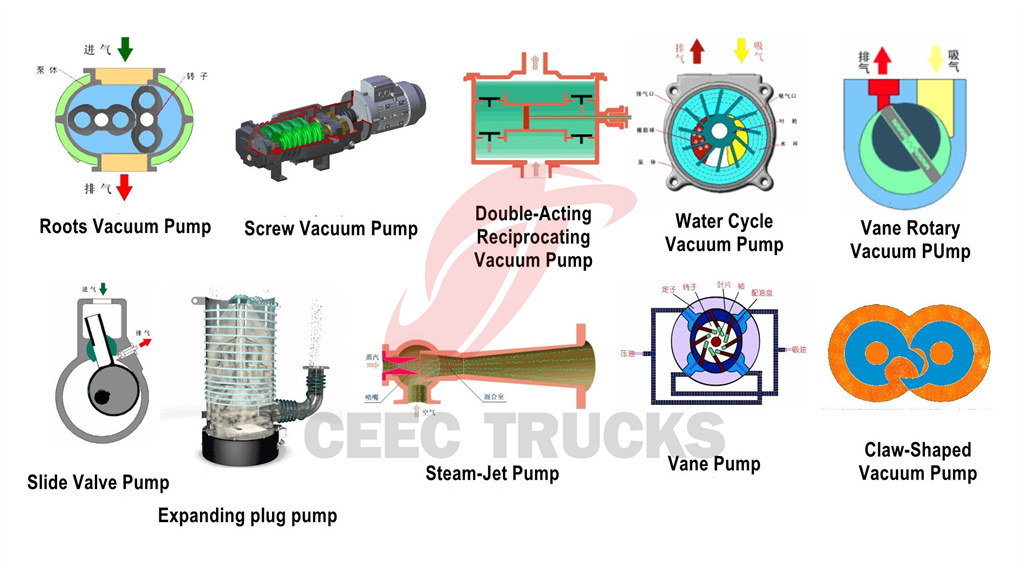

Optional MORO, BP, JUROP, WEILONG, CEEC, etc.
4. High Pressure Pump: Germany brand PINFL vacuum pump XV36 model, with working pressure 22Mpa and flow rate 215L/min.

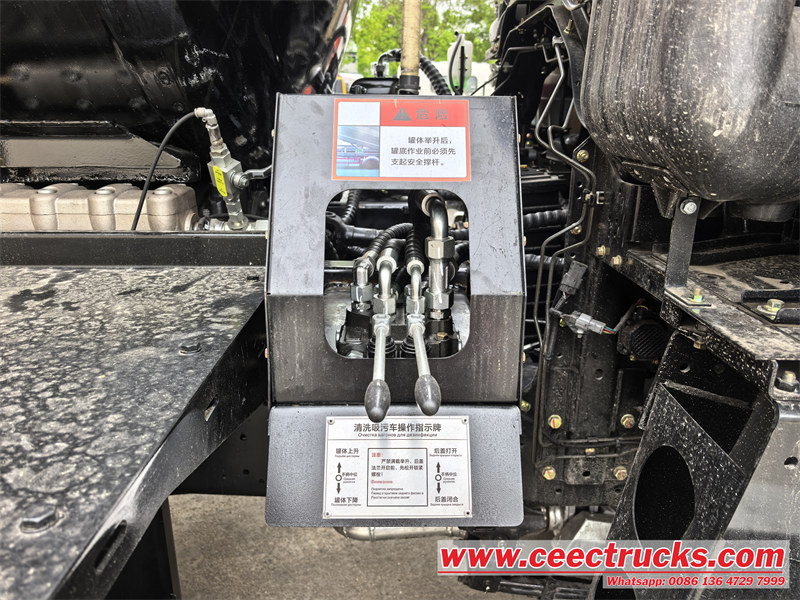

5. Specialized Equipment: Top mmounted wonder hose, hydraulic control type, 7-10m hose reel.
| Product name | ISUZU GIGA 5X LHD / RHD 4x2, 4×4 10 Wheels 13000L Sewage Jetting Truck Sewage Suction Truck Vacuum Truck Mud Flushing Truck High Pressure Vacuum Jetting Sewage Suction Truck sewer jetter | |
| Vehicle Dimensions, Weights & Capacities | Chassis brand | ISUZU GIGA 5X |
| Overall dimension (L*W*H) | 8800*2500*3530mm | |
| Wheelbase | 4500mm | |
| Curb weight | 11,000 Kgs | |
| Gross weight | 18,000 Kgs | |
| Axle loads | 6500/13000Kgs | |
| Chassis | Drive mode | 4x2 |

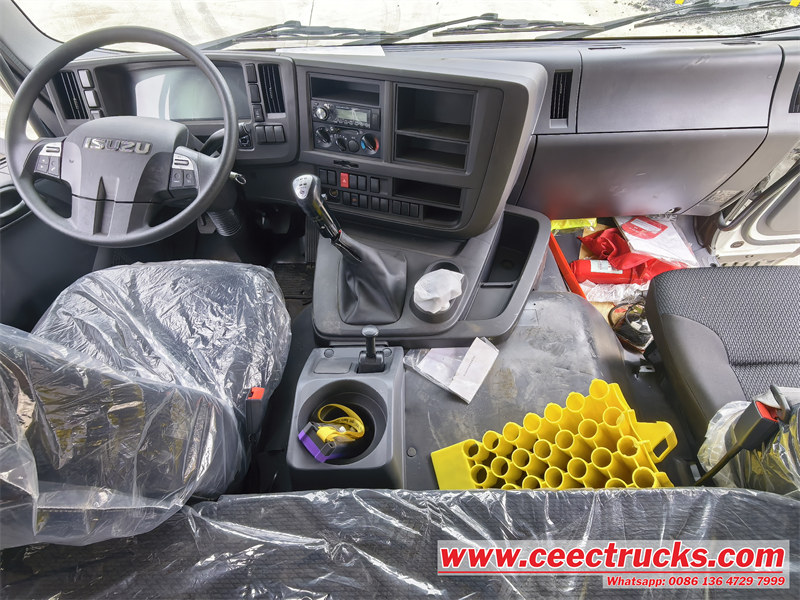

| Cabin type | Standard roof one bed | |
| Seats | 2 seats + 1 berth | |
| Steering | LHD / RHD optional | |
| Tyres | 6+1 spare tyre, 295/80R22.5 | |
| A/C | Air conditioning | |
| Engine | Enging model | 6HK1-TCG61 |
| Fuel and engine Type | Diesel, 6 cylinders in-line | |
| Horse power | 240HP | |
| Displacement | 7.79L | |
| Other Standard Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS, Automatically Air-cut Brake | |
| 4 | Tubeless tyres | |
| 5 | Retro-Reflective Marking | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | USB, Radio | |
| 10 | Widened Bumper | |
| 11 | Aluminum Alloy Gas Tank | |
| 12 | Front Chrome Kit for option | |
| Combined Jetting Vacuum Body Kit Parameters | Loading Capacity Volume | 10,000 Liters Sewage tank and 3,000 Liters Clean Water tank |
| Tank Material | Strengthen high performance wear-resisting carbon steel Q355 with anti-corrosion treatment paint, thickness for tanker body and cover 6mm | |
| Vacuum Pump | SK-12 water cycle vacuum pump, flow rate 12m3/min | |
| Water Pump | XV36 high pressure water pump, flow rate 215L/min, with pressure 220bar | |
| Colour | As demands | |
| Logo Paint | As demands | |
| Others | Standard, customized top mounted wonder hose for suction | |

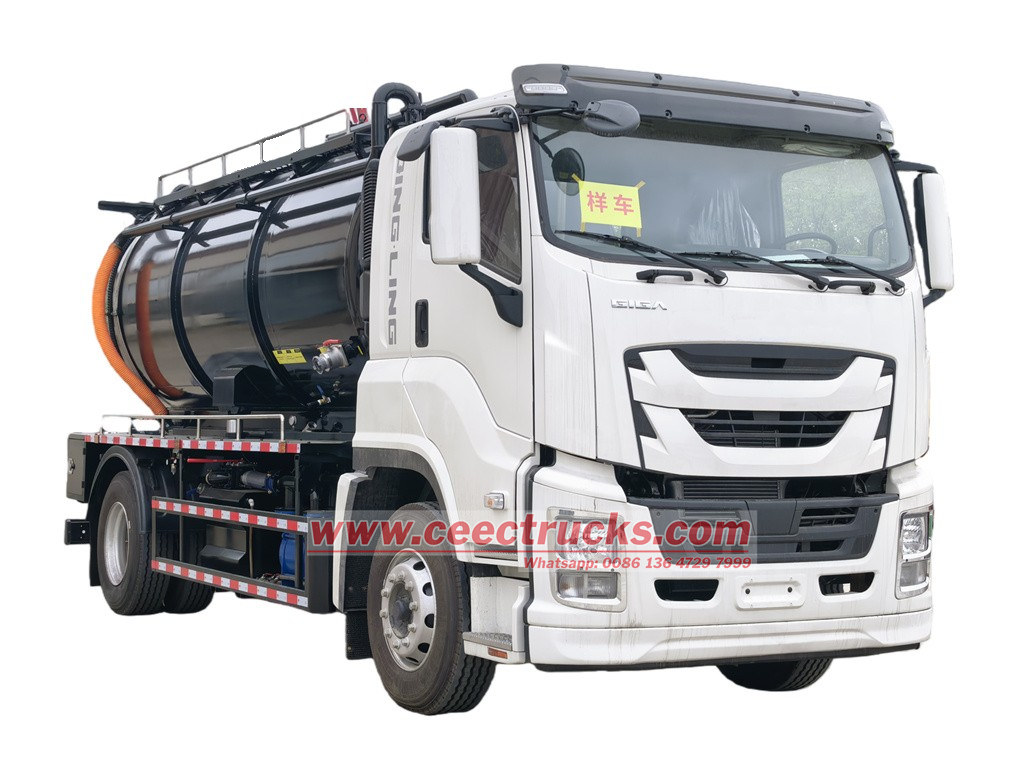

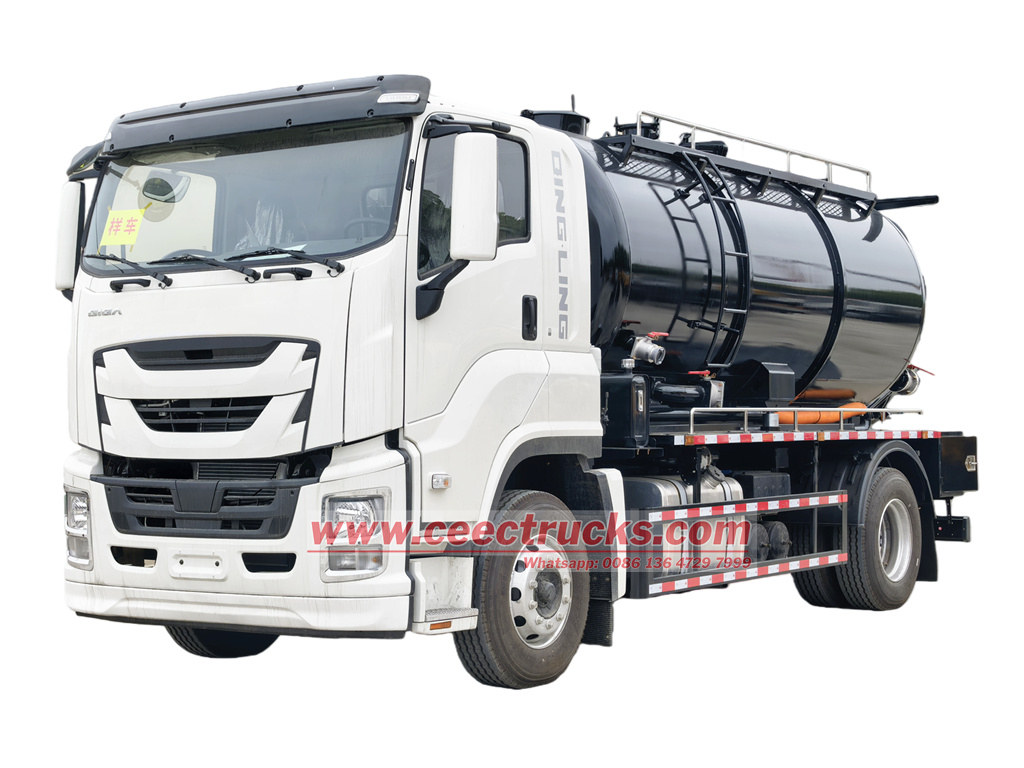

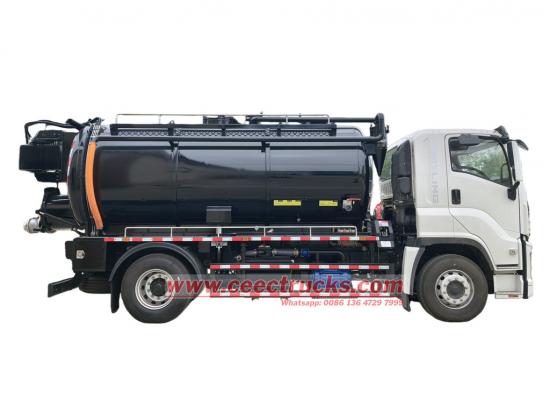

| Name | ISUZU GIGA 5X Sewer Jetter Truck |
| Cabin | GIGA 5X, optional color and painting |
| Driving | LHD / RHD, 4x2 / 4x4 offroad |
| Engine | 6HK1-TCG61 diesel engine, 240HP and emission can be 7790cc |
| Tranmission | FAST 8 shift manual type, 8F & 1R |
| Wheelbase | 4500 mm |
| Tire |
295/80R22.5, 6+1 units |
| Capacity | 10cbm sewage & 3cbm water |
| Tanker Material | Q355 material, thickness 6mm / 8mm |
| Vacuum Pump |
Chinese brand SK-12 model Flow rate: 12m3/min Pressure: 8300 pa Speed: 980rpm Power: 18.5kw |
| High Pressure Pump |
Germany brand PINFL XV36 model Flow rate: 215L/min Pressure: 22Mpa / 220Bar / 3190psi |

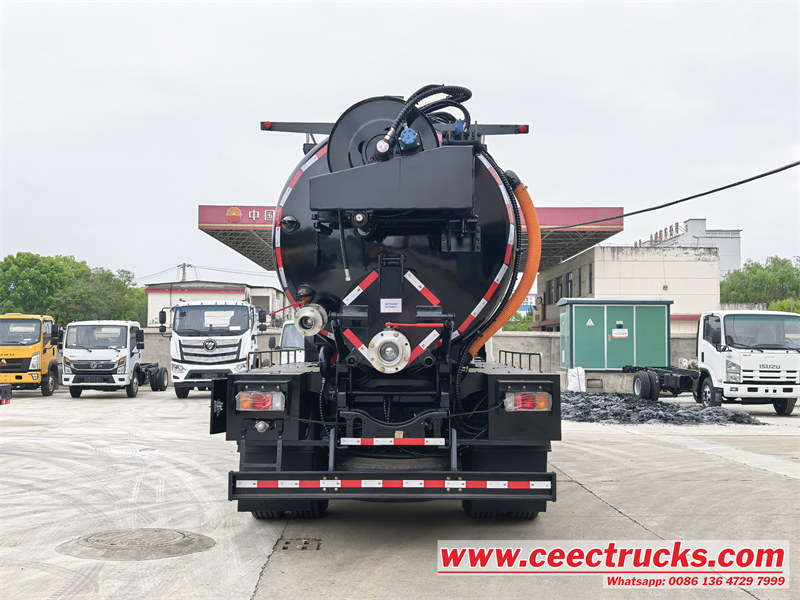

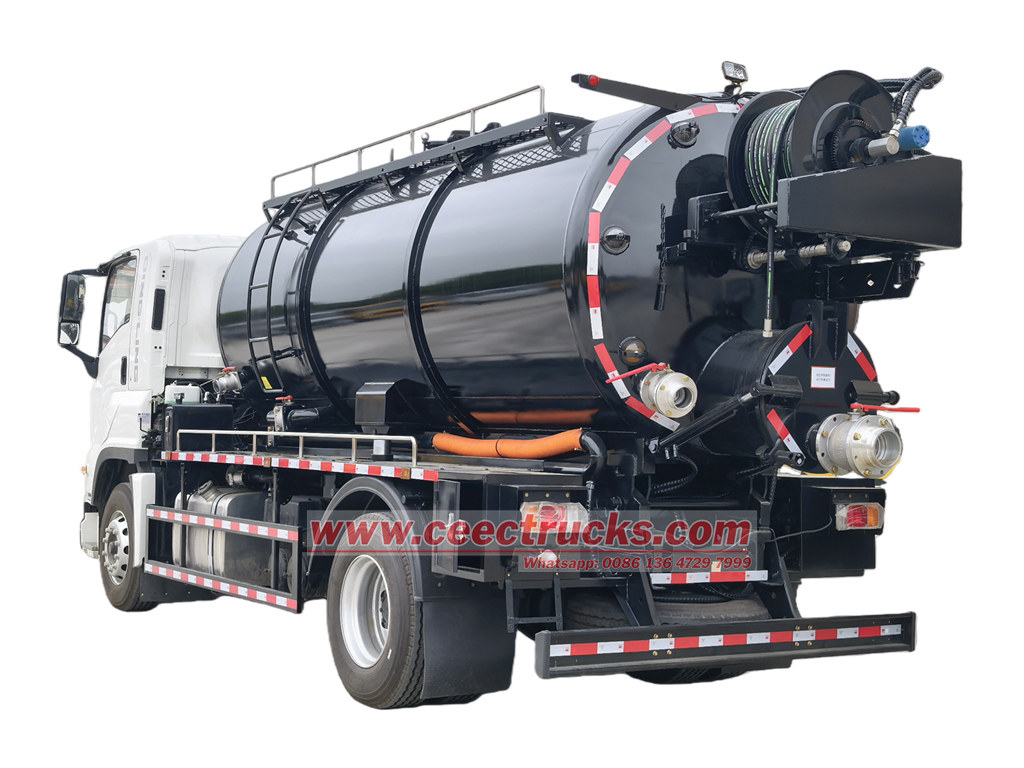

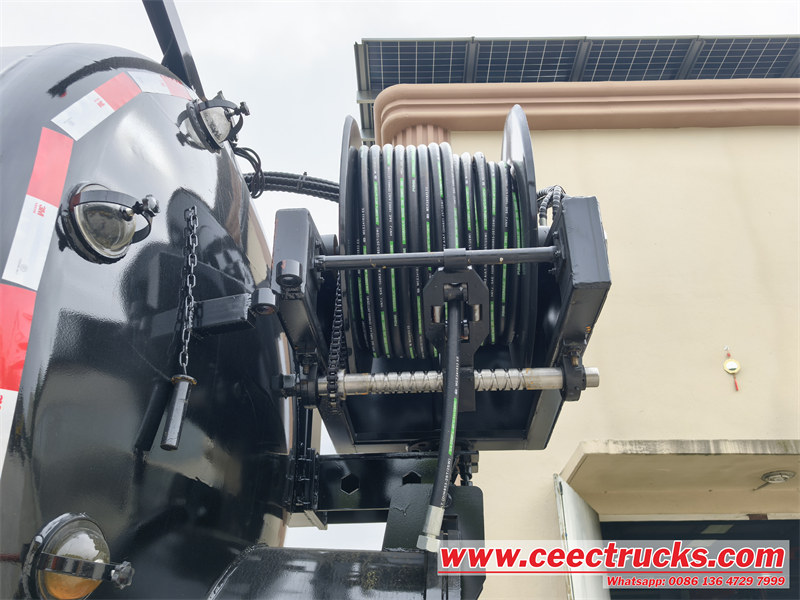

| Hose Reel | Rear mounted, 60m φ19 hose reel with customized 10 sets jetting nozzles |
| Pipe Storage Platform | Two sides mounted with Stainless steel material platform |
| Painting | 100% customized painting and logos |

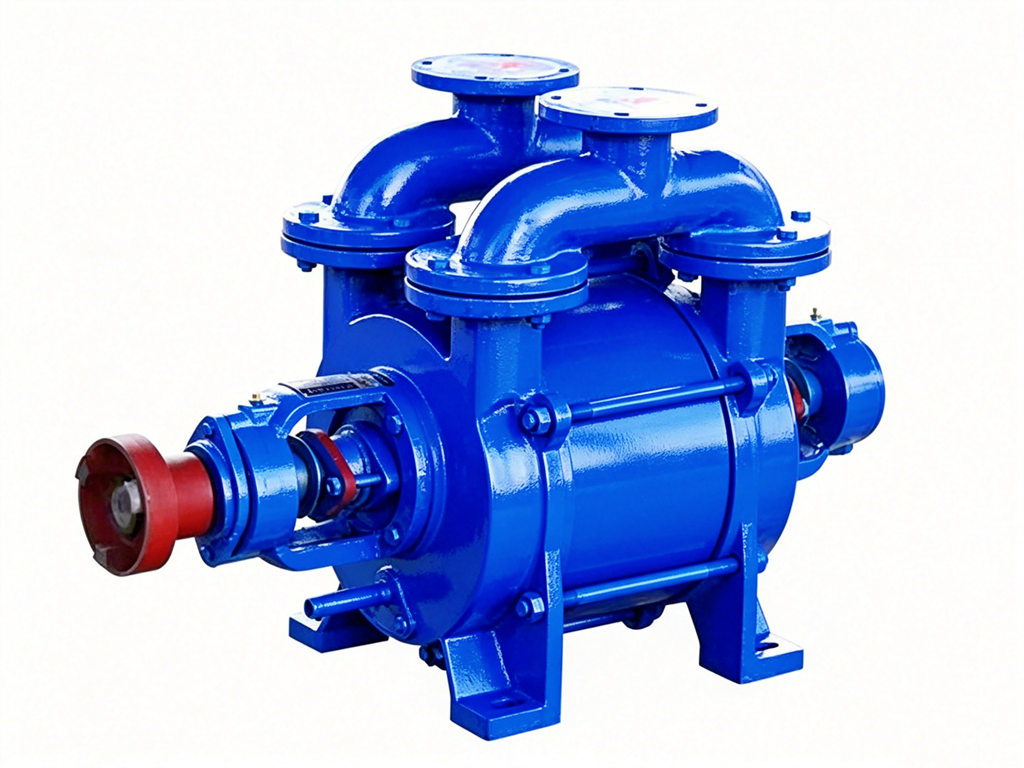

SK-12 water cycle vacuum pump
| Brand | MADE IN CHINA |
| Model | SK-12 |
| Power | 18.5KW |
| Year | 2026 |
| Max. Pressure | 8300 bar |
| Max. Speed | 980 r.p.m |

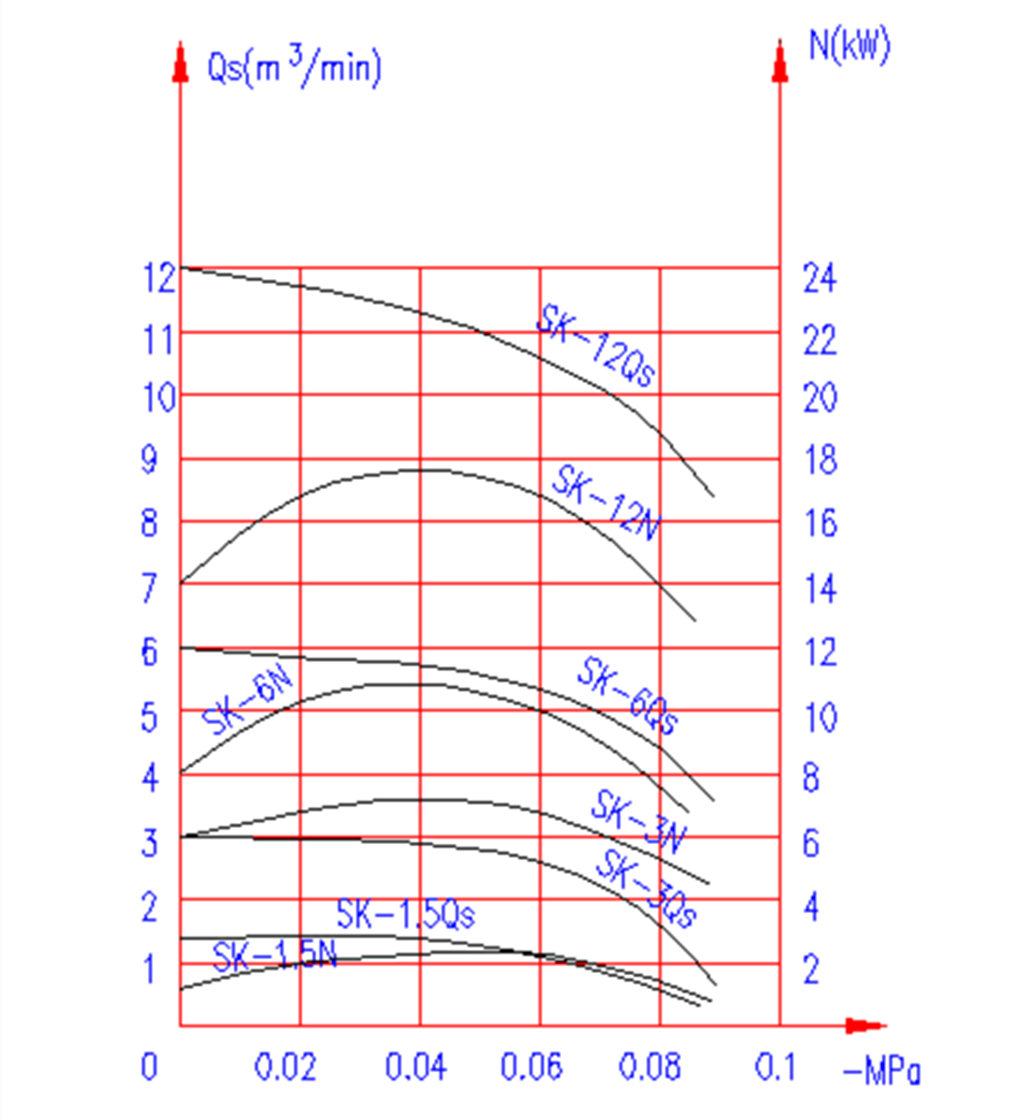

SK12 vacuum pump working performance curve
★ Japanese ISUZU super diesel engine 240HP, fuel consumption save 20%
★ FAST Manual 8 shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized ISUZU GIGA 5X sewer jetting truck exporter
★ Training service for Isuzu 240HP combined vacuum jetter truck.
China professional vacuum truck supplier and exporter, we supply high quality cesspool emptier truck and combined sewer jetter truck. We can ensure the fast delivery time and 12 months guarantee for our sewer jetting trucks. Our vacuum tank trucks are customized with different type vacuum pump JUROP, MORO, BP brand, and sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
