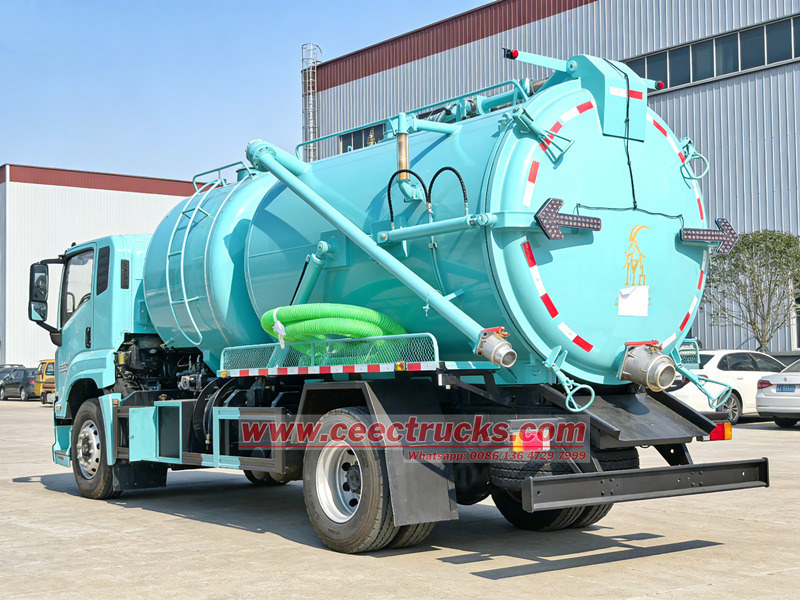

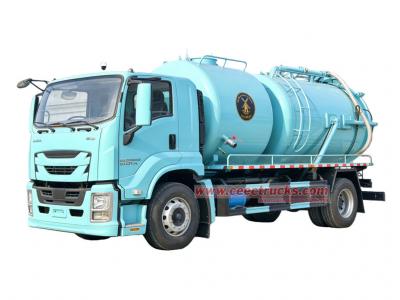

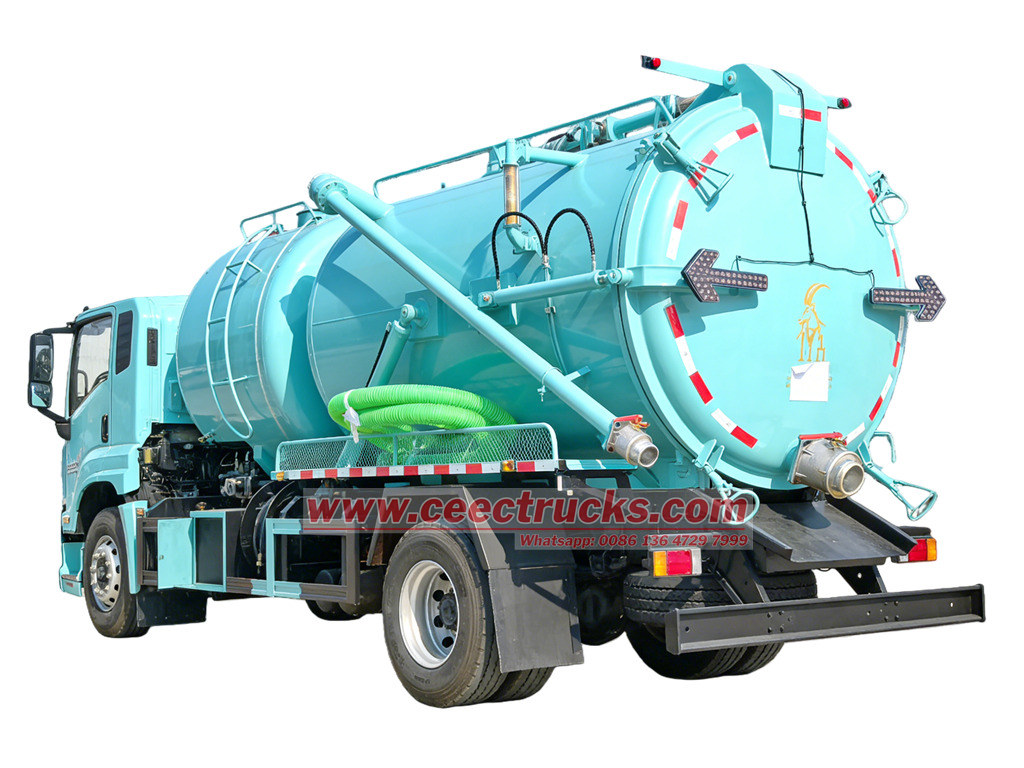

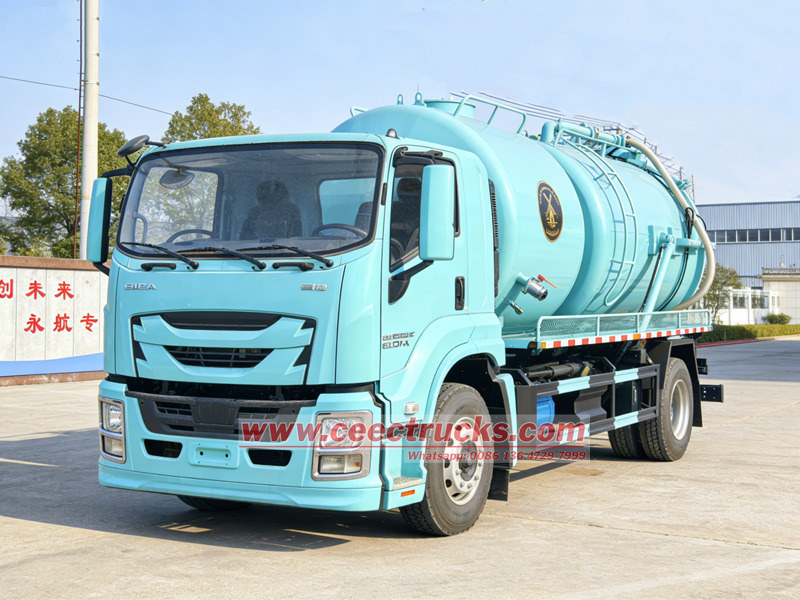

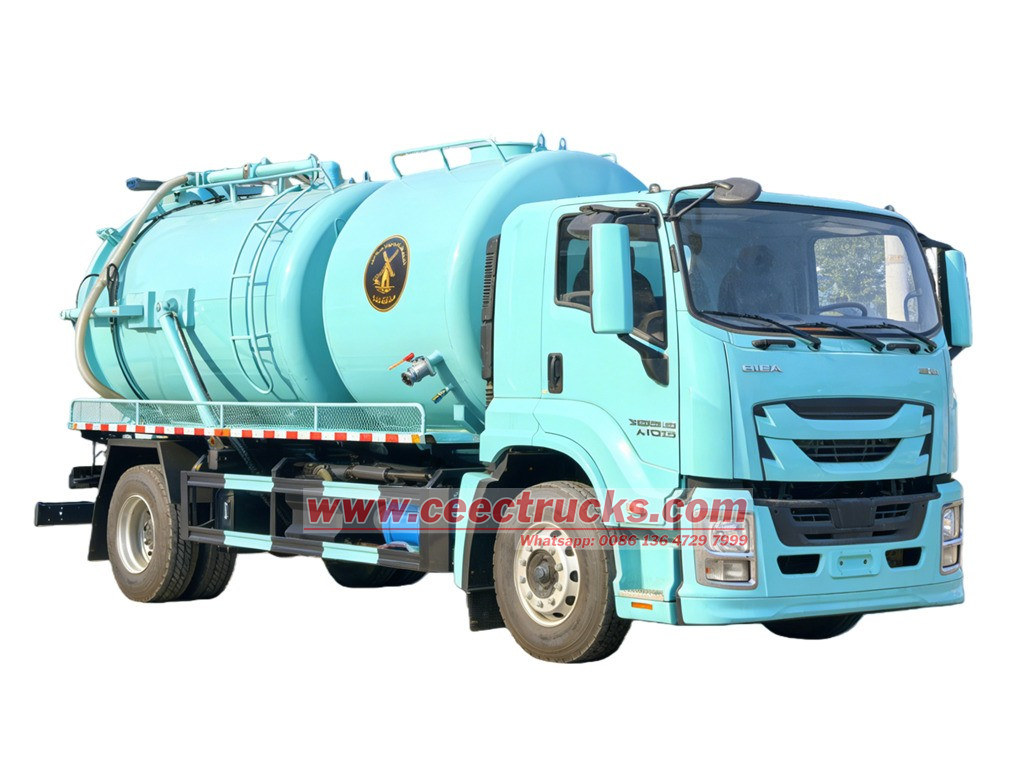

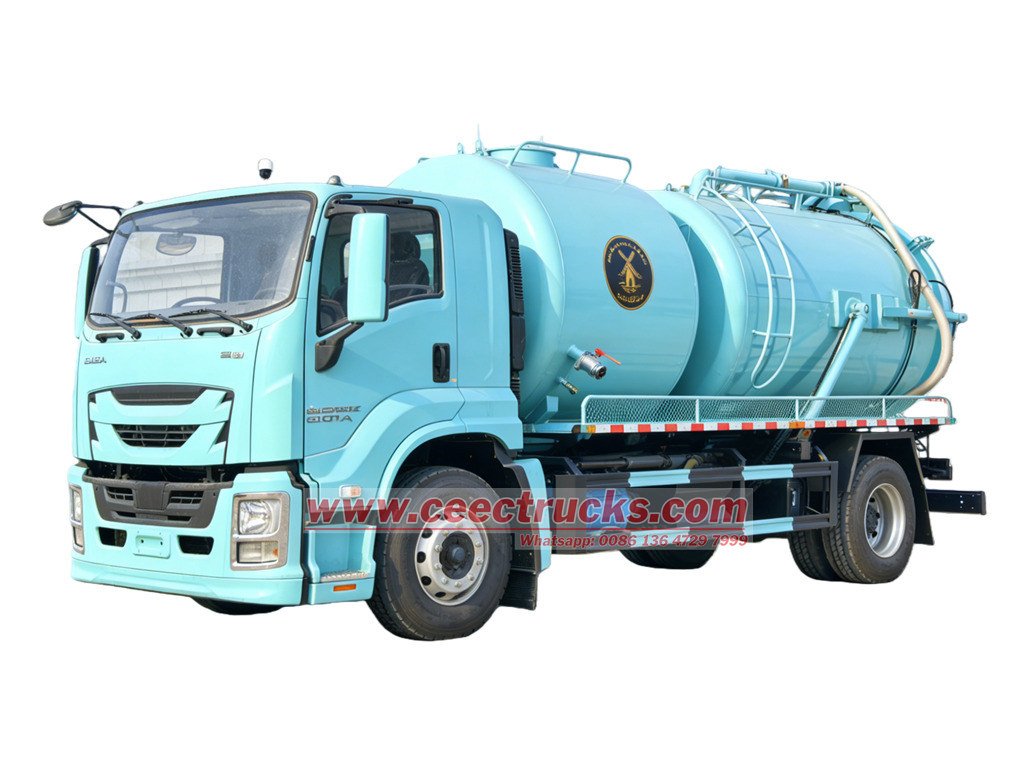

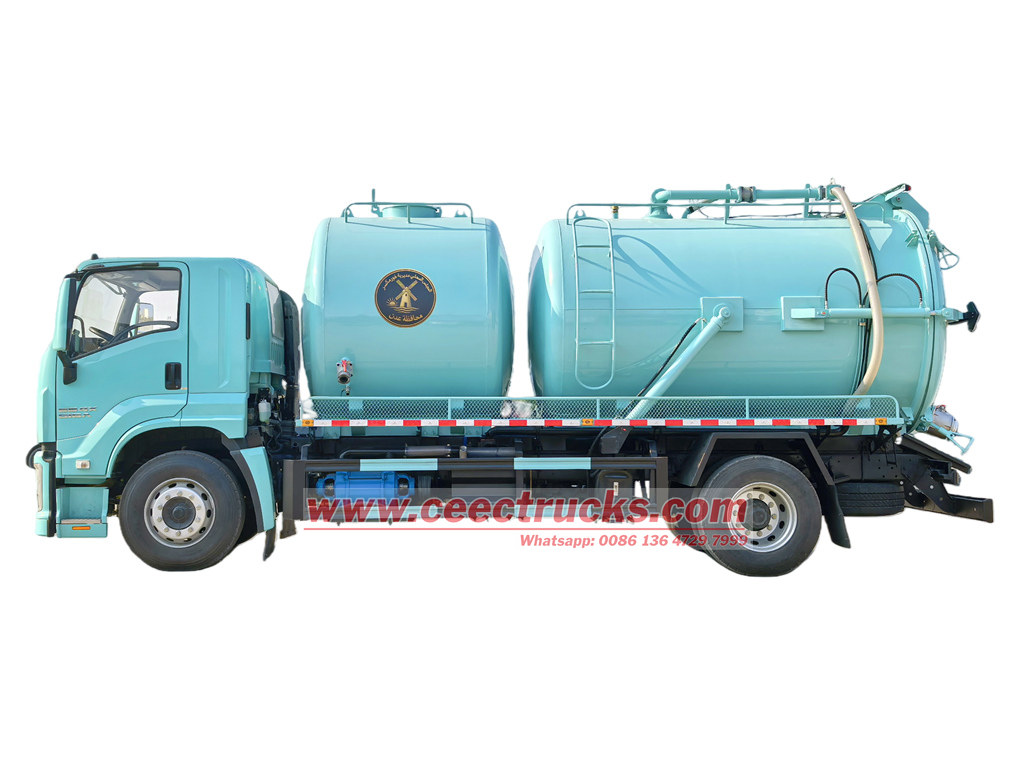

Top designed ISUZU GIGA 4X combined vacuum suction water jetting trucks are used for city vacuum sewage suction and high pressure jetting. Originally GIGA 4X medium duty truck mounted with Japanese ISUZU technology 4HK1-TCG60 model diesel engine, 205HP and emission 5193cc emission, equipped with independent tanker assembly, including 5000Liters clean water and rear 10000Liters vacuum sewage tanker, both vacuum pump and high pressure pump service for multiple usage, and the ISUZU 15cbm sewer jetter widely used for city cleaning and drainage suction.
Work capacity:
10,000L Sewage + 5,000L WaterDimension ( mm ):
8550×2550×3820 mmWheelbase ( mm ):
5000 mmEngine power:
205HPEngine type:
4HK1-TCG60Axle drive:
4x2, LHDGear box:
ISUZU MLD 6-shift manual transmissionRemarks:

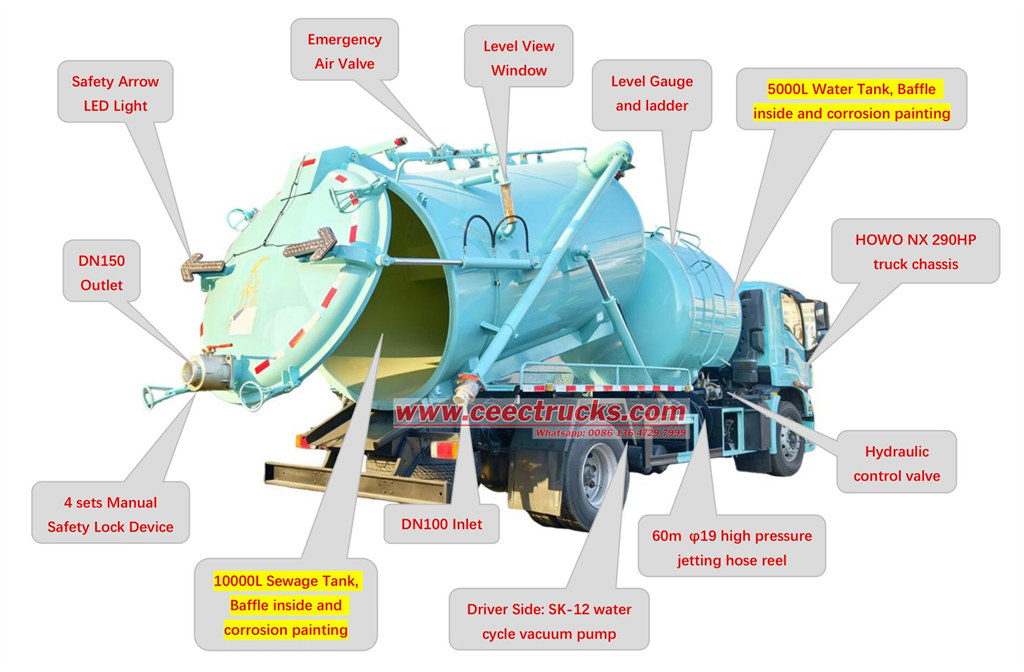

Optional 4x4 offroad model for wildland usageHigh quality Japanese ISUZU technology truck chassis mounted combined vacuum sewage suction water jetting tanker body kit, which also named as ISUZU 15cbm sewer jetting truck, designed and produced based on ISUZU LHD GIGA 4X truck chassis, equipped with 4HK1-TCG60 diesel engine, with efficiently horse power can be 205HP and emission 5193cc, 4 cylinder and four stroke, matched working with MLD 6 shift manual gearbox, very lower fuel consumption. The totally 15000Liters round shape tanker body kit are independtent type, which designed based on Q355 material, durable and stonger. Moreover, the independent tanker design also have reasonable gravity center design, safety for driving. Detailed vacuum assembly and water assembly as below showing:

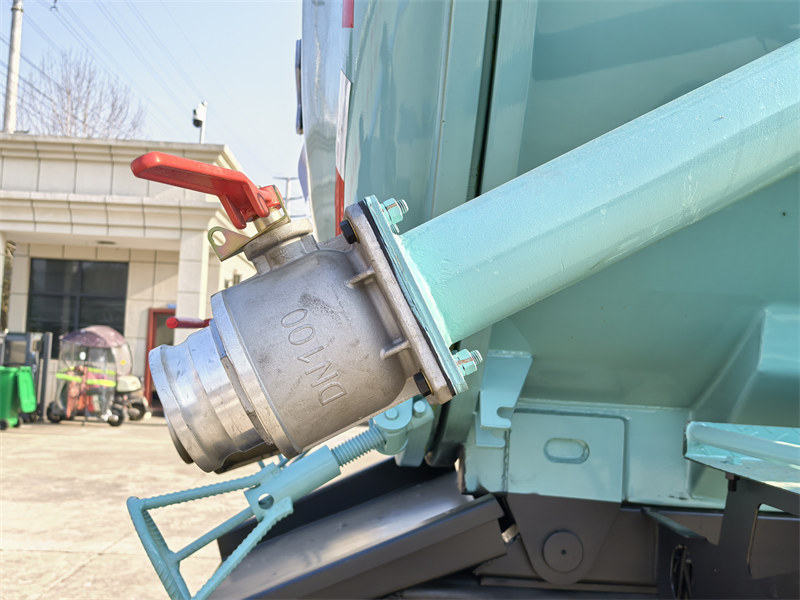

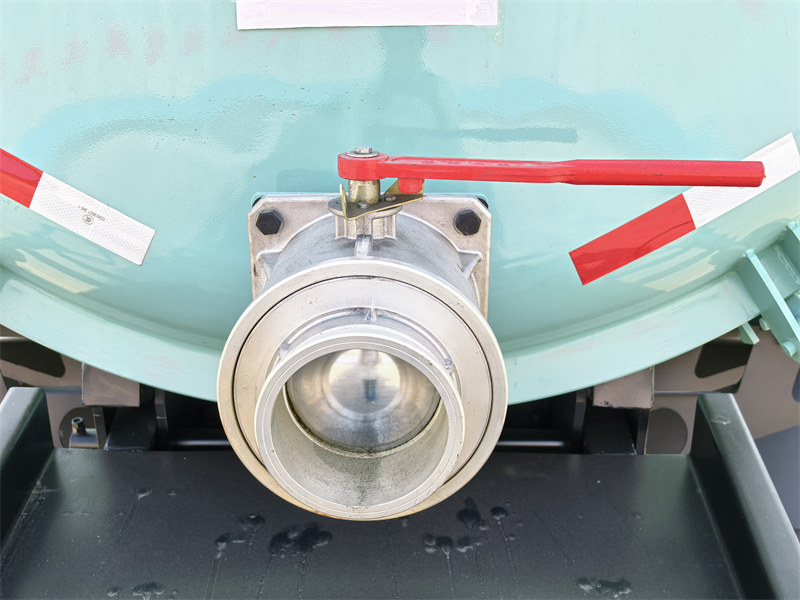

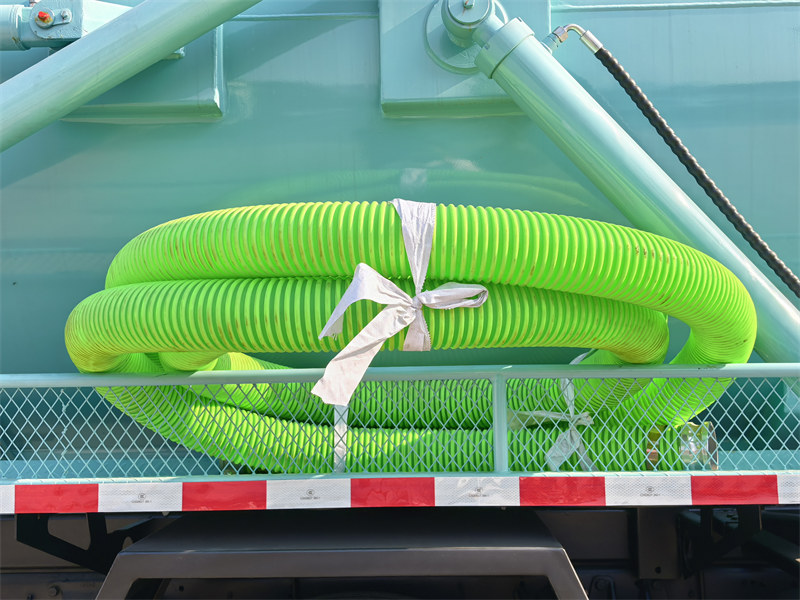

Vacuum Tanker Assembly: 15000Liters capacity, Q355 material with thickness 6mm for tanker and shell cover, standard with safety baffle, matched water cycle model SK-12 vacuum pump, maximum pressure 8000Pa, efficiently flow rate 12m3/min, rated speed 970rpm. Standard DN100 pump inlet valve and DN150 outlet valve, matched reducer and 10m DN100 hose reel.
Water Tanker Assembly: 5000Liters capacity, Q355 material with thickness 4mm for tanker and 6mm shell cover, standard with safety baffle, matched with 3N2 model high pressure jetting pump, maximum pressure 240bar/psi, maximum flow 170L/min, pump speed 405rpm, matched with 60m φ19 hose reel, and efficiently 10 sets nozzle.
CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CEEC Trucks Group
Features:
1. Truck Chassis: ISUZU GIGA 4X truck chassis, LHD, 4x2, 4X4 model optional
Japanese 4HK1-TCG60 diesel engine 205HP and emission 5.2L.
2. Tanker Body Kit: Full welding round shape, Q355 steel, independent design tanker assembly
Water Tanker 5000Liters in the front, Sewage Tanker 10000Liters at rear.

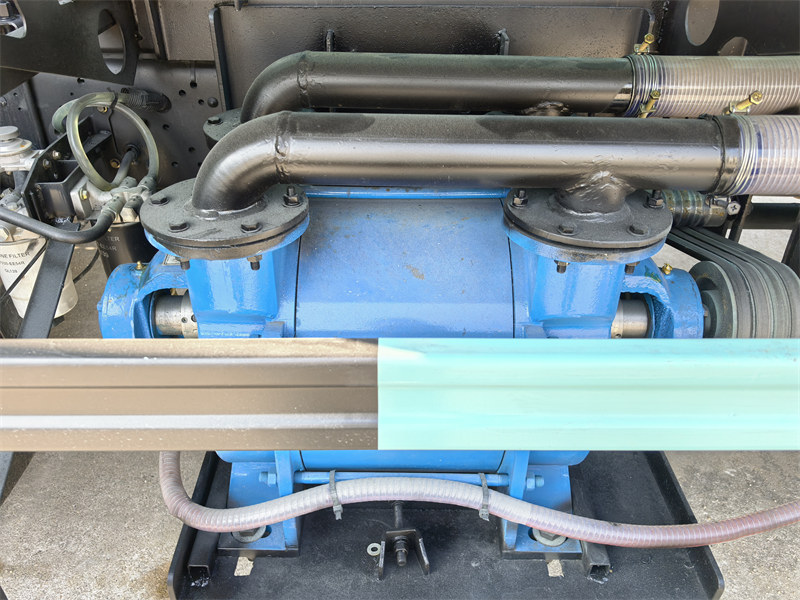

3. Vacuum Pump:Top Chinese brand water cycle SK-12 pump, efficiently flowrate 12m3/min
Optional MORO, BP, WEILONG, CEEC, etc.

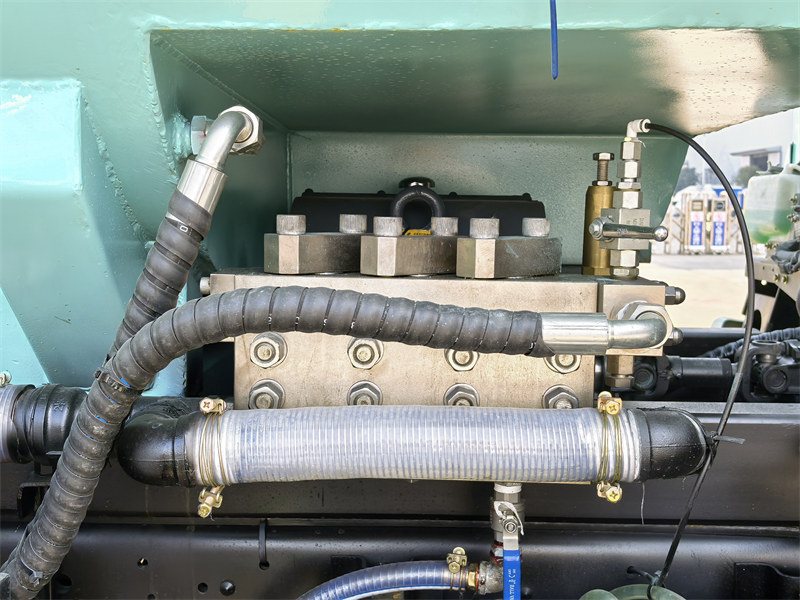

4. High Pressure Pump: Top Chinese brand TONGJIE vacuum pump 3N2 model, with working pressure 24Mpa and flow rate 170L/min.

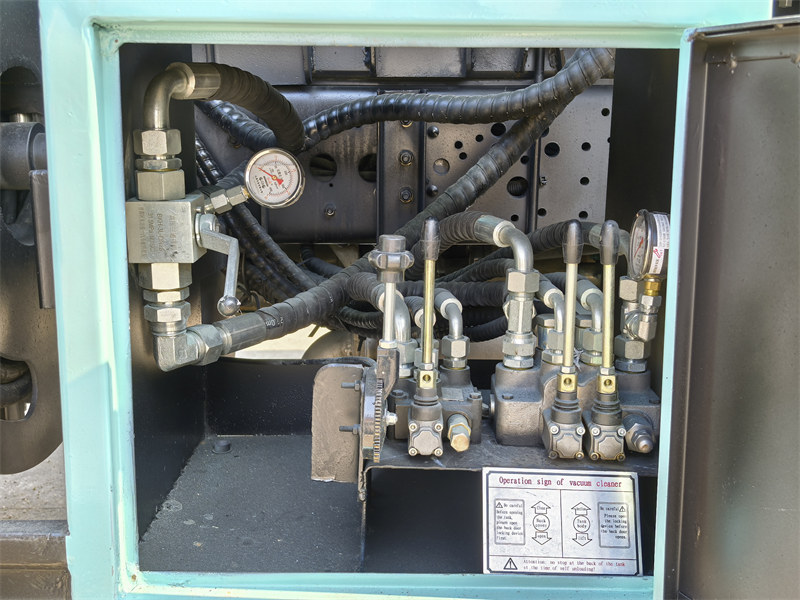

5. Control System: Full hydraulic control system and independent box for safety usage and operation.
| Product name | ISUZU GIGA 4X LHD / RHD 4×2 6 Wheels 15000L Sewage Jetting Truck Sewage Suction Truck Vacuum Truck | |
| Vehicle Dimensions, Weights & Capacities | Chassis brand | ISUZU GIGA 4X |

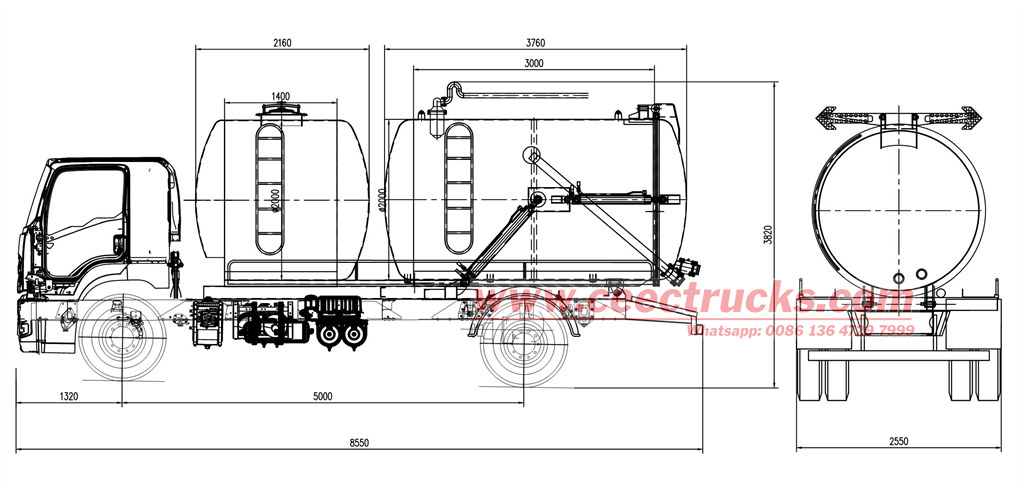

| Overall dimension (L*W*H) | 8550*2550*3820mm | |
| Wheelbase | 5000mm | |
| Curb weight | 10,690 Kgs | |
| Gross weight | 18,000 Kgs | |
| Axle loads | 6500/13000Kgs | |
| Chassis | Drive mode | 4x2, optional to be 4x4 |
| Cabin type | Standard roof one bed | |
| Seats | 2 seats + 1 berth | |
| Steering | LHD / RHD optional | |
| Tyres | 6+1 spare tyre, 295/80R22.5 | |
| A/C | Air conditioning | |
| Engine | Enging model | 4HK1-TCG60 |
| Fuel and engine Type | Diesel, 4 cylinders in-line | |
| Horse power | 205HP | |
| Displacement | 5.193L | |
| Other Standard Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS, Automatically Air-cut Brake | |
| 4 | Tubeless tyres | |
| 5 | Retro-Reflective Marking | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | USB, Radio | |
| 10 | Widened Bumper | |
| 11 | Aluminum Alloy Gas Tank | |
| 12 | Front Chrome Kit for option | |
| Tops Parameters | Loading Capacity Volume |
10,000 Liters Vacuum Sewage 5,000 Liters Clean Water ( Other capacity can be customized ) |
| Tank Material | Strengthen high performance wear-resisting carbon steel Q355 with anti-corrosion treatment paint, thickness for tanker 6mm and cover 6mm | |
| Colour | As demands | |
| Logo Paint | As demands | |
| Others | Standard, customized top mounted wonder hose for suction | |
| Name | ISUZU GIGA 4X Sewer Jetter Vehicle |
| Cabin | GIGA 4X, optional color and painting |
| Driving | LHD / RHD customized |
| Engine | 4HK1-TCG60 diesel engine, 205HP and emission can be 5193cc |
| Tranmission | MLD 6 shift manual type, 6F & 1R |
| Wheelbase | 5000 mm |
| Tire |
295/80R22.5, 6+1 units including one spare tyre |
| Capacity | 5000Liters Water / 10000Liters Sewage |
| Tanker Material | Q355 material, thickness 6mm / 8mm |
| Vacuum Pump |
Chinese brand SK-12 model Flow rate: 12m3/min, equal 720m3/h Pressure: 8000pa Speed: 970rpm |
| High Pressure Pump |
Chinese brand 3N2 model Flow rate: 170L/min Pressure: 24Mpa / 240Bar / 240psi Speed: 405rpm |

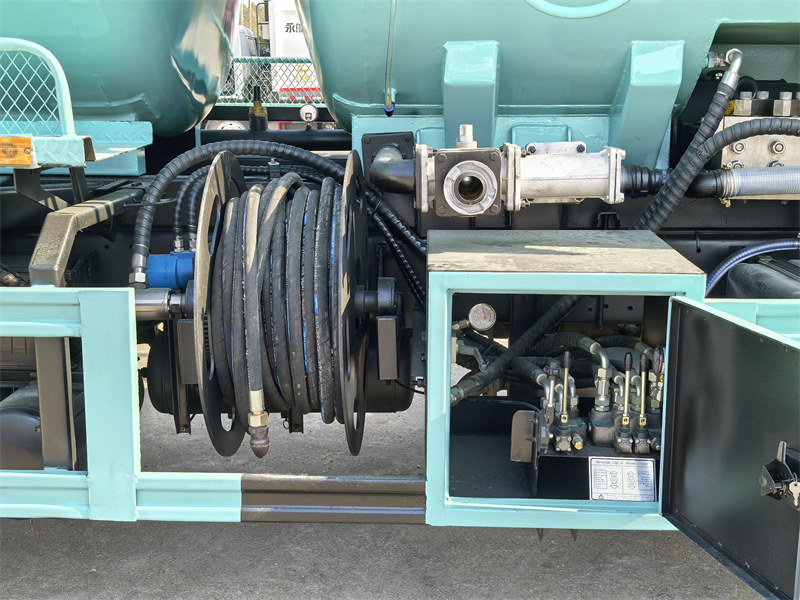

| Hose Reel | Rear mounted, 60m φ19 hose reel with customized 10 sets jetting nozzles |
| Pipe Storage Platform | Two sides mounted with Stainless steel material platform |
| Painting | 100% customized painting and logos |

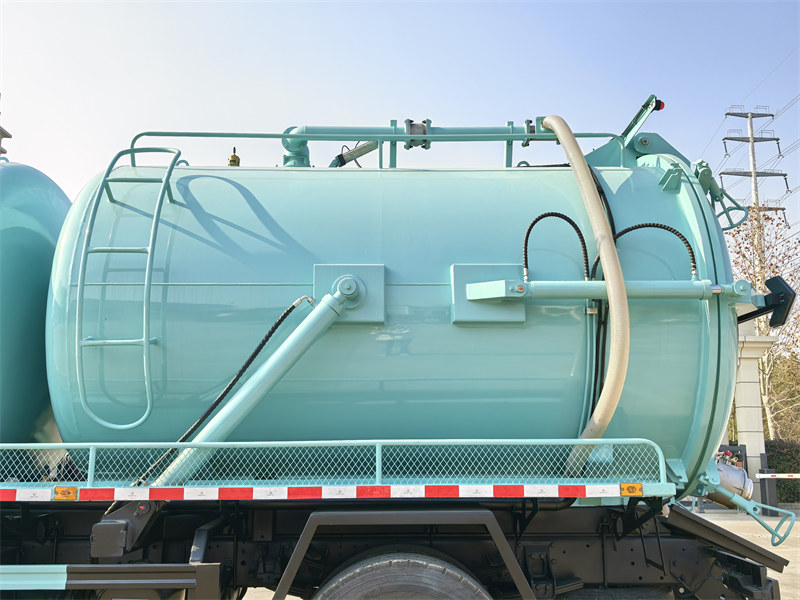

10000Liters vacuum tanker assembly

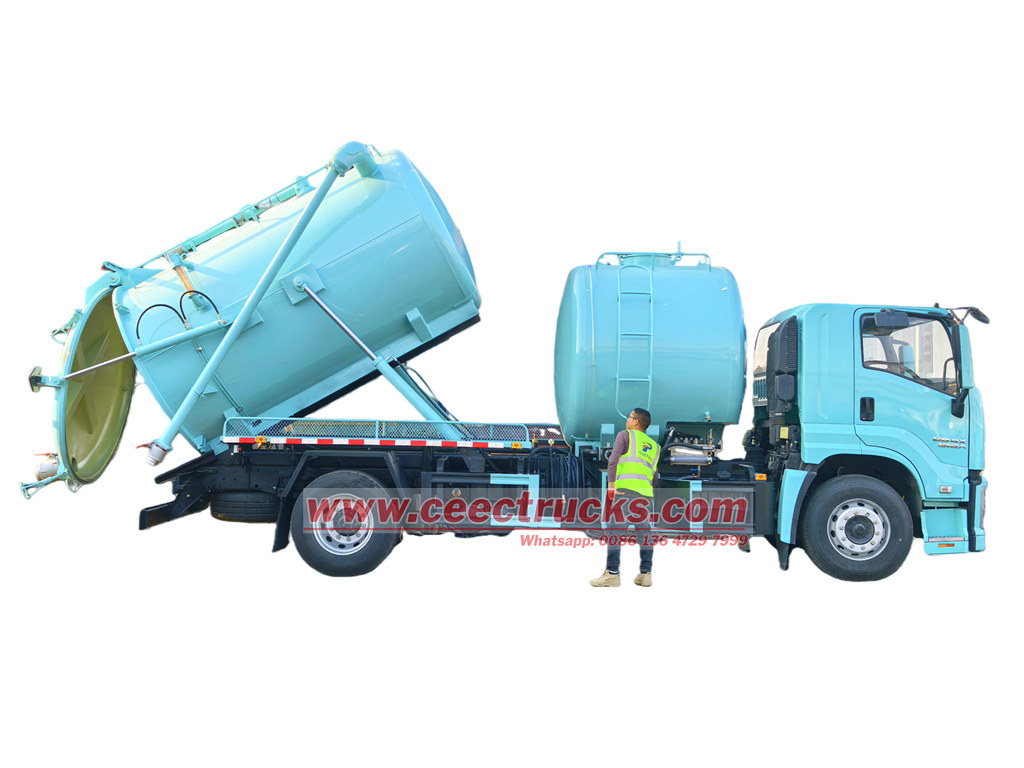

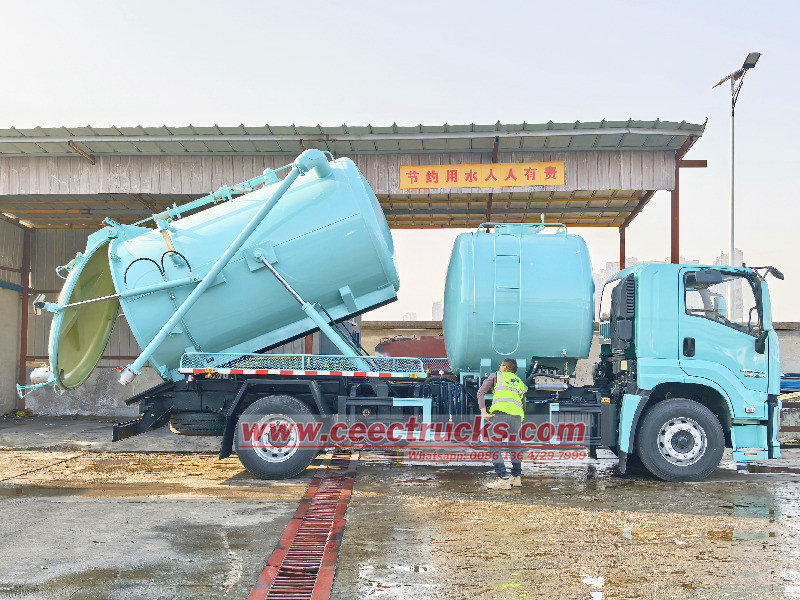

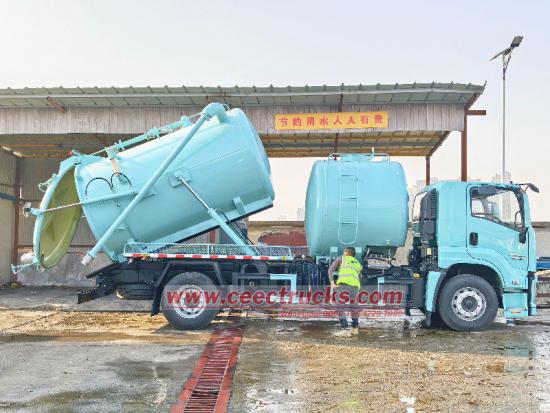

Q355 material produced vacuum tanker assembly, thickness for side and cover 6mm, internal with anticorrosion painting for long life service, outside equipped with hydraulic cylinder for lifting up and falling down, also cylinder for rear door close and open. Ladder at driver side for easy climbing, also view window for safety notice.

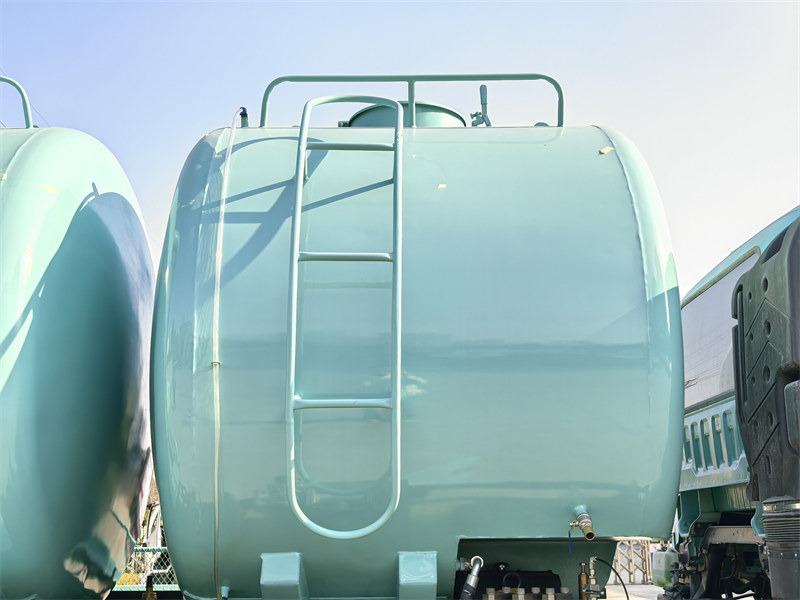

5000Liters cleaning water tanker assembly
Q355 material produced clean water tanker assembly, thickness for side 4mm and cover 6mm, internal with corrosion painting for long life service, driver side equipped with ladder for easy climbing, top mounted with DN500 manhole for regular maintenance and checking. View gauge at side for water level notice.
★ Japanese ISUZU super diesel engine 205HP, fuel consumption save 20%
★ ISUZU MLD Manual 6 shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized ISUZU GIGA 4X sewer jetting truck exporter
★ Training service for Isuzu combined vacuum jetter truck.
China professional vacuum truck supplier and exporter, we supply high quality cesspool emptier truck and combined sewer jetter truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our vacuum tank trucks are customized with different type vacuum pump JUROP, MORO, BP brand, and sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
