(High quality ISUZU GIGA Vacuum Tank Trucks With Italy MORO Pump Exported to Philippines )

CEEC TRUCKS is a leading vacuum tank trucks manufacturer in China. We supply ISUZU vacuum truck, HOWO vacuum tanker truck, FOTON gully sucker trucks, Dongfeng vacuum pumping truck, etc. We also customize vacuum tank semi-trailer and vacuum tanker bodies. The capacity of our vacuum tankers can be 3,000-30,000 liters. Our vacuum trucks are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price.

*ISUZU GIGA 5X heavy Sludge Vacuum Suction Truck

Isuzu 6HK1 vacuum tanker truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Isuzu GIGA vacuum tanker advanced features:

Isuzu GIGA 5X Wet vacuum trucks are equipped with powerful suction vacuum pump with Italy brand MORO PM110W, efficiently suction air flow rate 16400Liters per min, and Q355 material produced round shape vacuum tank designed to remove liquids, sludge, and slurry from various sources. These cesspit emptier trucks are commonly used in industries such as oil and gas, municipal waste management, and industrial cleaning. Isuzu GIGA 6HK1 vacuum trucks are essential for cleaning up spills, extracting contaminated water, and performing maintenance tasks in wet environments. And below are advanced features for checking.

•

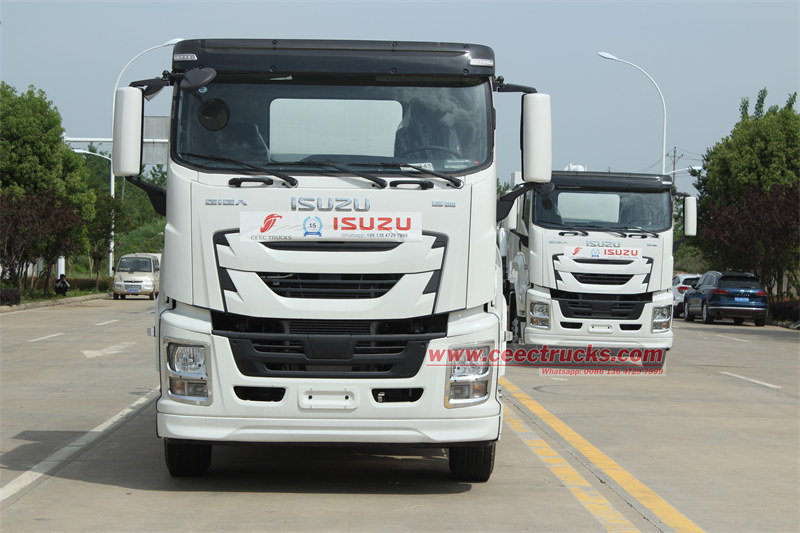

  ISUZU GIGA 5X newly designed cabin
•

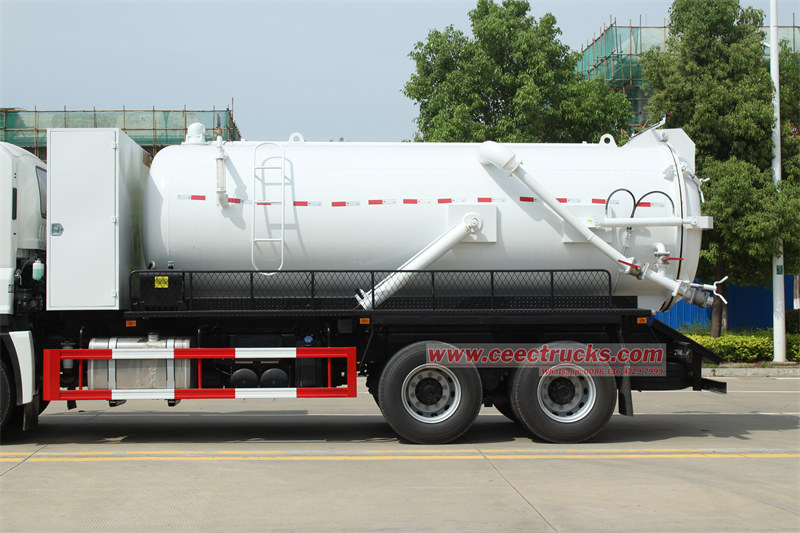

  Round shape designed vacuum tanker and front pipeline box
•

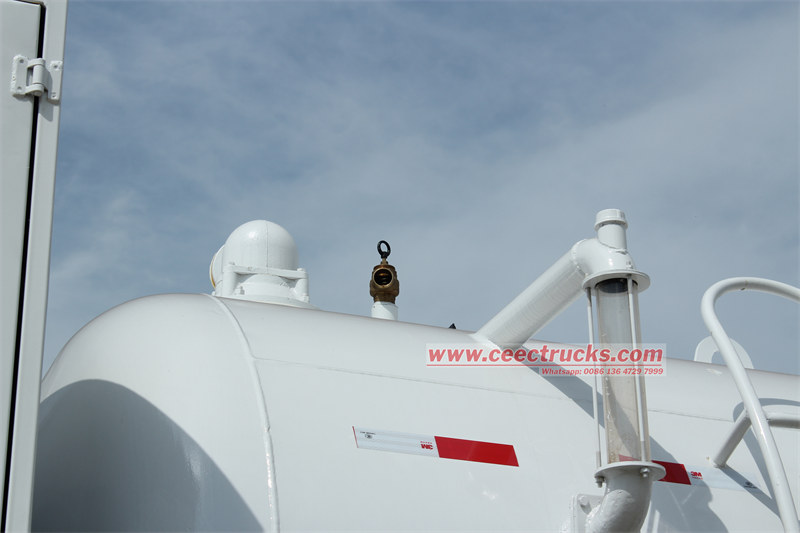

  Air pressure relief valve and level indicator for safety

•

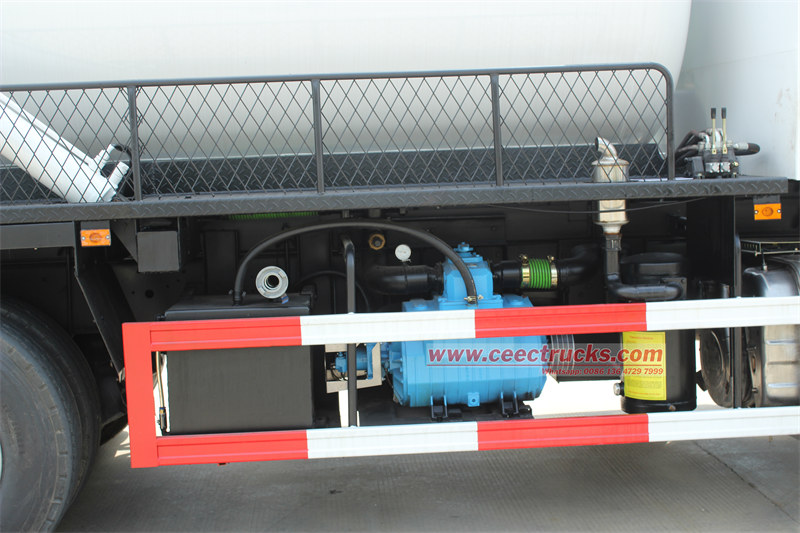

  Sewage truck mounted PM110W vacuum pump
•

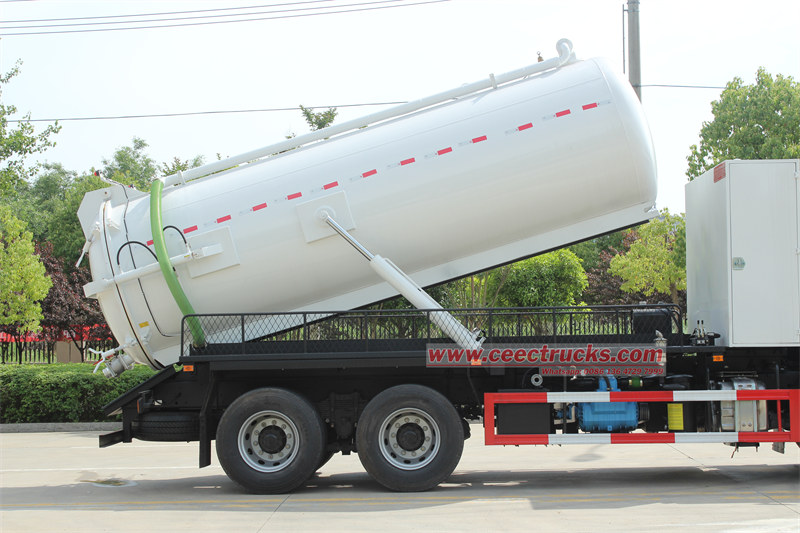

  Cesspit emptier truck with tanker lifting and rear door open
•

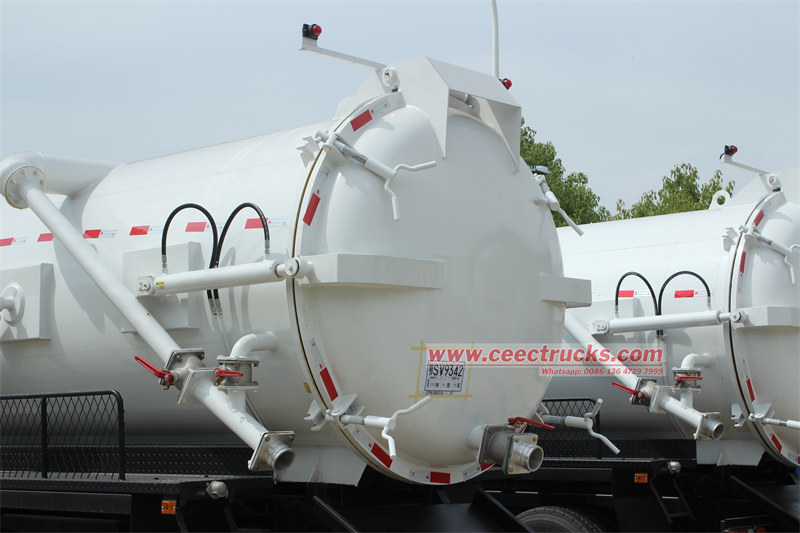

  Sludge suction truck rear door and discharge valves



» Isuzu GIGA 6HK1 vacuum truck mounted with MORO PM110W pump:

Isuzu GIGA 6HK1 sewage vacuum tanker truck equipped with international famous Italy brand MORO PM110W vacuum pump. Moreover, Isuzu multiple cesspit emptier trucks are designed for sewage suction, which get power from vacuum pumps, based on the request suction capability and matched vacuum tanker body kit volume, we CEEC TRUCKS engineer department have do recommend for customer to choose multiple vacuum pumps, mainly as below:
Import brand as MORO pump, JUROP pump, BP pump, etc.
Domestic Chinese brand WEILONG pump, YIFENG pump, etc



MORO PM110W vacuum pump

Pump Brand: PM110W
Dimension Pump: 972*452*628 mm
Free Flow Rate: 16400Lt/min
Continuous Duty Vacuum: 80% (23.6” Hg)
Power Required at Maximum Vacuum: 19KW
Power Required at Maximum Pressure Vacuum: 41KW
Oil Consumption: 210 gr/h
Noise Level: 80 dB-A
Max. Drained Power: 41KW
Max. Vacuum: 95%
Max. Absolute Pressure: 3bar
Rotation Speed (RpM): 1400
Weight of AP version: 276KG
Number of Blades: 6 pcs
Dimension of Blades: 478*89*7.5 mm
Driven by truck power take off (PTO)
Suction filter, Oil-Gas separator, Water-Gas separator all standard vacuum suction system equipped as standard.
Vacuum pump set-up by MORO standard.
Equipped with MORO Vacuum Pump and Matchable MORO pressure relief valve for safety.

Below showing famous brand MORO vacuum pumps, which mainly used as below 3 models:

•

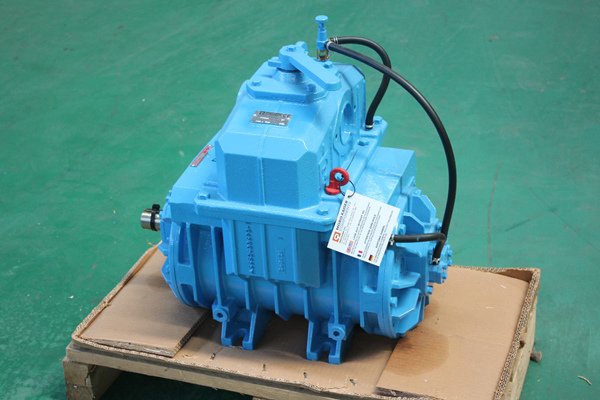

  MORO Vacuum pump PM70A
•

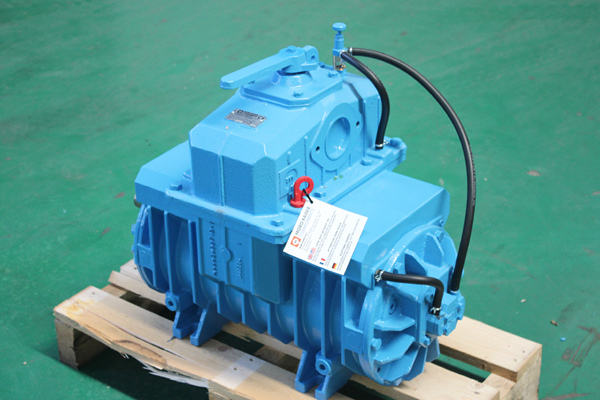

  MORO Vacuum pump PM80A
•

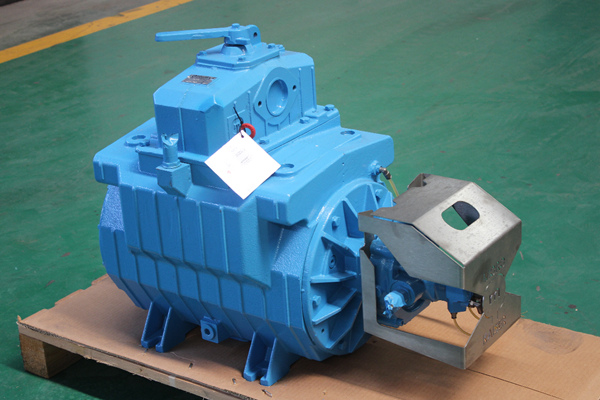

  MORO Vacuum pump PM110W



Italy brand MORO vacuum pump also can be customized with to be equipped with original accessories, which can make Moro Air Series pump and Water Series pump working more efficiency and reliable, and can make the customized HOWO sewage vacuum trucks with better performance. Detailed accessories as below showing:

•

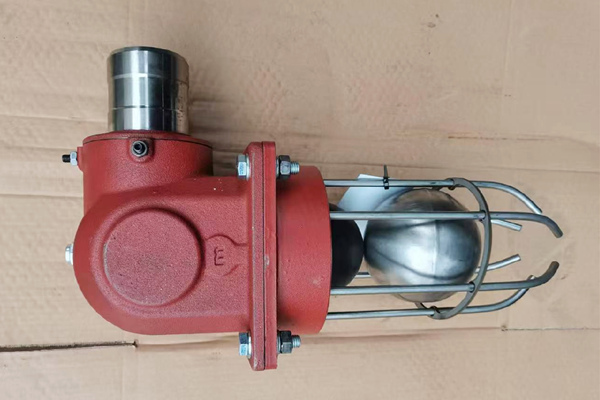

  MORO pump part primary overflow valve
•

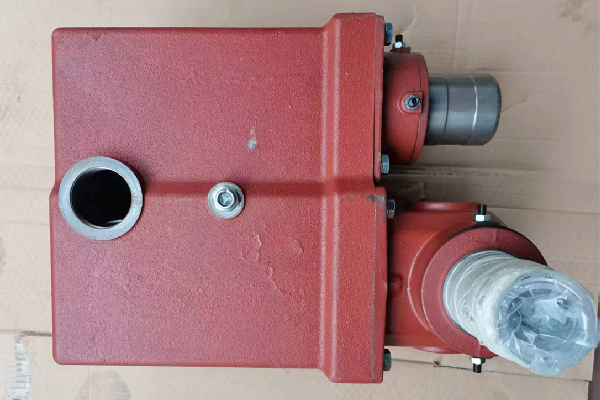

  MORO pump part secondary overflow valve
•

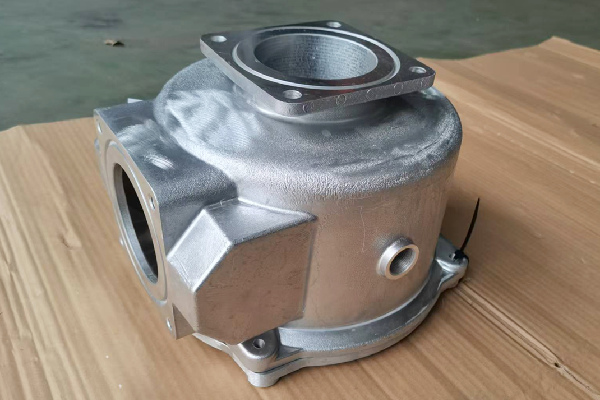

  MORO pump part safety filter
•

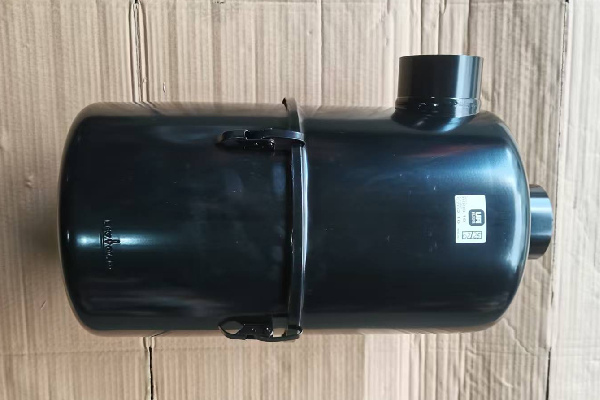

  MORO pump parts Gas water separator with silencer
•

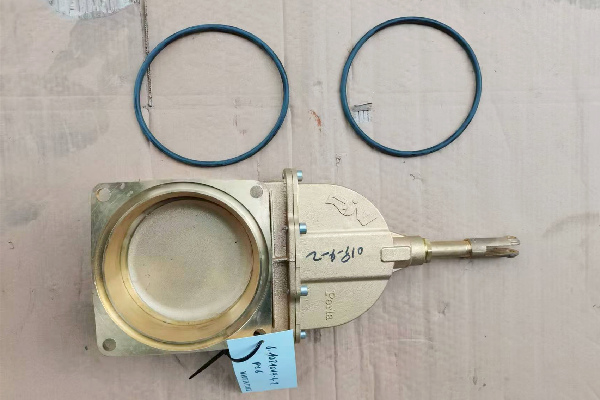

  MORO pump parts block valve

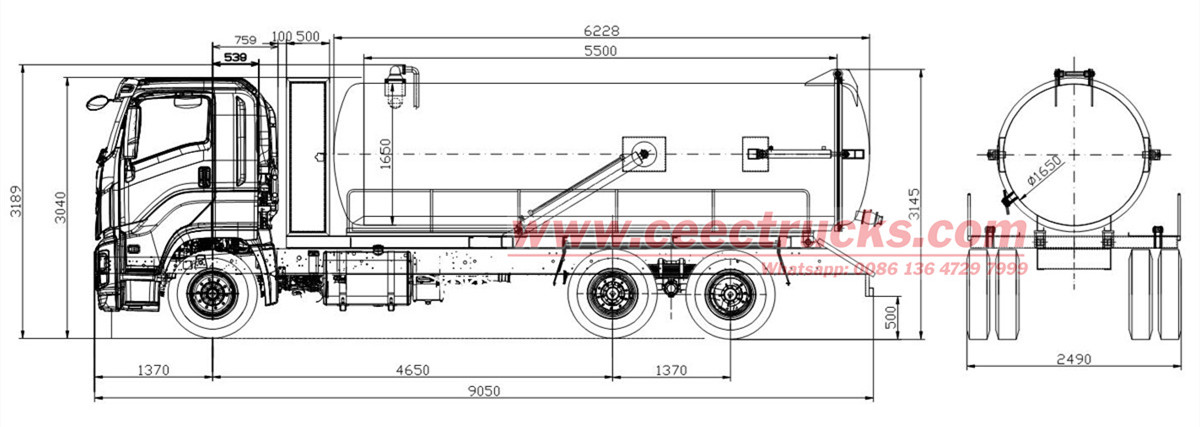

» Isuzu GIGA 300HP cesspit emptier technical drawing:

Based on customers requirement, ISUZU brand vacuum pumper trucks can be designed and produced based on CEEC TRUCKS professional Engineer Department, both technical drawing and 3D drawing are available, the 2000L to 35000L cesspit emptier trucks are manufactured based on ISUZU GIGA 5X trucks chassis and a solution for international liquid waste applications. Also we can customized to build vacuum trucks based on different chassis, Isuzu, Howo, Dongfeng, Shacman, Jac, Jmc, Hino, Iveco, etc.

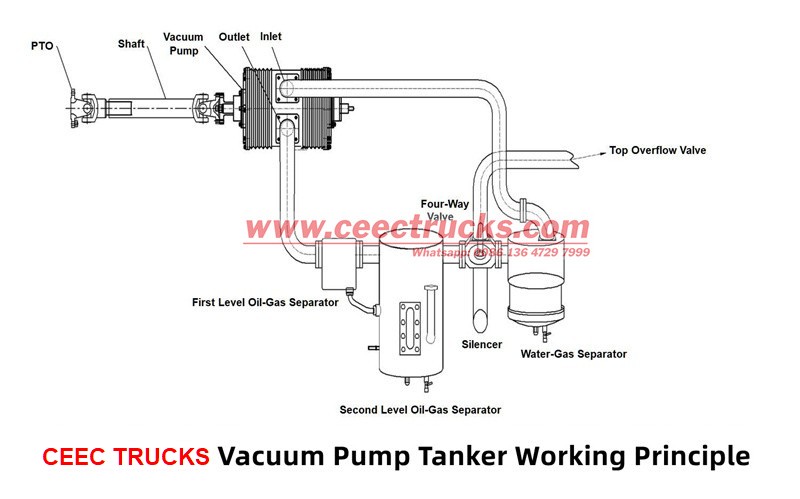

CEEC TRUCKS Vacuum Tanker Trucks working principle



Isuzu GIGA 5X sewage vacuum trucks also can be called Isuzu cesspit emptier, Isuzu removable vacuum tanker. Which equipped with durable Q355 material designed sewage tanker with thickness 6mm, matched with super vacuum tanker assembly, also with first overflow valve and second overflow valve, service for double guarantee for working safety. Left picture showing the working principle of the Isuzu vacuum tankers.

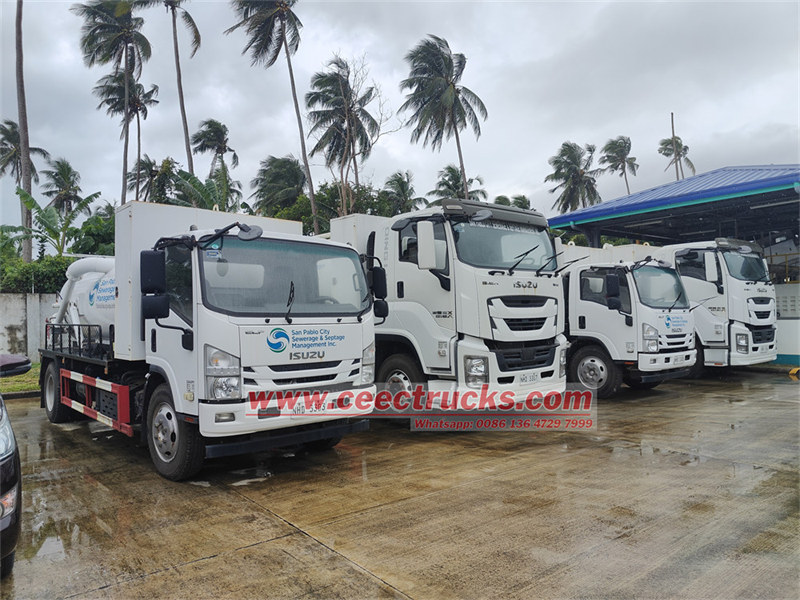

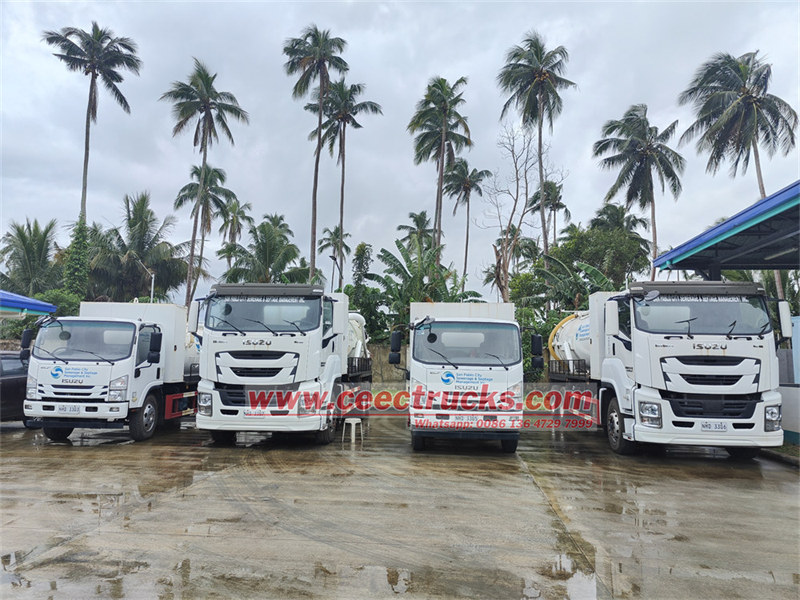

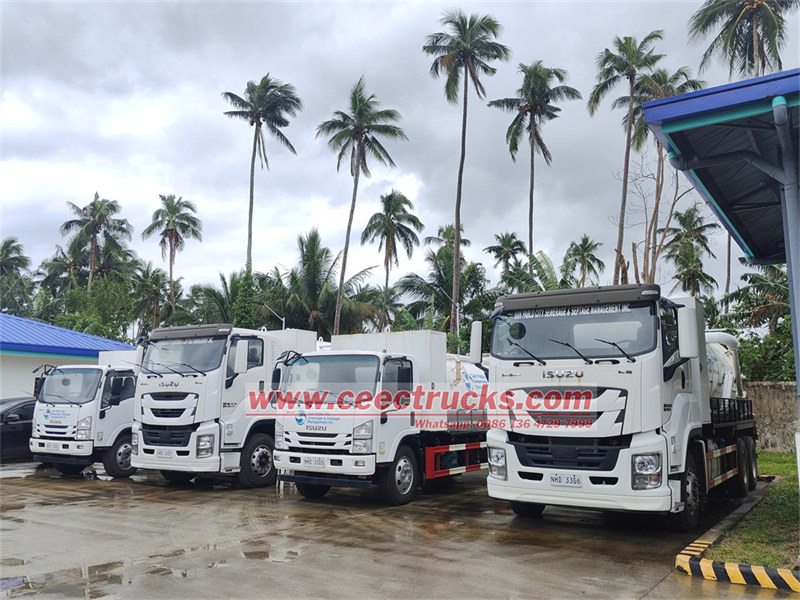

» Isuzu GIGA vacuum trucks export to Philippines Manila:

Philippine manila customer purchased ISUZU 6HK1 vacuum trucks for local sewage water treatment. The customer from San Pablo City Sewerage & Septage Management Inc, with address Baloc Road, Sitio Baloc, Brgy, San Ignacio, San Pablo City, Laguna, Philippines. We CEEC TRUCKS sales team and engineers visited customer for truck inspection and maintenance guidance.
