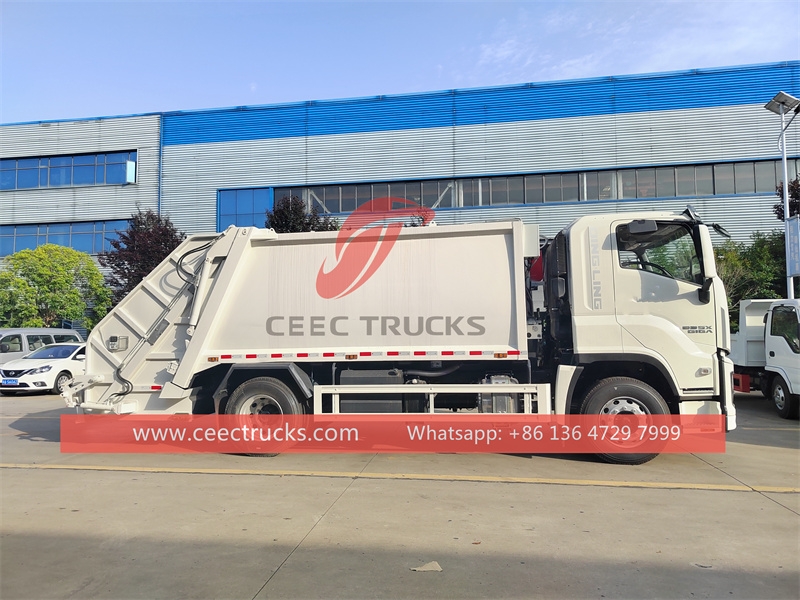

ISUZU Giga garbage compactor truck with factory direct sale

ISUZU Giga garbage rear loader truck

ISUZU GIGA 4x2 garbage compactor trucks 20 CBM export to South Asia, ISUZU 6WG1 engine, with 420HP, ZF 8-shift manual gearbox for easy operation. Best quality ISUZU model chassis 20 CBM trash compressor trucks widely export South Asia for resell

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    30 Days
  • Payment:

    T/T, West Union
contact now

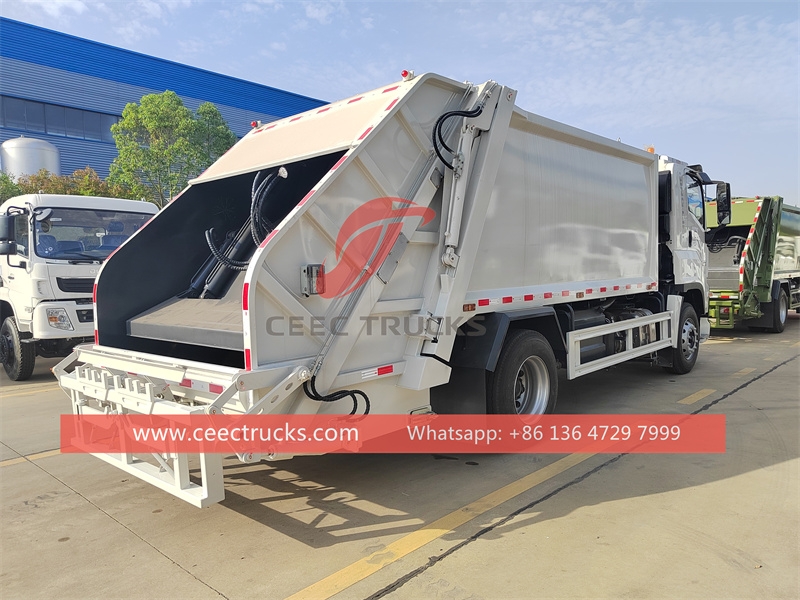

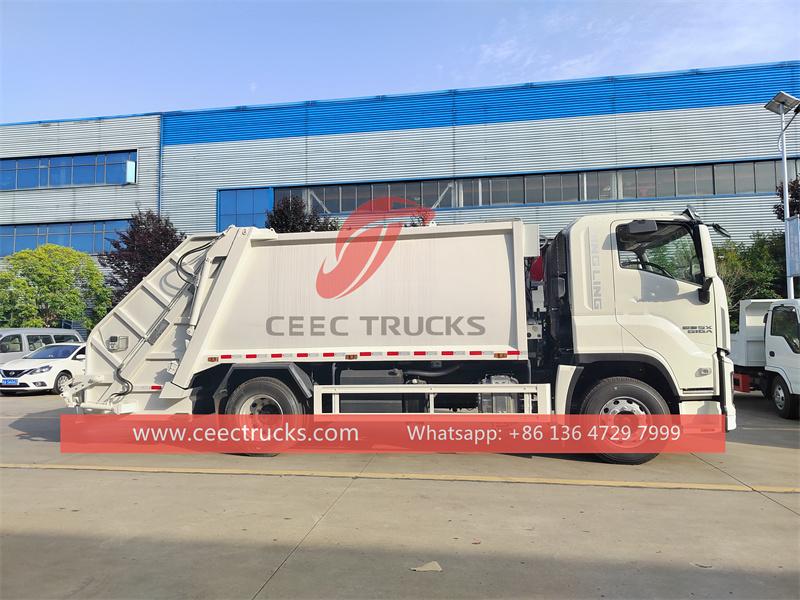

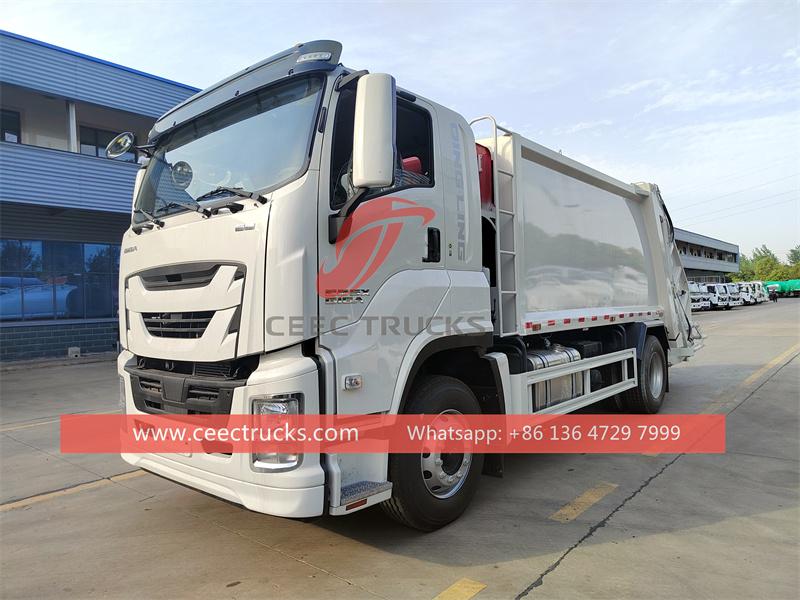

Isuzu GIGA rear loader compaction truck

 Applications:

ISUZU GIGA 20cbm garbage compactor truck (also called GIGA garbage compactor, ISUZU GIGA refuse compression truck, factory direct sale GIGA waste compactor truck, ISUZU rear load refuse collection truck, ISUZU back loading bin lorry, refuse compactor manufacturer in China) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.GIGA garbage compactor can efficiently collect and compact large volumes of garbage or waste into a more condensed form to reduce the number of trips to disposal sites, optimize storage capacity, and minimize transportation costs.


CEEC TRUCKS compressed refuse truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The waste compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- ISUZU GIGA chassis, perfect performance

---- ISUZU diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compactor body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of garbage container lifter are available.



 Specifications:


ISUZU GIGA hydraulic refuse compactor truck (20 cbm)

General

Vehicle Brand

CEEC Trucks

Chassis Brand

ISUZU

Overall Dimension

9900 * 2500 * 3180 mm

GVW / Kerb Weight

34,000kg / 9,200kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

420 HP

Displacement

9839 ml

Emission Standard

Euro 5

Chassis

Drive Type

4X2 (left hand drive)

Transmission

ZF 8 speed levers with 1 reverse

Wheelbase/No. of axle

4565 mm / 2

Tire Specification

315/80R22.

Tire Number

10 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

20 cbm

Fill Hopper capacity

2.4 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

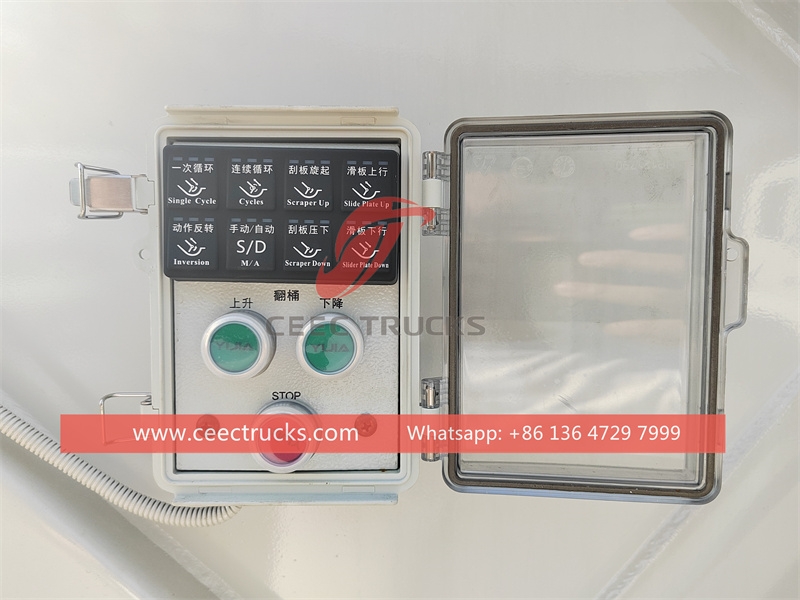

Control system

Electrically Hydraulic control
Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual...

Optional

** Back alarm and Camera can be equipped.
** Italy mulit-valve can be choose.
** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

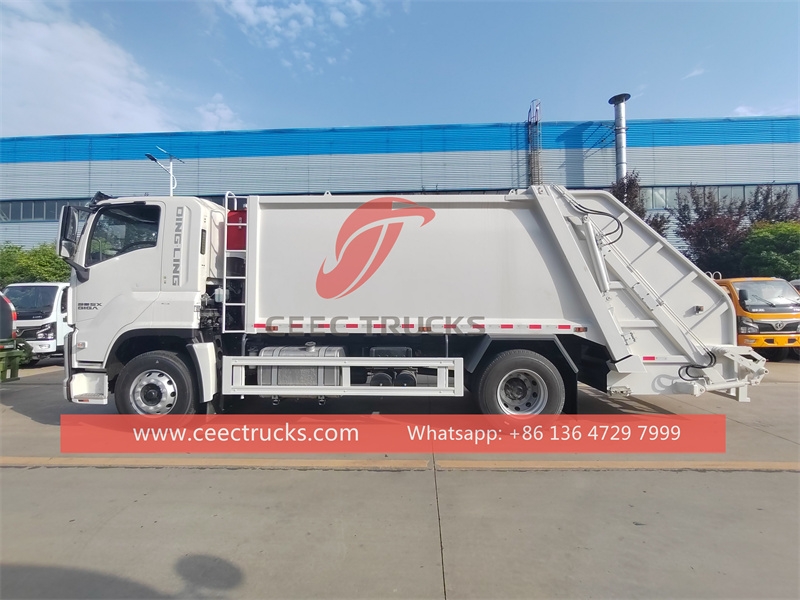

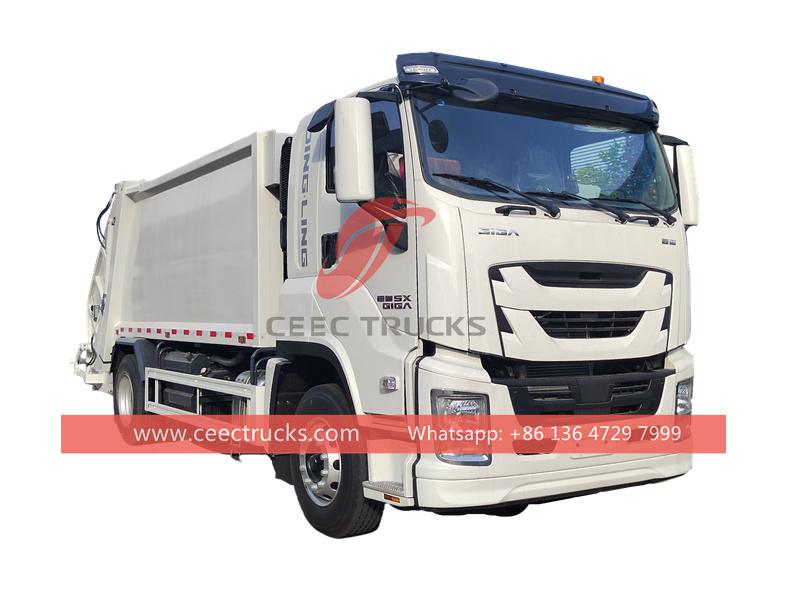

Isuzu GIGA rear loader compaction truck

(Professional rear loader manufacturer, high quality refuse compactor trucks for sale)


 Advantage:

Strong load-bearing capacity: The Isuzu GIGA chassis is made of high-strength steel and has excellent load-bearing capacity, which can adapt to various cargo transportation needs.



Rugged and durable suspension system: The GIGA chassis is equipped with a rugged and durable suspension system that can provide a stable and comfortable driving experience in harsh road conditions.



Efficient power transmission system: The GIGA chassis is equipped with an efficient power transmission system independently developed by Isuzu, which can fully utilize the power output of the engine and provide strong power performance.



Advanced braking system: In order to ensure safe driving, the GIGA chassis is equipped with an advanced braking system, which provides excellent braking effect and ensures stable parking of the vehicle in emergency situations.

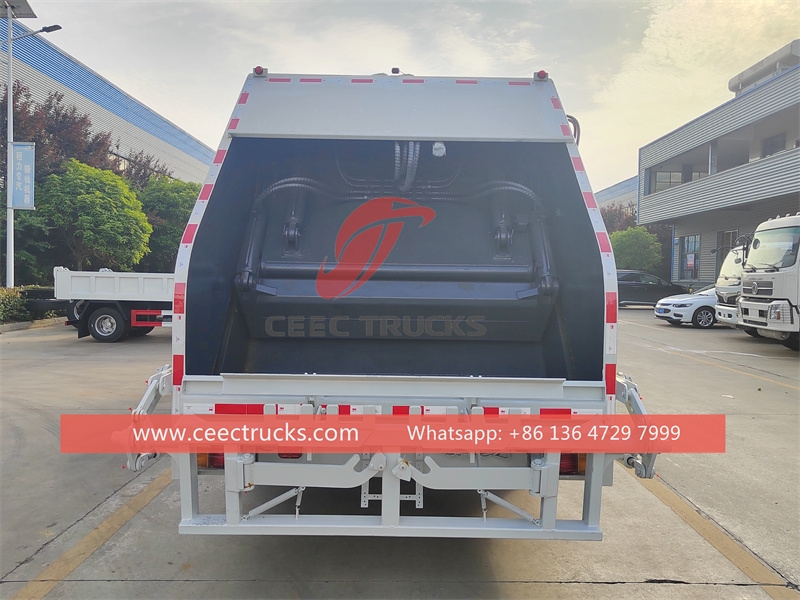

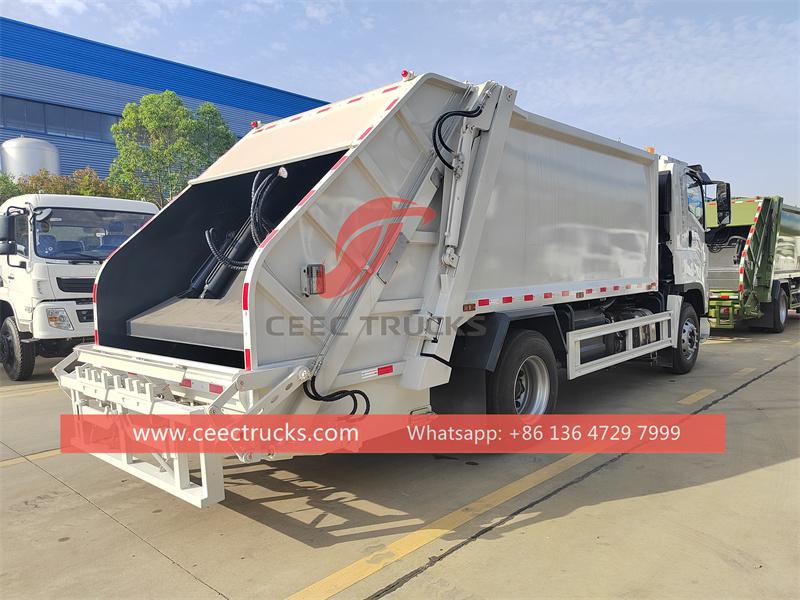

Isuzu GIGA rear loader compaction truck


CEEC TRUCKS is a premium manufacturer of garbage compactor. We can provide Dongfeng refuse compression truck, ISUZU garbage compactor, FOTON waste compactor truck, Shacman rear load garbage collection truck. Our garbage compactor trucks are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price. In addition, CEEC also manufacture fuel tanker trucks, water tanker trucks, vacuum sewage trucks, street sweeper trucks, etc.

6WG1 diesel engine, super powerful

Expert for producing waste compressor trucks over 10 years with good reputation

Carbon steel material

12 months free fast moving spare parts

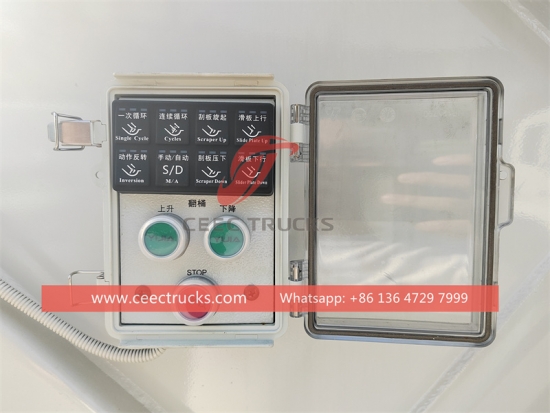

All English version control box, panel, and owner's manual, for easy understanding

Training service for rubbish compression trucks

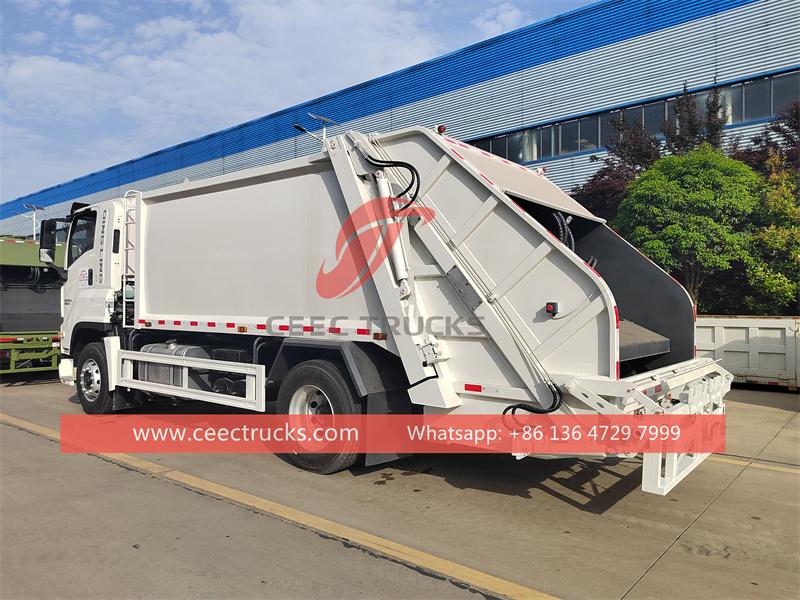

Isuzu GIGA rear loader compaction truck

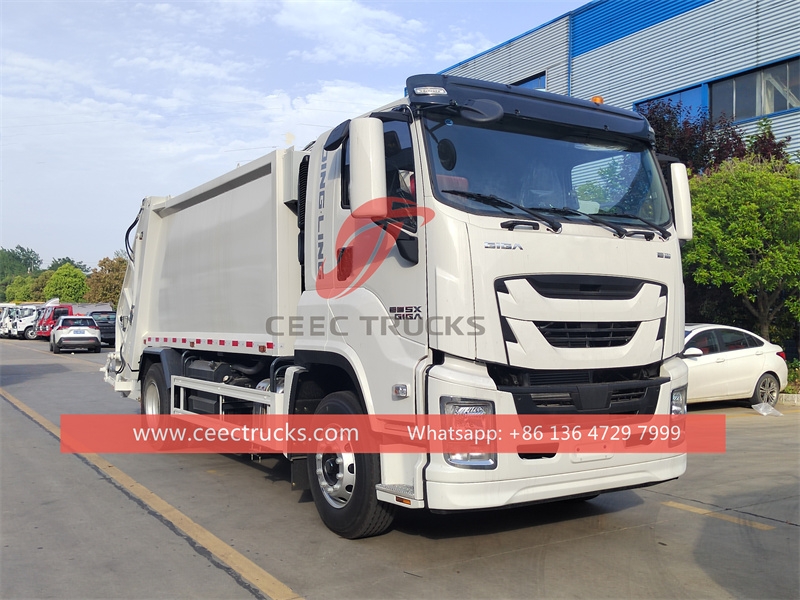

Isuzu GIGA rear loader compaction truck

CEEC trucks 5000 square meters workshop for garbage compactor trucks.

  garbage compactor truck



garbage compactor truck
