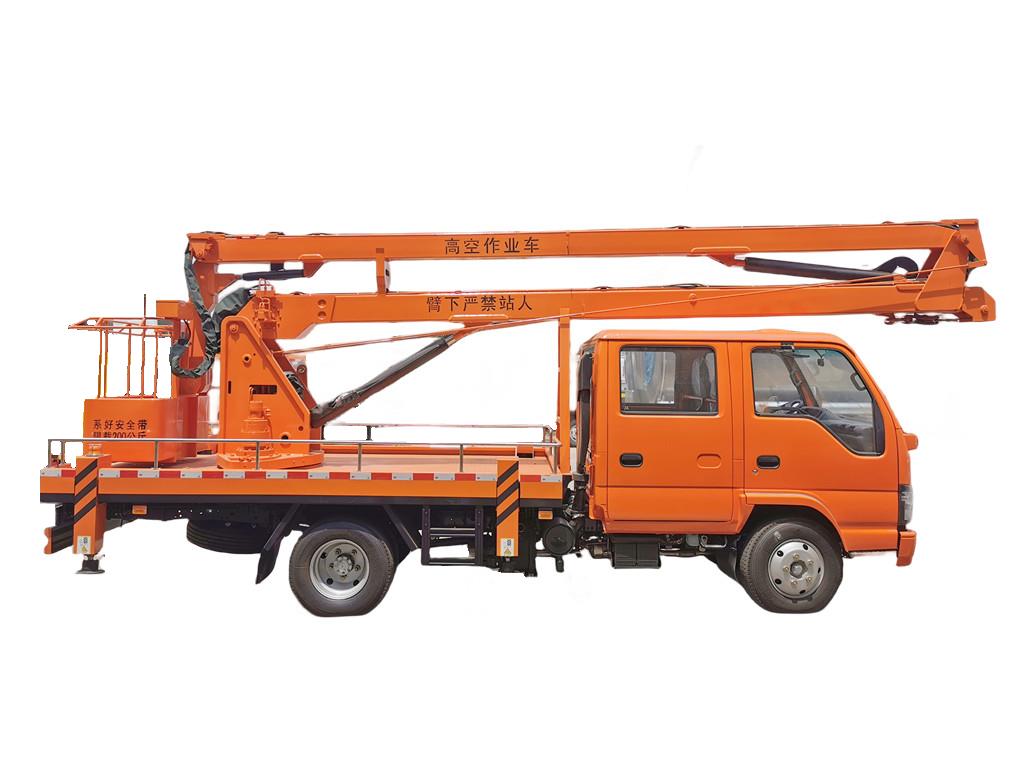

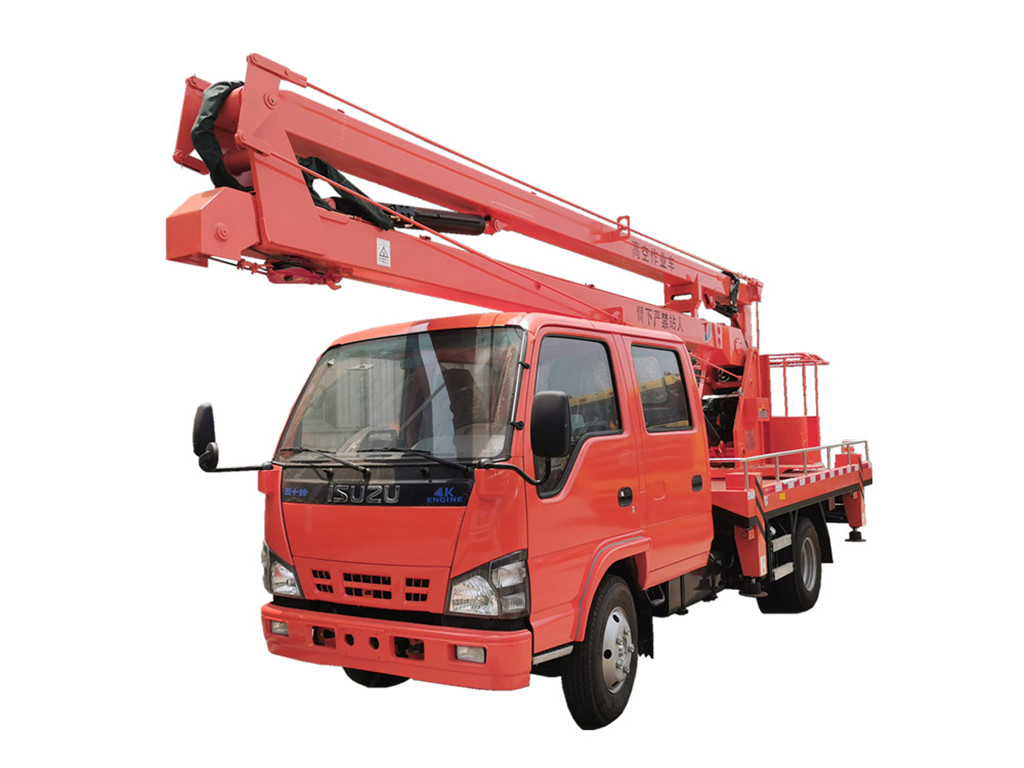

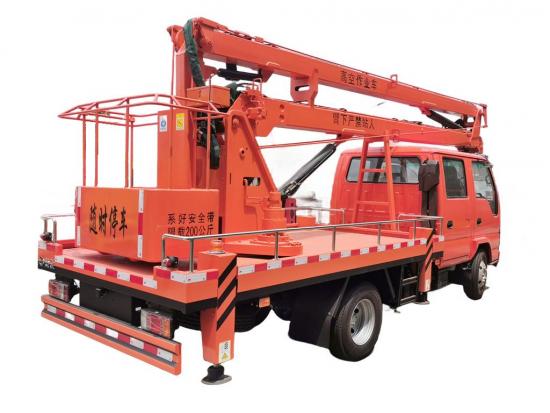

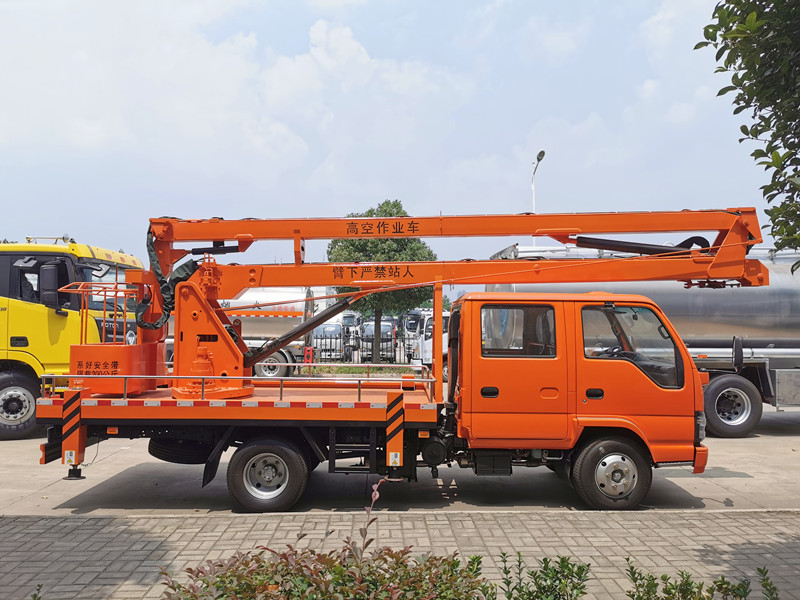

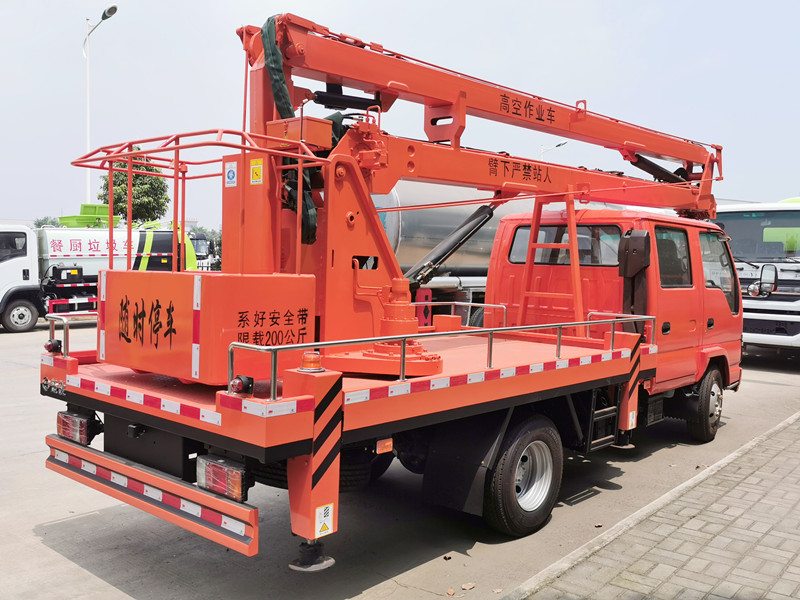

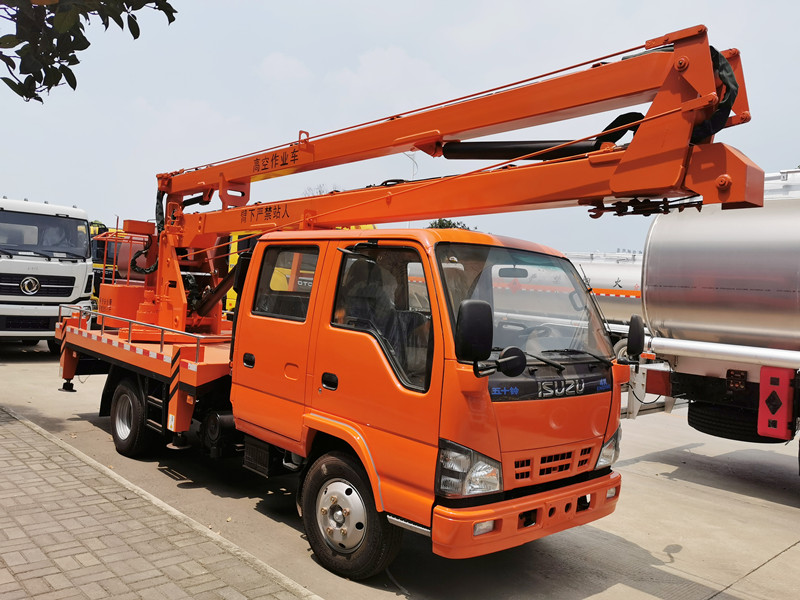

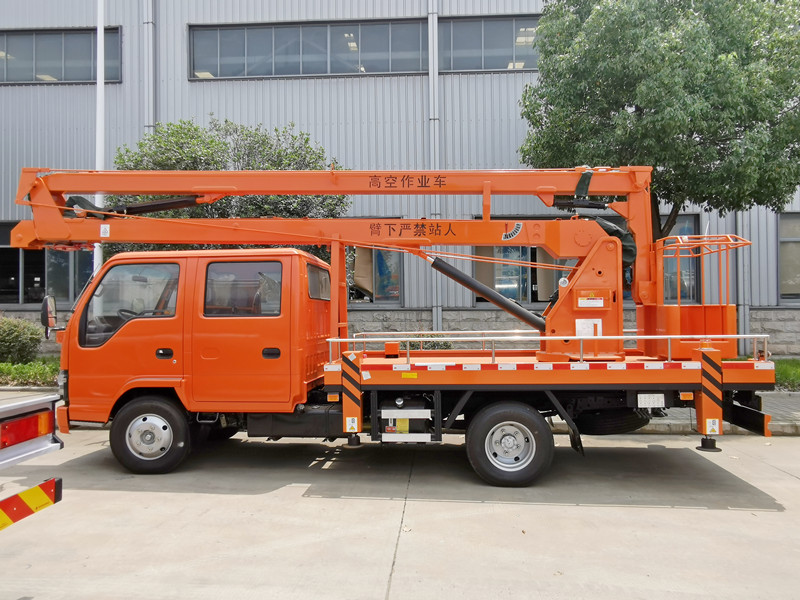

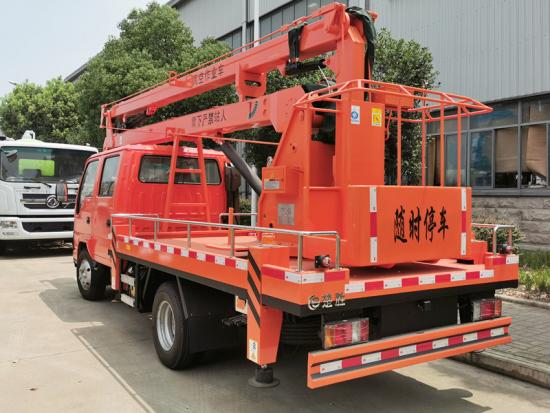

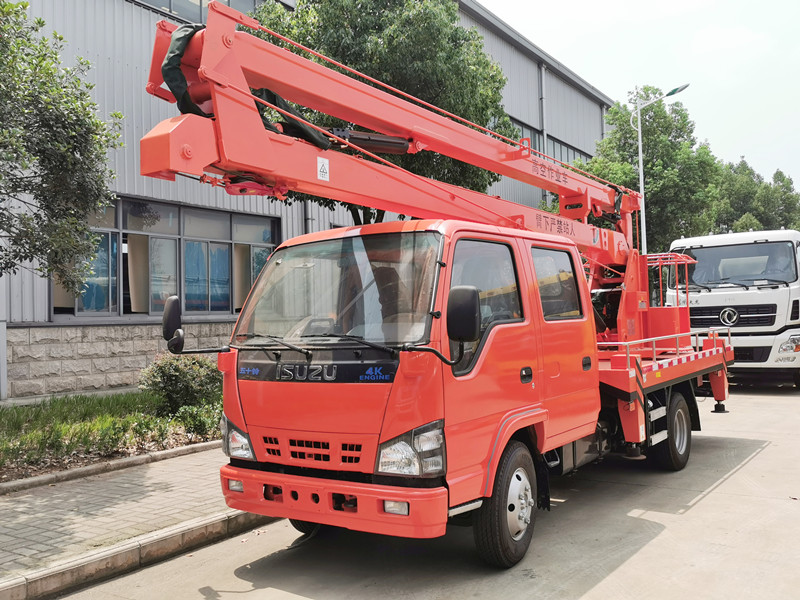

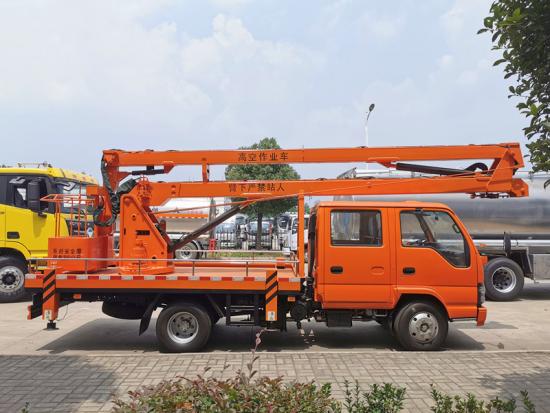

Isuzu NKR 16m articulated aerial platform truck

ISUZU double cabin 16m aerial work platform truck also called ISUZU 600P folding arm aerial work truck with 16 meters man basket, which is a special vehicle for aerial work modified based on the Japanese Isuzu 600P NKR truck chassis. double cabin row with 4 doors and available for 1 driver and 4 passengers, equipped with 4KH1CN6LB diesel engine 88KW/120HP and emission can be 2999ml, MSB 5 shift manual gearbox with 5 forward and 1 reverse back, standard 7.00R16 tubelss tires including one spare tire. Isuzu Manlift Truck with core feature is the folding arm structure, with a maximum operating height of up to 16 meters, It adopts a three-section folding arm design, supports 360° full rotation, and the operating radius can reach 7-7.5 meters. The platform rated load is usually 200 kg and can carry 2 people. Optional to be equipped with stainless steel material or carbon steel man basket for durable working, also optional to be equipped with fiberglass material man basket for electric working under voltage 220V, 230V, 260V, 330V. etc. suitable for a variety of aerial work scenarios.

ISUZU 16m double cabin 120HP aerial platform truck belongs to the folding arm aerial work vehicle. Compared with the straight arm or scissor type, it has higher flexibility and is suitable for narrow space operations. The maximum operating height is 16 meters, and the span height is about 7.5 meters, which can be equipped with insulated basket cover the needs of urban construction, bridge maintenance, power installation, etc. Isuzu man basket manlift truck is equipped with hydraulic locking, limiter, and emergency braking system, some models use imported hydraulic components (such as load-sensitive proportional valves) and intelligent control systems to ensure smooth and safe operation.

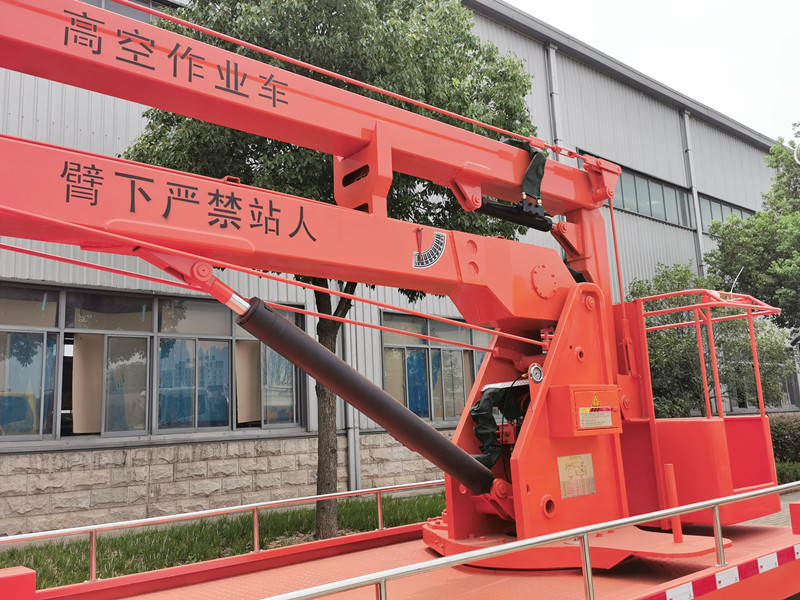

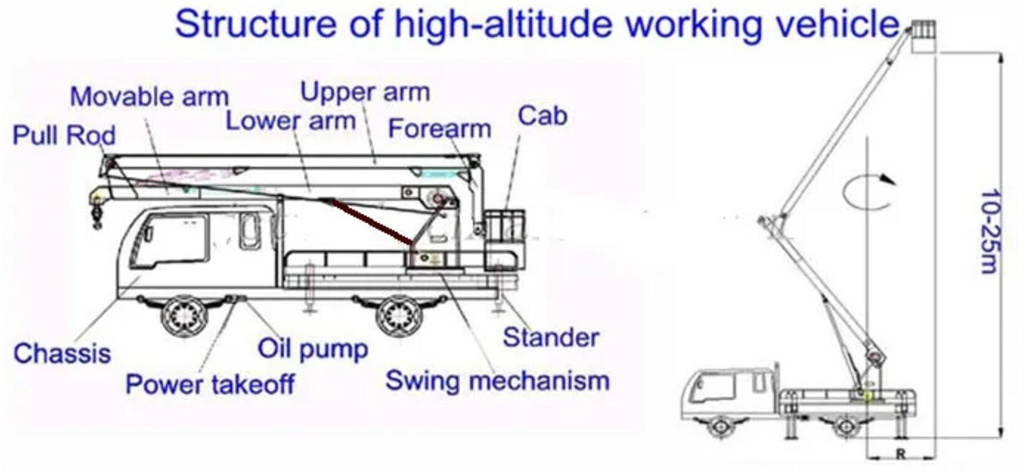

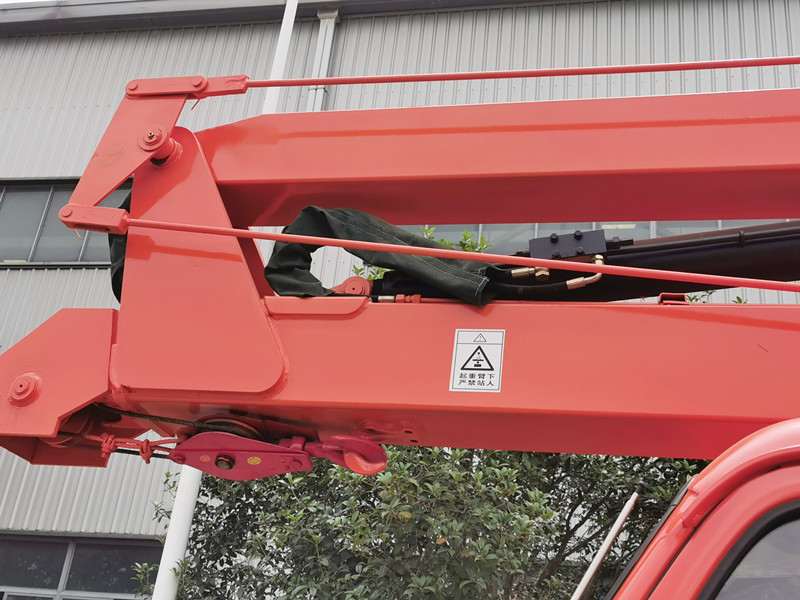

A . With a 3-section folding arm boom crane
B . Control box at both turret and platform
C . Limit switch and alarm
D . Emergency descent power
E . Safety interlock
F . Large outrigger span, outrigger can be operate individually

Isuzu working platfrom truck (also named Aerial Boom Lifting Truck, man lift truck, man lifting truck, Cherry Picker,Telescopic aerial platform truck, overhead working truck, truck platform, beamlifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high altitude operation truck) is ideal for maintenance of traffic lights,  street lights, landscaping trees,  cleaning/setting signboard, cherry picking  and  other high aerial works.

CEEC TRUCKS produced Isuzu 16m manlift truck is capable to lift manpower and materials from 250 kg to 16 meters high. The man basket is made up of carbon steel, and the maximum height of the bucket bottom is 14.9 meters. This vehicle is an ideal choice for construction work, painting, maintenance and repair tasks, and other industrial duties, such as tree trimming, large signs installation, lights set up for movies or theaters, and so on.

ISUZU newly designed ISUZU 600P folding arm aerial work vehicle 16 meters is based on Isuzu 600P reliable chassis, combined with the high flexibility of the folding arm and the intelligent safety system, becoming an efficient solution for municipal, power, construction and other fields. Its national VI emission standards and low fuel consumption design also meet modern environmental protection requirements. Also can be customized to remove the DPF and ADblue to make truck working as EURO 3/4. And mainly used for below area:

Municipal and infrastructure: street light maintenance, bridge and tunnel maintenance, garden pruning, etc.

Commercial and industrial: advertising installation, shopping mall venue maintenance, factory and mine equipment maintenance.

Special environment: power repair, communication equipment installation and other fields requiring high-altitude operations
