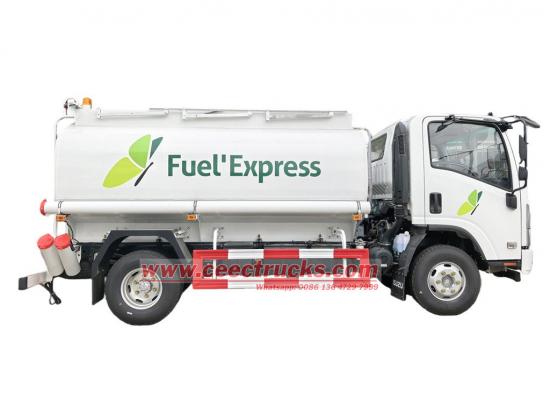

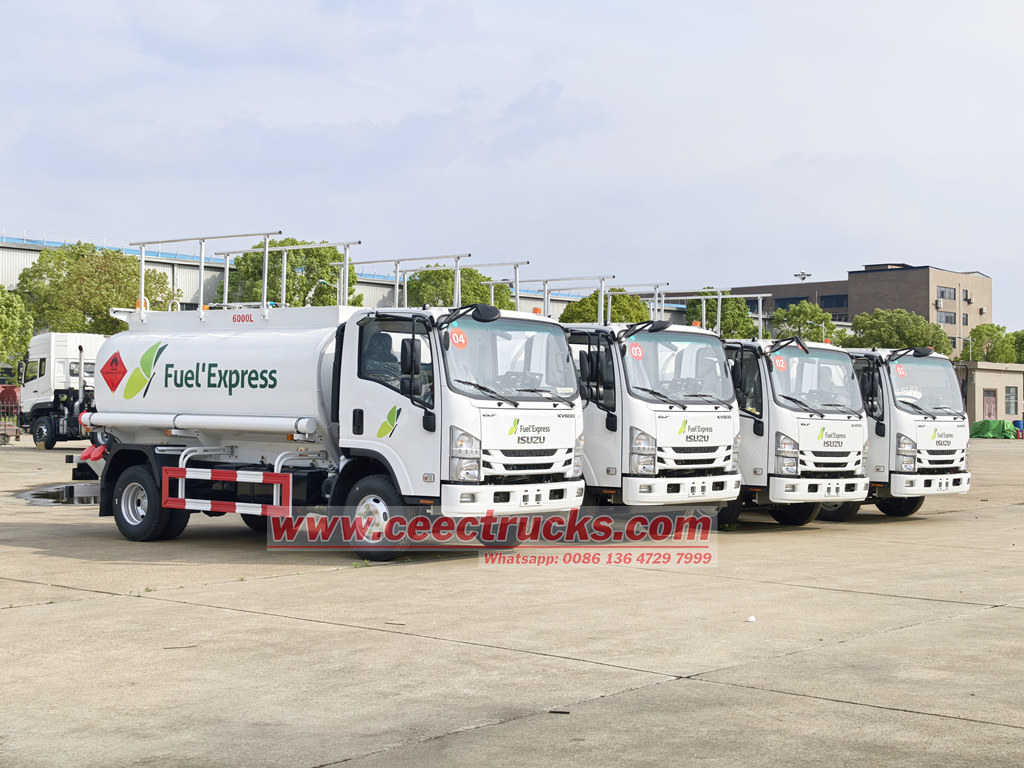

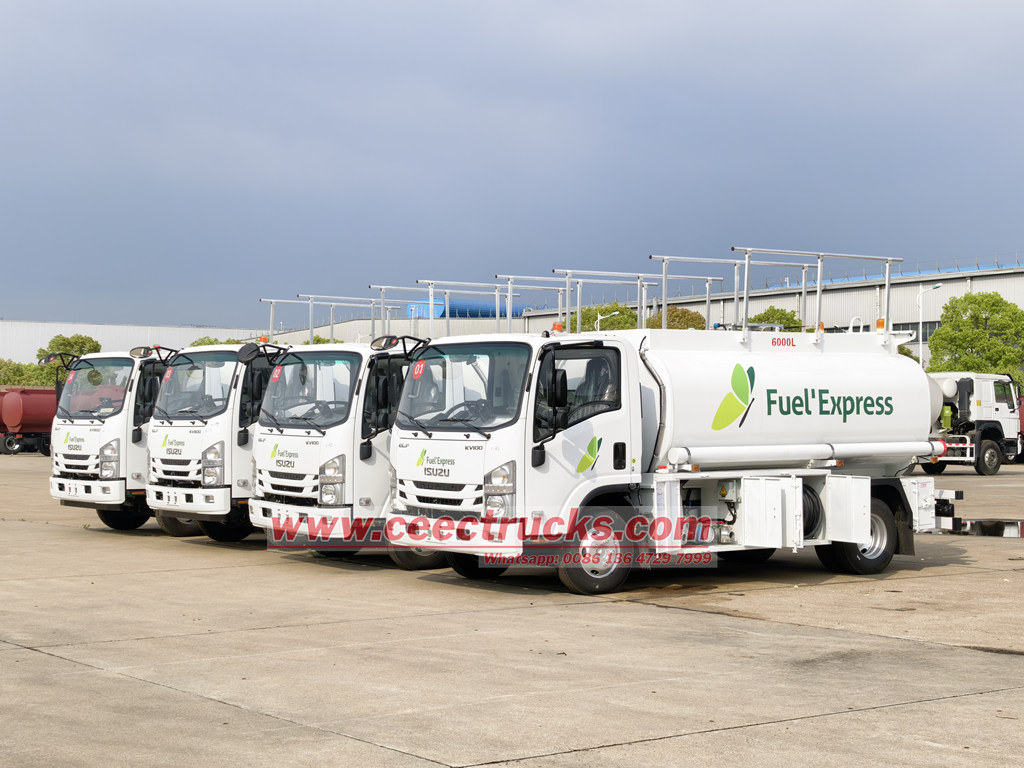

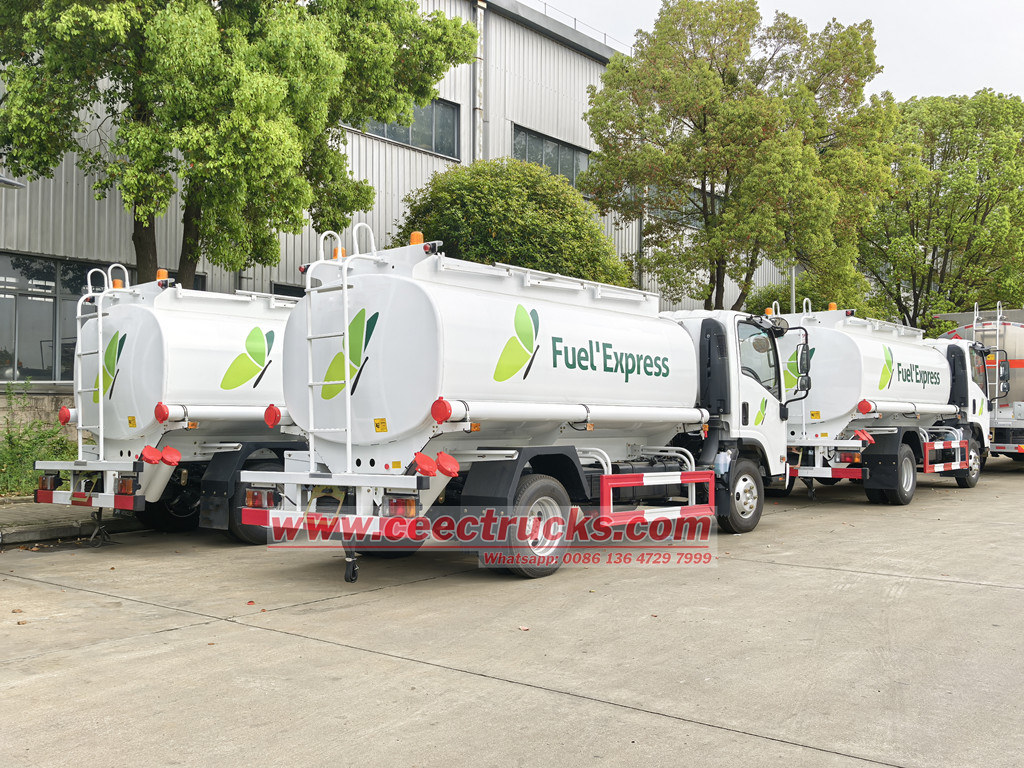

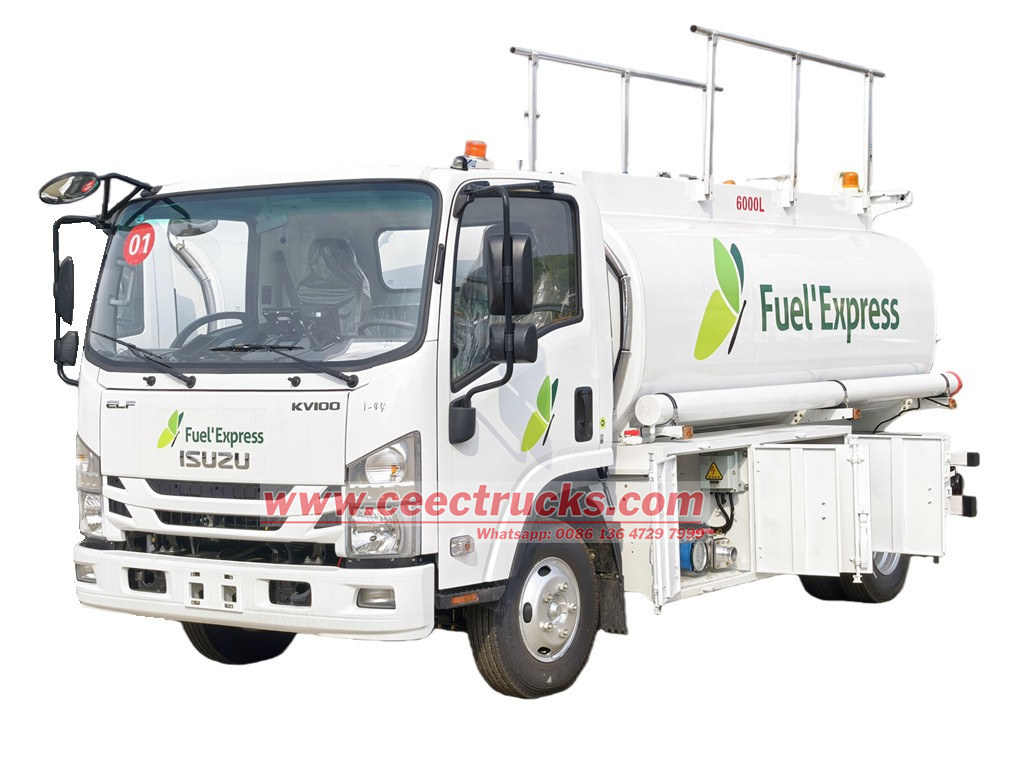

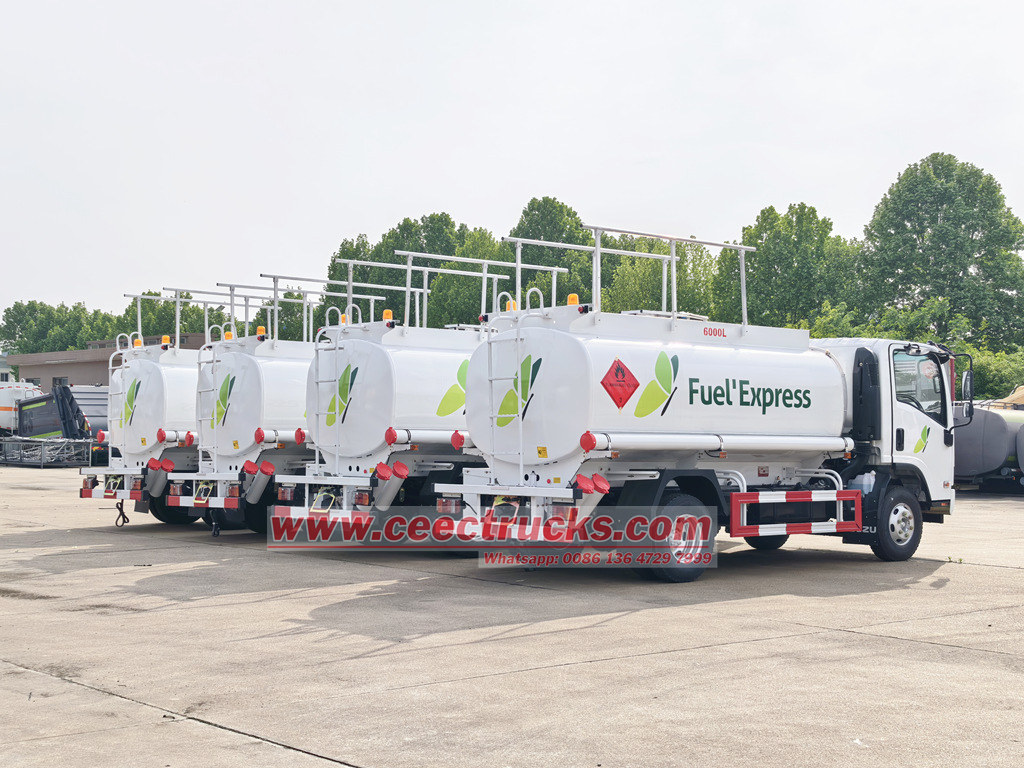

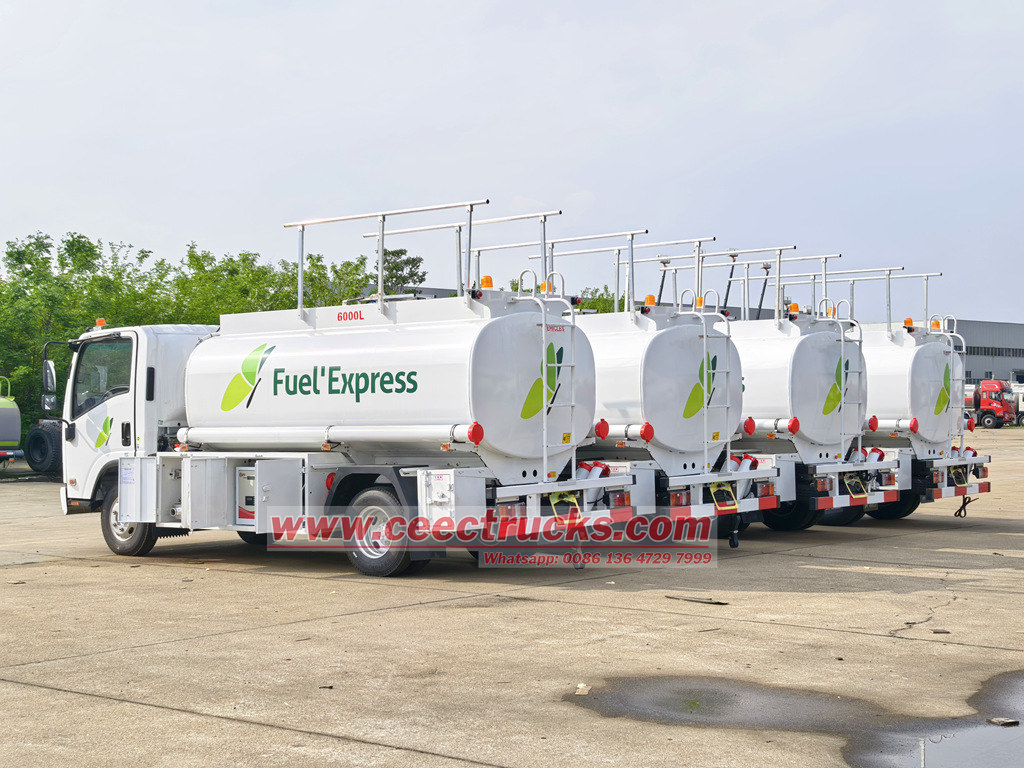

South American country Ecuador customer purchased totally 4 units ISUZU New NPR NQR ELF 6000Liters fuel tanker truck, which is a specialized truck designed and produced to transport and dispense liqiuds, typically gasoline, diesel, aviation fuel, etc. Designed oval shape tanker body kit with designed capacity 6000Liters, also mounted with fuel pump assembly and all necessary pipeline device, to realize pump in and pump out function. also equipped with fuel dispenser for trucks, cars and machine equipment refueling service.
Work capacity:
6000LitersDimension ( mm ):
6600x2200x2580 mmWheelbase ( mm ):
3365 mmEngine power:
110KW / 150HPEngine type:
4KH1N6HDAxle drive:
4x2, LHDGear box:
MYY 6-shift manual transmissionRemarks:

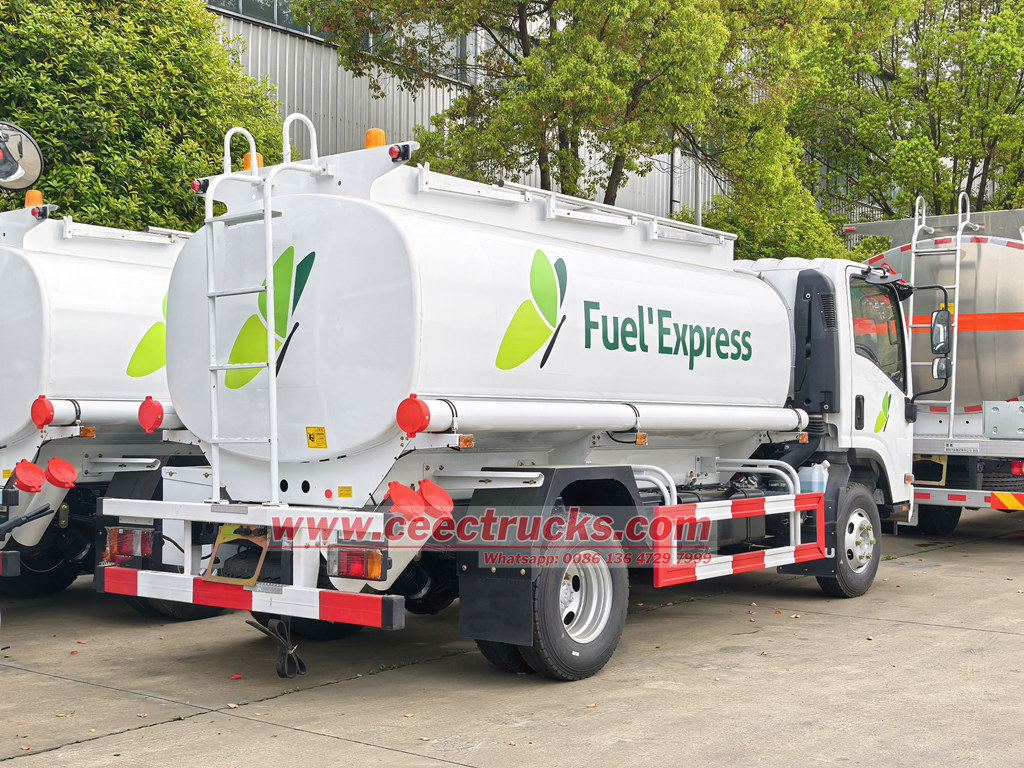

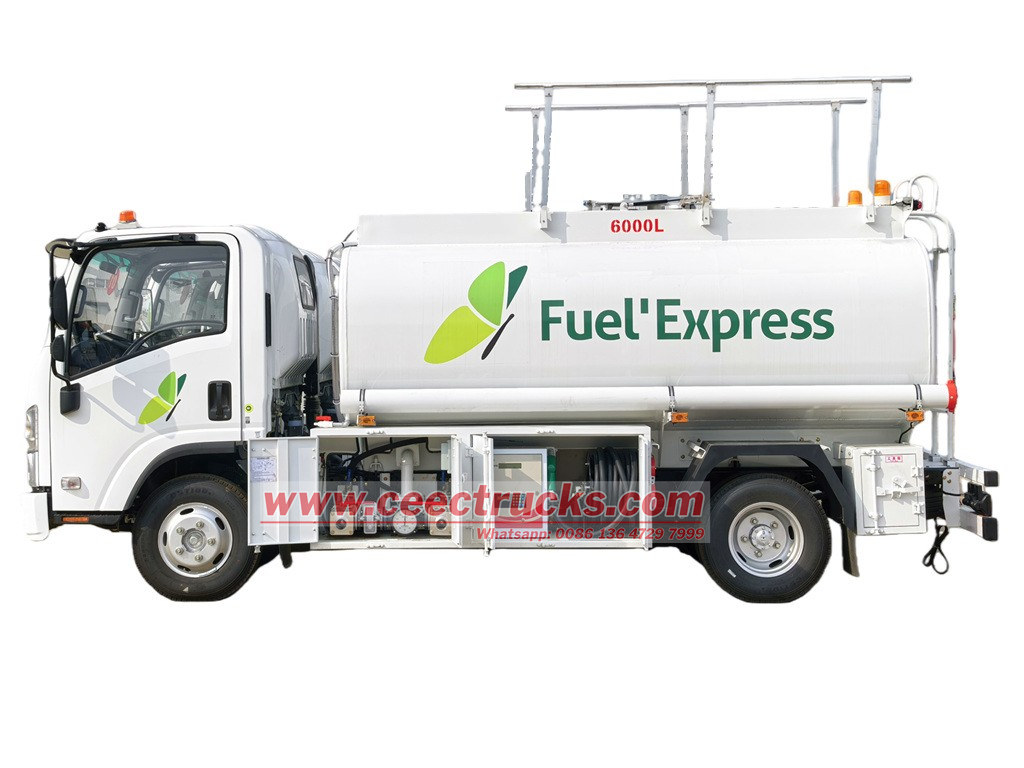

Optional different tanker body Aluminum alloy, SS304South American Ecuador clients purchased totally 4 units ISUZU NPR 150HP 6000Liters fuel tanker truck, which full relay on the advanced features of ISUZU new NQR NPR LHD 4x2 truck chassis, classical NPR truck cabin with AC for comfotable driving, equipped with Japanese technology 4KH1N6HD diesel engine, with efficiently horse power can be 110KW / 150HP, matched working with MYY 6 shift manual gearbox with 6 forward and 1 reverse, convenient and safety for driving, and very lower fuel consumption. The ISUZU 6cbm oil delivery tank truck equipped with customized oval shape fuel tanker body, efficiently loading capacity 6000Liter, mounted with submarine bottom valve for safety usage and emergency stop. Truck equipped with fuel pump and pipelines, to guarantee the tanker with pump in and pump out function. At driver side of the ISUZU fuel bowser equipped with fuel dispenser and refueling hose reel, and can have function of safety refueling for car, trucks and other machines. There for it is an ideal fuel truck for diesel, gasoline and petrol storage, delivery and refueling.

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CEEC Trucks Group

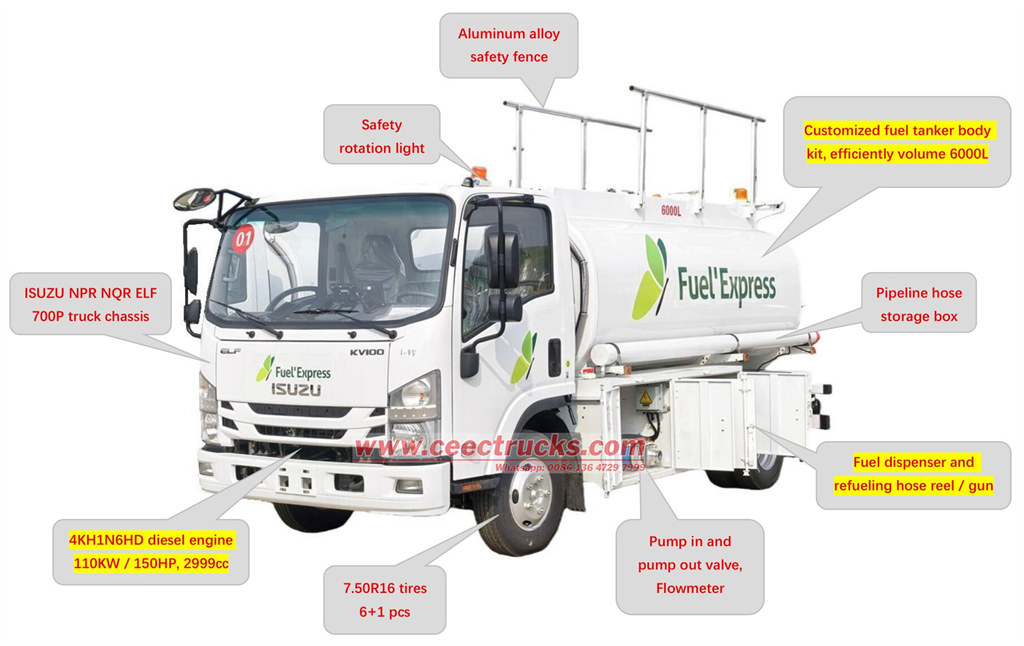

Features:
1. Truck Chassis: ISUZU NPR ELF truck chassis, LHD, 4x2, 4X4 model optional
4KH1N6HD diesel engine 150HP and emission 2999ml.
2. Fuel Tanker Body Kit: Full welding oval shape design, carbon steel, thickness 4mm, swelling cover head

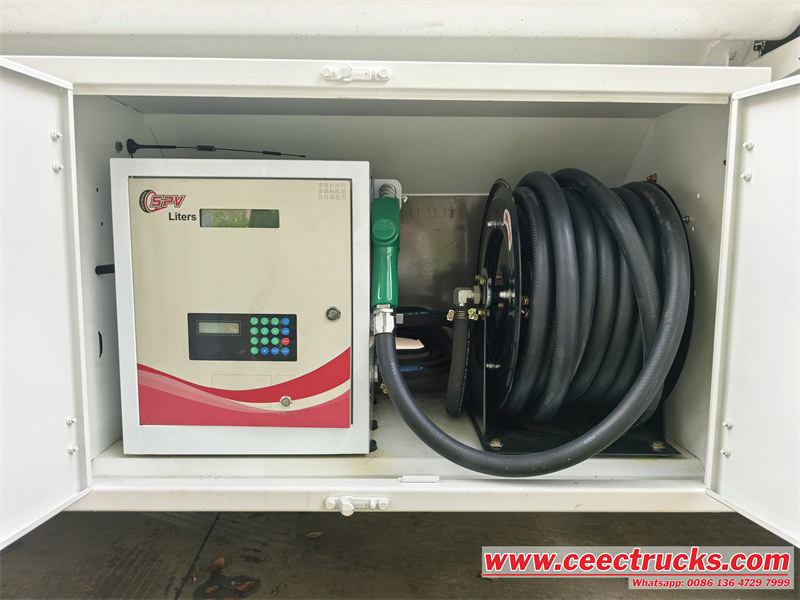

3. Refueling System: Equipped with fuel dispener with English control panel, 20m~36m hose reel and refueling gun

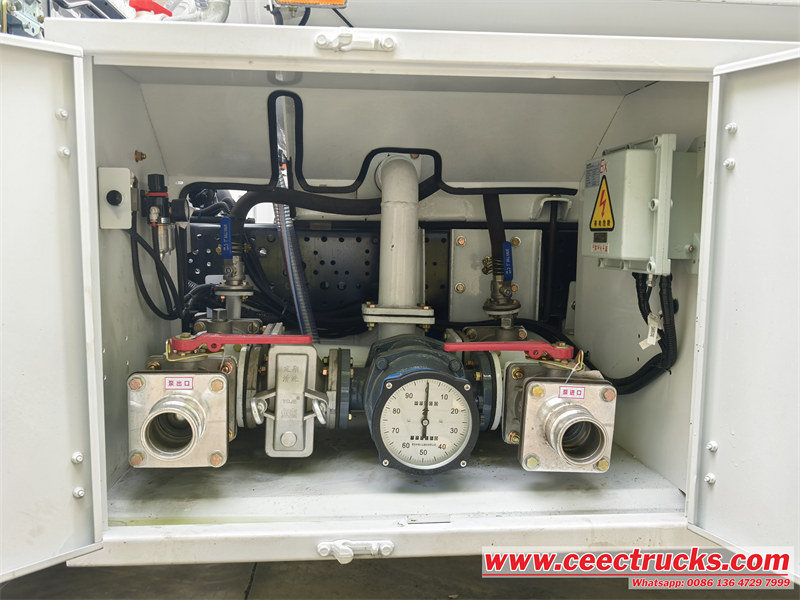

4. Valve Assembly: Equipped with fuel pump, efficiently pump in and pump out function

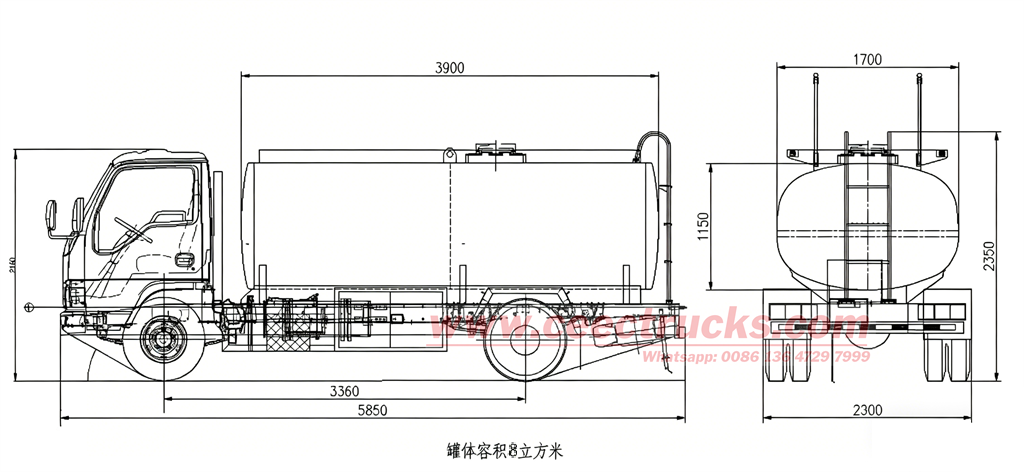

| ISUZU 6000L gasoline refueling tanker truck | |||
| Chassis | Brand | ISUZU NPR NQR ELF 700P | |
| Wheelbase(mm) | 3365 mm | ||
| Dimensions(mm) | 6600x2200x2580mm | ||
| Cab | 700P, Allowable 3 passengers. With A/C in optional | ||
| Transmission | MYY, Manual type, 6 Forwards and 1 Reverse | ||
| Front/Rear Axle | 3000/5250 kg | ||
| Tire | 7.50R16, 6pcs with one spare tire | ||
| Engine | Model | ISUZU 4KH1N6HD | |
| Horsepower | 190HP | ||
| Displacement | 5.19L | ||
| Cylinder number | 4 cylinders in-line, 4-strokes, water-cooled | ||
| Emission standard | Euro V, diesel | ||
| 6000Liters Fuel Tank Assembly | |||
| Fuel tank | Capacity | 6000 Liters | |
| Tank material | Q235 high tensile strength steel | ||
| Thickness | 4mm | ||
| Compartment | Single Compartment (several compartments in optional ) | ||
| Manhole cover | 1 manhole cover, with breather valve | ||
| Safety Valve | equipped on the tank bottom | ||
| Discharge valve | Aluminium Alloy Ball Valve type (stainless steel ball valve is optional) | ||
| Oil Pump | Equipped | ||
| Refuelling Dispenser | Equipped | ||
| Emergency Cutoff Device | Equipped | ||

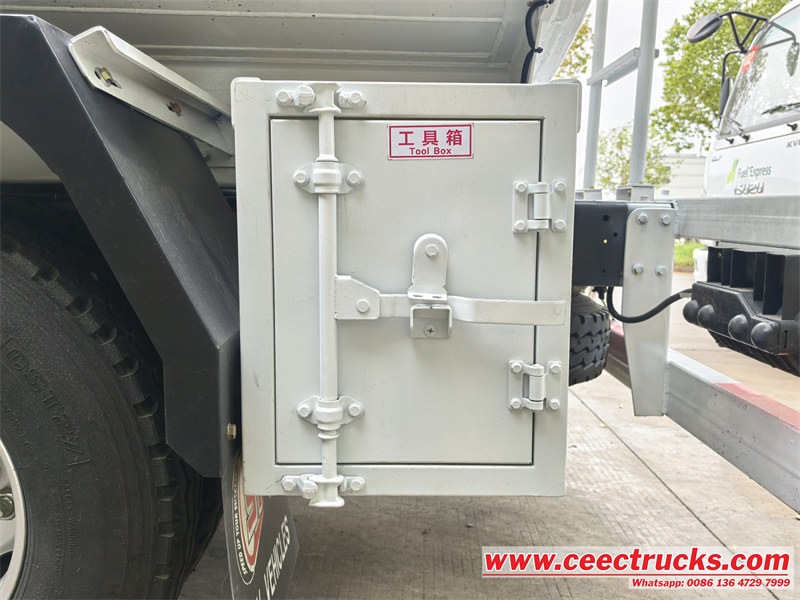

| Standard | tool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included | ||

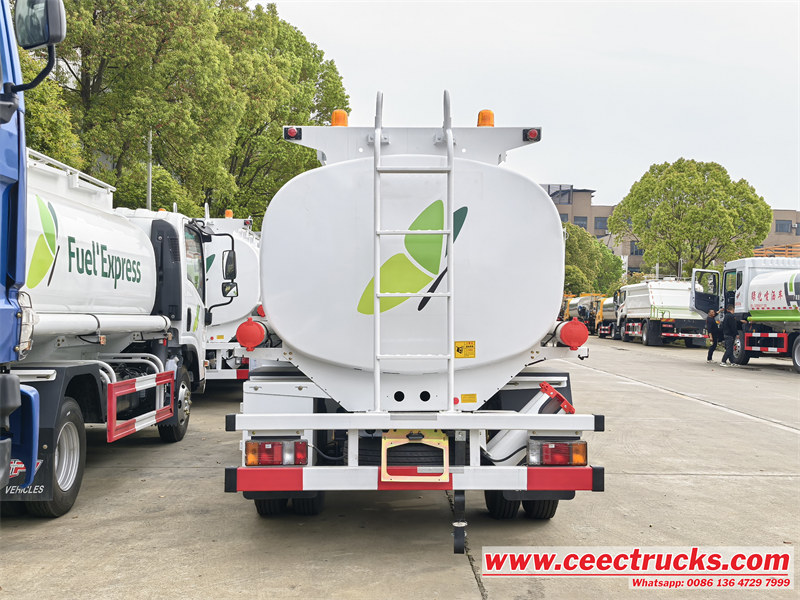

| Ladder | At rear of tank | ||
| Painting | Color and design as customer's requirement | ||

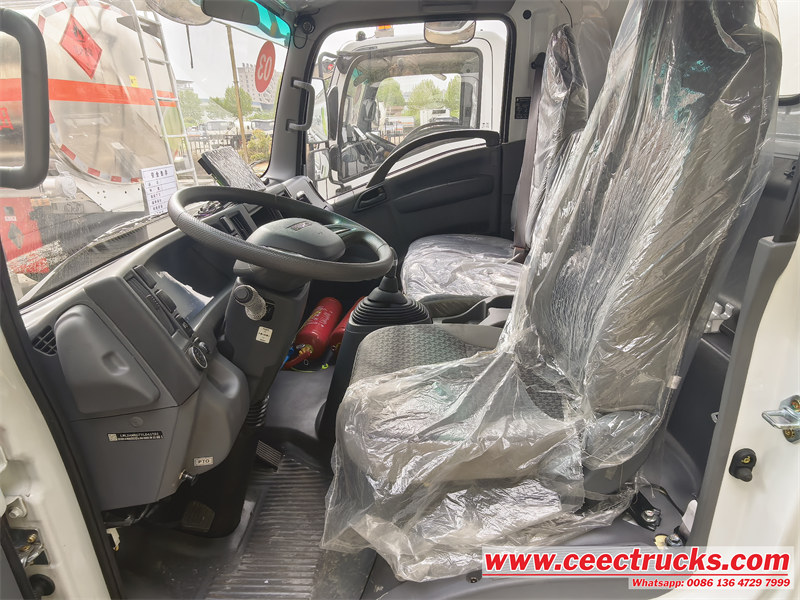

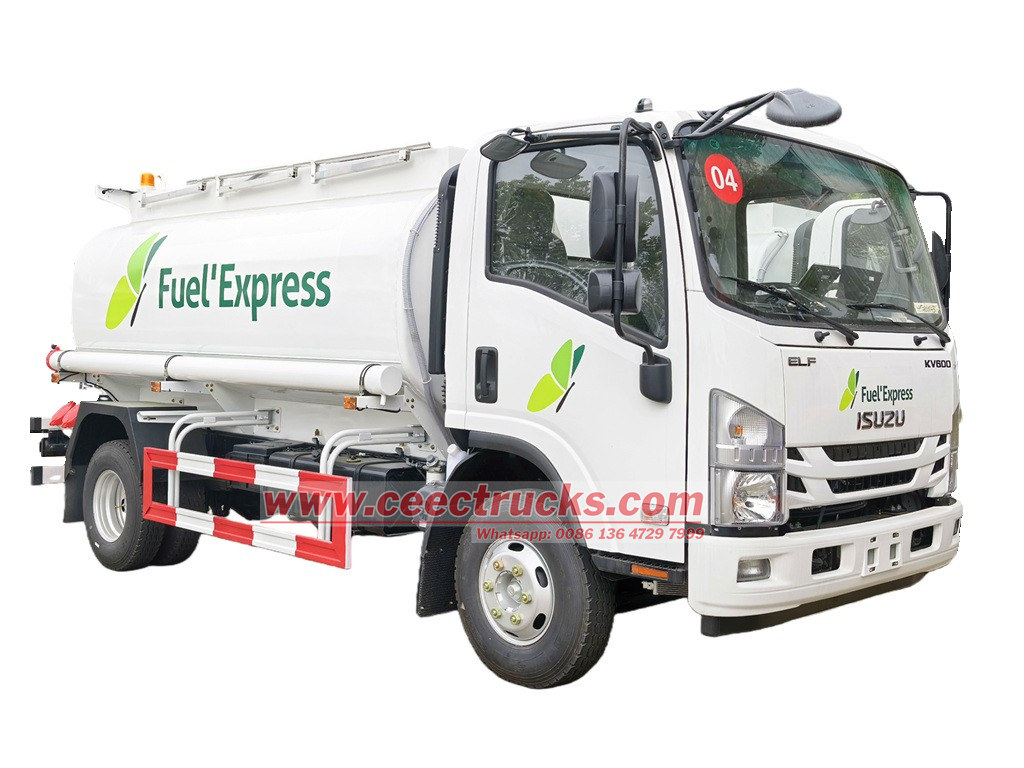

ISUZU NPR 700P Truck Cabinet
Newest generation ISUZU NPR NQR ELF 700P truck cabin, matched with multiple steering wheel for fast operation, 4KH1N6HD diesel engine 110KW/150HP matched working with MYY 6 shift manual gearbox control level with high-low gear, efficiently air brake device. AC device and AM/FM radio, comfortable and safety for driving.

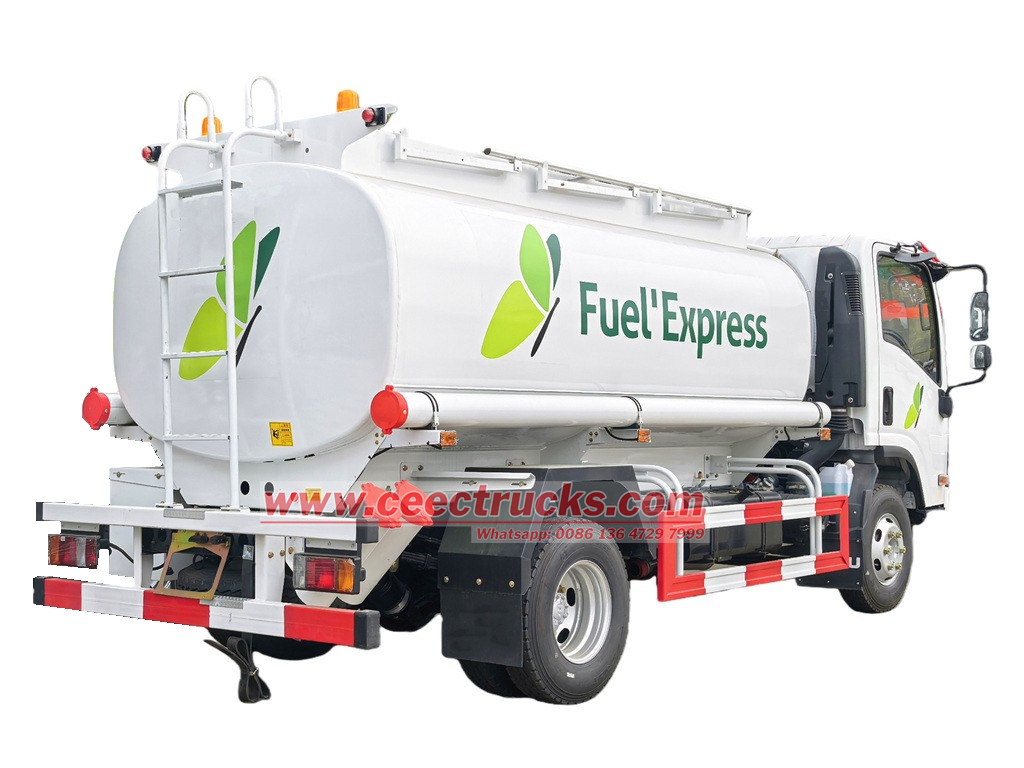

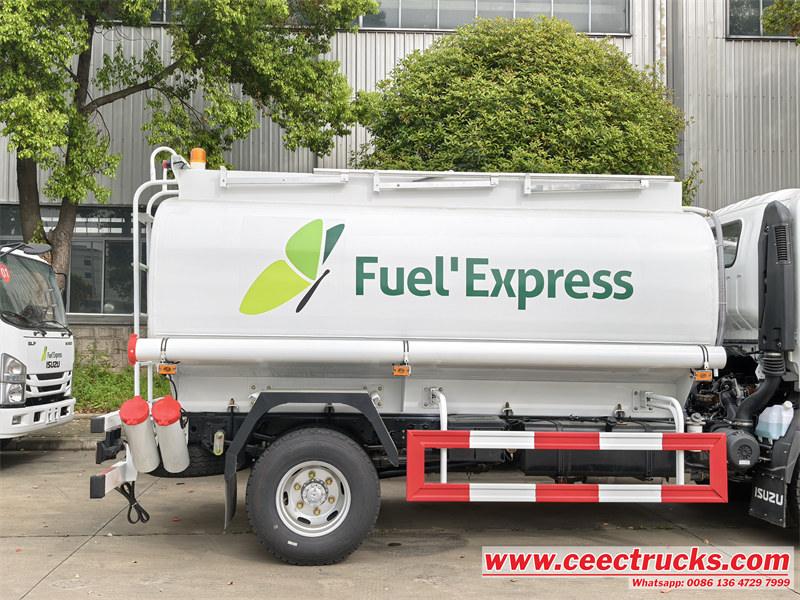

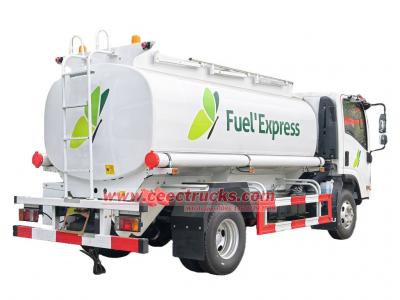

ISUZU fuel bowser 6000L tanker body kit

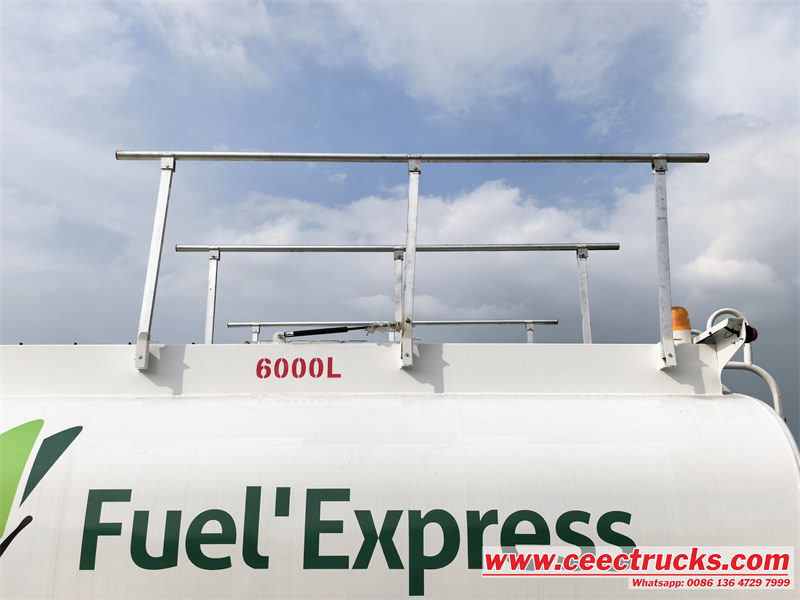

Customized 6000L tanker body kit with oval shape and designed based on carbon steel Q235, thickness 4mm. Two sides equipped with pipe storage box and safety fence. Top of the tanker body kit with Aluminum alloy safety fence, EURO manhole cover and breathe valve. Also 2 sets 4kg fire extinguisher equipment
★ Japanese ISUZU super diesel engine 150HP, fuel consumption save 20%
★ ISUZU MYY Manual 6 shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized ISUZU 4KH1N6HD 150HP fuel bowser

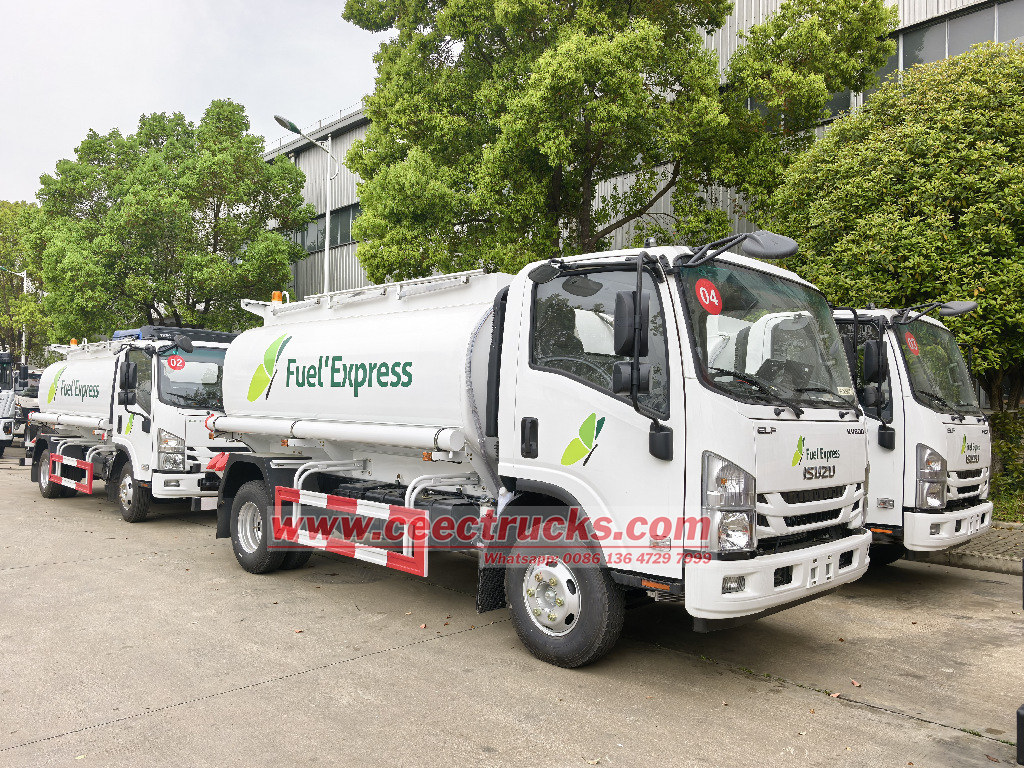

★ Training service for Isuzu EURO design oil tank truck.


China professional vacuum truck supplier and exporter, we supply high quality fuel tanker truck. We can ensure the fast delivery time and 12 months guarantee for our oil bowser trucks. Our refueling tank trucks are customized with fuel pump with pump in and out function, also equipped with fuel dispenser and refueling hose reel, and sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
