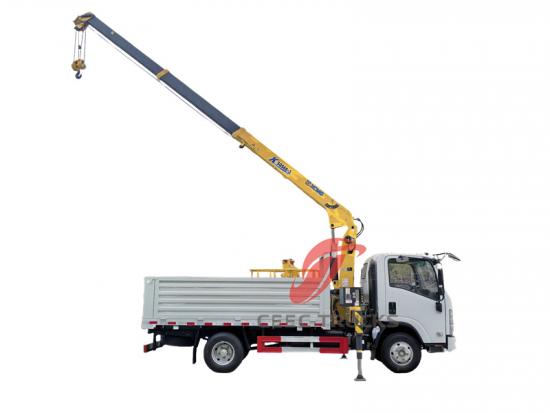

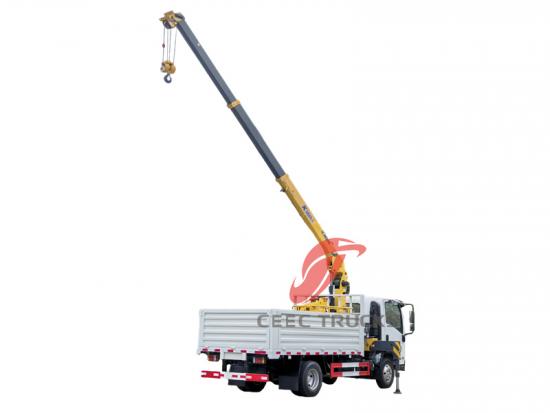

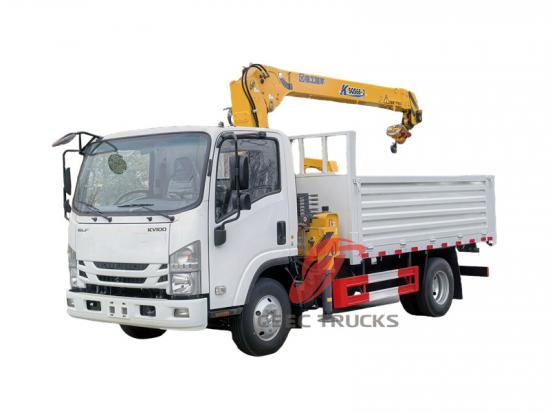

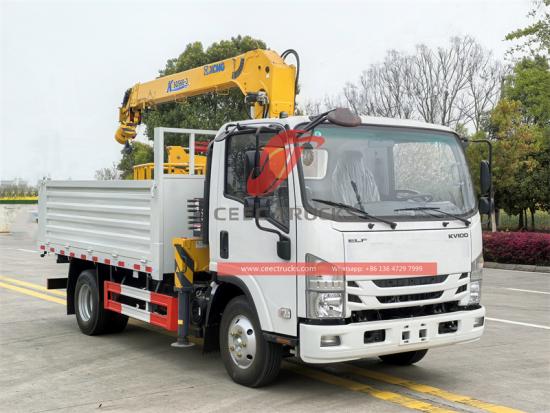

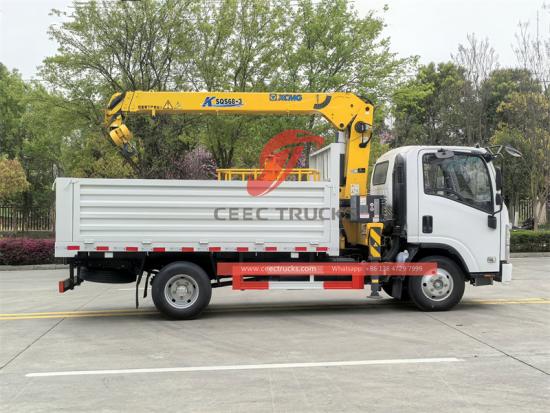

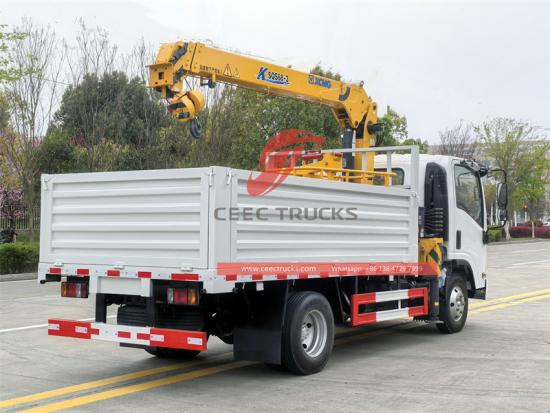

Isuzu NPR cargo truck with 5tons crane

The Isuzu NPR cargo crane truck is a powerful and well-designed truck. It is equipped with an ISUZU brand diesel engine with a strong power of 190HP, which can meet various work needs. The cab can accommodate three people and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper part of the Isuzu NPR 5tons cargo crane truck is equipped with a telescopic boom crane with a maximum lifting capacity of 5000kg and a full 360° rotation. The crane weight is 950kg and the installation space is 850mm. The control panel can be selected in English or other languages to facilitate users with different needs. Isuzu NPR cargo crane truck also provides a variety of optional configurations, such as telescopic boom cranes, hydraulic dump boxes, box thickness and height customized according to needs, and optional remote control boxes.

Product Origin:
China CEEC Trucks
Lead Time:
35 Days
Work capacity:
5 tons
Dimension ( mm ):
6300 × 2250 × 2750
Wheelbase ( mm ):
3815
Engine power:
190HP
Engine type:
4HK1-TCG61
Axle drive:
4X2,LHD
Gear box:
MLD 6-speed,manual
Remarks:
XCMG SQS125-4 boom crane

Inquiry now

The Isuzu NPR 5tons truck-mounted crane was chosen because it shows excellent advantages in terms of manufacturing, performance and usage. Strictly follow high standards of quality control during its manufacturing process to ensure the durability and reliability of the vehicle; in terms of performance, the powerful engine, precise control system, and advanced suspension and braking systems make the Isuzu NPR 5tons truck-mounted crane outstanding in It can perform well in various working scenarios. At the same time, the multi-functional crane design and spacious cargo box make it suitable for various lifting and transportation tasks to meet the needs of different industries.

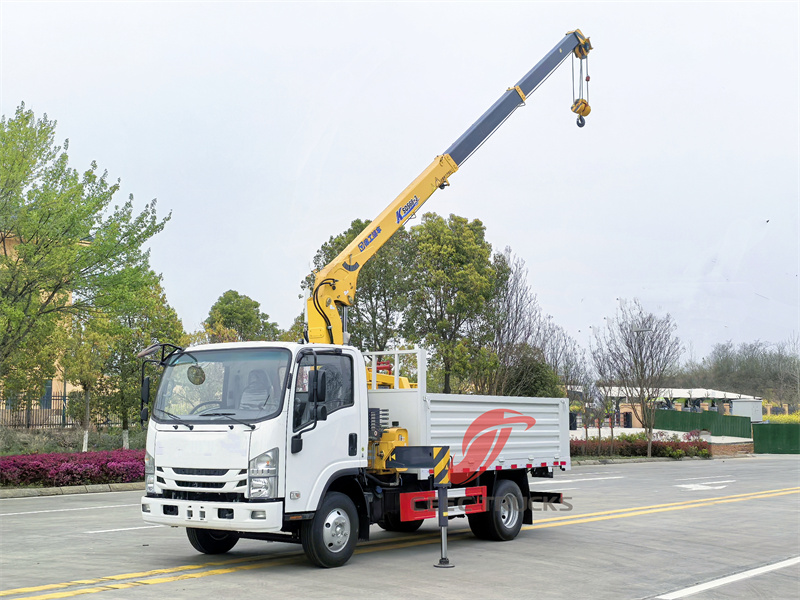

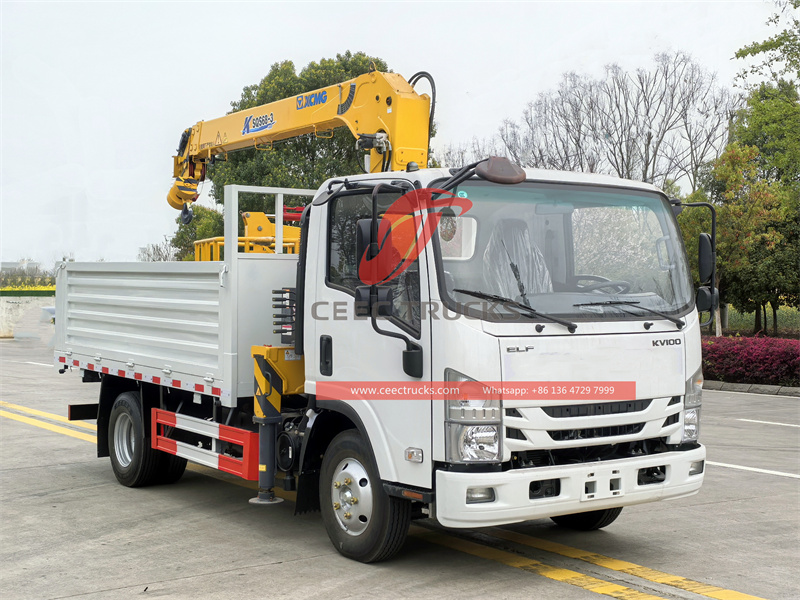

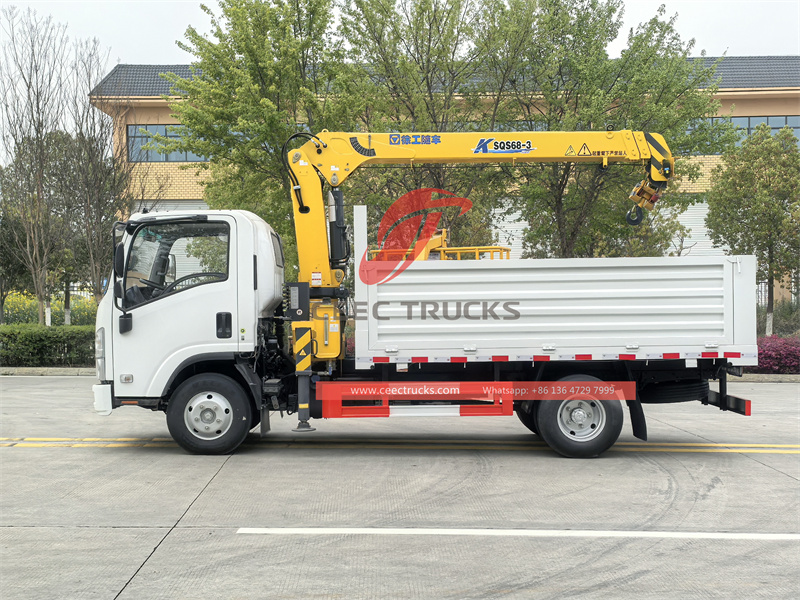

ISUZU ELF cargo truck with 5tons crane

● China best boom crane truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service

Specification:

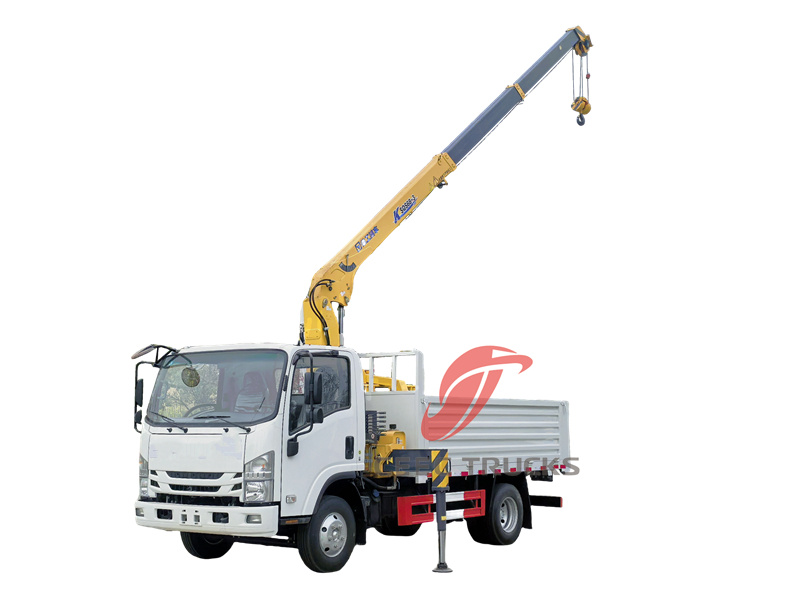

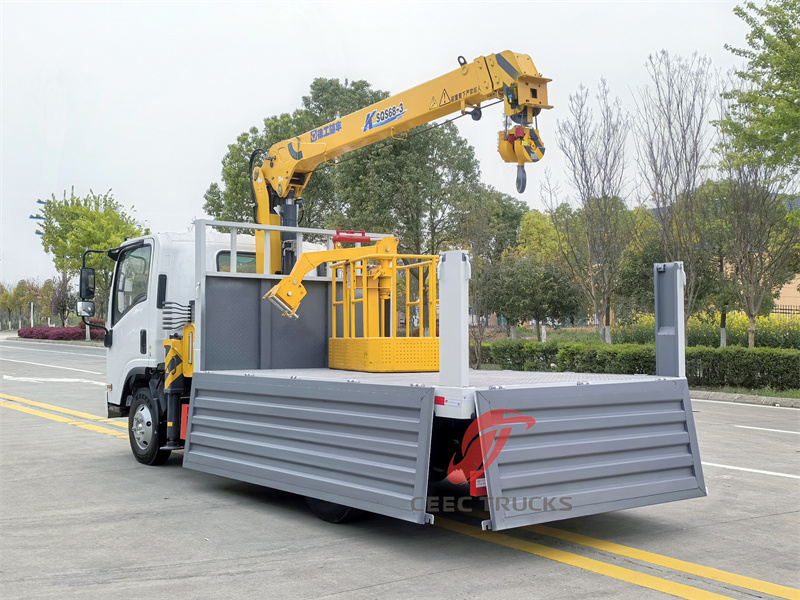

ISUZU ELF cargo truck with 5tons crane

ISUZU NPR 4×2 Telescopic Boom Crane Truck
Vehicle model		CEEC5116GDC		Overall dimensions (mm)	6300×2250×2750
GVW (kg)		11000		Operational height (m)	19m
Curb weight(kg)		4600		Max. Speed (km/h)	95
Chassis Description
Chassis Brand			ISUZU NPR chassis
Cab			Single cab with A/C
Allowable person in cab			3
Wheel base (mm)			3815
Front/Rear overhang (mm)			1050/2275
Number of axles			2
Axle	Front axle (kg)		2500
	Rear axle (kg)		7500
Traction system			4*2
Operation control system			Power steering
Braking system			Air brake
Transmission			MLD 6-speed
Tire specification			235/75R17.5 16PR
Tire quantity			6+1
Engine Description
Engine manufacture			ISUZU Engines
Engine model			4HK1-TCG61
Emission standard			Euro 6
Exhaust/output			5190 ml/ 138 kw
Horse power			190HP

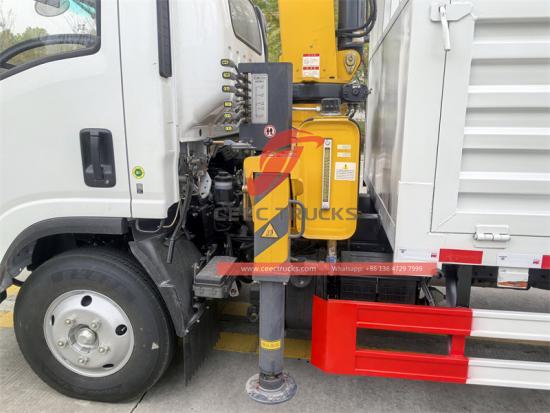

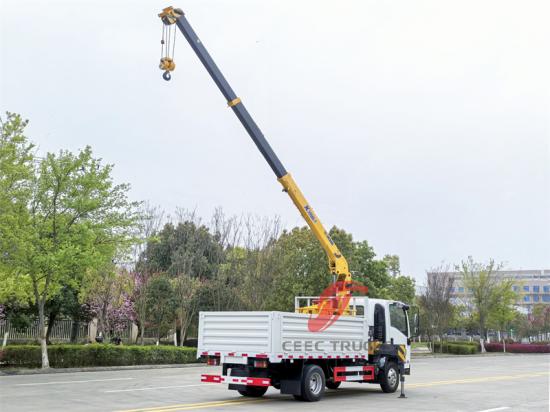

Upper Body Description
Max. working height (m)			19
Max. working radius (m)			5
Working pressure (Mpa)			13

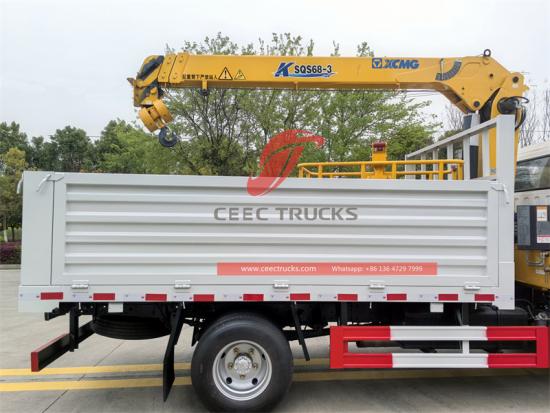

Crane Type			Telescopic boom crane
Max Lifting Capacity			5000 kg
Slewing Angle			360° All rotation
Crane Weight			950 kg
Installation Space			850 mm
Rotation Angle			360° Hydraulic
Control panel			English or Your language

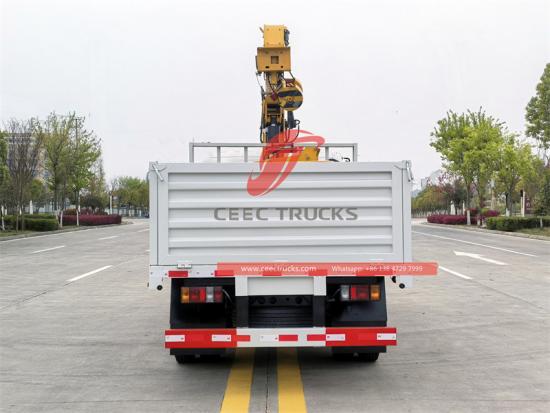

Cargo Box Dimension			*46002200500 mm*
Cargo Box Material			Q235 High-level Steel
Optional
Knuckle boom crane
Hydraulic tipper box
Box thickness according to requirement
Box height could be nominated
Remote Control Box optional

Advantage:

The manufacturing process of Isuzu NPR 5tons truck-mounted crane strictly adheres to high standards of quality control and process flow. From the beginning of material selection, we pay attention to selecting high-strength and corrosion-resistant materials to ensure that the vehicle can maintain stable performance even in harsh working environments. In welding, assembly and other aspects, advanced processes and equipment are used to ensure the accuracy and reliability of each component.

The Isuzu NPR 5tons truck-mounted crane has excellent performance in terms of power, control and safety. First of all, it is equipped with a powerful ISUZU diesel engine, providing strong power of 190HP, ensuring that it can easily cope with various work scenarios. Secondly, the vehicle is equipped with a six-speed gearbox and precise control system, making driving easier and more comfortable. The Isuzu boom truck also adopts advanced suspension and braking systems to ensure driving stability and safety.

The Isuzu NPR 5tons truck mounted crane is a versatile truck suitable for a variety of lifting and transportation tasks. The design of its telescopic boom crane allows it to carry out hoisting operations at construction sites, warehouses, docks and other places, easily coping with various complex hoisting needs. At the same time, the vehicle’s spacious cargo box can also be used to transport various goods to meet the transportation needs of different industries. The Isuzu NPR cargo truck with crane also provides a variety of optional configurations, such as hydraulic dump boxes, remote control boxes, etc.

★ Euro 6 type, ISUZU engine, fuel consumption save 20%

★ Manual 6-shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU boom crane trucks exporter

★ Training service for ISUZU truck mounted XCMG crane.

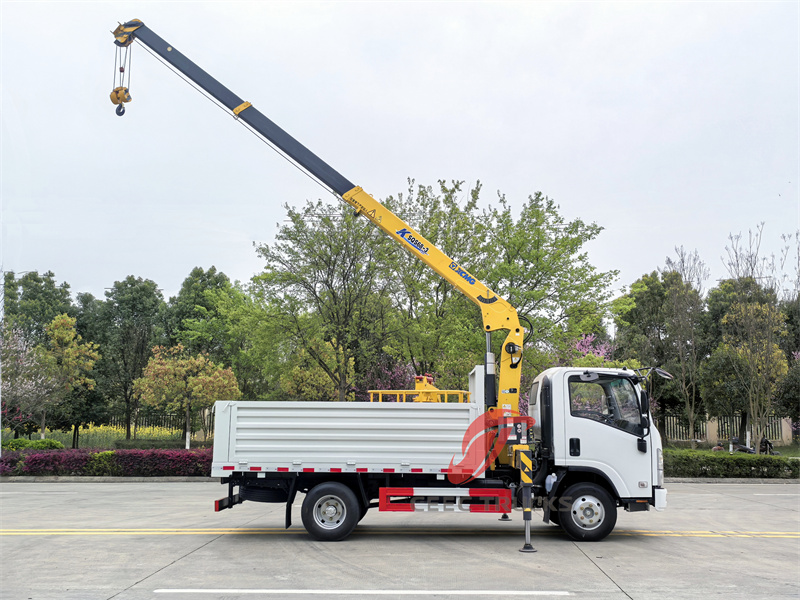

ISUZU ELF cargo truck with 5tons crane

China professional boom crane truck supplier and exporter, we supply high quality truck with crane. We can ensure the fast delivery time and 12 months guarantee for our boom trucks. Our crane trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
