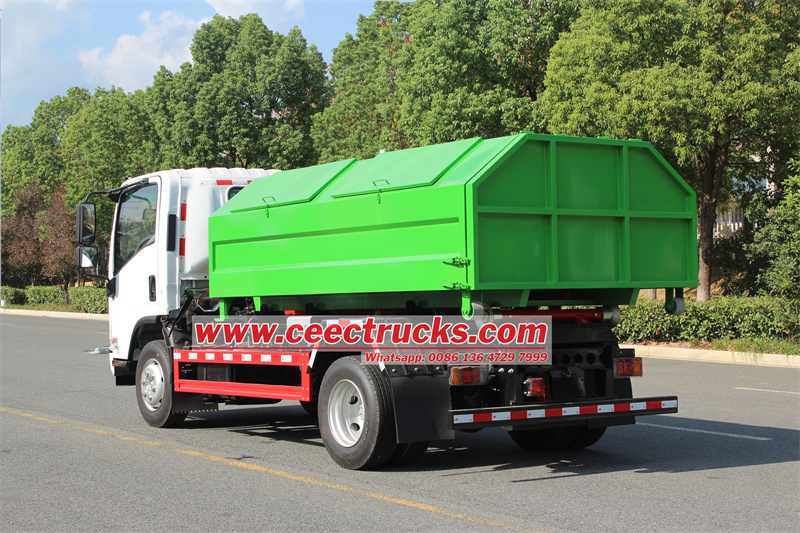

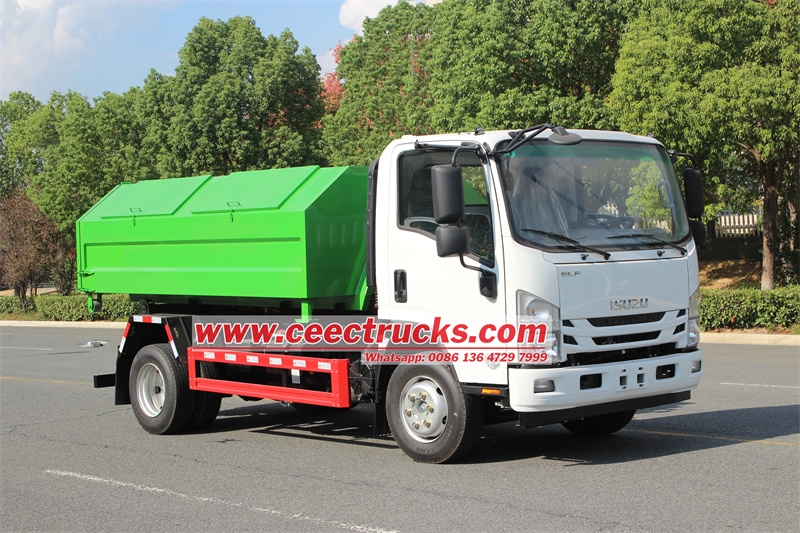

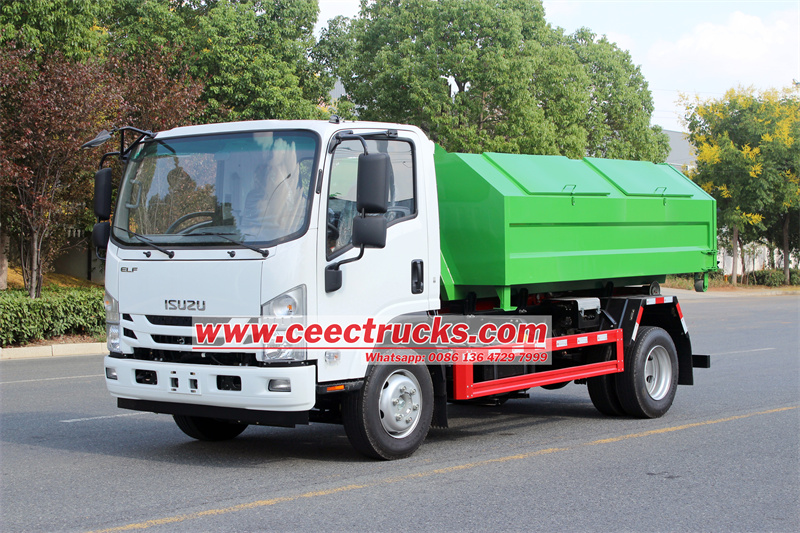

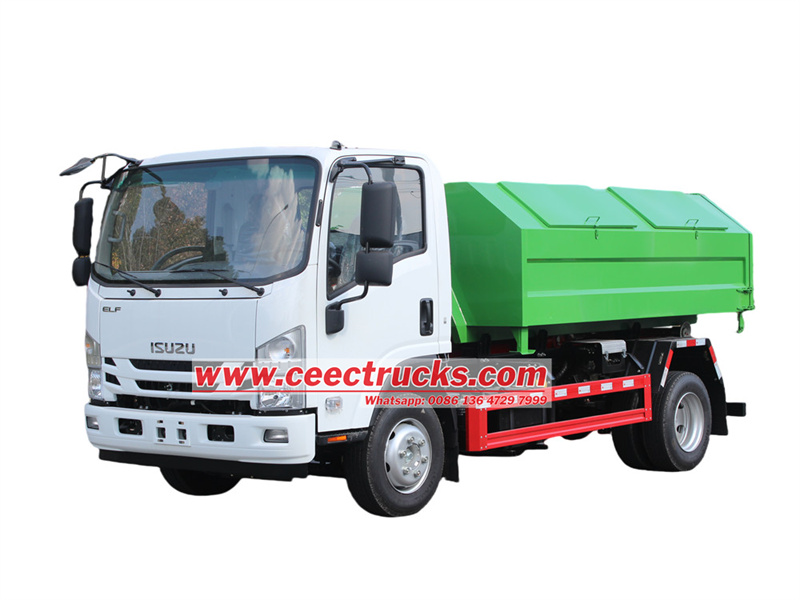

Isuzu NPR garbage hooklift truck

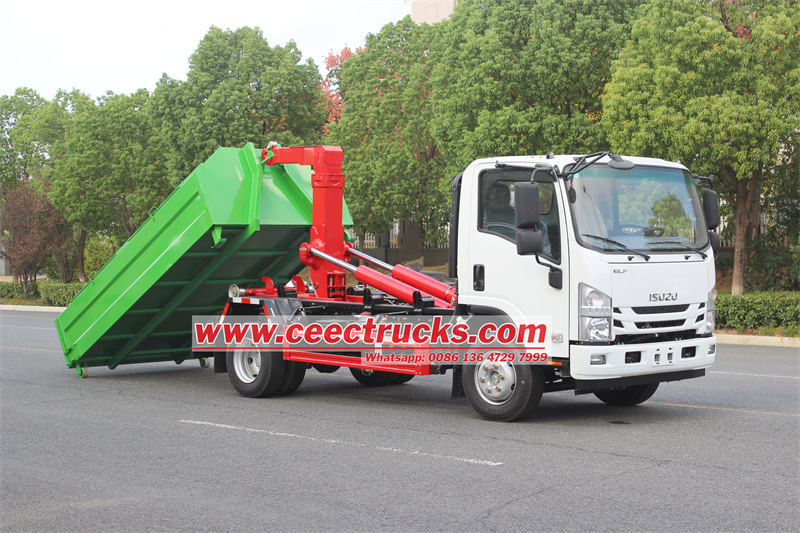

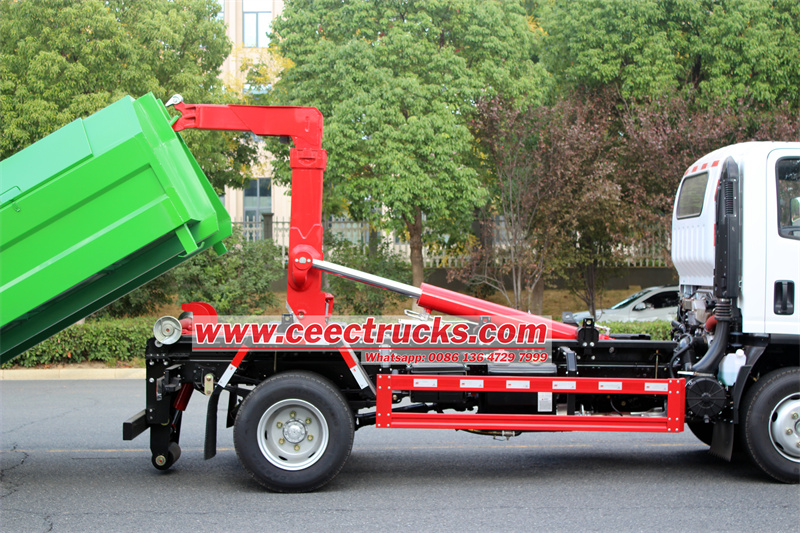

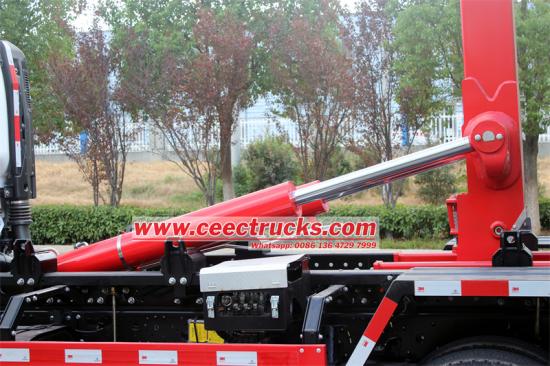

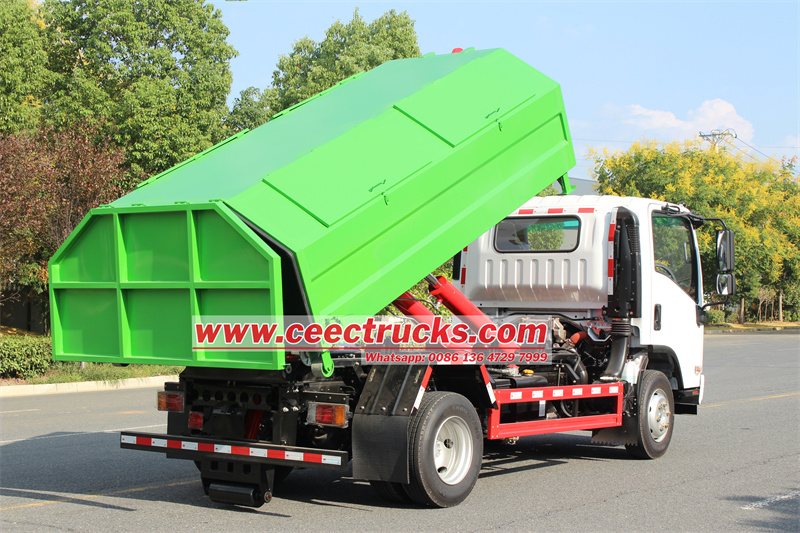

This is a high-performance Isuzu NPR garbage hooklift truck, highlighting the precision engineering design of modern urban sanitation vehicles. Equipped with ISUZU 4HK1-TCG61 four-cylinder diesel engine with a rated power of 190 horsepower, it is not only powerful but also environmentally friendly. With a wheelbase of 3360mm, a total mass of 10550kg, a load capacity of 6 tons, and a maximum speed of 105km/h, it is easy to shuttle through the streets and alleys. Its hydraulic lifting system has a maximum lifting capacity of 6 tons, a discharge time of 40-50 seconds, a maximum dumping angle of 45°, and a hydraulic system pressure of 16Mpa, which can meet the basic needs of urban sanitation companies.

The truck body is made of 5-6mm thick carbon steel material to ensure structural strength and durability. Equipped with dual operation modes of manual and wireless remote control, the 700P single-row cab is equipped with air conditioning, ABS and air suspension seats, which fully reflects the humanized design of the Isuzu garbage hooklift truck in terms of comfort and ease of operation. As the core equipment of the modern urban sanitation system, the Isuzu ELF garbage hooklift truck's technical configuration and functional design are highly consistent with the needs of efficient, environmentally friendly and intelligent urban solid waste treatment.

Technical Parameters:

3. Integration of ergonomics and intelligent control

——Dual-mode control system:

Wired/wireless dual redundant control mode ensures operational reliability, the remote control meets IP67 protection level, and has an effective control radius of 50 meters. The PLC controller monitors oil temperature, pressure and other parameters in real time, and the fault self-diagnosis accuracy rate is over 95%.

——Optimized design of driving environment:

The cab noise is controlled below 72dB(A), equipped with a three-level shock-absorbing air suspension seat and a multi-directional adjustable steering wheel, and the human fatigue index is reduced by 40% after 4 hours of continuous operation.

4. Full life cycle cost control

——Structural durability design:

The car floor adopts Hardox 450 wear-resistant steel laser welding technology, which improves the impact resistance by 3 times. Combined with the cathode electrophoretic coating process, the vehicle's salt spray corrosion resistance time exceeds 3,000 hours.

——Maintenance economy:

The universal chassis platform is compatible with Isuzu's global parts system, and the MTBF (mean time between failures) of key hydraulic components reaches 8,000 hours, which reduces the maintenance cost by 25% compared with similar products.

5. Value reconstruction of urban sanitation system

The Isuzu ELF multilift hooklift truck achieves:

- Improved spatial efficiency: 3.36-meter wheelbase achieves a minimum turning radius of 10.8 meters, suitable for 4-meter wide lane operations

- Time window compression: single-day operation coverage radius expanded to 50 square kilometers

- Labor cost optimization: labor input per 10,000 tons of garbage processing is reduced by 2.5 people/shift

Actual operation data shows that deploying 30 such vehicles in a city with a population of one million can shorten the garbage retention time from 12 hours to 6 hours, reduce PM2.5 dust pollution by 18%, and have significant positive environmental externalities.
