Customized offroad type ISUZU lorry truck chassis also can be called ISUZU NPR cargo truck chassis, which is designed based on QL1120CNPAY model Isuzu 4x4 truck chassis. Equipped with an ISUZU brand 4HK1-TCG61 model diesel engine, efficiently horse power can be 140KW / 190HP, powerful torque of 510 Nm, ensuring strong traction, EURO 6 emission standard with capacity 5193ml. Matched working with ISUZU MLD 6-speed manual transmission with 6 forward and 1 reverse. ISUZU 190HP offroad cargo truck equipped with newly designed 700P cabin, also multiple control buttons, which can efficiently reduce driver gatigue and improving uptime. The ISUZU 4HK1 truck chassis features high-strength steel and a robust frame design, ensuring excellent load capacity and durability. Front axle are 4WD drive model, with speed ratio 4.875 and efficiently loading capacity 4000kg. Rear axle are equipped with dual tires with efficiently loading capacity 7995kg. It also comes standard with an air brake system with ABS, guaranteeing safety during transportation operations. The ISUZU 4x4 offroad cargo truck equipped with all terrain tires with model 245/70R19.5 16PR, and boasts significant advantages in handling flexibility and ease of maintenance, continuing Isuzu's tradition of low failure rates and low operating costs. It is an ideal choice for users who prioritize efficient operation and overall economic benefits.

*ISUZU 4x4 offroad Lorry Cargo Truck price USD $27,000

ISUZU NPR NQR 4WD Cargo Truck Chassis*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

▶ Main Features:

★ ISUZU 700P NPR truck model QL1120CNPAY, with gross vehicle weight 11995 kg

★ Japanese brand ISUZU 4HK1-TCG61 diesel engine, 190HP power, 100,000 Km no overhaul.

★ ISUZU brand transmission MLD 6 shift model, lower fuel consumption

★ New generation ISUZU NQR cabin, EURO design

★ Driving Model 4x4, with speed ratio 4.875, matched with 245/70R19.5 all terrain tires

★ Color and Logos as customized

▶ ISUZU 4x4 offroad Truck Chassis Parameters:



▶  100% customized Isuzu 4WD truck:

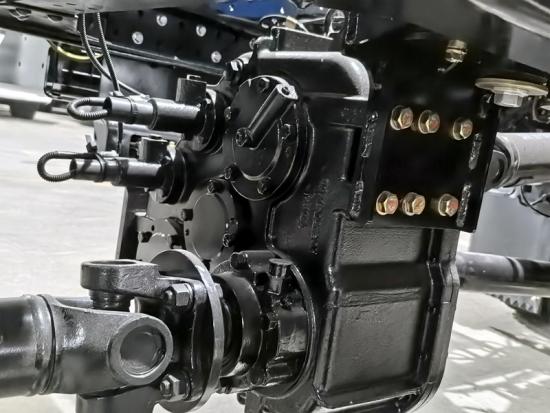

ISUZU cargo truck chassis are 100% customized, Isuzu NPR NQR 4WD cargo truck with 700P 3X cabin as request, with color fire red R03, truck model QL1120CNPAY and PE69S. The type two truck chassis with mechcanical adjustable seats, totally 2+1 units. 4x4 offroad driving model with transfer case, matched with front axle speed ratio 4.875, very efficiently and powerful output, matched working with 245/70R19.5 AT tire, suitable for very tough road condition. Truck battery 24Voltage and 80Ah, working together with 150A starter, safety and reliable for driving.



•

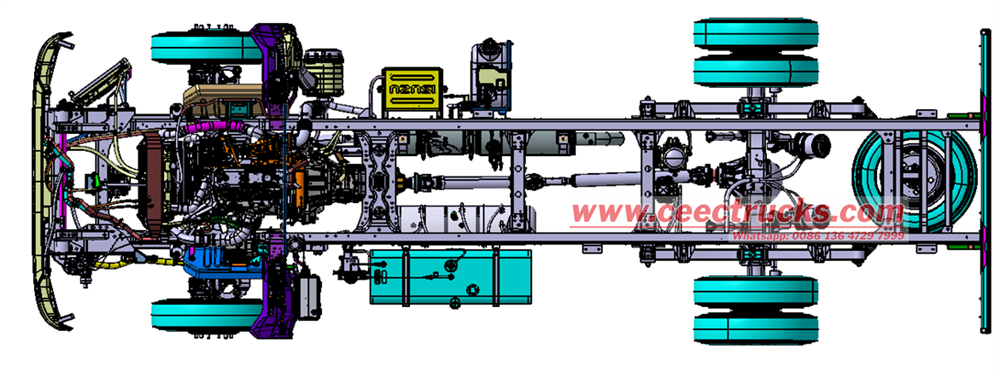

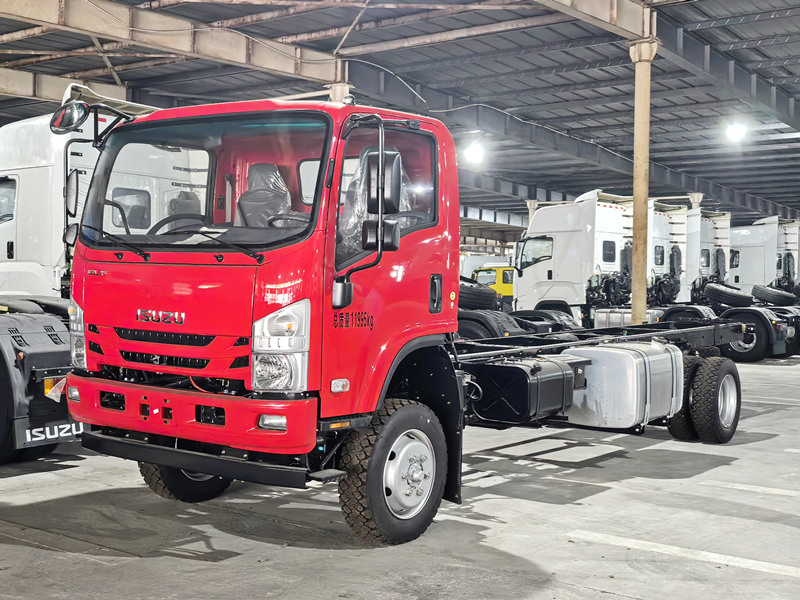

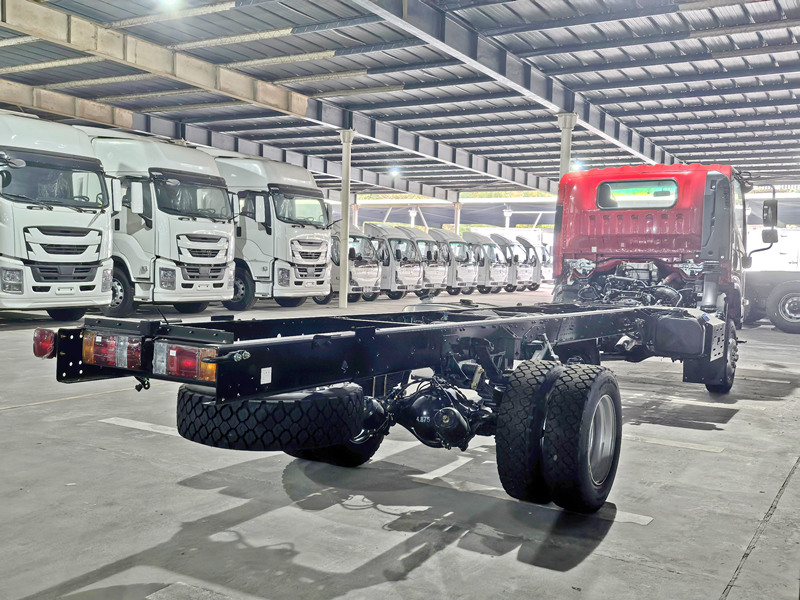

  ISUZU AWD cargo truck chassis
•

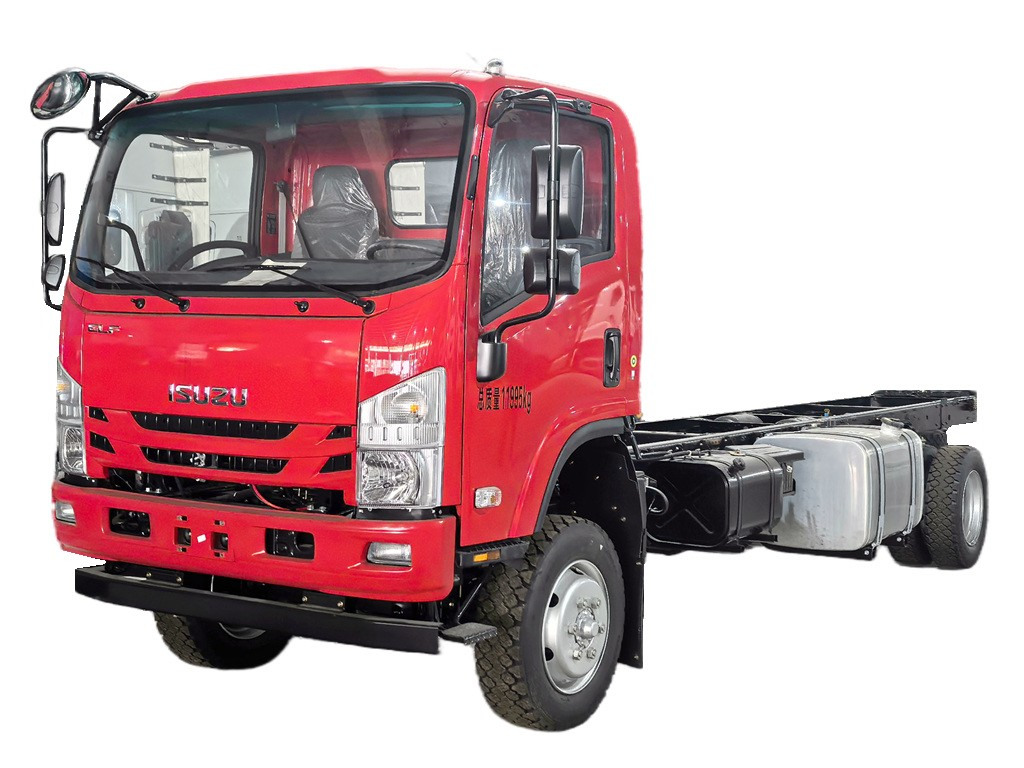

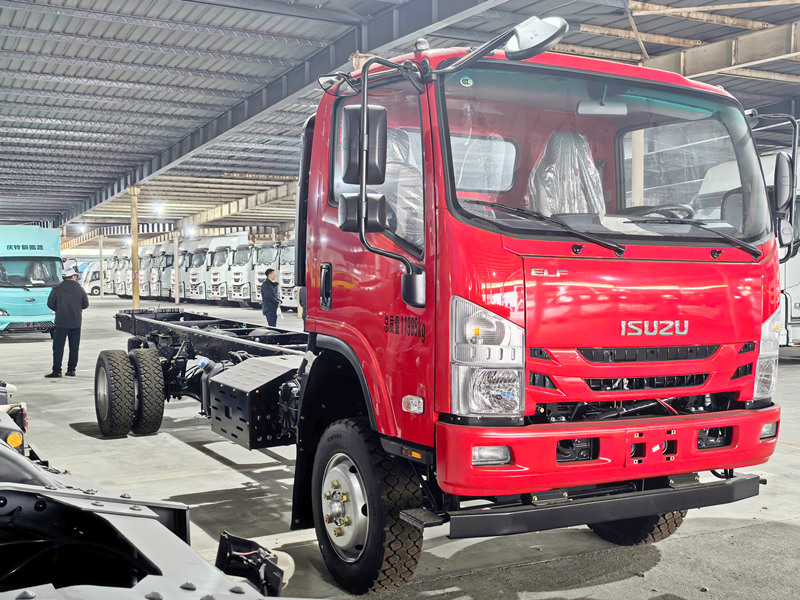

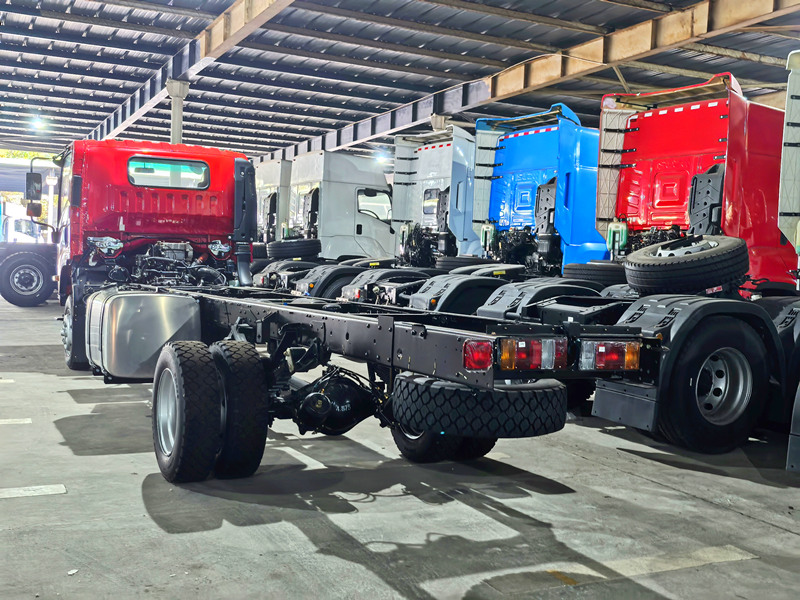

  Isuzu 4x4 offroad cargo truck
•

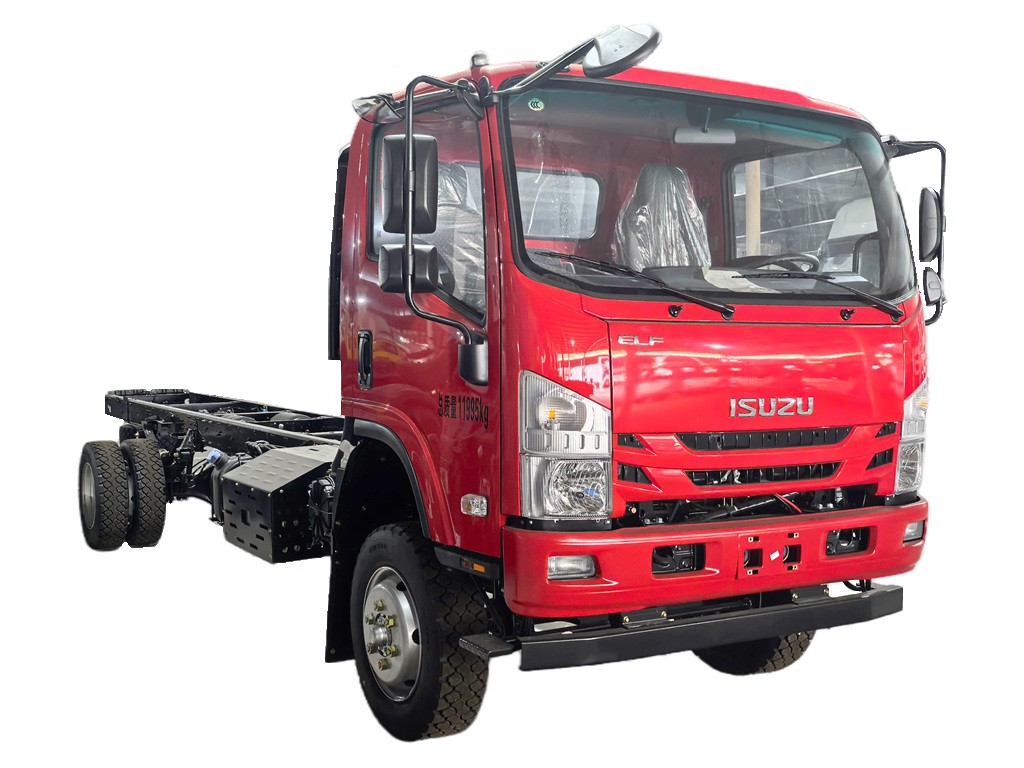

  Isuzu 4x4 offroad cargo truck



▶  Isuzu AWD 4x4 Lorry truck chassis advantages:

ISUZU 4x4 model 6 wheeler offroad cargo lorry truck with multiple advantages, 4HK1-TCG61 model diesel engine with 190HP matched working with MLD 6 shift manual gearbox for lower fuel consumption, which can make 100% meet customer requirement. Below showing for detailed introduction.

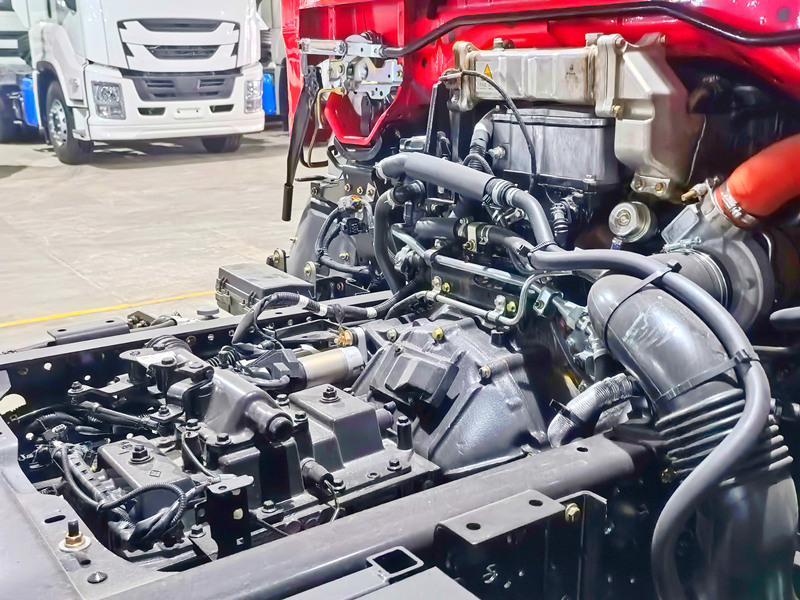

ISUZU truck chassis 4HK1 engine



Janapese ISUZU diesel engine, 4HK1-TCG61 model, 4 cylinder in line, 140KW / 190HP, emission 5193cc, maximum torque can be 510Nm.

EURO 6 emission standard. Customized to remove DPF and ADBlue, also reprogram the ECU to make truck working as EURO 3/4.

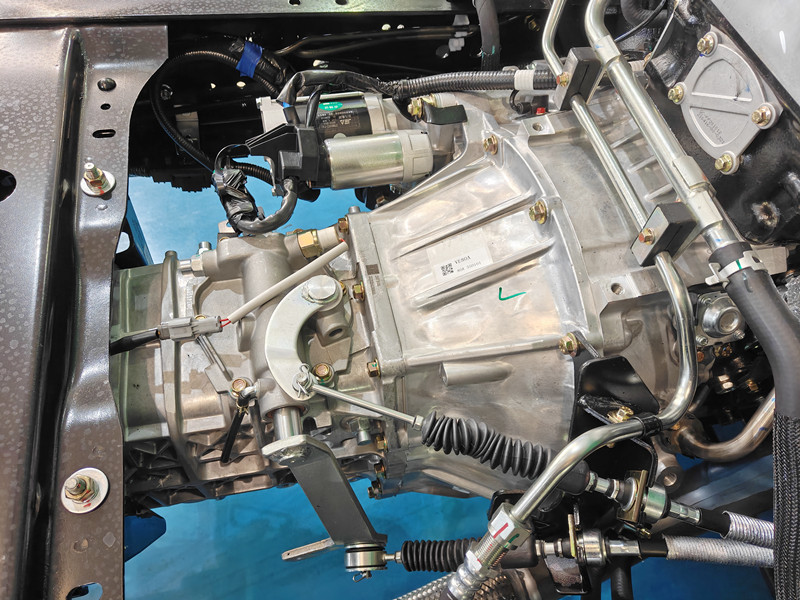

ISUZU MLD 6 shift manual gearbox



Isuzu 700P truck with 4HK1 diesel engine 190HP, 4x4 offroad cargo truck chassis equipped with manual MLD model transmission gearbox, with 6 forward and 1 reverse back. Transmission efficientcy of up to 98%, minimizes power loss and ensures more efficient and smoother power transmission of the vehicle.

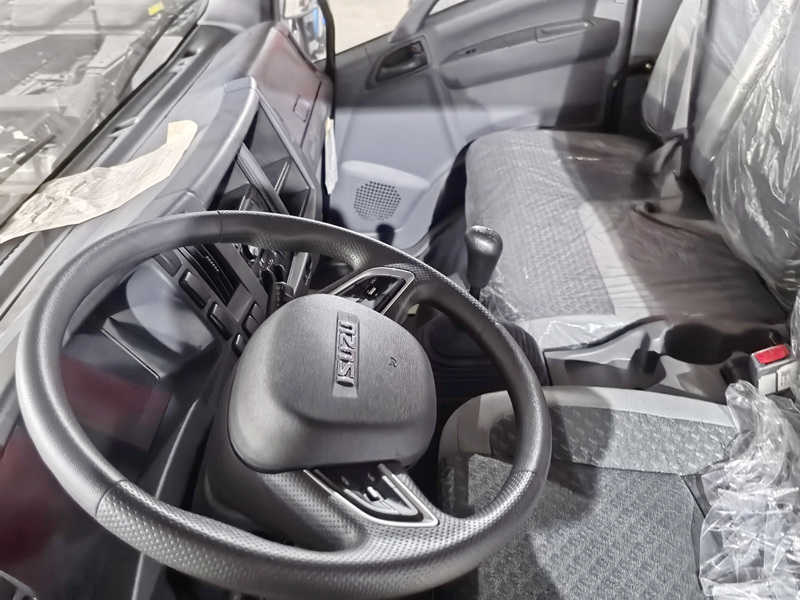

ISUZU NPR cabin with mechanical adjustable seat



Newly generation 700P truck cabinet, comfortable and big enough for 3 adult seat, all the seats are mechanical adjustable, and the longer seat cushions providing better thigh support for the driver during long distance driving. Full LCD instrument panel with high resolution and clear display.

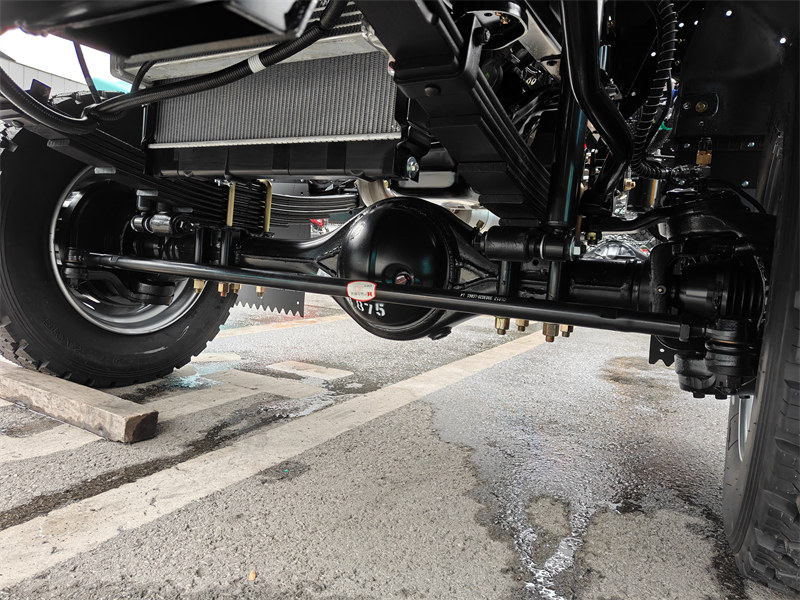

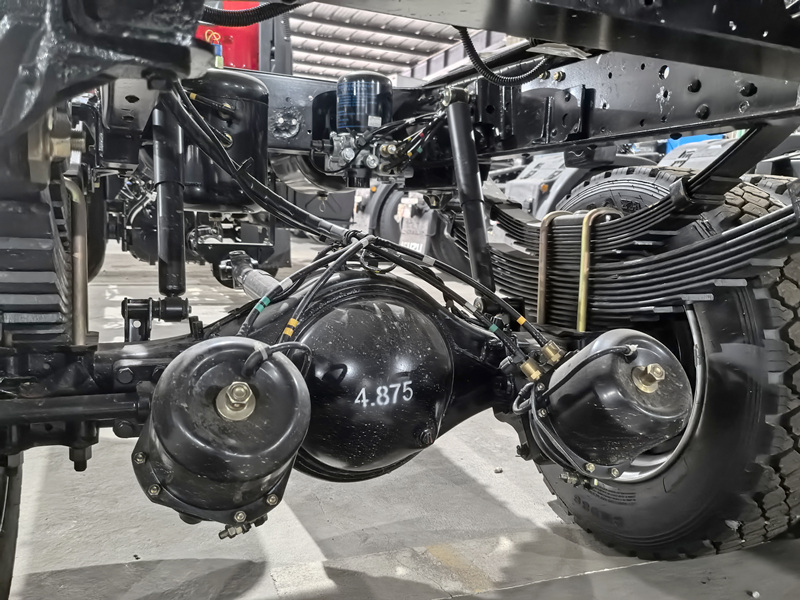

Stronger frame and axle assembly



Isuzu cargo truck is produced based on 4x4 offroad driving model, integrated truck frame for strong capacity, the rear axle speed ratio can be 4.875, which is smoothly for driving and lower fuel consumption. Also with ABS for safety

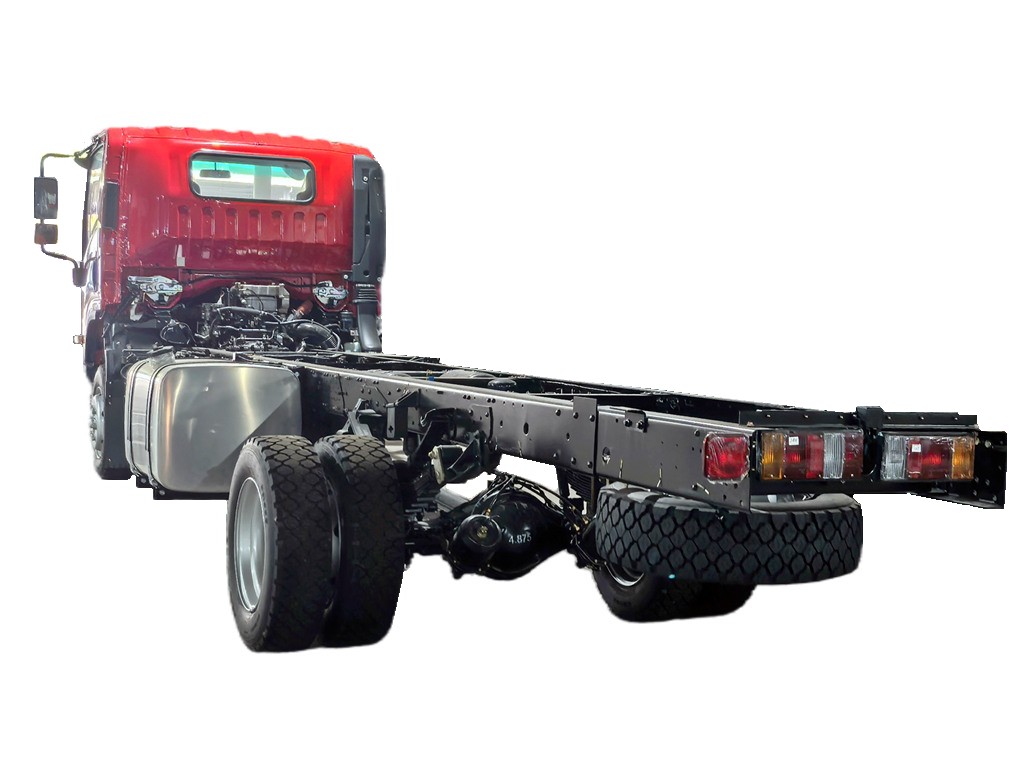

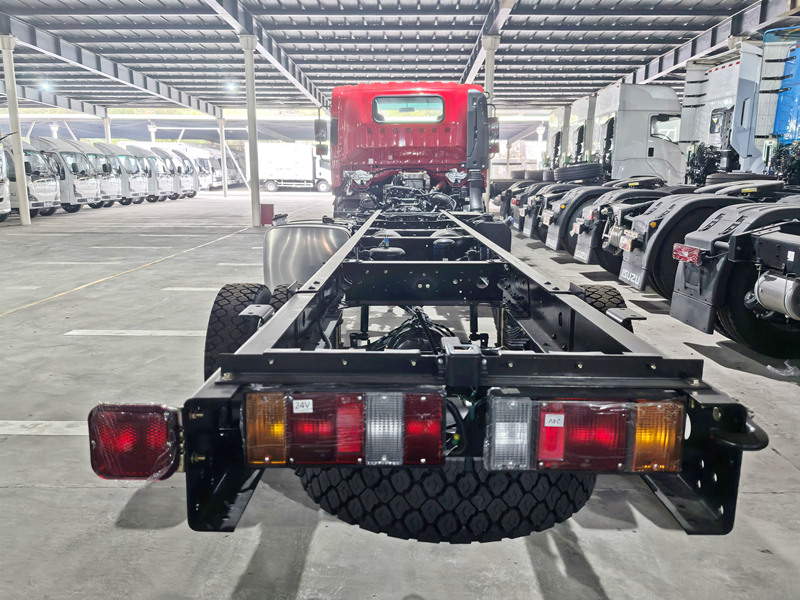

Back view of the ISUZU 4x4 cargo truck

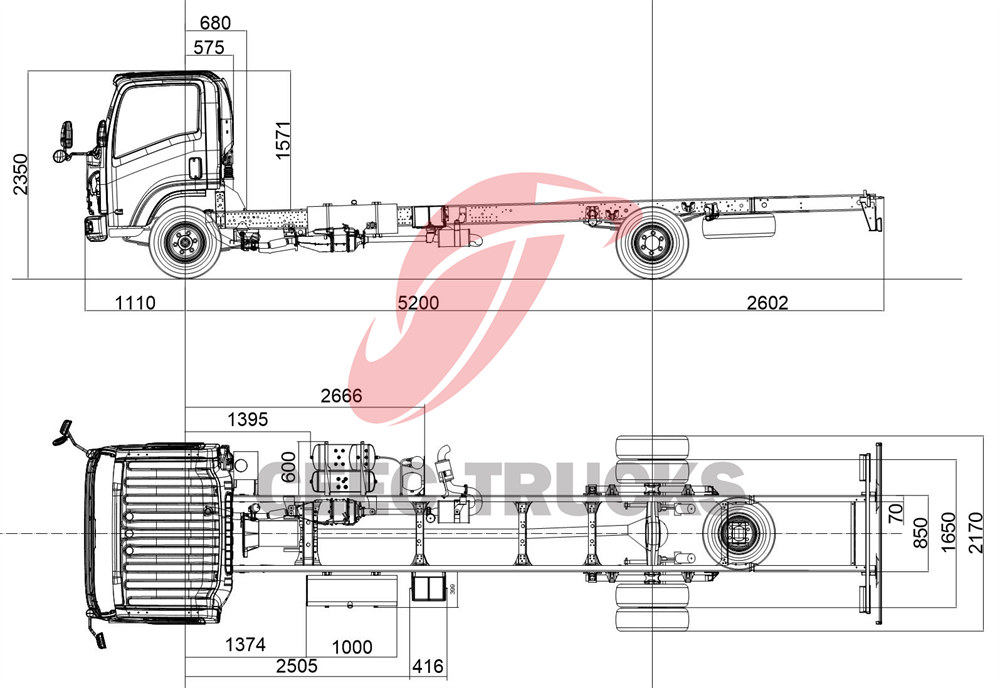

Integrated type frame assemble, with wheelbase longer as 5200mm, rear LED light system with fog light, back up light, brake light etc, all for safety guarantee.

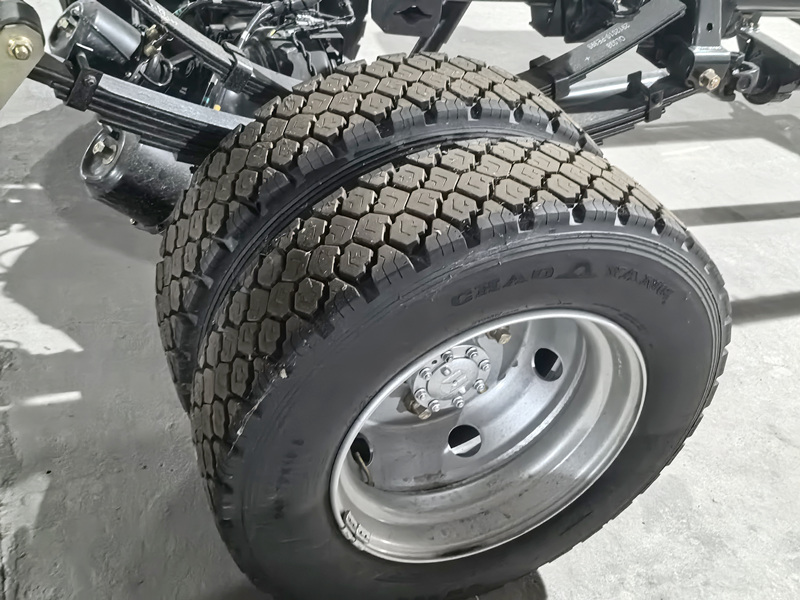

245/70R19.5 all terrain tires



Specialized customized to be installed with AT tires, with model 245/70R19.5, very strong and safety for multiple tough road condition.

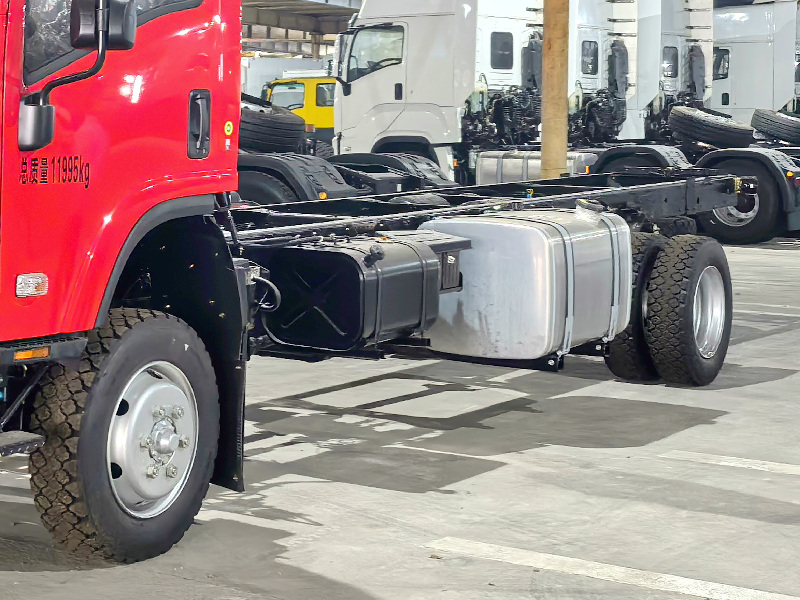

Customized diesel fuel tanker 100L+400L



To safety extend the driving distance, the ISUZU NPR NQR 4WD cargo truck customized to be equipped with 2 sets fuel tanker, one set 100L and one set 400L.



▶  Advanced Features for Isuzu 4WD truck:

ISUZU NPR NQR cargo truck chassis are adopted with completely new optimization of control strategy, mainly including below three parts:

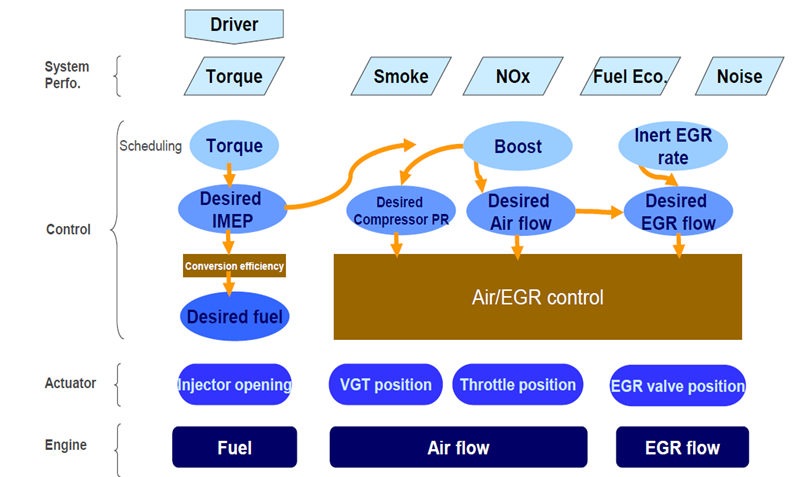

Modular Electronic Control System



More close to actually usage

Improve the truck power output

100% customized usage: PTO, Remote Accelerator, Wireless Starter, etc.

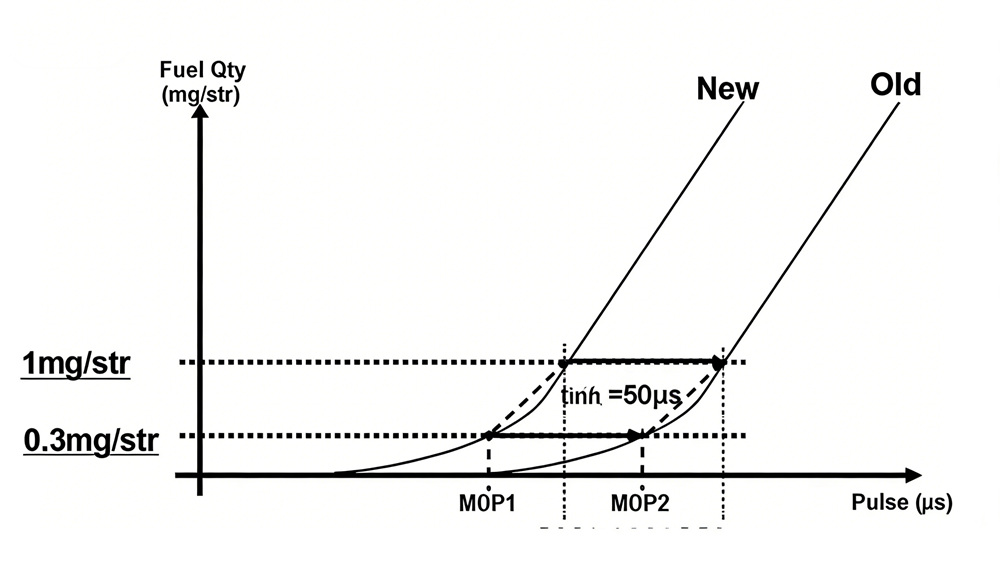

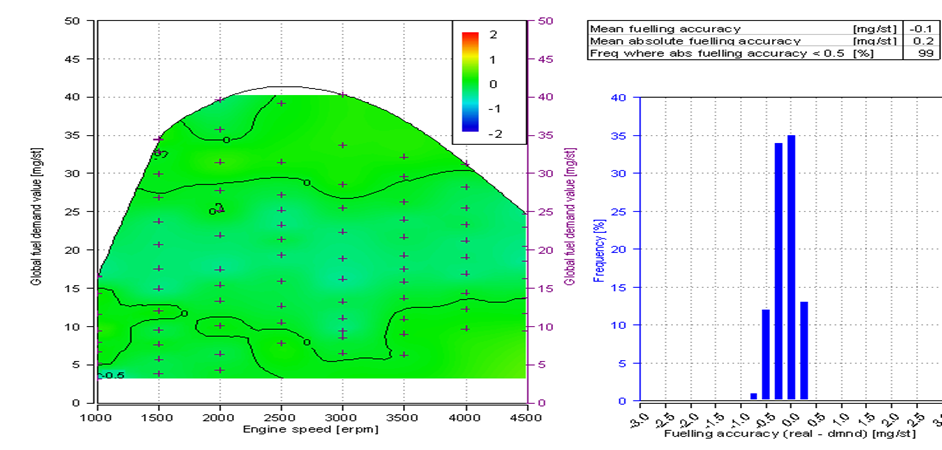

Intelligent Fuel Injection System Self-Learning



Precise fuel injection control
Carry out compensation correction
Better fuel consumption, noise and emissions



Intelligent Closed-Loop Self-Learning of Air Flow Deviation



100% guarantee the ISUZU truck power output efficiently

Emission not exceed the standard





▶  Customized Isuzu 4x4 truck chassis:

ISUZU 700P medium truck chassis can be customized with 4x4 offroad model, Truck with Off-road functions mainly used in bad road conditions, with recommend speed not too high. Detailed notice as below showing:



1. Off-road truck not allowed driving with speed over 50km/h. If speed at 50km/h, truck should stop for one hour after 3~4 hours continue driving, which can dissipate heat from the gearbox. Carefully checking gearbox air hole after long time driving, if have oil overflow, which means the gearbox temperature too high.

2. Strictly avoid misoperation, 4x4 Four Drive model can be only used at Low Speed. 4x2 Two Drive model can be optional at High Speed & Low Speed change, Two Drive & Four Drive can be only operated when truck stopped. Because misoperation during driving will damage the axle.

3. Front Axle Maintenance: Add grease every week; Change new axle oil every 1500km / 3 months; Change new gearbox oil every 2000km(Oil volume approx. 4500ml)

4. No Overloading Operation: Strictly forbidden overloading.

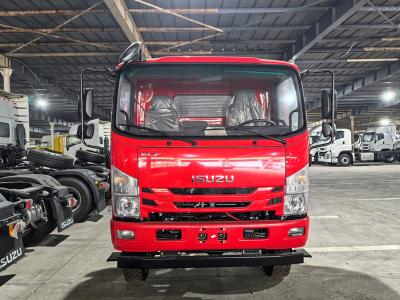

Original ISUZU 4x4 offroad cargo lorry truck, equipped with NPR NQR ELF cabin, with in cabin control box and can be efficiently used for very tough road condition. Also matched working with 245/70R19.5 all terrain tires.
