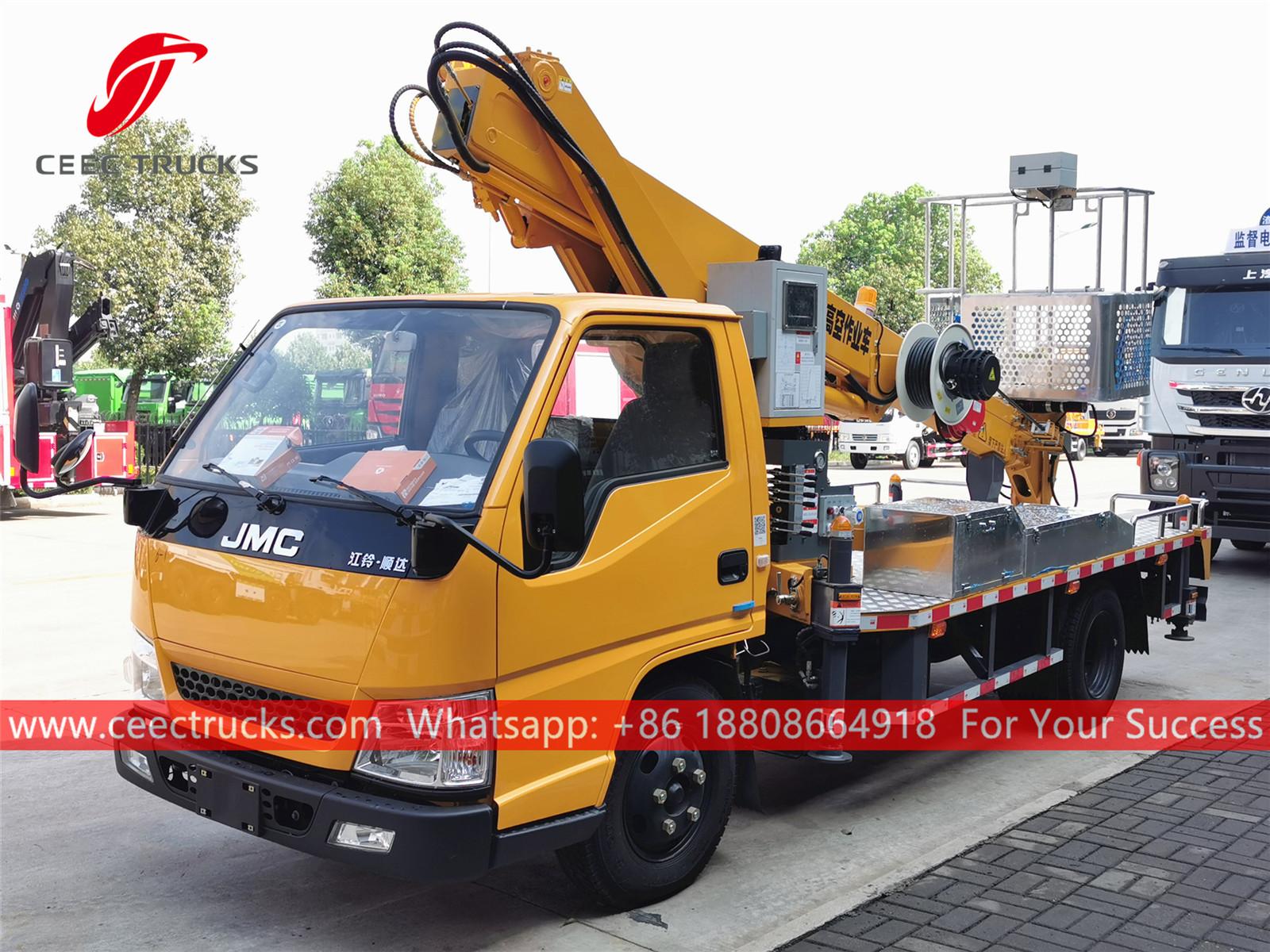

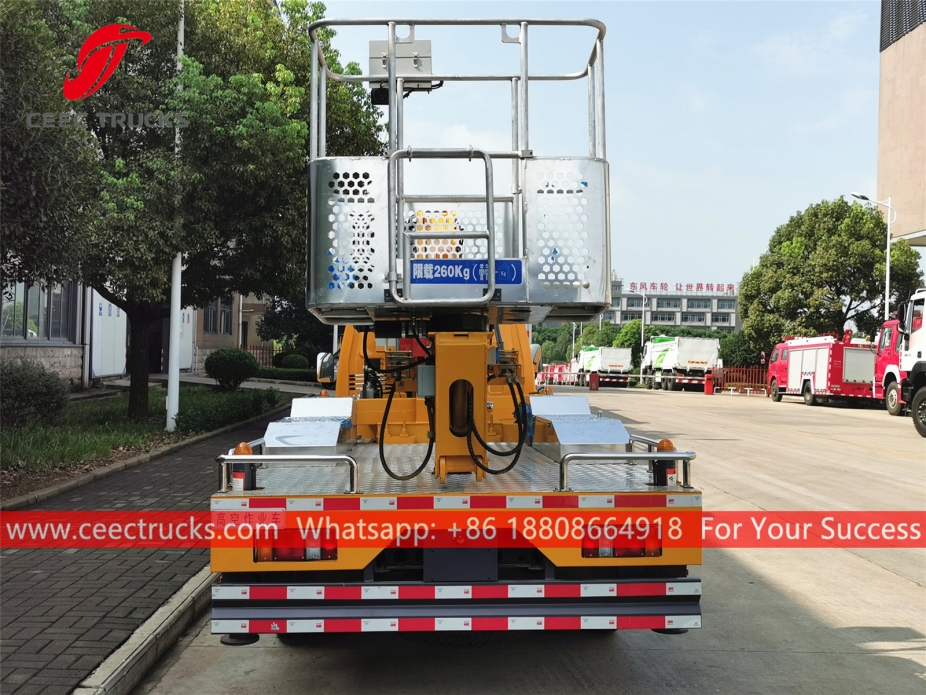

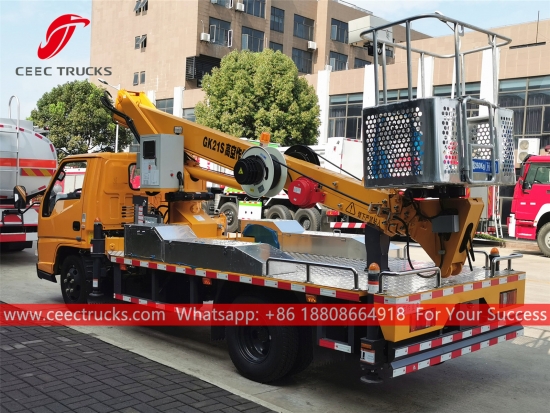

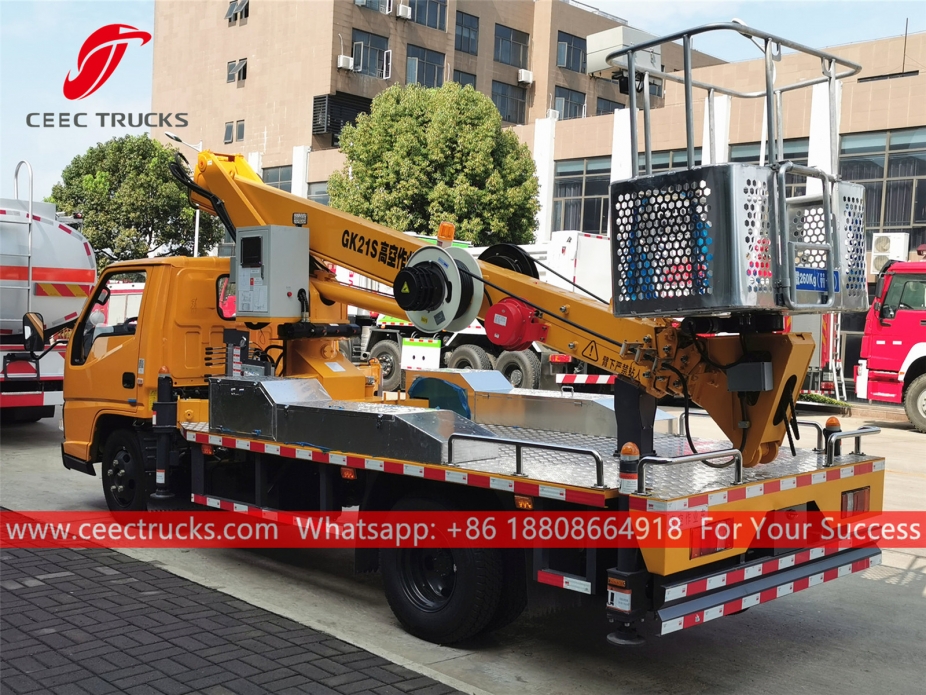

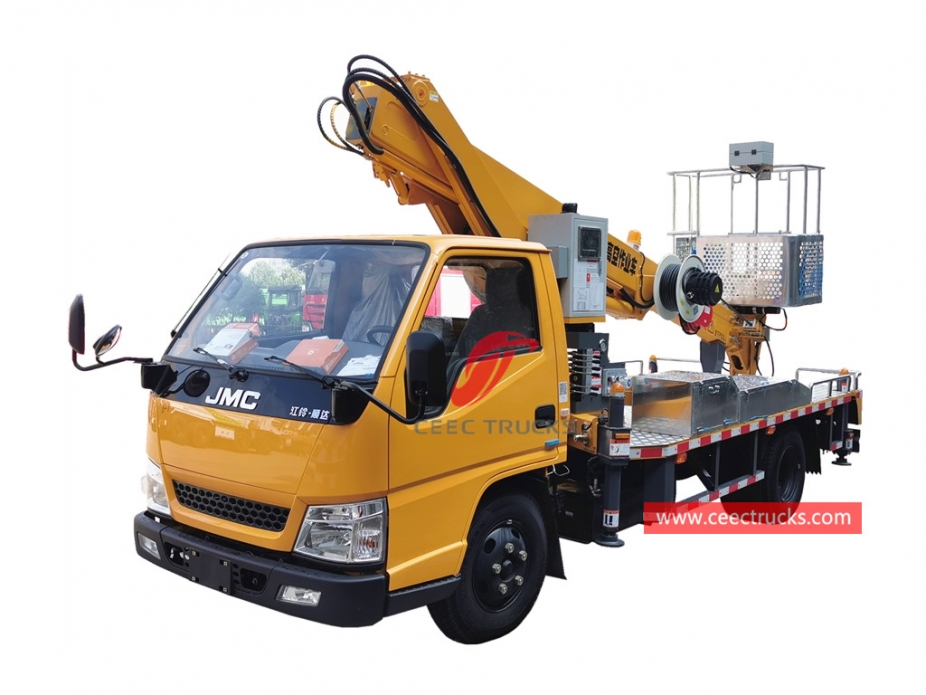

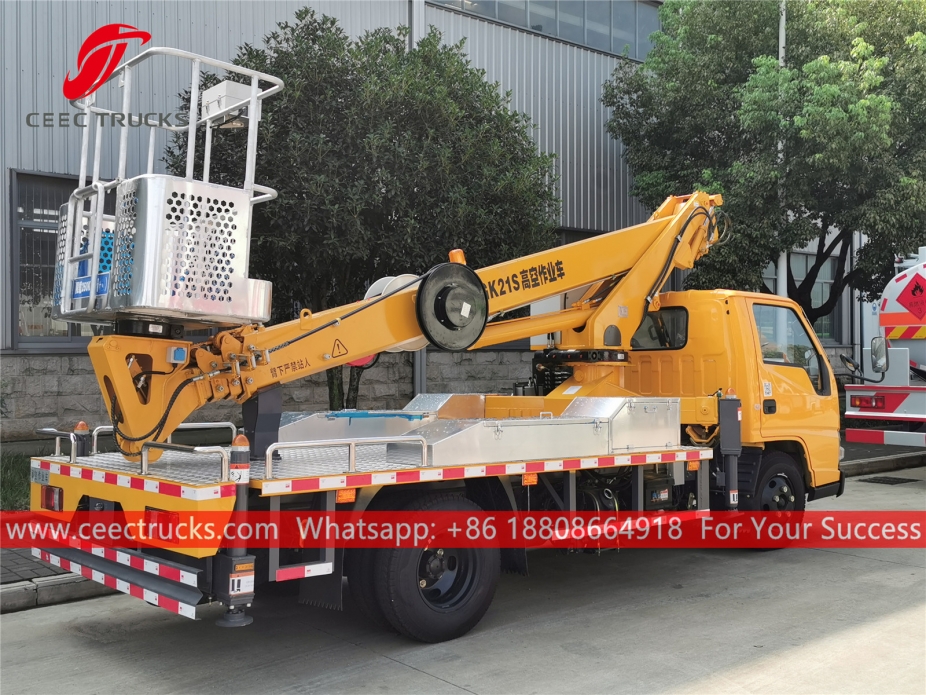

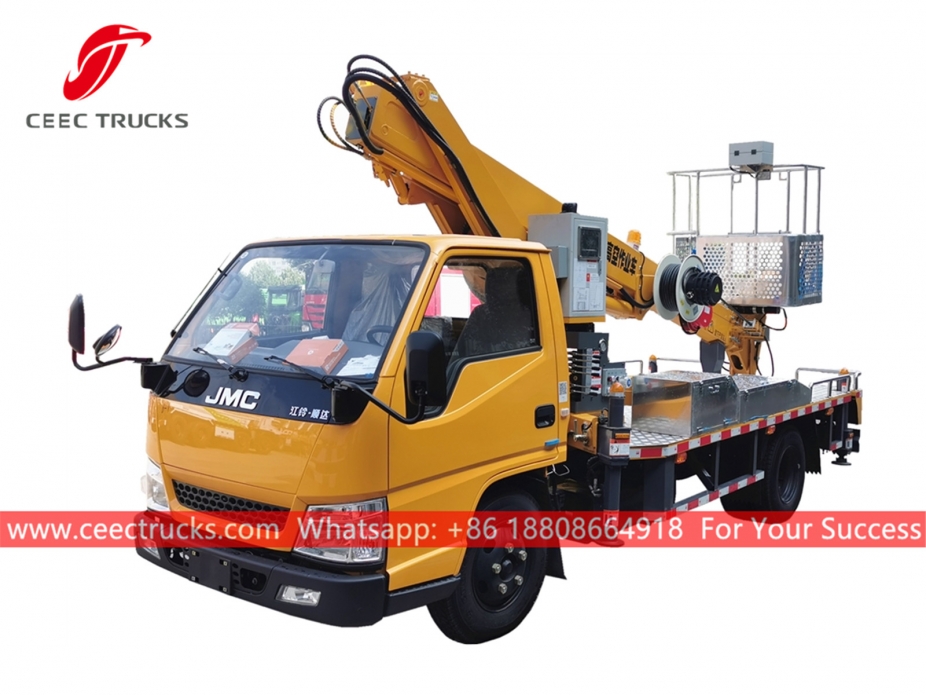

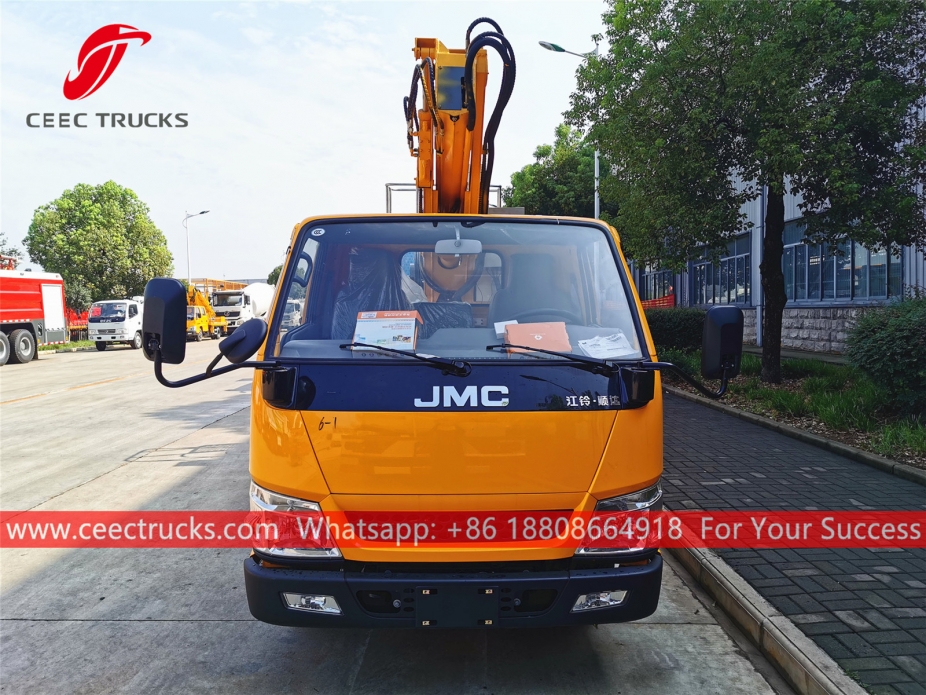

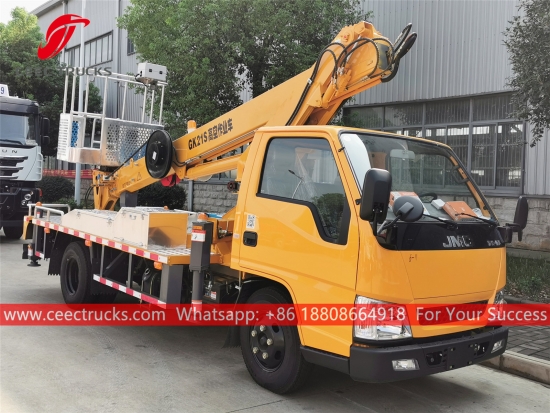

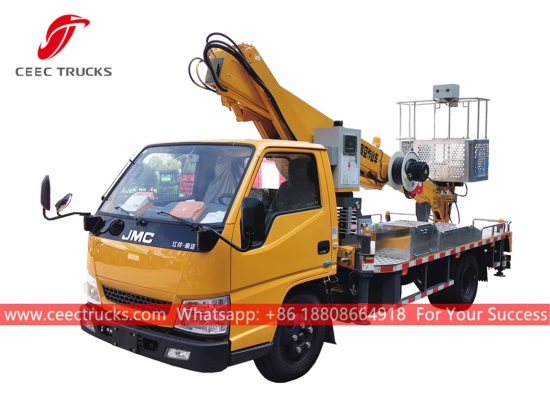

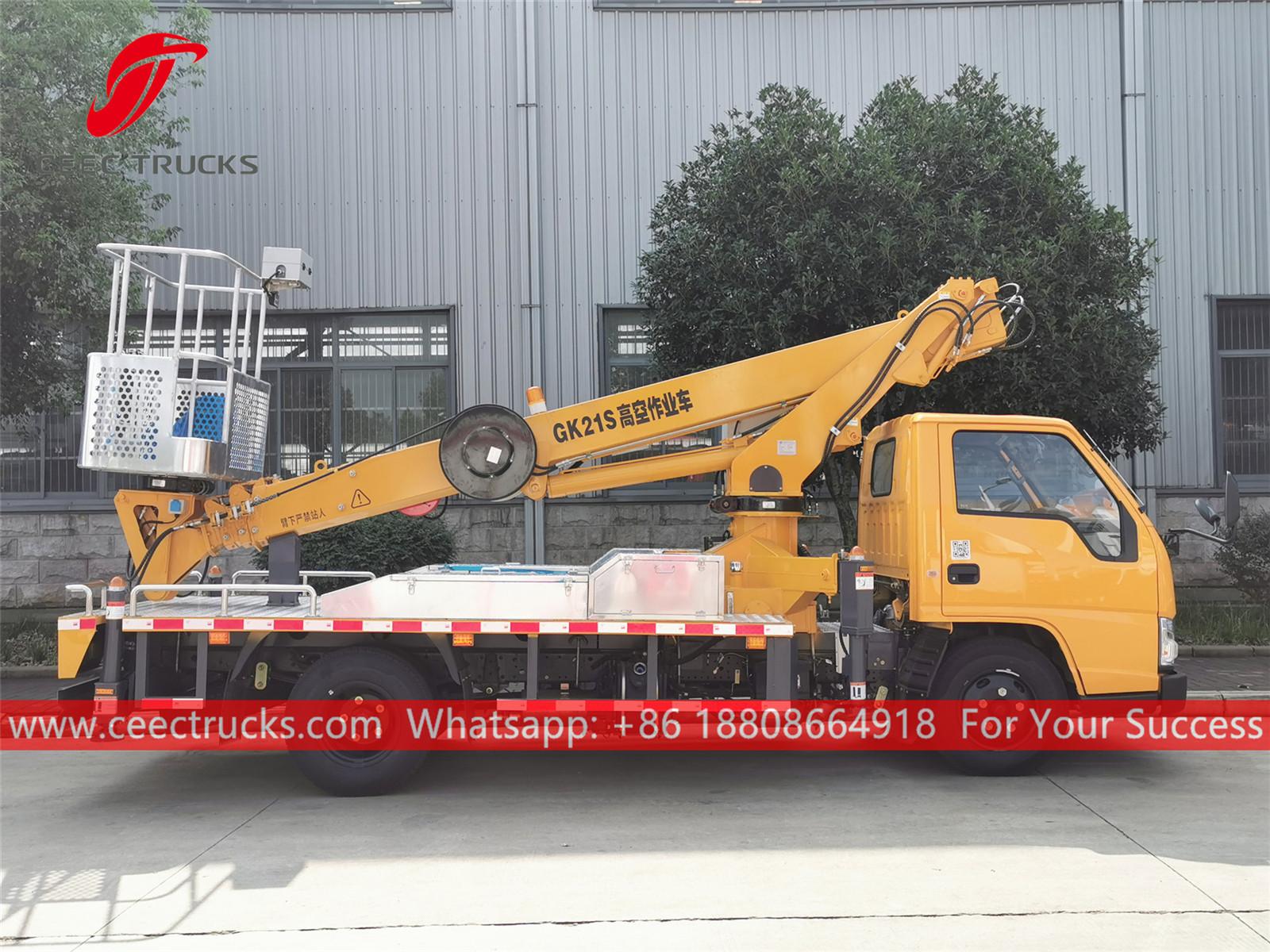

JMC 16m Aerial Platform Vehicle

16m telescopic man lifting truck, JMC LHD 4x2 chassis, 5-shift manual gearbox, JMC 115HP diesel engine, painting and logos depend on requirement. Customer language control box.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now



 Applications:



JMC 16m Telescopic Boom (also called Aerial Work Platform Truck, JMC Truck mounted boom lift, low price man lifter, High Platform operation truck, 4x2 High altitude work vehicle, arm lift bucket truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.



CEEC TRUCKS can supply aerial platform truck from 6m-8m, 8m-12m, 14m-16m, 18m, 20-24m, 28m-32m.Insulated cage is optional.



 Key Features:



---- JMC chassis, perfect performance

---- JMC engine, super powerful, no overhaul within 100,000 km.

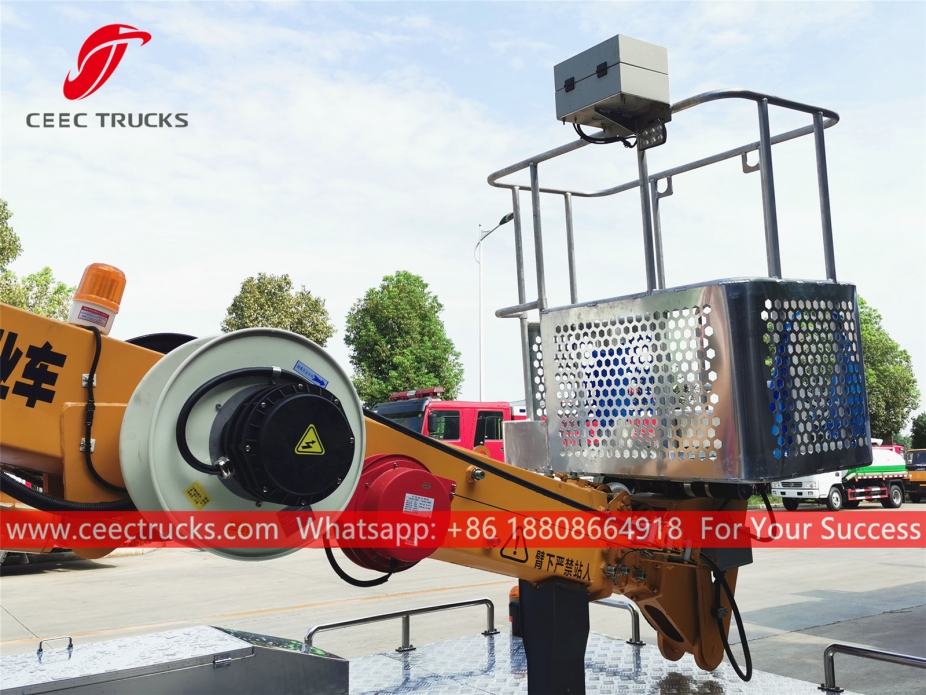

---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);

---- 4pcs outriggers and front support improve operation stability and safety;

---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;

---- Wireless remote control system is available.



 Specifications:



Telescopic Arm Aerial Platform Truck JMC (16M)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

JMC

Overall Dimension

5995 x 2050 x 2900 mm

GVW / Kerb Weight

4,495 kg / 4,365 kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

With air conditioner

Engine

Fuel Type

Diesel

Engine Brand

JMC

Power

115Ps (85 KW)

Displacement

2771 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, left hand drive

Transmission

5-forward gears & 1 reverse, no overhaul within 500,000km

Wheelbase/No. of axle

3360 mm / 2

Tyre Specification

7.00R16

Tyre Number

6 tyres and 1 spare tyre

Max Speed

100 km/h

Paint

Metallic paint

Superstructure

Cage Rated Capacity

200 kg

Working Height

  16m

Beam

The beam is articulated & telescopic extension type, hydraulic actuated and controlled

Slewing

Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.

Control

Control both on the ground and remote control in cage

Safety Device

Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump

Leveling System

Hydraulic stabilizer to level the vehicle on uneven ground

Optional

Insulated cage; Wireless remote control system

JMC engine, super powerful

Can be operated at both turret and platform with all English version control plate

12 months fast moving spare parts for FREE

Authorized JMC aerial platform vehicles exporter

Training service for JMC aerial work platform trucks



CEEC TRUCKS is a leading exporter of aerial platform vehicles in China. We possess over 10-year export experience of high platform operation vehicles. We can ensure the fast delivery time and 12 months guarantee for our sewage trucks. Our man lifter trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
