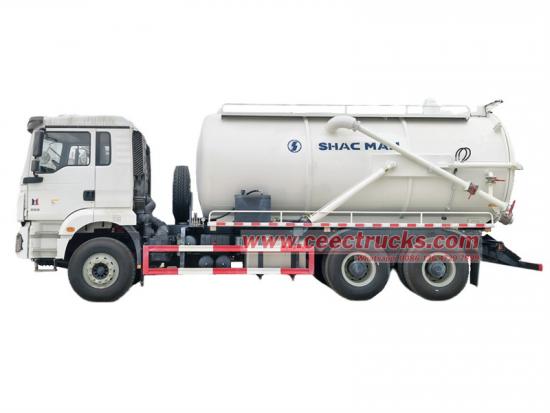

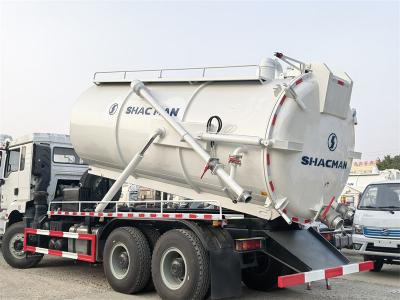

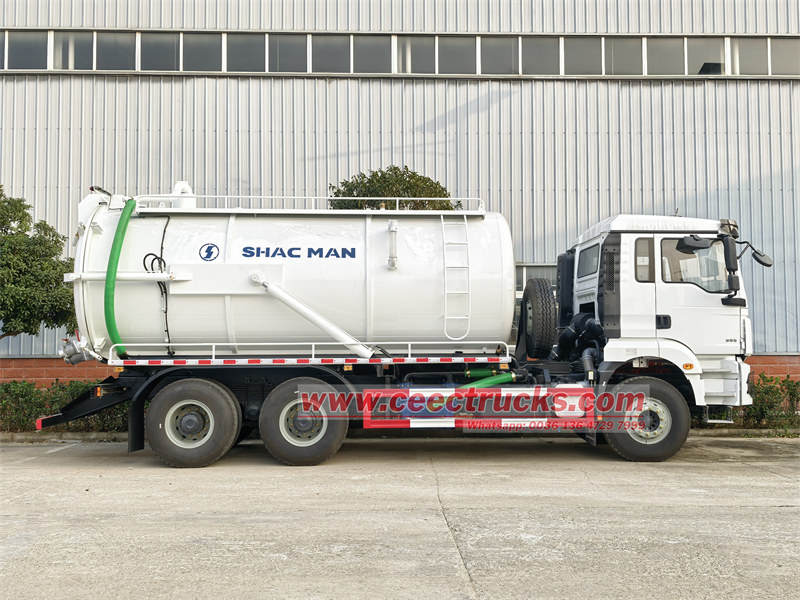

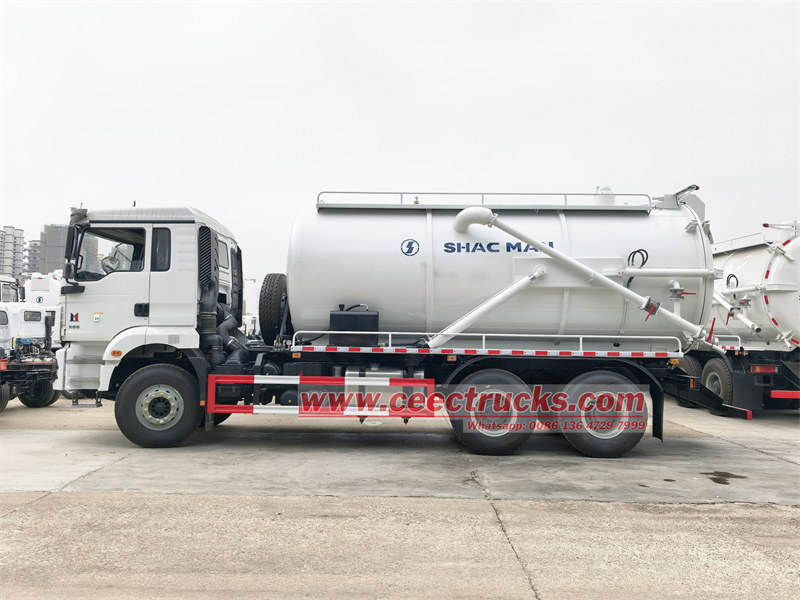

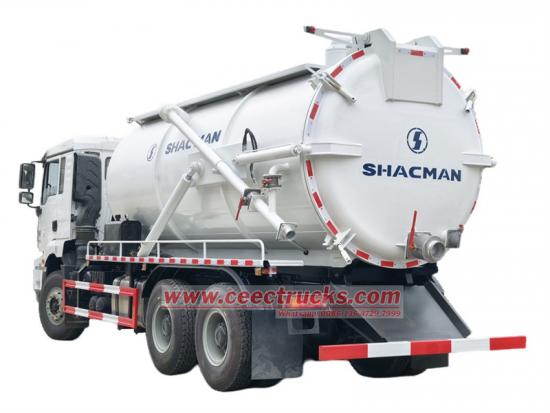

Heavy duty SHACMAN vacuum sewer tanker truck is designed based on H3000 series 6x4 heavy duty truck chassis, equipped with 20000Liters heavy capacity sewage tanker body, matched working with top Chinese brand water cycle vacuum pump 2BE-204, available for pump in and pump out process, suitable for park, community, airport, station and other area, which can efficiently service for sewage suction and transportation, and avoid second pollution.
Work capacity:
20000LDimension ( mm ):
9500*2500*3300 mmWheelbase ( mm ):
4375+1400 mmEngine power:
340HPEngine type:
CUMMINS ISM11E5Axle drive:
6x4, LHDGear box:
FAST gearbox,10 forward and 2 reverseRemarks:

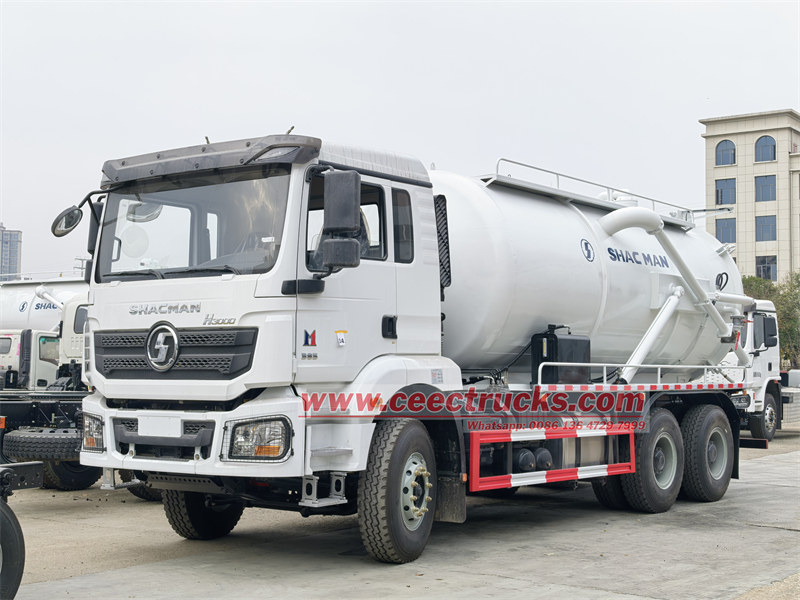

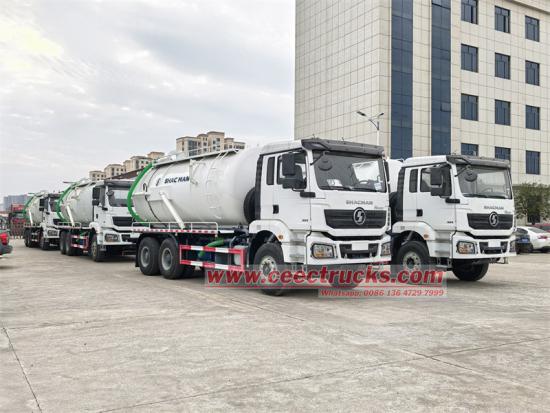

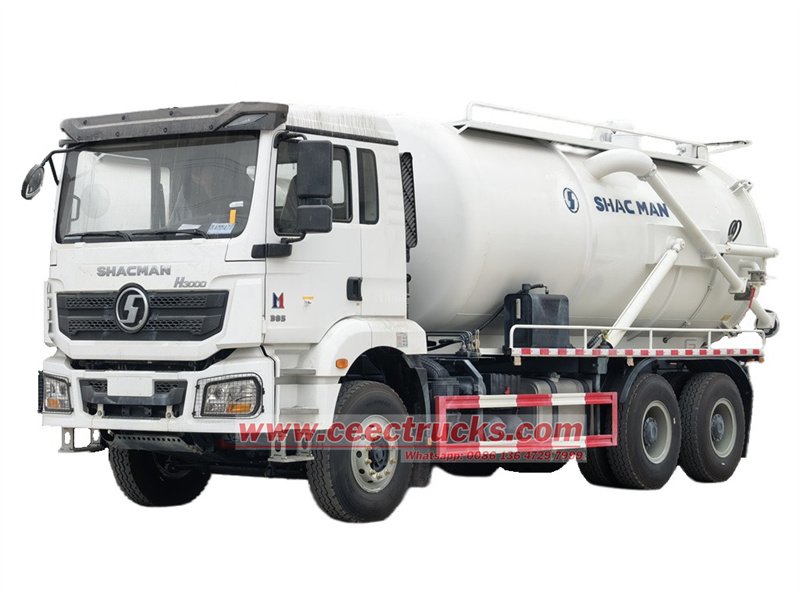

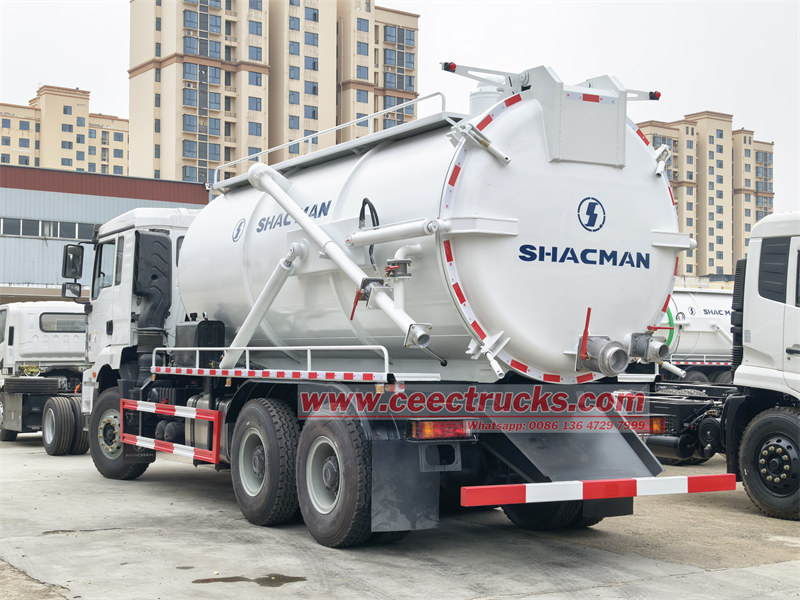

Water cycle vacuum pump for efficiently workingSouth America customer purchased SHACMAN H3000 series vacuum septic tank truck is a vehicle specially designed for efficient sewage suction and transportation. It is built on the Top Chinese brand SHACMAN 6x4 truck chassis and is equipped with an advanced American CUMMINS diesel engine, which provides powerful power and stable performance, ensuring excellent performance under various operating conditions. The Shacman cesspit emptier is equipped with a large-capacity vacuum tank withh volume 20000Liters, based on Q355 material and thickness 6mm, two side cover thickness 8mm. Water cycle model 2BE-204 vacuum pump with efficiently flow rate 21m3 per minute, marched working with 10m DN100 pipeline hose, which can quickly and effectively absorb all kinds of sewage and debris, significantly improving suction efficiency. At the same time, the durability and reliability of the vehicle have also been carefully designed and rigorously tested to ensure that it can maintain efficient operation under heavy working conditions. After Shacman H3000 cesspit emptier truck arrived for discharge,rear door can be fully open and vacuum tanker lifting up for efficiently working.
CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
▶ Features:
★ 283KW / 385HP powerful CUMMINS diesel engine, 100,000 Km without prblem.

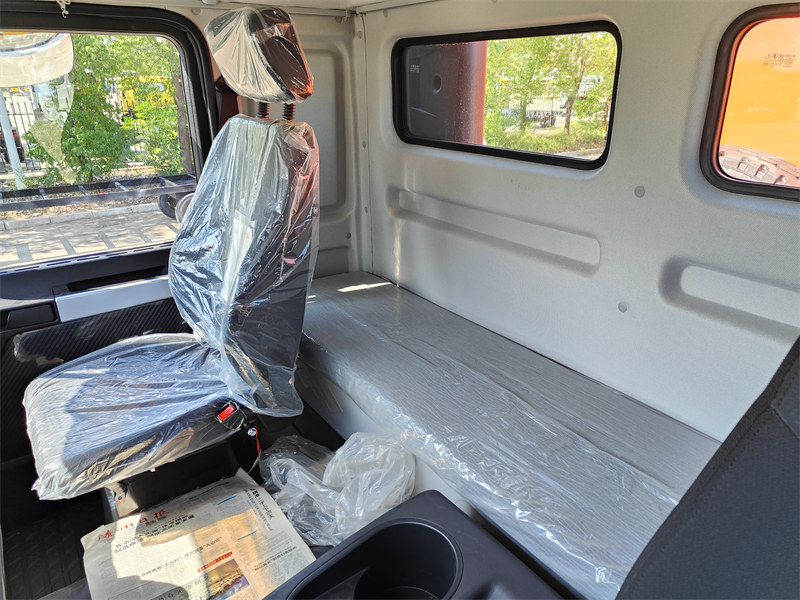

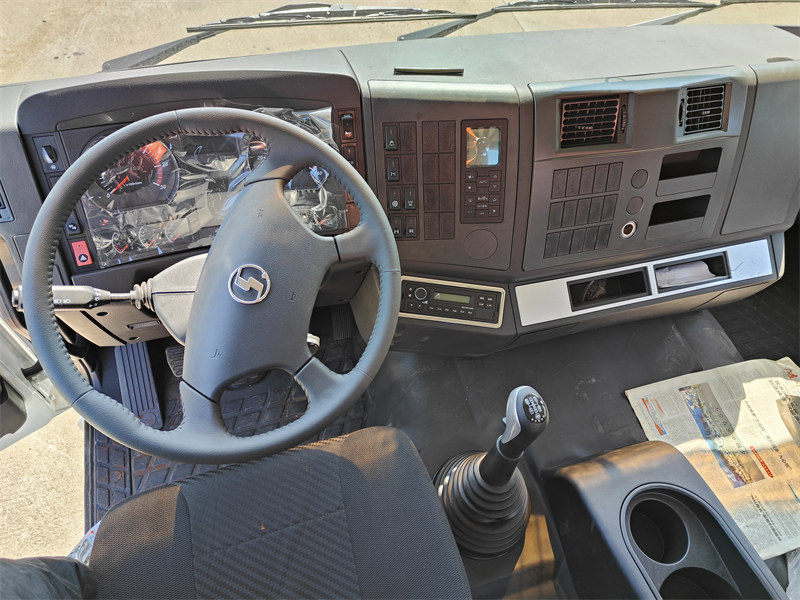

★ SHACMAN H3000 newly cabin, Europen design
★ Mounted 2BE-204 vacuum pump, 21m3/min flow rate, super reliable

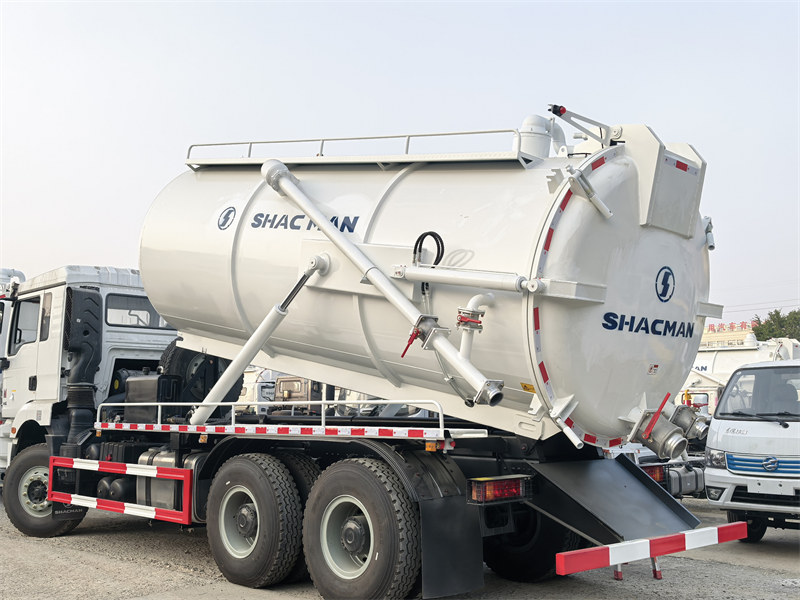

★ 20000Liters vacuum tanker, Q355 material, durable service

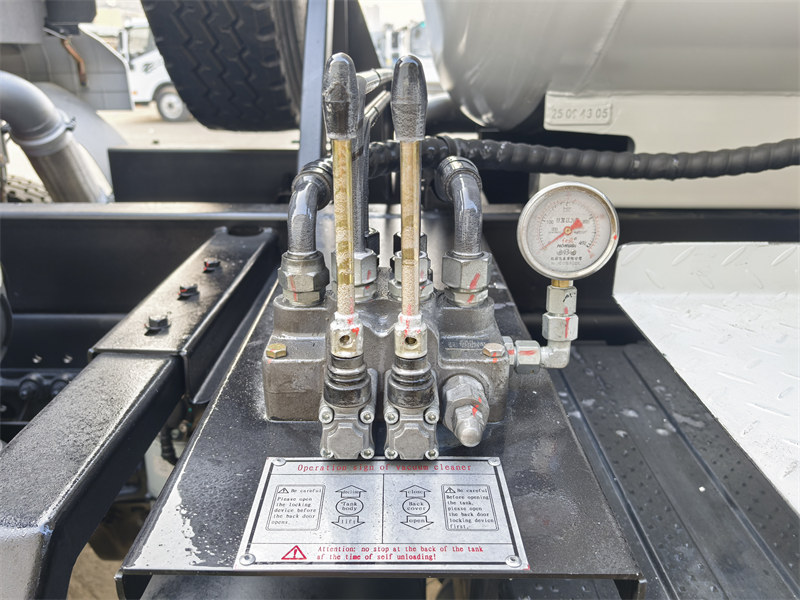

★ Integrated hydraulic control system
▶ Product Parameters:
| SHACMAN H3000 Vacuum Tanker Truck (20,000Litres) | ||
| General | Vehicle Brand | CEEC TRUCKS |
| Chassis Brand | Shacman H3000 | |
| Overal lDimension | 9500*2500*3300mm | |
| GWW/Kerb Weight | 25,000kg/11,870kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | with air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | CUMMINS diesel engine ISM11E5 | |
| Power | 385Ps(283KW) | |
| Displacement | 10.8 liters | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 6X4, left hand or right hand drive |
| Transmission | 10-speed front, 2 reverse | |
| Wheelbase/No.of axle | 4375+1400mm/3 | |
| Tyre Specification | 12.00R20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 90km/h | |
| Paint | Metallic paint | |
| Super structure | Tank Capacity | 20,000Litres |
| Tank Material |
Carbon steel Q355 material thickness 6mm and cover 8mm |
|
| Suction Head | 10 m | |
| Vacuum Pump |
2BE-204 model with flow rate 21m3/min Highly efficient,vacuum rate 93%, |
|
| Hose | High quality, wire strengthened hose | |

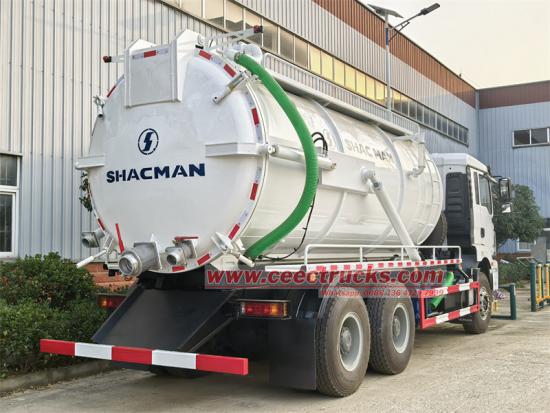

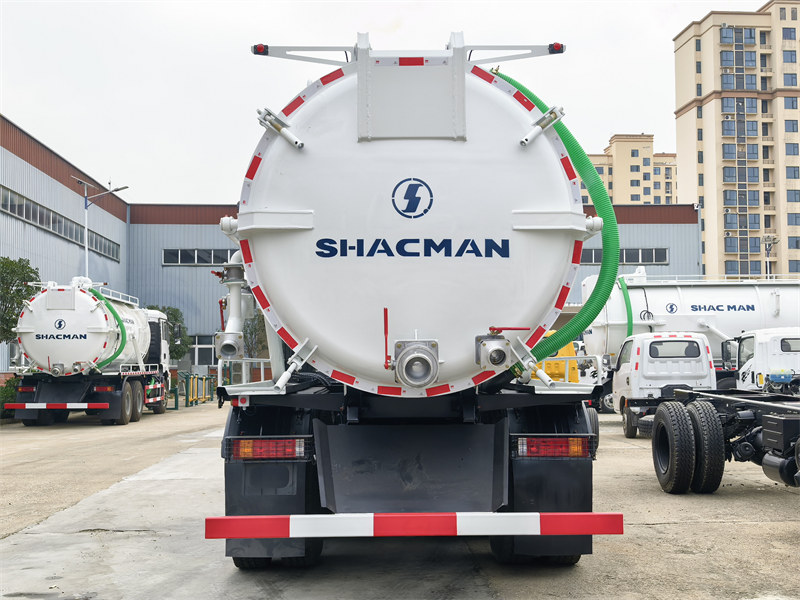

| Rear door can be hydraulic opened for complete discharge of solid stuff. | ||

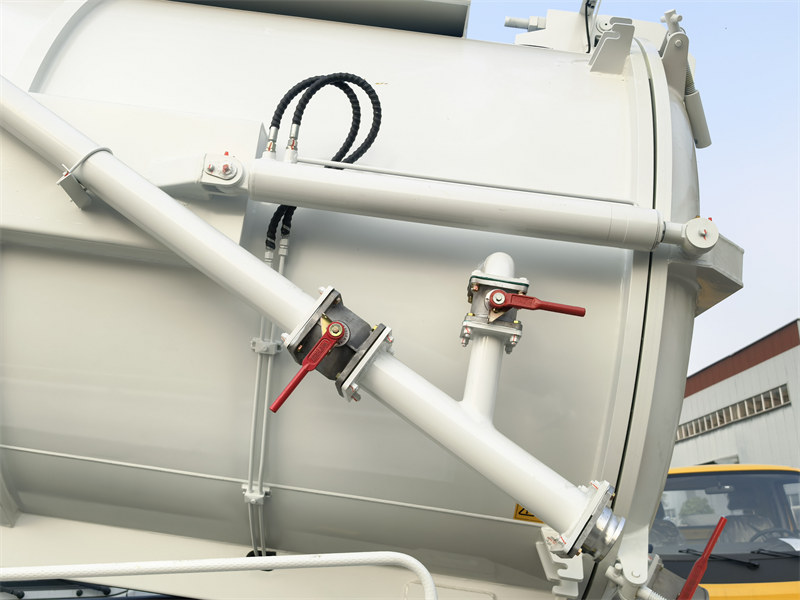

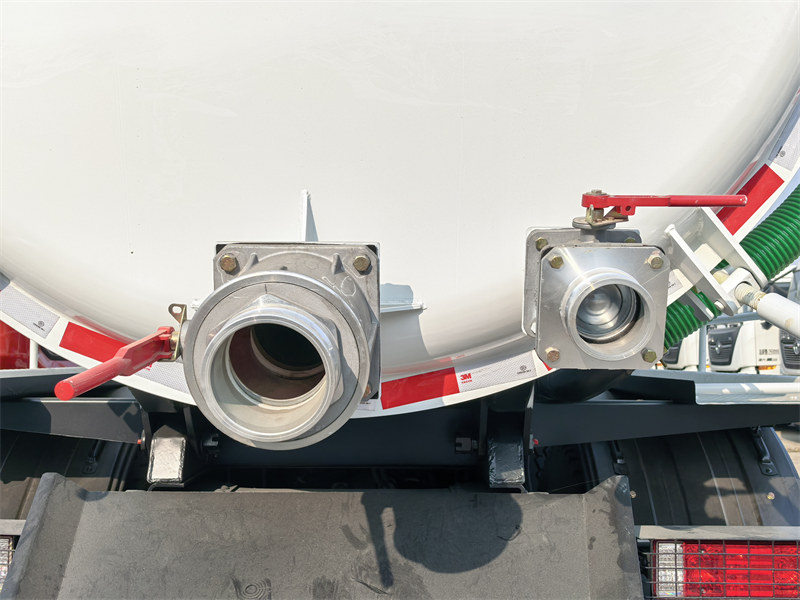

| All standard accessories: inlet,discharge,antifll valve. | ||
| Optional | Tank material could be carbon steel,stainless steel. Vacuum pump could be imported brand. |
|

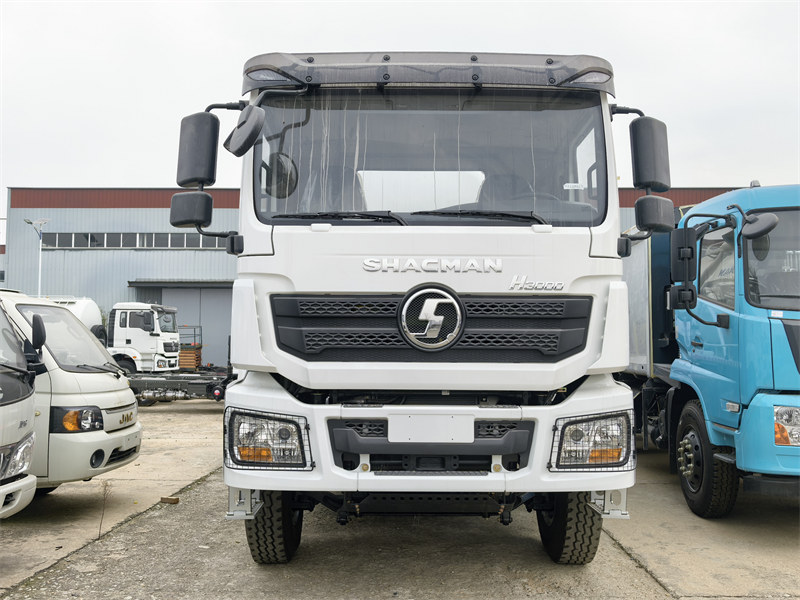

▶ SHACMAN H3000 mounted Cummins engine:
To meet international customer requirement, SHACMAN and CUMMINS have jointly cooperated, and this new generation SHACMAN trucks equipped with CUMMINS diesel engine, with logo M on the cabin door, below with engine power 385HP. The logo M is composed of a blue number 1 and a red number 1 combined together, symbolzing the strong alliance between SHACMAN and CUMMINS, moreover, based on the synchoronous forward integration development mechanism, through resource integration, the two parties have achieved a combined effect of 1+1＞2. And this new type Shacman 385HP vacuum tanker trucks are internation performed.

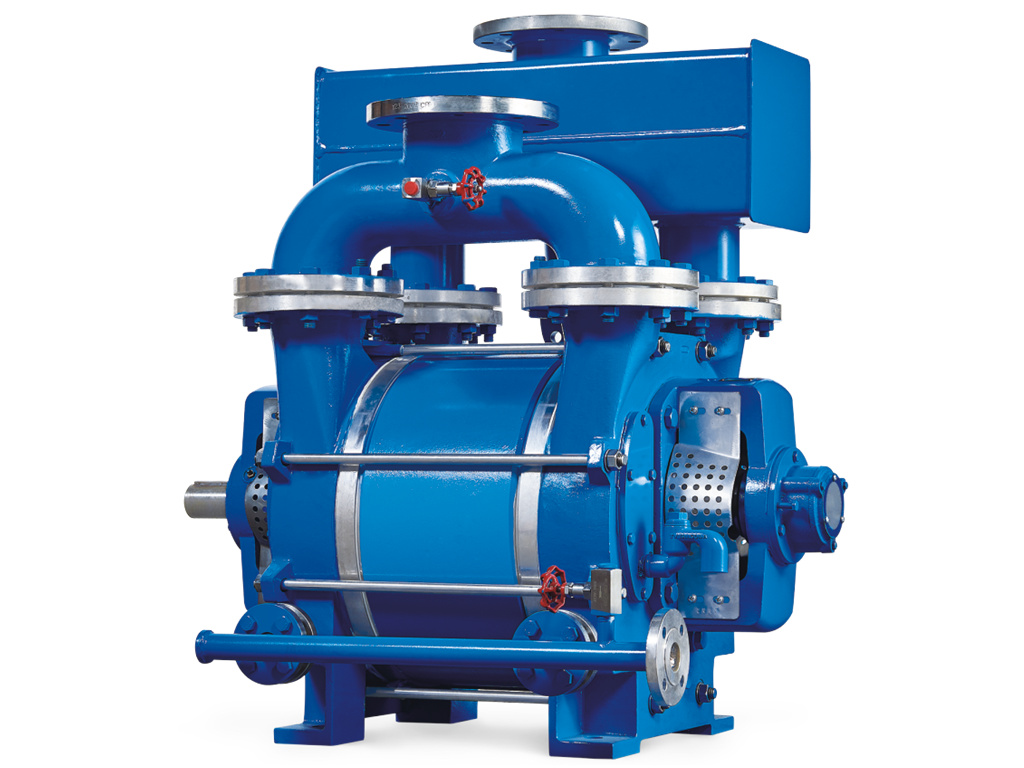

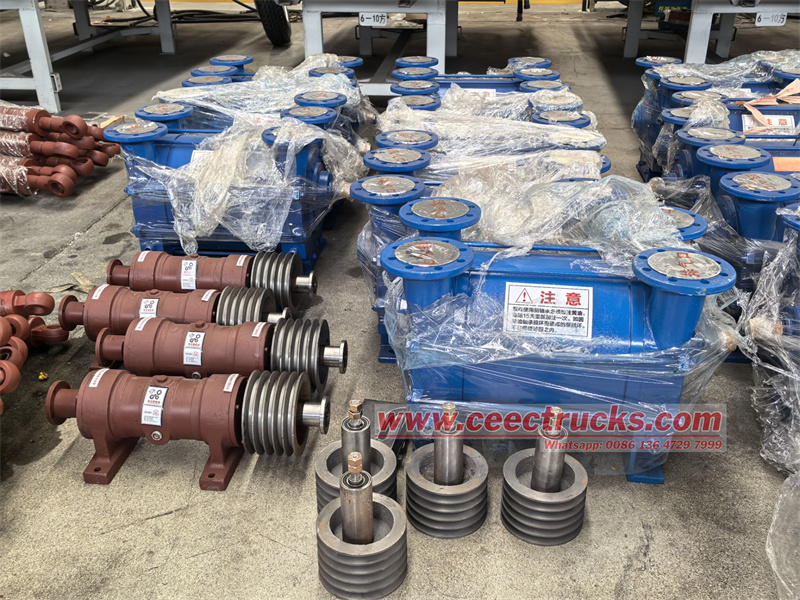

▶ Water cycle vacuum pump 2BE-204:
Shacman H3000 sewage vacuum suction truck equipped top Chinese brand water cycle vacuum pump 2BE-204 model, which is the heart of cesspit emptier truck, used for collect and transfer sludge, septic and sewage with liqiud substances such as feces, mud, crude oil, especially the sewage slurry, silt, stones, brick, debris, blocks and other bulk objects. Efficiently avoid secondary pollution.
2BE-204 vacuum pump
Model: Water cycle
Max. Flow Rate: 21m3/min
Rotate Speed: 980rpm
Maximum Vacuum: 3300Pa
Power: 33kw
▶ Advanced features for Shacman Cesspit Emptier:

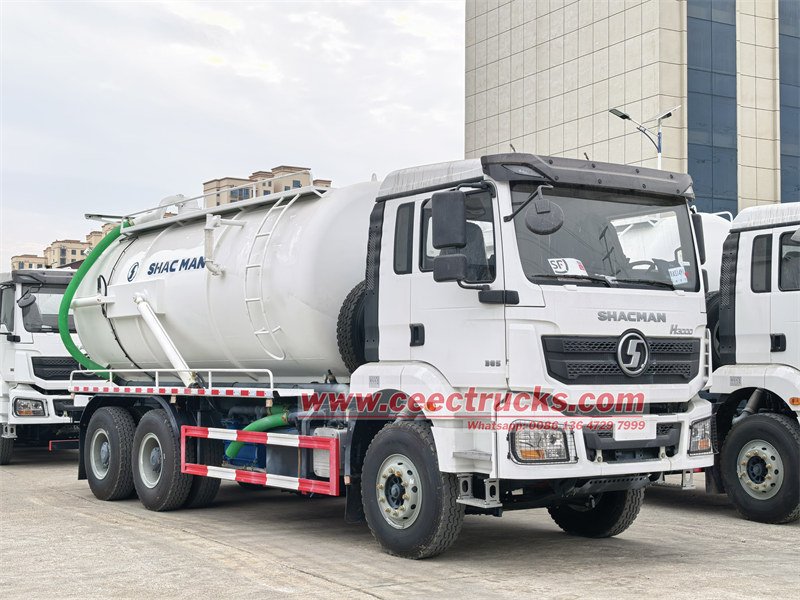

Shacman H3000 vacuum sewage suction trucks, designed primarily for waste removal, are equipped with powerful vacuum systems. These trucks efficiently suck up liquid and semi - liquid sewage, sludge, and other pollutants from drains, septic tanks, and other confined spaces. The collected waste is stored in an onboard tank for transportation to disposal sites. Their main advantage lies in quick and effective waste collection, making them ideal for regular sewage maintenance in residential and commercial areas. And below are advanced features for Shacman 385HP debris vacuum sucker truck.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.

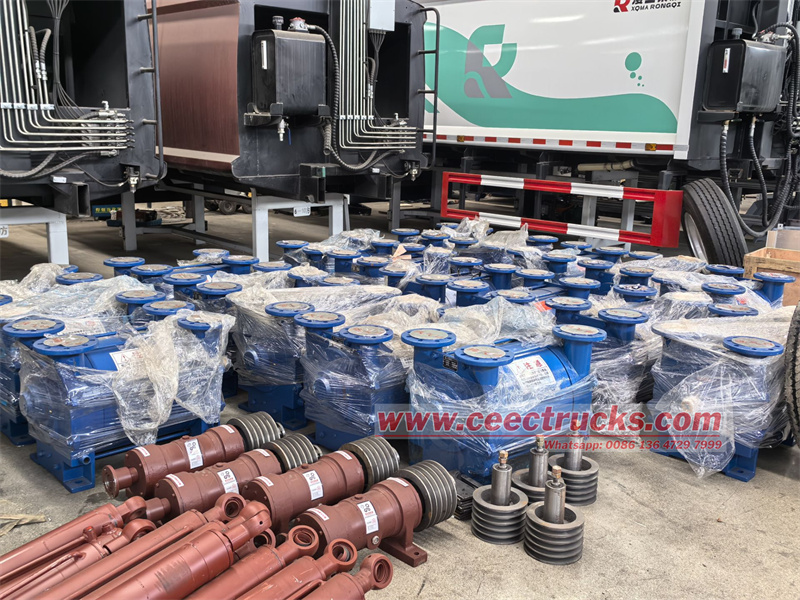

CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
★ Euro 3 type, sinotruk engine, super powerful
★ 16000Liters to 22000Liters capacity can be optional.
★ 12 months fast moving spare parts for FREE
★ Authorized SHACMAN Cesspit Emptier exporter
★ Easy operation and easy maintenance
CEEC TRUCKS is a leading supplier of fire fighting truck in China. We possess over 10-year export experience of fire truck. We can ensure the fast delivery time and 12 months guarantee for our fire engine. Our fire engines are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
