The Shacman X3000 bitumen distributor tanker truck is a key equipment in road construction. Its body is equipped with a large storage tank that can store high-temperature liquid asphalt and maintain the fluidity of asphalt through a built-in heating system. The vehicle is equipped with an intelligent control system that can accurately adjust the spreading amount and spreading width to meet the needs of operations with different thicknesses and areas.When the Shacman bitumen distributor tanker truck is driving, the rear spraying rod sprays asphalt evenly to form a bonding layer or permeable layer to ensure that the road surface materials are tightly combined.

● China best bitumen distributor tanker truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

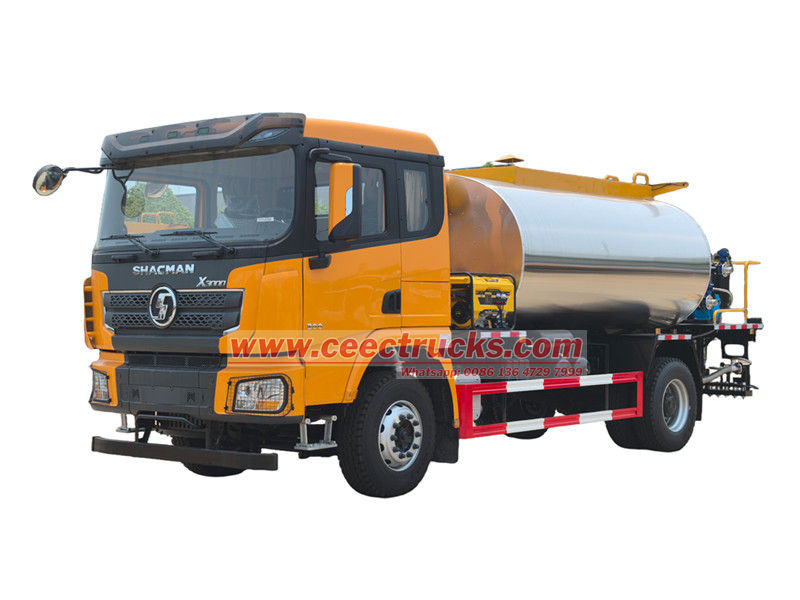

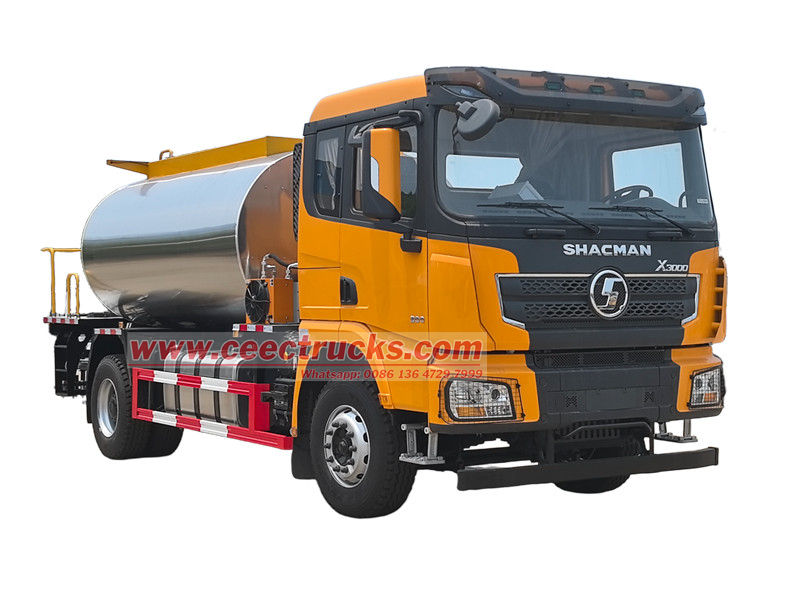

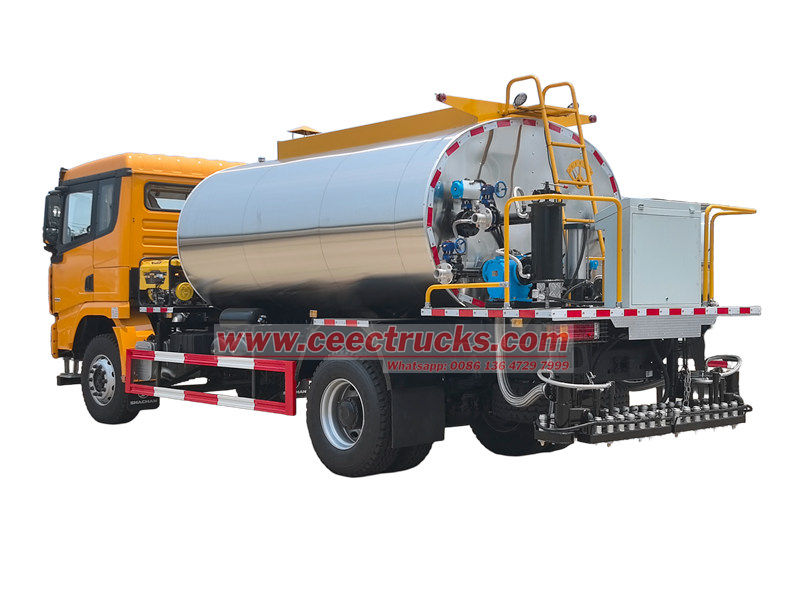

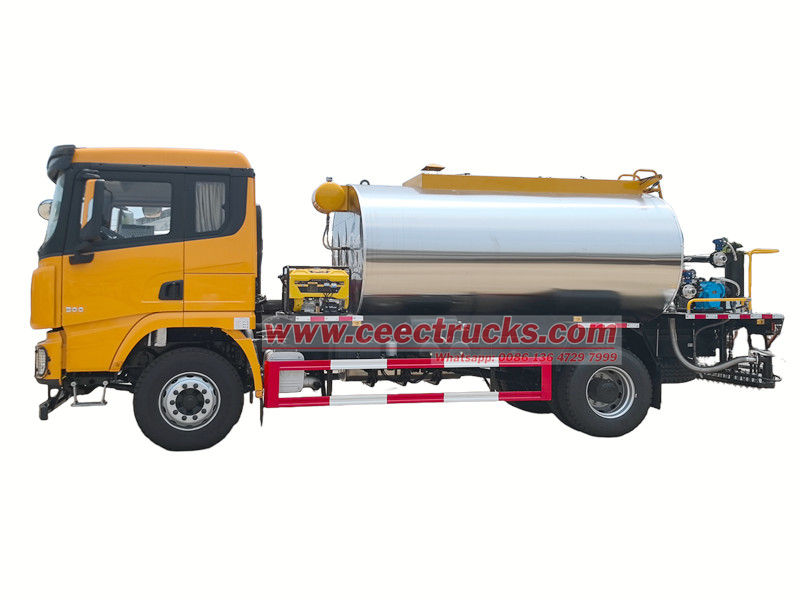

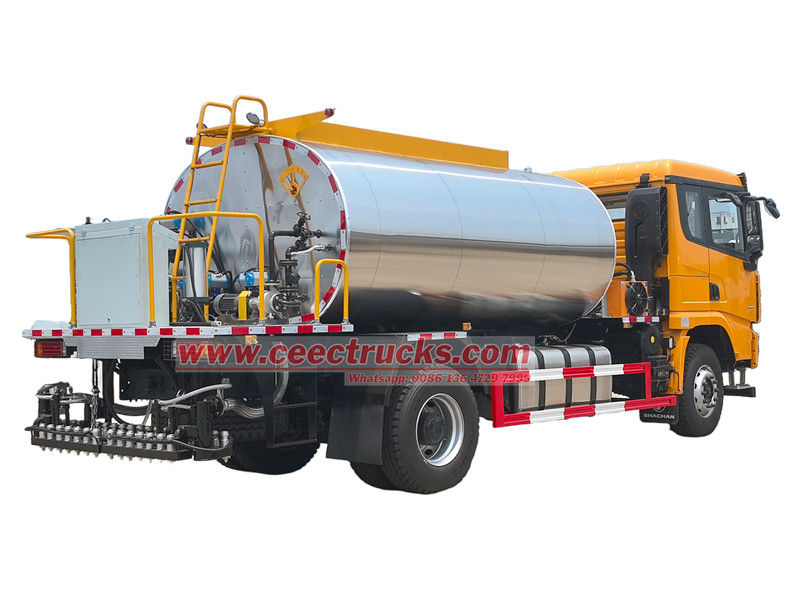

*Shacman X3000 bitumen distributor tanker truck

    SHACMAN Bitumen Sprayer Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

Truck Chassis: Shacman X3000 truck chassis, 4x2, 4X4 model

                           WP10.300E22 model with 300HP and emission 9726cc.

Shacman X3000 bitumen distributor tanker truck also called Shacman road asphalt distributor truck,SHACMAN 4x2 Automatic Asphalt Distributor,Shacman 4x2 asphalt spreader truck.etc.

Its body is equipped with a large-capacity insulation tank, which uses high-efficiency insulation materials and an intelligent temperature control system. It can store hot asphalt or modified asphalt of different grades for a long time, ensuring stable material temperature and good fluidity.

The rear of the Shacman X3000 bitumen distributor tanker truck is equipped with a retractable spraying rod with adjustable width, which is equipped with multiple sets of high-precision flow control nozzles. It can accurately adjust the spraying volume and coverage according to construction requirements (such as permeable layer, adhesive layer, and sealing layer), and achieve wide-range variable spraying of 0.2-3L/㎡.

During the driving process of the Shacman Asphalt Spreader truck, the full-power pumping system and the hydraulic drive device work together to ensure that the asphalt is transported evenly without interruption. With the automatic operation interface, the construction parameters can be monitored in real time and data can be recorded. The whole vehicle has flexible steering and low-speed stability, adapts to complex road conditions, and greatly improves construction efficiency and road quality.

» Ⅱ.Product Parameter for Shacman X3000 bitumen distributor tanker truck：



Shacman X3000 bitumen distributor tanker truck
General	Cab	Shacman X3000 single row,2seats,with A/C,USB...
	Dimension (L×W×H)	7650×2380×2780 mm
	Drive Type	4×2,RHD
Engine	Engine Type	6 cylinders in line, 4-stroke, water-cooled, in-line, direct injection
	Engine model	WP10.300E22
	Horse power	300HP/221kw
	Fuel Type	Diesel
	Emission Standard	Euro 3
	Displacement	9.726L
Chassis	Chassis Brand	Shacman X3000
	Wheelbase	4600mm
	Tire model	12.00R20
	Tire No.	6+1
	Axle No.	2
	Steering Wheel	With power-assisted
	Gear Box	RTD-11509C
	Brake	Air brake
Tank	material	Stainless steel/carbon steel
	capacity	5000 L
	Asphalt Pump	China brand
Spray	Width	4500 mm
	Volume	0.2-3 kg/㎡
	Precision	1.5%
	Medium	Modified asphalt, hot asphalt, emulsified asphalt and other asphalt media
Apply	road paving,etc
Asphalt Heating Method	Thermal oil heating (with automatic temperature control)
Equipment	The intelligent asphalt spreader truck consists of a car chassis, an asphalt tank, an asphalt pumping and spraying system, a thermal oil heating system, a hydraulic system, a combustion system, a control system, a pneumatic system, and an operating platform.



» Ⅲ.Product Details & Advantages:

1. Sturdy and durable tank design

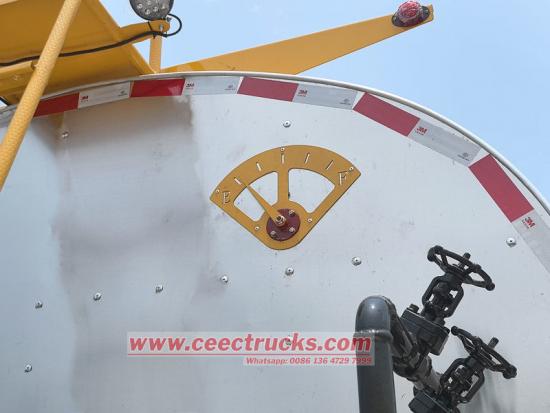

The tank of Shacman road asphalt distributor truck is one of the core components. It is mostly made of high-strength carbon steel or high-quality stainless steel. It has excellent pressure and impact resistance and can adapt to transportation and operation under complex road conditions. The tank is a double-layer structure with high-efficiency thermal insulation materials in the middle. With an advanced electric heating system, it can accurately maintain the asphalt temperature at 180-220℃, with a very small temperature fluctuation range, effectively preventing asphalt segregation and solidification, ensuring its fluidity and guaranteeing construction quality.



2. Advanced and precise spraying system

The Shacman Asphalt Spreader truck is equipped with an imported high-pressure plunger pump, which is powerful and stable, and can achieve uniform asphalt delivery to avoid flow interruption during spraying. The spraying beam can be flexibly extended and retracted, with a maximum width of 6 meters. The nozzle can rotate 360°, and can accurately cover roads of different widths, whether it is a straight road or a complex area such as a curve or ramp. At the same time, the system supports a wide range of 0.2-3.5L/㎡ stepless adjustment, and can accurately control the spraying volume according to construction needs.



3. Intelligent and convenient control system

Equipped with advanced PLC intelligent control system, it integrates temperature, pressure and flow real-time monitoring modules. Operators can easily set and adjust various parameters through the touch screen in the cab, which facilitates construction management and greatly improves the intelligent level of construction.



•

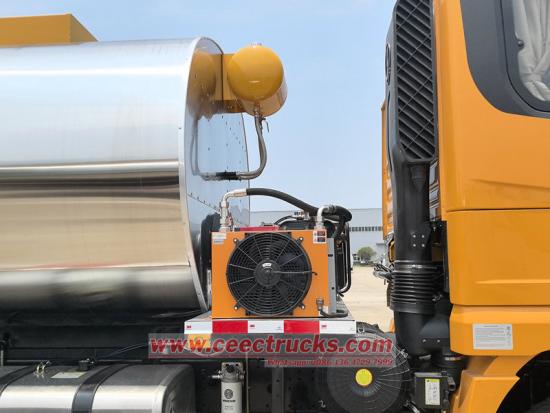

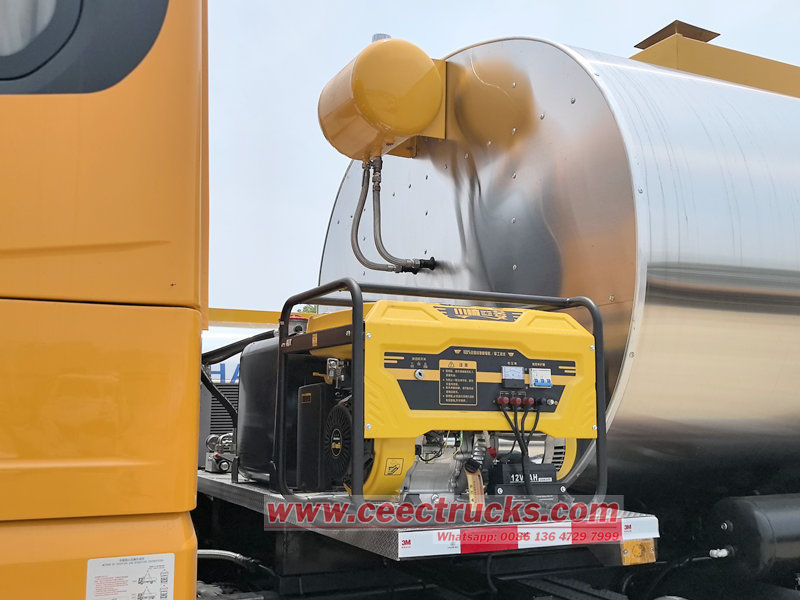

  Diesel generators


•

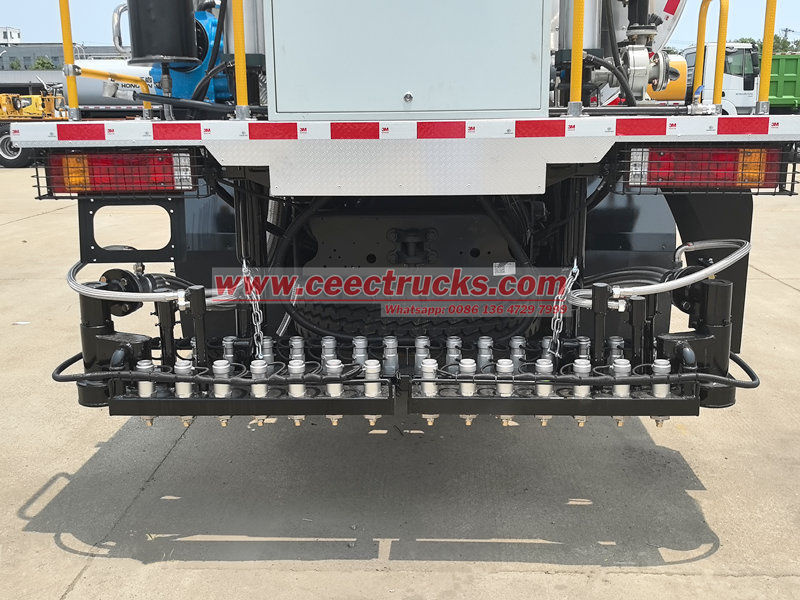

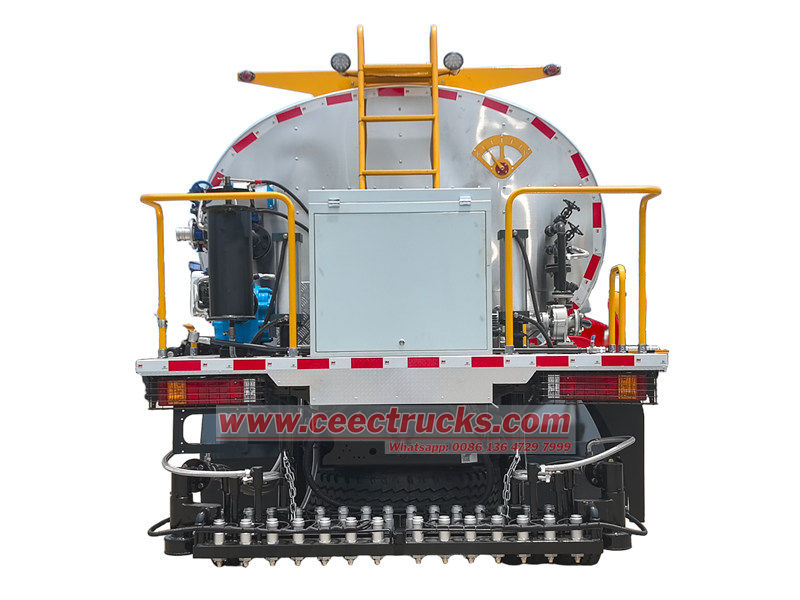

  Spraying device
•

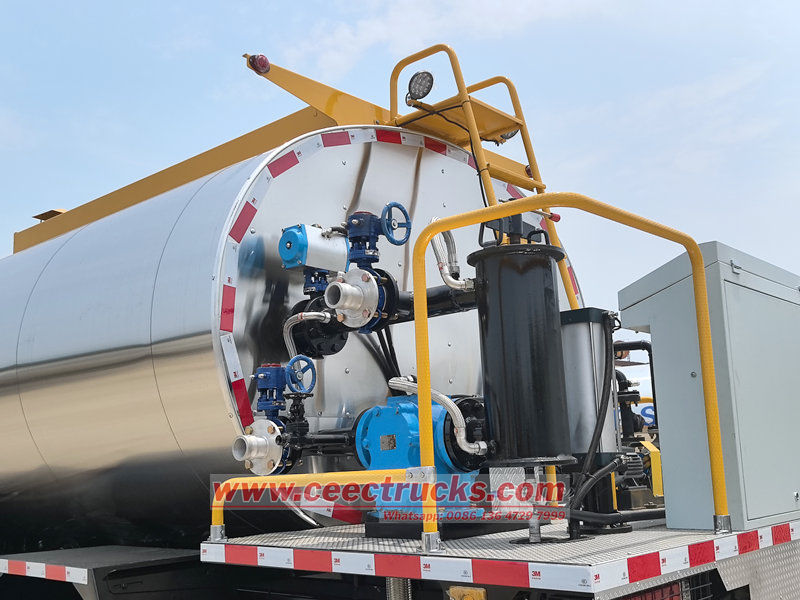

  Thermal insulation asphalt pump
