SINOTRUK 10CBM Skip Loader truck to Africa

SINOTRUK 4X4 10CBM Skip Loader truck with factory direct sale

SINOTRUK 4X4 10cbm skip loader vehicle, SINOTRUK left hand drive 4x4 chassis, Manual FAST 9-shift manual gearbox, WEICHAI 290HP diesel engine, high strength steel swing arm system, Hydraulic control device and Electric control box optional, All painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

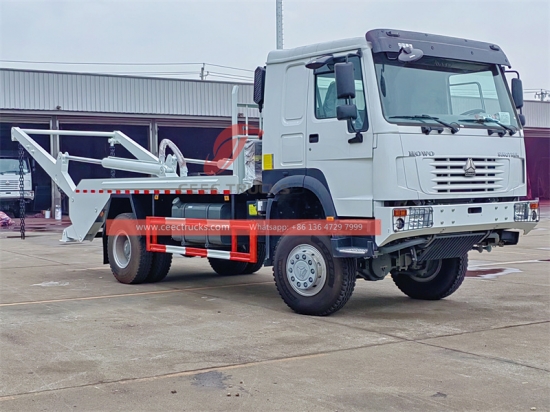

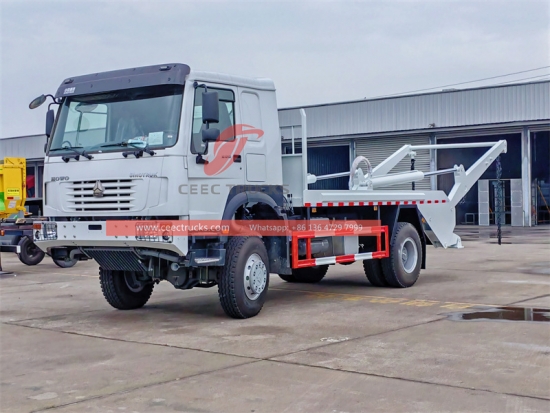

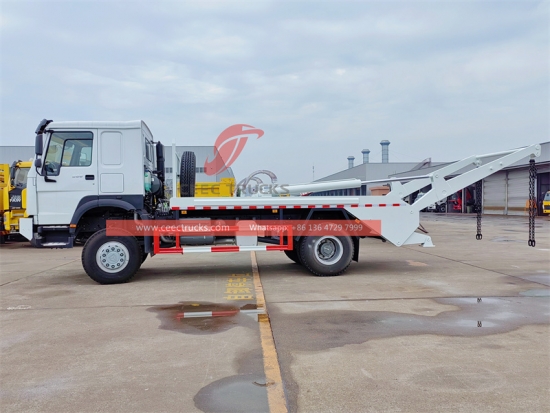

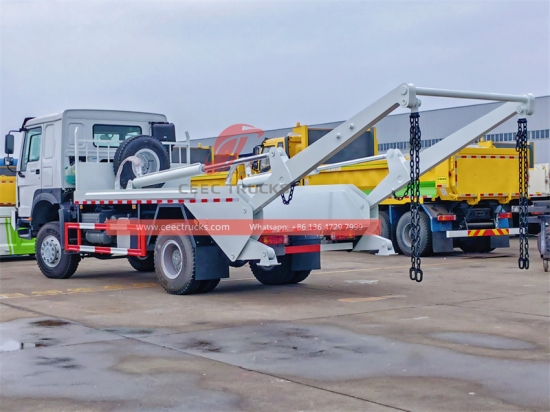

SINOTRUK 4X4 10CBM Skip Loader



 Applications:



Swing arm garbage truck (also called skip loader truck, skip loader vehicle, swing arm garbage truck, skip loader garbage truck, telescopic arm garbage loader, multi skip loader) is a type of truck that is used to transport and load/unload skips or dumpsters. It's equipped with hydraulic arms or a telescopic boom that allows it to lift and load skips onto the truck bed. The skip, which is an open-topped container, is designed to be easily lifted by the skip loader and deposited onto the truck for transportation. Once filled, the skip loader can then transport the skip to a designated location for unloading.It offers a convenient and efficient way to transport and manage large volumes of waste materials, making it an essential tool in the construction and waste management industries.



CEEC TRUCKS Swing arm garbage truck is a garbage truck with detachable body container, which could enable one truck with several garbage containers for recycle use.



 Key Features:



---- SINOTRUK chassis, perfect performance

---- WEICHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Garbage container capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.



 Specifications:



SINOTRUK 4x4 Skip loader truck (10 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

SINOTRUK

Overall Dimension

7900 * 2500 * 3200 mm

GVW / Kerb Weight

16,000kg / 8500kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

288 HP (212 KW)

Displacement

9726 ml

Emission Standard

Euro 2 or 3

Chassis

Drive Type

4X4, (left hand drive)

Transmission

FAST Manual 9 speed levers with 1 reverse

Wheelbase/No. of axle

4200 mm / 2

Tire Specification

11.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

10 cbm

Lifting device

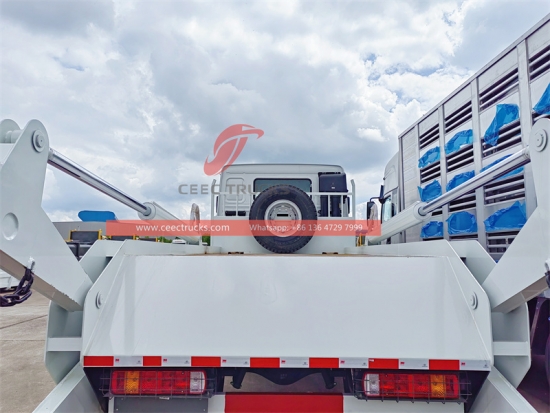

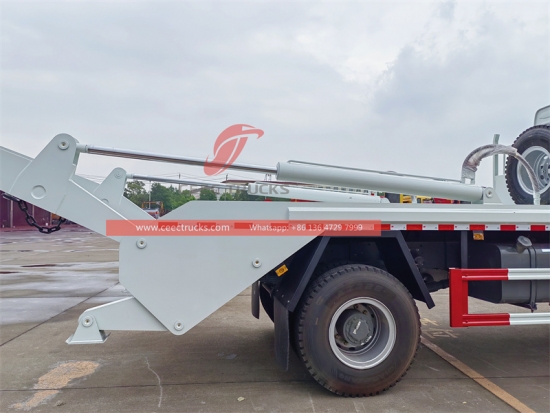

Two swing arm lifting system

Rear legs

Two hydraulic rear legs for support

Lifting cycle time

 20~25 s

Match model

One truck match with several containers

Control system

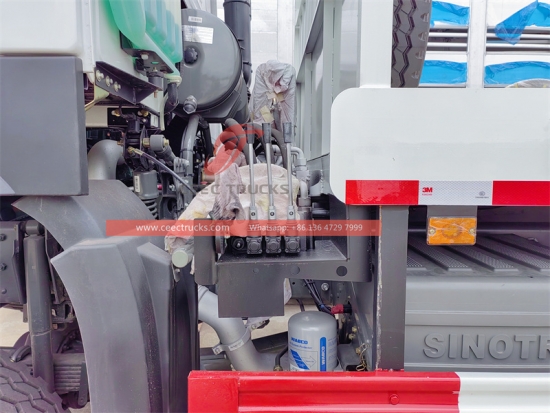

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Container material could be stainless steel.

** A sealed cover for the container.

** A truck with several containers.

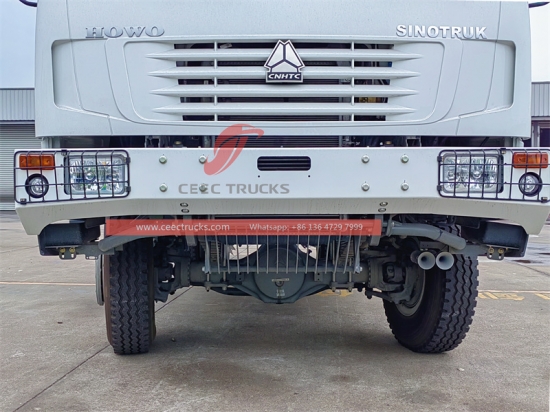

SINOTRUK chassis, perfect performance

Euro 2 or 3 type, WEICHAI engine, super powerful

Garbage container capacity from 3 to 20 Cublic Meter.

12 months fast moving spare parts for FREE

Authorized SINOTRUK skip loader trucks exporter

Training service for SINOTRUK swing arm garbage trucks





SINOTRUK 4X4 10CBM Skip Loader

CEEC TRUCKS is a leading exporter of SINOTRUK skip loader trucks in China. We possess over 10-year export experience of SINOTRUK swing arm garbage trucks. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our SINOTRUK skip refuse trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.


---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC garbage compactor truck factory review


---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...



 export documents
Successful Cases
inquiry now

    Please feel free to inquiry trucks from us; our experience sale manager will give the quotation within 12 hours

      Subject:

      SINOTRUK 4X4 10CBM Skip Loader truck with factory direct sale
