The 12cbm Refuse Collection Truck body structure is the core component of the vehicle. The dozer blade is constructed from a rectangular tube frame and high-strength weathering steel plates, with a streamlined push surface. This not only ensures a lightweight structure but also ensures smooth loading and clean unloading.

The loader primarily consists of the loader assembly, slide plate, scraper, and other components. These components utilize a beam-plate or box-type design for superior load-bearing performance. The 12cbm Refuse Collection Truck body structure is meticulously crafted entirely from high-strength weathering steel plates, ensuring overall structural stability while achieving lightweight design goals.

● China best Refuse Collection Truck Body Structure factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements.

● Professional sales team which will help you to choose suitable truck.

● We can offer your a good after-sale service.

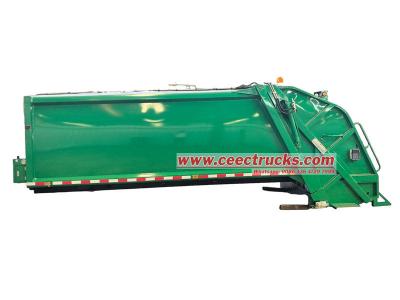

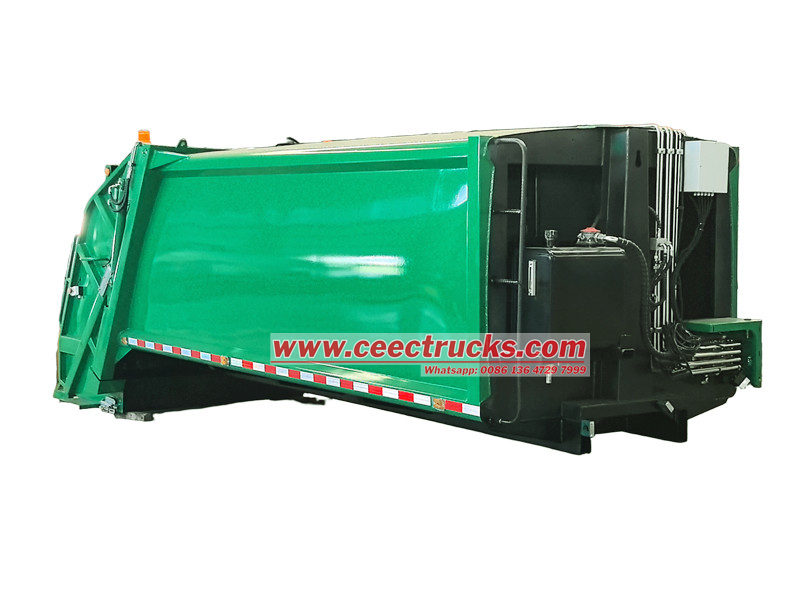

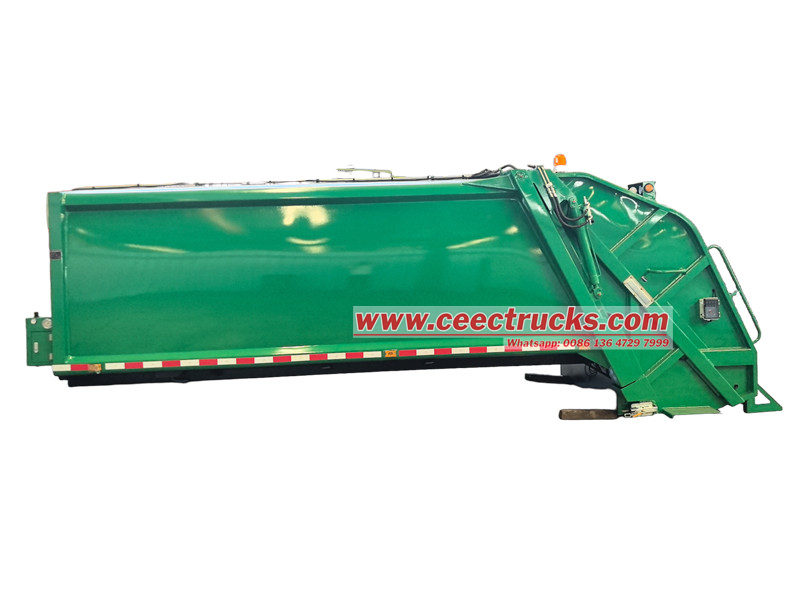

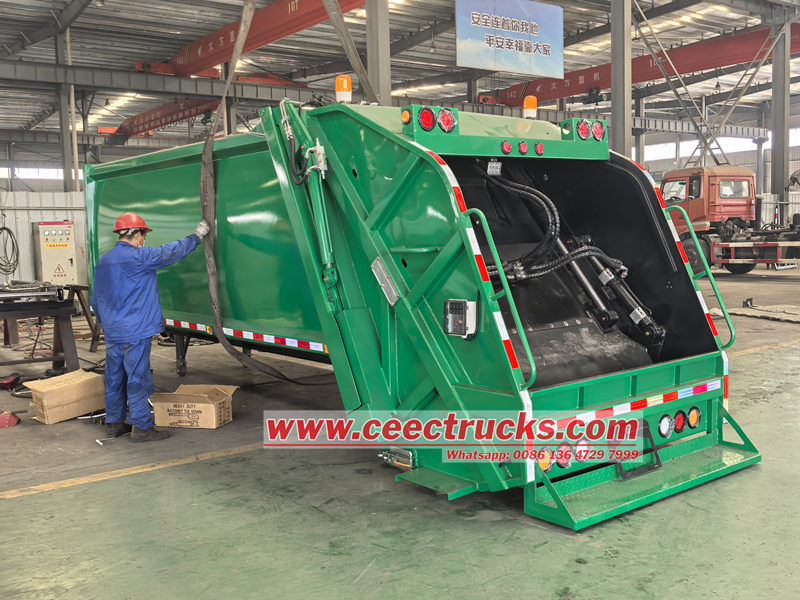

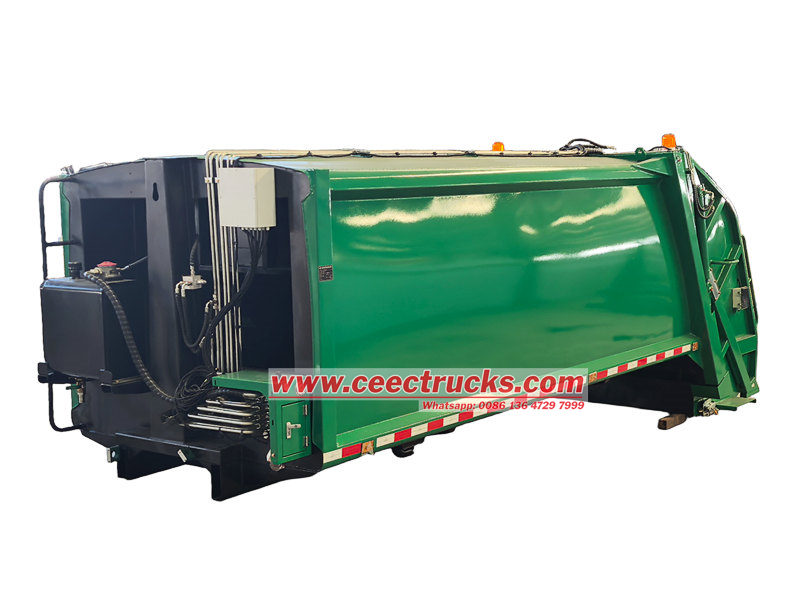

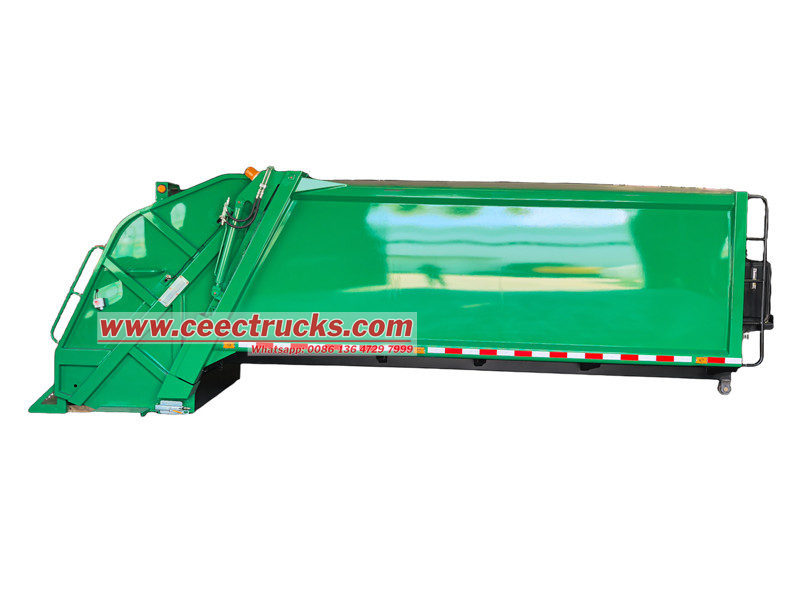

*12cbm Refuse Collection Truck Body Structure

rear loader garbage truck superstructure*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Product Features

●The trash bin is constructed from high-strength weathering steel.

●The side panels are formed using a one-piece process, resulting in a rounded shape and a sturdy structure.

●The pusher blade is constructed from a rectangular tube frame and high-strength weathering steel, with a streamlined push surface.

●An emergency stop button is provided to stop the compacting device at any state or position.

To produce a compacting garbage truck chassis that matches the chassis, parameters such as waste handling capacity and compression ratio must be determined based on the application scenario, and then the technical drawings must be finalized. The layout of the loader and compression device must be scientifically planned to achieve efficient operation. Multiple safety protections and convenient operation modules must be implemented, and the sealing design must be optimized to prevent wastewater leakage and improve overall performance.

The connection between the trash bin and the filler is equipped with a special rubber sealing strip, which is tightly compressed by a hydraulic locking device to ensure excellent sealing performance. The lower part is designed with a specially structured water trough, which provides double protection and effectively prevents sewage dripping and eliminates secondary pollution.

♦The lift cylinder is equipped with an explosion-proof valve to prevent the loader from falling in the event of an oil line rupture. A safety prop bar is also provided to ensure the safety of maintenance personnel.

♦An emergency stop button is installed to stop the waste compactor in any state or position, effectively protecting the safety of both operators and equipment.

» Ⅱ.Product Parameter for 12cbm Refuse Collection Truck Body Structure：





Garbage Bin	Capacity	10cbm or 12CBM
	Material	Garbage Bin Body：Side 4mm, Bottom 5mm
	Design	Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio	1/3 - 1/4
Control System	One control Panel on the back, One Control system in back of Cabin Electrically Controlled Hydraulic + Manual Hydraulic
Dispensing System	1. Equipped with air-tight dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	Dependable Security
	5. Electrical Control Panel for compacting system.
	6. Cycling time<14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request



» Ⅲ.Product Details & Advantages:

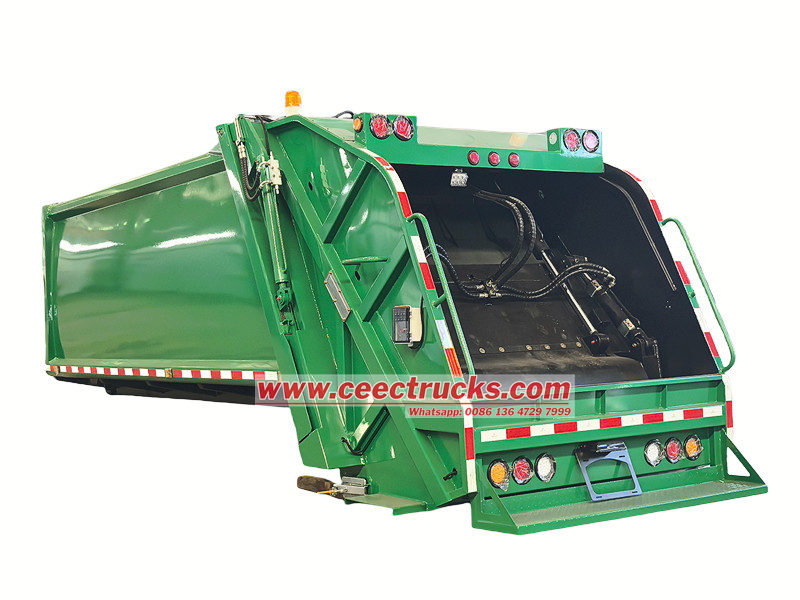

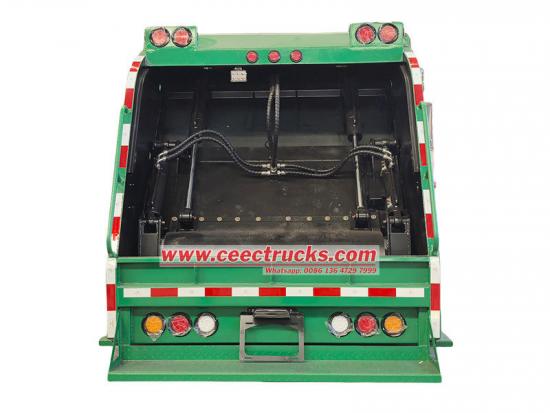

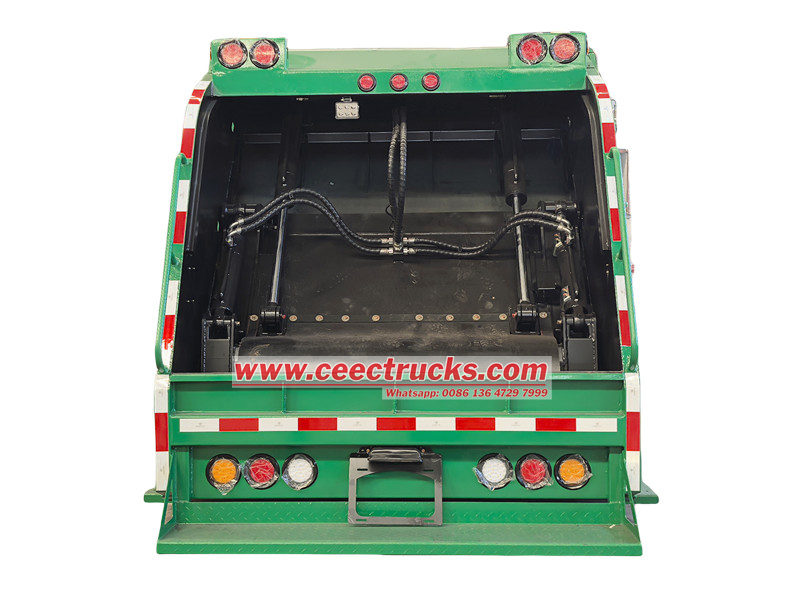

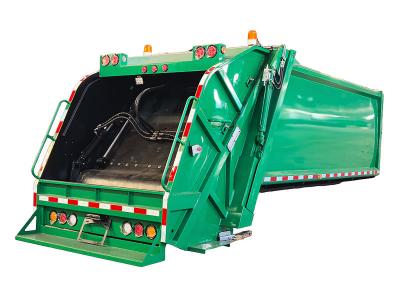

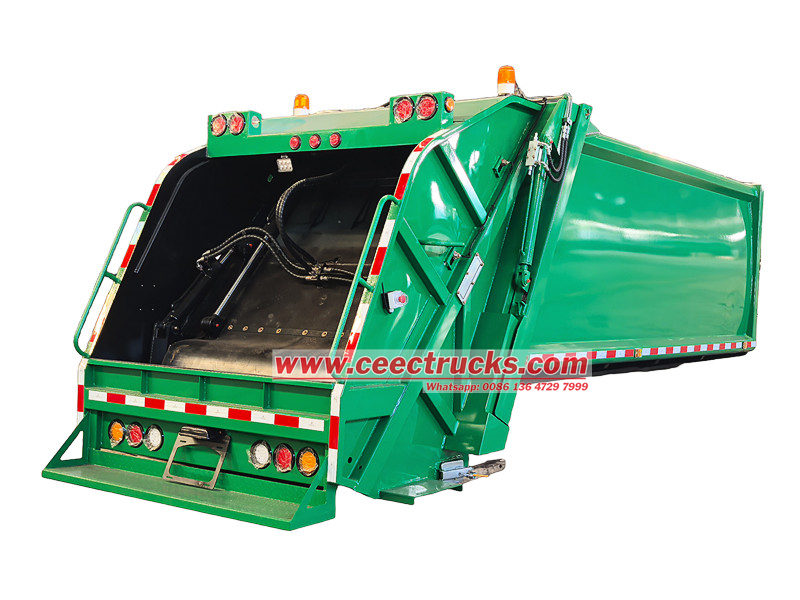

1. High-Efficiency Loader

●The loader is a key component of the refuse collection truck structure. It consists of the loader body, skid plate, and scraper, all constructed from high-strength steel for durability.

●The connection between the loader and the hopper is fitted with a special rubber seal, which, combined with a hydraulic locking mechanism, provides an excellent seal, effectively preventing the leakage of garbage and wastewater.

●During operation, the skid plate and scraper, driven by a hydraulic system, rapidly push the discarded garbage into the hopper and apply powerful compression, significantly reducing its volume and increasing the vehicle's loading capacity.

2. Convenient Operation

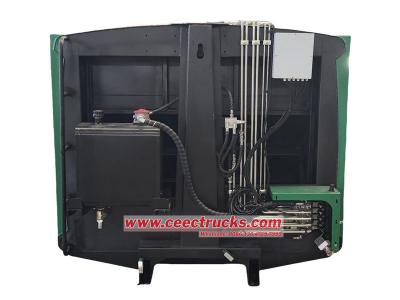

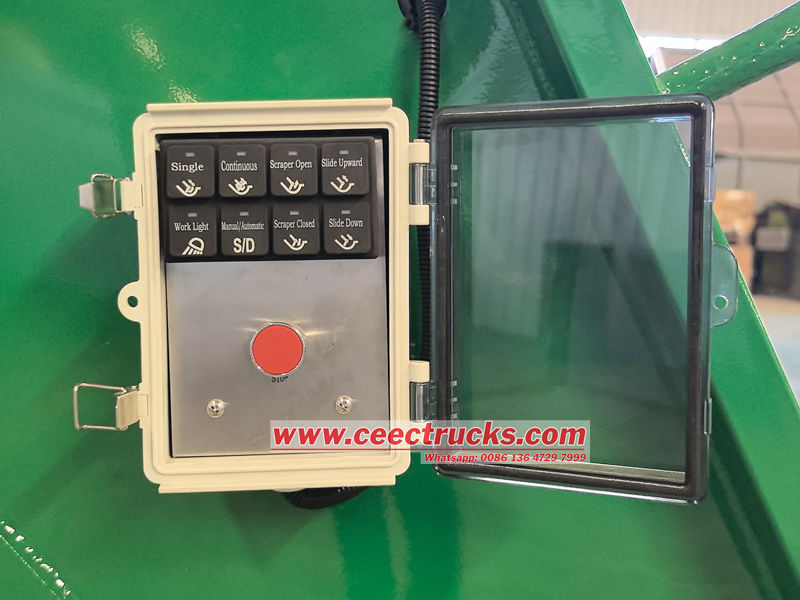

Equipped with an advanced operating system, the operator can easily control various operations, such as filling, compressing, and lifting, through the control panel. The control panel is well-organized, with clearly labeled buttons, making operation simple and easy to understand. An optional remote control allows the operator to operate the machine from a safe distance, further enhancing operational convenience and safety.



3. Operational Safety

To ensure operational safety, the 12cbm Refuse Collection Truck Body Structure is equipped with multiple safety features.

An emergency stop button instantly stops the machine under any circumstances. An explosion-proof valve is installed on the lift cylinder to prevent the loader from accidentally lowering in the event of a hose rupture. Safety props provide stable support during maintenance, ensuring the safety of maintenance personnel. These features provide comprehensive safety for both operators and the machine.



•

•

•




Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.



CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
