The rear loading garbage compactor upper body kits are key components of the vehicle. The interface between the trash bin and the compactor is fitted with a special rubber sealing strip, compressed and sealed with a hydraulic locking device for excellent sealing. The specially designed water tank at the bottom of the rear loading garbage compactor upper body kits provides double protection, effectively preventing wastewater leakage and eliminating secondary pollution.

● China best rear loading garbage compactor upper body kits factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements.

● Professional sales team which will help you to choose suitable truck.

● We can offer your a good after-sale service.

*rear loading garbage compactor upper body kits

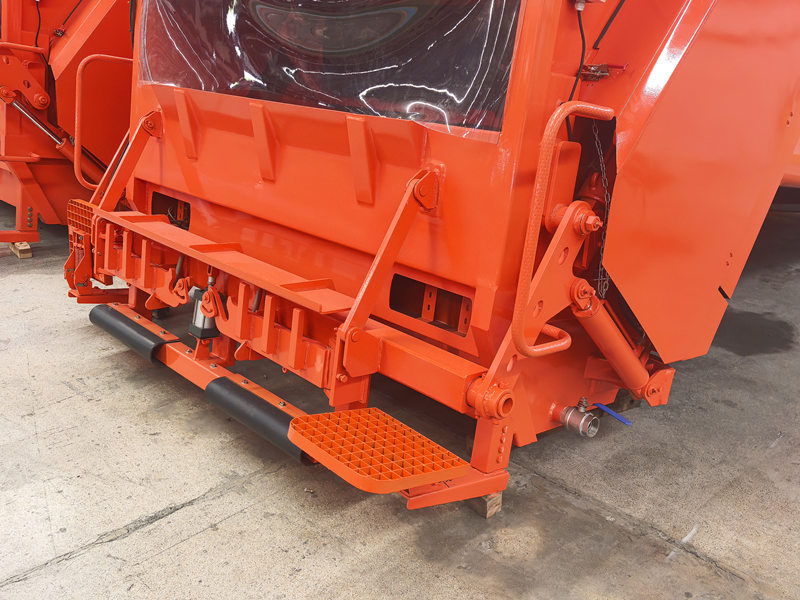

garbage compactor truck superstructure*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Product Features

●The trash bin is constructed from high-strength weathering steel.

●The side panels are formed using a one-piece process, resulting in a rounded shape and a sturdy structure.

●The pusher blade is constructed from a rectangular tube frame and high-strength weathering steel, with a streamlined push surface.

●An emergency stop button is provided to stop the compacting device at any state or position.

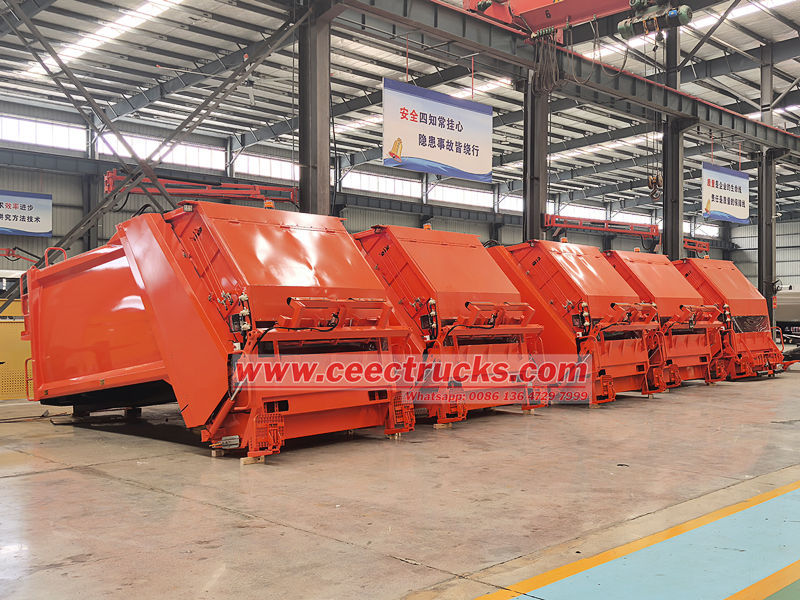

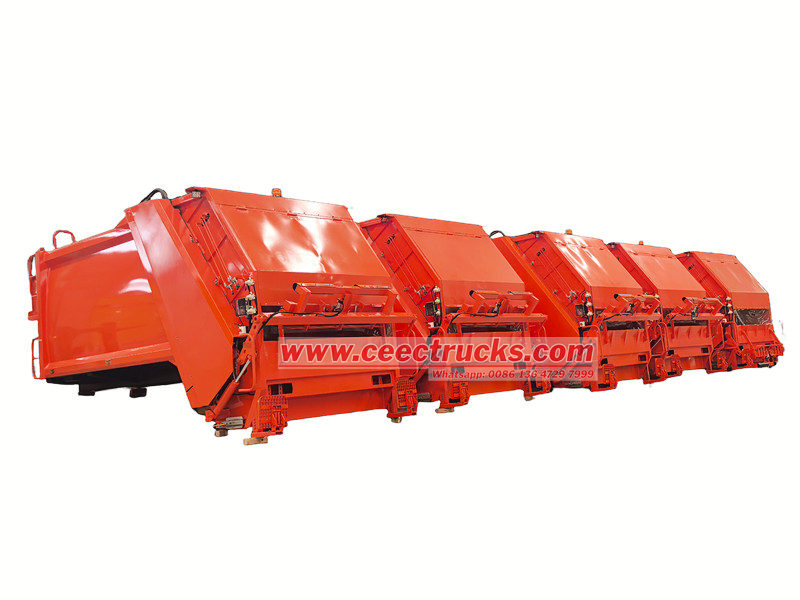

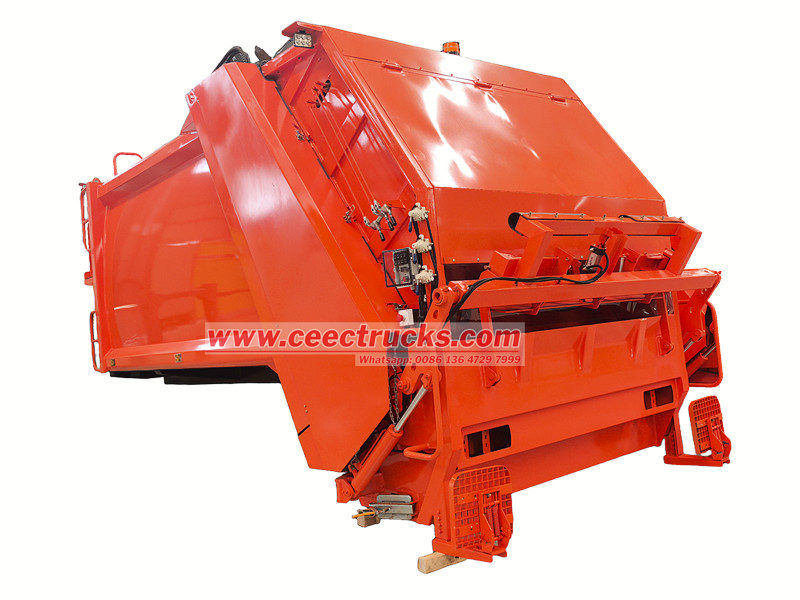

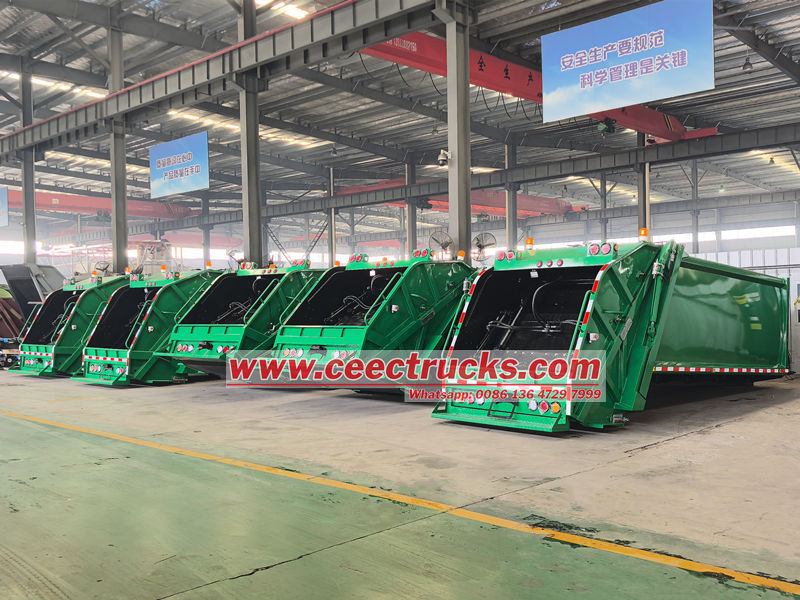

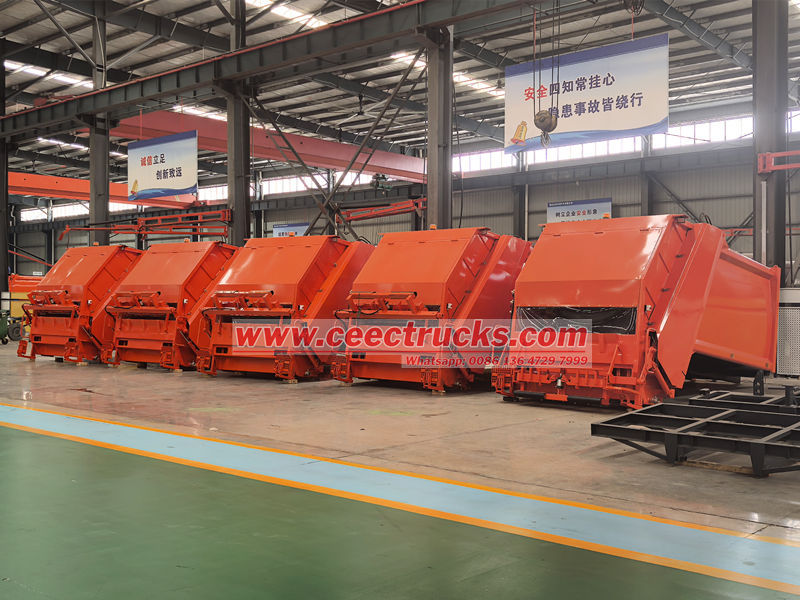

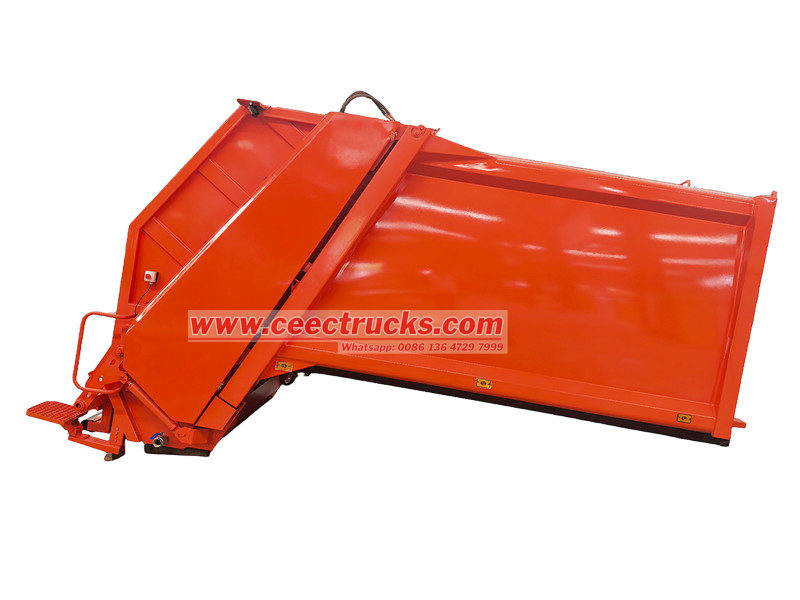

rear loading garbage compactor upper body kits (also called rear loader garbage truck upper body, waste compaction truck superstructure, rear loader watse collection truck kit, garbage compactor truck superstructure, trash compactor truck upper body)  is a new type of sanitation specially used for collecting, transferring and removing garbage.

The superstructure adopts hydraulic locking device compression seal, which has good sealing performance; the lower part is designed with a special structure of water receiving trough, which has double protection and effectively prevents sewage dripping, thus eliminating secondary pollution.

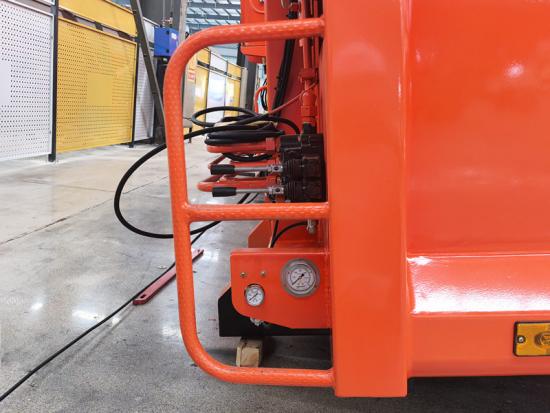

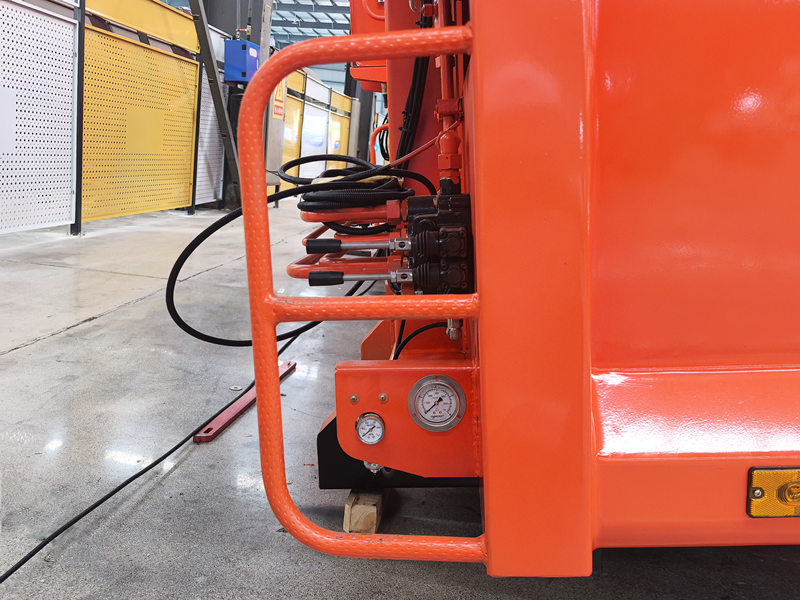

The rear loading garbage compactor upper body kits adopts electro-hydraulic control valve and PLC programmable control system, which comprehensively utilizes the advantages of electric control and hydraulic control. Through electric-hydraulic combined control, it effectively solves the interface problem between the hydraulic system and the electrical system and improves the reliability of use.

●Different users can choose from a variety of optional bin/hopper mechanisms to suit their specific waste collection methods: standard metal bins (300L), plastic bins (240L), a small onboard hopper (800L), and a sealed, covered hopper (1400L).

●High-Quality Imported Components: Key components in the electrical and hydraulic systems, such as the PLC, proximity switches, buttons, and cylinder seals, are imported, enhancing the truck's reliability.

●Optional features include an imported oil pump, imported multi-way directional valve assembly, hydraulic oil cooler, and a wired remote control for the waste compactor and filling system, tailored to the user's needs.

» Ⅱ.Product Parameter for rear loading garbage compactor upper body kits：



Garbage Bin	Capacity	5~20 cbm
	Material	Garbage Bin Body：Side 4mm, Bottom 5mm
	Design	Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio	1/3 - 1/4
Control System	One control Panel on the back, One Control system in back of Cabin Electrically Controlled Hydraulic + Manual Hydraulic
Dispensing System	1.Can choose 240L(single bin,double bins)or 360L,660L,1100L standard bin lifting and turnover mechanism,can also choose ground hopper and other kinds of loading mechanism.
	2. Equipped with air-tight dustbin, hydraulic system and operating system.
	3. Automatic loading, compressing and discharging, all handled by 1 person
	4. Sewage water collection tank to avoid any pollution during handling.
	5. Large Pressure, Good Leakage Proof, Convenient Operation
	6. Dependable Security
	7. Electrical Control Panel for compacting system.
	8. Cycling time<14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request





» Ⅲ.Product Details & Advantages:

1. Sturdy and Durable Box Structure

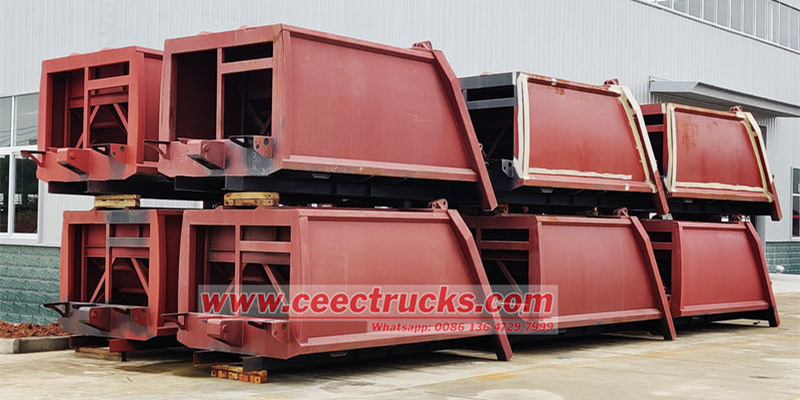

●The upper body of the rear loader garbage truck is welded from high-quality, high-strength steel plates. The overall structure is scientifically designed, with a sleek, streamlined shape that enhances both strength and aesthetics.

●The interior is treated with anti-corrosion and rust-proofing to effectively resist corrosion from acidic and alkaline liquids in the garbage, extending its service life. Furthermore, the excellent sealing design effectively prevents wastewater leakage and odor leakage, ensuring a clean and environmentally friendly working environment.

2. Efficient Compression and Loading/Unloading System

♦The upper loader is equipped with an advanced compression mechanism. The pusher blade is constructed of a rectangular tube frame and weathering steel plates. The streamlined pusher surface is both lightweight and durable, ensuring smooth loading and clean unloading of waste.

♦The compression system significantly reduces waste volume, increasing loading capacity and transport efficiency, reducing hauling frequency, and thus lowering operating costs.

♦The upper loader typically offers a variety of loading and unloading methods, allowing for flexible selection based on operational needs and providing high adaptability.



3. Safe Operation and Easy Maintenance

The rear loading garbage compactor upper body kits are designed with operator experience in mind. The control system features a rational layout, simple operation, and safety and reliability.

Key components have undergone durability testing to ensure long-term stable operation. Furthermore, the strategically placed access and maintenance points on various parts of the upper body facilitate daily cleaning and maintenance, reducing the difficulty and cost of future repairs.



•

•

•




Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.



CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
