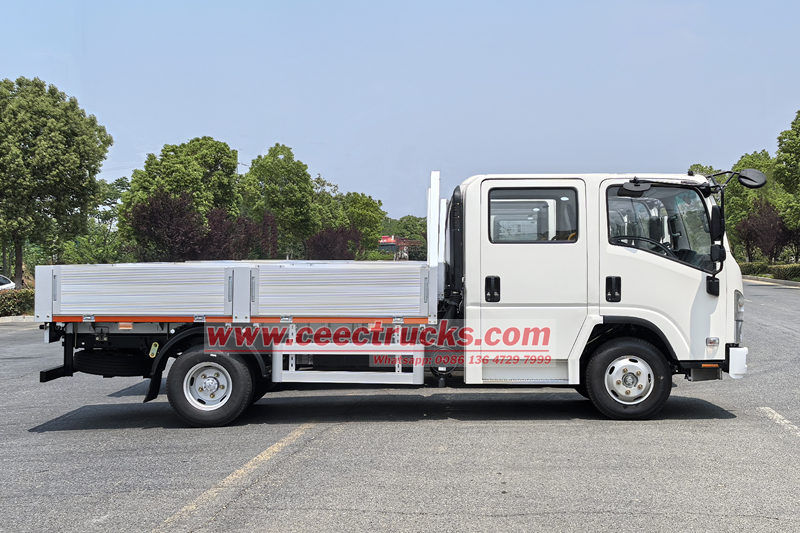

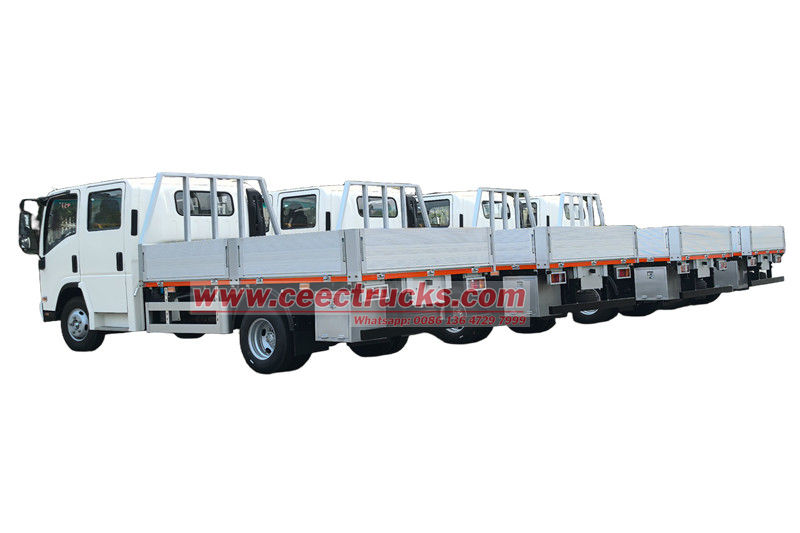

4 units Isuzu KV100 double cabin light cargo truck

Isuzu KV100 double cabin light cargo truck is a common transport vehicle, and its design feature is that the compartment is equipped with removable or fixed side panels. These side panels not only provide effective enclosure for the cargo to prevent it from scattering during transportation, but also can be flexibly adjusted in height or disassembled according to actual needs to accommodate the loading of cargo of different sizes and shapes. Isuzu double cabin light cargo truck has a sturdy structure and strong load-bearing capacity. It is widely used in urban logistics, short-distance freight and various industrial transportation scenarios. It is an important tool to ensure the safe and efficient transportation of cargo.

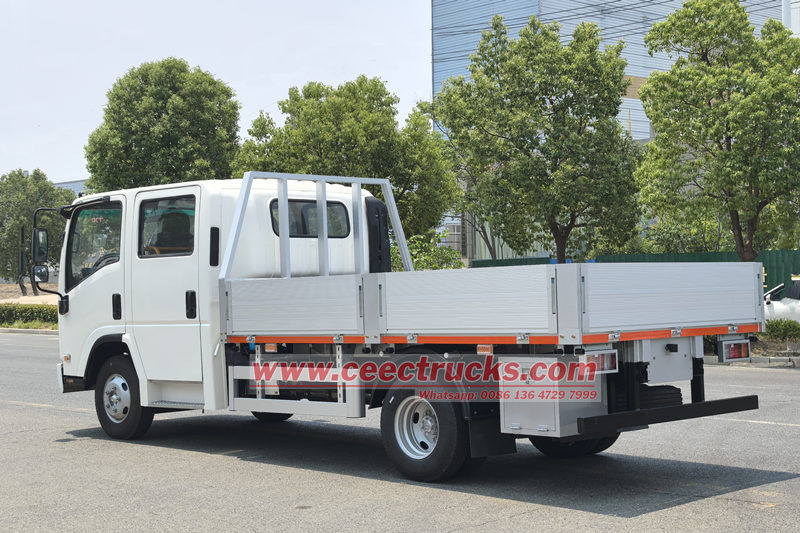

Isuzu ELF KV100 Aluminum Alloy cargo truck uses aluminum alloy for its cargo box, which is lightweight, highly corrosion-resistant, and not easy to rust. It can extend the service life of the railing and reduce maintenance costs. Moreover, it has a delicate appearance, which can enhance the overall aesthetics of the vehicle. In addition, the aluminum alloy railing has high structural strength, which can ensure the safety of cargo transportation. At the same time, it also has good thermal conductivity, which can play a unique role in some special transportation scenarios. It is an efficient and durable transportation equipment.

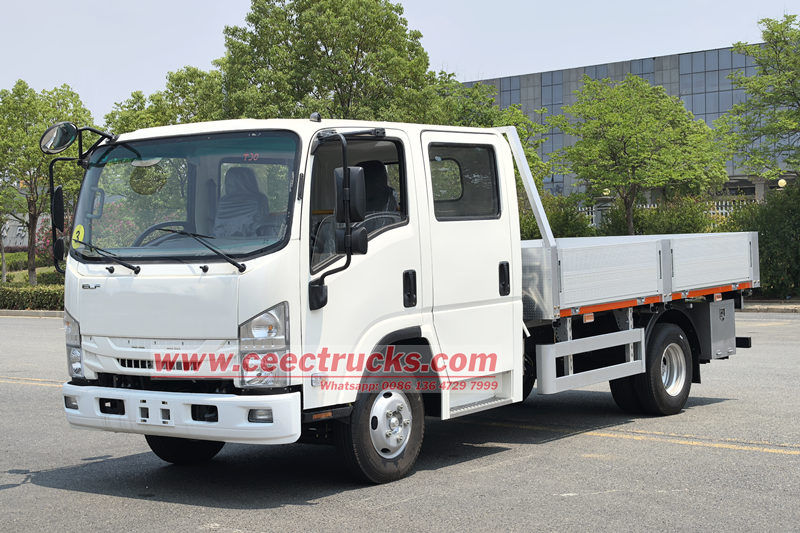

The Isuzu KV100 cargo truck is a customized variant derived from the Isuzu KV100 double-cabin model. It offers seating for five passengers, arranged in a 2+3 configuration, and comes with a range of amenities including electric windows, air conditioning, and power steering. Under the hood, it is powered by an Isuzu 4KH1CN6LB Euro 6 compliant engine, generating 120 horsepower, and is paired with an Isuzu MSB 5-speed manual transmission. The truck upper section features an aluminum alloy cargo container, designed for convenient side and tailgate loading and unloading. The size is 3850*2100*450mm, the thickness of the side is 3mm and the bottom is 4mm, Additionally, and it is equipped with a tool box.

Isuzu KV100 double cabin light cargo truck
Vehicle Dimensions, Weights & Capacities	Chassis brand	ISUZU ELF NPR
	Overall dimension (LxWxH)	6500x2200x2300mm
	Wheelbase	3360mm
	Curb weight	3800kg
	Gross weight	7300 Kgs
Chassis	Drive mode	4x2,LHD
	Cabin type	Isuzu KV100 double row cab
	Seats	2+3 seats
	Steering	LHD
	Tyres	700R16, 6+1 spare tyre
	Gearbox	Isuzu MSB 5-speed,manual
Engine	Enging model	Isuzu 4KH1CN6LB
	Fuel and engine Type	Diesel, 4 cylinders in-line
	Horse power	120HP/88Kw
	Emission standard	Euro 6
Other Standard Configurations	1	Power Steering System
	2	Air Conditioning
	3	Retro-Reflective Marking
	4	Free Maintenance Battery
	5	Central Lock
	6	Power Window
	7	USB, Radio
	8	Widened Bumper
	9	Front Chrome Kit for option

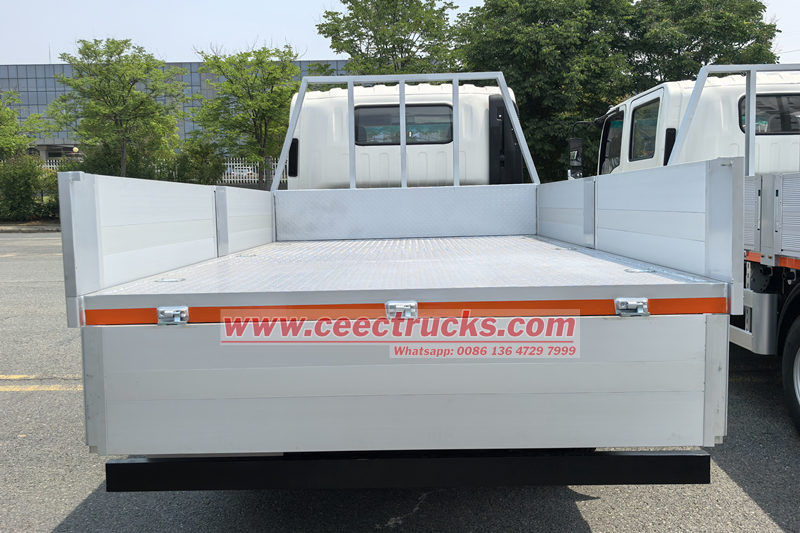

Cargo body	Type	Side Fence
	Material	High-strength aluminum alloy
	size (L*W*H)	3850x2100x450mm
	Thickness	Side 3mm,bottom 4mm
	Color	According to wish





1. Lightweight design improves transportation efficiency

The biggest highlight of the Isuzu KV100 double cabin light cargo truck is that it uses high-strength aluminum alloy to build the side panels and part of the body structure. Aluminum alloy has a low density and significantly reduces the weight of the vehicle compared to traditional steel parts. This feature allows the vehicle to carry more cargo while meeting the legal load limit, directly improving the economic benefits of a single trip.



2. Strong corrosion resistance, extended service life

Aluminum alloy has natural corrosion resistance and can effectively resist erosion by rain, salt spray, chemicals, etc. In harsh environments such as humid, rainy or coastal areas, traditional steel guardrails are prone to rust and corrosion, which not only affects the appearance, but also reduces the structural strength, increases safety hazards and maintenance costs. Aluminum alloy guardrails almost do not need to worry about rusting and can be kept in good condition for a long time, greatly extending the service life of the vehicle and reducing the frequency and cost of replacing parts.

3. Flexible and convenient to meet diverse needs

The Isuzu KV100 double cabin light cargo truck has a flexible design and can be quickly disassembled and installed according to the transportation needs of different goods. When transporting large and extra-long goods, some sideboards can be removed to expand the loading space; when transporting ordinary goods, installing sideboards can ensure the safety of the goods. In addition, aluminum alloy is easy to process and shape, and a more ergonomic and aerodynamic structure can be designed to improve the overall performance and ease of operation of the vehicle.
