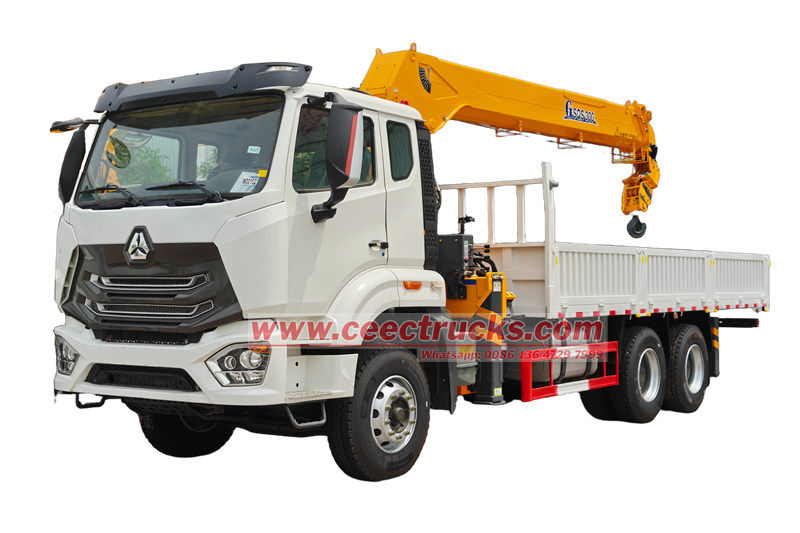

Howo 6x4 straight arm crane truck is an efficient and versatile engineering lifting equipment. It is equipped with a XCMG crane and has a maximum lifting capacity of 12 tons. It is widely used in logistics handling, construction and other scenarios. Its high-strength straight arm design can achieve a maximum working radius of 16m, and cooperates with the hydraulic system to achieve 360° full rotation operation and accurately control the lifting angle. Howo straight arm crane truck is equipped with an intelligent safety system, including overload protection, torque limiter and real-time monitoring display to ensure operational safety. It can be equipped with a variety of attachments such as grab buckets and hanging baskets to meet the needs of different working conditions.

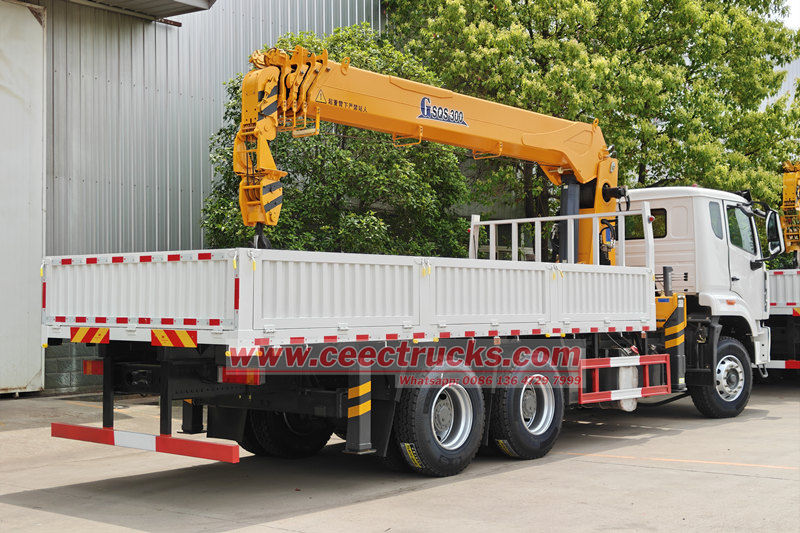

Howo 6x4 telescopic crane truck
Howo 6x4 straight arm crane truck also called boom truck crane,HOWO mobile truck crane,HOWO straight arm crane truck,HOWO heavy boom crane truck,HOWO telescopic boom truck mounted crane,etc.
The optional tonnage of is 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18 tons, 20 tons, 25 tons, and 30 tons. The crane can For selection, you can choose a straight arm or a folding arm crane.
The vehicle is modified on the HOWO chassis, equipped with an WEICHAI WP10.380E22 380HP engine, powerful, matched with HW19710 gears transmission, smooth shifting, and a XCMG GSQS300 crane at the rear of the vehicle body, with large lifting capacity and reach, and a 6500×2300×450mm cargo box below, which can easily carry heavy objects lifted by the crane hook.
|
Howo 6x4 380HP straight arm crane truck |
|||
|
Overall Dimension |
9850x2500x3350mm |
||
|
Gross Vehicle Weight |
25000(Kg) |
||
|
Curb Weight |
12500(Kg) |
||
|
Chassis Specification |
|||
|
Chassis Brand |
HOWO |
||
|
Drive model |
6x4,LHD |
||
|
Cabin |
HOWO NX cabin,2 seats with a sleeper, Left Hand Driving, with air conditional |
||
|
Engine |
Model |
4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling |
|
|
Type |
WEICHAI WP10.380E22 |
||
|
Power |
279KW/380HP |
||
|
Displacement |
9.726L |
||
|
Max torque |
1600N.m |
||
|
Rated speed |
2200rpm |
||
|
Fuel type |
Diesel |
||
|
Gearbox |
HW19710, 10 forward gears, 2 reverse gears |
||
|
Brake System |
Air brake |
||
|
Wheel Base |
4600+1400mm |
||
|
Tire |
12.00R20, 10+1 pcs |
||
|
Superstructure Specification |
|||
|
Cargo Body |
Dimension |
6500×2300×450mm |
|
|
Material |
Q235 carbon steel |
||
|
Cargo Thickness |
Side 3mm, Bottom 4mm |
||
|
Working System |
Boom Type |
Straight 4-Arm telescopic boom |
|
|
Crane |
Crane Brand |
XCMG GSQS300 |
|
|
Max Lifting Moment |
20T.M |
||
|
Max Lifting Capacity |
12000kg |
||
|
Maximum working radius |
16m |
||
|
Max lifting height |
17.8m |
||
|
Rotation angle |
360° |
||
|
Installation space |
1300mm |
||
|
Maximum working pressure |
26Mpa |
||
|
Crane weight |
4300kg |
||
|
Oil tank capacity |
240L |
||
Working principle of HOWO 6X4 straight arm crane truck

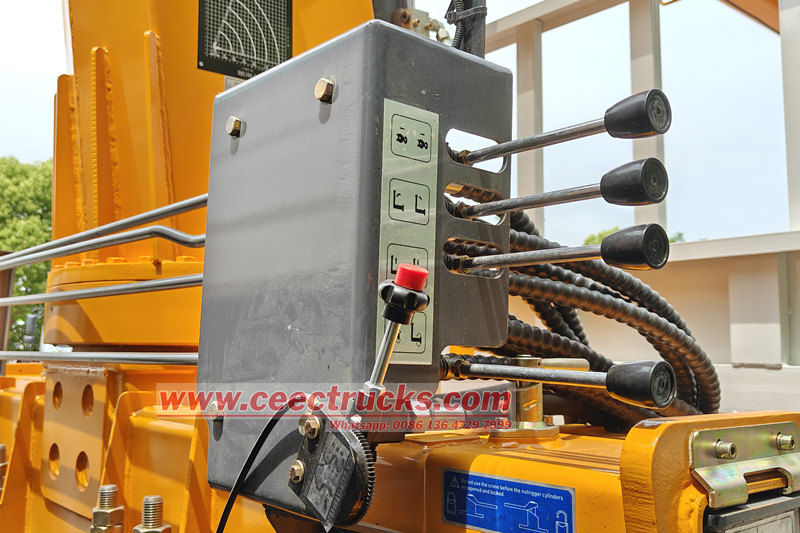

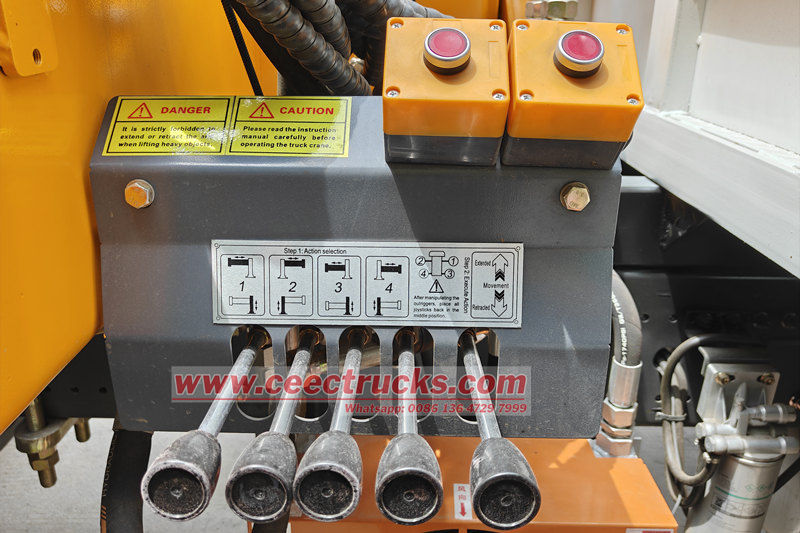

HOWO straight arm crane truck is a lifting equipment on a special chassis, and its core structure consists of a hydraulic system, a telescopic straight arm, a slewing mechanism and a hook. When working, the engine drives the hydraulic pump to generate high-pressure oil, and the oil flow direction is adjusted by the control valve group to achieve the following actions:
●Telescopic arm operation: The 4-section boom is extended section by section through the hydraulic cylinder, and the extended operating radius can reach 16 meters. The end of the boom is equipped with a pulley block and a wire rope to lift heavy objects.
●360° rotation: The slewing motor drives the turntable to rotate, realizing full-circle lifting without dead angles.
●Variable amplitude adjustment: The boom elevation angle is adjusted by the hydraulic cylinder to change the lifting height and amplitude.
●Load control: The pressure sensor monitors the weight in real time and automatically cuts off the operation when overloaded to ensure safety.
Howo 6x4 service boom truck
Features and advantages of Howo truck loader crane
●Efficient and flexible: the straight arm structure has a fast unfolding speed, suitable for frequent loading and unloading; the compact design reduces the space occupied and adapts to narrow sites.
●Strong adaptability: the modular design can be equipped with optional grab buckets, hanging baskets and other accessories to handle multiple tasks such as bulk materials and aerial operations.
●Precise control: the electro-hydraulic proportional valve realizes stepless speed regulation, and the micro-movement reaches the millimeter level, which is suitable for precision lifting.
●Economical: one vehicle can be used for multiple purposes (transportation + lifting), reducing equipment investment; the HOWO chassis can carry a lifting capacity of 10-15 tons.
●Safe and reliable: double hydraulic lock explosion-proof valve, torque limiter and emergency manual pump constitute multiple protections.

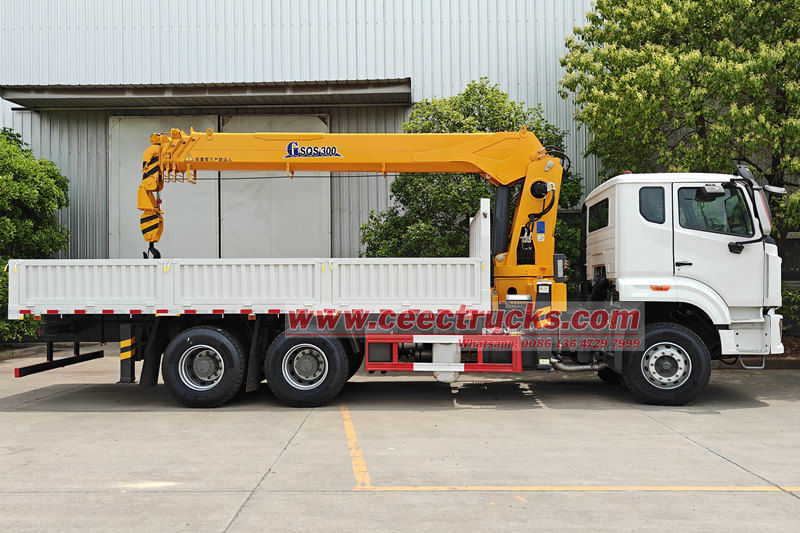

Howo 380hp lorry mounted crane
The wide application of Howo 6x4 380HP straight arm crane truck
●Logistics and transportation: port container transshipment, steel pipe/wood loading and unloading in building materials market.
●Engineering construction: installation of prefabricated bridge parts, short-distance lifting of construction site equipment.
●Emergency rescue: vehicle clearance at accident site, post-disaster debris cleaning.
●Municipal maintenance: street lamp inspection and maintenance, greening tree transplantation.
