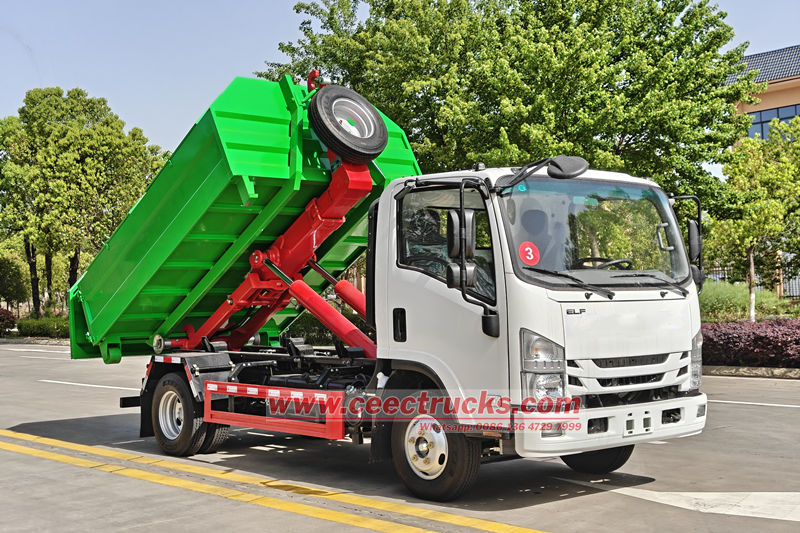

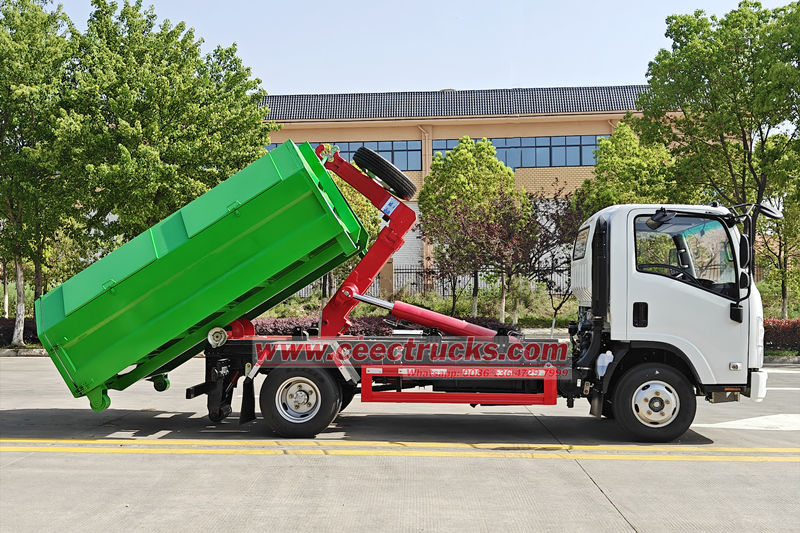

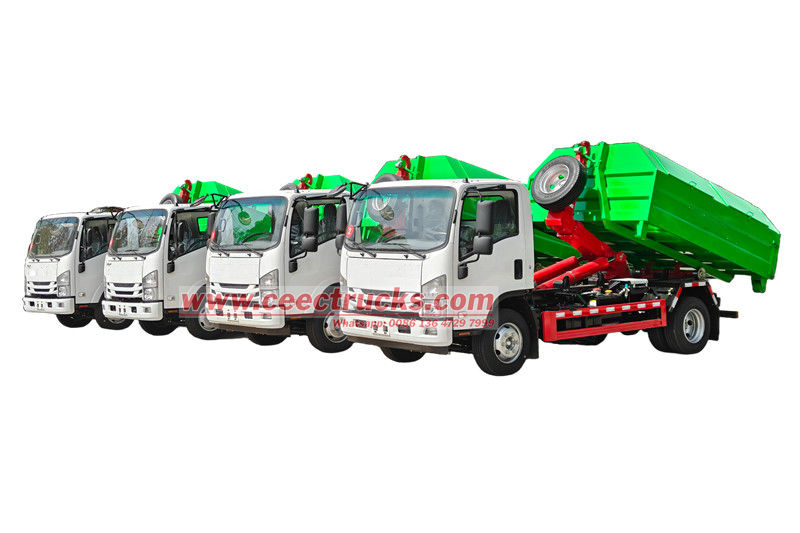

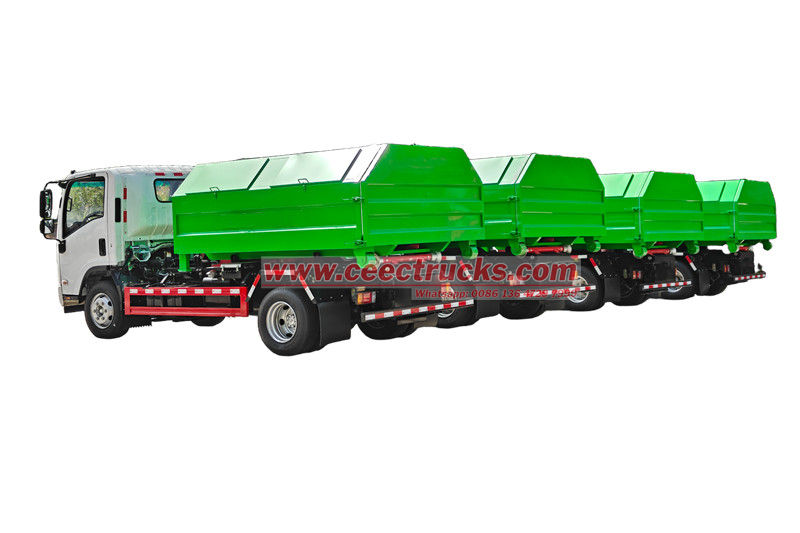

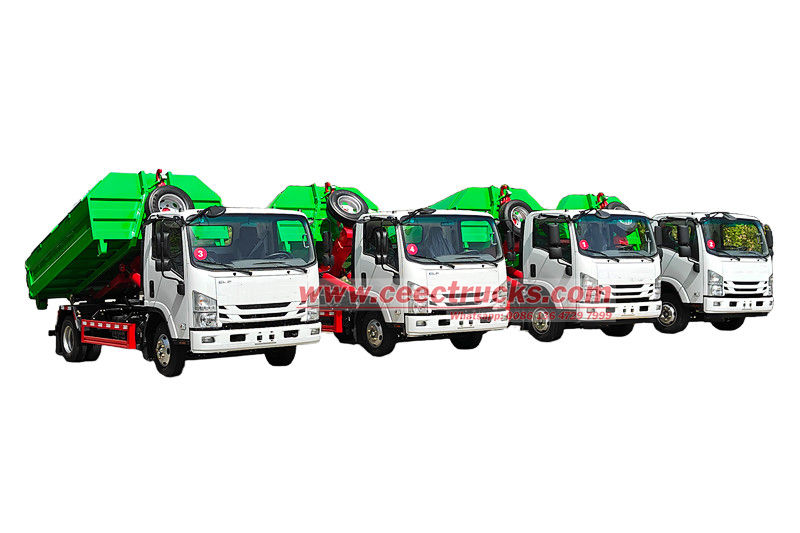

4 units Isuzu NPR hook lift garbage truck

Isuzu NPR hook lift garbage truck is an efficient and environmentally friendly sanitation vehicle. It adopts a fully hydraulic control system and uses a retractable hook arm to achieve rapid loading, unloading and dumping of garbage bins. It supports multiple bins in one vehicle and greatly improves transportation efficiency. Its sealed box design effectively prevents garbage leakage during transportation and avoids secondary pollution. It is also equipped with a hydraulic locking mechanism to ensure the stability of the box. Isuzu NPR hook lift garbage truck has a simple structure and is easy to operate. It is widely used in municipal sanitation, property management, industrial and mining enterprises and other scenarios. It is an important equipment for modern urban garbage removal.

Isuzu NPR hook lift garbage truck realizes fast loading, unloading and dumping of garbage bins through a fully hydraulic control system.

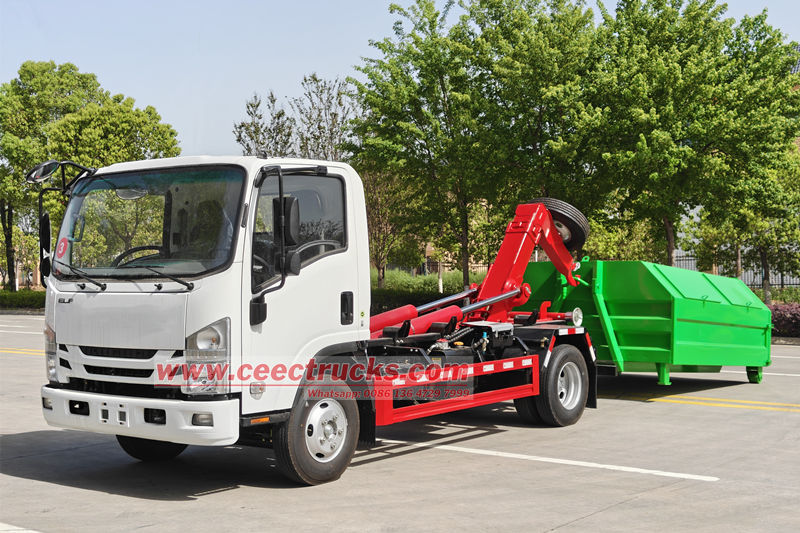

During operation, the hydraulic system drives the hook arm to lower, the hook hooks the connection point of the garbage bin on the ground, and the hook arm retracts to pull the garbage bin steadily to the rear seat of the vehicle body and lock it.

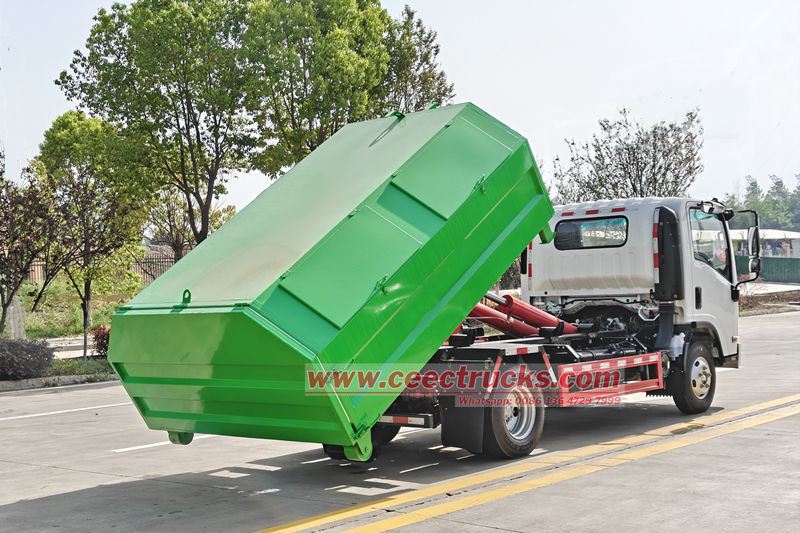

After transporting to the treatment site, the hydraulic system drives the hook arm to lift and flip again, so that the garbage bin is tilted to a specified angle to complete self-unloading dumping.

Its core advantage is that one vehicle can be adapted to multiple garbage bins, support recycling operations, and cooperate with the sealed box design to effectively avoid secondary pollution during transportation, greatly improving the efficiency and flexibility of garbage removal.

Isuzu NPR hook lift garbage truck also called Isuzu ELF hook loader ,Isuzu NPR hook lifting truck, Isuzu 10cbm hook arm garbage truck,Isuzu ELF hook lift garbage truck,Isuzu 4x2 hook loader truck,etc. The vehicle is modified on the Isuzu ELF chassis, 3360mm wheelbase, equipped with a powerful Isuzu 4HK1-TCG61 diesel engine and Isuzu MLD 6-speed gearbox, powerful, smooth shifting, ensuring excellent driving performance and operating stability.

1. Structural design and working principle

Isuzu NPR hook lifting truck adopts modular design, consisting of chassis, hydraulic hook arm system, subframe and detachable trash bin. Its core component is the telescopic hook arm made of high-strength manganese steel, which is driven by hydraulic cylinder to achieve precise movement: when loading, the hook arm is lowered and grabs the special lifting lug of the ground trash bin, and after retracting, the bin is smoothly pulled to the subframe and automatically locked; when unloading, the hook arm lifts and flips the bin to the specified angle to complete the self-unloading dumping. The whole vehicle supports the "one vehicle, multiple bins" cycle operation mode, which greatly improves transportation efficiency.





2. Core performance advantages

Efficient and flexible: The hydraulic system responds quickly, the single operation cycle is short, and the garbage bin can be placed independently at the collection point to reduce the idle time of the vehicle.

Sealed and environmentally friendly: The garbage bin adopts a fully enclosed design, equipped with rubber sealing strips and hydraulic locking devices, with no risk of leakage during transportation, eliminating secondary pollution.

Strong adaptability: The box volume covers 3-10 cubic meters, which can adapt to different scene requirements and meet the complex road conditions such as urban roads, communities, and villages.



3. Humanized and safe design

The vehicle is equipped with an intelligent control system. Operators can complete loading and unloading actions through the control panel in the cab, reducing labor intensity. At the same time, the hook arm system has double safety protection: the hydraulic overload protection device can prevent overload operation from damaging components, and the mechanical limit device ensures the stability of the box during transportation. In addition, the entire vehicle has been treated with anti-corrosion, and key components are made of wear-resistant materials to extend service life and reduce maintenance costs. It is an ideal choice for modern sanitation operations.
