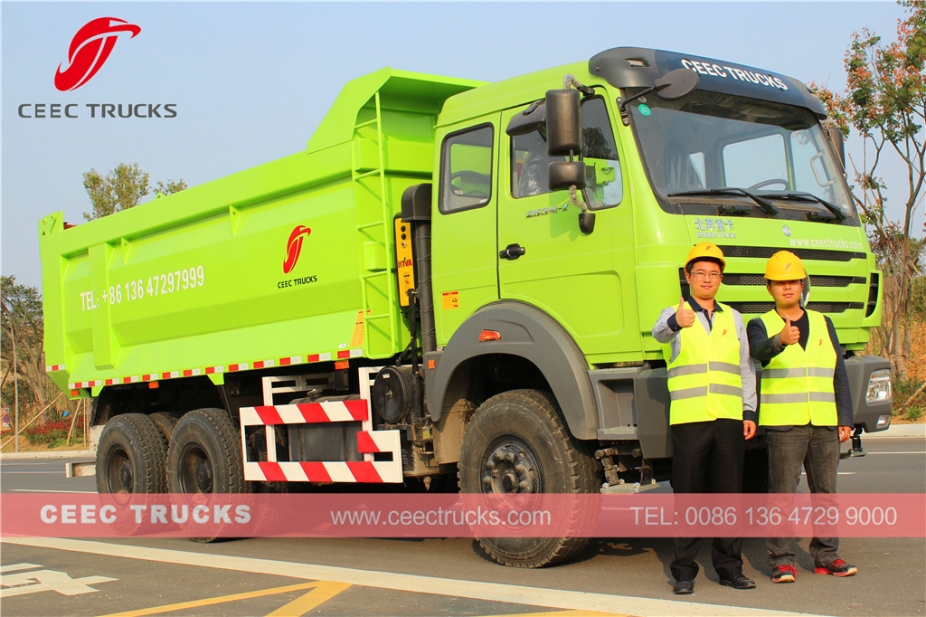

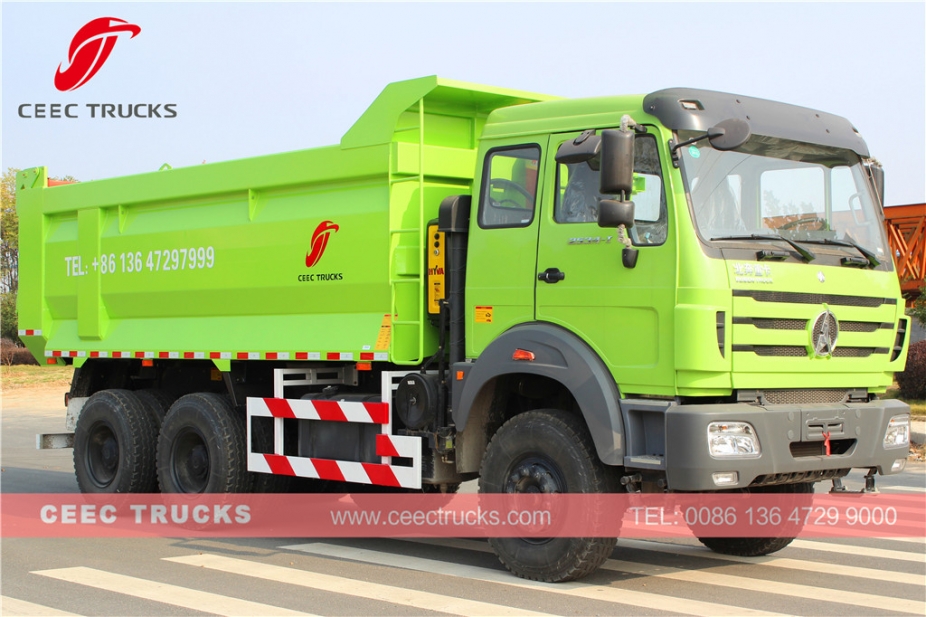

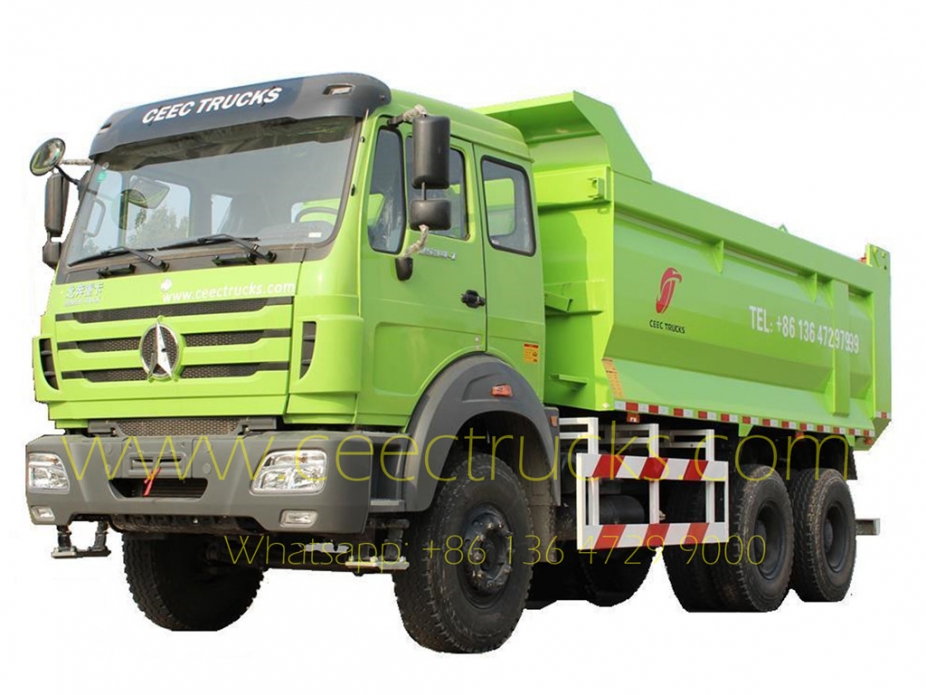

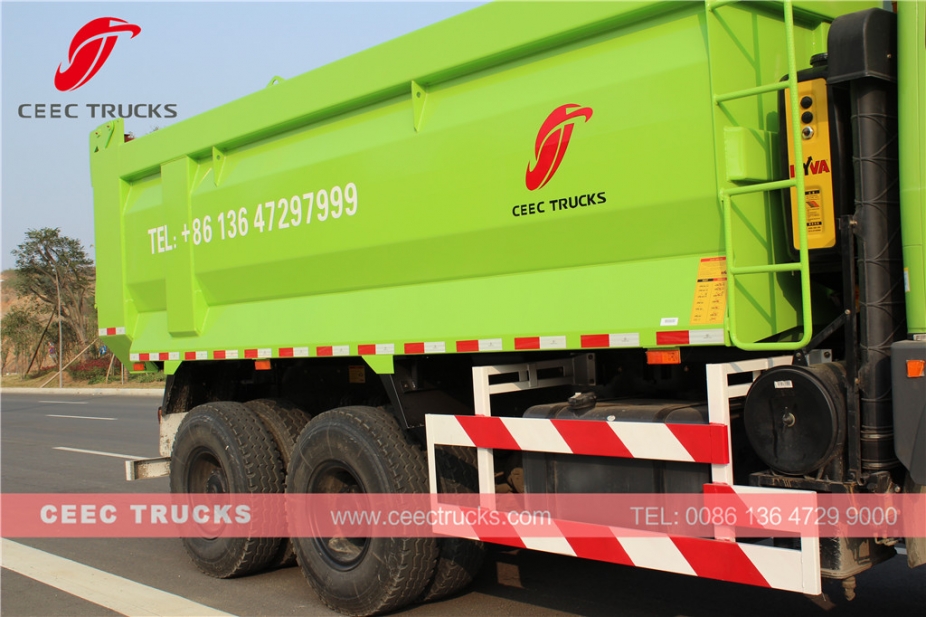

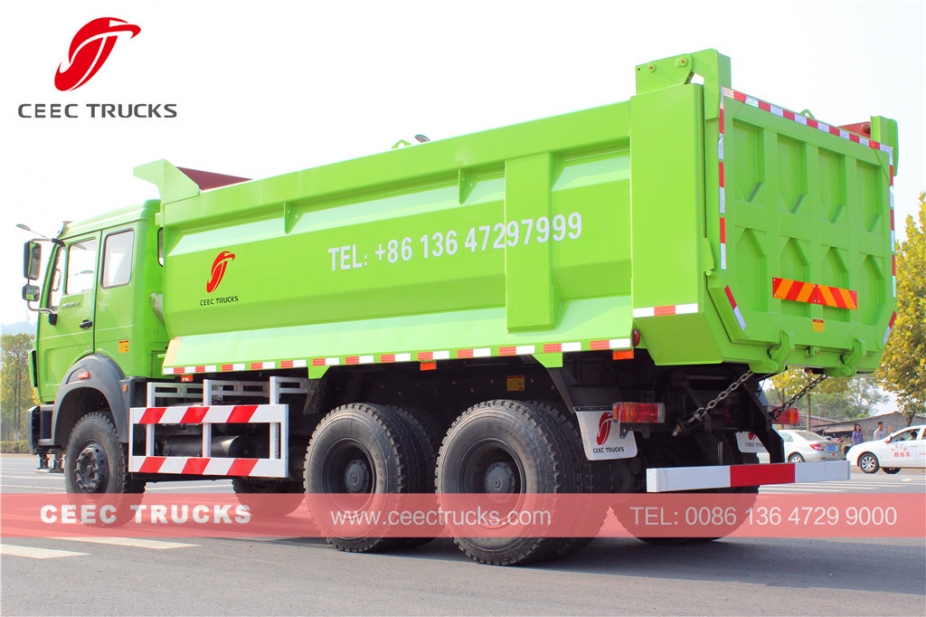

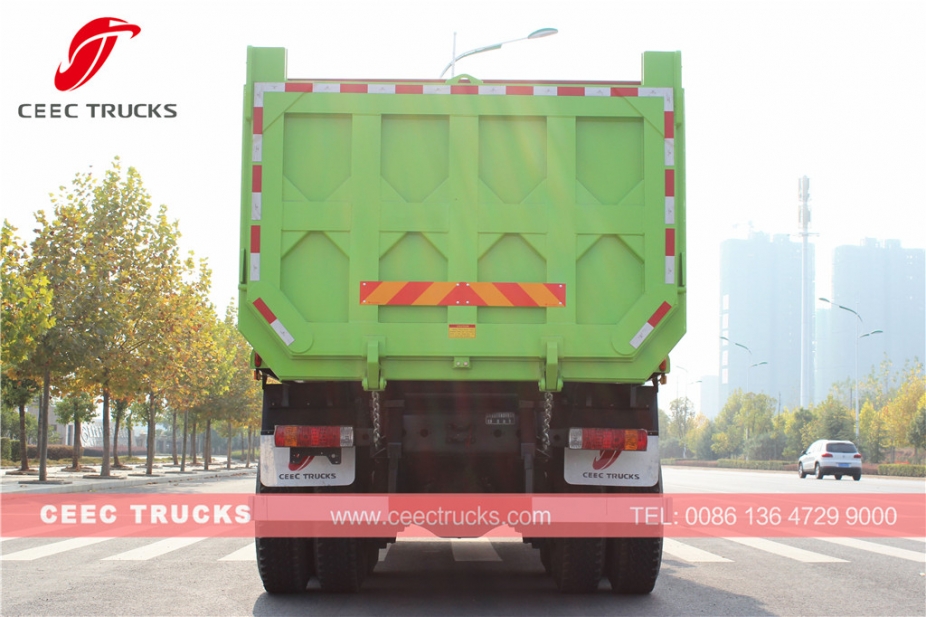

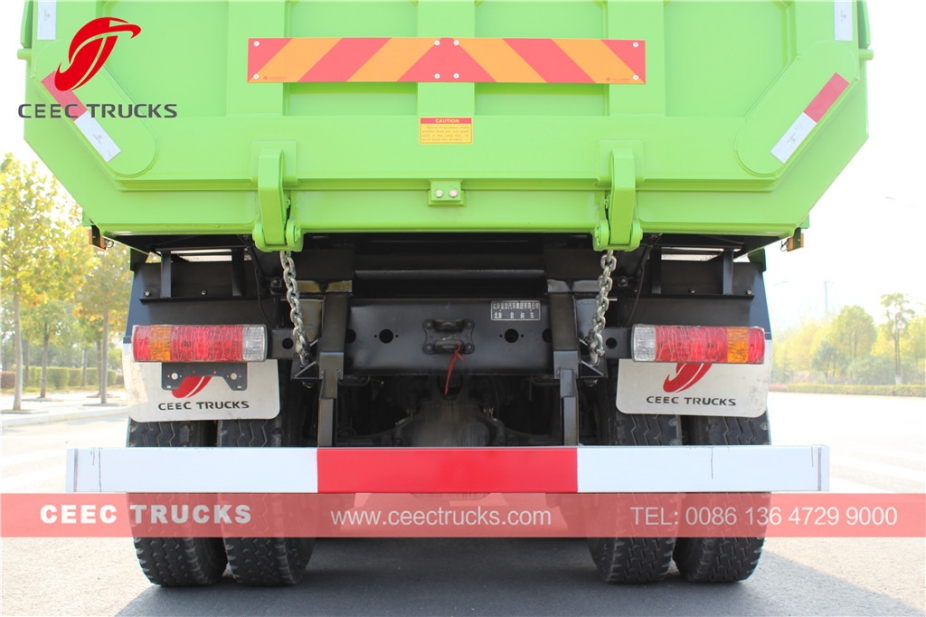

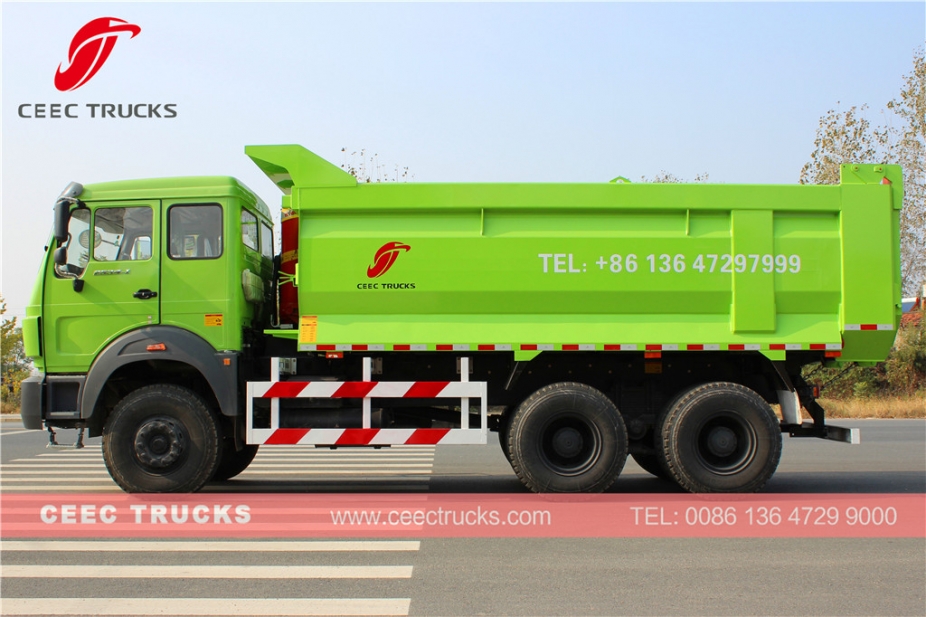

40,000kg capacity Beiben dump truck

40T Dump Truck Beiben

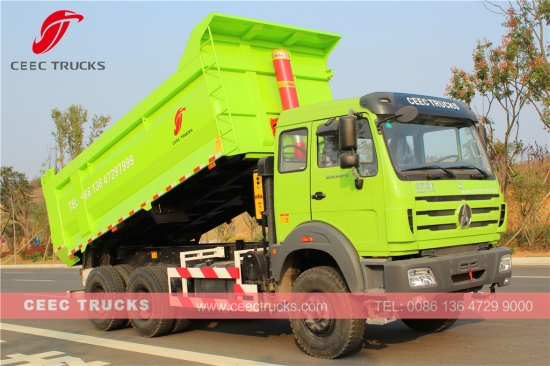

Beiben 40T beiben dumper truck, which use benz technology chassis, WEICHAI brand diesel engine, with engine power can be 240HP to 460HP, FAST 9-shift transmission gearbox for safe driving. high strength steel material 8mm thickness dumper body special used for mining rock delivery

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    30 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $42,000-50,000
  • Market Price:

    $46000
contact now



beiben dumper truck overview



 Applications:



Dumper Truck Beiben (also called dump truck, tipper truck, rear tipping vehicle, mining dump truck, construction dump truck, beiben dumper, north benz tipper, mine tipper vehicle) is designed for loading, transporting and discharging construction material, also can be used in for mine rock delivery.

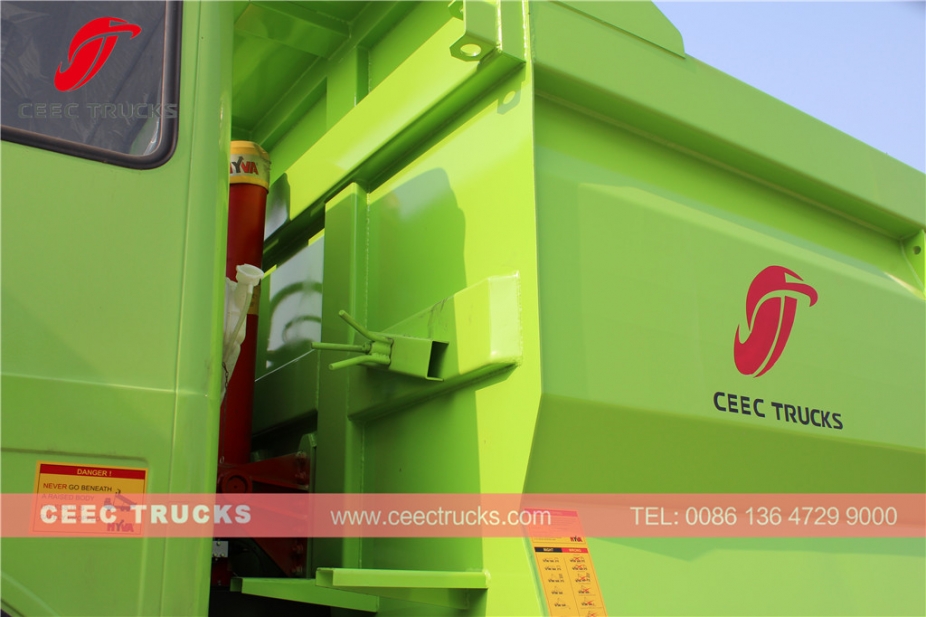

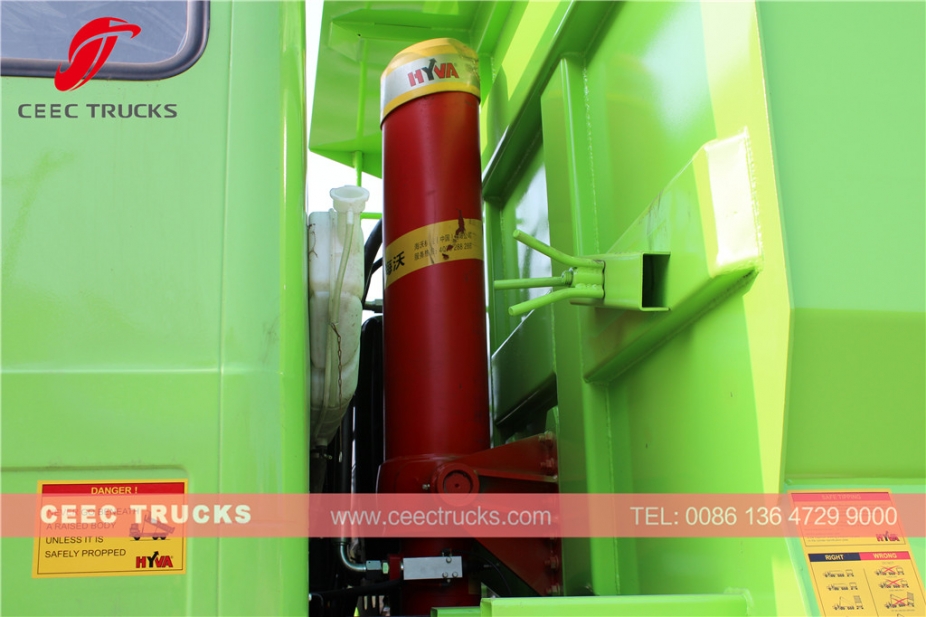

CEEC TRUCKS tipper trucks all use reliable HYVA brand hydraulic lifting device, with Front & Middle lifting optional.



The dump truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.



 Key Features:



---- Beiben chassis, perfect performance

---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Dumper body capacity from 3 to 100 Metric Ton.

---- HYVA lifting device easy operation and maintenance.

---- Front lifting & middle lifting are available.



 Specifications:



Dump Truck Beiben (40T)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Beiben

Overall Dimension

8500*2490*3340 mm

GVW / Kerb Weight

25,000 kg / 14,800 kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

380 HP (280 KW)

Displacement

9726 ml

Emission Standard

Euro 2 or 3

Chassis

Drive Type

6X4, (left hand drive)

Transmission

FAST 9 speed levers with 1 reverse

Wheelbase/No. of axle

3800+1450 mm / 3

Tire Specification

12.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body Capacity

40 T

Tilting Device

Front lifting device

Hydraulic Cylinder

HYVA brand

Discharging model

Rear discharging

Dump Body Dimension
5600*2300*1500 mm

Thickness

Side Board: 8mm

Floor Board: 10 mm

Control panel

English or Your language

All standard accessories: basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.



 beiben dumper truck drawing dimension



---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.

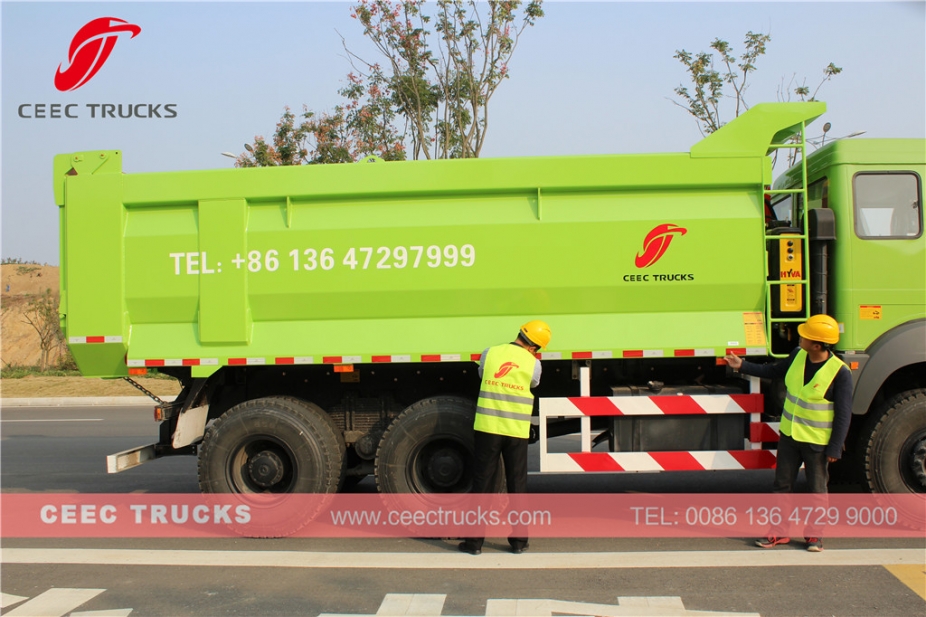

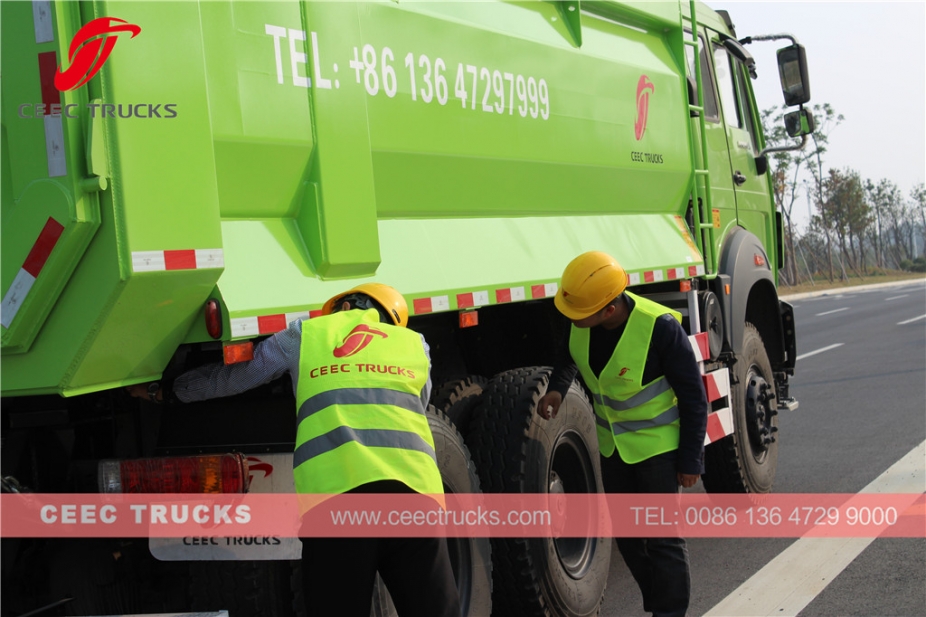

beiben dumper truck inspection





---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.



beiben dumper truck spare parts

beiben dumper truck parts





---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...



beiben dumper truck export documents



---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



beiben dumper truck factory advantage





---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



beiben dumper truck export review





---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free

---- 100% quality guarantee.



beiben dumper truck export review



Watch BEIBEN Dump Truck on YOUTUBE

Beiben 2538 Dump truck:    https://www.youtube.com/watch?v=gTKhNj5nP1w

                                                              https://www.youtube.com/watch?v=tRwmNi4m9GE

                                                              https://www.youtube.com/watch?v=IdII5BkGmuI

                                                              https://www.youtube.com/watch?v=p_UouhuDZa0

                                                              https://www.youtube.com/watch?v=Smax92Dtmt4

                                                              https://www.youtube.com/watch?o=EW96-_ILy9k

                                                              https://www.youtube.com/watch?v=FqjDYtpkBdw
