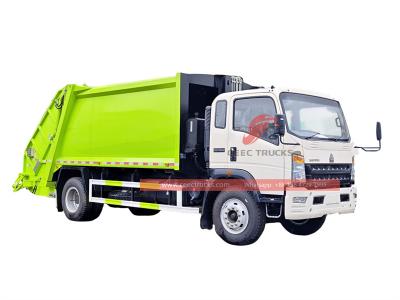

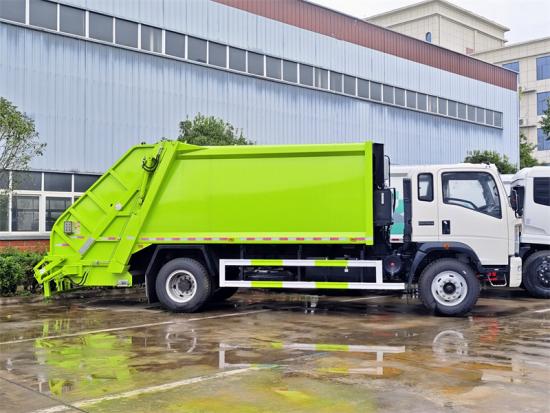

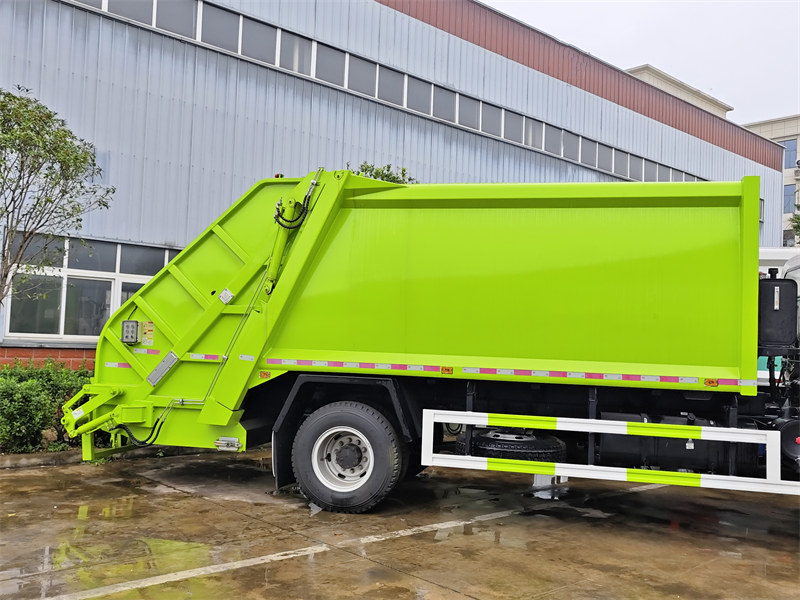

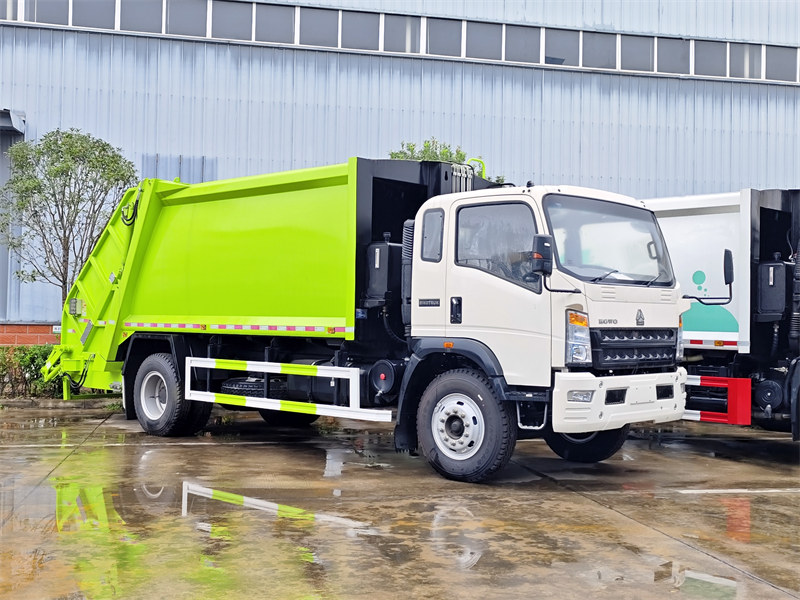

The Howo 10CBM garbage compactor truck is a high-efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Howo 4x2 chassis, the garbage rear loader is equipped with a 160HP Euro 3 engine and a six-speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo light 10CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.
Product Origin:
China CEECLead Time:
40 DaysWork capacity:
10 cbmDimension ( mm ):
6800 X 2350 X 2560Wheelbase ( mm ):
4600Engine power:
160HPEngine type:
YC4E160-33Axle drive:
4x2, LHD/RHDGear box:
WLY 6-shift gearboxRemarks:
PLC control systemThe Howo 10CBM garbage compactor truck is a high-efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Howo 4x2 chassis, the garbage rear loader is equipped with a 160HP Euro 3 engine and a six-speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo light 10CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.
CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Low fuel consumption and economy: YC 160HP engine + WLY 6 speed gearbox, excellent fuel economy.

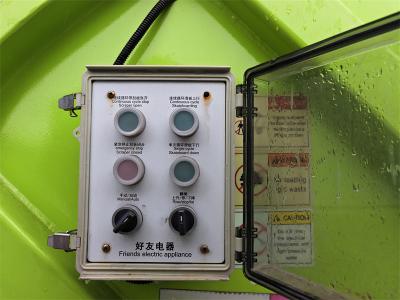

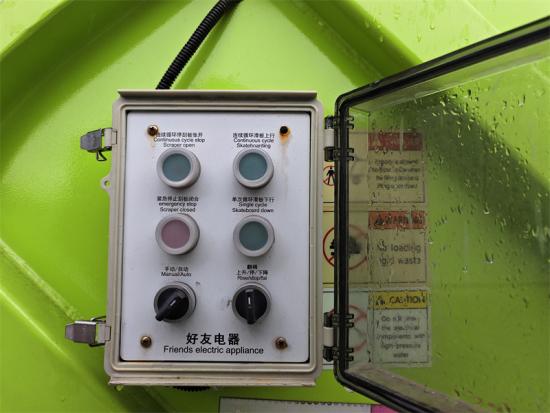

2. Convenient operation: three operation points (cab, driver's side, tail) adapt to different operation scenarios.
3. Safe and reliable: the hydraulic system is equipped with a safety valve to prevent overload and ensure operation safety.

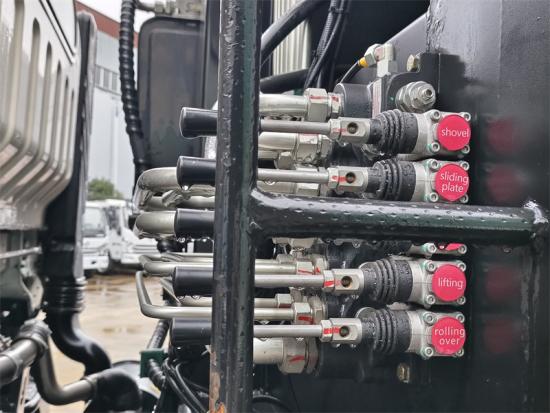

The garbage truck adopts electro-hydraulic control valve and PLC programmable control system, which comprehensively utilizes the advantages of electric control and hydraulic control. Through electric-hydraulic combined control, it effectively solves the interface problem between the hydraulic system and the electrical system and improves the reliability of use.

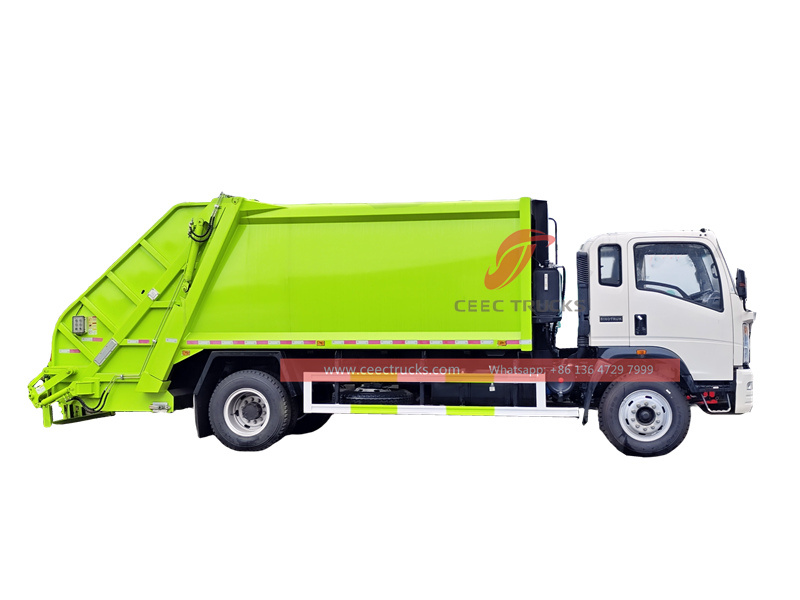

» Ⅱ.Product Parameter for Howo 10CBM rear loader：
|
Howo 10CBM REAR LOAD GARBAGE TRUCK |
||
|
Chassis Model |
Howo light |
|
|
Engine |
Make: Howo |
|
|
Diesel 4-stroke direct injection diesel engine |
||
|
Engine model:YC4E160-33, Euro 6 emission standard |
||
|
4-cylinder in-line with water cooled, turbocharged and intercooler |
||
|
Maximum output: 160HP/118KW |
||
|
Maximum torque: 600 N.m |
||
|
Displacement: 4.2 L |
||
|
Transmission |
WLY, 6 forwards and 1 reverse, manual |
|
|
Drive system |
Left/Right hand 4x2 drive |
|
|
Chassis |
Frame: U-profile parallel ladder frame and reinforced subframe |
|
|
Front suspension:8 pcs semi-elliptic leaf spring |
||
|
Rear suspension:10+6 pcs semi-elliptic lea spring |
||
|
Fuel tank: 100 L capacity with locking fuel cap |
||
|
Steering |
Power steering, hydraulic steering with power assitance |
|
|
Brakes |
Service brake: dual circuit compressed air brake |
|
|
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels |
||
|
ABS |
||
|
Wheels & Tyres |
Tire: 7 pcs 8.25R20 |
|
|
Driver's Cab |

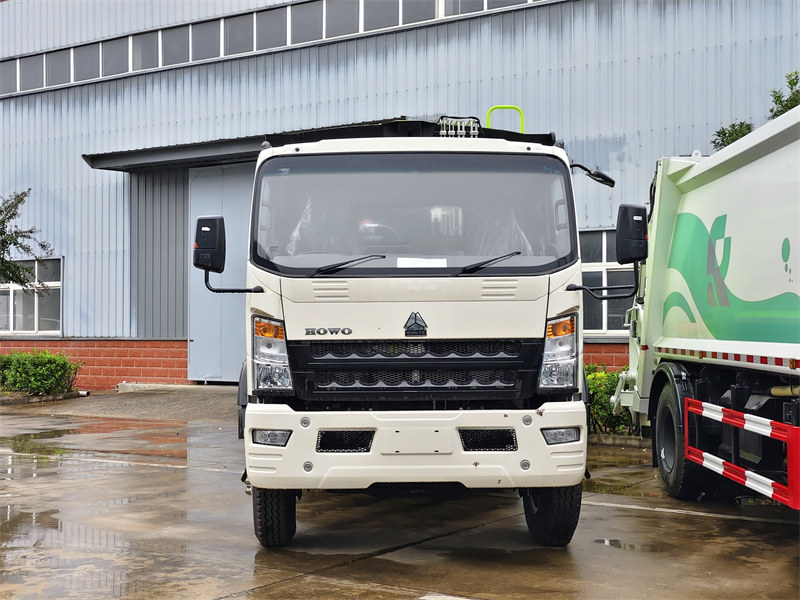

Howo 1970 wide cab, with three seats, A/C, electric glass, central lock |
|
|
Dimensions mm |
Wheel base |
4600 MM |
|
Overall length |
7400 MM |
|
|
Overall width |
2300 MM |
|
|
Overall height |
2640 MM |
|
|
Weight kg |
Curb weight |
6900 KG |
|
Rated Loading Capacity |
4000 KG |
|
|
Gross vehicle weight(GVW) |
11000 KG |
|
|
Front axle loading capacity |
4000 KG |
|
|
Rear axle loading capacity |
7000 KG |
|
|
Compactor Body |
Volume of body(m3) |
10 |
|
Volume of filler(m3) |
2 |
|
|
Time of one filling cycle(s) |
≤25 |
|
|
Lifting time of filler (s) |
8-10 |
|
|
Time of discharge (s) |
≤40 |
|
|
Pressure of hydraulic system (Mpa) |
18 |
|
|
Front/rear sewage capacity (L) |
250+150 |
|
|
Control system |
CAN-bus (electrical) and manual (hydraulic) |
|
» Ⅲ.Product Details & Advantages:
1. Compactness and maneuverability optimization
►Short wheelbase body design (wheelbase ≤4.6m) + rear wheel steering assist system, achieving ≤10m turning radius
►Low chassis ground clearance (≤300mm) adapted to underground parking lot height limit (2.2-2.5m)
►Lightweight assembly (vehicle curb weight ≤5 tons) takes into account both load and flexibility

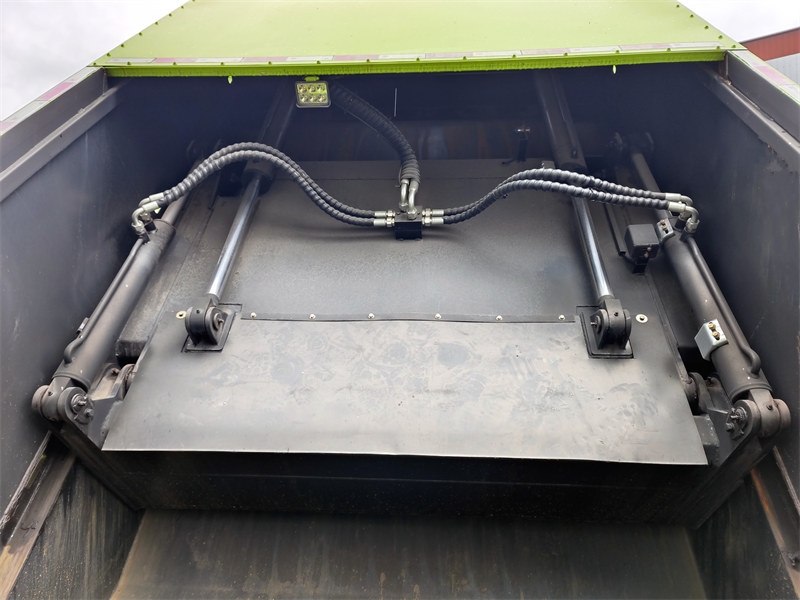

2. Efficient compression system
►Two-stage spiral compression mechanism (compression ratio ≥3:1) with intelligent pressure sensor

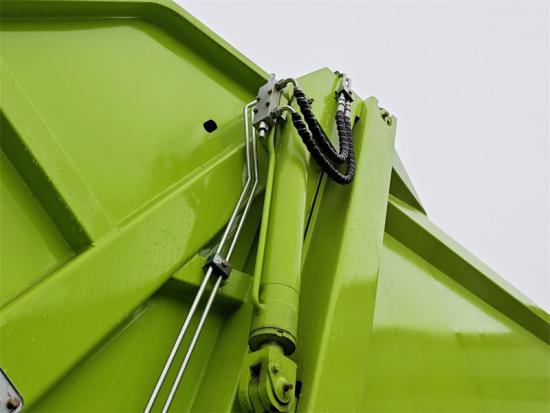

►Modular hydraulic power unit (working pressure ≥18MPa) + energy-saving start-stop control
►Sealed push plate structure (leakage rate ≤0.1%), standard sewage diversion trough
3. Intelligent operation system
►CAN bus integrated control system (including load monitoring/fault self-diagnosis)
►Reversing radar + 360° surround image (IP69K protection level)
►Remote monitoring module (4G transmission + GPS trajectory tracking)
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We CEEC also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
★ Isuzu YC4E160-33 Euro 3 engine, super powerful
★ Fast Manual 6-shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized Howo 10tons rear loader exporter
★ Training service for Howo 10tons rear loader.
China professional rear loader truck supplier and exporter, we supply high quality rear loader truck. We can ensure the fast delivery time and 12 months guarantee for our rear loader truck. Our rear loader truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
