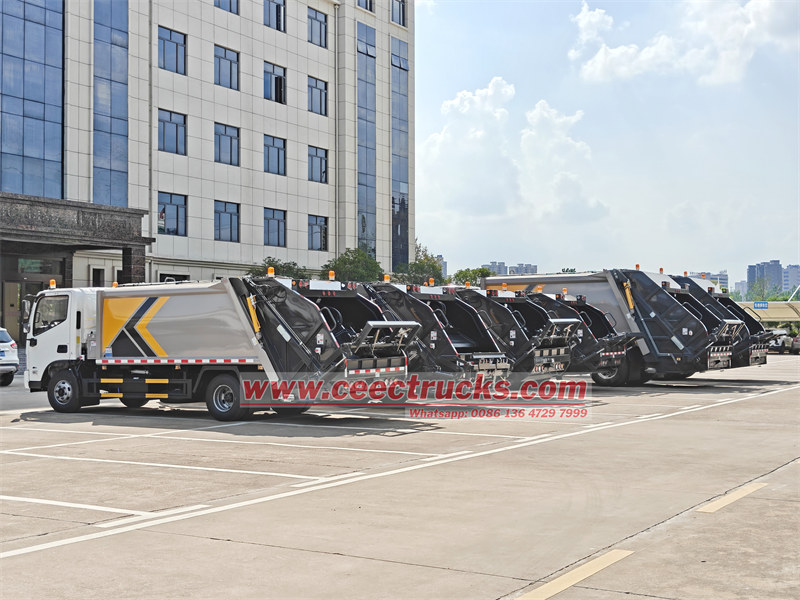

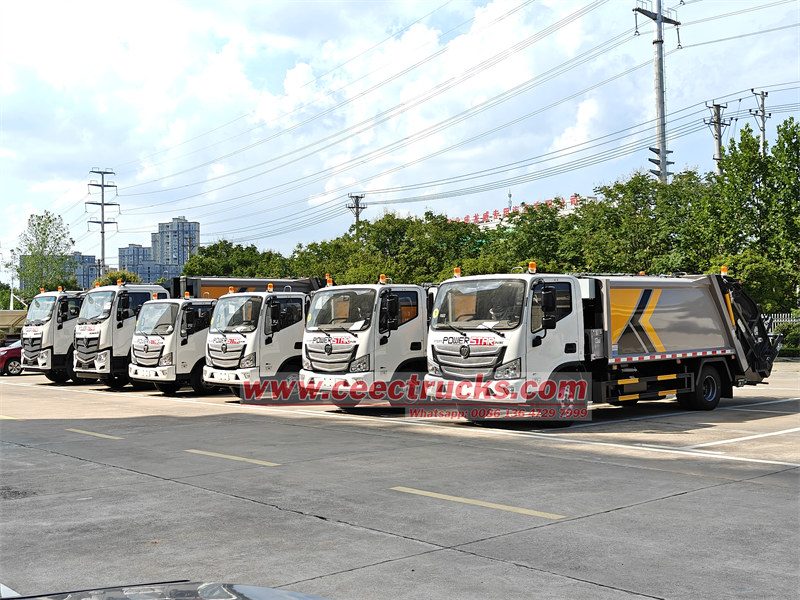

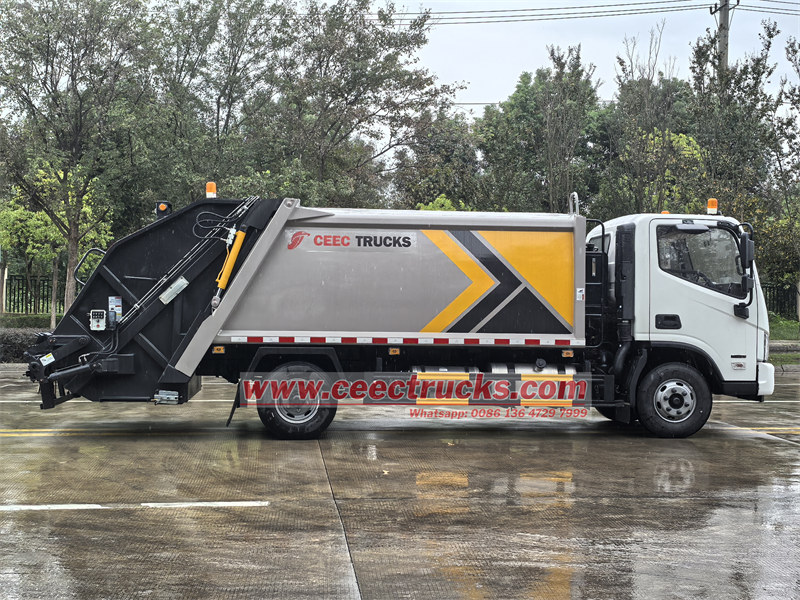

South American customer purchased 6 units FOTON refuse compactor trucks, and the FOTON 4x2 rear loader trucks are specialized designed and produced as sanitation vehicles and service in South America country Chile. All amount the 6 units FOTON compactor trucks including 4 units light duty 10cbm rear loader and 2 units heavy duty 16cbm garbage compactor trucks. All fully rely on the advantages of the original FOTON brand truck chassis, consider the trucks convenience and reliability, also the chassis technology features. Equipped with American Cummins diesel engine for reliable horsepower output, matched working with full hydraulic cylinders and realize the functions, therefore, FOTON trash compactor vehicle is an ideal waste management truck mainly for sanitation project along the city.

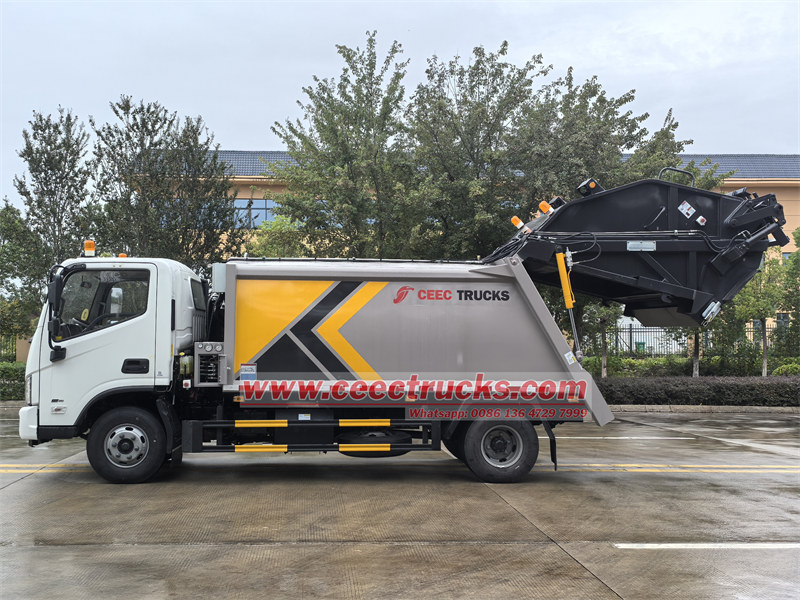

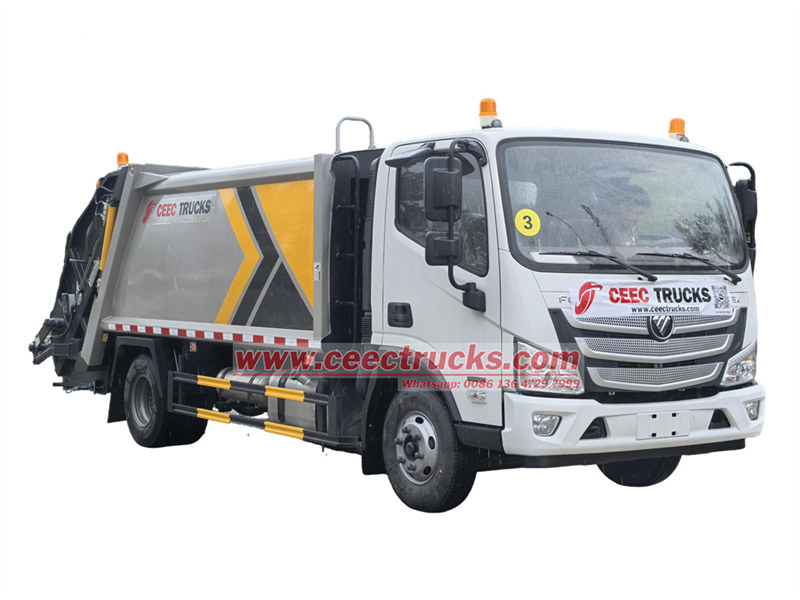

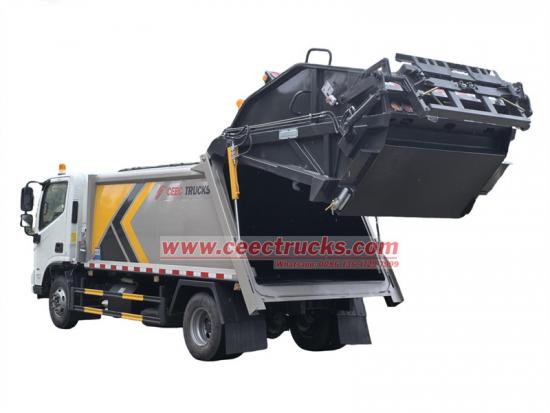

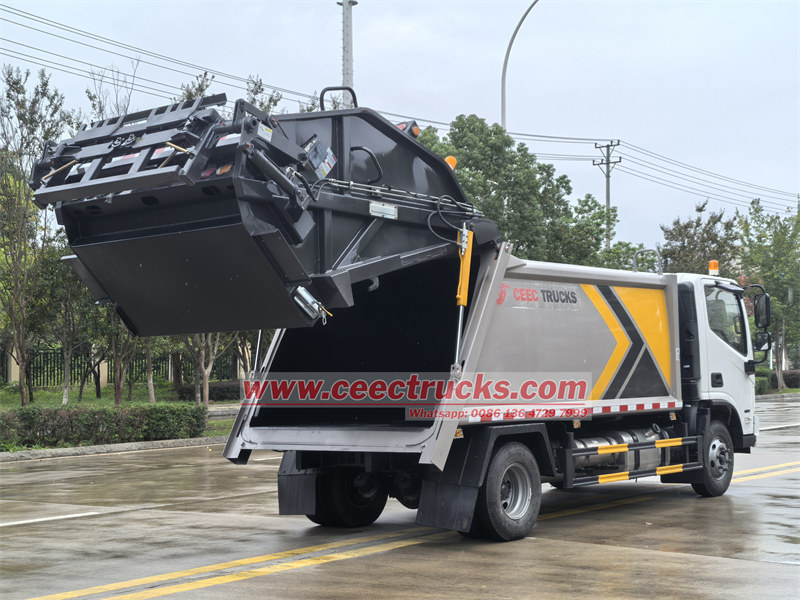

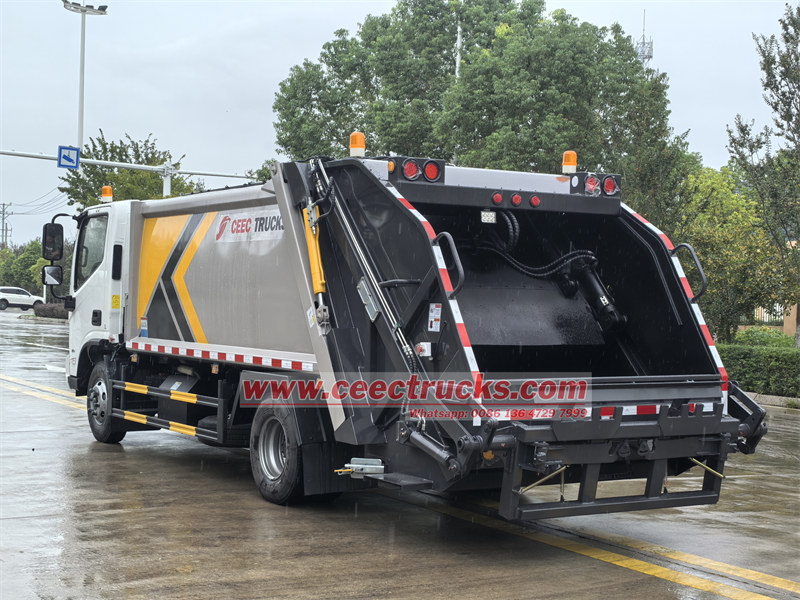

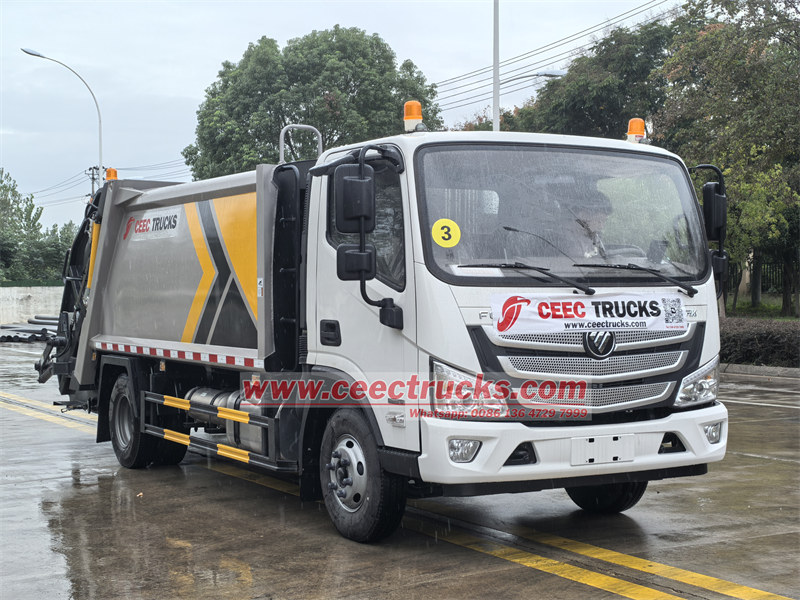

*FOTON 10CBM rear loader garbage truck

FOTON refuse compactor vehicle*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

»» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS

Features:

1. FOTON 4x2 Truck chassis: CUMMINS ISF3.8s3141 model with 141HP diesel engine + 6-speed gearbox, excellent fuel economy.

2. Compactor Body: High strength steel T420 material, thickness for side and floor 4mm, anticorrosion painting for long life service.

3. Convenient Operation: Incabin and rear tailgate CAN BUS electric control box, Hydraulic valves for safety usage

4. Safe and reliable: Full hydraulic system is equipped with a double way valve to prevent overload and ensure operation safety, also balance valve for safety operation.

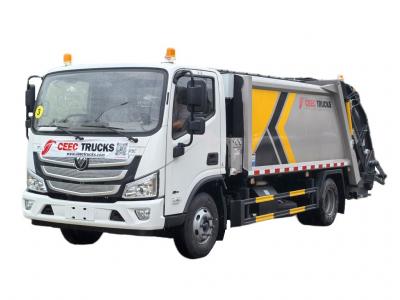

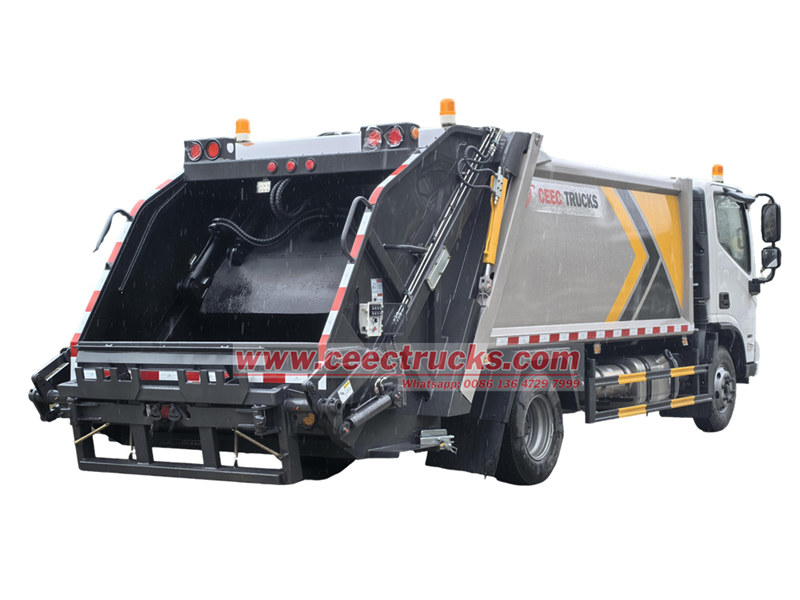

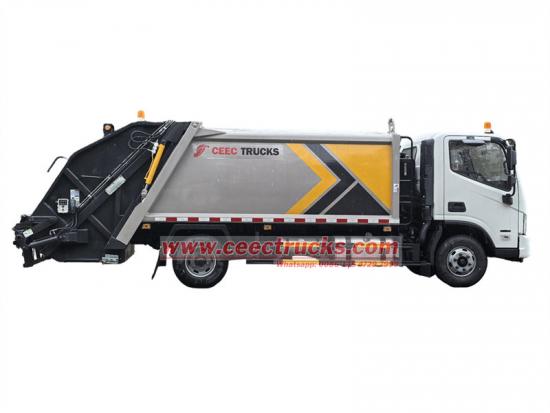

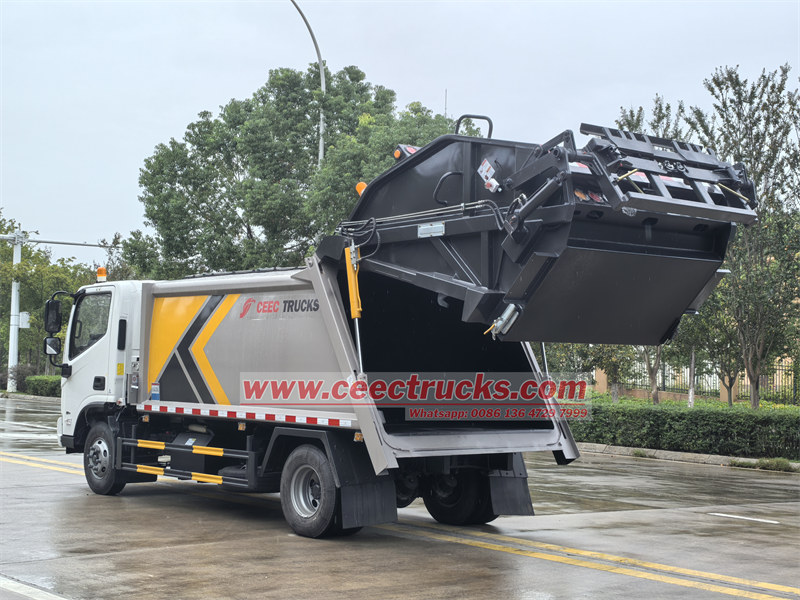

The FOTON 10CBM dumpster compactor truck is a high-performance, large-tonnage urban sanitation equipment, based on 1088VEJEA-0FDA07 model 4x2 truck chassis. It is equipped with a CUMMINS brand F3.8s3141 model 141HP diesel engine, and the power system is equipped with turbocharging and intercooling technology. Matched with ZF model 6 shift manual transmission gearbox, front axle 2.85tons and rear axle 6tons, matched with 7.50R16 tires, ensuring a strong load-bearing capacity. Mounted with 10cbm compactor body, curve shaped based on T420 material, thickness for side 4mm and floor 4mm, equipped with double way balance valve and optoelectronic switch for safety, rear tilting device can be used for loading 240L and 1100L garbage bins. CAN BUS electricl control system and Hydraulic valve control system working together to make FOTON 10000L truck mounted rear loader is an ideal truck for garbage collection, compression and transportation in Chile Capital Santiago.

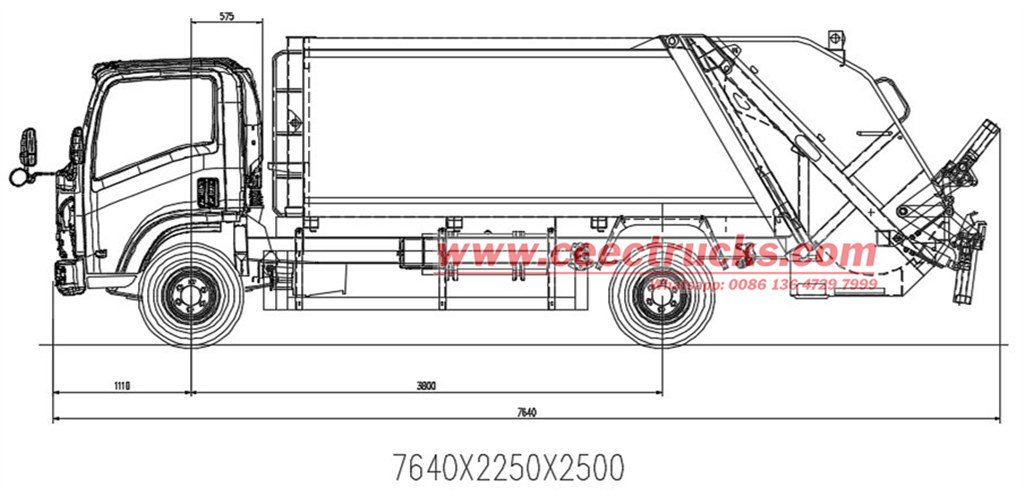

»» Ⅱ.Product Parameter for FOTON 10CBM refuse compactor loader：

»» Ⅲ.FOTON Rear Loader Truck Details & Advantages:

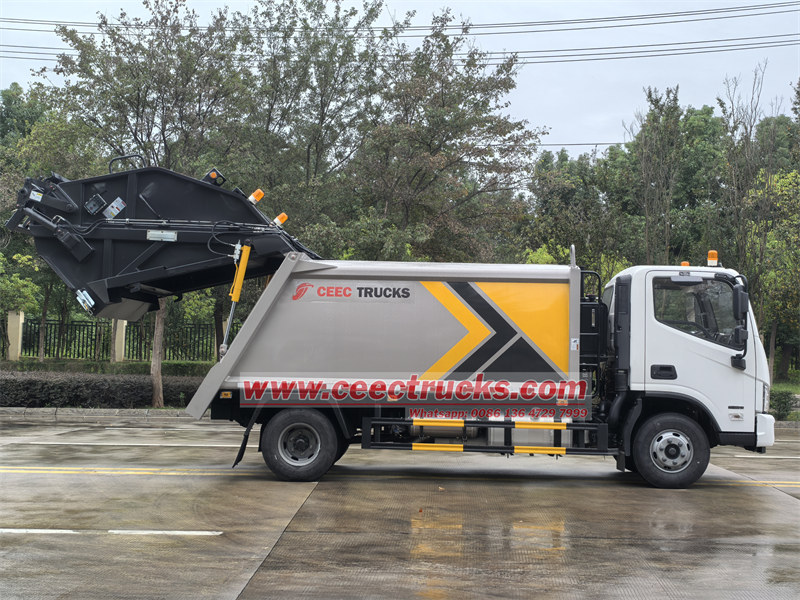

FOTON rear loader truck compactor body

Efficient and user-friendly garbage collection.

The system offers simple, fast, and leak-proof garbage collection. It works with various devices like small garbage trucks and international standard container bins, improving urban cleanliness and reducing secondary pollution.

Based on T420 material with thickness for side 4mm and floor 4mm, integrated molding process for durable and longer life service.

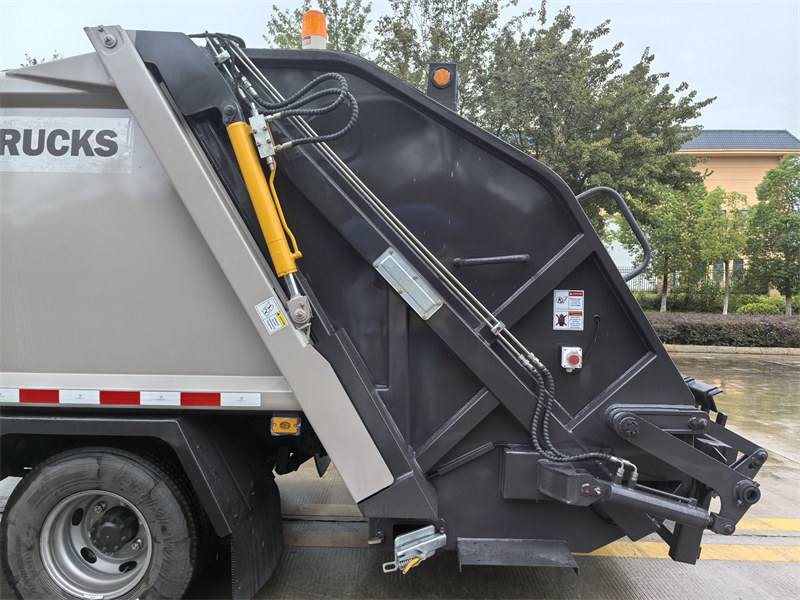

FOTON compactor truck with rear hopper

Rear loader compactor body kit with reasonable design and reliable quality. Full hydraulic lifting device matched with balance valve for safety lifting up and falling down.

The installed Nylon Sliding Block are two model, bigger and smaller type are equipped on the hopper to guarantee sliding plate working more smoothly. Full safety marks for operation guidance, optional language as English, French, Russia, Spanish, etc.

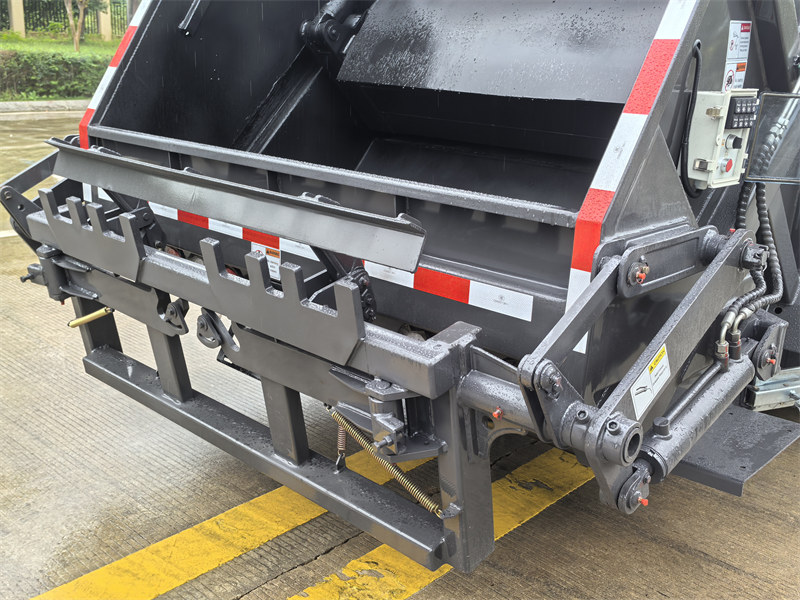

FOTON garbage truck rear tilgint device

Foton refuse compactor truck equipped with rear tilting device, customized model with double hydraulic cylinders for working. Suitable for lifting internation standard container bins, optional material plastic and metal. Optional size as 120L, 240L, 360L, 660L, 770L, 1100L, etc.

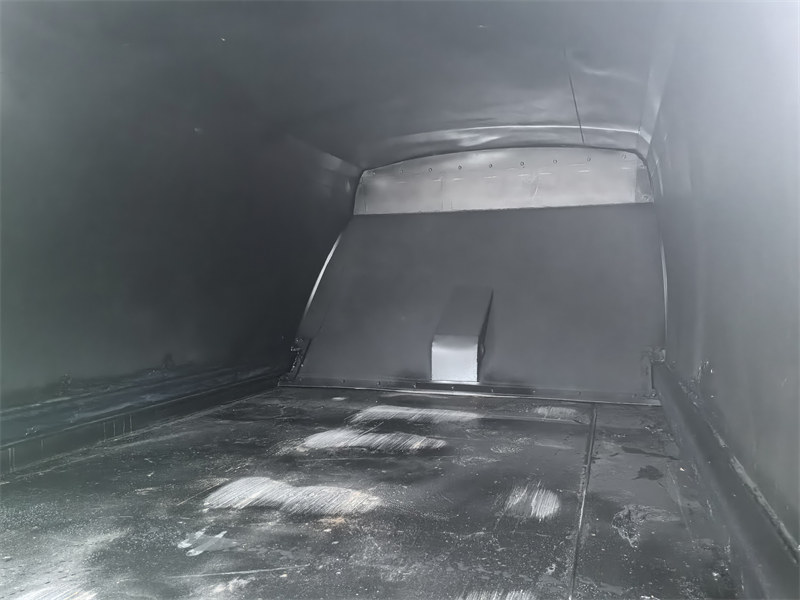

FOTON compactor truck inside push plate

Foton trash compressor vehicle equipped with push plate inside the compactor body kit. Compact ratio can be up to 1:3.4, to guarantee limited capacity loading more garbage, efficiently increased garbage management efficiency and reduce the labor costs.

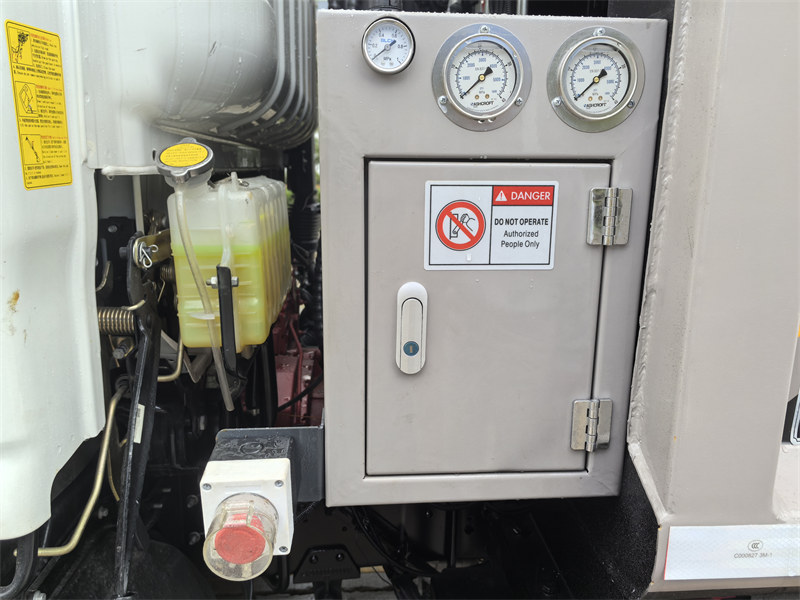

FOTON garbage truck control device

Standardized operating procedures and CAN BUS control automate the entire loading, compression, and unloading process. The compression cycle error is ≤ 2 seconds, eliminating efficiency fluctuations caused by manual operation.

Also optional to install the wireless control box for remote usage, making control more efficiency.



•

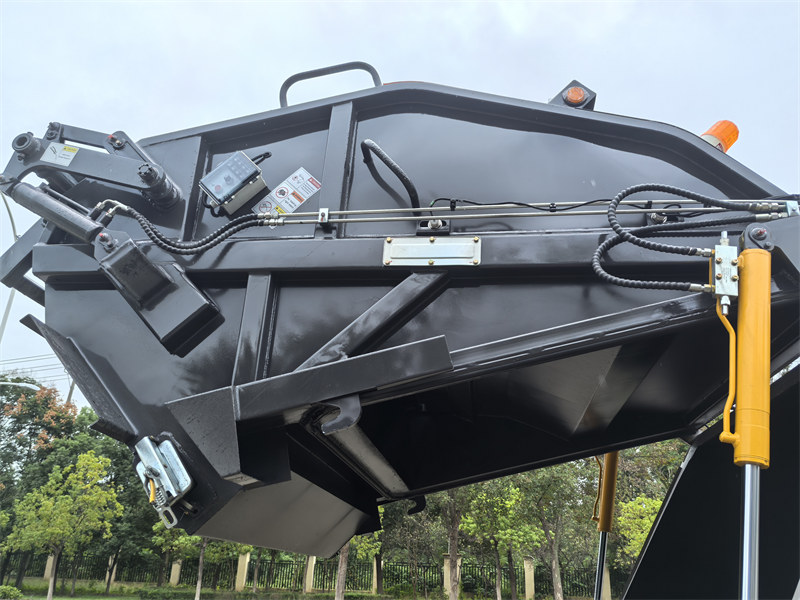

  FOTON rear loader tailgate device
•

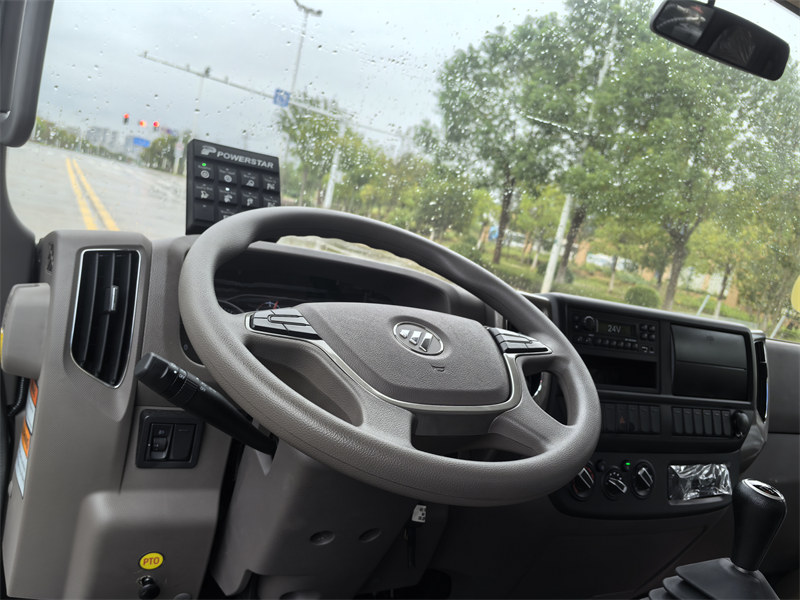

  FOTON rear loader compactor truck in cabin device
•

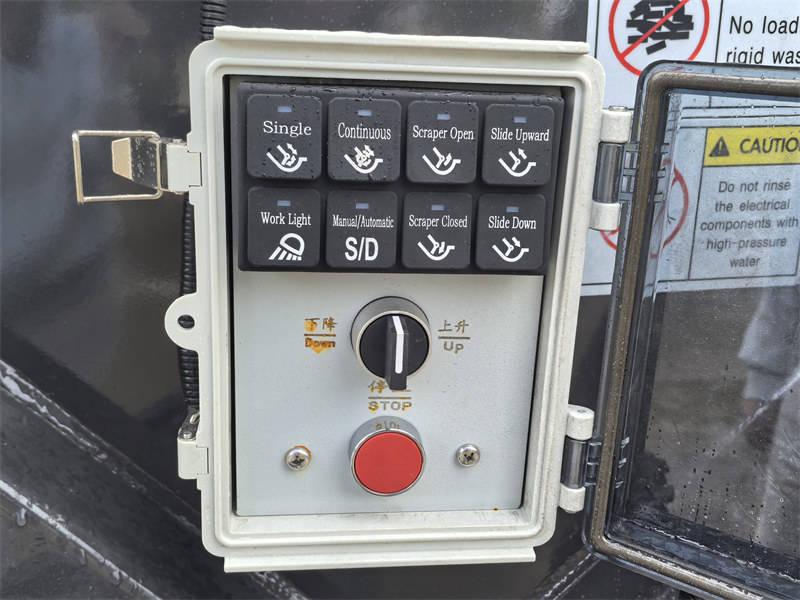

  FOTON compactor truck CAN BUS control box



Products--100% Customized Level One!
