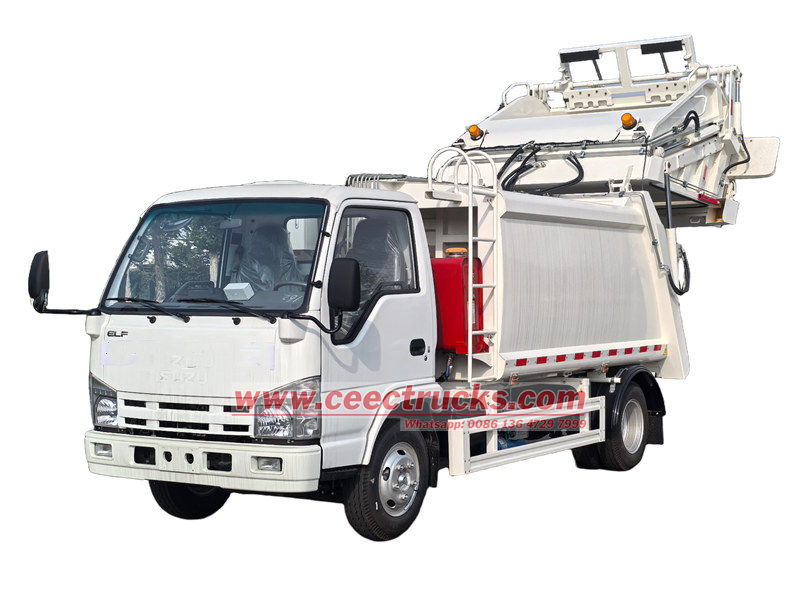

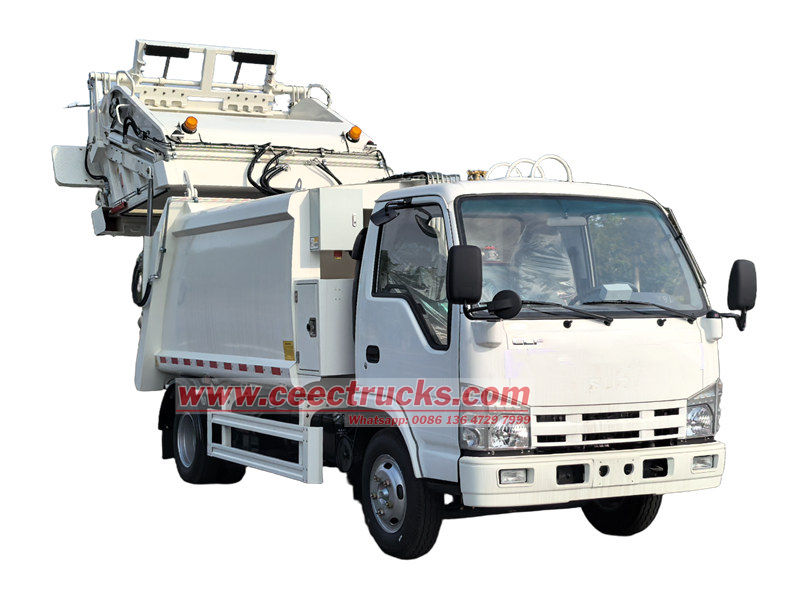

Algeria Isuzu hydraulic compaction loader truck

● China best hydraulic compaction loader truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

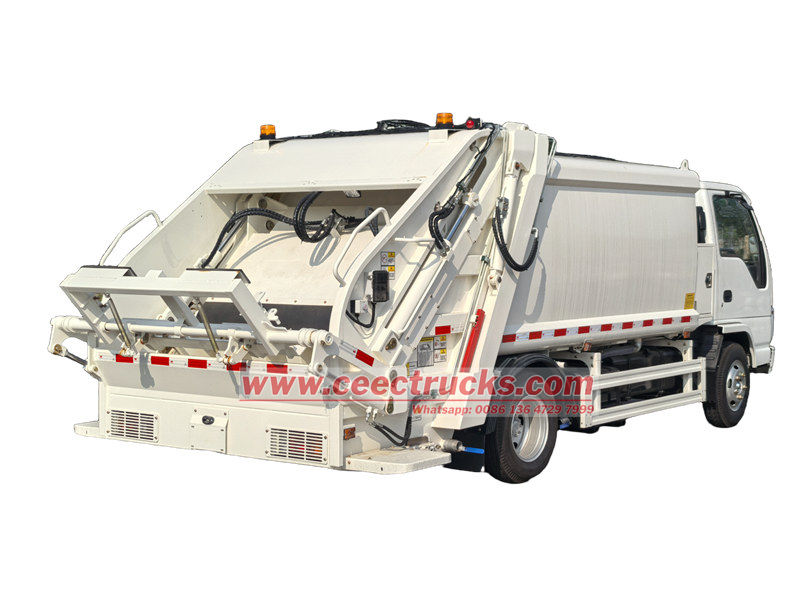

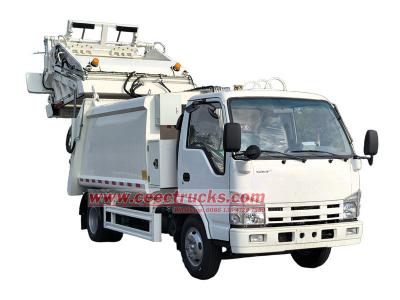

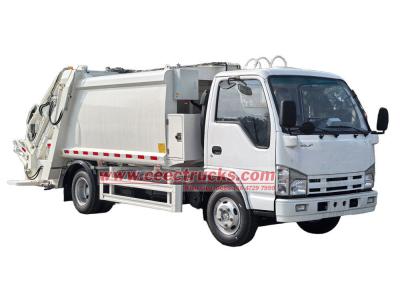

Main components of Isuzu rear loader garbage truck

●The pusher is composed of a rectangular tube frame and high-strength weather-resistant plate, with a streamlined push surface. It is not only light in structure, but also has smooth loading and clean unloading.

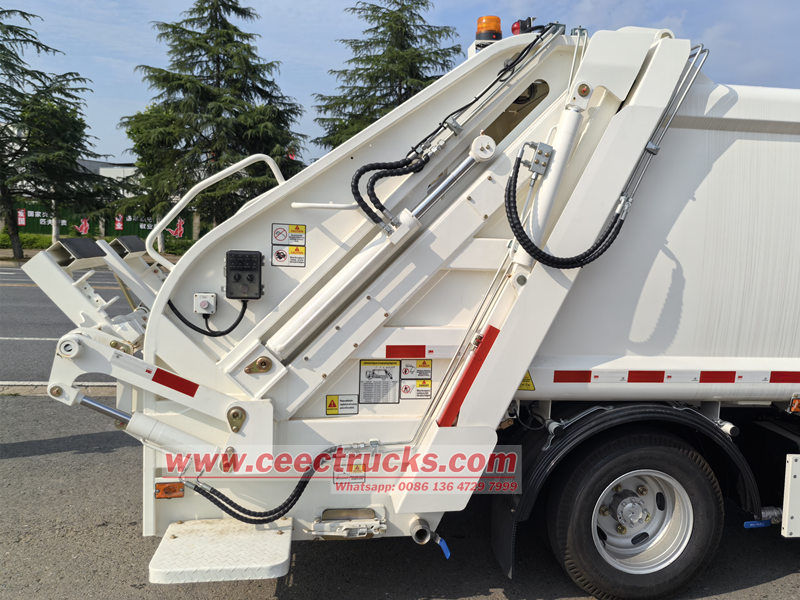

●The loader is mainly composed of the loader assembly, slide plate, scraper and other components. Each structural member adopts a beam plate or box structure with good force, and is made of high-strength weather-resistant steel plate. The structure is firm and light in weight.

●The joint surface between the garbage bin and the loader is equipped with a special rubber sealing strip, and a hydraulic locking device is used for compression sealing, which has good sealing performance; the lower part is designed with a special structure of the water receiving trough, which has double protection and effectively prevents sewage dripping and eliminates secondary pollution.

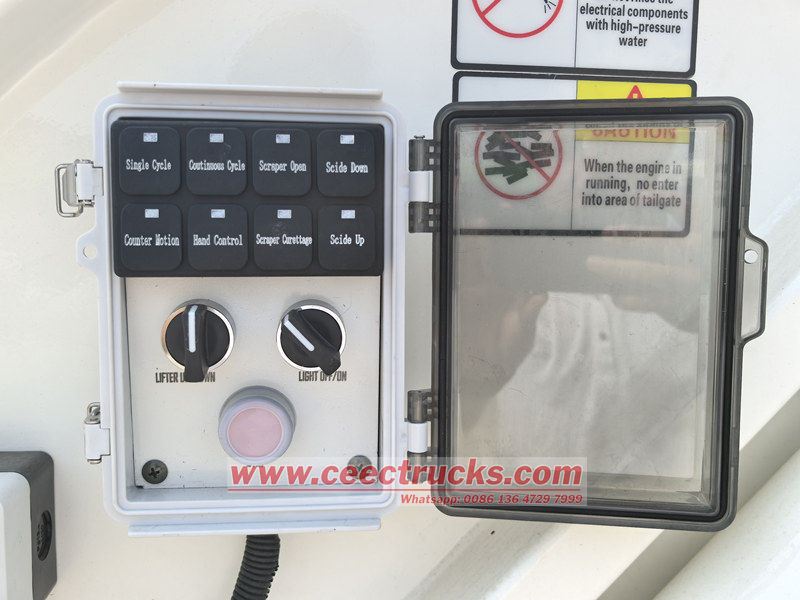

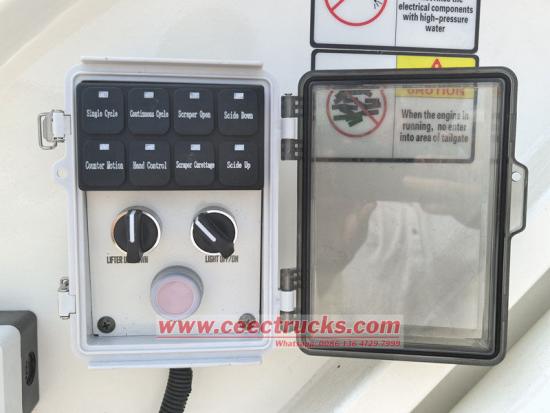

●An emergency stop button is set to stop the garbage pressing and filling operation device in any state or any position to ensure the safety of operators and equipment.

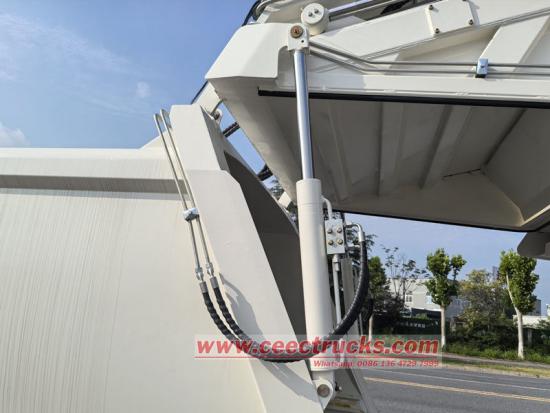

●The lifting cylinder is equipped with an explosion-proof valve to prevent the loader from descending when the oil pipe suddenly bursts. At the same time, a safety support rod is provided to ensure the safety of personnel during maintenance.

Working principle of Isuzu waste compaction truck

Isuzu waste compaction truck realizes efficient loading and compression of garbage through the cooperation of mechanical and hydraulic systems.

●During loading, the scraper and slide plate in the loader are linked: the scraper is opened and inserted into the garbage pile, and the slide plate moves downward to drive the scraper to push the garbage into the compartment. During the process, the scraper and slide plate cooperate to complete the initial crushing and compression.

●The scraper flips and compacts the garbage and moves upward. The push shovel pushes the garbage to the rear of the compartment under hydraulic drive to form secondary compression.

●The compartment adopts two-way compression technology, and the push shovel continues to move backward until the garbage is filled. The compression ratio can reach 1:3, which significantly increases the single transportation volume.

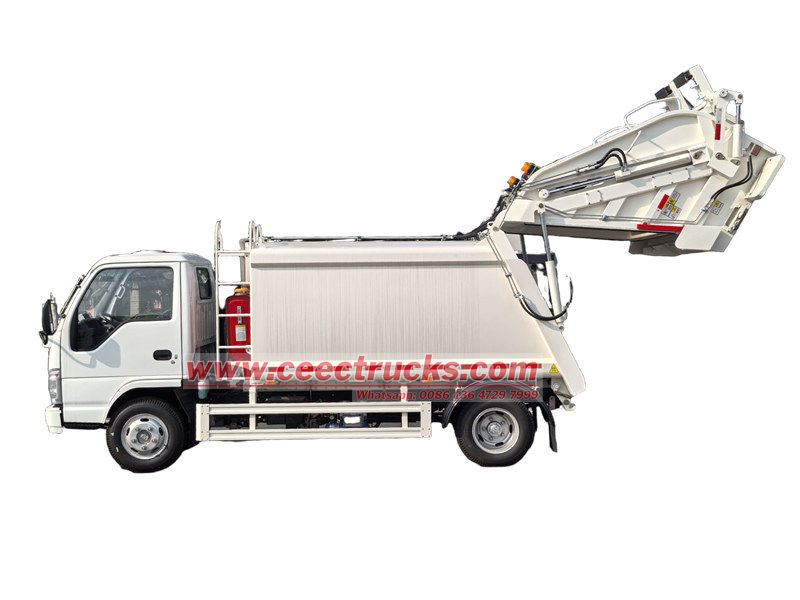

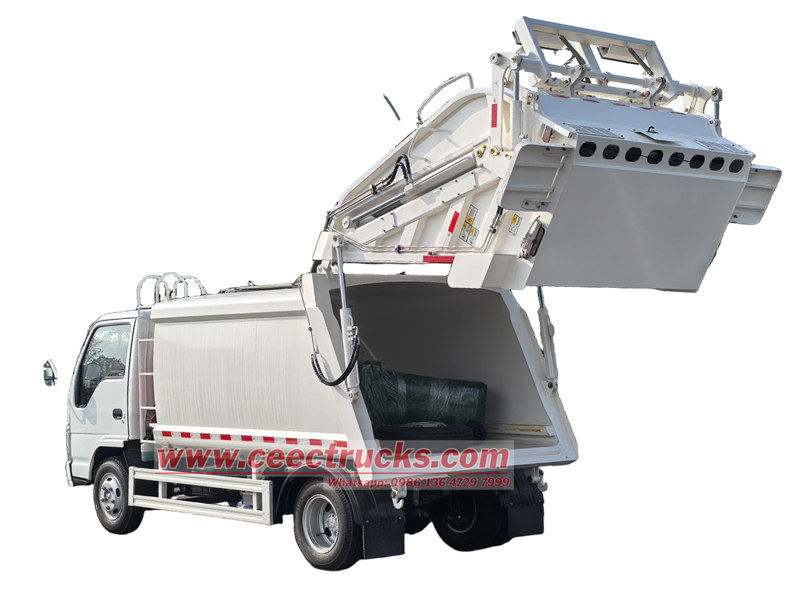

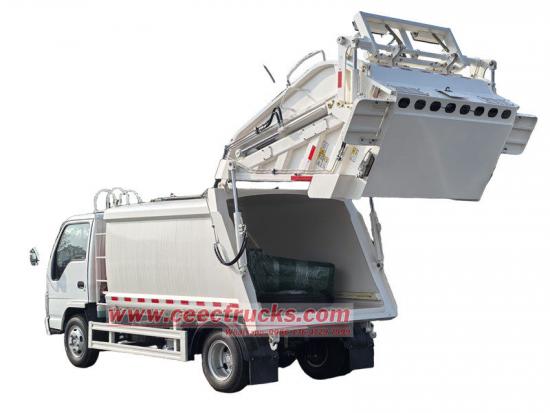

●When unloading, the lifting cylinder lifts the rear door of the loader along the guide hole to unlock it, and the push plate moves backward to push the garbage out. The whole process is operated by one button of the electronic control system to ensure efficiency and safety.

Features of Isuzu hydraulic compaction loader truck

●Efficient compression: The design of arc-shaped box and high-strength push shovel increases the density of garbage by 3 times and reduces the frequency of transportation.

●Enclosed and leak-proof: The fully enclosed box is equipped with a sewage collection box to avoid dripping and pollution during transportation, which meets environmental protection standards.

●Intelligent control: The electric-hydraulic joint control system supports one-button operation in the cab, reduces manual labor intensity and improves work efficiency.

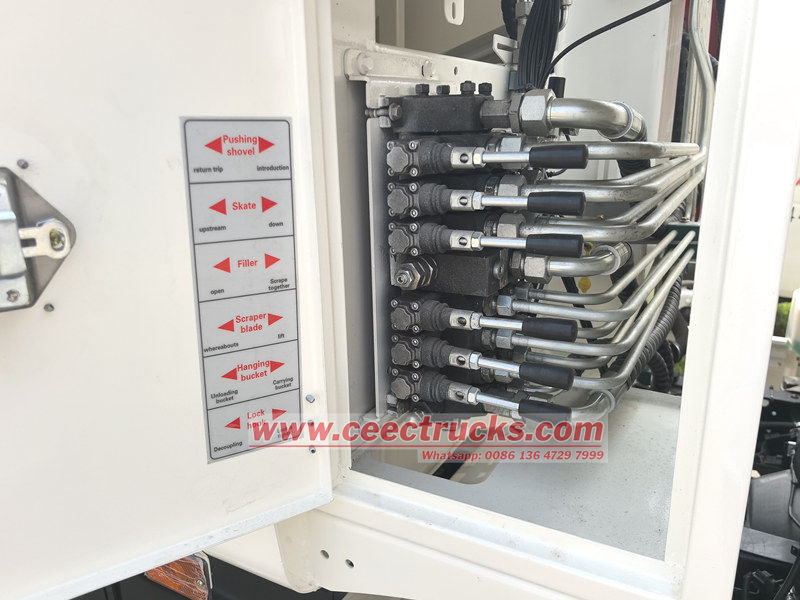

●Reliable and durable: Key components (such as cylinders and multi-way valves) are imported brands, the hydraulic system pressure is stable, and the failure rate is lower than the industry average.

●Flexible adaptation: A variety of structures such as rear-mounted and side-mounted are provided to adapt to different garbage collection needs.

Applicable scenarios of Isuzu hydraulic compaction loader truck

●Urban garbage disposal: Applicable to garbage transfer stations, commercial areas and residential areas, efficient disposal of domestic garbage.

●Narrow area operation: Narrow-body models can flexibly pass through old residential areas and back streets and alleys to solve the problem of garbage collection.

●Special garbage disposal: For kitchen waste, sewage tanks can prevent soup dripping; construction waste needs to be equipped with filters to avoid blockage by fragments.

●Rural and remote areas: Cooperate with mobile compression stations to achieve decentralized collection and centralized transfer to reduce transportation costs.
