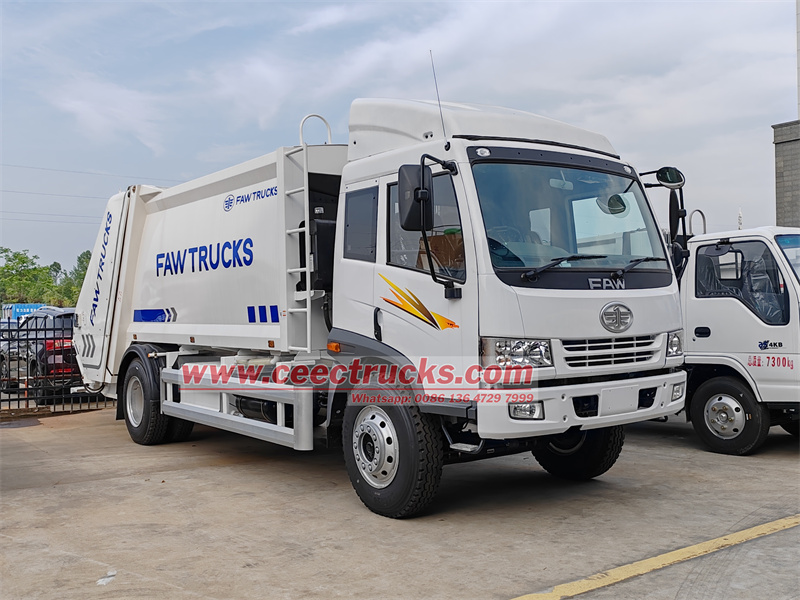

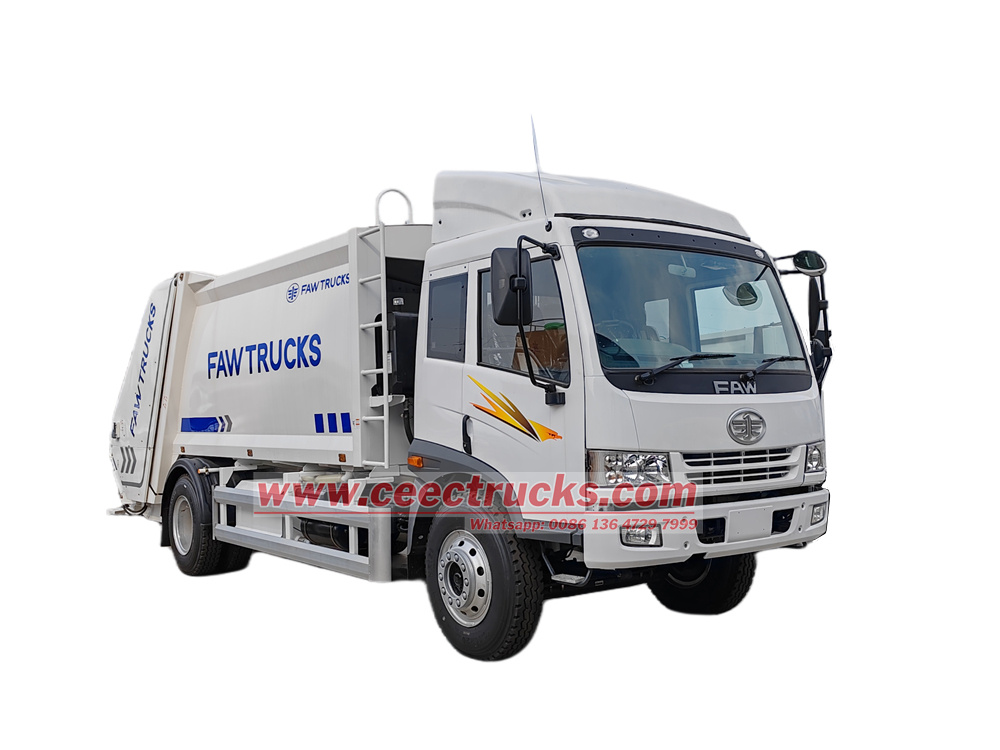

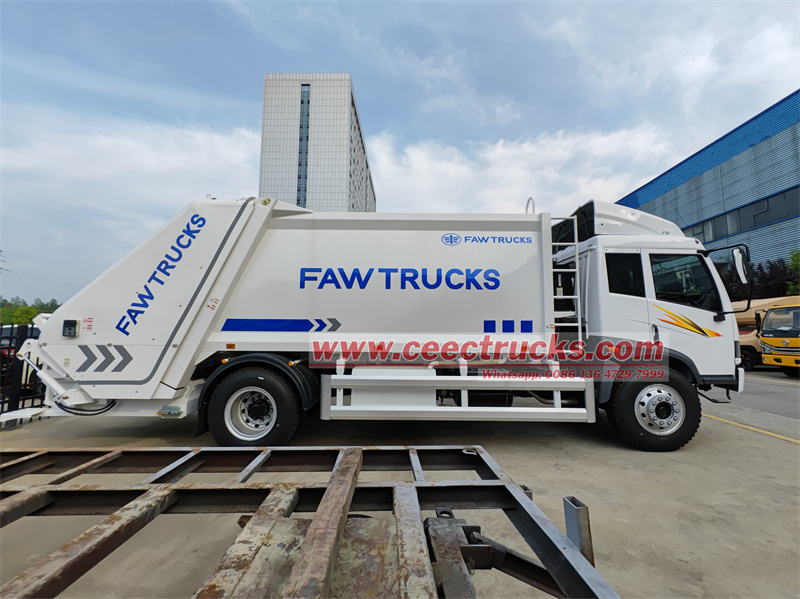

The FAW J5K right drive RHD Refuse compactor truck is equipped with a 180-horsepower Xichai engine and a 6-speed gearbox, which is powerful. Its core configuration includes a 10-cubic-meter arc-shaped carbon steel compression box (anti-corrosion treated), a tail bucket flipping mechanism, and three operation control systems (cab electric control box, manual hydraulic lever, and tailgate electric control box).

The vehicle adopts an integrated "compression + self-unloading" working mode: the hydraulic system drives the bucket mechanism to automatically load garbage, and the two-way push plate high-pressure compression reduces the volume of garbage by 30%-50%; it is fully enclosed and leak-proof during transportation, and the hydraulic lifting box tilts 50° during unloading to achieve complete self-unloading. It has three advantages (high efficiency, large loading capacity, and low residual rate), and is especially suitable for high-frequency garbage collection and transportation in urban sanitation areas in right-hand drive areas.

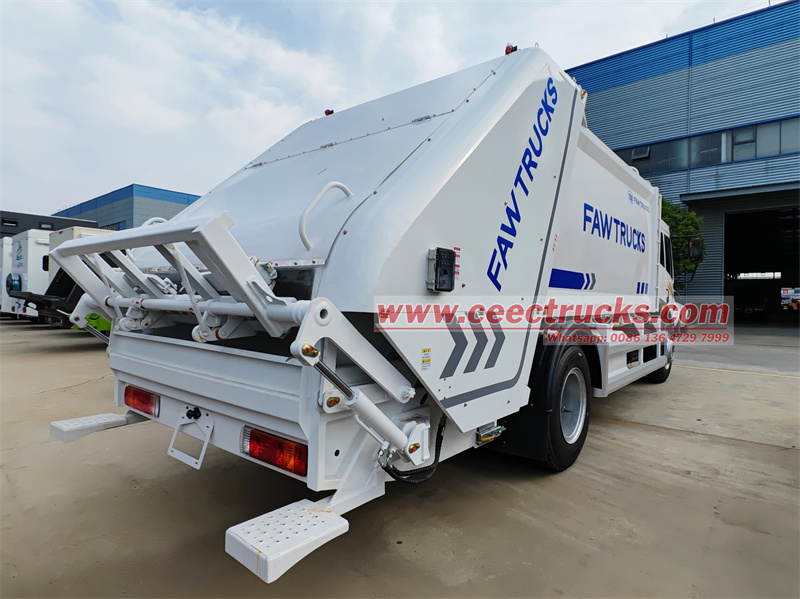

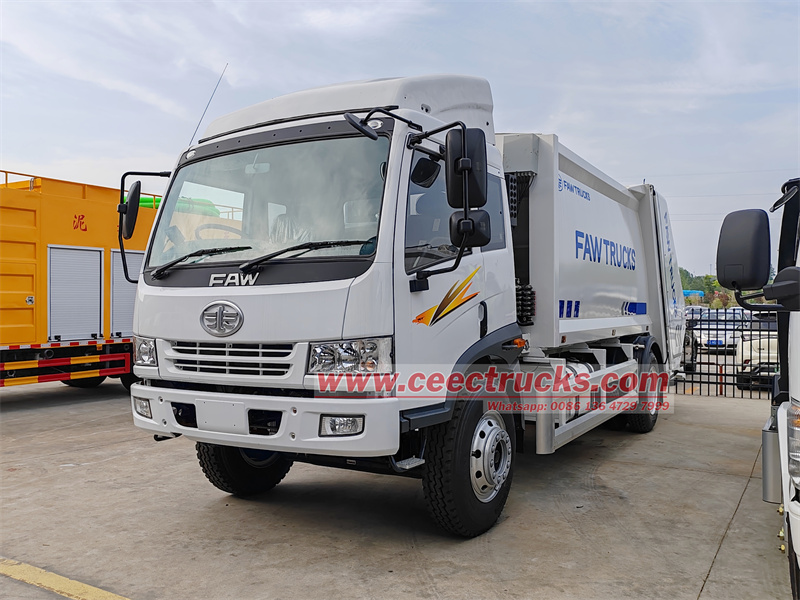

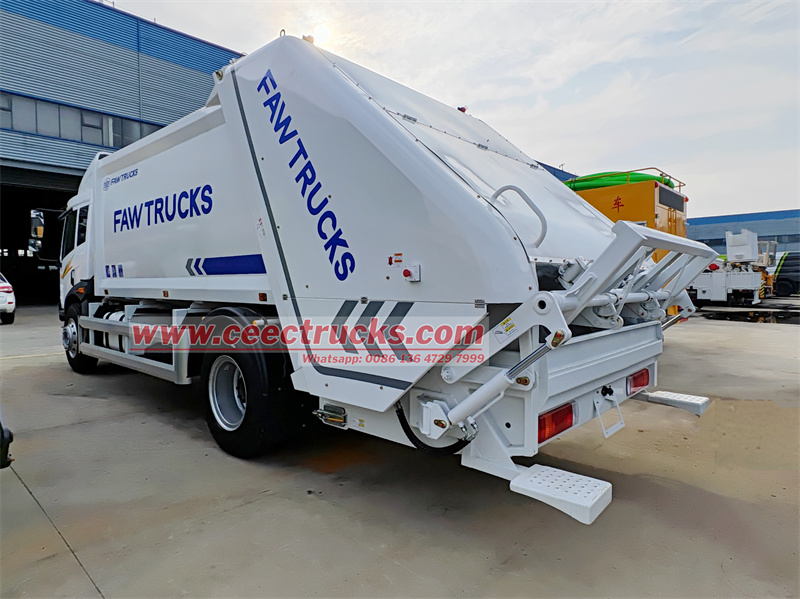

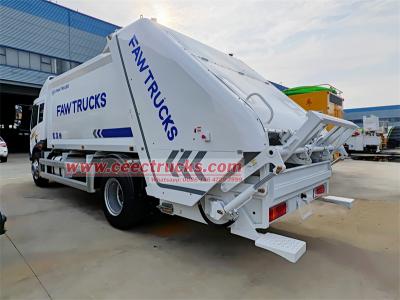

*FAW RHD 180HP Rear Loader Truck

Garbage Compactor Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

       1. Efficient compression: bidirectional compression technology, the loading capacity is more than 30% higher than that of ordinary garbage trucks.

       2. Convenient operation: three operation points (cab, driver's side, tail) adapt to different operation scenarios.

        3. Strong durability: carbon steel box + anti-corrosion treatment, adapt to harsh working environment.

        4. Low fuel consumption and economy: Xichai 180 horsepower engine + 6-speed gearbox, excellent fuel economy.

        5. Safe and reliable: the hydraulic system is equipped with a safety valve to prevent overload and ensure operation safety.

» Ⅱ.Product Parameter for JAW RHD rear loader truck

» Ⅲ.Product Details & Advantages:

1. Chassis configuration

●. Basic chassis: modified from the right-hand drive cab chassis of Jiefang J5K, specially designed for the right-hand drive market, in line with local traffic regulations.



●. Wheelbase: 4770mm, ensuring vehicle stability and passability, suitable for urban sanitation operations.



●. Engine: Xichai CA6DF2D-18 engine, 180 horsepower, meets Euro 2 emission standards, powerful, suitable for garbage collection and transportation conditions.



●. Transmission: Fast CA6TBX051M 6-speed manual transmission, smooth shifting, adaptable to different road conditions.



2. Upper configuration

●. Box volume: 10 cubic meters of arc-shaped carbon steel compression box, with a solid structure and large loading capacity.



●. Anti-corrosion treatment: The box adopts anti-corrosion coating or galvanizing treatment to extend the service life and adapt to corrosive garbage environment.

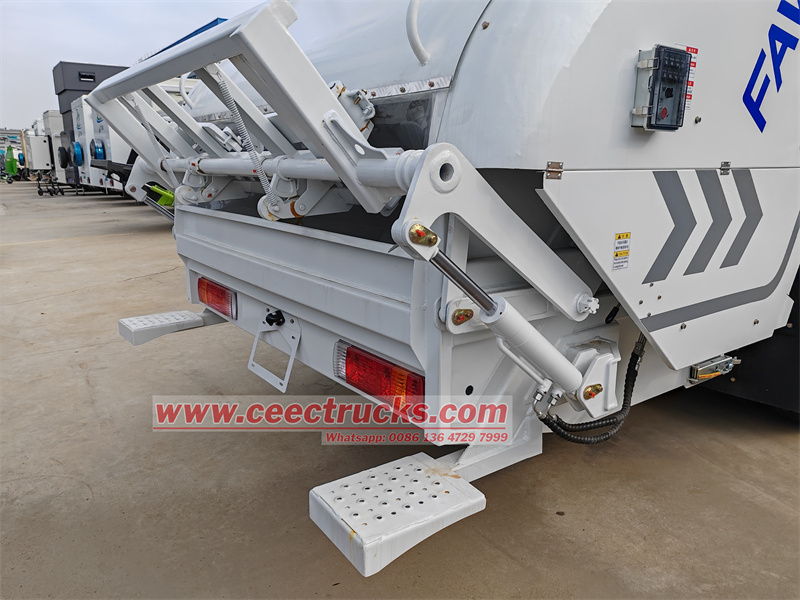

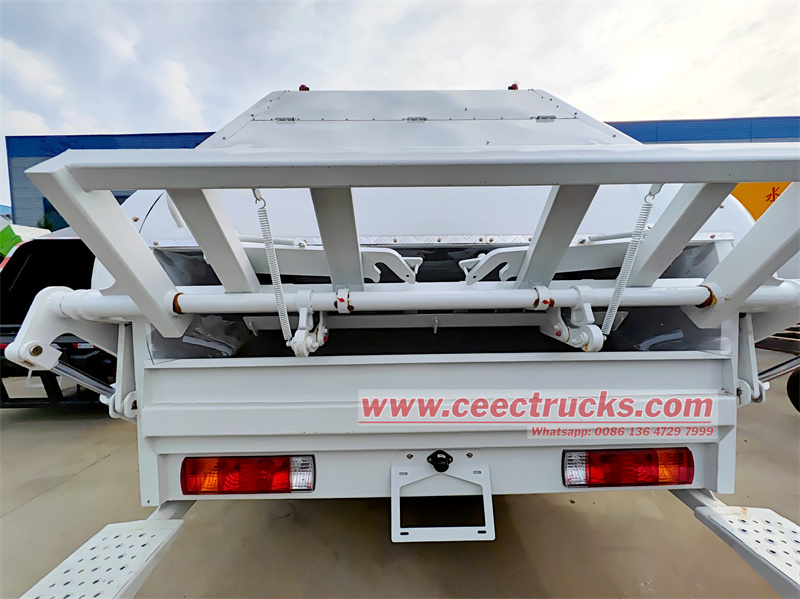

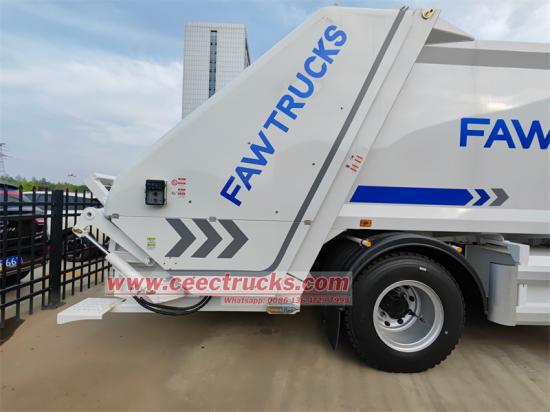

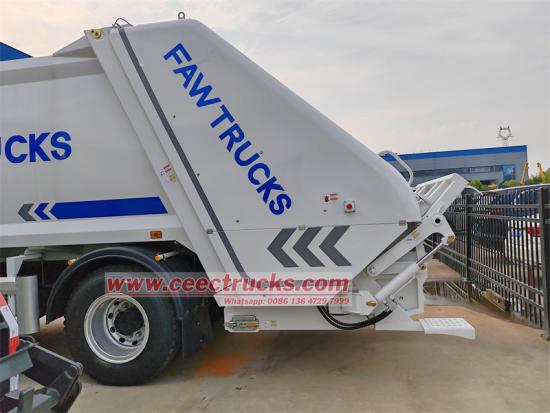

●. Bucket flipping mechanism: The tail is equipped with a bucket flipping device, which can be adapted to standard 120L/240L garbage cans to achieve automatic grabbing and dumping.



●. Compression system: Adopts two-way compression technology to improve garbage loading rate and reduce the number of transfers.

3. Operation control

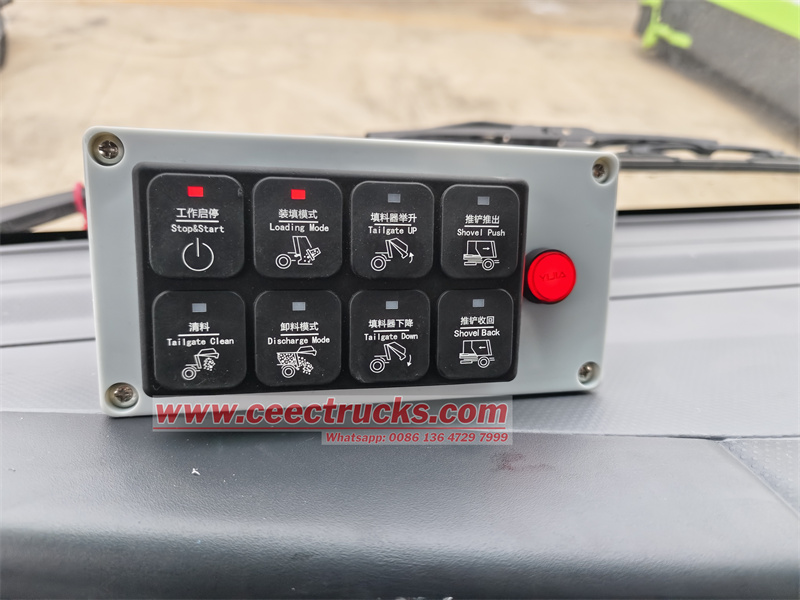

●. Cab electrical control box: Integrated control of the loader lifting/lowering, loading and unloading, push shovel push out/retract, material cleaning and other actions, easy to operate.

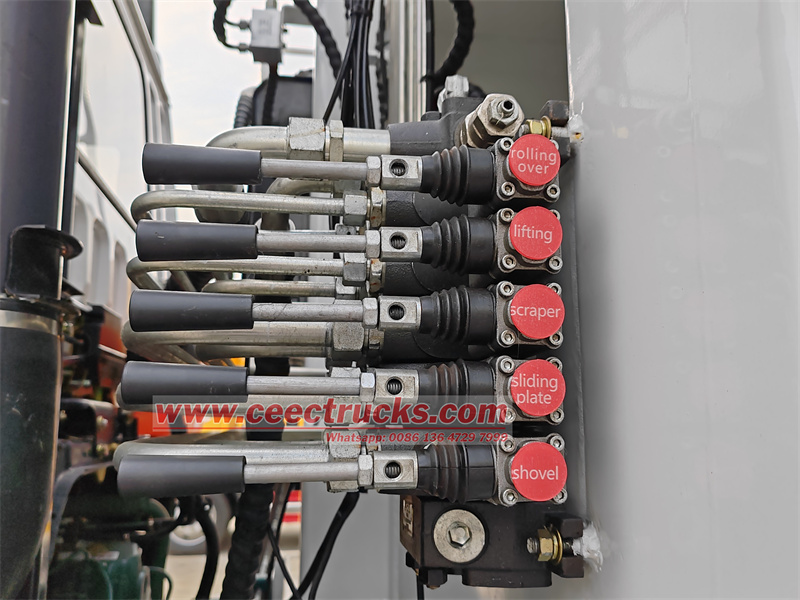

●. Manual hydraulic operating lever on the driving side: Control the flipping of the flipping mechanism, the lifting and lowering of the tailgate, the opening/closing of the scraper, the up and down movement of the skateboard, the push shovel push out/retract and other actions to ensure operational flexibility.

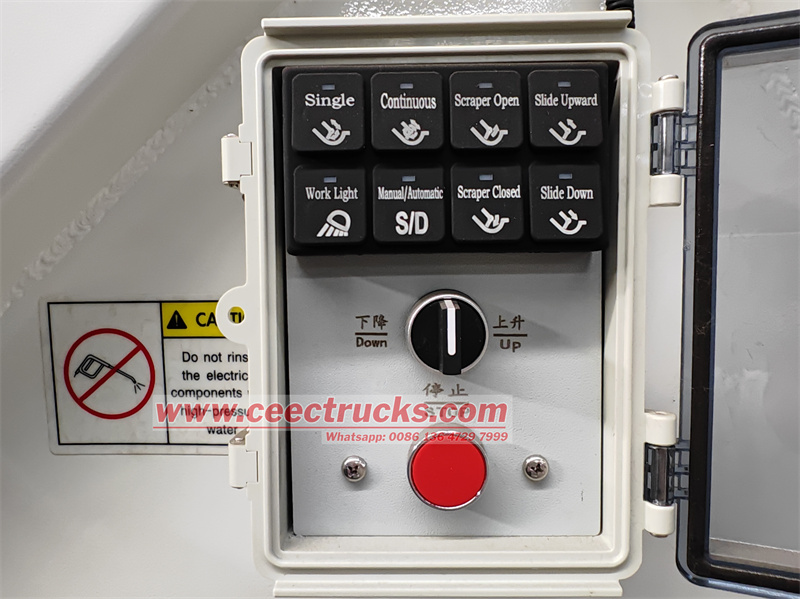

●. Tailgate electrical control box: The tail is independently controlled, including buttons such as single cycle, continuous cycle, scraper opening and closing, skateboard up and down, work lights, manual/automatic mode, flipping of the flipping mechanism, emergency braking and other operations, which are convenient for loading and unloading garbage.



Products--100% Customized Level One!

« Ⅳ.Professional Design and Production:

1. POWERSTAR R & D Department for design:

100% customized appearance, design the compactor bin capacity, operation methods and location, also the whole truck size can be customized.

2. Working principle for production:

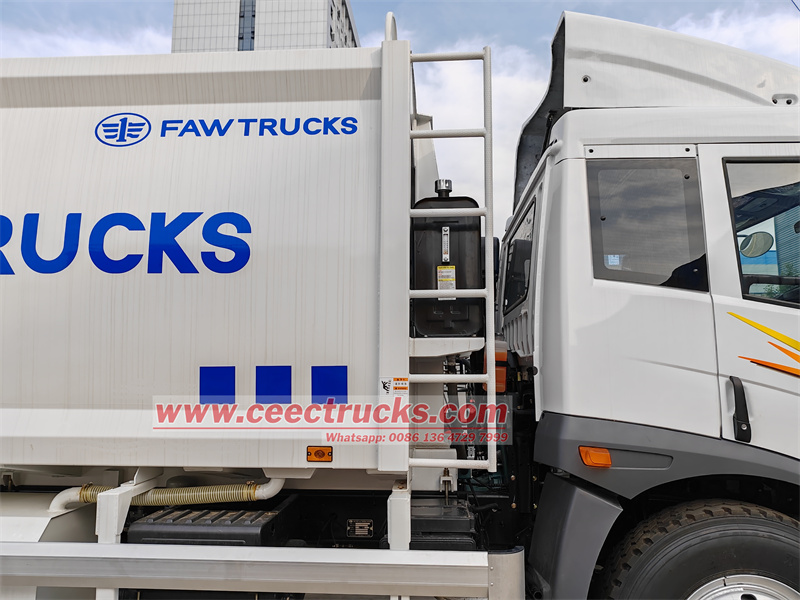

The FAW J5K 10CBM hydraulic compaction truck is driven and controlled entirely by a hydraulic system. Specifically, the power generated by the vehicle's engine is transmitted to the oil pump through a power take-off and a transmission shaft. As the oil pump rotates, it generates high-pressure oil, which then drives the relevant hydraulic cylinders to work by operating the control switches on the multi-way directional valve. These cylinders drive specialized mechanisms to complete the tasks of garbage loading, compression, and unloading, respectively.
