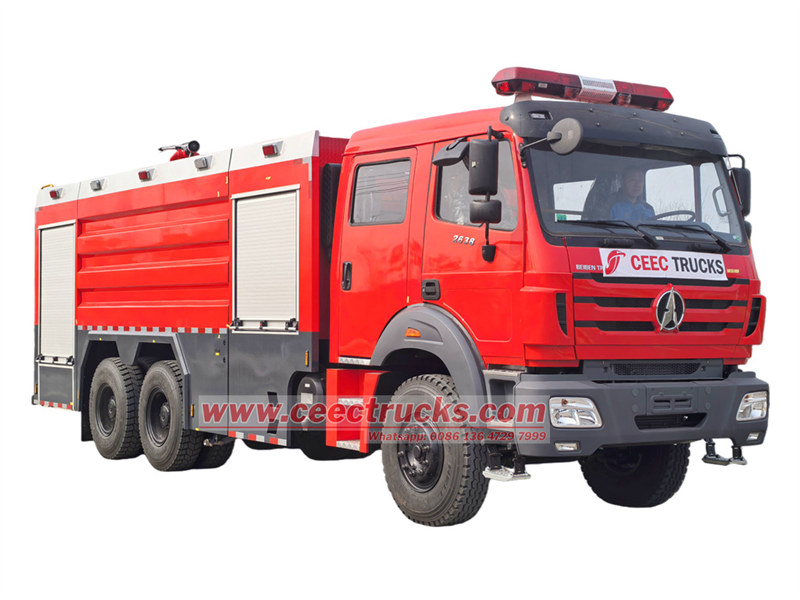

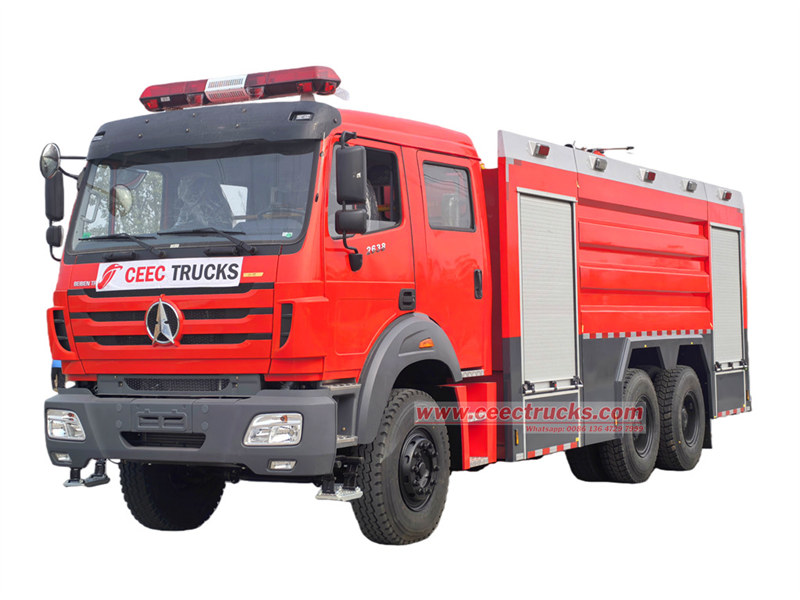

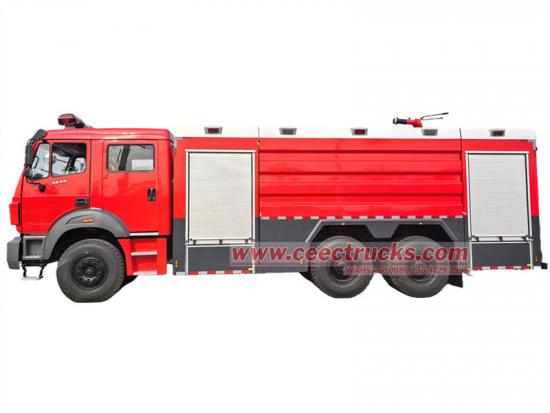

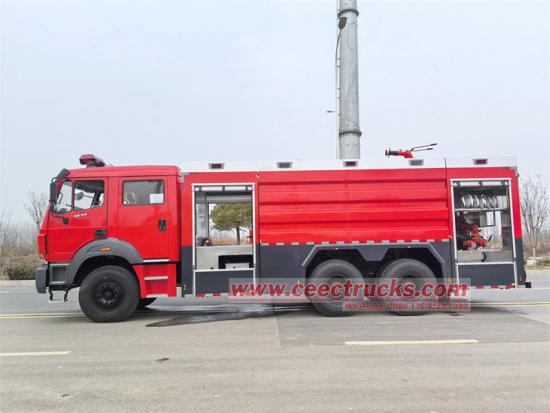

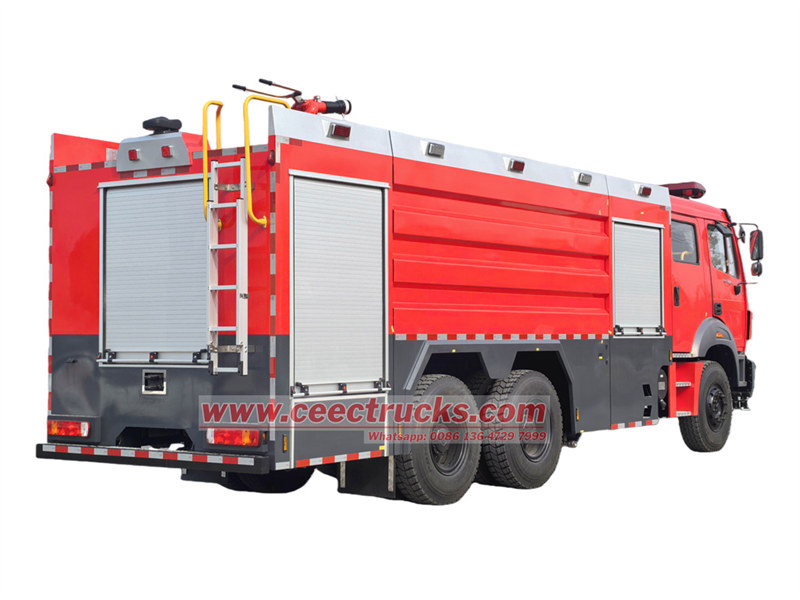

The 12CBM foam tanker fire truck is designed and produced based on Beiben 2638 truck chassis. The North benz 2638 fire fighting truck with modify double NG80B cabin row, front 2 seats and rear 4 SCBA seats, and the independent cabin provides enough space and quality to load firefighting equipment. Truck equipped with WP10.380E32 diesel engine, 380HP power and 9726cc emission to meed Africa Cote Divoire market fire fighting mission. Working with FAST 12 shift manual gearbox, very lower fuel cousumption and efficiently for driving. Beiben 12cbm fire engine equipped with customized 12000L tanker system, including 10cbm water and 2cbm foam, matched working with XIONGZHEN CB10/60 fire pump and efficently flow rate 60L/s, top tanker mounted with PL8/48 fire monitor and efficiently flow rate 48L/s, full sets fire rescue equipment are together with truck for people rescue and fire extinghishing job.

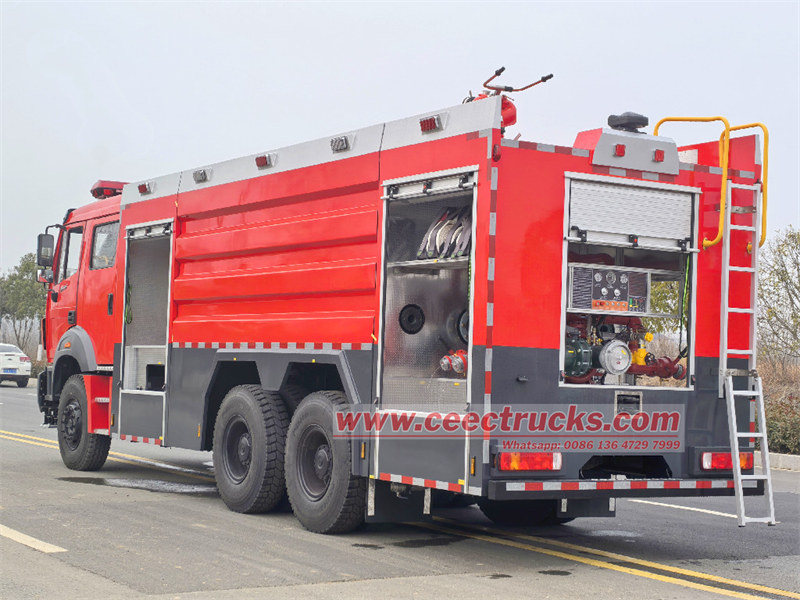

*China North Benz heavy 12000L foam fire fighting truck

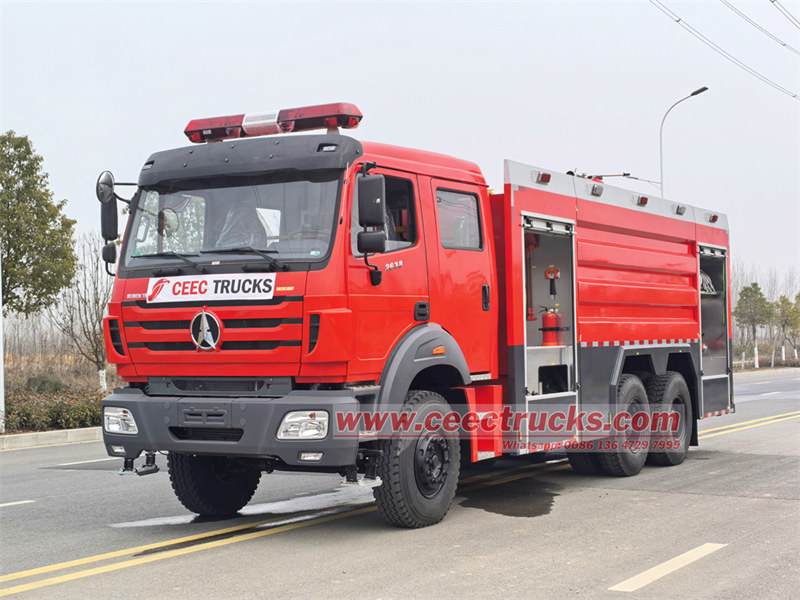

Beiben 6x4 Water Foam Fire Engine*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Product Introduction of Isuzu Fire Foam Truck « « «

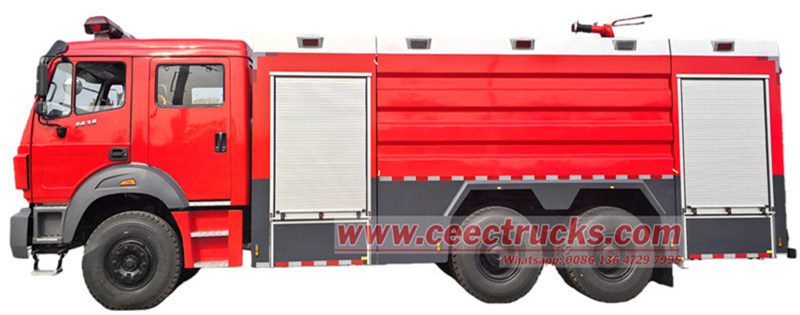

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Beiben 2638 truck chassis, NG80B cabin, 6X4, 6x6 model optional

                              WP10.380E32 model with 380HP and Euro 3 for Cote Divoire

2. Tank material: 4-6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy or PP material can be choose

3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

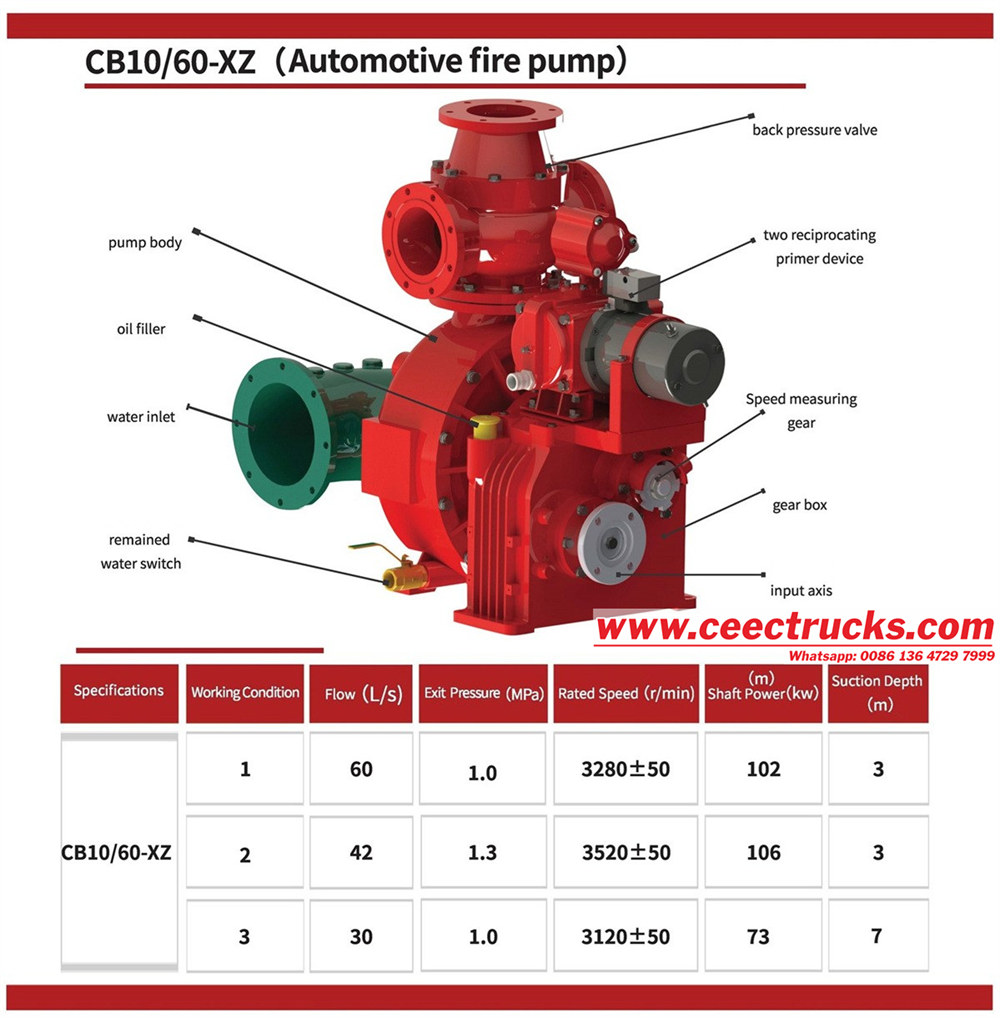

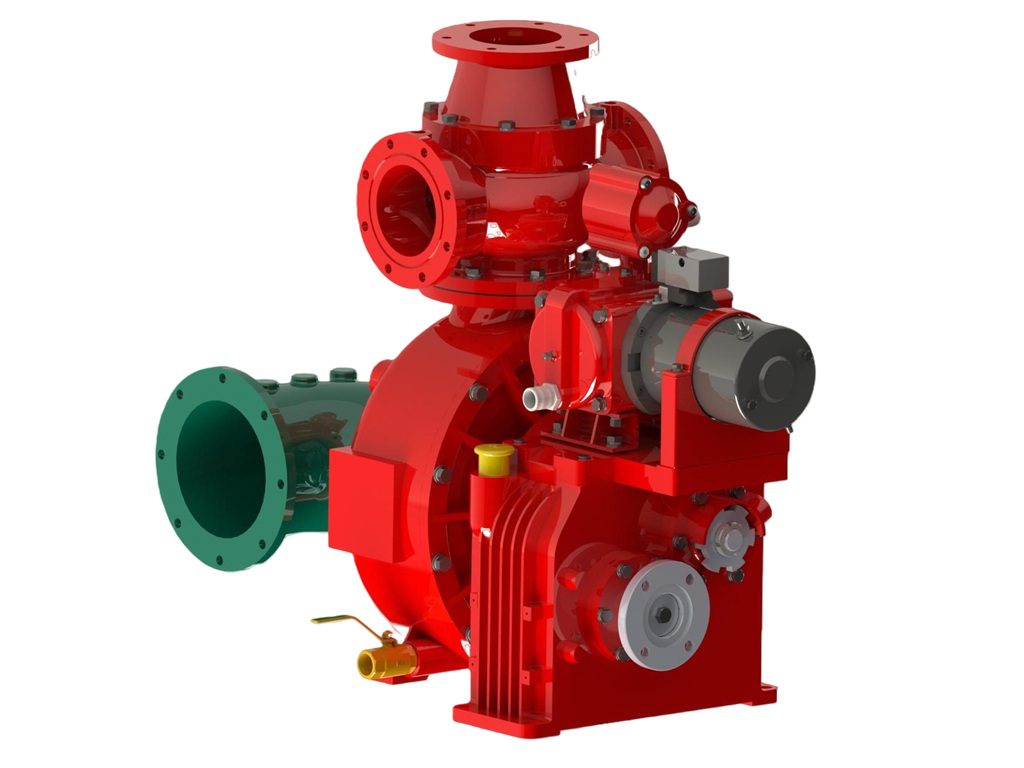

4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, working distance over 60m
                        Optional CB10/60, CB10/80 also available American Darley fire pump

5. Fire Monitor: PL8/48 top mounted fire monitor. flow rate 48L/s

                            Optional PL8/32, PL8/64 model, and remote fire monitor PLKD model

✦ Product Parameter of North Benz 2638 Fire Fighting Truck « « «

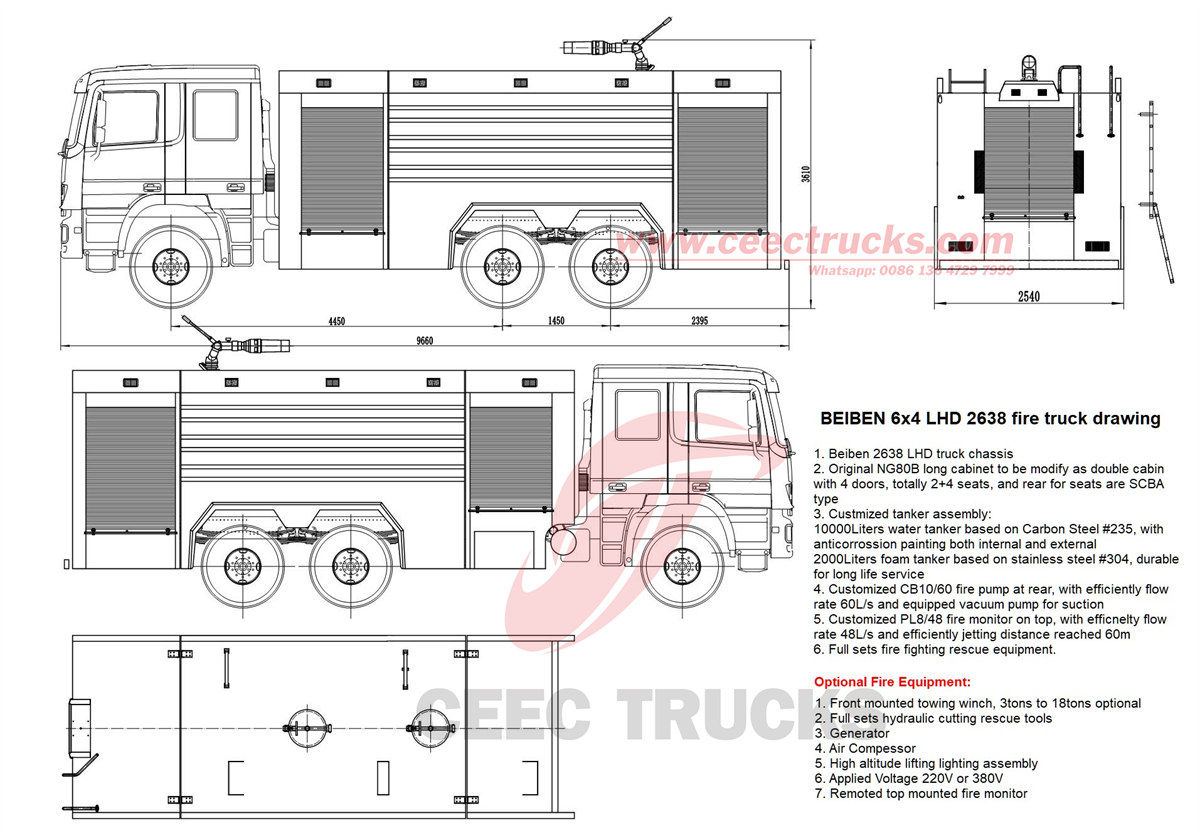

✦ Technical Design Of North Benz 6x4 Fire Engine « « «

CEEC Group R & D Department for design:

100% customized appearance, design the water + foam tank capacity, fire fighting tools storage box, full sets rescue equipment, also the whole truck size can be customized.

♦ With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 300 seconds (single water source mode).

♦ Standard CB10/60 centrifugal pump (60L/s@1.0MPa), optional Hale or Darley pump.

♦ PL8/48 fire pump with range of 60m, foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.

✦ Main Component Of Beiben 6x4 Fire Truck « « «

✦ Factory Testing before Shipment Benz 6x4 Fire Tender « « «

♦ Carefully checking the truck condition, guarantee truck diesel enough and suitable for long road driving and fire fighting.

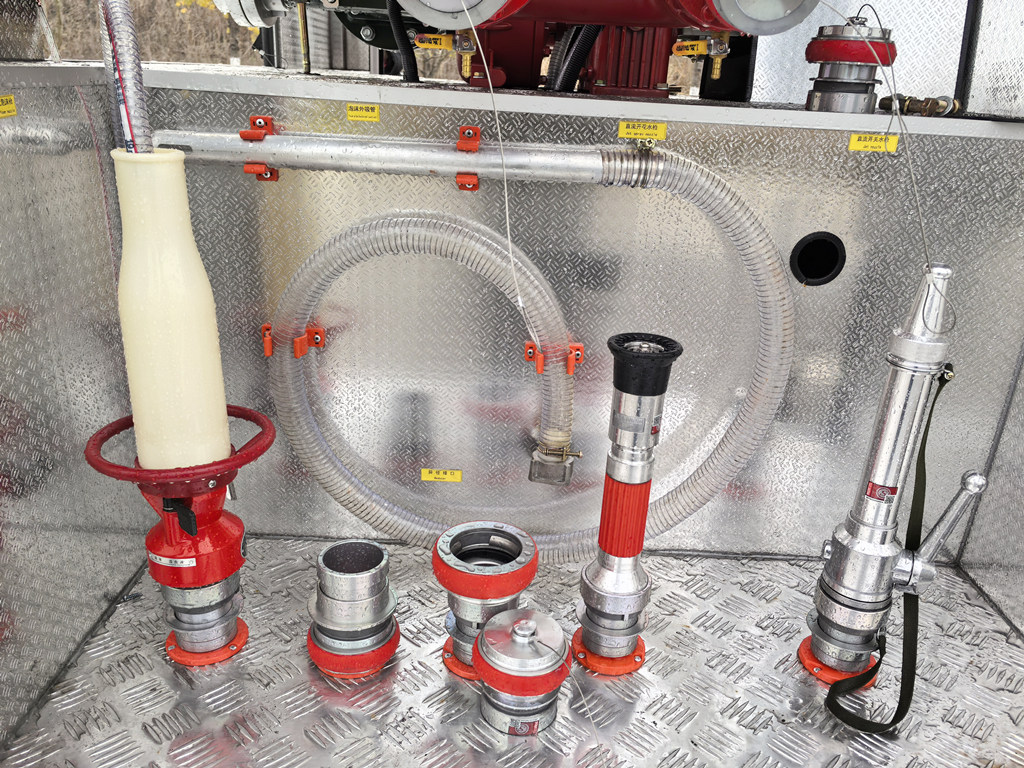

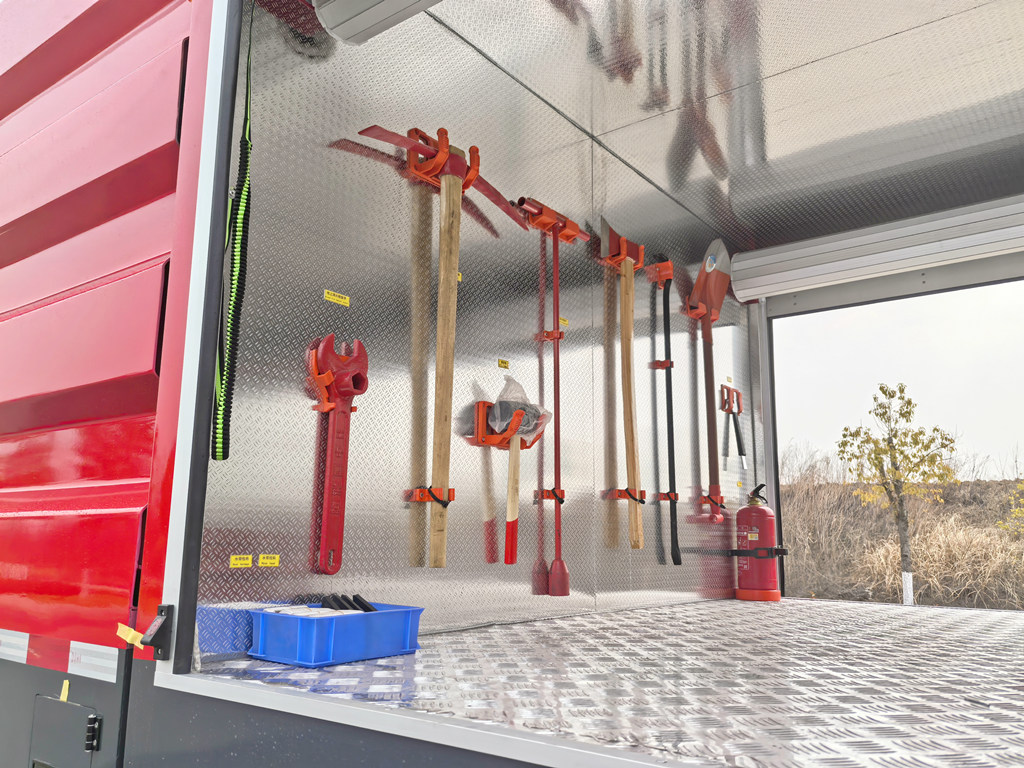

♦ Checking all the fire fighting equipment are enough and ready for usage

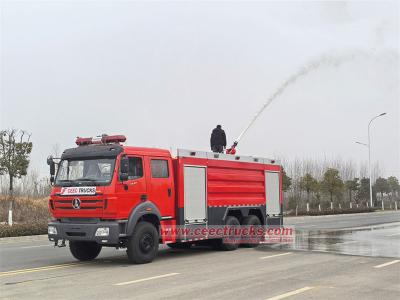

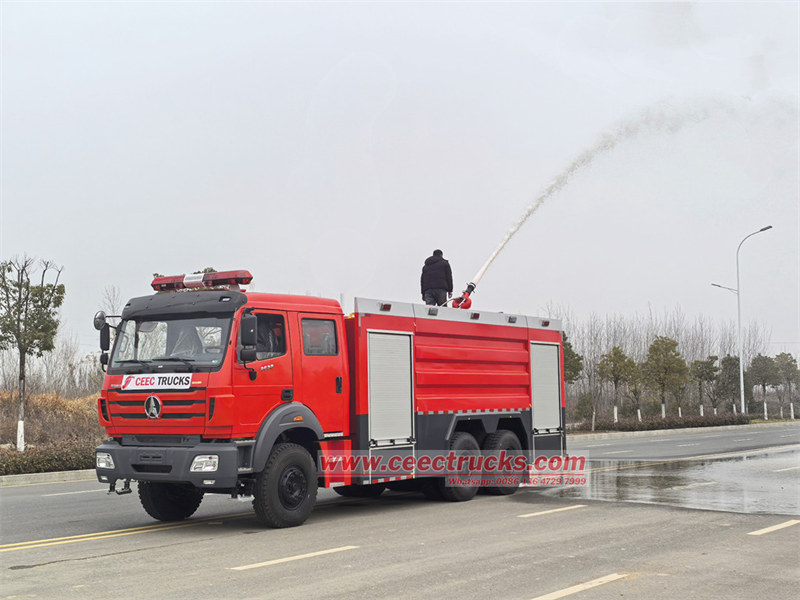

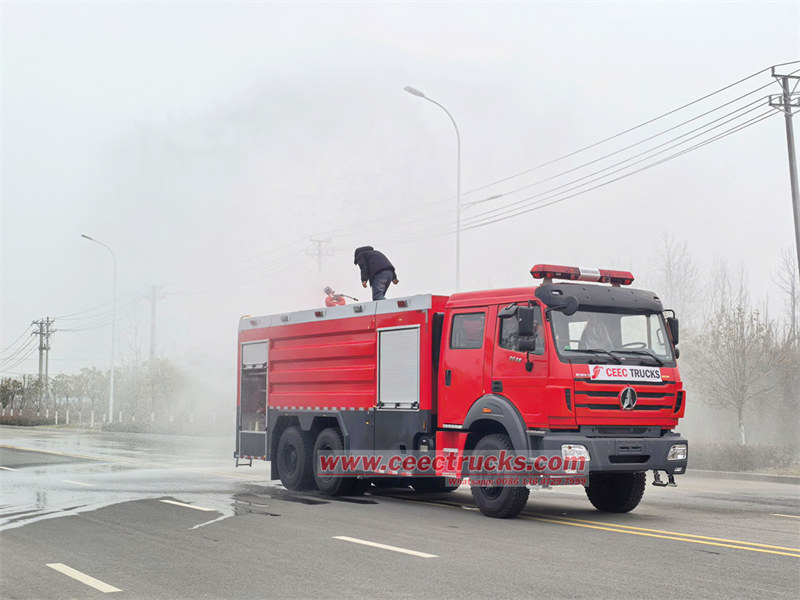

♦ Use the top mounted fire monitor PL8/48 for water jetting testing, both need to test the directly water jetting and fog spraying

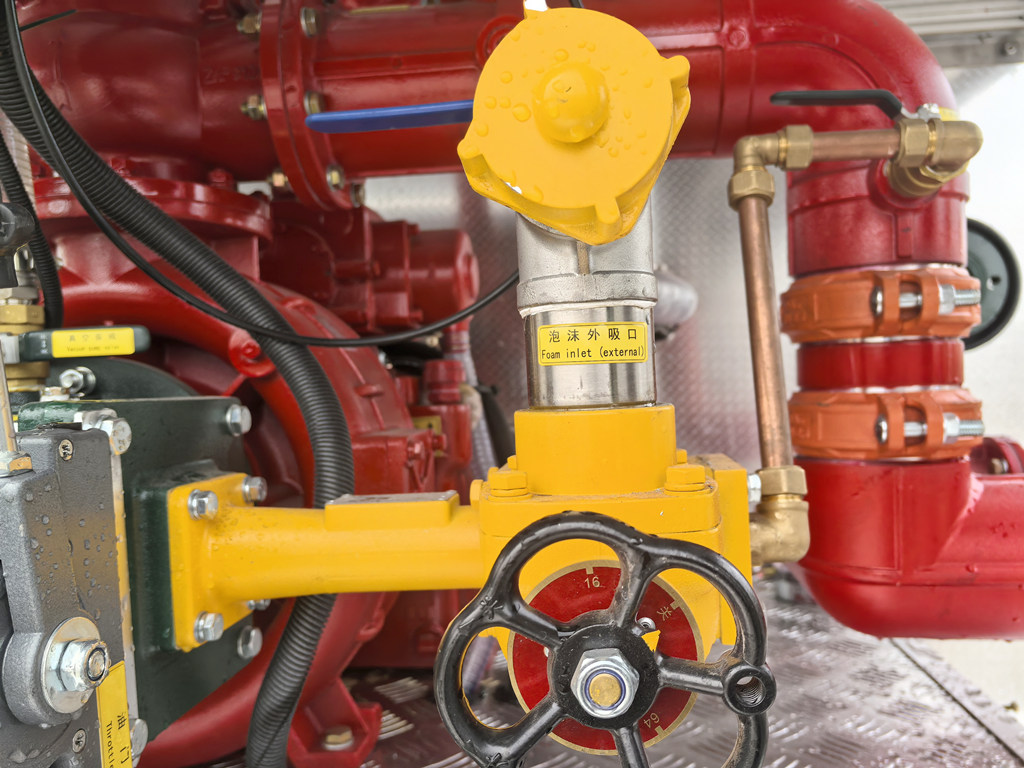

♦ Use the foam proportioner PH64 for ratio adjustment, which with 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.
