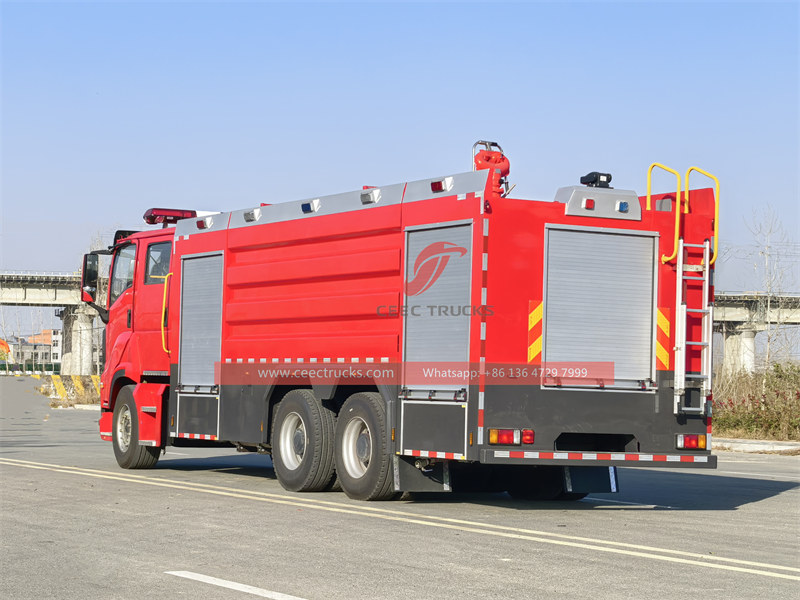

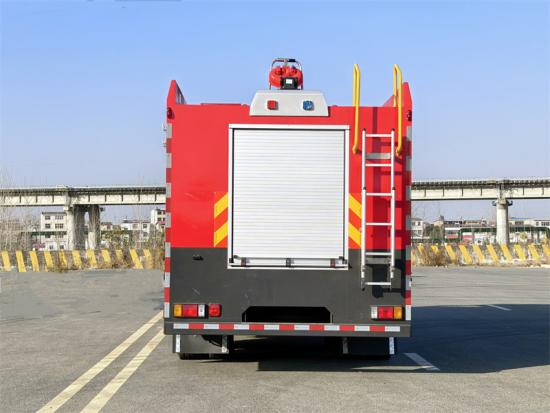

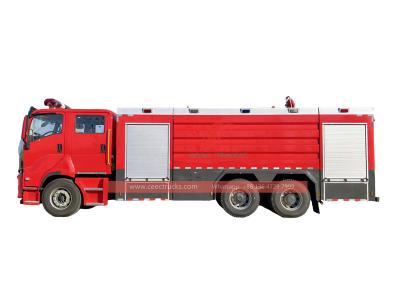

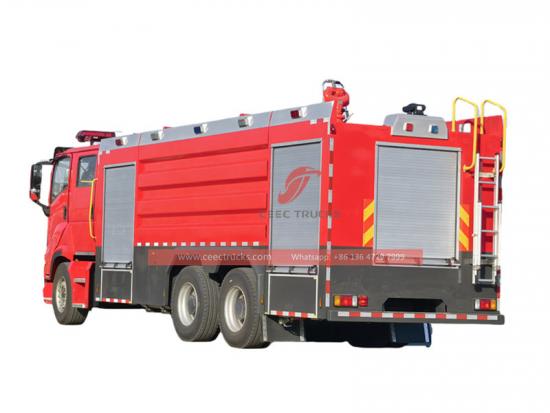

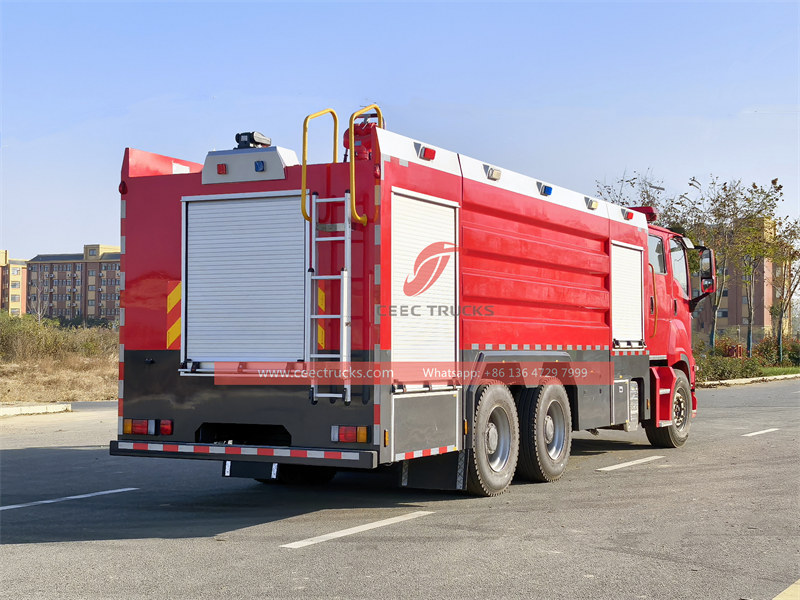

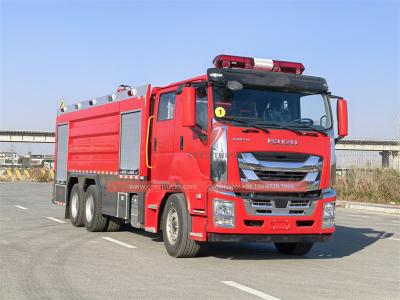

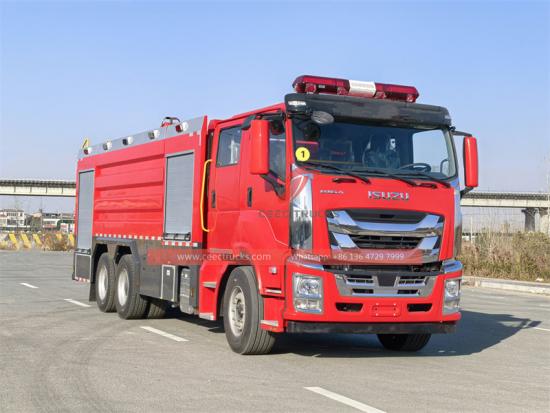

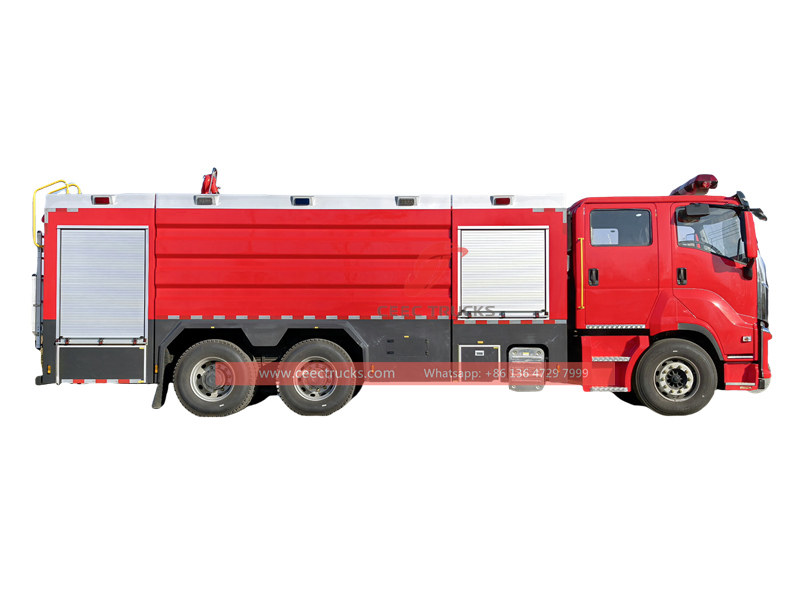

Isuzu GIGA heavy 8000L fire rescue truck

The 8CBM fire water truck is built on the sturdy Isuzu GIGA double cabin chassis. It combines excellent power and environmentally friendly emissions. High engine power Isuzu 6UZ1, it can challenge all kinds of difficult roads. It’s equipped with a 8000L large capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs.

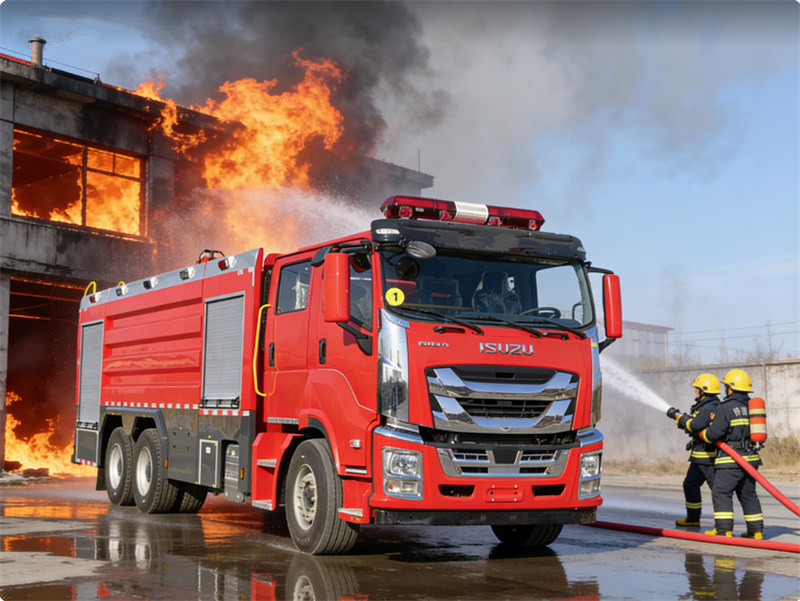

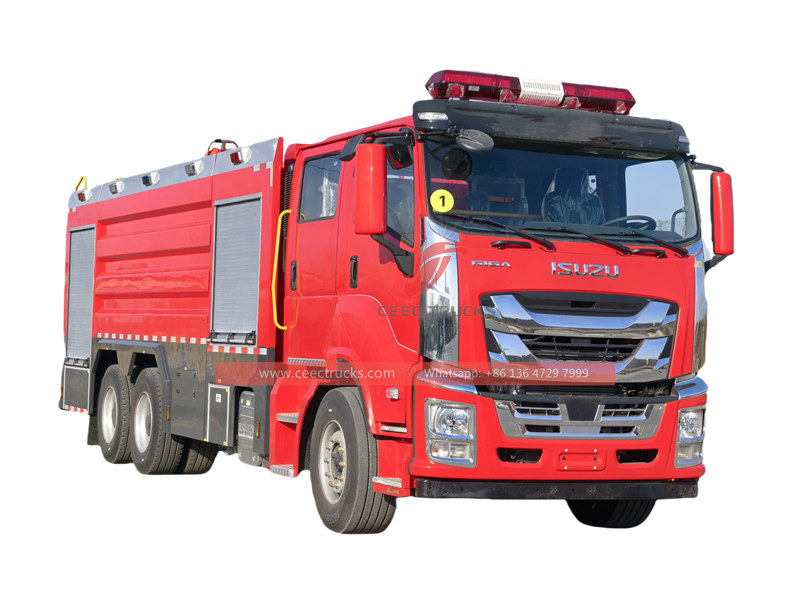

The Isuzu GIGA fire fighting truck with independent cabin provides enough space and quality to load firefighting equipment. The independent cabin can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions.

✦ Product Introduction of Isuzu Fire Foam Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis:Isuuz truck chassis, 6X4,6x6 model

                              6UZ1 model with 380HP and Euro 6

2. Tank material: 4-6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy or PP material can be choose

3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, working distance over 75m
                        Optional CB10/60, CB10/80 also available Darley fire pump

5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m

                                Optional equipped CAFS foam system and Dry Powder system

                                Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue

✦ Product Parameter of Isuzu Fire Fighting Truck « « «

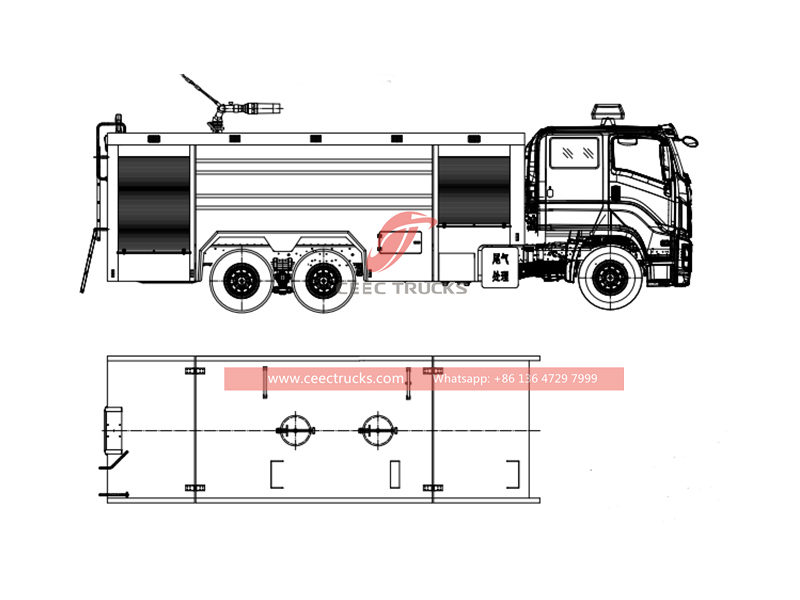

✦ Technical Design Of Isuzu GIGA 6x4 Fire Truck « « «

CEEC Group R & D Department for design:

100% customized appearance, design the water + foam tank capacity, fire fighting tools storage box, also the whole truck size can be customized.

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)

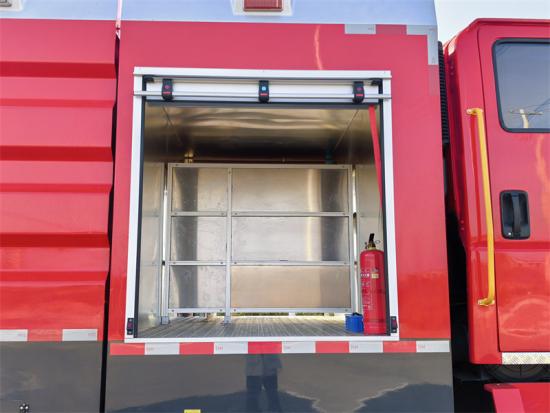

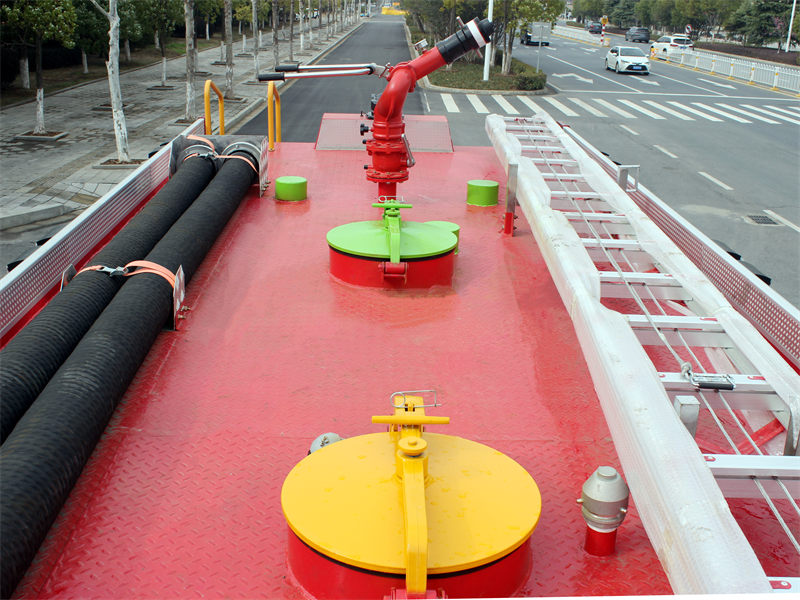

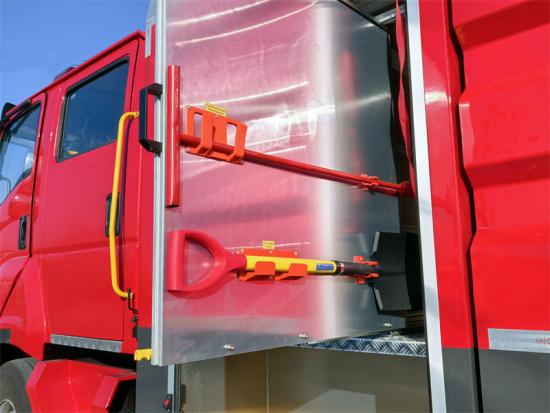

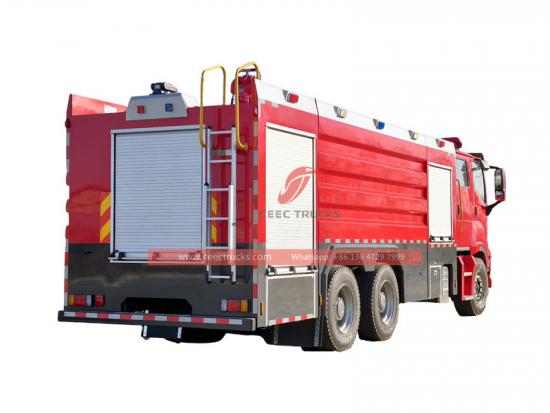

Tank System: The front part is the equipment room, where various firefighting equipment (such as fire hoses, fire extinguishers, fire axes, wrenches, hammers, picks, etc.) are stored for easy access. In the middle, there is a 9-cubic-meter carbon steel water tank and a 3-cubic-meter foam tank, both equipped with manholes on top.

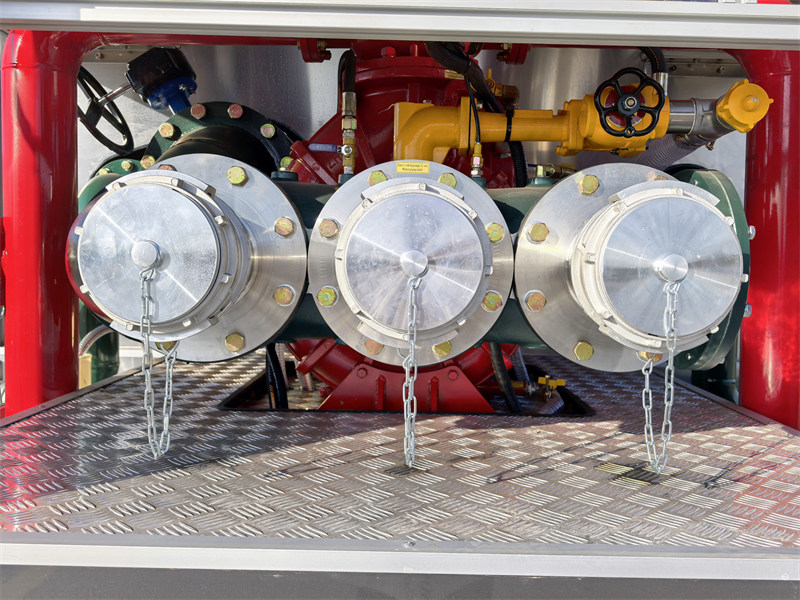

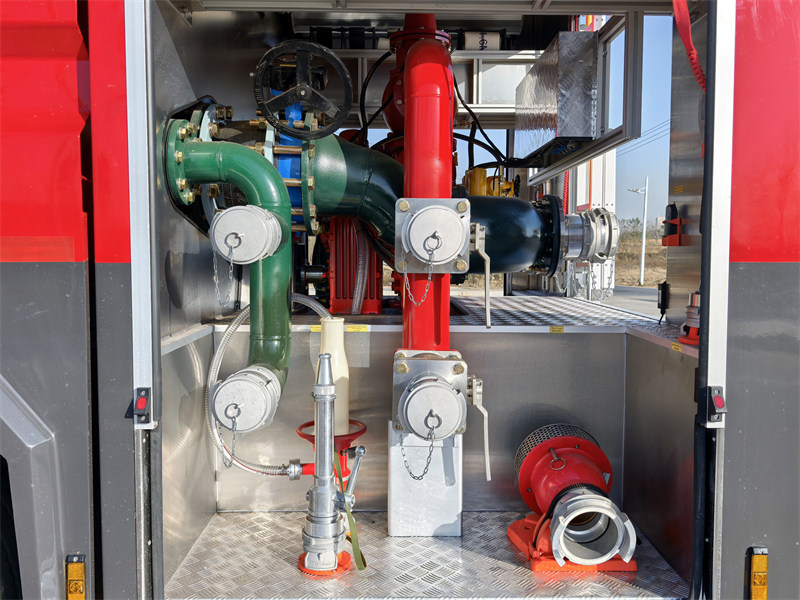

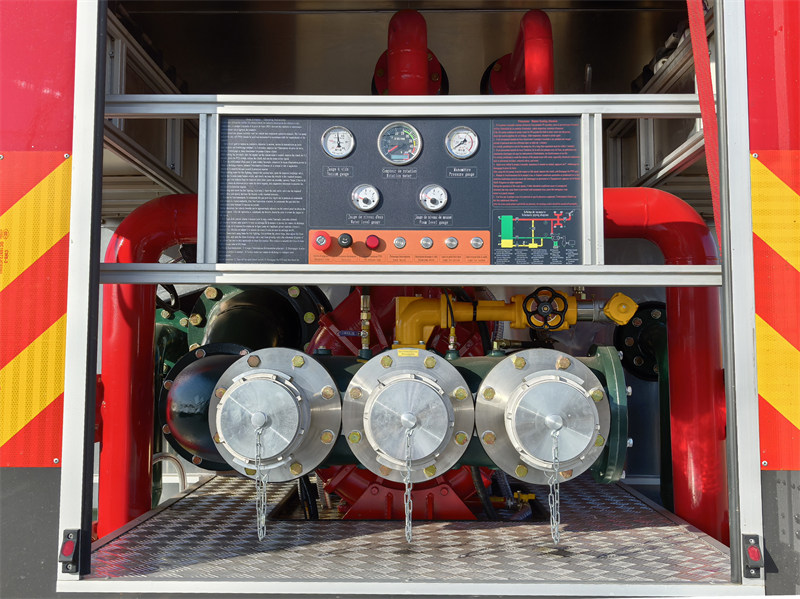

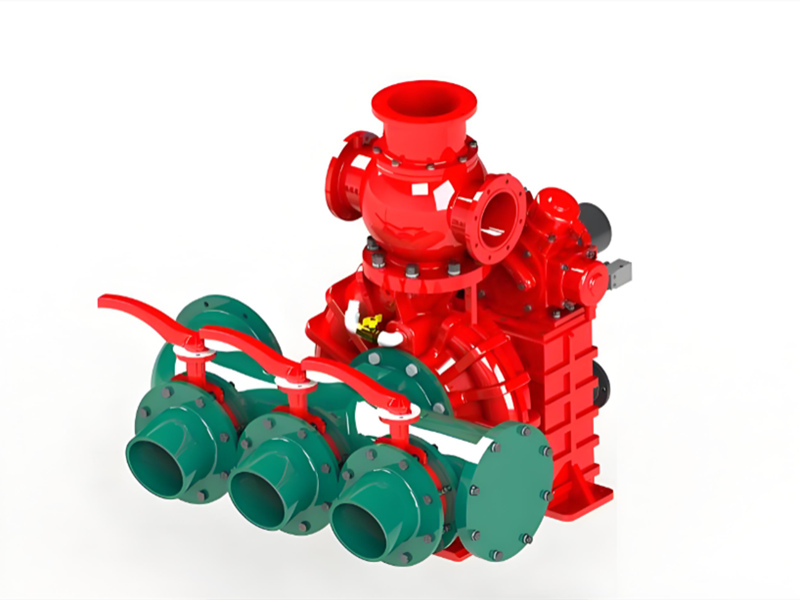

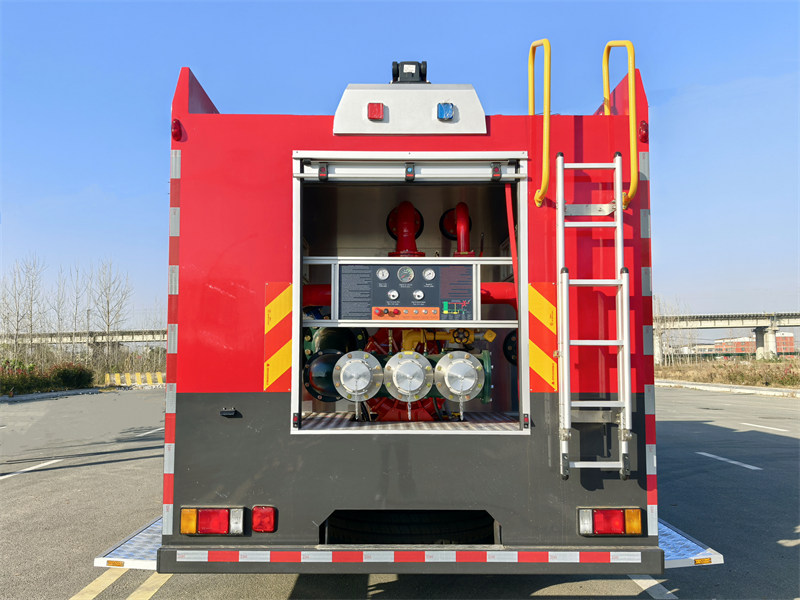

✦ Fire Pump System Of Isuzu GIGA 6x4 Fire Truck « « «

♦ With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 300 seconds (single water source mode).

♦ Standard CB10/140 centrifugal pump (140L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 140L/s).

♦ Water cannon range of 75m (DC)/38m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.

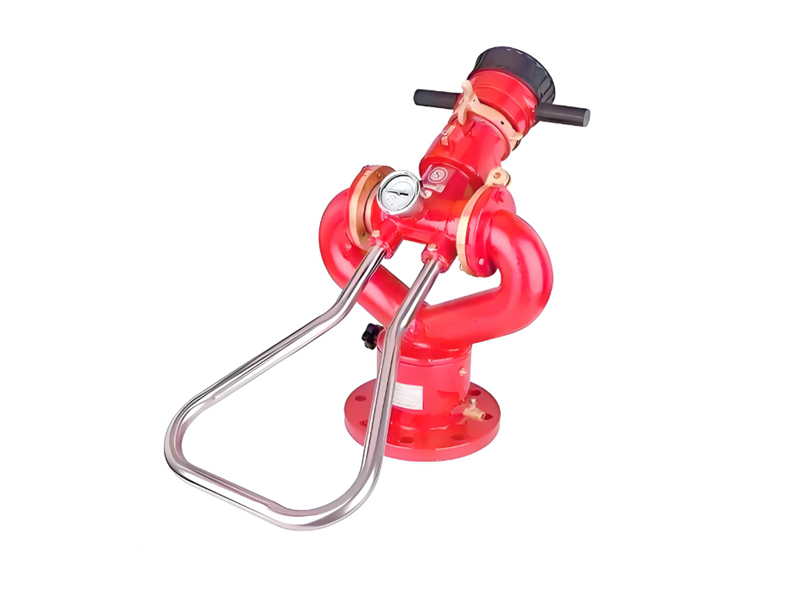

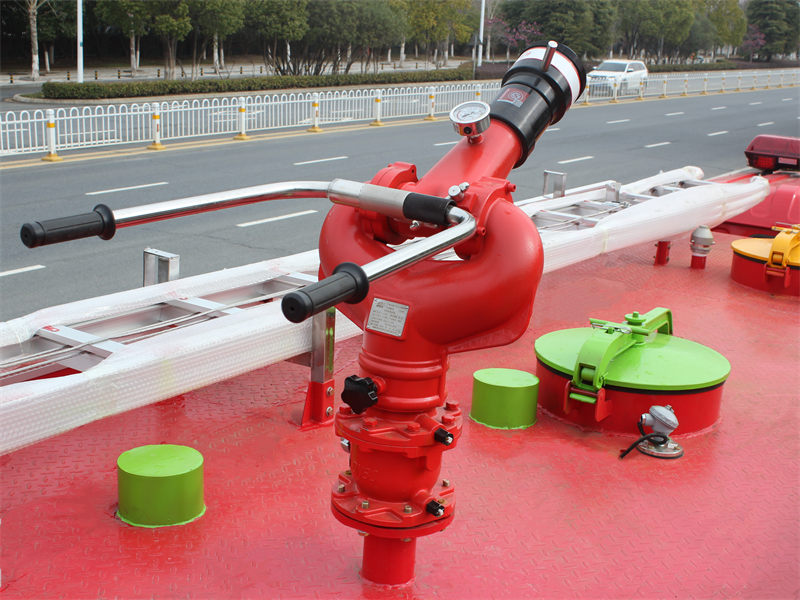

✦ Fire Moniter System Of Isuzu 6x4 Fire Truck « « «

✦ Advantage Of Isuzu 6x4 Fire Foam Truck « « «

1. Power and terrain adaptability

♦ Adopting Isuzu GIGA heavy chassis, it can cope with extreme terrains such as mountains, mud, ice and snow.

♦ The minimum ground clearance is optimized to 269mm, and the approach angle/departure angle are 30° and 20° respectively.

♦ Ensuring the passability of the Isuzu GIGA fire truck in collapsed buildings or wild fire scenes.

♦ Equipped with 6UZ1 turbocharged diesel engine, with a 10-speed synchronous meshing gearbox, the low-speed torque distribution efficiency is increased by 15%.

2. High flow and long range

♦ The 8000L carbon steel water tank (optional 316L stainless steel) adopts a double-layer explosion-proof structure design with a pressure resistance of 1.0MPa.

♦ With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 300 seconds (single water source mode).

♦ Standard CB10/140 mid-mounted centrifugal pump (140L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 140L/s).

♦ Water cannon range of 75m (DC)/38m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.
