Beiben 8cbm septic pump tanker truck is a special vehicle used to clean sewage, feces and other wastes. It is equipped with a powerful vacuum pump that can quickly form a strong negative pressure in the tank. With this feature, the sludge, feces, sewage and debris from septic tanks, sewage wells, sewers, etc. can be efficiently and forcefully sucked into the tank through the suction pipe. It has good sealing to avoid secondary pollution during transportation. Beiben septic pump tanker truck is flexible and can shuttle through the streets and alleys for operation. It is easy to operate, and the staff can easily control the sewage suction process and quickly complete the cleaning task, which plays an important role in creating a clean environment.

● China best septic pump tanker truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

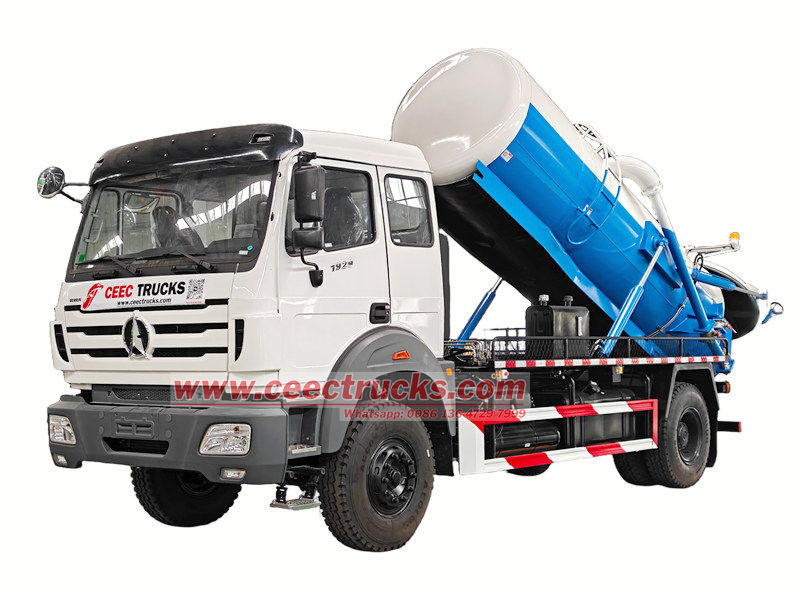

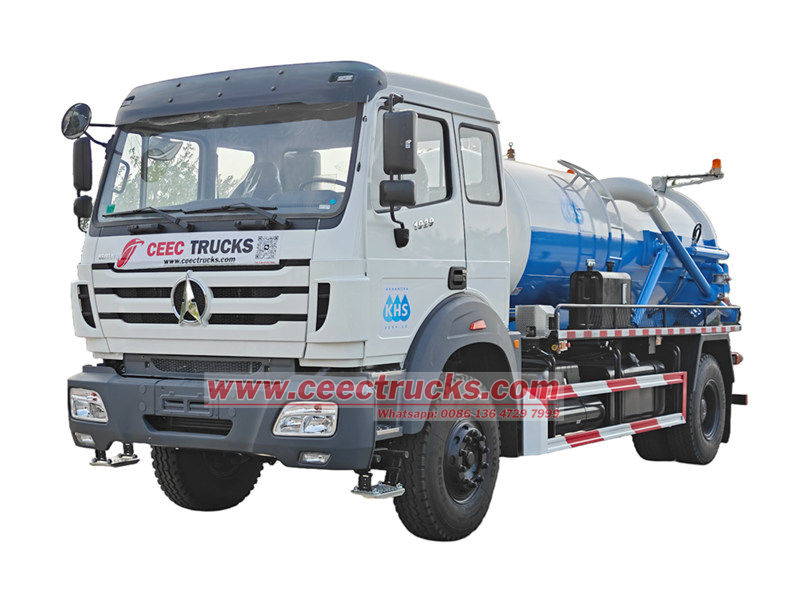

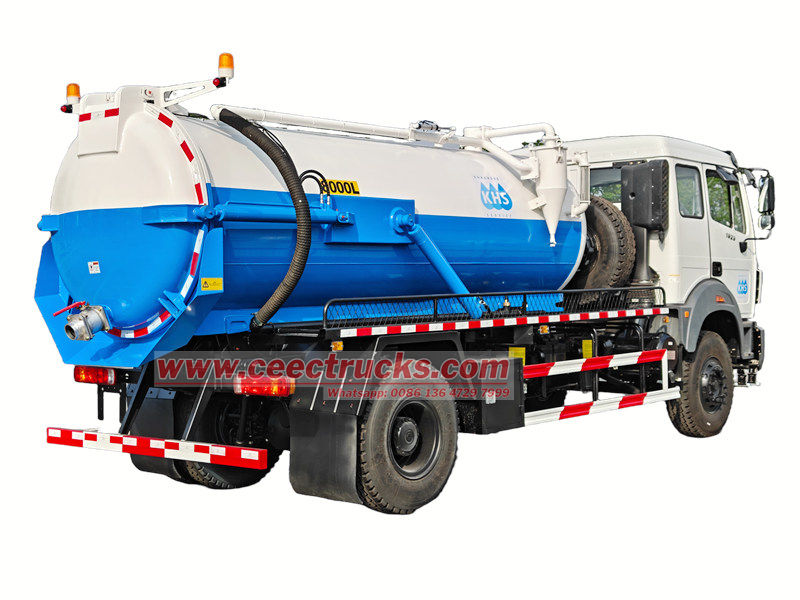

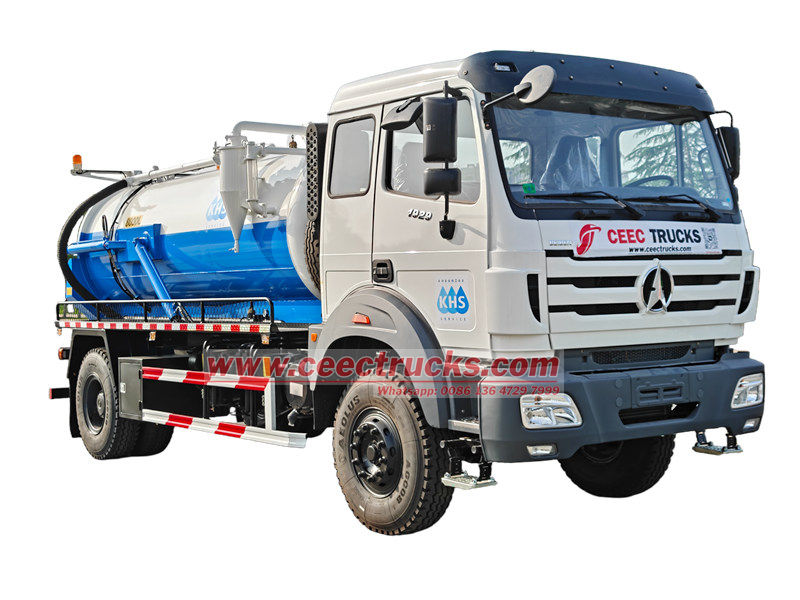

*Beiben 8cbm septic pump tanker truck

    Beiben 1929 vacuum suction truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

Truck Chassis: Beiben 1929 truck chassis, 4x4,  6x6 model

                          WP10.290E32 model with 290HP and emission 9726cc.

Beiben 8cbm septic pump tanker truck (also called Beiben 1929 vacuum suction truck, Beiben 4x2 vacuum tank truck, Beiben sewage disposal tanker, Beiben 290hp gully sucker vacuum truck, Beiben vacuum sewage suction truck etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc.

The main components of Beiben 1929 vacuum suction truck include power take-off, transmission shaft, vacuum suction pump, pressure tank, hydraulic part, pipe network system, vacuum pressure gauge, feces viewing window, etc. It adopts the domestic leading vacuum pump with strong suction force and long suction range, which is particularly suitable for suction, transportation and discharge of sludge in sewers. Its tank is round in design and compact in structure, which can withstand higher pressure and provide greater suction force.

The working principle of Beiben 8cbm septic pump tanker truck is mainly based on the effect of atmospheric pressure.

● Power transmission: The power output of the chassis engine is transmitted to the vacuum pump through the gearbox, power take-off and drive shaft, and the vacuum pump starts to work.

●Vacuum formation: After the vacuum pump starts to work, the air in the suction tank is gradually sucked away, and because it cannot be replenished, it becomes thinner and thinner, and the air pressure in the suction tank becomes lower and lower. In this way, the air pressure in the tank is much lower than the external atmospheric pressure.

● Sewage suction: Under the action of atmospheric pressure, the sewage enters the tank body through the sewage suction pipe. Due to the low air pressure in the tank, the external atmospheric pressure pushes the sewage into the tank.

● Sewage discharge principle: When discharging sewage, the suction pump draws air into the tank, so that the air pressure in the tank is greater than the atmospheric pressure, and the sewage in the tank is discharged through the sewage discharge pipe under the action of the pressure in the tank.

» Ⅱ.Product Parameter for Beiben 8cbm septic pump tanker truck：



Beiben 8cbm septic pump tanker truck
Vehicle Dimensions, Weights & Capacities	Chassis brand	Beiben 1929
	Overall dimension (LxWxH)	8230x2550x3150mm
	Wheelbase	4800mm
	Curb weight	9800 Kg
	Gross weight	18000 Kg
Chassis	Drive mode	4x2
	Cabin type	GN80B long cabin, with sleeper
	Seats	2 seats
	Steering	LHD
	Tires	6+1 spare tire
	Tyre specification	12.00R20
	A/C	Air conditioning
	Max speed	95km/h
Engine	Engine model	WP10.290E32
	Horse power	290HP
	Displacement	9.726L
	Emission level	Euro 3
Superstructure Description
Tank	Capacity	8000 liters
	Material	High quality carbon steel
	Thickness of material	6mm
	Structure	Welding, cylindrical
Vacuum pump	Brand	Wloong（china famous brand）
	Model	68/7000
	Ultimate pressure	7000 Pa
	Pumping speed	68 L/s
	Maximum vacuum	93%
	Rotation speed	800 rpm
Special function	Suction time ≤ 8min
	Effective suction range > 8

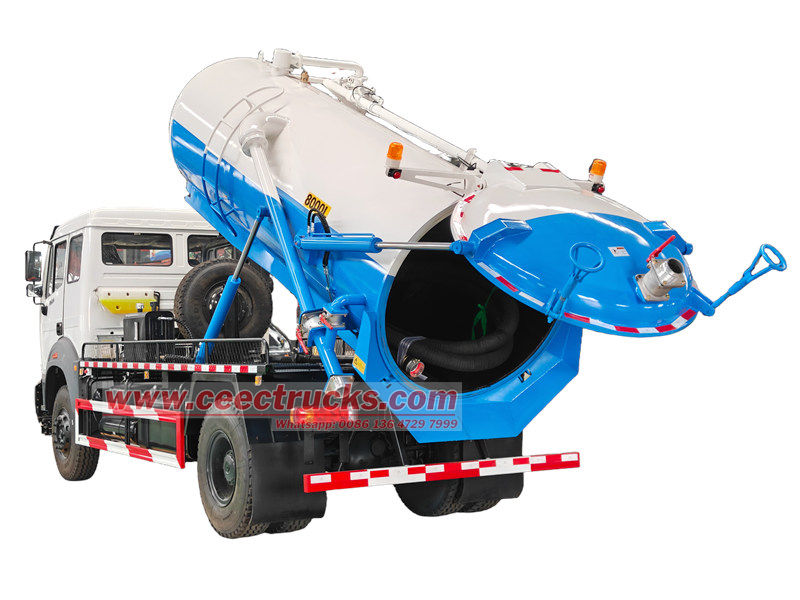

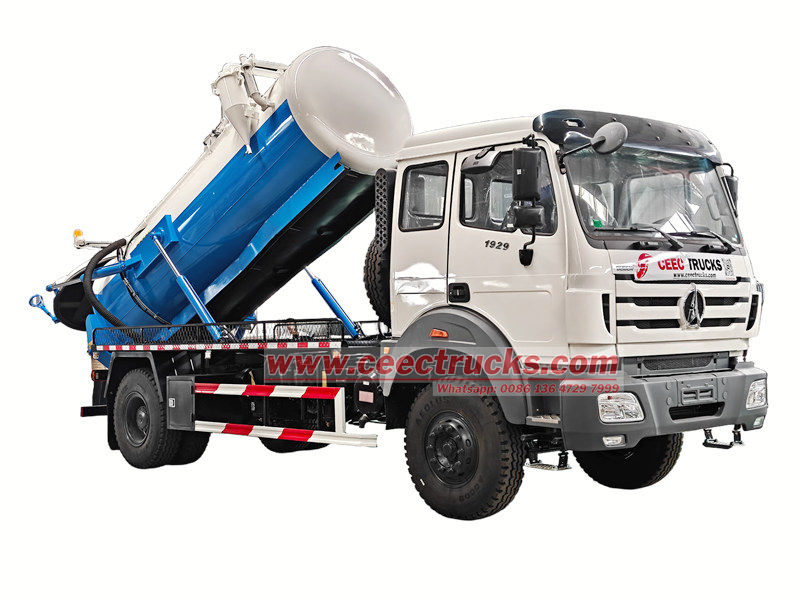

	Dump angle > 45°





» Ⅲ.Product Details & Advantages:

1. Powerful sewage suction capacity, efficient and worry-free cleaning

Beiben 8cbm septic pump tanker truck is equipped with a high-power vacuum pump, which can form ultra-high negative pressure in the tank in a short time, and has strong suction. Whether it is thick feces in the septic tank, sludge that has been deposited in the sewage well for many years, or debris blocked in the sewer, it can be quickly and thoroughly sucked into the tank. The suction pipe has a variety of diameters and can be flexibly replaced. It can be selected according to different operating scenarios and types of sewage, ensuring a smooth and unobstructed sewage suction process, greatly improving cleaning efficiency and reducing operating time.



2. High-quality tank design, durable, safe and reliable

The tank is carefully made of high-strength steel and has undergone special anti-corrosion treatment. It has good corrosion resistance and can withstand the erosion of various dirt for a long time, extending the service life of the vehicle. The tank has a reasonable structure and a smooth interior without dead corners, which is not only convenient for the discharge and cleaning of dirt, but also reduces dirt residue and avoids secondary pollution. At the same time, the tank is equipped with multiple safety protection devices, such as anti-overflow valves, safety valves, etc. When the pressure or liquid level in the tank reaches the set value, the protection mechanism will be automatically activated to ensure operation safety.



3. Flexible and convenient operation, quick response to operations

Beiben 4x2 vacuum tank truck is easy and flexible to operate. Workers can easily control various functions such as suction and discharge of sewage without frequent getting on and off the vehicle, which reduces labor intensity and time loss during operation. The vehicle also has a flexible steering system, which can freely shuttle in complex environments such as narrow streets and community roads and quickly reach the work site.





4. Environmental protection and energy-saving design to ensure continuous operation

Beiben septic pump tanker truck fully considers the needs of environmental protection and energy saving. The vehicle adopts a tank and pipeline system with good sealing performance, which effectively prevents dirt leakage and odor emission, reduces environmental pollution, avoids operation interruption or rectification caused by environmental pollution problems, and ensures the continuity of operation.



•

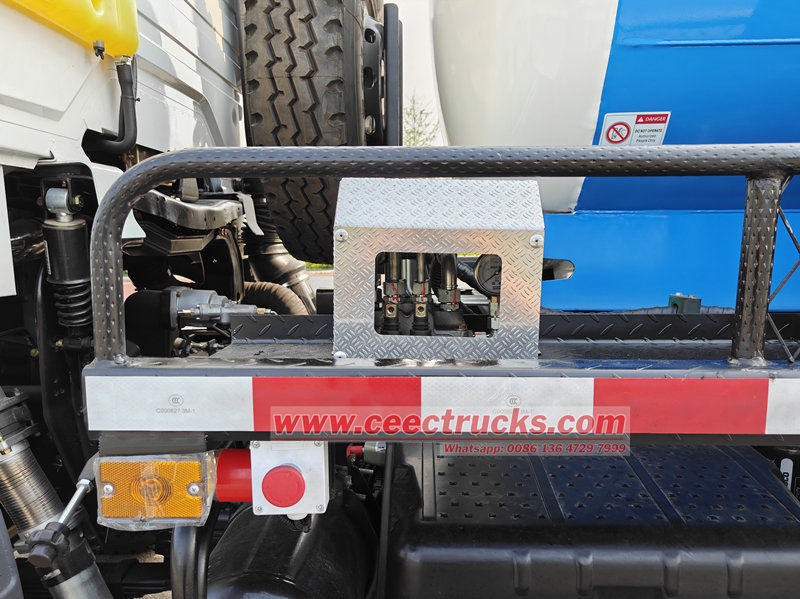

  Operating valve
•

  Vacuum Pump
•

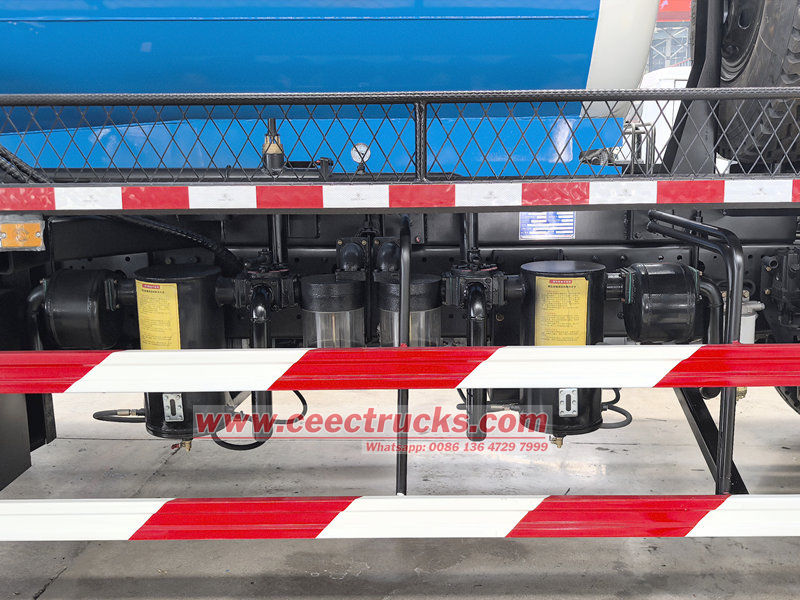

  Filter valve
