The Howo 10 cbm sewage cleaning tanker truck is a specialized vehicle designed for cleaning and transporting sewage, sludge, and solid debris. It is widely used in municipal sanitation, sewage treatment, animal husbandry, and other fields.

Its high-strength carbon steel tank is durable and well-sealed. Equipped with a high-power vacuum pump, it boasts strong suction and a high vertical suction lift, enabling rapid extraction of sewage sludge and septic tank feces. The Howo sewage cleaning tanker truck also features self-priming and self-unloading capabilities, making it easy and efficient to operate, greatly improving operational efficiency. It is a valuable addition to the municipal sanitation, sewage treatment, and other industries.

● China best sewage cleaning tanker truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

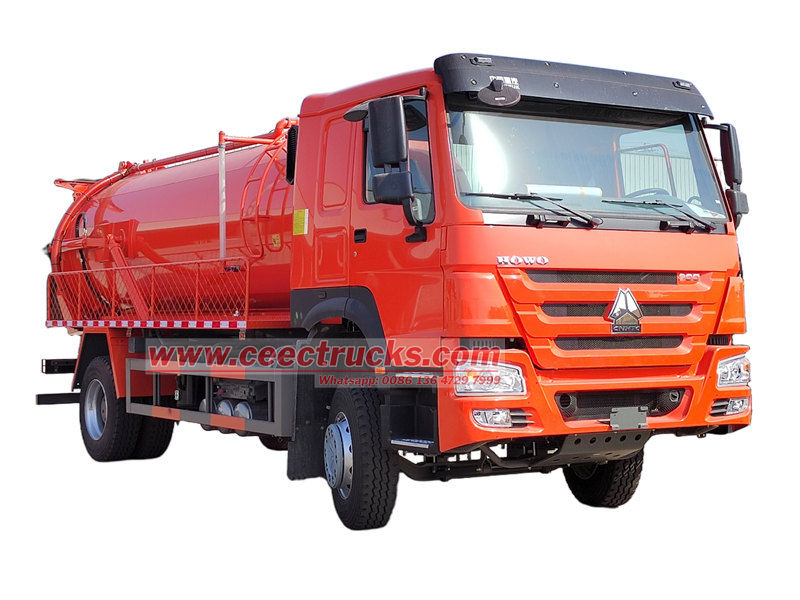

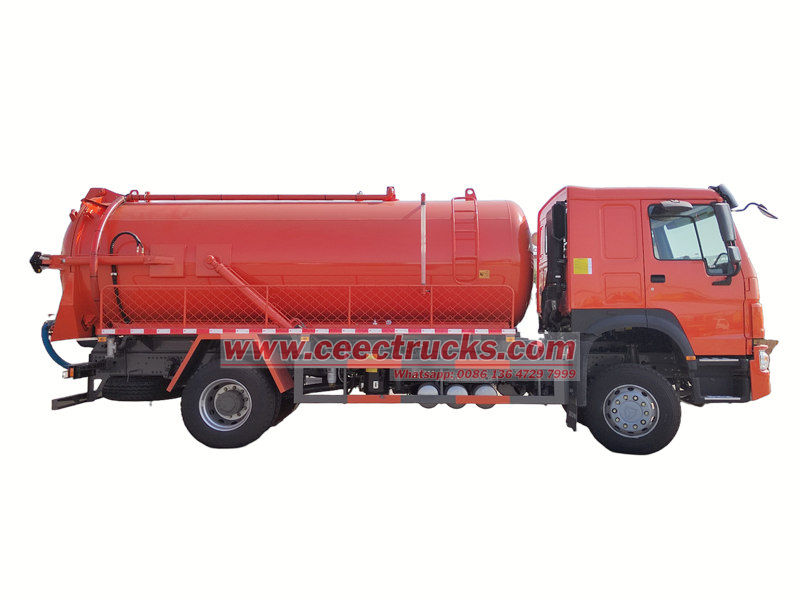

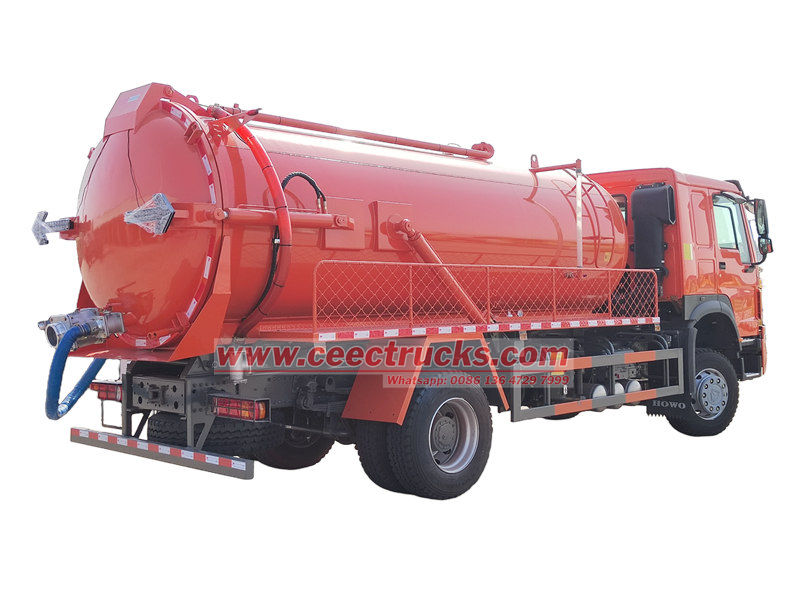

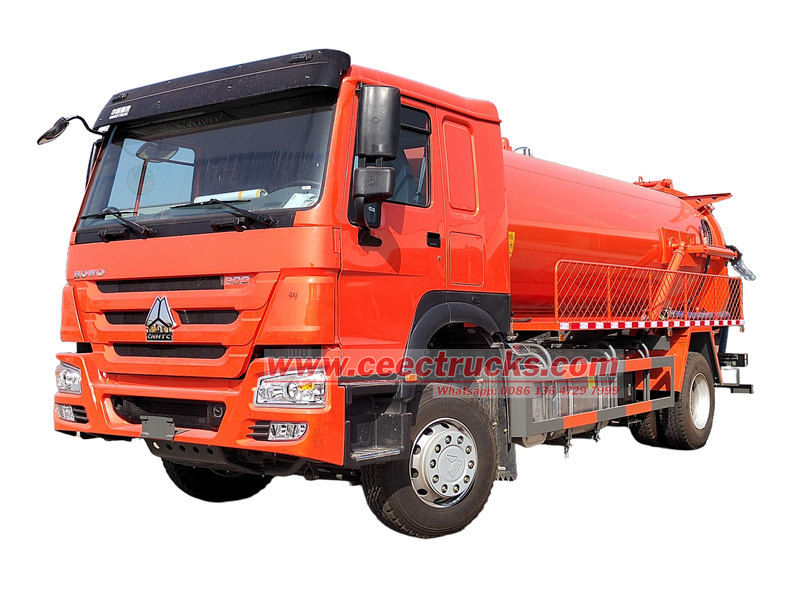

*Howo 10 cbm sewage cleaning tanker truck

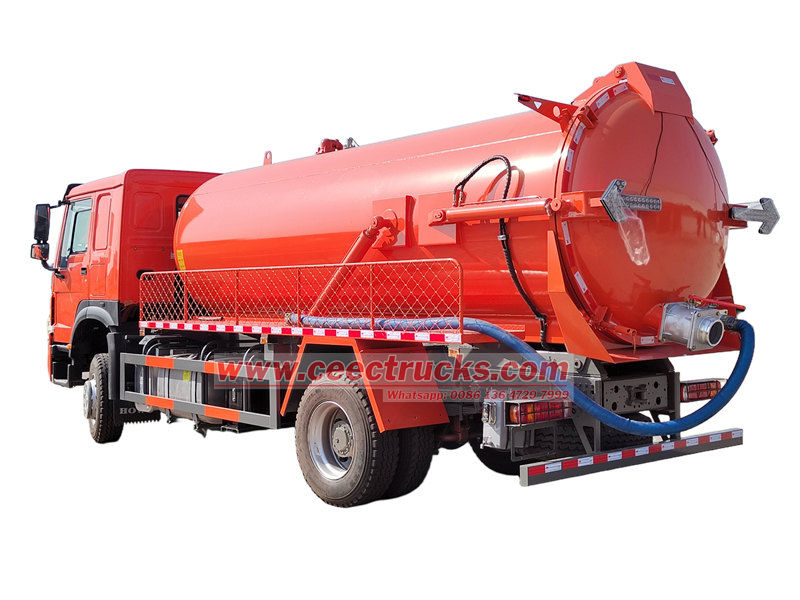

   Howo 10 cbm septic tank pump truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Low fuel consumption and economy: Howo 300HP engine + HW13710 10-speed gearbox, excellent fuel economy.

2. Safe and reliable: the hydraulic system is equipped with a safety valve to prevent overload and ensure operation safety.

Howo 10 cbm sewage cleaning tanker truck (also called Howo 10 cbm septic tank pump truck, HOWO 300hp vacuum suction truck, Howo 4x2 vacuum tank truck, Howo septic tank truck, Howo 4x2 sewage cleaning truck.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic.The tank body has been treated with anti-corrosion and anti-rust treatment and is extremely durable. Combined with a high-power vacuum pump, it has strong suction and is an indispensable professional equipment in urban and rural environmental governance.

●Vacuum Suction Principle: The HOWO 4x2 vacuum suction truck uses a vacuum pump to rapidly evacuate the air inside the tank, creating a negative pressure environment (pressure differential can reach over -0.08 MPa). When the pressure inside the tank drops below the external atmospheric pressure, the pressure differential forces sewage, sludge, and solid debris into the tank through the suction pipe.

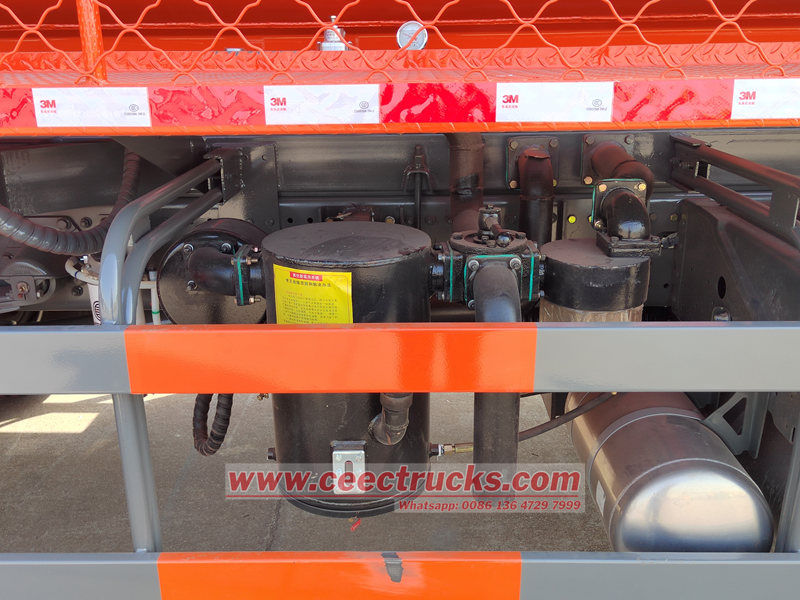

The suction pipe can be equipped with various nozzles or filters to meet the suction needs of various applications, such as pipelines and septic tanks. The HOWO vacuum suction truck also features an overflow valve that automatically closes the air inlet when the tank liquid level approaches the upper limit, preventing sewage backflow and damage to the vacuum pump.

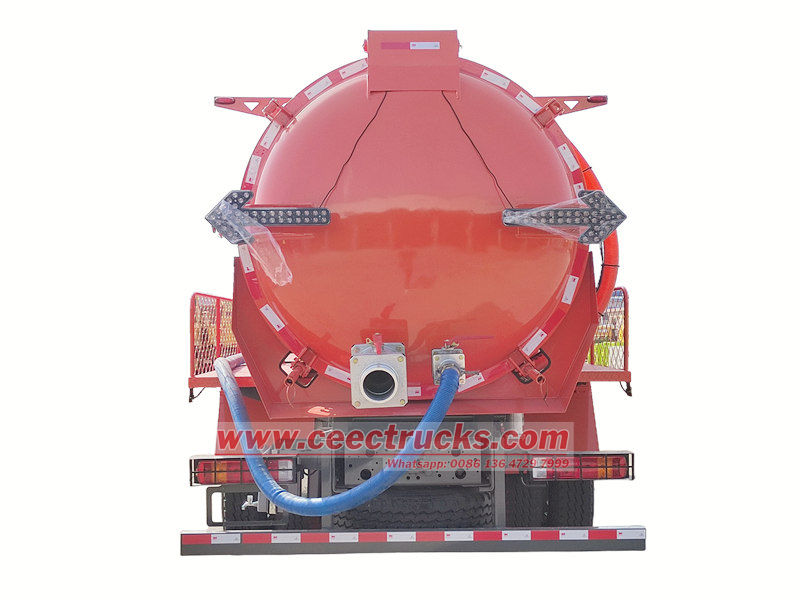

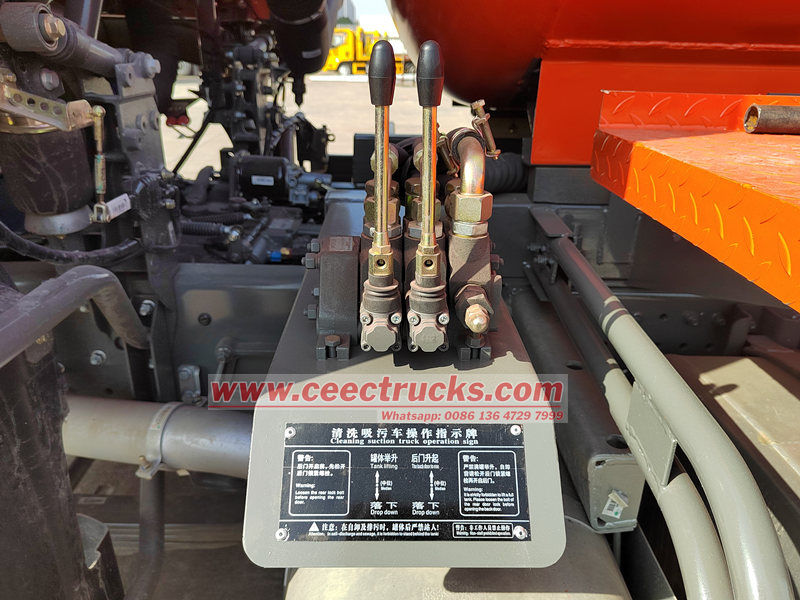

●Hydraulic discharge principle: During discharge, the hydraulic lifting system at the rear of the tank is activated, tilting the tank to an angle of more than 45° via the oil cylinder. Gravity forces the waste to gather at the rear of the tank. Simultaneously, the hydraulic valve at the drain port at the bottom of the tank opens, allowing waste to be rapidly discharged under the combined effects of its own weight and residual pressure within the tank.

» Ⅱ.Product Parameter for Howo 10 cbm sewage cleaning tanker truck：



Howo 10 cbm sewage cleaning tanker truck
Vehicle Dimensions, Weights & Capacities	Chassis brand	HOWO
	Overall dimension (LxWxH)	7860x2550x3250mm
	Wheelbase	4600mm
	Curb weight	9800 Kg
	Gross weight	19000 Kg
Chassis	Drive mode	4x2
	Seats	2 seats, with sleeper
	Steering	LHD
	Tires	6+1 spare tire
	Tyre specification	295/80R22.5
	A/C	Air conditioning
Engine	Engine model	WP10.300E22
	Horse power	300HP
	Displacement	9.726L
	Emission level	Euro 3
Superstructure Description
Tank	Capacity	10 cbm
	Material	High quality carbon steel
	Thickness of material	6mm
	Structure	Welding, cylindrical
Vacuum pump	Brand	Wloong（china famous brand）
	Model	68/7000
	Ultimate pressure	7000 Pa
	Pumping speed	68 L/s
	Maximum vacuum	93%
	Rotation speed	800 rpm
Special function	Suction time ≤ 8min
	Effective suction range > 8
	Dump angle > 45°



» Ⅲ.Product Details & Advantages:

1. Efficient Operation and Powerful Functionality

The Howo sewage cleaning tanker truck is a professional sanitation vehicle that integrates sludge and sewage collection, transfer, transportation, and discharge. It utilizes a vacuum negative pressure principle for efficient operation. Its core component, the vacuum pump, achieves a maximum vacuum of -0.08 MPa and a suction range exceeding 8 meters. It can fully pump the tank in less than 5 min and rapidly extracts solid and liquid mixtures such as sewage sludge, silt, gravel, bricks, and more, preventing secondary contamination.

2. Flexible and Convenient Operation

The Howo 10cbm septic tank pump truck is easy and flexible to operate, allowing operators to easily control various functions, including suction and discharge, without having to frequently get on and off the vehicle. This reduces labor intensity and time lost during operation. The vehicle also features a flexible steering system, enabling it to maneuver freely through complex environments, such as narrow streets and residential roads, quickly reaching the work site. When faced with urgent cleaning tasks, it responds instantly and operates swiftly, effectively preventing the spread of waste and environmental degradation, fully demonstrating its efficient operation and strong emergency response capabilities.

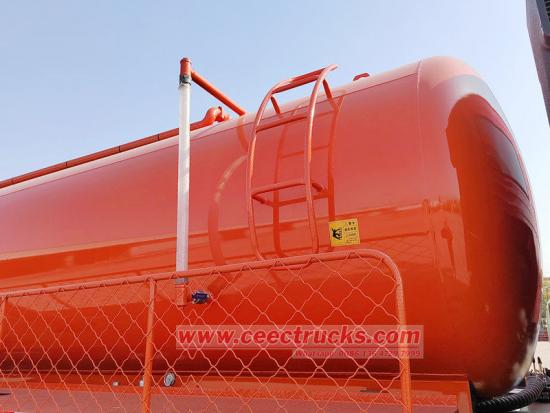

3.Durable and Reliable Tank Material

The tank is meticulously crafted from high-quality steel and undergoes special anti-corrosion treatment, ensuring excellent corrosion resistance. It can withstand the erosion of various contaminants over a long period of time, extending the service life of the vehicle. The tank's rational structure and smooth interior without dead corners not only facilitate the discharge and cleaning of contaminants, but also reduce residual contaminants and prevent secondary contamination. Furthermore, the tank is equipped with multiple safety features, including an overflow valve and a safety valve. These automatically activate when the pressure or liquid level reaches a set value, ensuring safe operation.



•
•
•
