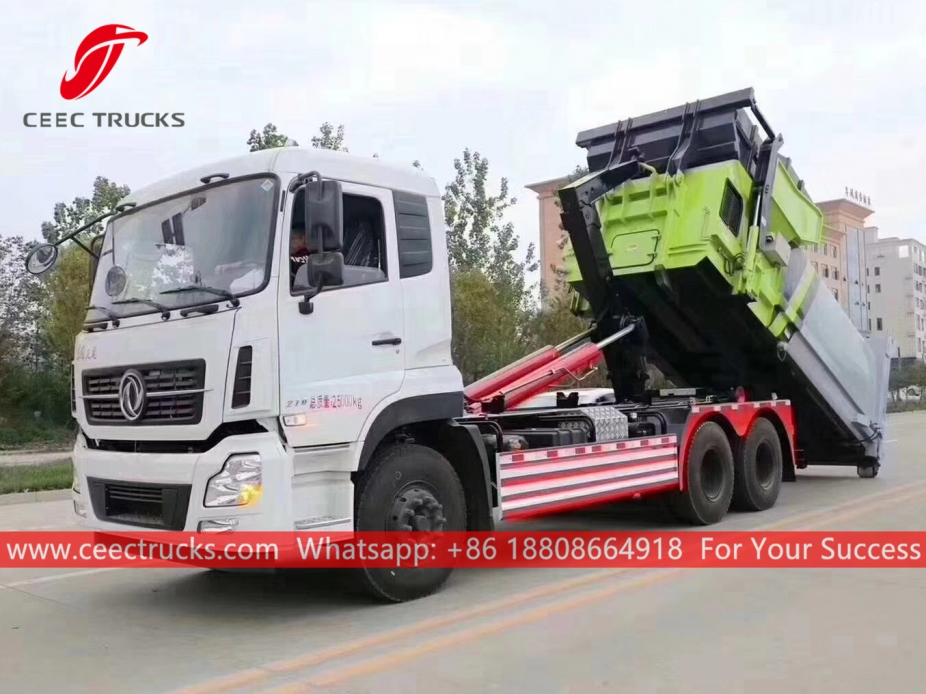

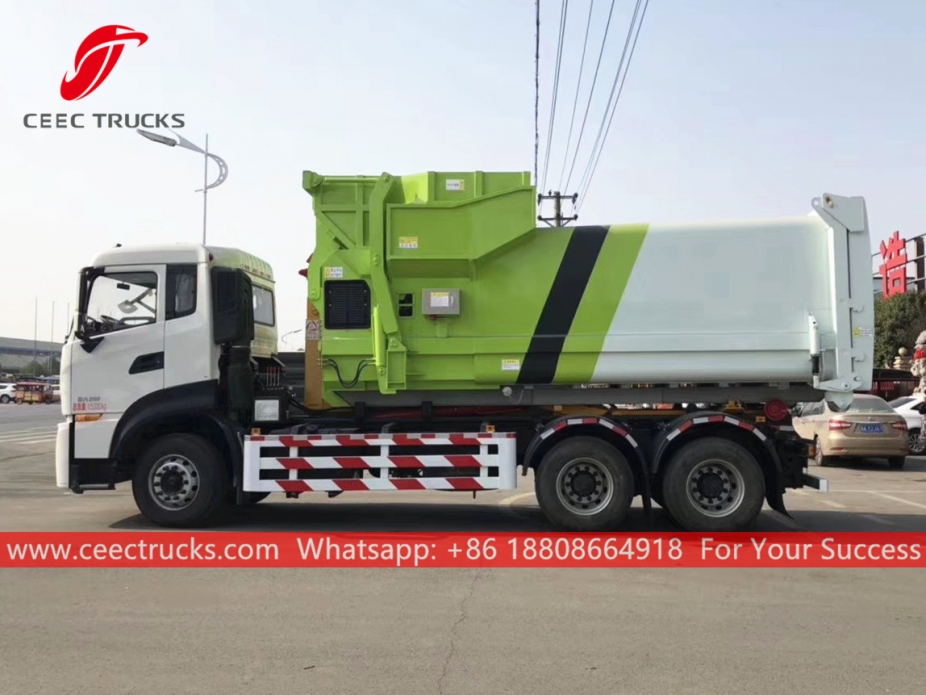

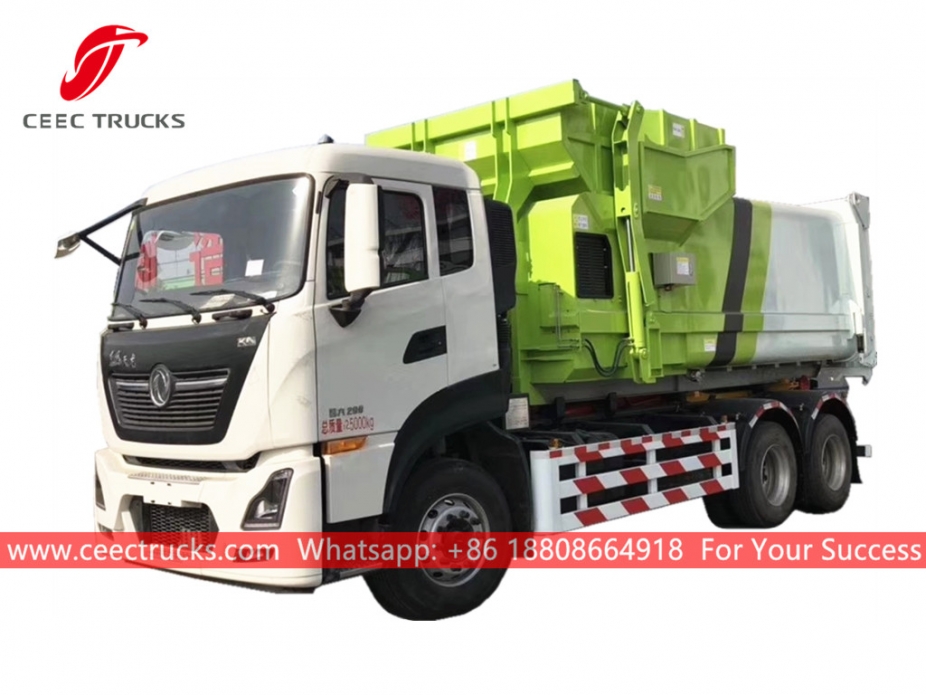

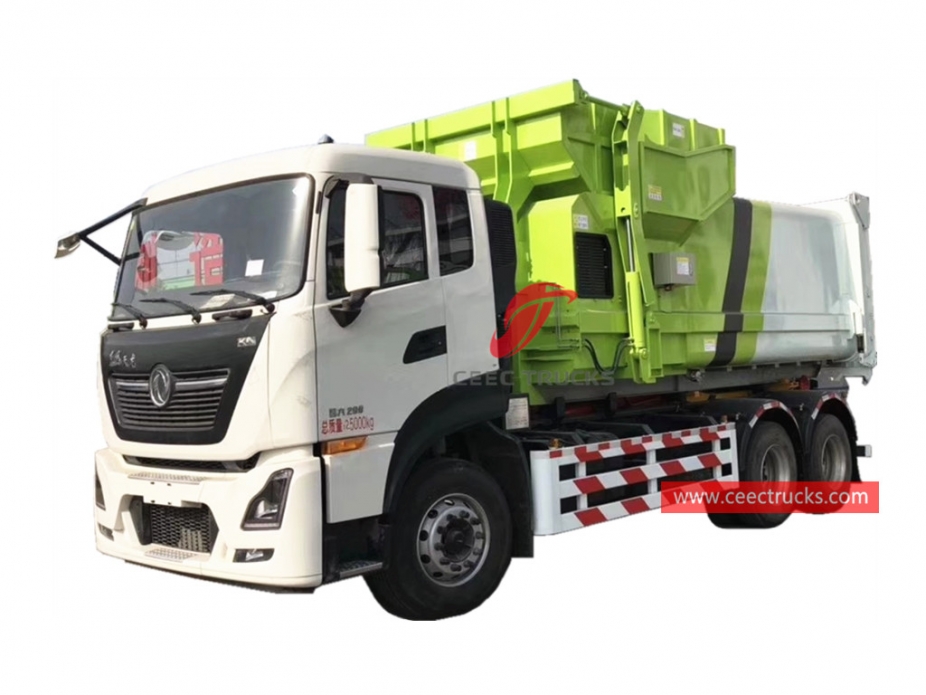

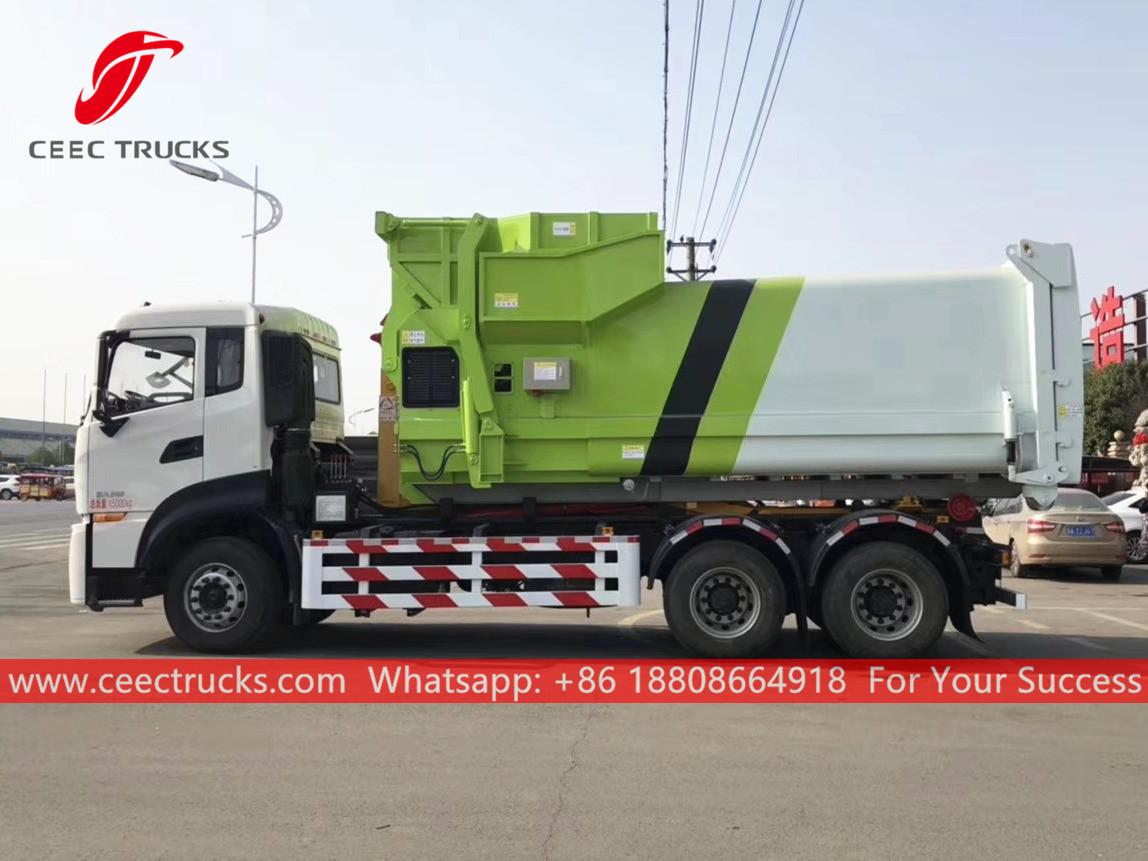

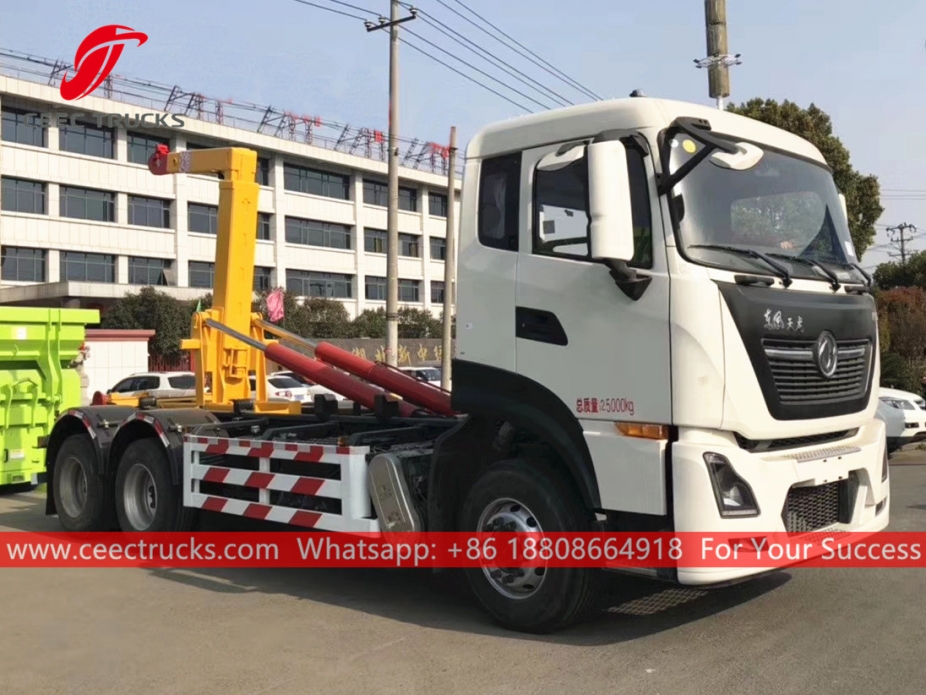

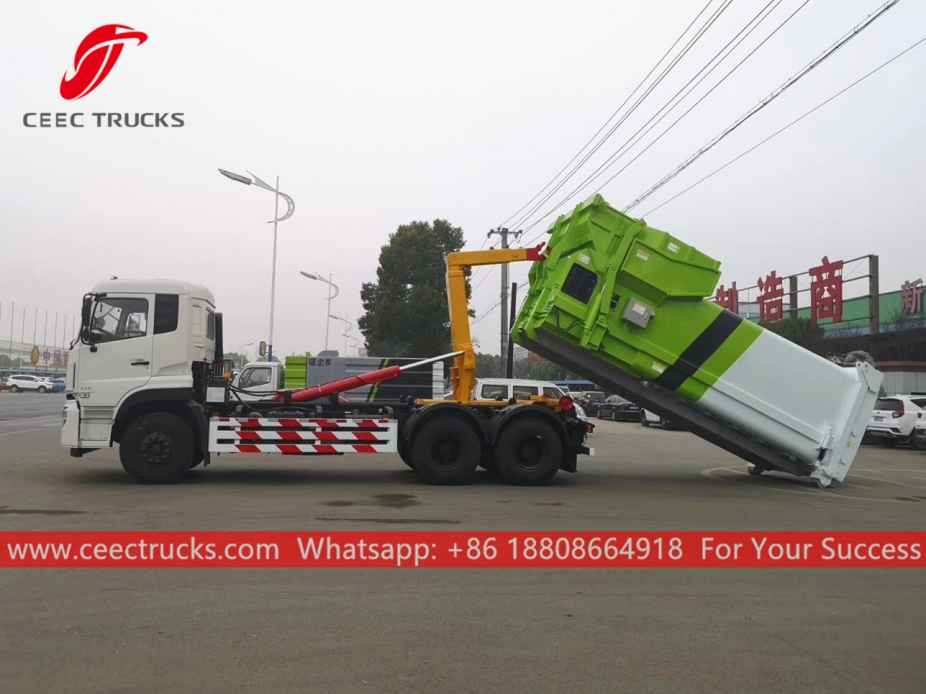

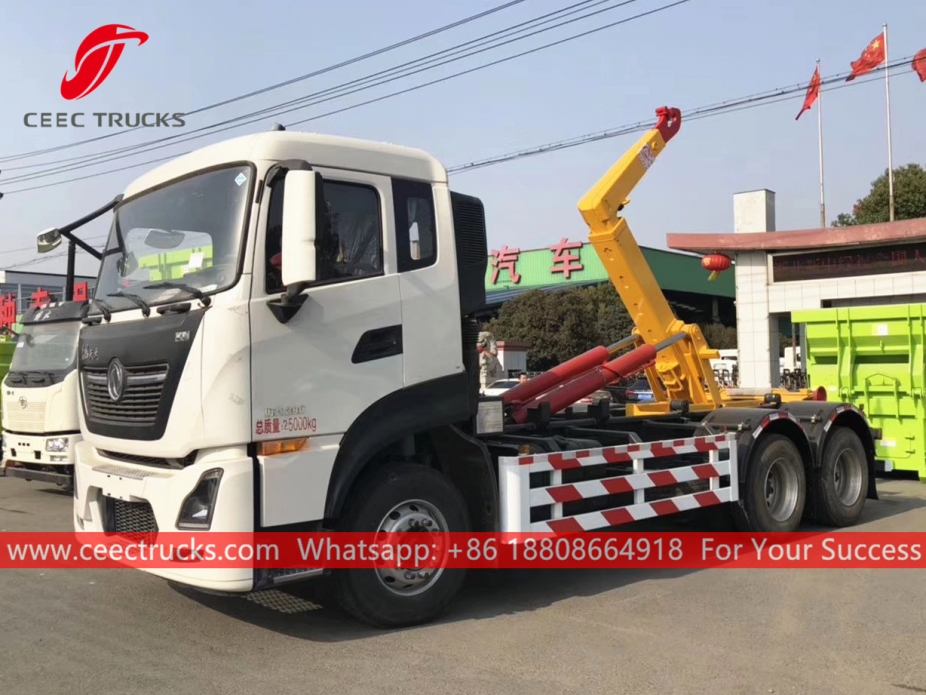

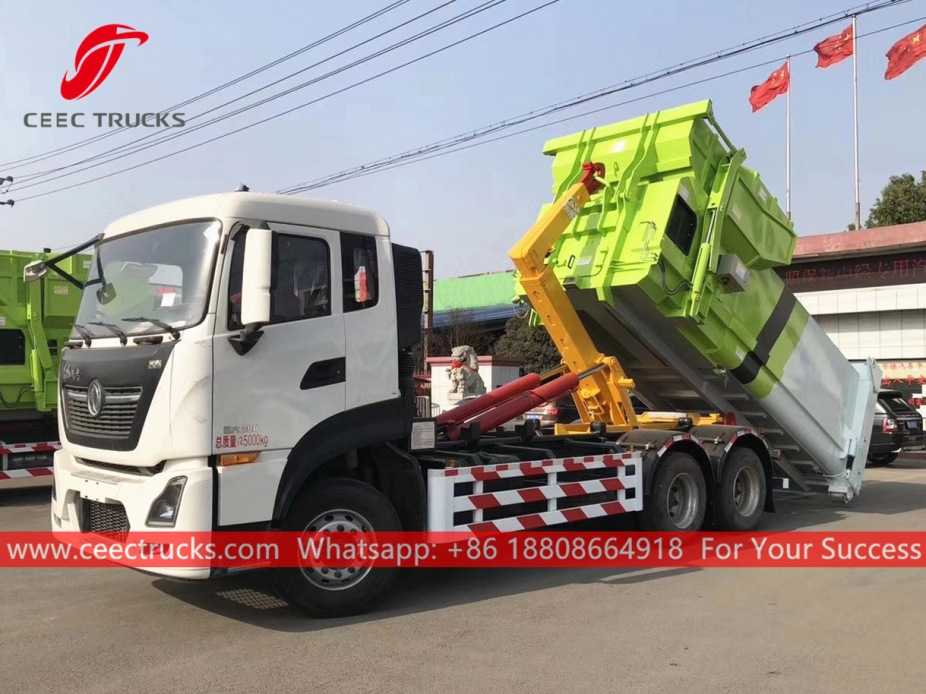

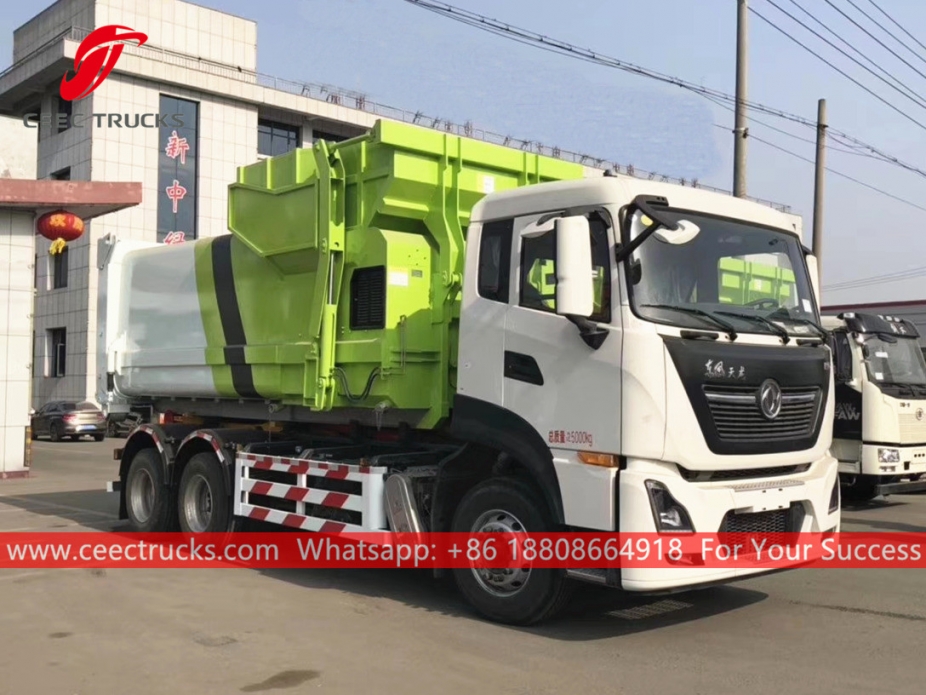

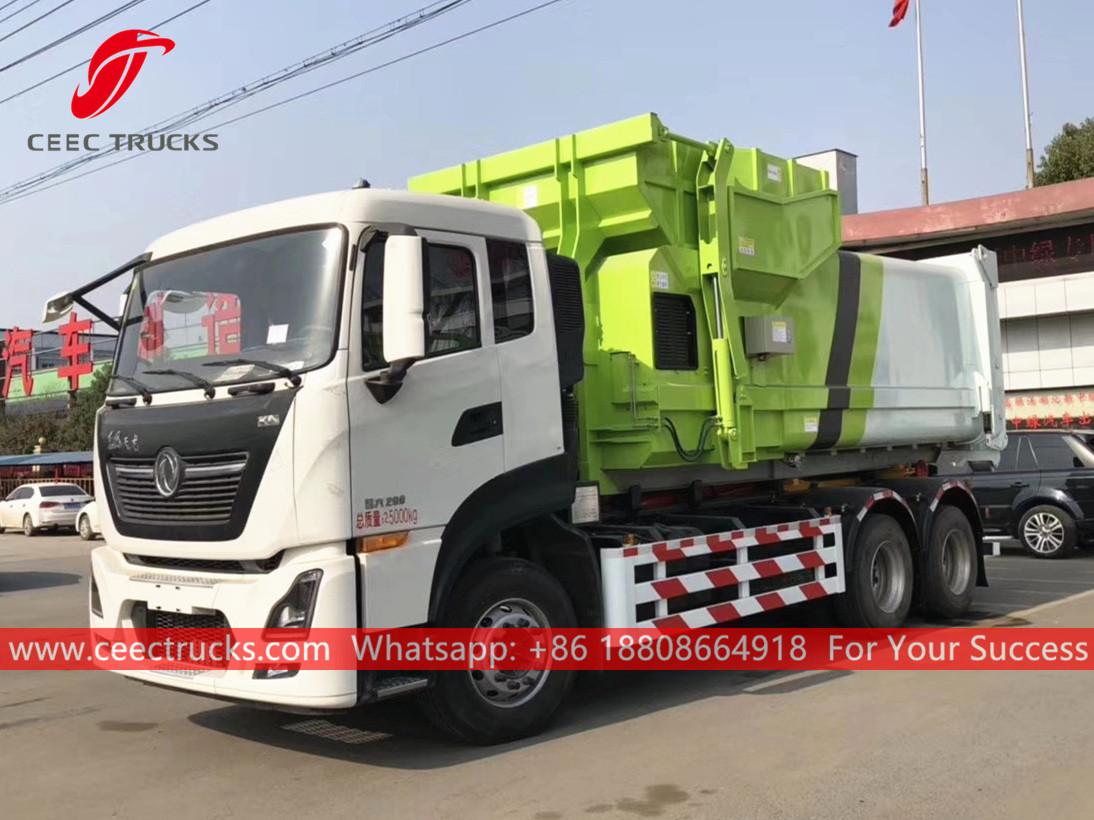

Dongfeng Compactor Hook lift truck

Dongfeng hook loader garbage truck, Dongfeng 6x4 chassis with 270HP diesel engine, Manual 8-shift manual gearbox, high strength hook loader system, with all kinds of garbage container optional. All painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now



 Applications:



Hook Lift Truck Dongfeng (also called roll on roll off waste collection truck, hook lift rubbish truck, hook arm garbage vehicle, hot sale hook loader, hook loader with detachable bin, refuse collector truck, hook lifting garbage collection truck ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage collection and transportation station, etc.



CEEC TRUCKS roll on roll off trucks loading capacity can ranges from 1tons, 2tons, 3tons, 4tons, 5tons, 8tons, 10tons, 14tons, 18tons, 20tons, 22tons, etc.



The hook loader with shot peening painting, with all painting color and logos depend on requirement.



 Key Features:



---- Dongfeng chassis, perfect performance

---- CUMMINS diesel engine (Japanese brand), super powerful, no overhaul within 100,000 km.

---- Hook loader garbage container body capacity from 1 to 22 Cublic Meter.

---- Rational design of hook and locking structure, and truck more reliable.

---- Optional Electrical Control in cabin, easy operation and easy maintenance.

---- Various types of refuse container lifter are available.

Why choose CHUSHENG certified hook loader truck



 Specifications:



Dongfeng Hook arm garbage truck (10 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Dongfeng

Overall Dimension

8500 * 2500 * 3100 mm

GVW / Kerb Weight

25,000kg / 11,820kg

Cab

Cab Capacity

2,3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

270 HP (198 KW)

Displacement

6700 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 5 speed levers with 1 reverse

Wheelbase/No. of axle

4350+1350 mm / 3

Tire Specification

11.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

10CBM capacity detachable compactor container

Container material

Anti-corrosive steel

Hydraulic system

Chinese top brand cylinders and matched valves

Control Box

1. Electric Control Box in Cabin

2. Hydraulic control valve at rear

Self-discharge angle

≥45 °

Discharging time

≤45 s

Lifting time

≤45 s

All standard accessories: Warning lights, music alarm, basic tool kit, English manual...

Optional

** Back alarm and Camera can be equipped.

** Remote Control Box can be optional.

** Garbage container can be of stainless steel



Hook arm garbage trucks

(High technology hook loader trucks manufacturer, best quality hooklift garbage trucks)


Key words: hydraulic hook lift garbage truck, detachable container garbage collector, hook arm refuse truck

Dongfeng chassis, perfect performance

Euro 4 or 5 type, CUMMINS engine, super powerful

Rational design of hook and locking structure, and truck more reliable.

12 months fast moving spare parts for FREE

Authorized Dongfeng hook loader garbage trucks exporter

Training service for Dongfeng hook arm trucks



CEEC TRUCKS is a leading exporter of Dongfeng hook loader trucks in China. We possess over 10-year export experience of Dongfeng hook arm garbage trucks. We can ensure the fast delivery time and 12 months guarantee for our hook lift refuse trucks. Our Dongfeng detachable garbage container truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
