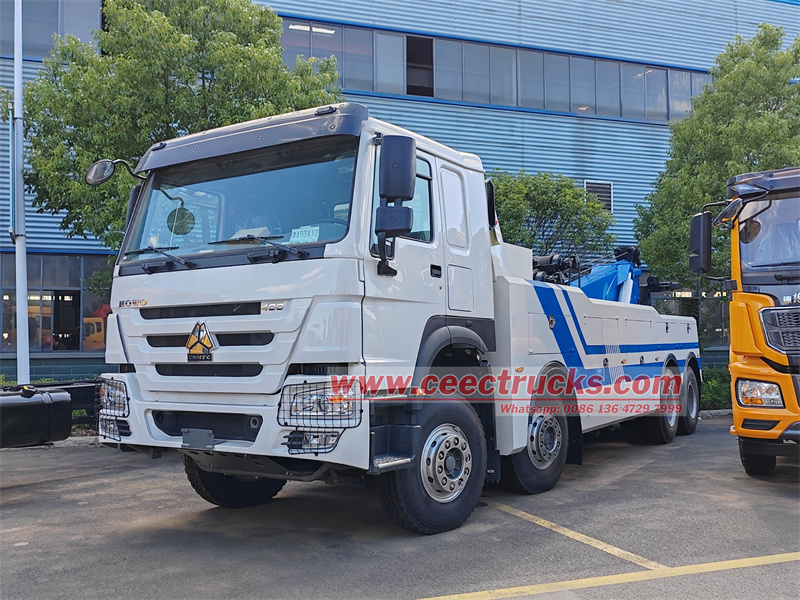

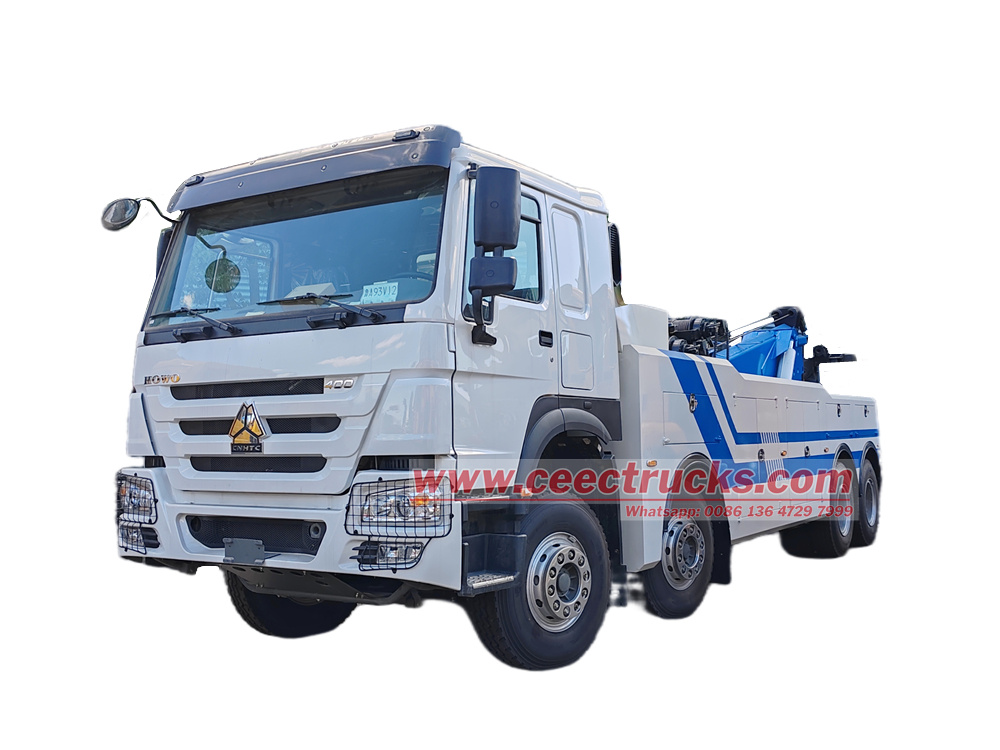

HOWO 30 T heavy rescue wrecker truck is a high-performance professional rescue vehicle for complex road conditions and heavy-duty fault vehicle towing tasks. The vehicle is equipped with a large-displacement diesel power system and a multi-speed gearbox to provide ample power reserve for the entire vehicle. The innovative upper body design integrates a high-strength lifting mechanism and a multi-stage extension system, and with intelligent hydraulic control technology, it can achieve precise lifting and towing operations. The vehicle is equipped with a double winch system, which, together with an extra-long steel cable, greatly improves the rescue radius and operating efficiency. The humanized double-sided operating system allows rescuers to be handy even in complex environments. The professional auxiliary tool set includes a variety of fixing devices to meet the rescue needs of different models.

*HOWO 30 T Heavy Rescue Wrecker Truck

Conjoint Integrated Wrecker Tow Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

★ Powerful sinotruk howo truck chassis,

★ Two 10-ton hydraulic winches, 45-meter steel wire rope, with diameter 28mm

★ ltaly hydro control control valve and balance valve,

★ Wuxi oil hydraulic pneumatic equipment co ltd;

★ One-step modeling compartment plate by germany 3P2A punching machine

Towing truck(also called road wrecker,wrecker truck,tow truck,recovery truck,towing service truck,breakdown truck) is usedfor moving disable,improperly parked or breakdown vehicles or car.

» Ⅱ.Product Parameter for Howo 8x4 30T wrecker truck

» Ⅲ.Product Details & Advantages:

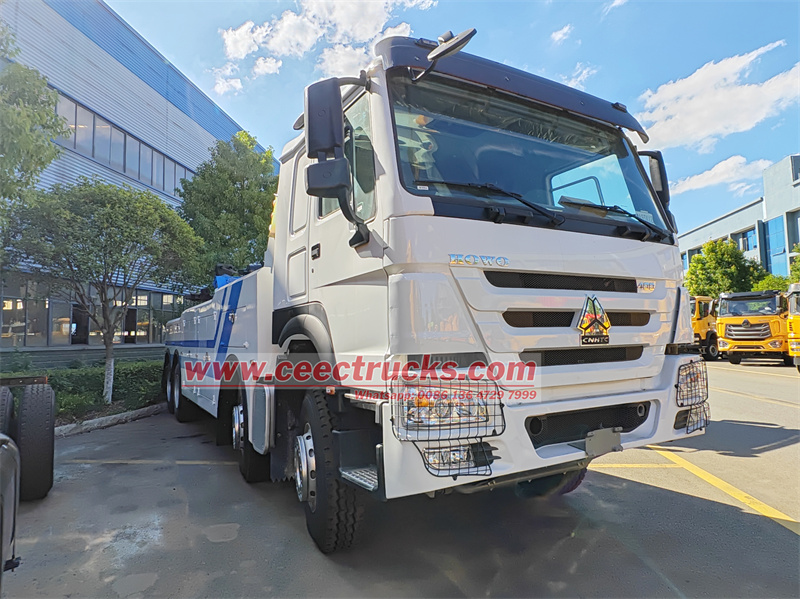

1. Chassis configuration: strong power, stable and reliable

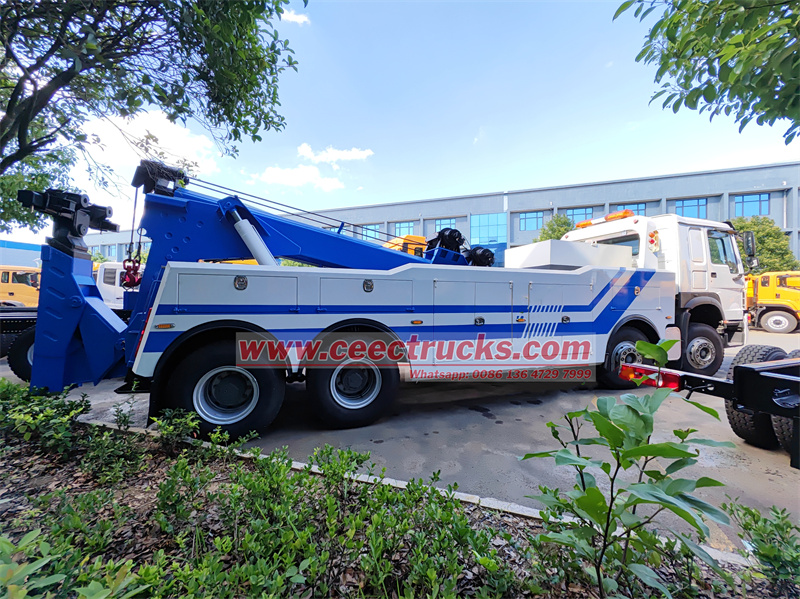

The HOWO 30-ton tow truck is built on the new front face 8×4 chassis of Sinotruk HOWO HW76, with a wheelbase design of 1950+4625+1350mm to ensure the stability and passability of the vehicle during heavy operations. In terms of power, it is equipped with Weichai WP12S400E201 engine, 400 horsepower (in line with Euro II emission standards), matched with HW19710 10-speed gearbox, with strong power output, adapting to complex road conditions and long-term high-intensity operation requirements.



2. Upper system: professional towing, efficient and flexible

★. 30-ton joint upper

● Made of high-strength steel, with a stable structure and strong carrying capacity, it is suitable for towing and lifting operations of large accident vehicles and engineering machinery.



● Imported hydraulic valve group ensures that the hydraulic system runs smoothly and responds quickly, improving the accuracy of operations.

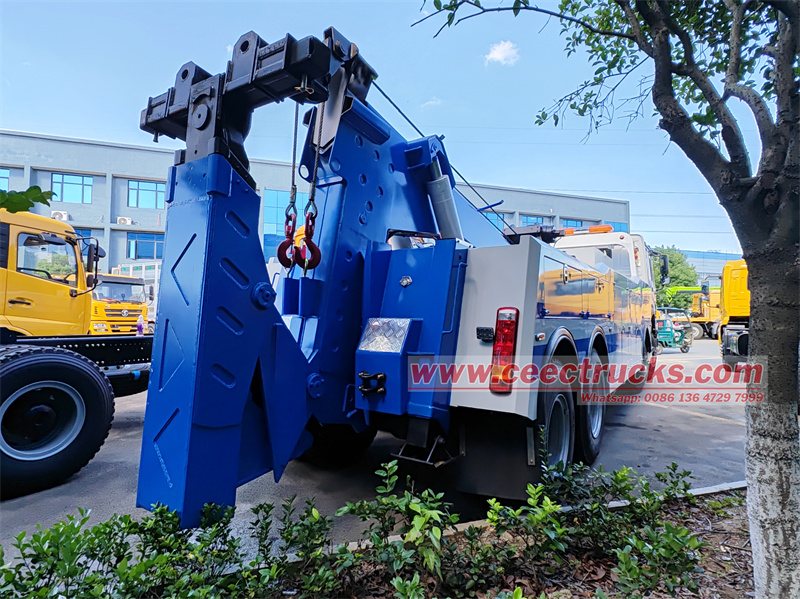

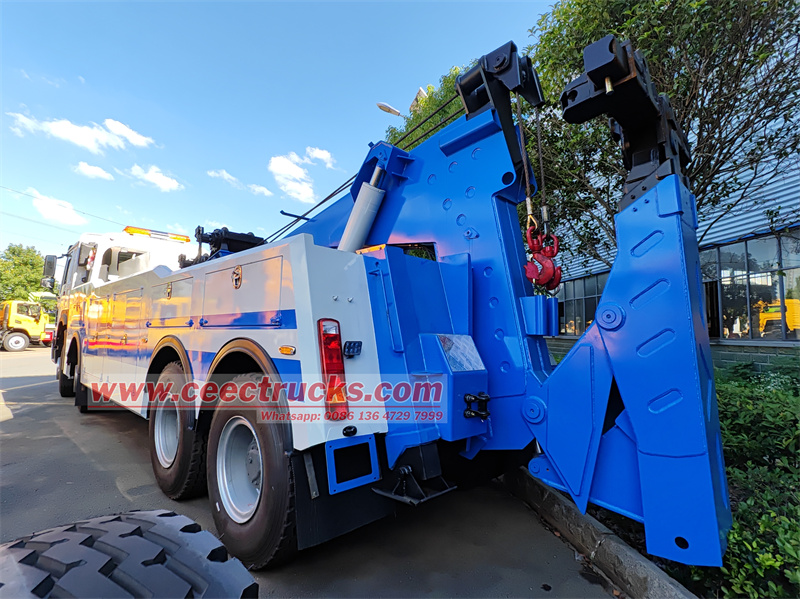

★. Boom and support arm system

● Two-section hexagonal boom: forged with high-strength steel, two-section telescopic design, hexagonal structure enhances torsion resistance, more stable lifting; supports dual functions of vertical lifting and horizontal traction.



● Three-section support arm: retractable and adjustable to meet different towing requirements, flexible and labor-saving operation.

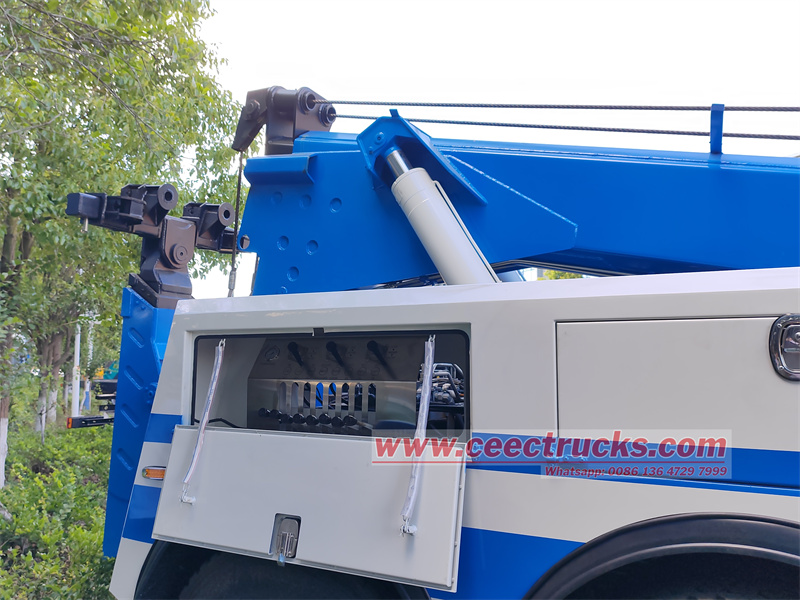

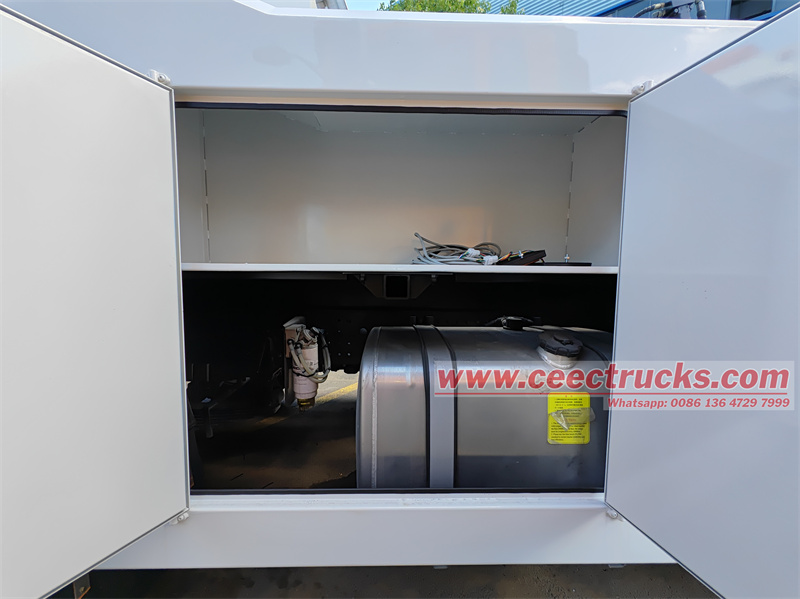

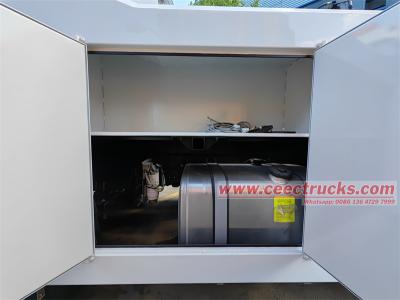

3. Split carriage

● The carriage adopts a split design with a built-in tool rack. Accessories such as towing forks, chains, and tire holding devices are stored in an orderly manner, which is convenient to use and avoids clutter on the work site.

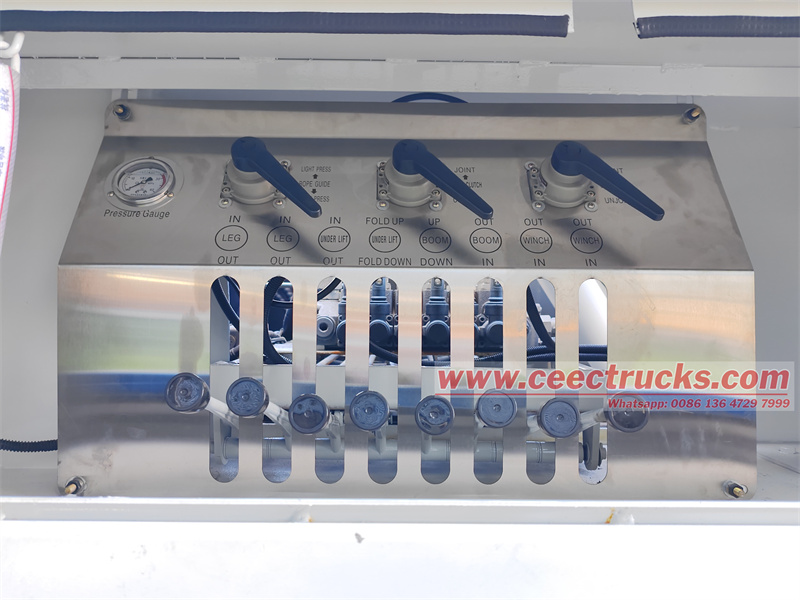

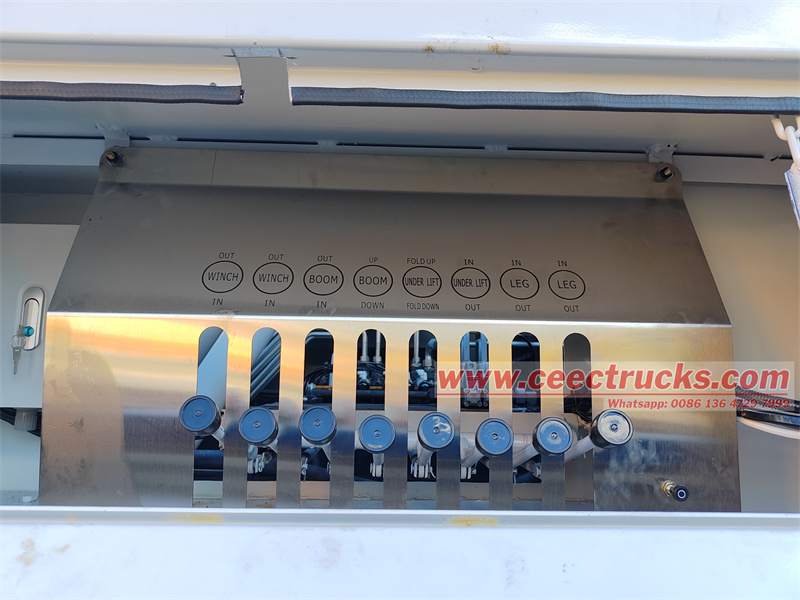

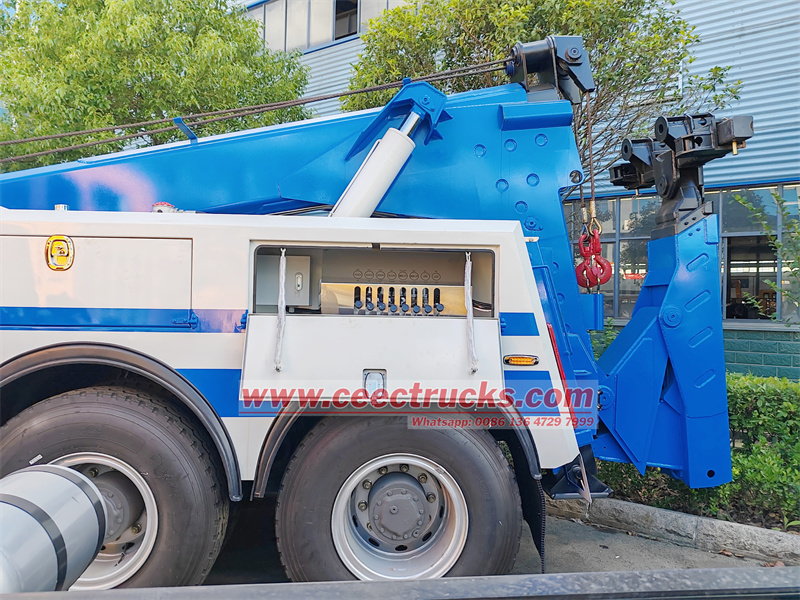

4. Double-side linkage operating device

● Operation panels are set on both sides of the rear of the carriage to control the actions of the boom, support arm, winch, etc., which are suitable for precise operation in narrow spaces or complex environments.

•

•
•



Products--100% Customized Level One!

« Ⅳ. Core operating devices: professional rescue equipment

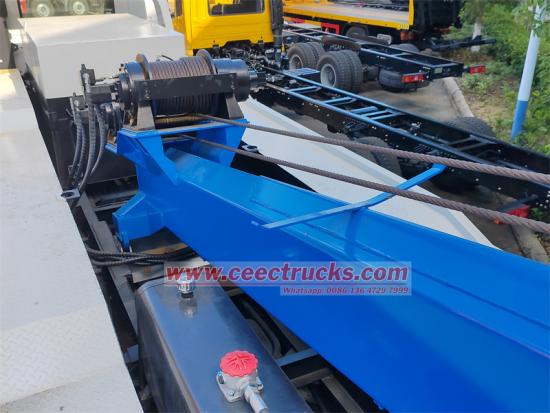

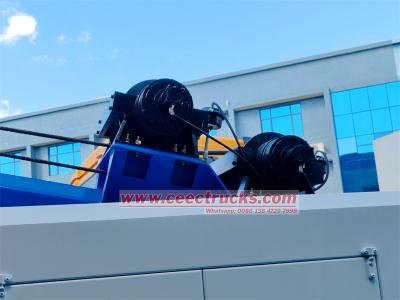

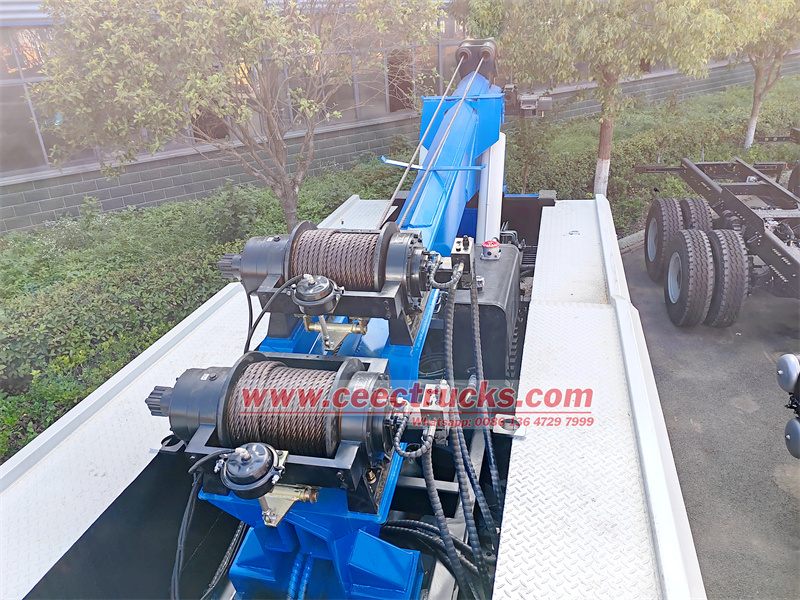

1. Dual 10-ton hydraulic winch system

• Equipped with two 10-ton hydraulic winches, which can work independently or synchronously to meet heavy-duty towing needs.

• 45-meter wire rope (diameter 18mm), providing an extra-long operating range, and equipped with 4 sets of spare wire ropes to ensure the reliability of long-term operations.

2. Multifunctional auxiliary tools

• Tow fork sleeve: used to fix the tires or chassis of the accident vehicle to prevent sliding during towing.

• Steel plate lifting lug tow fork: suitable for towing heavy machinery or special vehicles, enhancing the fixing ability.

• Tire holding device: can quickly clamp the tire, suitable for rescue scenarios where the axle cannot be directly towed.

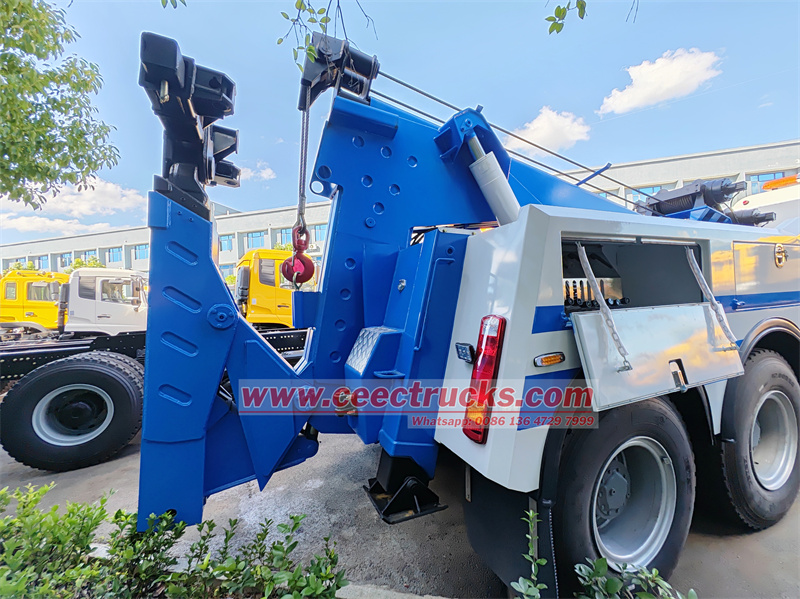

3. Rear outrigger system

•  The rear of the vehicle is equipped with 2 hydraulic outriggers to prevent the risk of rollover, especially suitable for operations on slopes or uneven roads.

4. Auxiliary system: safe and efficient

•  Long row of engineering auxiliary lights： Provide strong lighting to ensure safe operation at night or in low visibility environments.

•  Auxiliary air pipe assembly：Used for tire inflation or pneumatic tool driving to improve rescue efficiency.

•  Two high-strength chains： Used for additional fixing or traction to enhance rescue safety.
