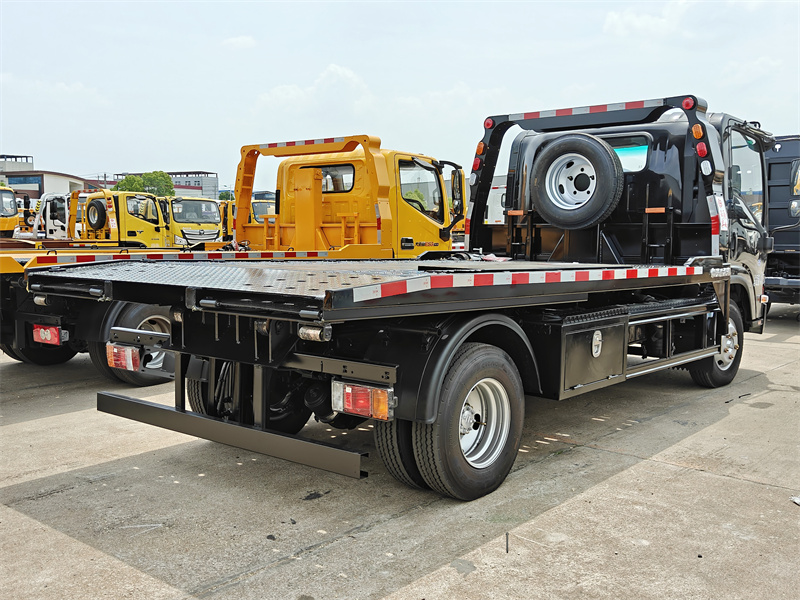

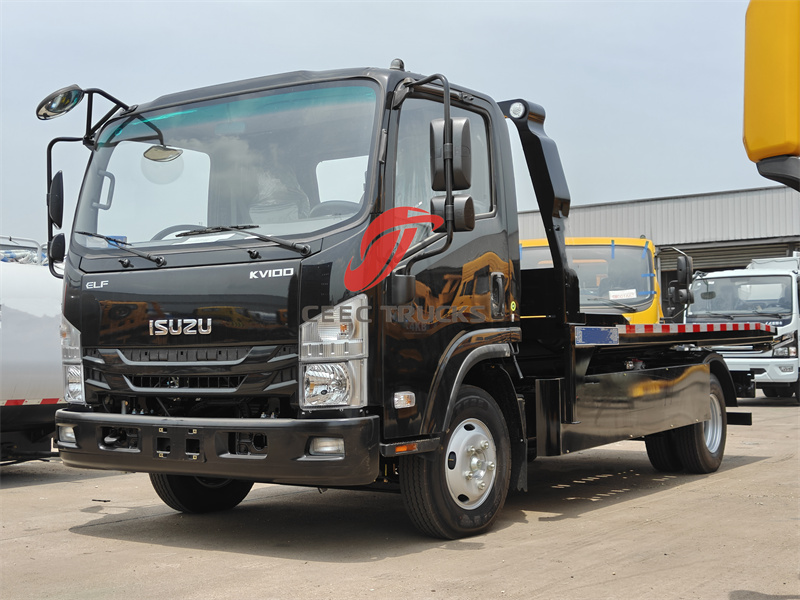

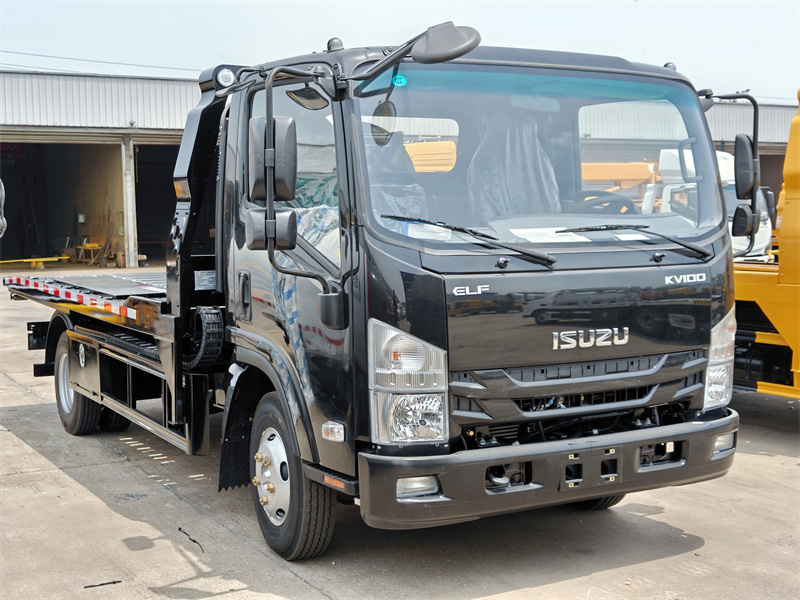

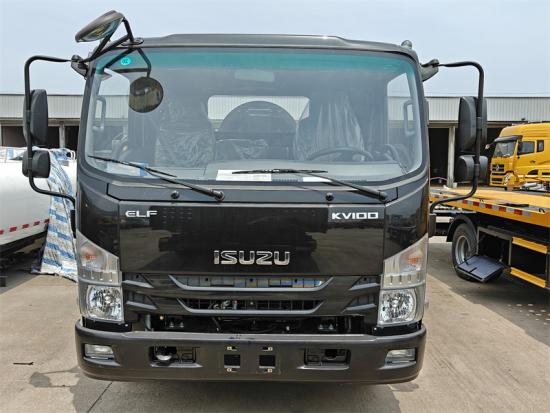

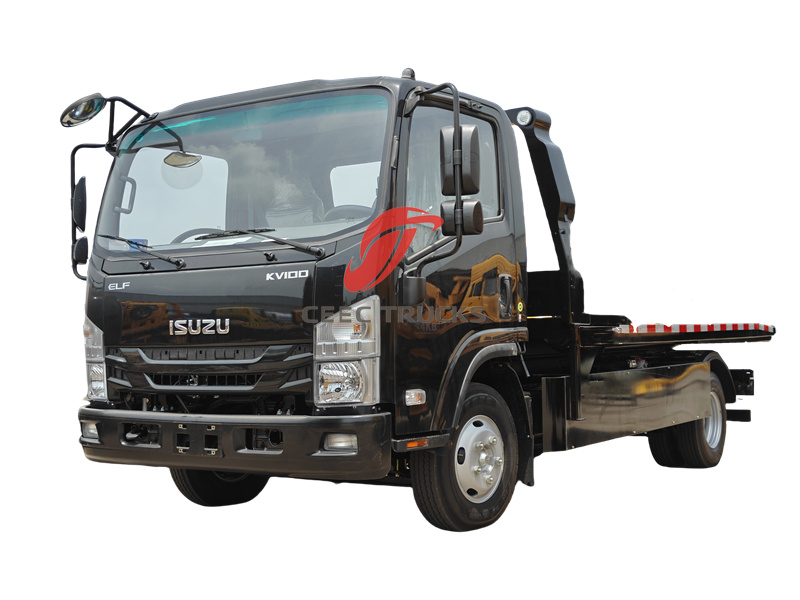

This is the ELF 3-ton flatbed tow truck built on the Isuzu KV series chassis, a professional equipment designed for efficient and stable road rescue operations. Its compact body size and 3815mm wheelbase give it excellent urban road passability and flexibility, making it very suitable for handling vehicle breakdowns and accident rescue tasks in urban and suburban areas. Equipped with a 4KH1CN6LB engine, this is a 120HP, 4-stroke water-cooled, intercooled turbocharged diesel engine, which provides abundant and economical power output (nominal fuel consumption is about 9L/100km), ensuring that the vehicle has reliable power performance under various working conditions, with a maximum speed of 95km/h. The flatbed is equipped with a variety of accessories such as automatic skateboards, floor fixing hooks, straps, training wheels, lights, wheel wedges, which greatly improves the efficiency and safety of towing, fixing and unloading accident vehicles.
Payment:
T/T, West UnionProduct Origin:
China CEECShipping Port:
China Main PortLead Time:
20 DaysWork capacity:
3 tonsDimension ( mm ):
5997 x 2300 x 2210Wheelbase ( mm ):
3815Engine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4x2Gear box:
MSB 5-speed gearbox,manualRemarks:
Winch Rating Pulling CapacityThis is the ELF 3-ton flatbed tow truck built on the Isuzu KV series chassis, a professional equipment designed for efficient and stable road rescue operations. Its compact body size and 3815mm wheelbase give it excellent urban road passability and flexibility, making it very suitable for handling vehicle breakdowns and accident rescue tasks in urban and suburban areas. Equipped with a 4KH1CN6LB engine, this is a 120HP, 4-stroke water-cooled, intercooled turbocharged diesel engine, which provides abundant and economical power output (nominal fuel consumption is about 9L/100km), ensuring that the vehicle has reliable power performance under various working conditions, with a maximum speed of 95km/h. The flatbed is equipped with a variety of accessories such as automatic skateboards, floor fixing hooks, straps, training wheels, lights, wheel wedges, which greatly improves the efficiency and safety of towing, fixing and unloading accident vehicles. The cab configuration focuses on practicality, and is standardly equipped with air conditioning, a radio with a USB interface, and hydraulic power steering, providing a relatively comfortable working environment for the driver and reducing fatigue from long-term operations.
● 30 years experience on refrigerated truck designing
● Build strict QC team to guarantee the quality
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● Fast delivery time, Quick 10 days shipping time
Specification:
|
Isuzu ELF 3tons flated tow truck |
||
|
Dimension |
5997*2300*2210 mm |
|
|
Chassis model |
Isuzu KV series |
|
|
GVW(kg)/ |
8490 |
|
|
Curb weight(kg) |
3580 |
|
|
Wheel base(MM) |
3815 |
|
|
Wheel track(front/rear) |
1504/1425 |
|
|
Engine
|
Engine model |
4KH1CN6LB |
|
Engine power |
120 HP |
|
|
Type |
4 stroke water-cooled,inter-cooling, turbocharge |
|
|
Axle
|
Ftont |
3 Ton |
|
Rear |
5.5Ton |
|
|
Tyer |
7.50R16 |
|
|
max speed (km/h) |
95 |
|
|
Transmission |
MSB ,5-Speed, 5F/1R |
|
|
Cabin |

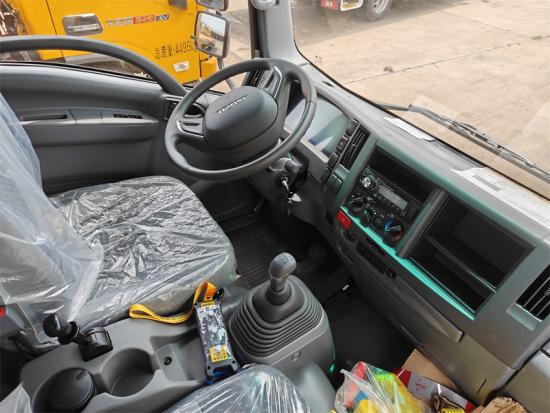

Audio,radio with USB ,air conditoner , power steering |
|
|
hundred kilometers oil consumption(L/100km) |
9 |
|
|
Arm
|
Rated lifting weight (kg) |
2000 |
|
arm telescopic stroke (mm) |
1000 |
|
|
Maximum effective length (mm) |
1100 |
|
|
maximum traction speed |
30 |
|
|
Winch/
|
Number |
1 |
|
rating pulling capacity(kg) |
4000 |
|
|
length of steel(m) |
25 |
|
|
speed of steel line(m/min) |
8 |
|
|
platform organization
|
platform size L*W(mm) |
4200*2300 |
|
platform gradient |
10 |
|
|
Platform thickness |
4mm |
|
|
best platform load bearing quality(kg) |
3000 |
|
|
Accessory |
Floor hook, training wheels, bind belt, automatic skateboards, lights, car wheel cover |
|
Feature:
1.Core power and load-bearing capacity:
Equipped with Isuzu 4KH1CN6LB engine, 120HP, 4-stroke water-cooled, intercooled turbocharged diesel engine, it provides abundant and economical power output (nominal fuel consumption is about 9L/100km), ensuring the vehicle has reliable power performance under various working conditions, and the maximum speed can reach 95km/h. It is matched with MSB 5-speed manual transmission (5 forward gears/1 reverse gear), which is reliable in operation and highly adaptable. The axle load-bearing capacity is excellent (3 tons for the front axle and 5.5 tons for the rear axle), and with 7.50R16 tires, it ensures stability and safety during lifting and transportation.
2. Professional tow truck:

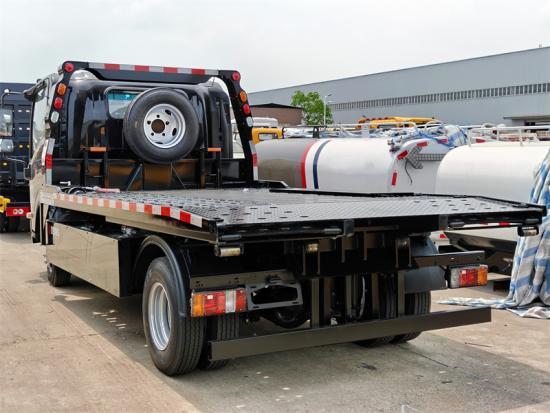

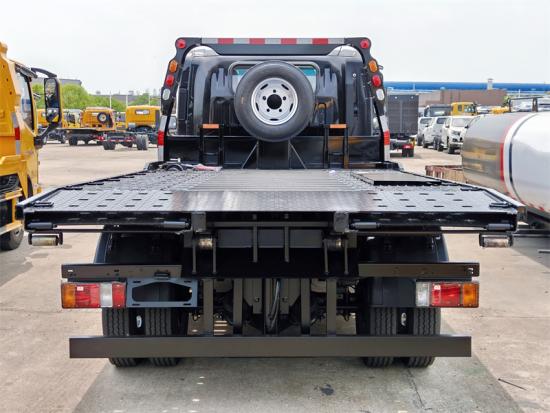

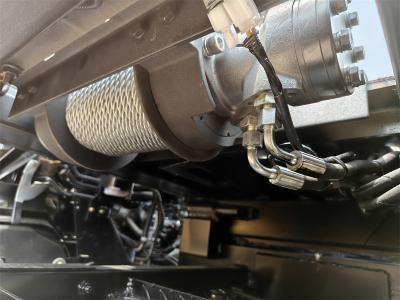

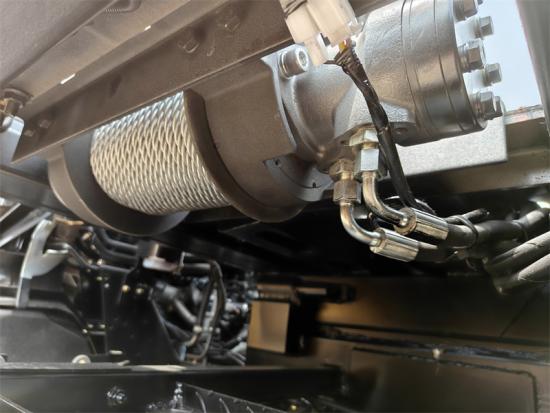

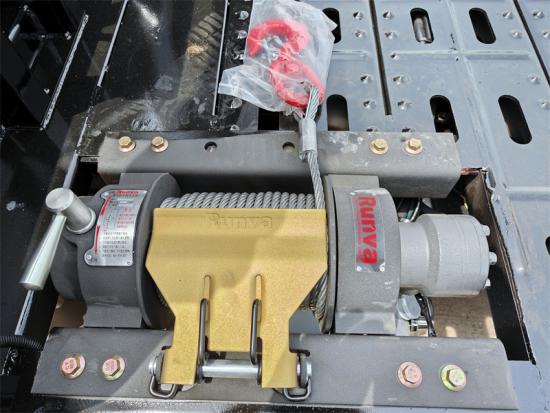

Equipped with a wide flatbed with a size of 4200*2300mm, made of 4mm thick steel plate, with a reasonable slope design (10°), and a maximum load capacity of 3000kg. The flatbed is equipped with a variety of accessories such as automatic skateboards, floor fixing hooks, straps, training wheels, lights, wheel wedges, which greatly improves the efficiency and safety of towing, fixing and unloading accident vehicles.The rated lifting weight is 2000kg, the maximum effective working length is 1100mm, and it has a telescopic stroke of 1000mm, providing a good operating range and adaptability. It is standardly equipped with a hydraulic winch with a rated pulling force of 4000kg,a 25-meter-long wire rope, and a retracting and releasing speed of 8 meters/minute. It is the core power source for towing vehicles in trouble.
3. Analysis of professional obstacle removal capabilities
|
Functional modules |
Parameters/Configuration |
Practical advantages |
|
Flat plate mechanism |
4200×2300 mm (4mm steel plate) |
▶ Can carry cars/SUVs/small commercial vehicles (weight limit 3000kg) ▶ 10° slope + automatic slide design, easy to tow damaged vehicles ▶ Floor hook + strap combination for quick fixation |
|
Traction arm system |
Lifting 2000kg/Extension 1000mm |
▶ Covers common passenger car lifting needs ▶ 1100mm effective length adapts to multi-angle accident vehicles ▶ 30km/h safe towing speed |
|
Hydraulic winch |
4000kg tension/25m steel cable (8m/min) |
▶ Single winch meets most stuck car rescue situations ▶ Slow and precise traction to avoid secondary damage ▶ The length of the steel cable covers the roadbed/ditch rescue scenarios |
ISUZU Road Recovery Truck (also can be called ISUZU Road Wrecker, ISUZU Tow vehicles, Flatbed Recovery Truck ISUZU, ISUZU breakdown lorry), which is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind.
★ ISUZU engine, super powerful
★ Expert for producing ISUZU Towing Wrecker over 10 years with good reputation
★ Carbon steel material
★ 12 months free fast moving spare parts
★ All English version control box, panel, and owner's manual, for easy understanding
★ Training service for ISUZU road recovery vehicles
