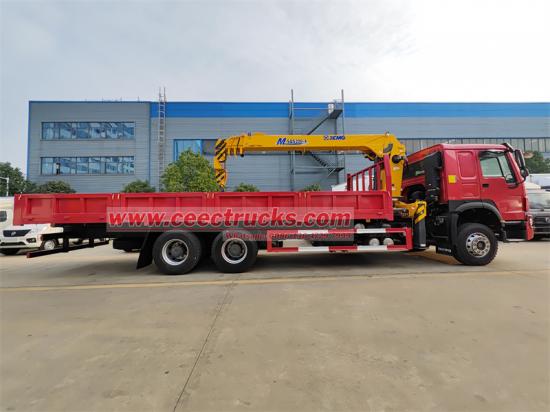

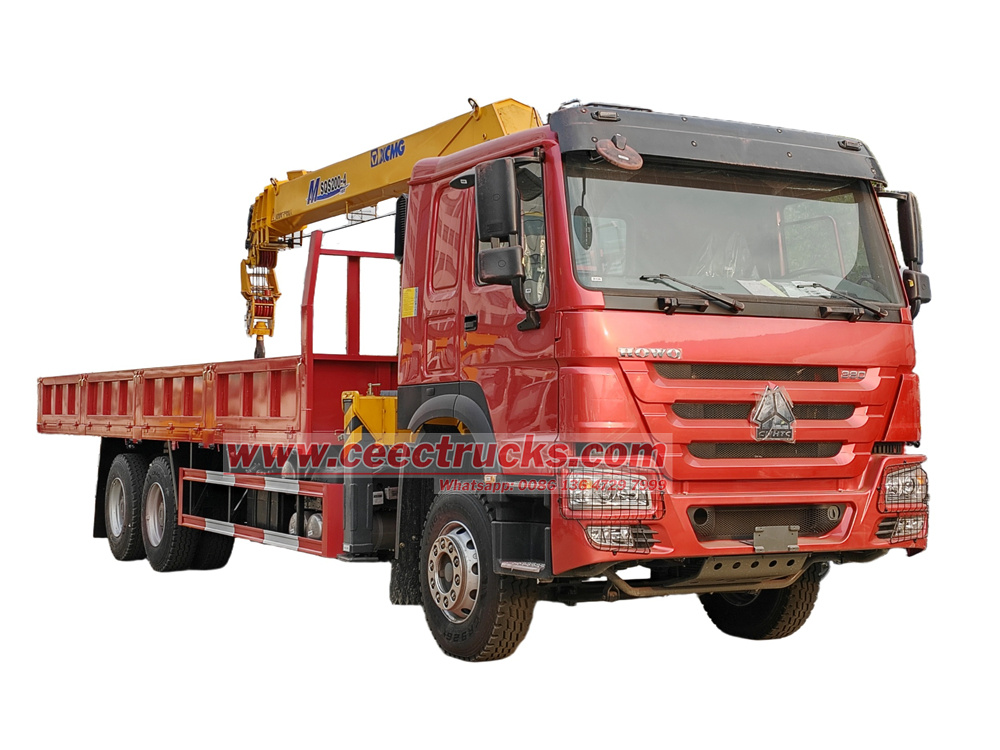

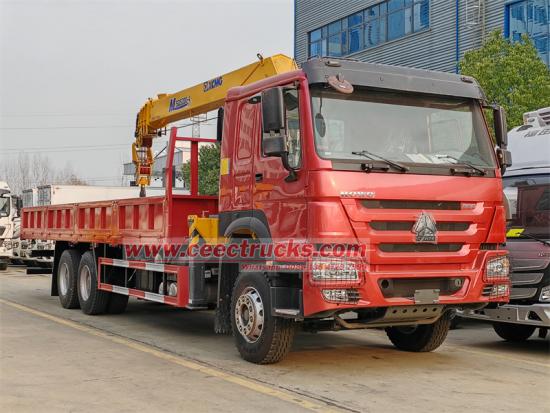

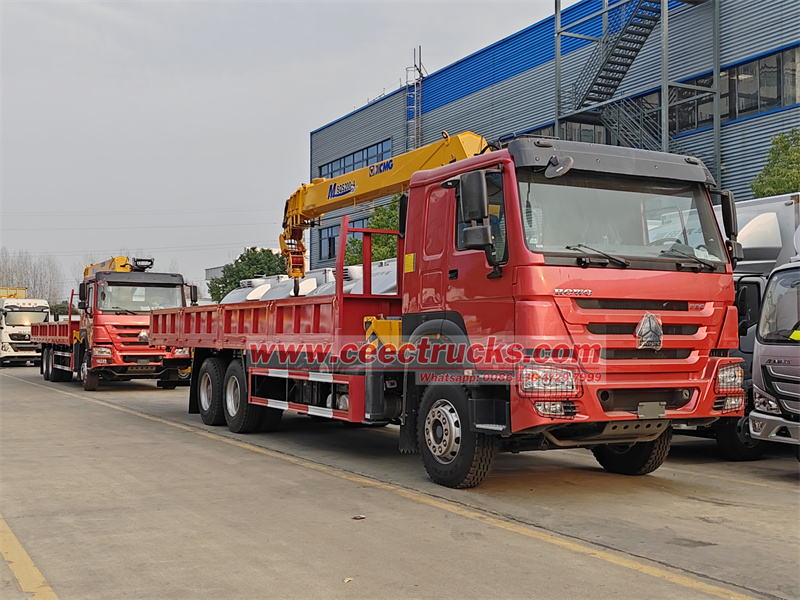

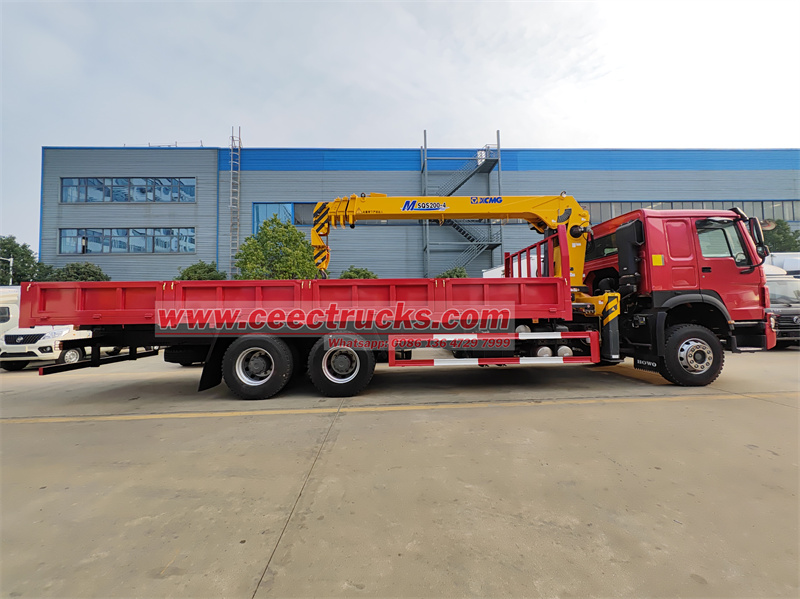

Howo 8T flatbed boom crane truck

Howo 8T flatbed boom crane truck is an engineering vehicle with excellent performance. It adopts a 6x4 drive form, has strong power, can adapt to a variety of complex road conditions, and ensures the stability of transportation and lifting operations. Equipped with XCMG SQS200-4 8-ton straight-arm crane, the boom is reasonably designed, with a large operating radius and a high lifting height, which can meet the lifting needs in different scenarios. Whether it is cargo loading and unloading or equipment installation, it can be completed efficiently. The vehicle structure is sturdy and durable, with strong carrying capacity. The cab is comfortable and spacious, providing a good operating environment for the driver. In addition, the vehicle has excellent controllability and safety, which can help users carry out various engineering operations efficiently and safely, and is a powerful helper in the field of engineering construction.

● China best cargo mounted crane truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service

Product Parameters

Product Applications

★. Technical parameters of chassis system

This model adopts the modified chassis platform of HOWO HW76 series heavy trucks, equipped with a half-row cab structure, and the total wheelbase adopts an optimized design of 4600mm+1400mm. The power system is equipped with Weichai WP10.380E22 turbocharged diesel engine, with a displacement of 9.726L, a rated power of 380 horsepower (279kW), a peak torque of 1600N·m@1500-1800rpm, and meets the Euro II emission standards. The transmission system is matched with the HW19710 10-speed manual transmission, with a first gear ratio of 12.1 and a highest gear ratio of 0.78, and a 4.8-speed ratio drive axle to form a golden power chain combination.

★. Technical features of the upper system

1. Cargo box system:

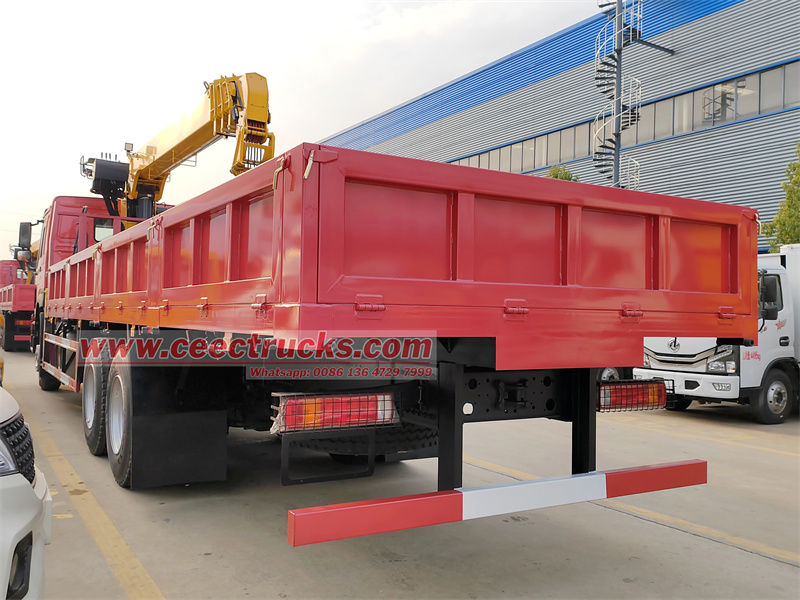

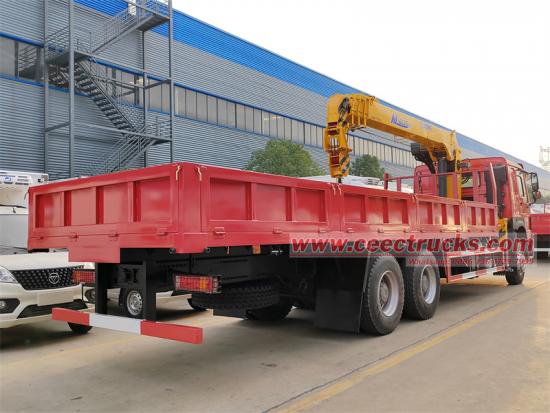

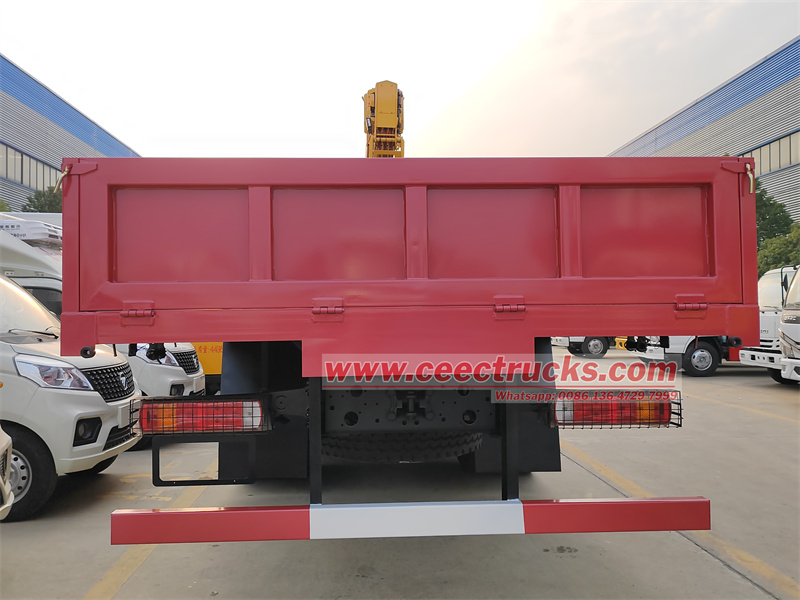

It adopts a standard size 7650mm×2400mm×600mm steel cargo box, with a bottom plate thickness of 8mm and a side plate thickness of 5mm. A 1.2m toolbox is set at the front of the cargo box, equipped with a hydraulic outrigger operating compartment.



2. Lifting system:

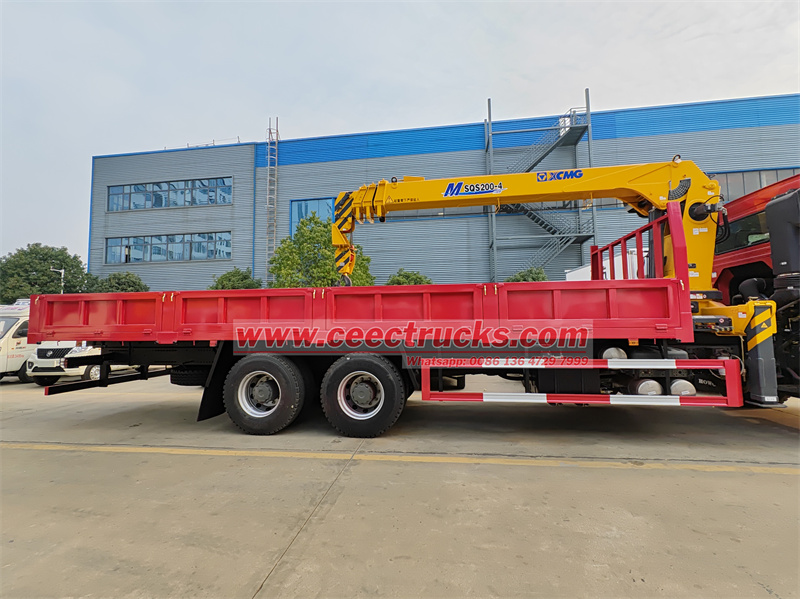

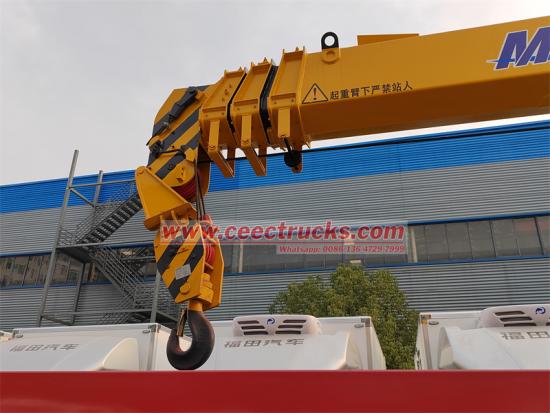

Equipped with XCMG SQS200-4 straight-arm crane, with a maximum working radius of 11.8m, a maximum lifting height of 13.5m, and a maximum lifting weight of 8 tons. It adopts a four-section hexagonal boom structure, a single-cylinder rope row telescopic system, and is equipped with a main lifting wire rope. The hydraulic system has a working pressure of 27MPa, is equipped with a 55L/min gear pump, and is standardly equipped with double hydraulic operating stations (one on each side).

★. Hydraulic control system

1. Outrigger system:

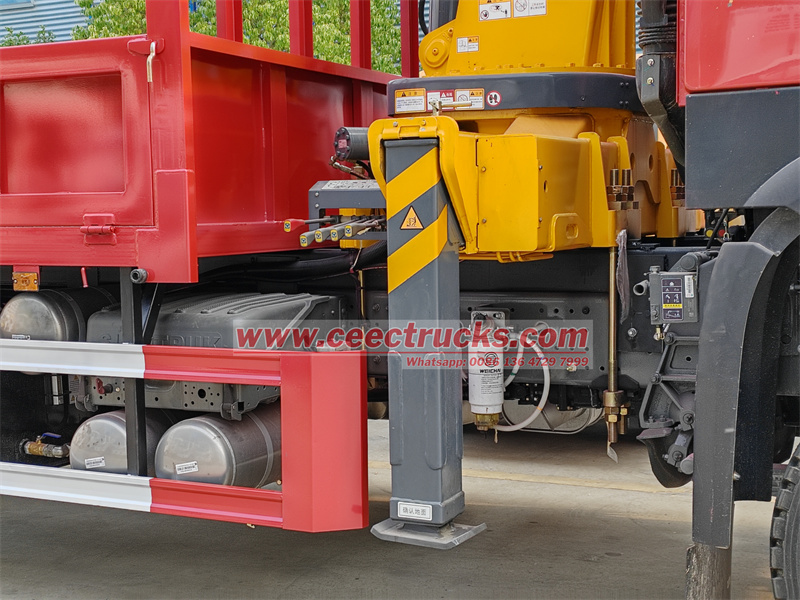

Equipped with front H-type hydraulic outriggers, with a horizontal span of 5.2m and a longitudinal span of 4.8m. The diameter of a single outrigger cylinder is 100mm, the stroke is 800mm, and it is equipped with a mechanical vertical outrigger and horizontal outrigger interlocking device. The outrigger control valve adopts an electromagnetic reversing valve, and the operating force is ≤50N.

2. Crane operating system:

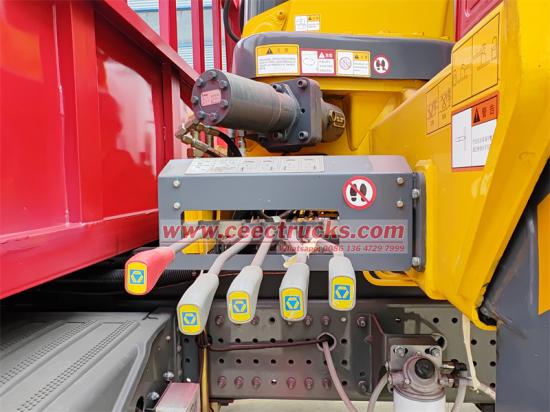

Using load-sensitive proportional control system, the main valve is a six-valve group with a control accuracy of ±0.5%. Both left and right operating tables are equipped with:

- Main winch control handle (with mechanical self-locking function)

- Boom control handle (proportional)

- Slewing control handle (with buffer valve)

- Telescopic arm control switch (inching type)

★. Safety protection system

1. Torque limiting system:

Equipped with intelligent torque limiter, real-time display of load rate, working range and other parameters, automatically cut off dangerous direction action when overloaded. The system accuracy reaches ±3%.



2. Structural safety design:

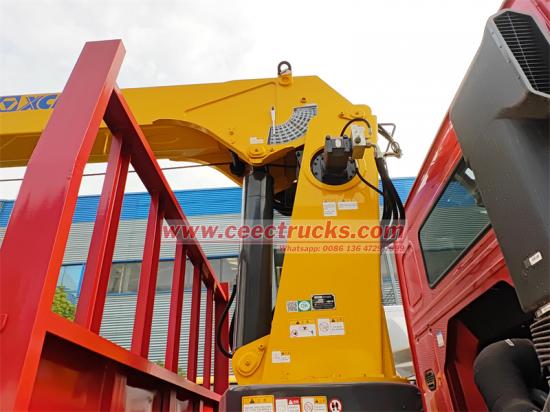

The crane turntable adopts ZG270-500 cast steel parts, and the slewing bearing adopts 01.40.1120.022 three-row roller bearings. A double hydraulic locking valve group is set to prevent falling accidents when the oil pipe bursts.

★. Scenario-based adaptation: Covering multiple fields including infrastructure, logistics, and emergency

• Infrastructure projects: hoisting tower crane standard sections, bridge steel box girders (single piece weight ≤ 8 tons), and transporting bulk materials such as steel bars and formwork in containers;

• Logistics transshipment: auxiliary loading and unloading of port containers, and disassembly and assembly of heavy equipment in logistics parks;

• Emergency rescue: can be quickly switched to a rescue crane to handle tasks such as lifting accident vehicles and transferring equipment in disaster areas.
