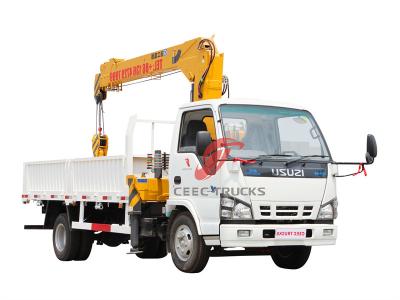

Isuzu NKR 120hp truck with 3 tons telescopic crane

Africa Isuzu 120HP utility truck with 3tons crane

Payment:
T/T, West Union
Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days
Work capacity:
3 tons
Dimension ( mm ):
6500×2300×3250 mm
Wheelbase ( mm ):
3360
Engine power:
120HP
Engine type:
4KH1CN6LB
Axle drive:
4*1
Gear box:
MSB 5-speed
Remarks:
Light-duty, 360° Rotation

Inquiry now

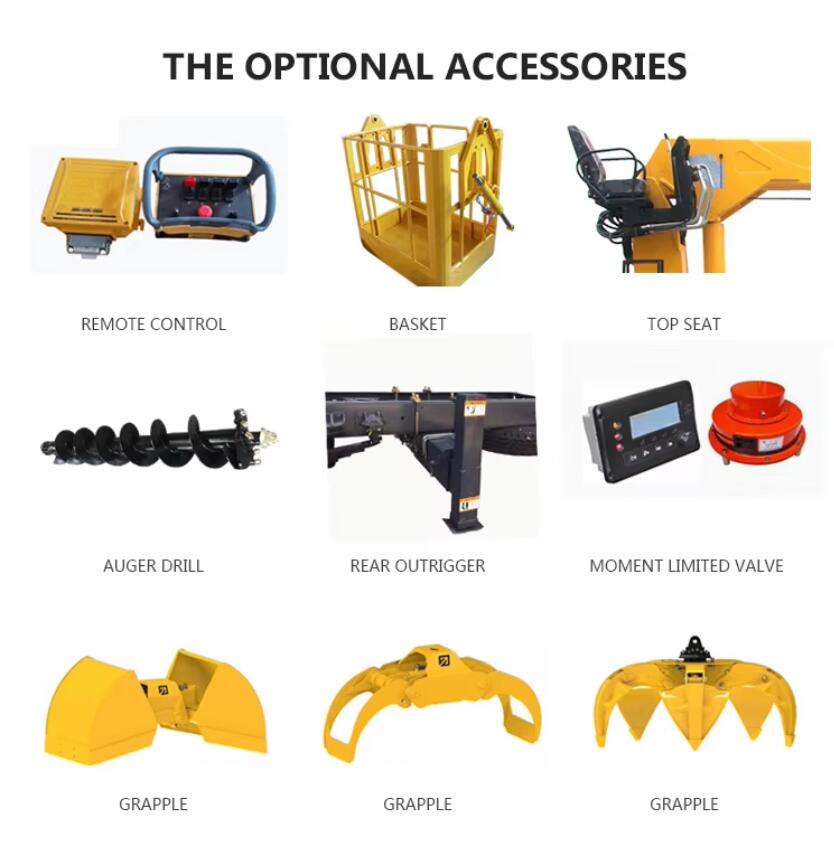

The Isuzu ELF cargo truck with 3tons crane is a powerful and well-designed truck. It is equipped with Isuzu brand diesel engine with a strong power of 120HP, which can meet various work needs. The cab can accommodate three people and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper part of the Isuzu NKR cargo is equipped with a telescopic boom crane with a maximum lifting capacity of 3tons and a full 360° rotation. The crane weight is 1196kg and the installation space is 1050mm. The control panel can be selected in English or other languages to facilitate users with different needs. Isuzu double cabin truck mounted 3tons crane also provides a variety of optional configurations, such as hydraulic dump boxes, box thickness and height customized according to needs, and optional remote control boxes.

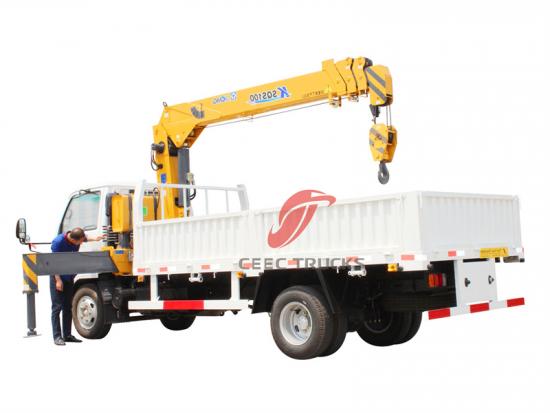

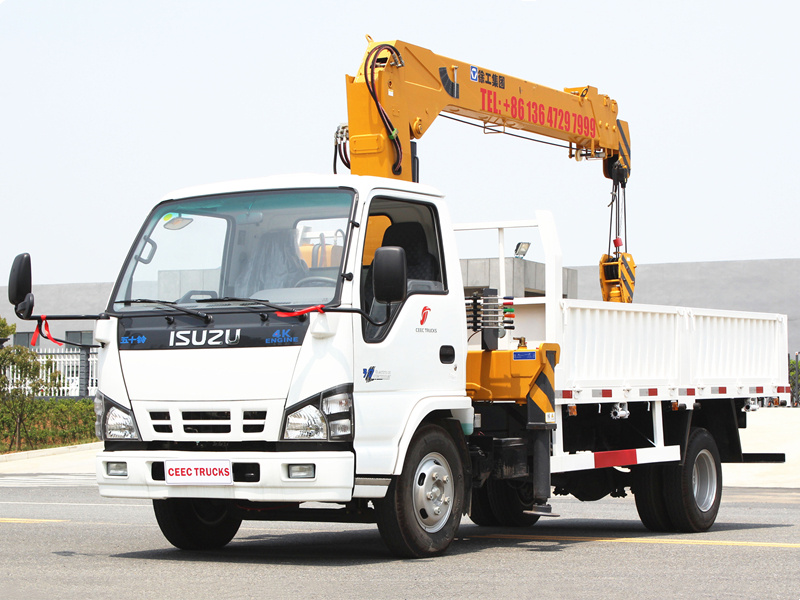

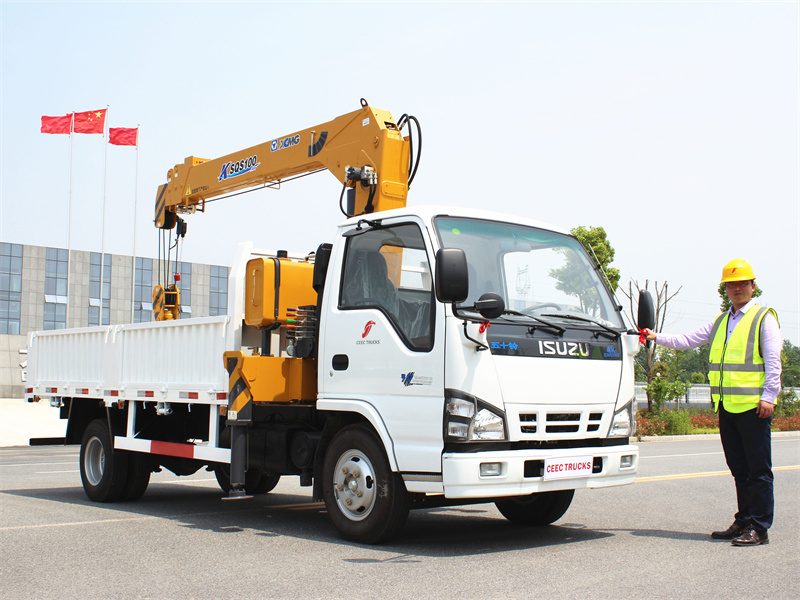

ISUZU NKR cargo truck with telescopic crane

● China best cargo mounted crane truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service

Specification:

ISUZU NKR cargo truck with telescopic crane
Overall dimensions	6500×2300×3250(mm)	Dump box dimensions	3600x2000x450(mm)
Gross vehicle weight	11,000 kg	Rated Load capacity	5000 kg
Chassis specifications
Chassis Brand	ISUZU	Color	White or optional
Engine	Fuel Type	Diesel
	Model	4KH1CN6LB
	Horse power	88kw/120HP
	Displacement	2999ml
	Engine Type	4 cylinders in line, water cooling, intercooled, turbocharged
	Emission Standard	Euro 6
Wheel Base(mm)	3360	Driving type	4x2
Type & Size of Tyre	700R16 (6+1pcs)	Air Conditional	Heating and cooling air conditioning
Cab	Single-row tilted cab	Gear Box	ISUZU MSB 5 speed forward with 1 reverse, manual
Brake	Air brake	Steering Wheel	Left Hand Drive with power-assisted
Crane specifications
Crane brand	XCMG	Crane weight	1196 kg
Max. lifting weight	3200 kg	Max. working height	9.6 m
Max oil flow of hydraulic system	25 L/min	Rated pressure of hydraulic system	20 Mpa
Oil tank capacity	60 L	Installation space	850 mm
Max. working radius	8.92 m	Max lifting Moment	10 T.M
Rotation angle	360°, all rotation	Boom	3 sections
Others
Dump body	High-quality steel	Payload	3 tons
Operation Type	Manually operated hydraulic valve	Type	Mechanical

Advantage:

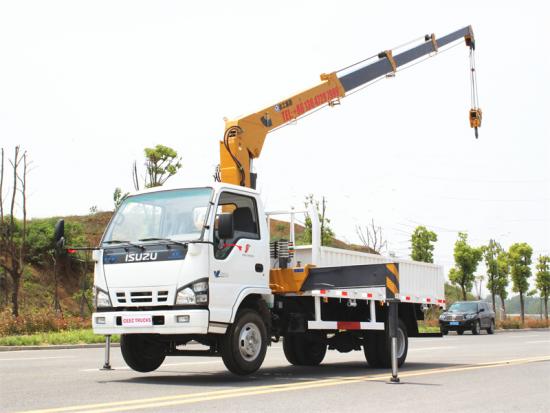

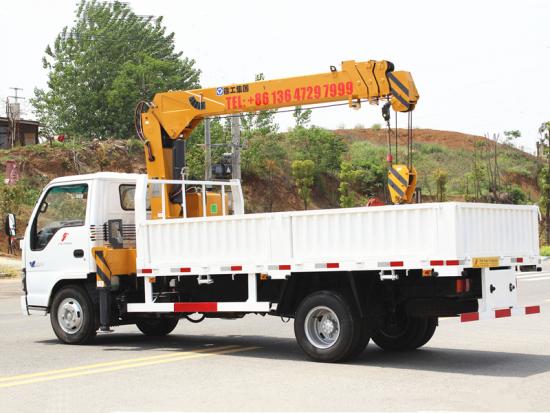

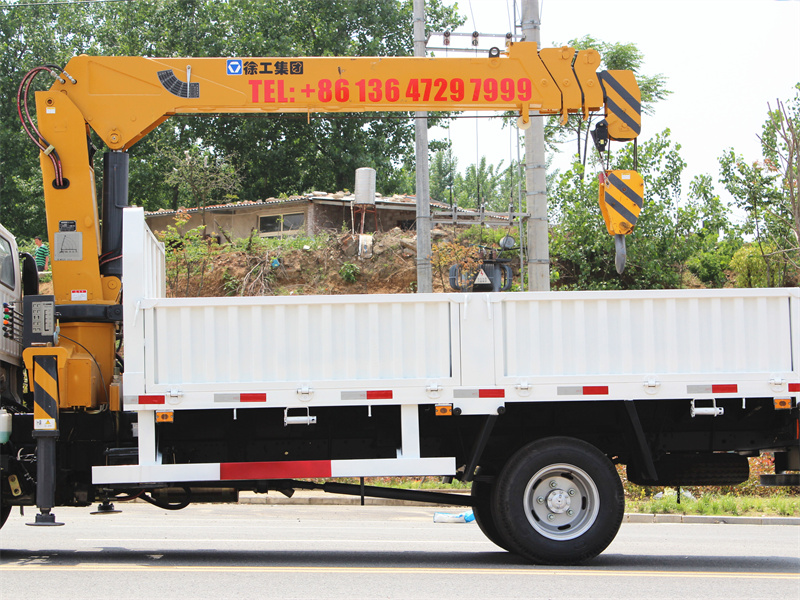

ISUZU NKR cargo truck with telescopic crane

1. Sufficient power and strong maneuverability：Isuzu NPR chassis is equipped with 4KH1CN6LB diesel engine, 120HP, with turbocharger + intercooler technology, low speed and high torque characteristics (peak torque estimated 650N·m@1800rpm), and mature combination with MSB 5 gearbox (market verification of more than 500,000 kilometers of service life). It has a small body and can be flexibly moved in narrow areas such as urban streets, warehouses, and interior decoration. It integrates transportation and hoisting, reduces equipment scheduling time, and is especially suitable for switching operations at multiple construction sites.

2. Multifunctional integrated design innovation：The telescopic arm of the Isuzu NKR truck can be extended to different lengths, covering 5-11 meters, to meet the needs of height difference and long-distance lifting, such as roof material handling. The arm pitch and rotation are supported, and the lifting path can be flexibly adjusted between obstacles to reduce site restrictions. There are fewer mechanical parts, low failure rate, and low daily maintenance costs. The key parts of Isuzu NKR cargo truck with 3tons crane (such as hydraulic cylinders and wire ropes) are in sufficient supply in the market and easy to repair.

3. Multifunctional application scenarios：

Construction: handling steel bars, form work, small prefabricated components, etc.

Municipal maintenance: installing street lights, pruning trees, cleaning sewer pipe equipment.

Logistics loading and unloading: stacking goods in warehouses, handling goods in containers.

Agriculture and industry: installation of agricultural machinery and equipment, relocation of small machinery in workshops.

At the same time, various tools and equipment can be selected to meet various operation needs through crane lifting.

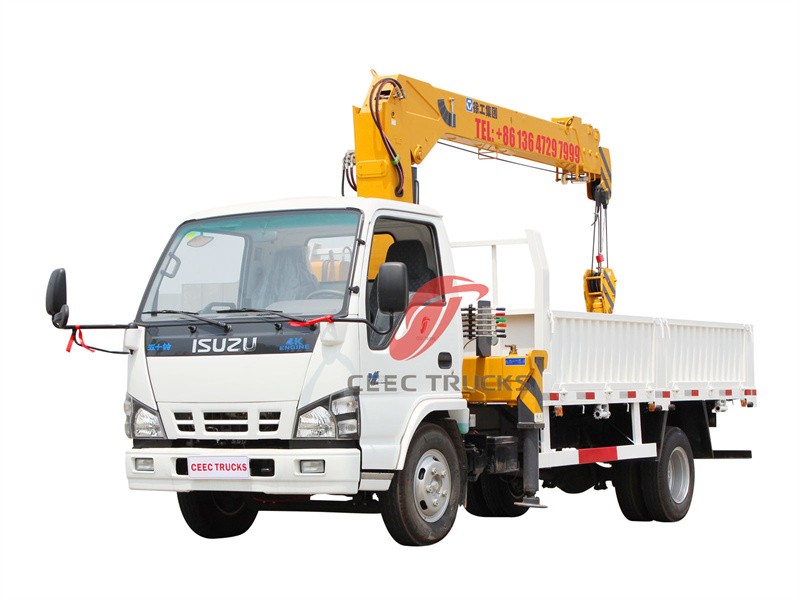

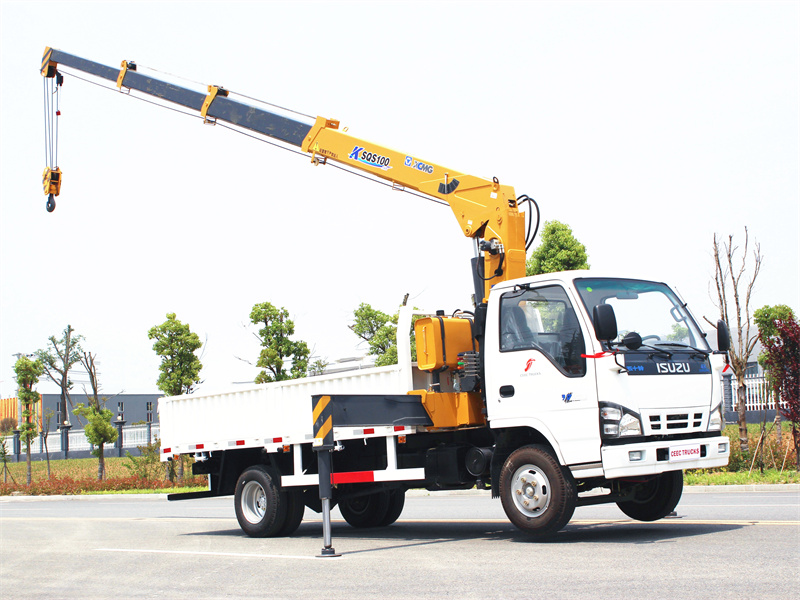

ISUZU NKR cargo truck with telescopic crane

★ Euro 6 type, Isuzu engine, fuel consumption save 20%

★ Manual 6-shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized Isuzu crane trucks exporter

★ Training service for Isuzu boom crane truck.

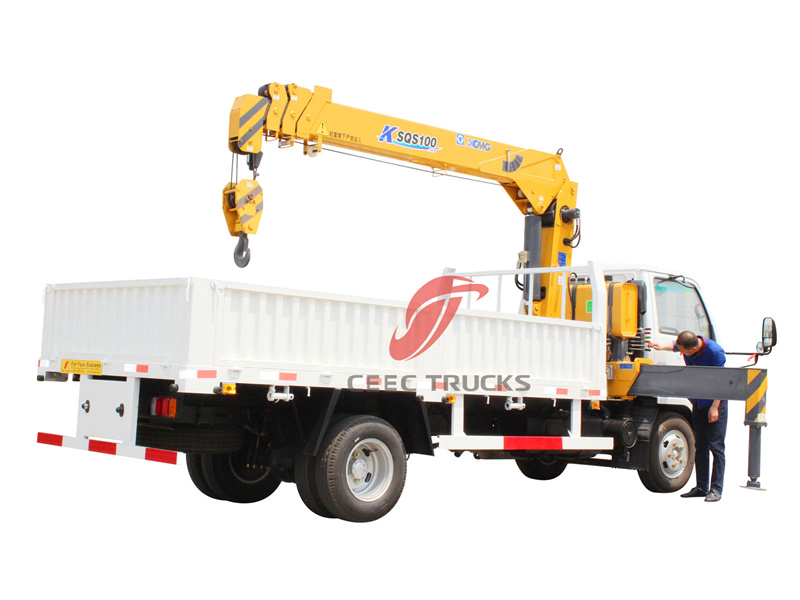

ISUZU NKR cargo truck with telescopic crane

China professional boom truck supplier and exporter, we supply high quality truck mounted crane. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our crane trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
