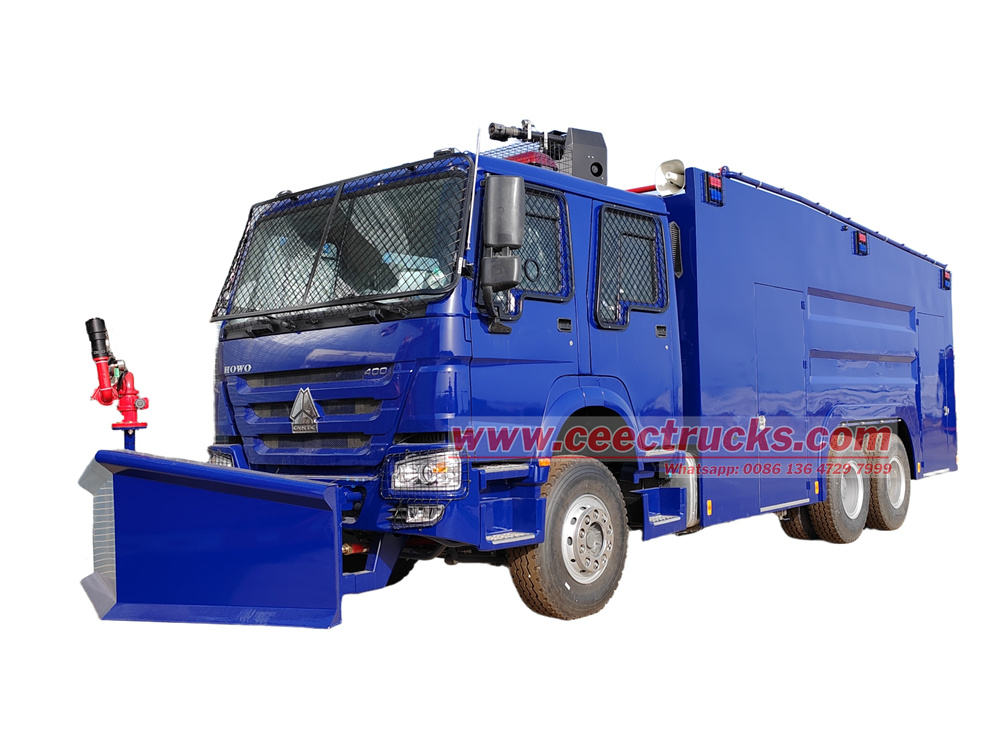

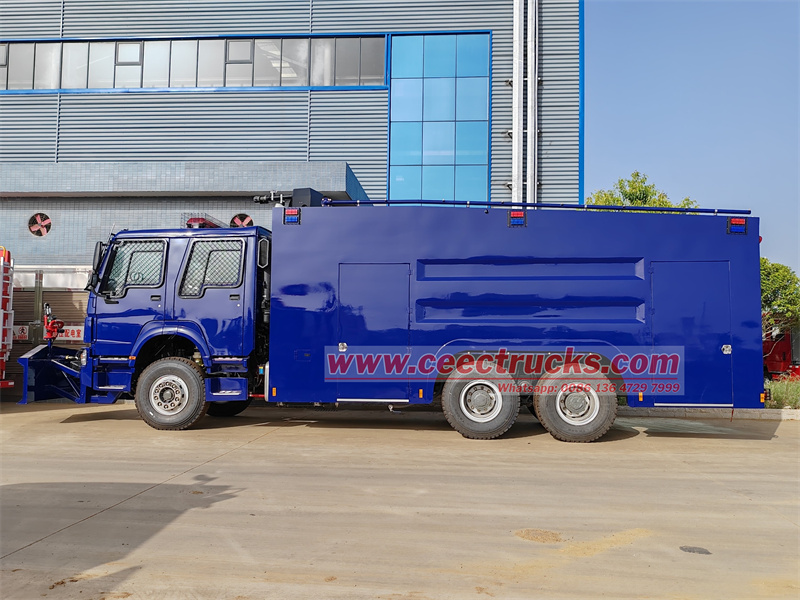

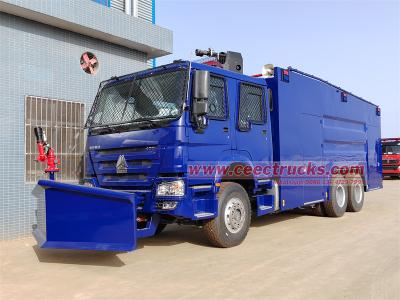

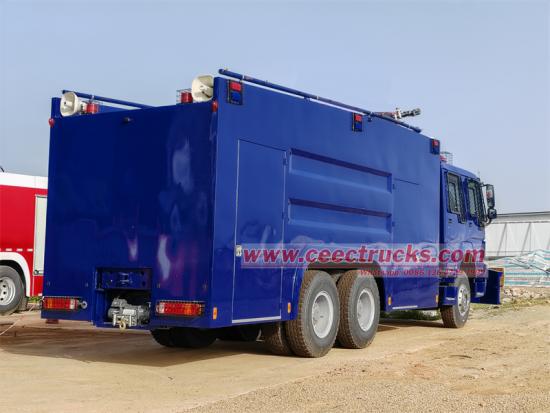

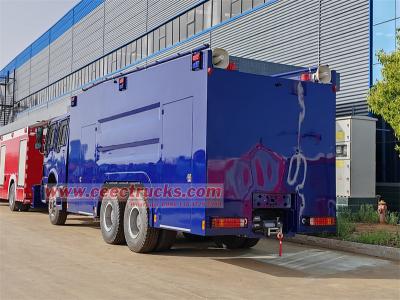

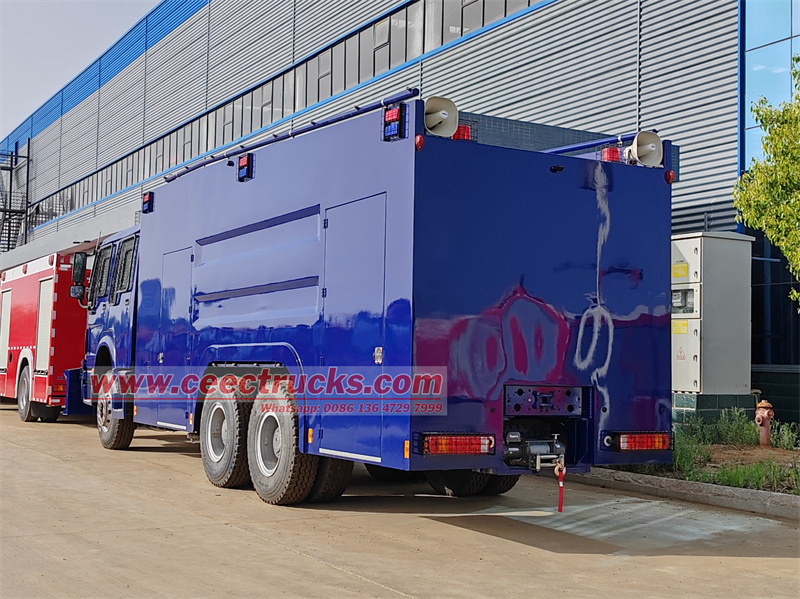

HOWO armored crowd control riot truck

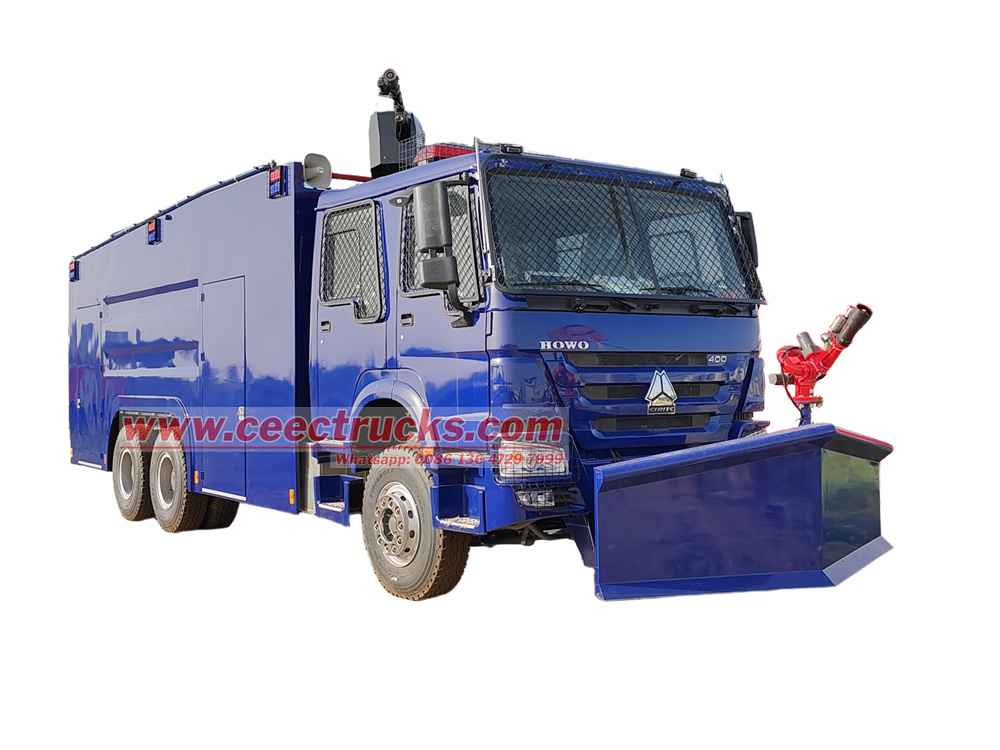

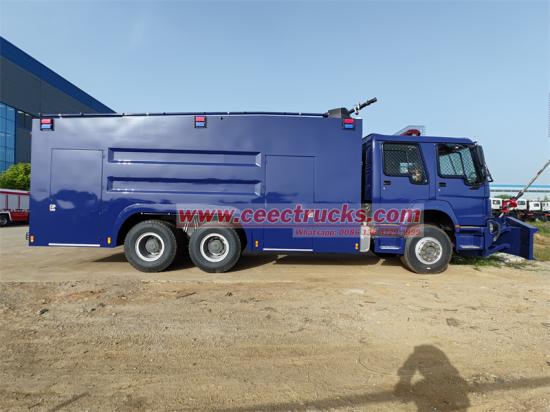

This HOWO armored crowd control riot truck is built on the HOWO HW76 double-row cab chassis. It has a 4600+1350mm long wheelbase, a 400-horsepower engine and a ten-speed gearbox. It is powerful and flexible. The vehicle is equipped with a 12,000L clean water tank and 100L special tanks for foam, pepper water, and dye, which can realize multi-functional tactical switching such as clean water riot control, foam fire extinguishing, dye marking, and pepper water uniforms. The dual water cannon system with the main gun on the top and the auxiliary gun on the front supports 360° coverage and 85-meter long-range shooting. Combined with the high-pressure spraying on the roof and chassis, it can effectively suppress riots and extinguish fire points throughout the vehicle. The vehicle body adopts full armor protection and smooth anti-climbing design, integrated with PLC intelligent control, hydraulic obstacle removal, video monitoring, broadcast warning and other systems, taking into account high-intensity riot control, fire extinguishing and obstacle removal needs, suitable for multiple scenarios such as urban stability maintenance, forest fire fighting, and anti-terrorism assaults. It is a new generation of efficient riot control weapon.

● China best Anti-Riot Vehicle factory

● Professional sales team which will help you to choose suitable truck.

● Build strict QC team to guarantee the quality

● Promptly delivery. any order is welcome.

● 24 month quality guarantee term

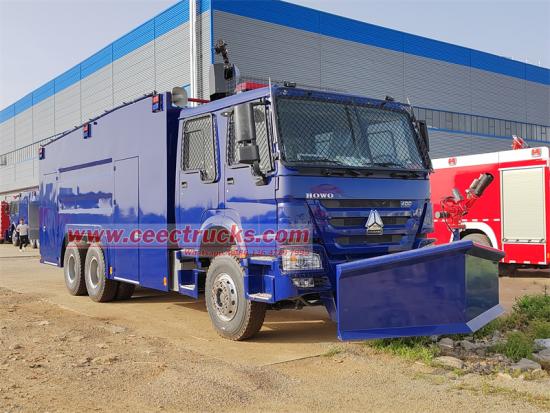

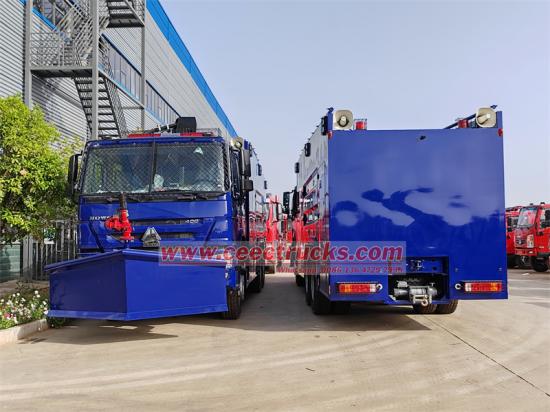

The front of the vehicle is equipped with a clearing shovel to clear obstacles in front of the vehicle; it is also equipped with two riot water cannons, the maximum range of the water cannon in the front of the vehicle is 50 meters, and the range of the long water cannon on the roof is 85-100 meters. The police anti-riot water cannon vehicle is equipped with an independent auxiliary engine. Compared with ordinary water cannon vehicles, the vehicle must stop and rely on the vehicle engine to provide power before the water cannon is fired, but now this vehicle can fire water cannons while driving; the vehicle is equipped with a multi-tube anti-explosion launcher to fire gas bombs and other types of bombs, and the vehicle can fire water cannons while driving; the tires are fireproof and puncture-proof, the tires are much thicker than ordinary tires, and the upper end is equipped with an automatic sprinkler fire extinguishing system.

★. Chassis platform and powertrain: heavy-duty mobility core

1. Chassis architecture

● Based on the deep customization of the HOWO HW76 double-row cab chassis, it adopts a 4600+1350mm long wheelbase design, shortens the rear overhang and increases the approach angle to 28°, adapts to complex terrains such as urban street fighting and mountain slopes, and takes into account the rapid deployment and load balance of a 6-person combat team.

● The double-row cab adopts a fully armored welded structure, the side windows are equipped with hydraulic lifting bulletproof glass, and the front windshield is equipped with a 0°~70° adjustable bulletproof net, supports electric control in the cockpit, and the riot protection level reaches GA668-2006 Class B.

2. Power system

● Equipped with WP10H400E60 National VI diesel engine, with a maximum power of 400 horsepower (294kW)/1900rpm and a peak torque of 1900N·m/1200-1400rpm, it is matched with HW15710 ten-speed full-synchronous gearbox, and the low-speed gear ratio is optimized to 12.4:1 to ensure heavy-load starting and climbing capabilities.

● The chassis integrates dual-circuit pneumatic brakes + hydraulic retarder, and the braking distance is shortened to 15m (30km/h→0), which meets the emergency braking needs in high-density crowd environments.

★. Explosion-proof top and multi-media combat system

1. Multifunctional tank layout

2. Water cannon system

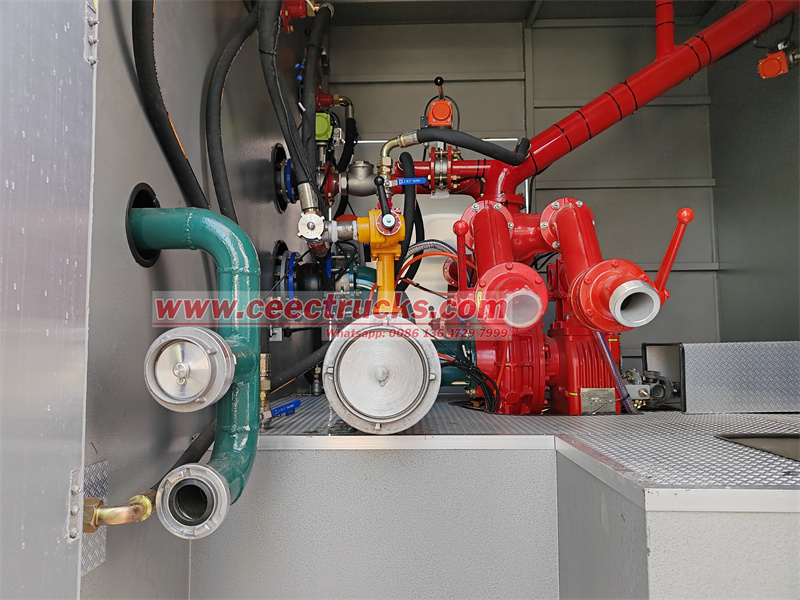

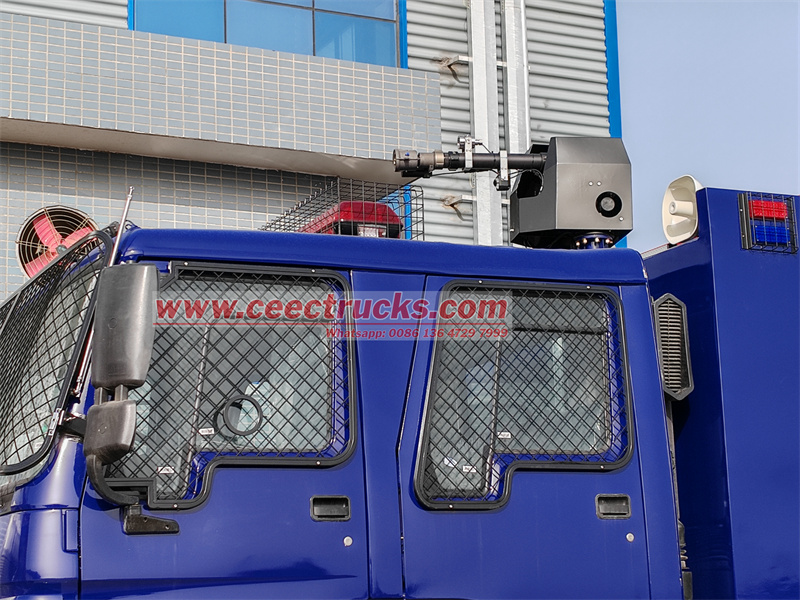

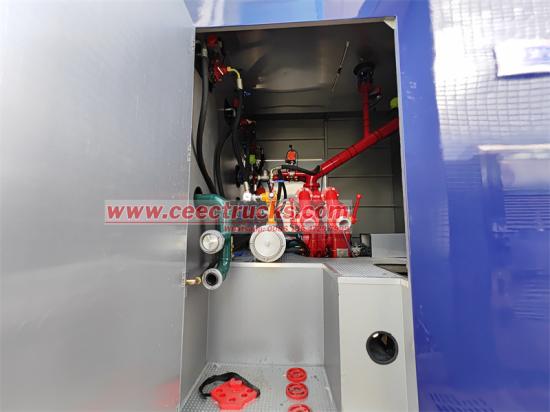

● Top main cannon: driven by CB10/60 medium and low pressure fire pump, flow rate 60L/s@1.0MPa, range ≥70m, supports three modes of DC/flowering/spray, 360° rotation covering a radius of 200m area.

● Front auxiliary cannon: front electric remote control water cannon, flow rate 20L/s@0.8MPa, range ≥50m, integrated laser ranging and AI target locking, can quickly suppress sudden threats within 50m.

3. Fire extinguishing and obstacle removal module

● Full vehicle high pressure spray: 6 groups of high pressure foam nozzles are arranged on the roof and 4 groups of high pressure foam nozzles are arranged on the chassis, with a working pressure of 1.2MPa and a single nozzle flow rate of 15L/min, covering the fire extinguishing blind area of ​​the whole vehicle within 30 seconds.

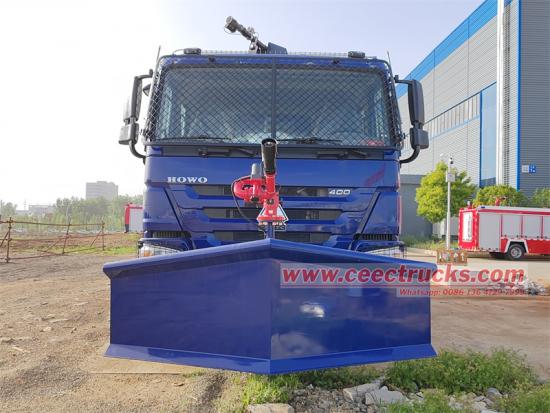

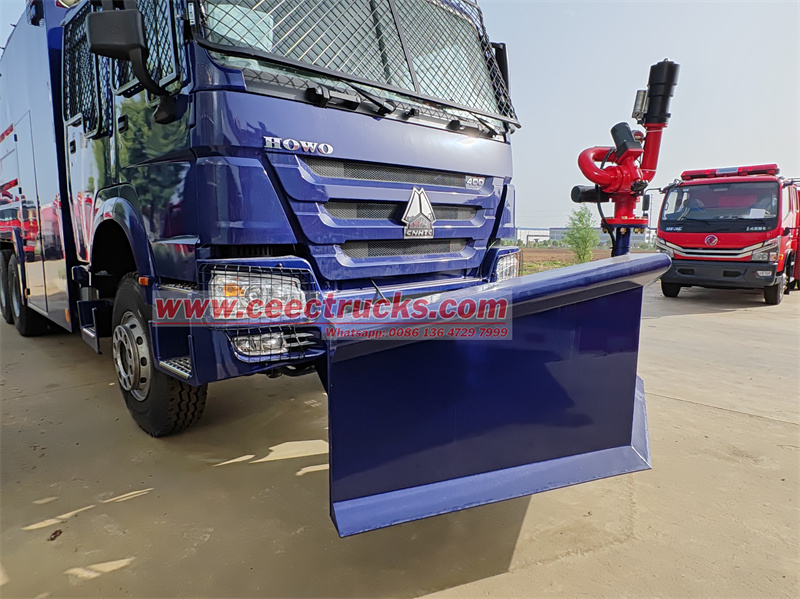

● Hydraulic obstacle removal system: A telescopic V-shaped shovel is installed on the front of the vehicle, with a hydraulic cylinder stroke of 1.2m and a thrust of 15 tons, which can remove roadblocks or push away obstructing vehicles; the surface of the shovel is covered with anti-skid patterns, supporting 180° lateral flipping to assist in catching.

★. All-round protection and intelligent combat system

1. Anti-riot structure design

● Smoothing of the whole vehicle: traditional raised parts are eliminated, the R angle of the roof line is ≥50mm, the ground clearance of the side skirt is ≤300mm, the surface is coated with anti-climbing nano-coating, and the friction coefficient is ≤0.2.

● Anti-riot steel plate: The front of the vehicle is covered with 12mm thick high-manganese steel armor, with an impact energy resistance of ≥200J, and the window glass uses 76mm bulletproof composite laminated glass (anti-79 type micro-impact).

2. Intelligent control system

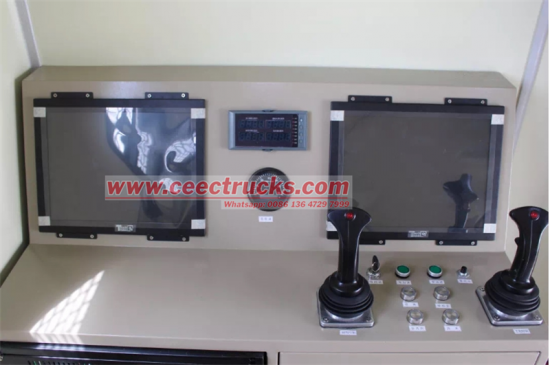

● PLC centralized control: 20 functions such as integrated water cannon posture, medium switching, spray start and stop, etc., support preset tactical modes (such as "dispersal-fire extinguishing-obstacle removal" three-stage response).

● Multimodal protection:

▪ Antifreeze protection: The tank is wrapped with electric heating tape + polyurethane insulation layer, and the temperature rises from -40℃ to 5℃ in 4 hours;

▪ Network protection: The on-board ECU uses a hardware-level encryption chip to prevent electromagnetic pulse interference;

▪ Situational awareness: The entire vehicle is equipped with 8 360° panoramic cameras + 2 thermal imagers, and the data is transmitted back to the 15-inch touch screen in the cockpit in real time.

3. Tactical support system

● Broadcast announcement: 150W directional sound wave disperser, maximum sound pressure level 145dB, support pre-recorded broadcasts in 16 languages;

● Warning alarm: LED strobe warning lights + air horns are integrated at the four corners of the roof, which can achieve strong light suppression within a range of 1km at night;

● Power supply redundancy: dual generator sets (main 15kW + backup 8kW) + 48V/200Ah lithium iron phosphate battery, supporting full system full load operation for ≥3 hours.

★. Application scenarios and tactical advantages

1. Urban stability maintenance: Use dual water cannons to achieve "long-distance dispersal + close suppression" gradient operations, dyes to mark key personnel, and hydraulic shovels to quickly open isolation zones.

2. Mountain forest fire fighting: Foam-water dual-medium linkage, spraying under the vehicle to prevent re-ignition, and obstacle removal shovels to open fire prevention passages.

3. Anti-terrorism assault: Full armor protection of the cockpit + laser rangefinder auxiliary gun, realize the "advance and suppress" tactical action, and reduce the risk of personnel exposure.
