Howo 4x2 medium fire protection tender

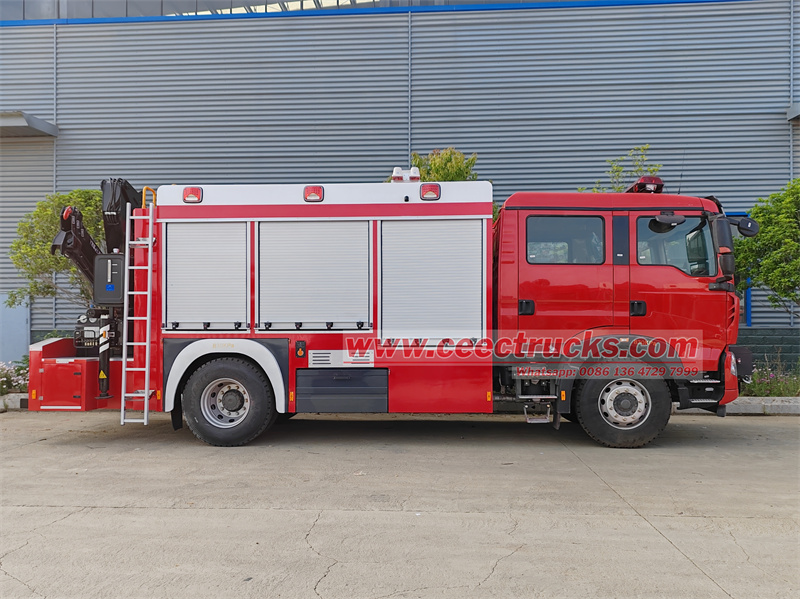

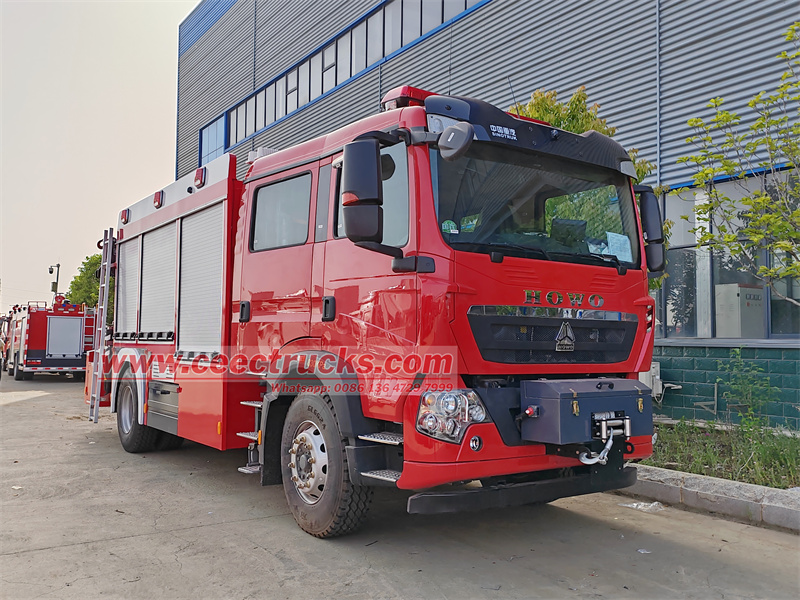

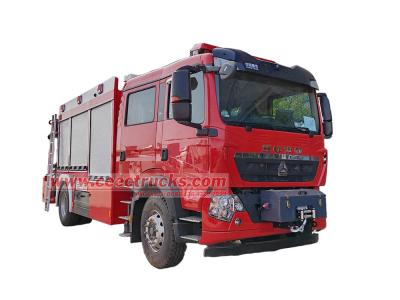

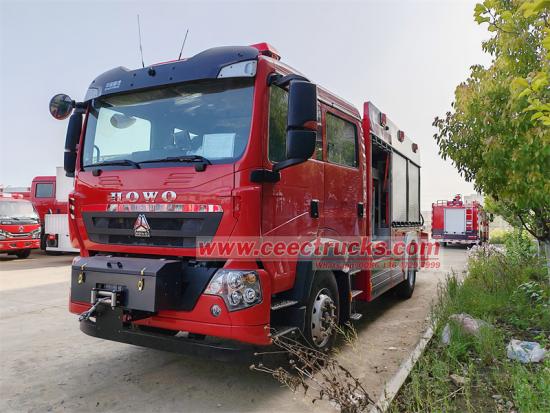

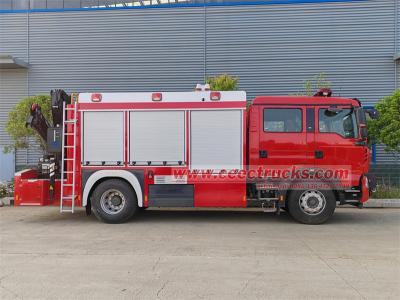

HOWO 4x2 medium fire protection tender is a full-scenario emergency equipment with integrated lighting, power supply and hoisting functions. It is built on the chassis of Sinotruk TX350, equipped with a 350-horsepower National VI engine and an 8-speed gearbox, combining power and maneuverability. The roof is equipped with an intelligent lifting lighting that can cover an area with a radius of 50 meters; an integrated 50kW synchronous generator set supports dual power switching and equipment power supply; the 5-ton folding arm crane at the rear supports 360° rotation and multi-condition hoisting, suitable for rescue, obstacle removal, reconstruction and other tasks.

● 30 years experience on fire rescue truck designing

● Professional sales team which will help you to choose suitable truck.

● Build strict QC team to guarantee the quality

● Fast delivery time, Quick 10 days shipping time

● 24 months long guarantee time assurance

HOWO TX350 4×2 Fire Lighting and Rescue Vehicle: Using light as a blade and force to break through, creating an all-weather emergency rescue "super weapon"

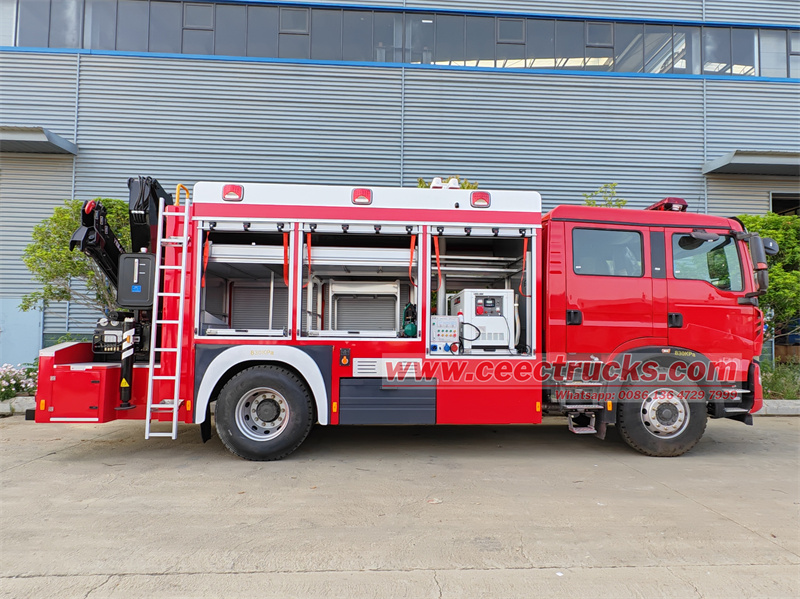

When the night swallows up the light, when the road is blocked by heavy objects, when the power at the disaster site is paralyzed-HOWO TX350 4×2 Fire Lighting and Rescue Vehicle (5-ton folding arm crane type) debuts with thunderous momentum, using "light, electricity, and force" triple empowerment to reshape the efficiency and safety boundaries of emergency rescue. This vehicle, which is deeply customized based on the Sinotruk HOWO TX350 fire chassis, integrates the three core functions of lighting, power generation, and hoisting, and becomes an "all-round warrior" in the fields of firefighting, emergency, and municipal administration.

★. Body of steel: 4600mm wheelbase carries the "hard core" confidence

HOWO TX350 4×2 fire-fighting special chassis is the foundation of this "rescue behemoth". The 4600mm golden wheelbase gives it the dual advantages of flexibility and stability. The short wheelbase design allows the vehicle to flexibly travel in narrow urban streets, underground garages and other scenes, while the stable chassis brought by the long wheelbase can carry 5-ton cranes and power generation equipment, and is as stable as a rock in rugged mountain roads and muddy construction sites.

Equipped with the SINOTRUK MC07H.35-60 engine, the surging power of 350 horsepower (257kW) allows the vehicle to quickly reach the disaster area when fully loaded. The 7.36L inline six-cylinder diesel engine is matched with the National VI b emission standard, which not only meets environmental regulations, but also ensures low fuel consumption and high reliability. The 8-speed manual transmission optimizes the speed ratio design, allowing the vehicle to find the best power output mode under conditions such as climbing, towing, and high-speed cruising, truly realizing "one car adapts to all terrains".

★. The sharp blade of light: roof lighting + on-board power generation, lighting up the life channel in the dark

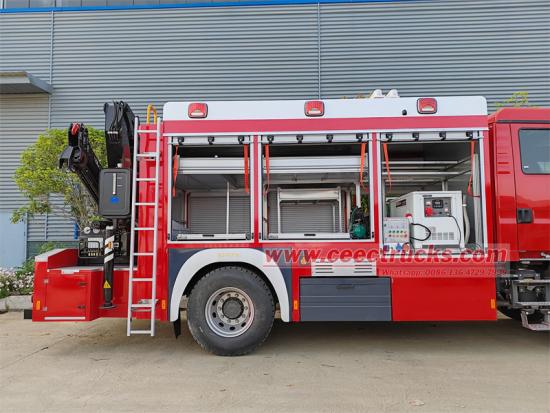

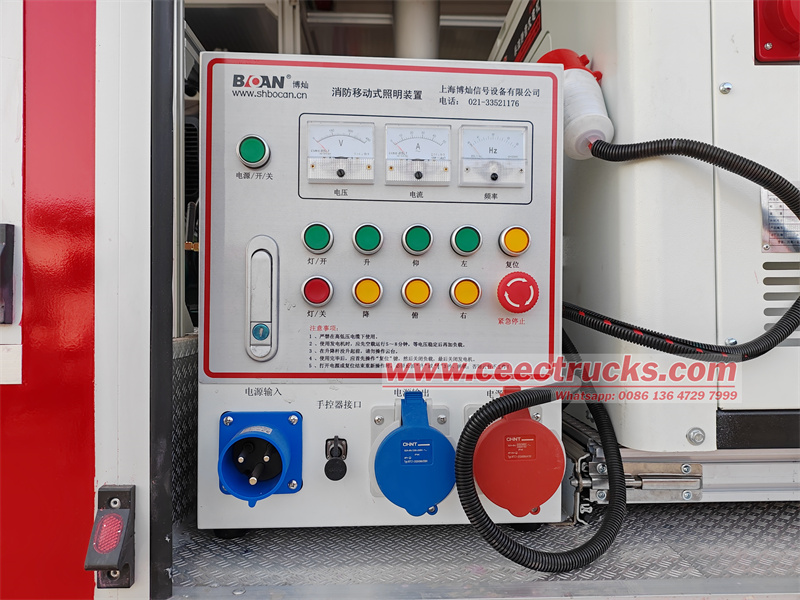

The front box is the "smart brain" and "source of light" of this car. The 360° rotating lifting lighting on the roof is like a "moving sun". The 15-meter telescopic rod + 6 sets of LED lights can instantly illuminate a 50-meter radius area, so that there is no visual blind spot for night search and rescue and post-disaster repair. What is even more amazing is its intelligent control system - the wireless hand controller supports no-dead-angle control within 50 meters, one-button lifting, dimming, and rotation. The operator can accurately adjust the lighting angle without taking the risk of approaching dangerous areas.

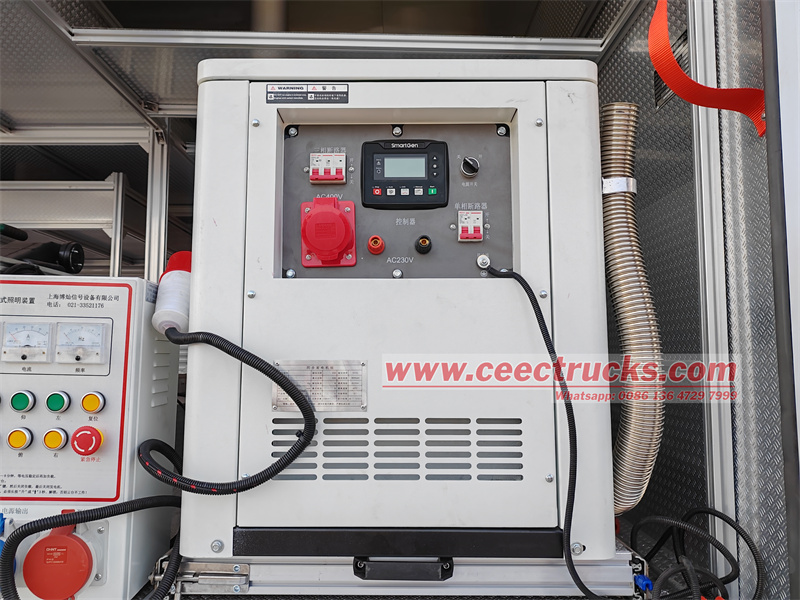

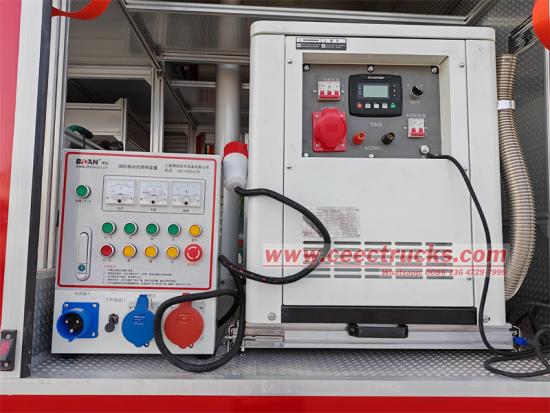

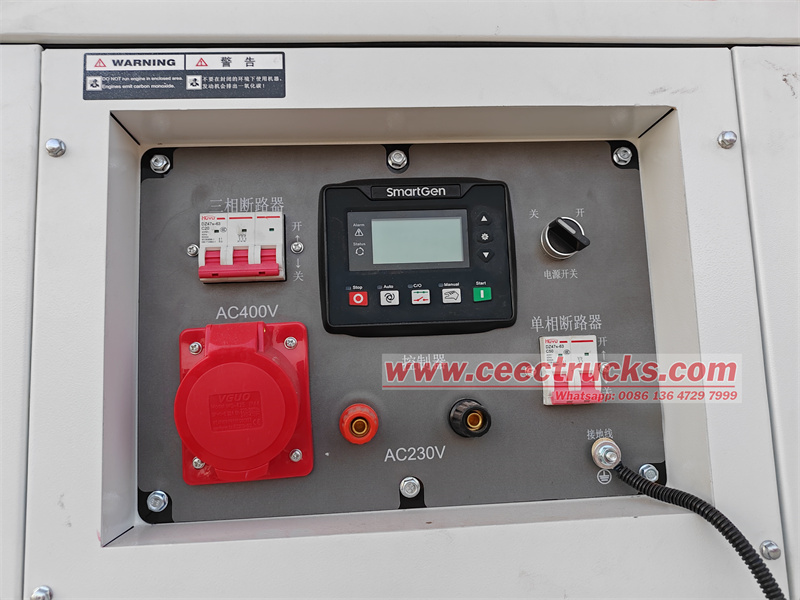

The "hero behind the scenes" of the lighting system is the 50kW synchronous generator set and SmartGen intelligent controller. The generator set can continuously supply power for 12 hours (full load), providing surging power for lighting, cutting machines, water pumps and other equipment; the controller monitors voltage, current, and frequency in real time, and automatically alarms and cuts off the power supply when abnormal to prevent equipment overload. The three-phase/single-phase circuit breaker switch equipped on the box is like an "electricity gatekeeper", independently controlling different loads to ensure the safety of power use of rescue equipment.

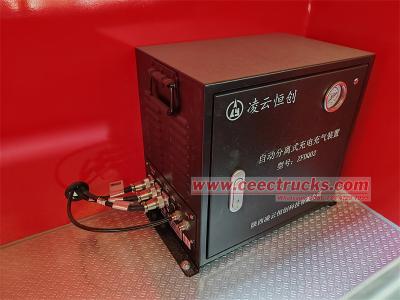

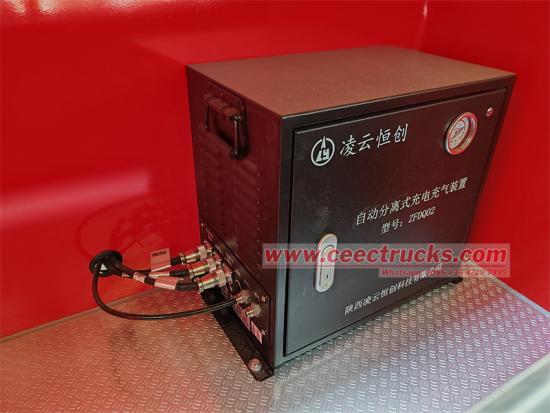

The ZFDQ02 automatic detachable charging and inflating device is a "logistics support expert" - the 0.8MPa high-pressure inflator can fill the life-saving air cushion or inflatable tent within 10 minutes, and the multi-device parallel charging module can intelligently identify the battery type and quickly recharge the walkie-talkie, headlights and other equipment, so that the rescue team is always "fully charged".

★. Arm of Strength: 5-ton folding arm crane, one arm holds up the hope of rescue

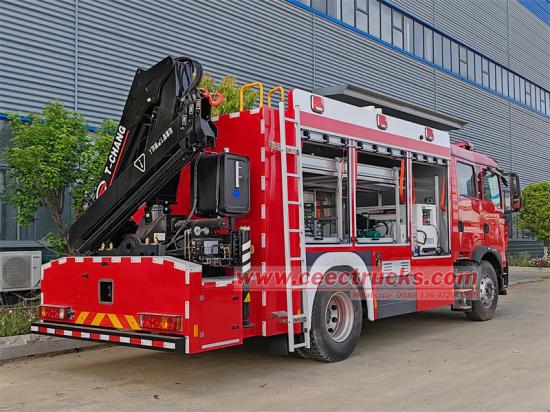

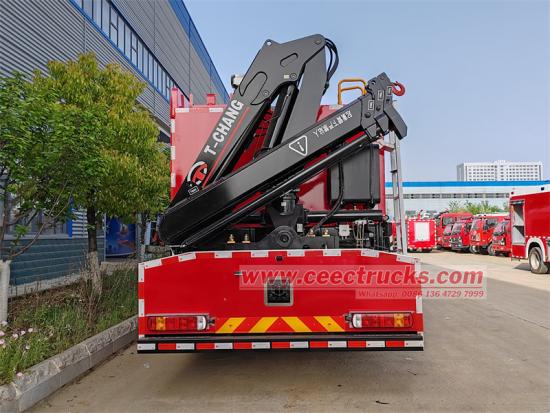

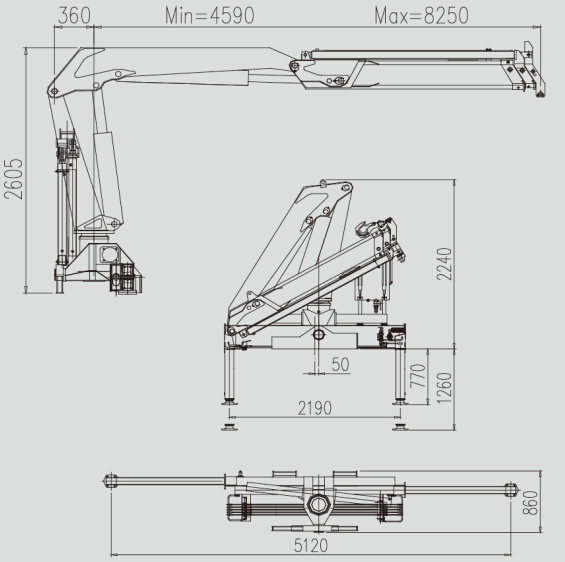

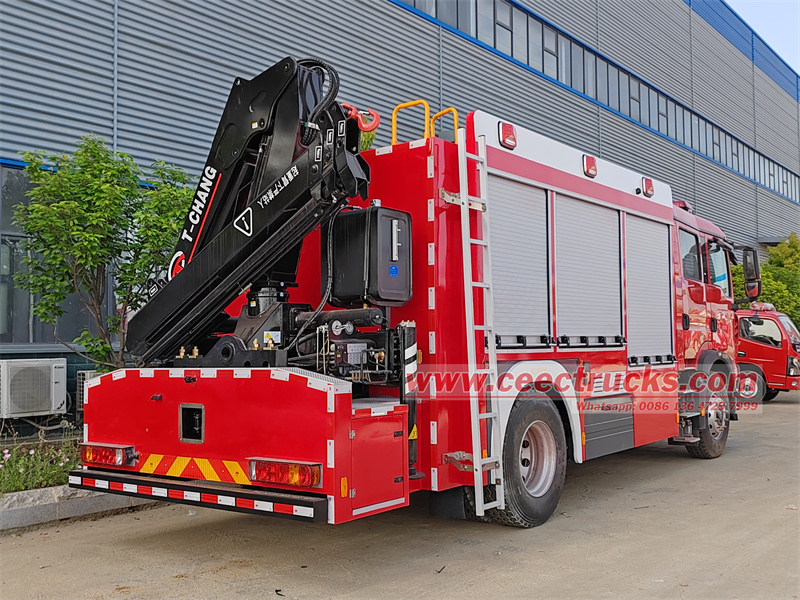

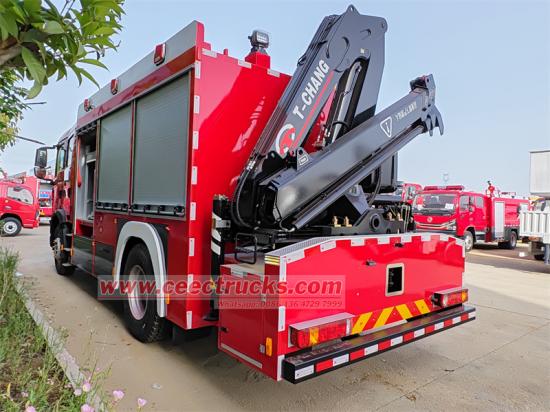

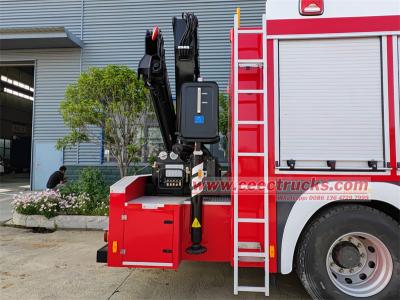

The T-CHENG SQ5ZA2 5-ton folding arm crane carried at the rear of the vehicle is the "muscle" of this vehicle. The operating range of 10 meters horizontal extension + 12.5 meters vertical lifting, combined with the 360° rotation ability, allows the crane to accurately reach any position around the vehicle. The maximum lifting capacity of 5 tons is enough to lift overturned vehicles, heavy equipment or hazardous chemical containers, and the folding arm design allows the crane to shrink to 3.5 meters when not in operation, easily passing through the city's height-restricted sections.

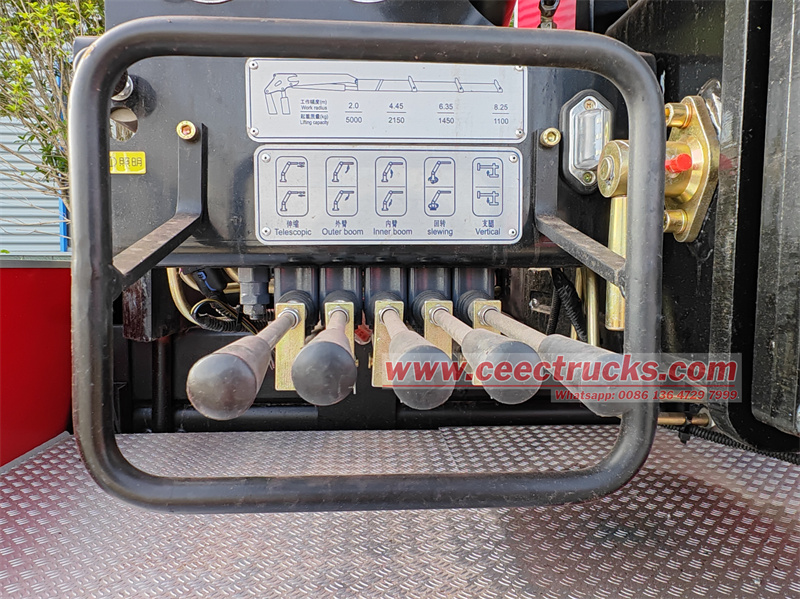

The hydraulic four legs are the "stable anchor points" of the crane. Each leg can carry 5 tons. The independent horizontal/vertical adjustment function allows the vehicle to be as stable as a mountain on uneven roads such as slopes and soft soil. The left and right dual joysticks and the remote control in the cockpit form a "dual-station operating system" that supports synchronous/independent control, with a response speed of ≤0.3 seconds and a lifting accuracy of ±2cm, allowing the operator to "point and hit" in complex environments.

★.  Application scenarios

This vehicle is widely used in:

• Fire departments: night fire fighting and lighting at large accident sites.

• Municipal engineering: power repair and high-altitude equipment installation.

• Emergency rescue: lifting and support of materials in earthquakes and floods, as well as on-site lighting.
