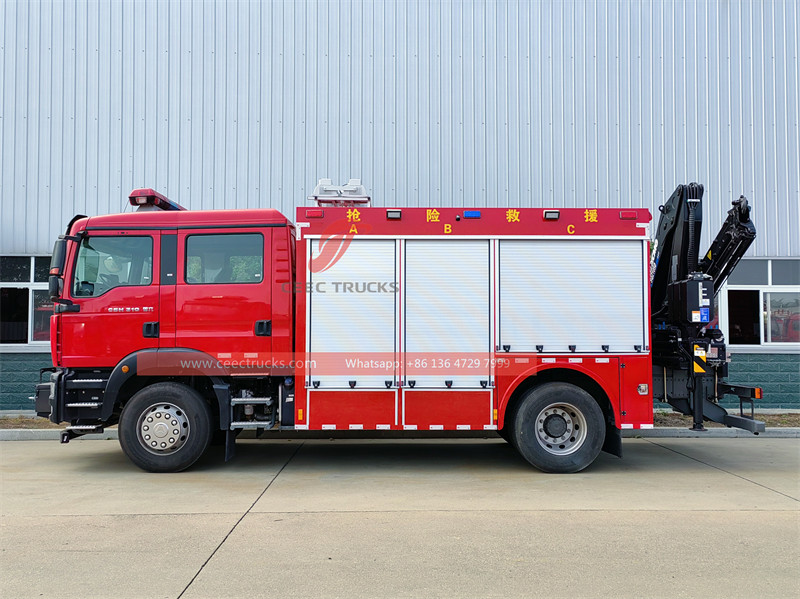

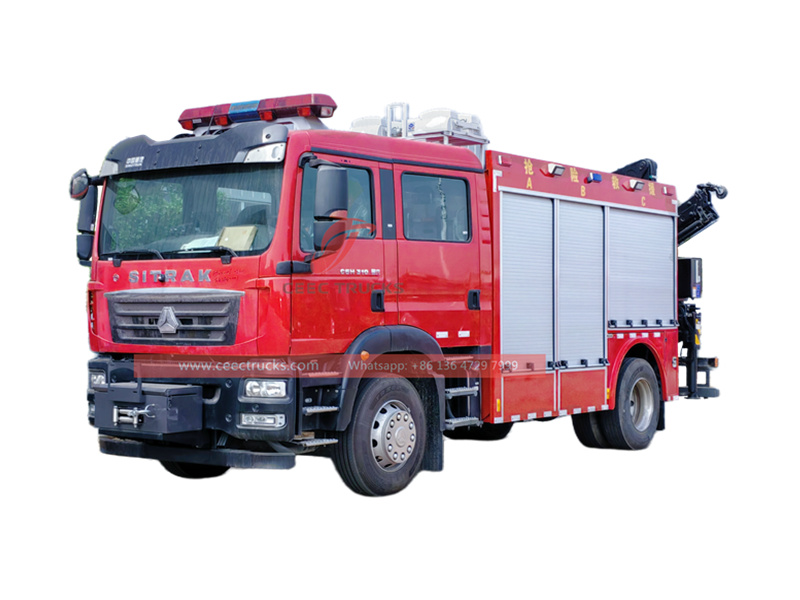

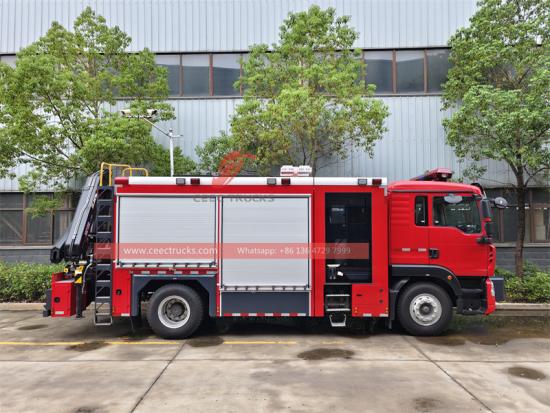

Howo emergency lighting fire truck

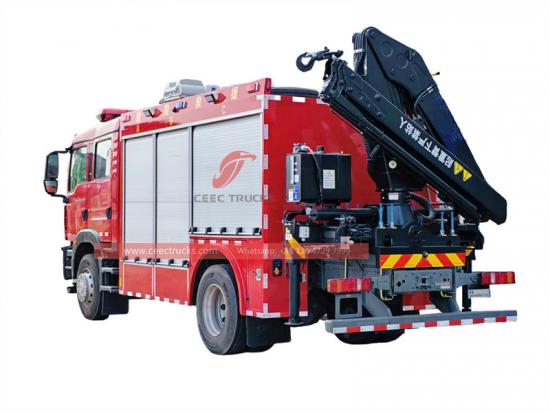

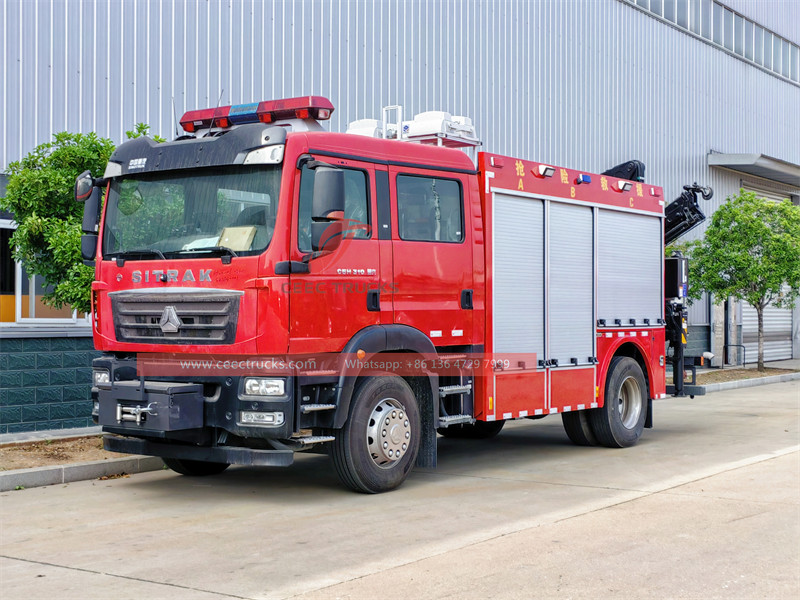

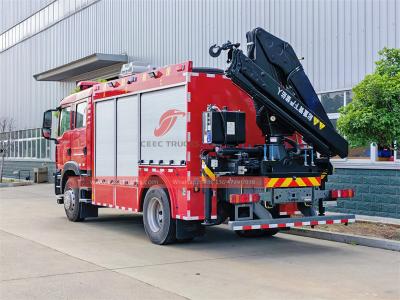

The Howo emergency lighting fire truck, built on the premium Howo C5H chassis, combines superior power with environmentally friendly emissions. With all-wheel drive, it can handle any challenging road conditions. Equipped with an independent power generation system and emergency lighting system, it provides multi-angle, all-round illumination for quickly illuminating rescue routes in the event of a fire. The control panel offers selectable languages and a variety of optional configurations to meet diverse needs. The Howo fire rescue truck is also equipped with a 6 ton folding boom crane at the rear for heavy lifting. A 3 ton, 35m electric tow rope is located in front of the cab.

Work capacity:
5 hours
Dimension ( mm ):
7800*2500*2850 mm
Wheelbase ( mm ):
4600 mm
Engine power:
310 HP
Engine type:
MC07.31-50
Axle drive:
4*2,Left Hand Driving
Gear box:
HW 10 Forwards & 1 Reverse
Remarks:
4×2, RHD/LHD can be optional

Inquiry now

Howo 4x2 fire rescue truck

*Howo 310HP fire rescue truck

Howo double cabin fire emergency lighting Truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer:CEEC Trucks

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 4X2 or 4x4 model

WP model with 310HP and Euro 2,3

2. Tank material: 4-6mm thick stainless steel for prolonged service life
carbon steel, aluminum alloy or PP material can be choose

3. Lighting system: 30kW generator set,mast height ≥ 7 m,360° pan-tilt rotation

4. Knuckle crane: 7.5m length, 6 ton lift capacity

5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue

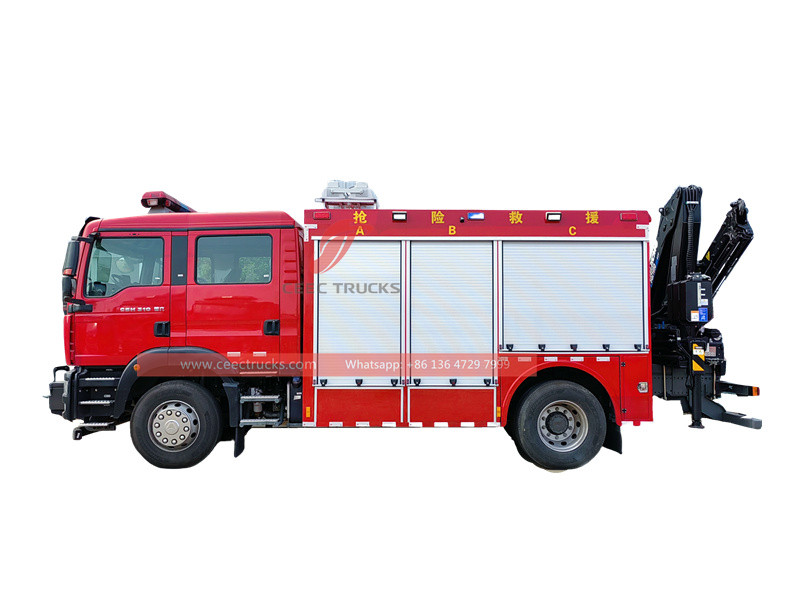

Howo 4x2 fire rescue truck

» Ⅱ.Product Parameter for Howo 4x2 fire rescue truck

Howo 4x2 Fire Fighting truck
Model	CS52203YJXF
Dimension	7800 mm2430 mm3360 mm
Full Load Weight	11580 KG
Number of the Crew	2+3 (include driver)
Max. Speed	95km/h
Painting	Red color of U.S. PPG
Howo 4x2 Chassis
Manufacturer	Howo
Drive type	4*2
Tire	295/80R22.5
Wheelbase	4600 mm
Engine model	MC07.31-50
Engine type	Inline 6-cylinder, turbocharged, inter-cooled diesel engine
Rated power	310 hp
Gearbox form	HW09, 9 forward gears + 1 reverse gear
PTO	Full power sandwich type
Fuel tank capacity	300L
Superstructure
Standardized Sub-frame
Material	High-strength rectangular tube made of special steel
Performance	The liquid tank and the sub-frame are connected by elastic connecting seats

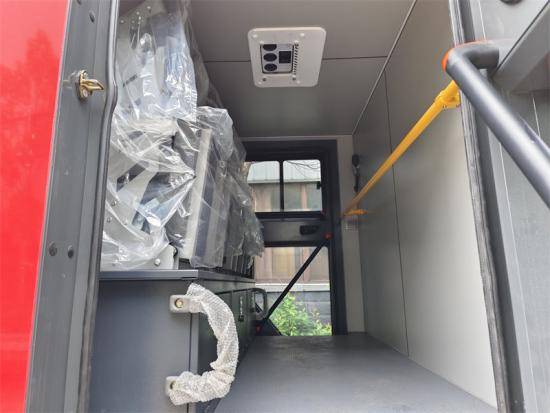

Compartment
Material	High-strength aluminum alloy profiles (Never Rust)
Structure	Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear
Roller Shutter Door
Material	Aluminum alloy profiles with anodized surface
Structure	With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
Foot Pedals
Material	High quality aluminum alloy
Structure	50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment.
Superstructure Electric Appliance
Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
Strobe Light	Mounted on the both sides of the compartment
External Lighting	LED lights are mounted on the both sides of the compartment
Roof Lighting	LED lights are mounted on the inside of the roof
Side Indicator Light	Inline yellow warning light is mounted on the side of the compartment and pedals
Electrical System
Battery	Lithium iron phosphate battery
Capacity	100 minutes
Security	Fireproof and anti-leakage design
Voltage	Converted to 220V AC through inverter

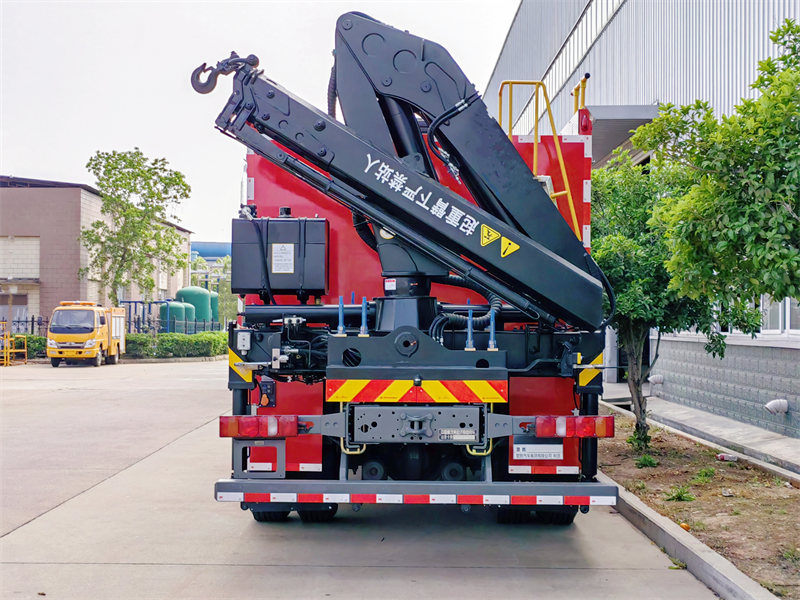

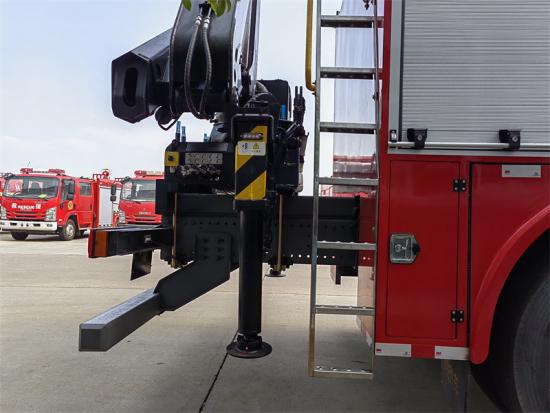

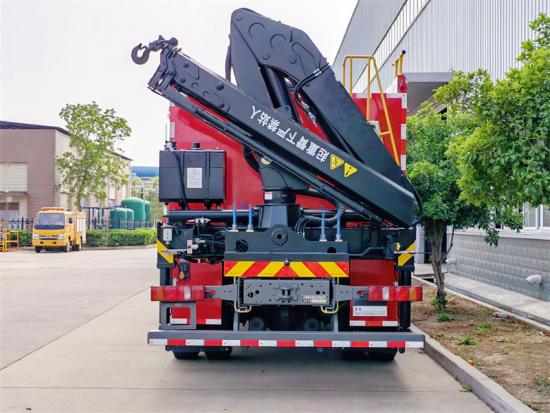

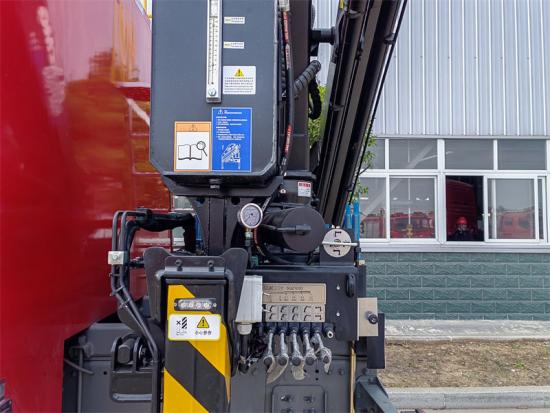

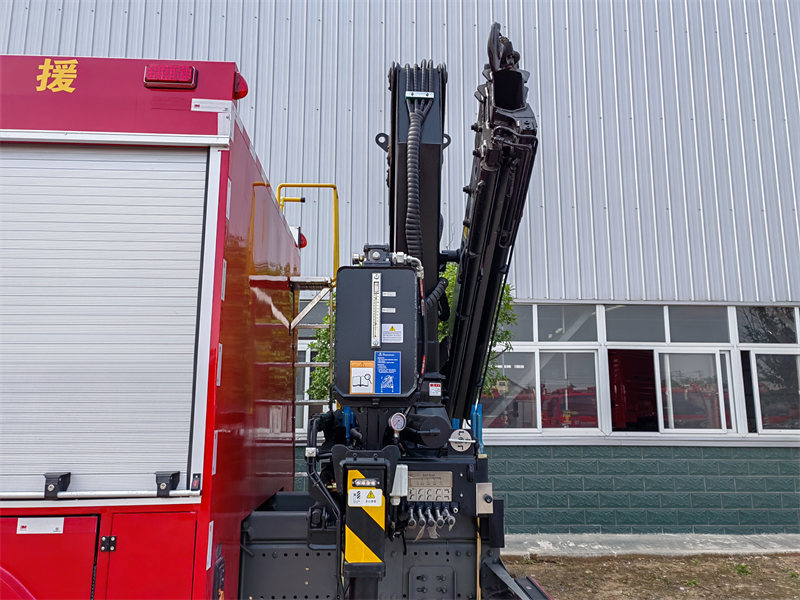

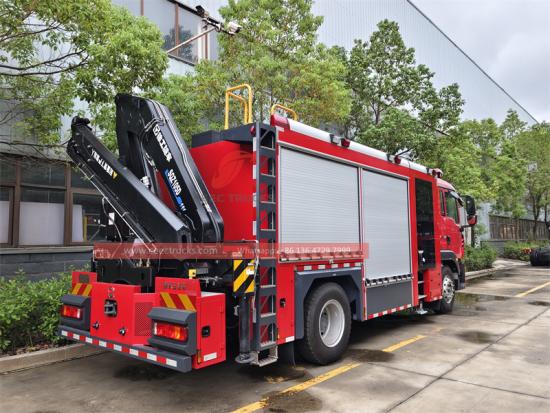

Kuncle Crane
Crane brand	CS Trucks Group
Crane weight	1796 kg
Max. lifting weight	6790 kg
Max. working height	6.1 m
Max oil flow of hydraulic system	25 L/min
Rotation angle	520°, all rotation
Installation position	Rear of the truck

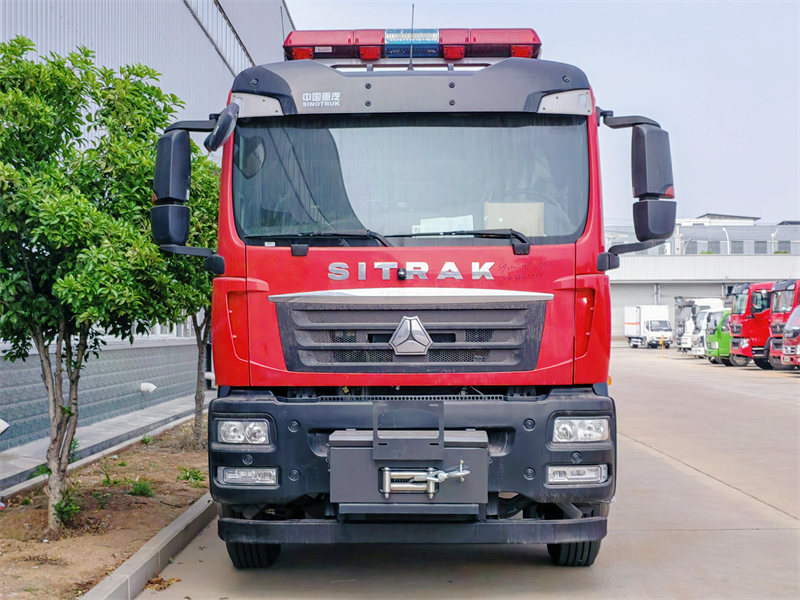

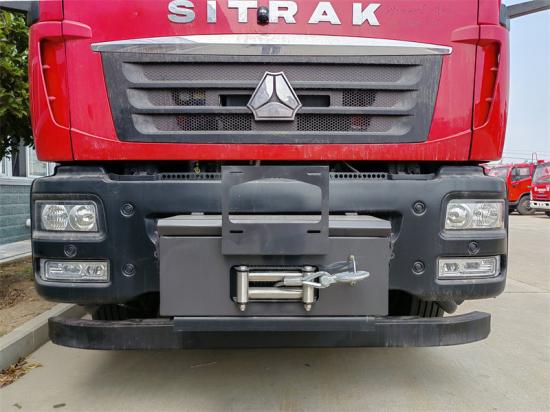

Electric Winch
control type	Electric control box
Distance	35m

-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)

» Ⅲ.High-quality Production Standards

1. Doubled Utilization of Prime Time

♦ The Howo Fire Rescue can simultaneously emergency lighting, heavy object handling, and Firefighting tool storage;

♦ Consolidating these three functions into a single vehicle, reducing the number of vehicles and improving rescue efficiency.

♦ From alarm receipt to rescue deployment, the time is only 4 minutes and 30 seconds, 8 minutes faster than traditional formations.

♦ The chassis features an integrated 300L fuel tank and dual circuit system, supporting 72 hour uninterrupted operations.

2. Chassis Performance

♦ Engine and Powertrain The Howo C5H is equipped with an MC07.31-50 diesel engine, delivering a maximum power of 228 kW (approximately 310 HP) and a torque of 1230 N·m.

♦ Its stable power output and excellent fuel economy make it suitable for long, intensive operations.

♦ The dual-battery design ensures stable operation of electrical equipment under extreme conditions.

♦ Equipped with heavy-duty 295/80R22.5 tires, it offers a minimum turning radius of ≤12 meters and a wading depth of ≥800 mm, making it suitable for complex terrain and adverse weather conditions.

3.Modular and multifunctional integration

♦ Structural design：

The chassis adopts a high-strength carbon steel frame, anti-twisting box structure, and the external rolling door design facilitates quick access to rescue tools.

The interior is equipped with adjustable aluminum alloy storage racks and rotating trailers to optimize space utilization.

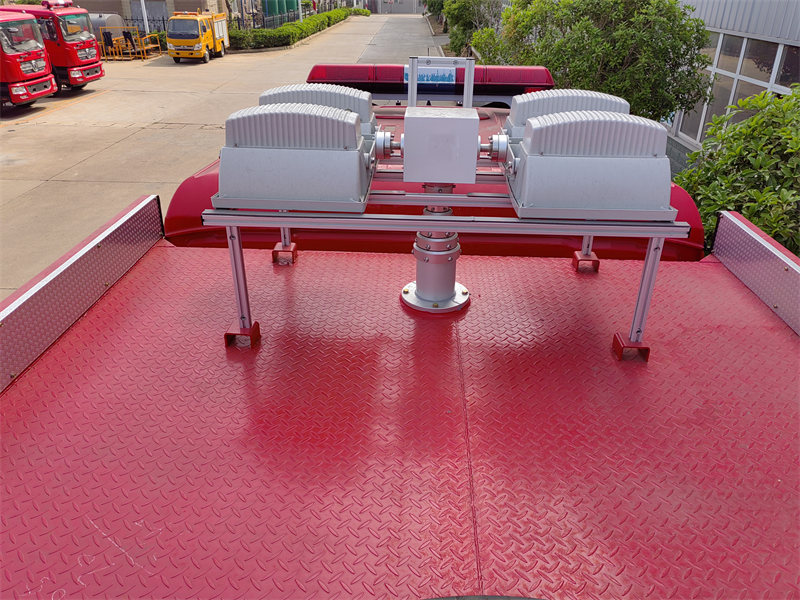

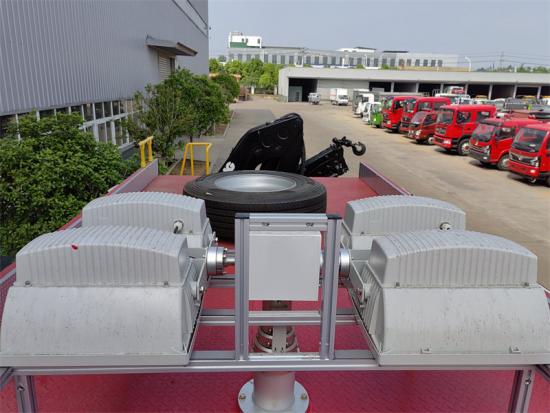

♦ Emergency lighting system：

Integrated with 30kW generator set and lifting lighting, mast height ≥ 7 meters, support 360° pan-tilt rotation and wireless remote control, coverage radius over 100 meters.

The lamp protection level reaches IP67, suitable for high humidity and dusty environments such as tunnels and chemical areas.

♦ Multi-task expansion capability：

It can carry rescue equipment such as hydraulic demolition tool sets and life detectors.
