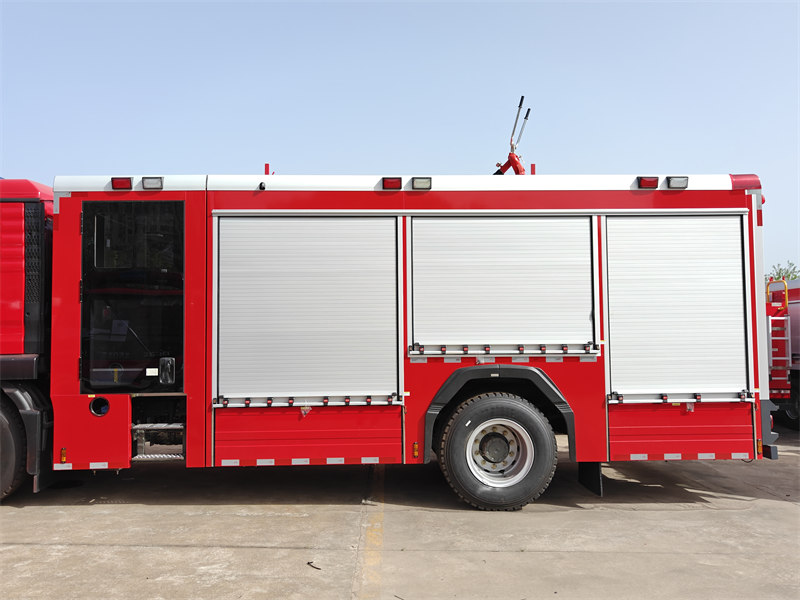

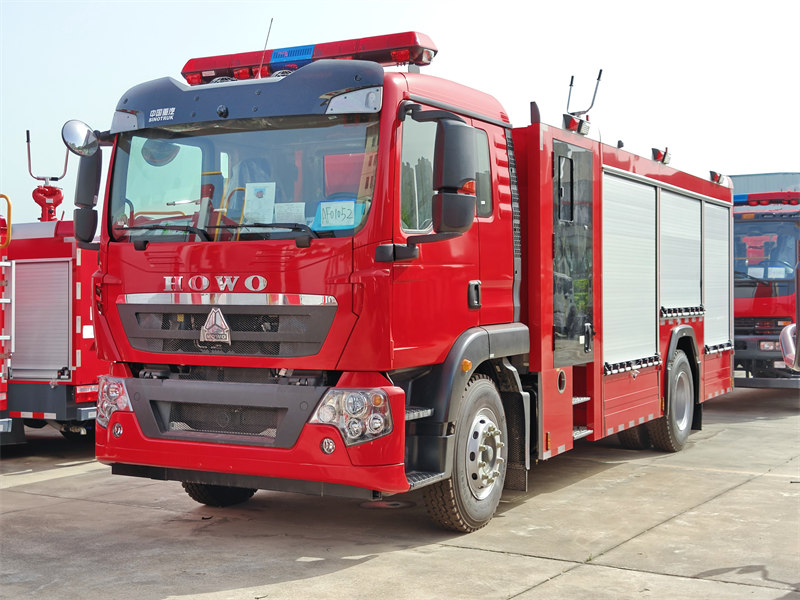

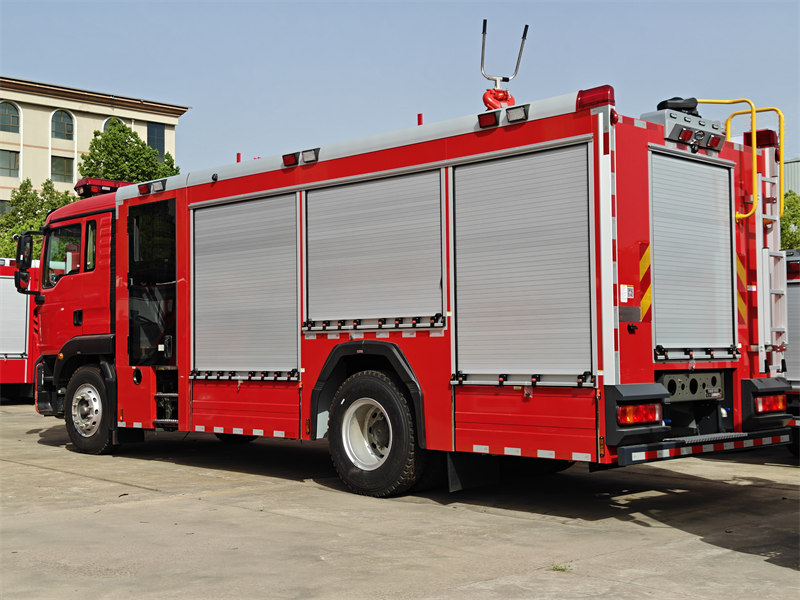

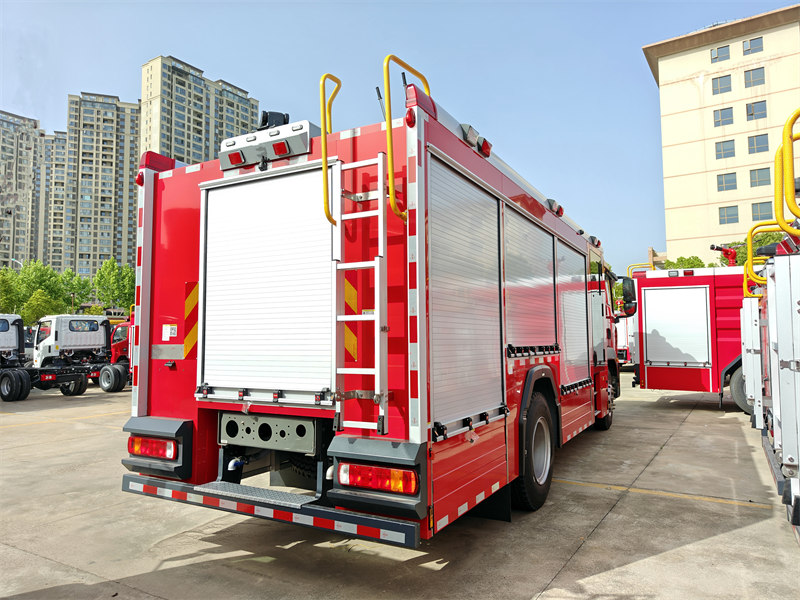

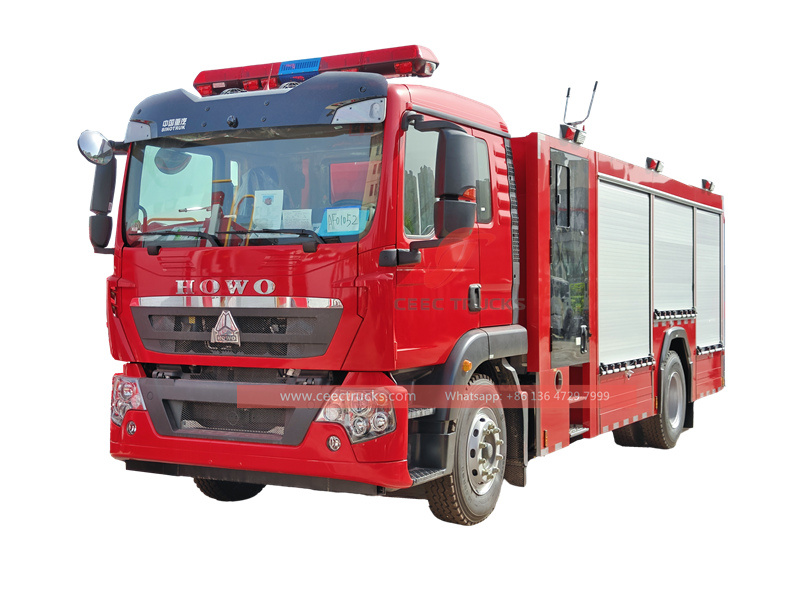

The 5CBM fire water truck is built on the sturdy Howo TX cabin chassis. It combines excellent power and environmentally friendly emissions. High engine power WP.10.340E32, it can challenge all kinds of difficult roads. It’s equipped with a 4000L large capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs.

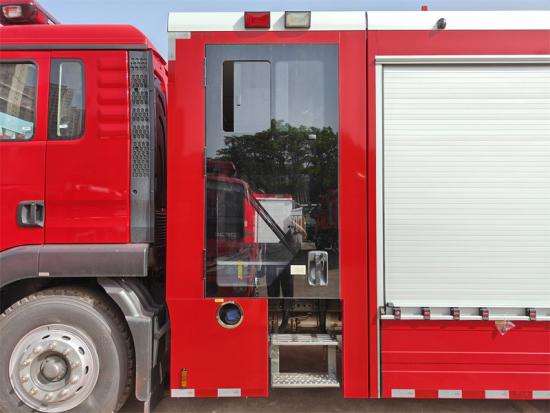

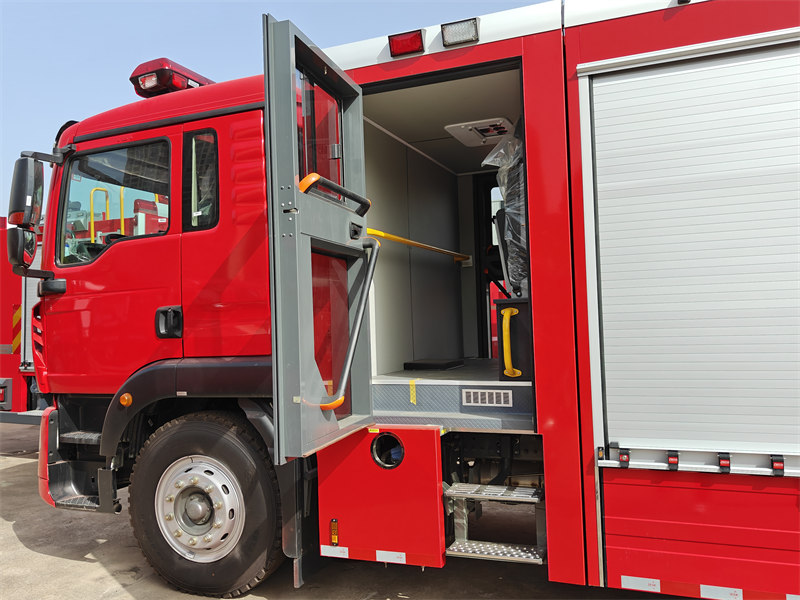

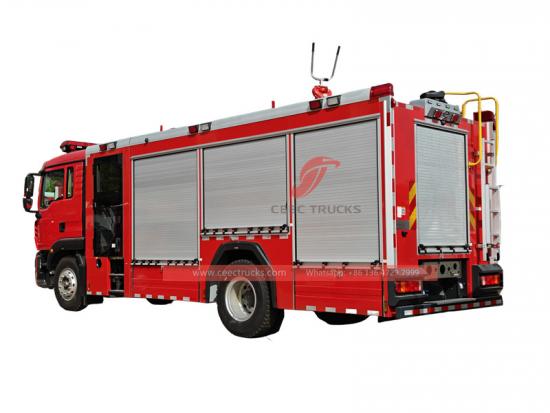

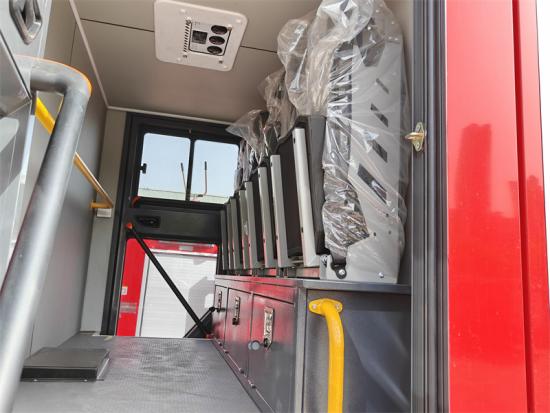

The Howo fire fighting truck with independent cabin provides enough space and quality to load firefighting equipment. The independent cabin can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions.

*Howo 340HP fire fighting truck

Howo TX double cabin fire rescue Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 4X2,4x4 model

                              WD model with 340HP and Euro 2,3

2. Tank material: 4-6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy or PP material can be choose

3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

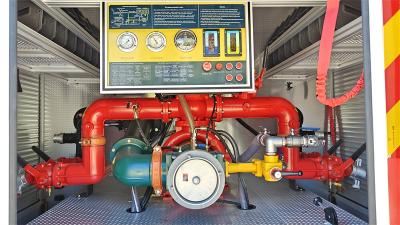

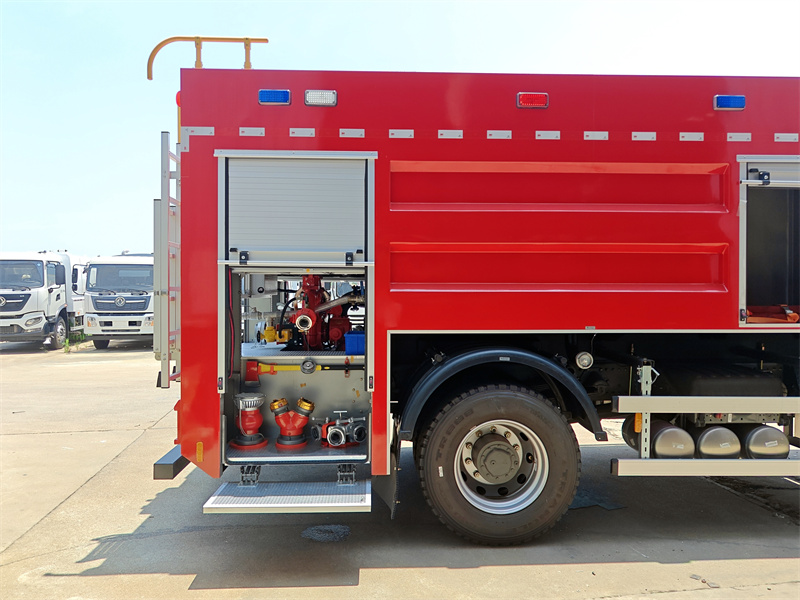

4. Fire Pump: CB10/40 centrifugal fire pump, flow rate 40L/s, working distance over 55m
                        Optional CB10/60, CB10/80 also available Darley fire pump

5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m

                                Optional equipped CAFS foam system and Dry Powder system

                                Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue











Firefighting truck also know as fire engine, fire pumper, tanker fire truck, fire water truck, fire fighting tanker, water tank fire truck, foam tank fire truck, dry powder fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, foam tender, fire service truck, fire hydrant, which is an emergency rescue vehicle designed primarily for fire fighting, also to extinguish fire efficiently to prevent fire spread, and rescue people in emergency.



» Ⅱ.Product Parameter for Howo 4x2 fire rescue truck







Product Name	Howo fire water truck
Chassis Series	Howo TX Series
Vehicle Model	CSC51803MXF
Main specifications	Manufactory	CEEC Trucks
	Overall dimension(L*W*H)	8600×2480×3360mm
	GVW	25000Kg
	Curb weight	12500Kg
	Water tank volume	4,000 liters
	Cabin	Single cabin, 2seats,with Air conditioner, electronic windows, USB
	Independent cabin	5 firefighter
	Wheel base	4600mm
	Driving type	4*2
	Chiassis model	Howo
	Transmission	Fast 8-speed forward, 2 reverse
	Number of axles	2
	Tire specification	12.00R20 18PR
	Number of Tires	6 pcs with 1 spare tire
Engine	Engine model	WP.10.340E32
	Type of fuel	Diesel
	Displacement/power	9.839L / 340 Ps
	Maximum torque	1600N·m
	Max speed	95 Km/h
	Emission standard(TAS)	EURO 3
Fire performance	Water tank capacity	4000L
	Fire pump	China Top brand
		Model: CB10/40
		Low-pressure:40L/S
		Medium-pressure:40L/S

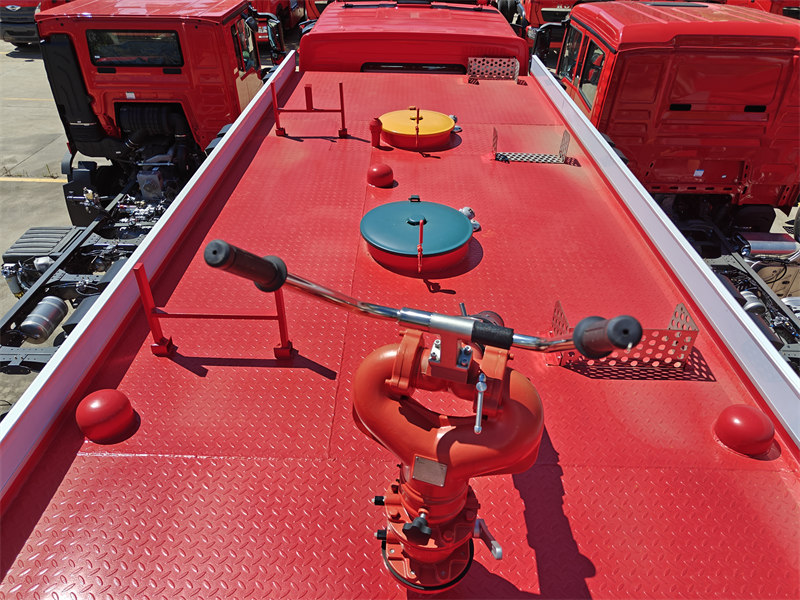

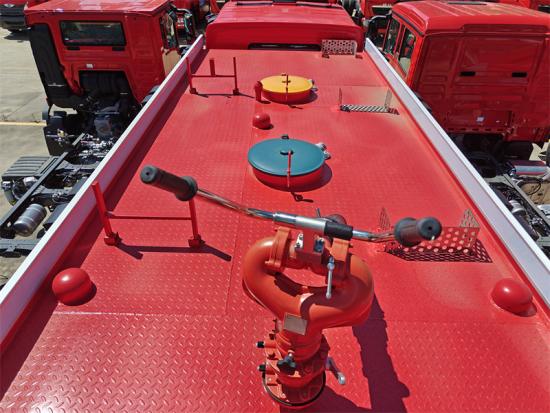

	Fire monitor	China top brand
		Model:PS48
		Working pressure: 1.0MPa
		Flow:40L/S
		Water jet distance:≥55m
		Rotation angle: 360° horizontally, -45° to 70° in pitch

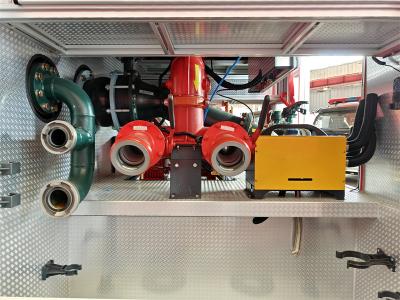

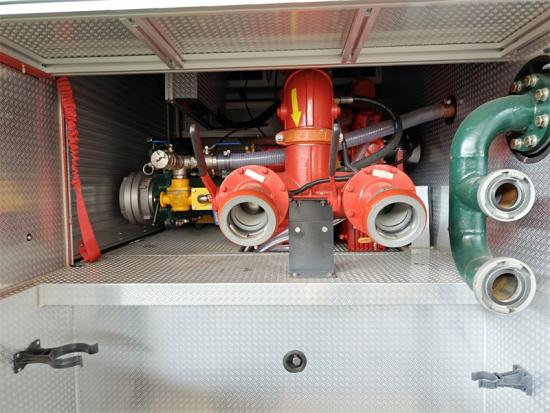

	Fire pump Input	1 unit, diameter: 100mm
	Fire pump Outlet	2 units, diameter: 65mm 2 units,diameter: 85mm

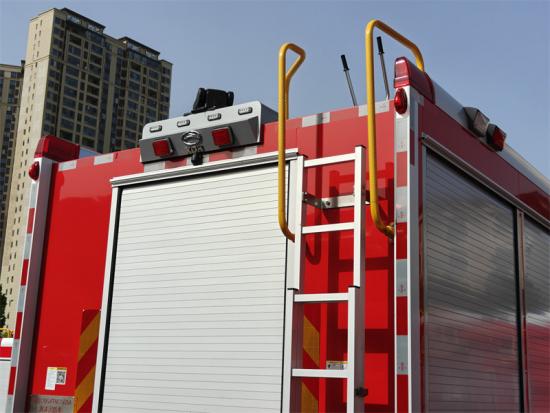

	Standard configurations	Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose





-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)



» Ⅲ.High-quality Production Standards



1. Power and terrain adaptability

♦ Adopting Howo heavy chassis, it can cope with extreme terrains such as mountains, mud, ice and snow.

♦ The minimum ground clearance is optimized to 250mm, and the approach angle/departure angle are 30° and 20° respectively.

♦ Ensuring the passability of the Howo all-drive fire truck in collapsed buildings or wild fire scenes.

♦ Equipped with WP10.340E32 turbocharged diesel engine, with a 10-speed synchronous meshing gearbox, the low-speed torque distribution efficiency is increased by 15%.



2.High flow and long range

♦ The 6000L carbon steel water tank (optional 316L stainless steel) adopts a double-layer explosion-proof structure design with a pressure resistance of 1.2MPa.

♦ With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 300 seconds (single water source mode).

♦ Standard CB10/40 mid-mounted centrifugal pump (40L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 40L/s).

♦ Water cannon range of 55m (DC)/48m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.





» Ⅳ.How to use the Howo fire truck correctly?

⇒ Power system pre-inspection: Check the WP engine before starting daily. The oil level must be kept at the center line of the dipstick (API CI-4 or above), the coolant level (ethylene glycol-based long-term antifreeze), and the air filter clogging indicator status (pressure difference > 25kPa requires replacement).





Pre-inspection of water system: Inspect 8000L water tank，drain residual water to prevent freezing (in winter), monthly biofilm test on inner wall (ATP test <50RLU), accuracy of water injection filter device (≥200 mesh).





Fire pump verification: Confirm before starting, vacuum pump sealing (vacuum degree reaches -85kPa within 30 seconds), water outlet pressure sensor calibration (error <±0.2MPa), foam proportion mixer accuracy test (±1%).
